1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-f85d29a6-90a8-483b-bbe0-08a8b7d99925.png?width=214&height=462)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-7d4fb1ac-4851-47a6-938d-d8026b722bb8.png?width=214&height=462)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-2d3024d4-0326-4263-a485-9893f7bb4cac.png?width=214&height=462)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-65743b85-d7c2-4848-a099-b4efba822488.png?width=214&height=462)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-843c8ba4-2530-4276-90c7-732f2b146432.png?width=214&height=462)
2. Create new data connection

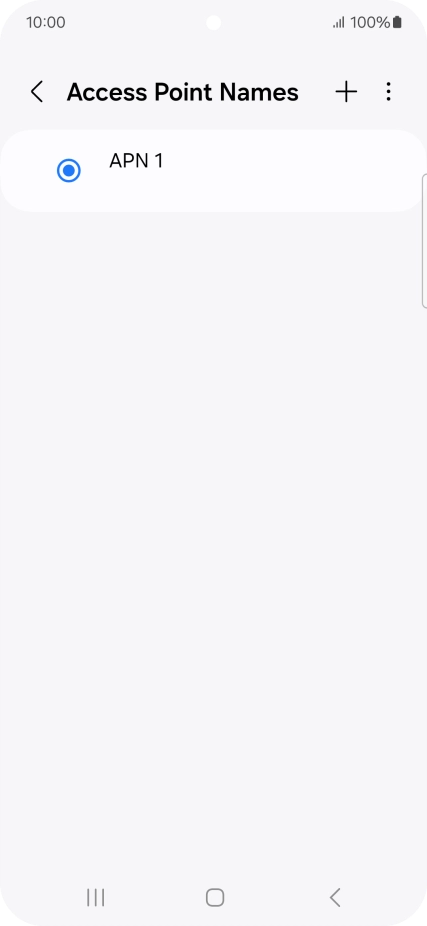

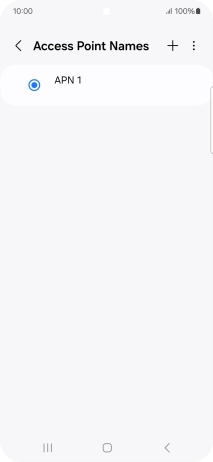

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-c65ebb6b-0a5a-4fd1-9709-66a69c06b655.png?width=214&height=462)

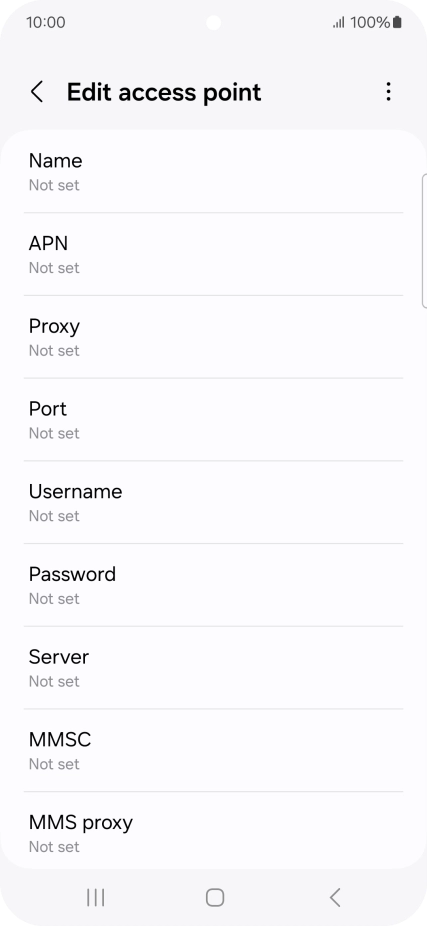

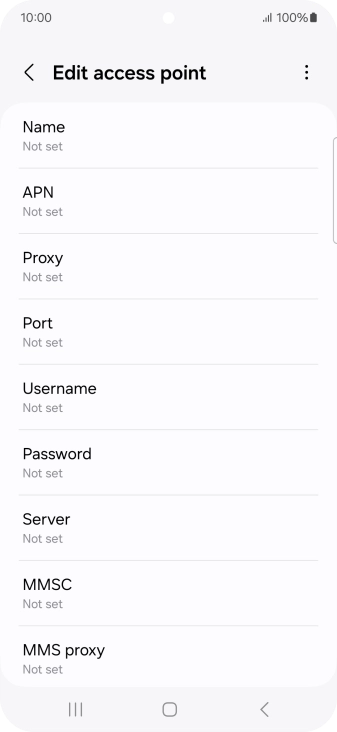

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-7e7a3ada-e246-4f74-ac7d-a873bbcba3bc.png?width=214&height=462)

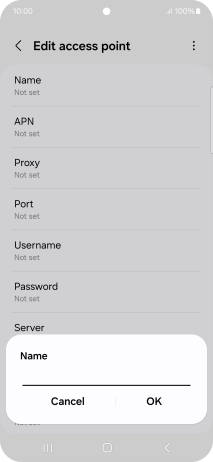

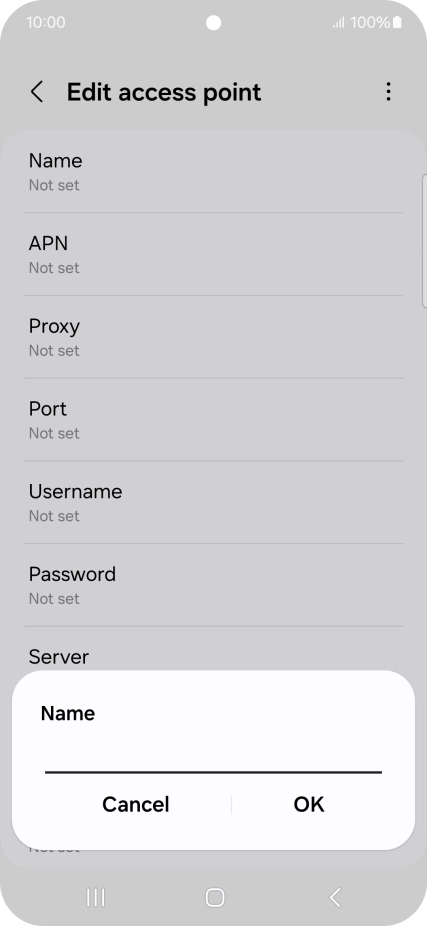

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-16dc63cd-18bf-4b15-8ba2-a32777da7392.png?width=214&height=462)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-7e7a3ada-e246-4f74-ac7d-a873bbcba3bc.png?width=214&height=462)

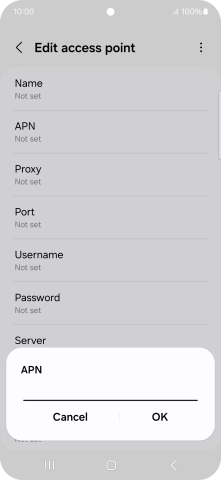

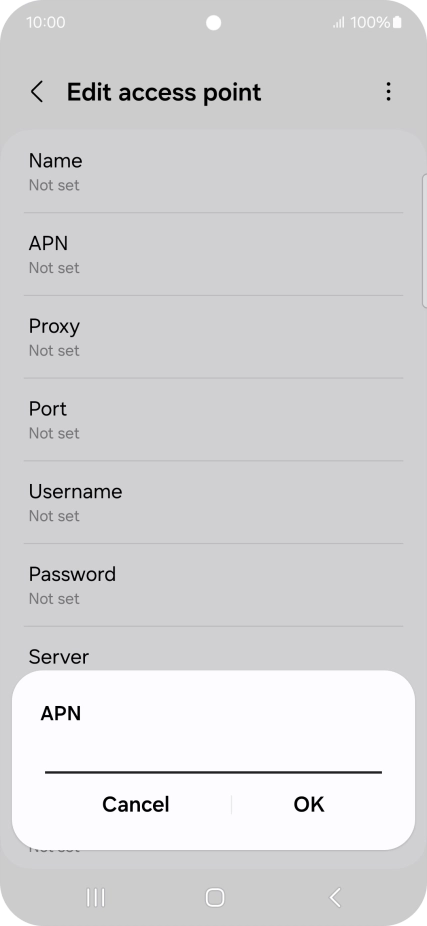

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-b8832bf6-13bb-4d51-8e1c-0d3384ca899a.png?width=214&height=462)
mms.vodafone.net
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-7e7a3ada-e246-4f74-ac7d-a873bbcba3bc.png?width=214&height=462)

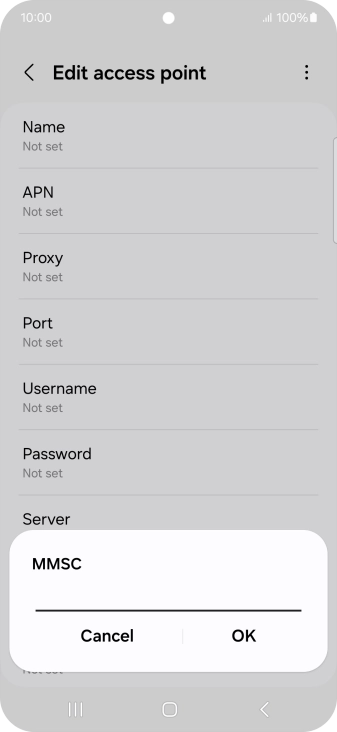

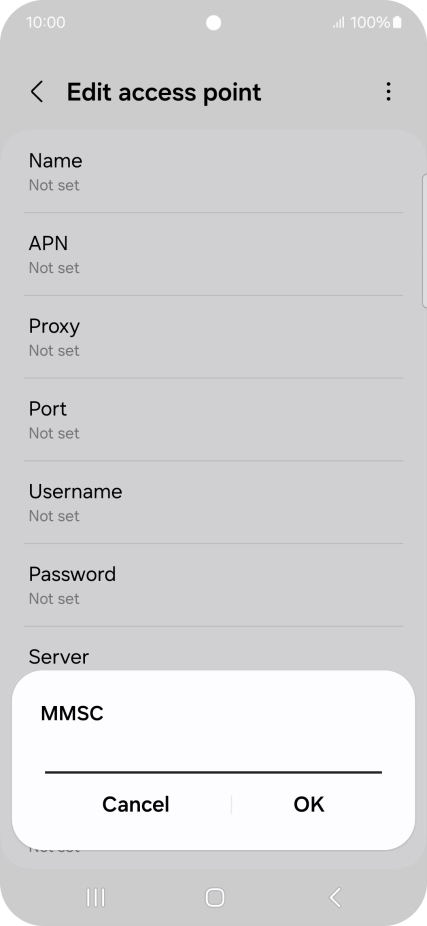

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-3c18a015-8e0e-43cd-99bd-3faee84f8f4d.png?width=214&height=462)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-7e7a3ada-e246-4f74-ac7d-a873bbcba3bc.png?width=214&height=462)

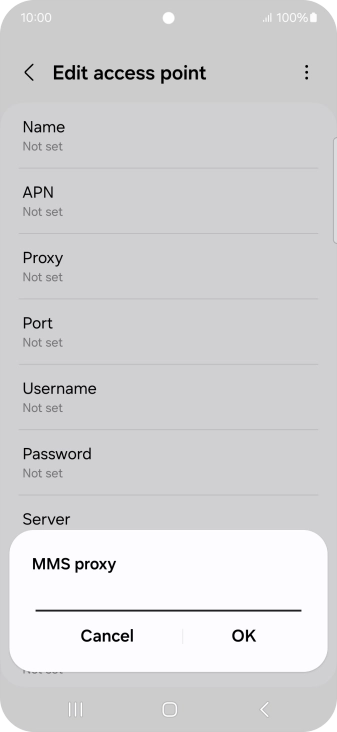

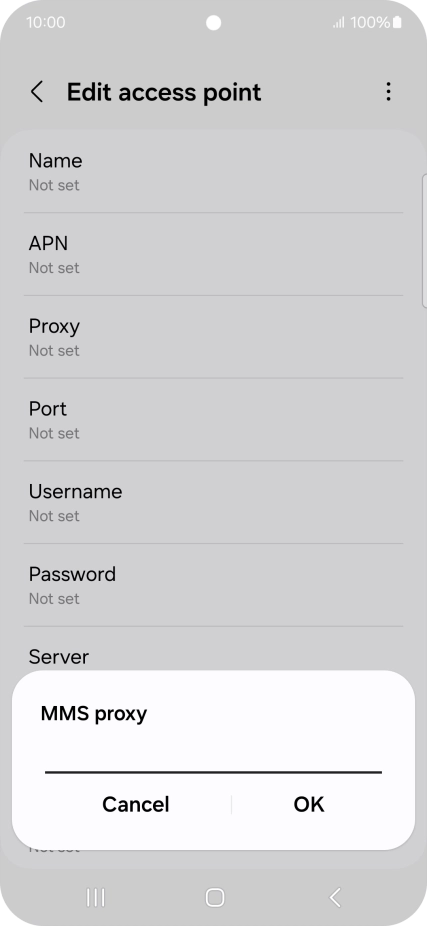

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-163f277f-7628-4a17-8a02-8fbfebf97a65.png?width=214&height=462)
10.24.59.200
6. Enter port number

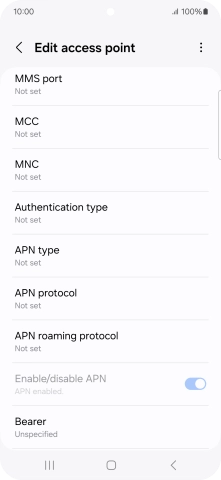

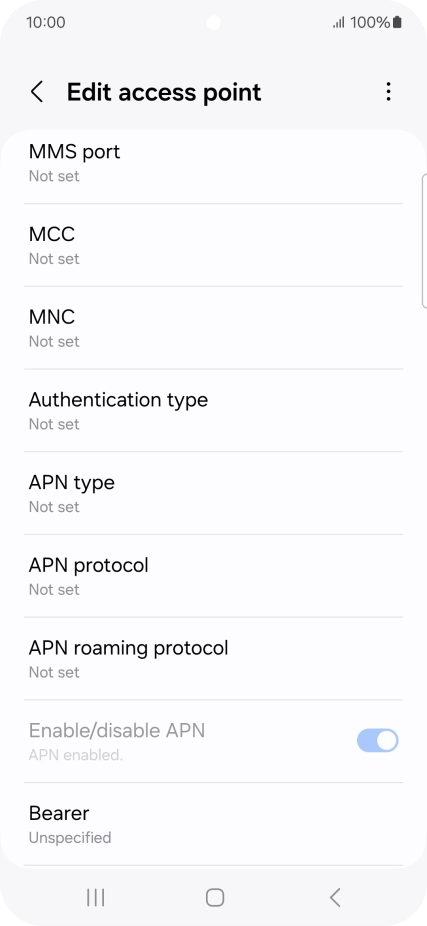

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-ad245d4b-c4d6-4f0d-9113-59929eb9198a.png?width=214&height=462)

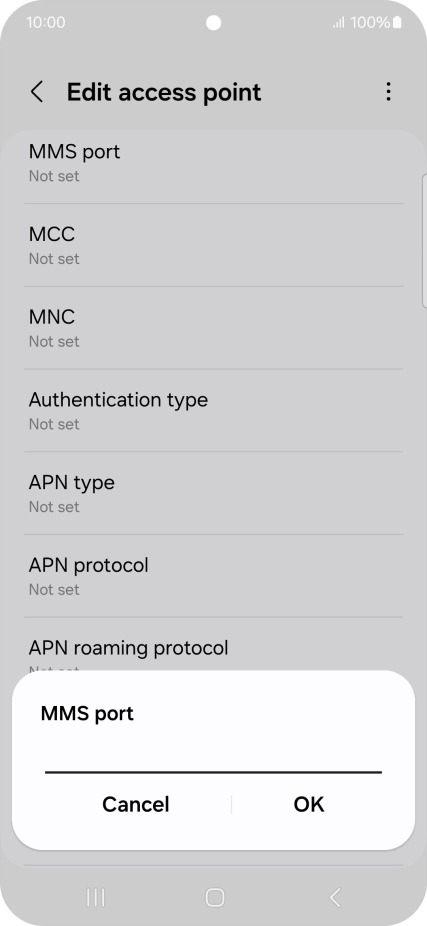

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-c76e8d3b-0e3b-48a3-9266-eae71f0185ab.png?width=214&height=462)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-ad245d4b-c4d6-4f0d-9113-59929eb9198a.png?width=214&height=462)

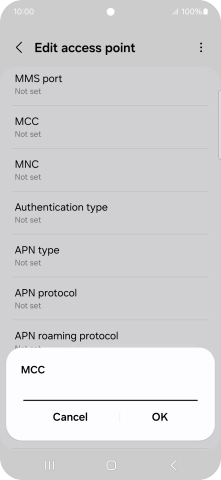

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-446eef4a-5144-408e-8859-07fff63d3c75.png?width=214&height=462)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-ad245d4b-c4d6-4f0d-9113-59929eb9198a.png?width=214&height=462)

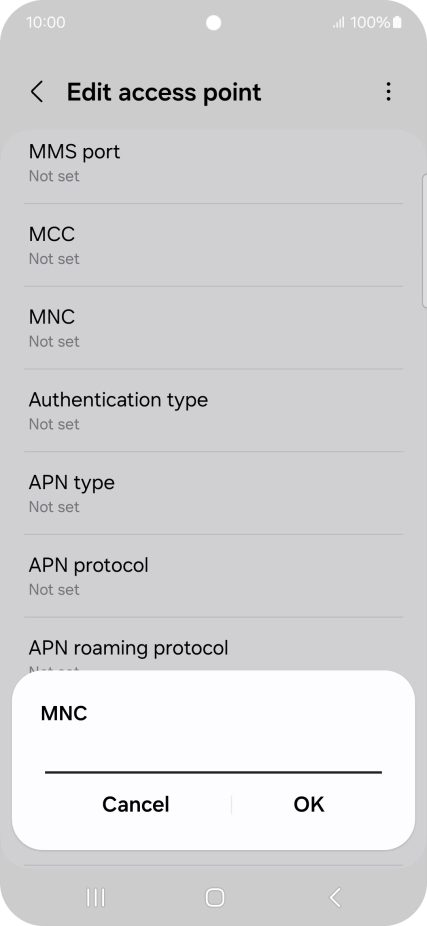

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-2a2b9cbe-1211-43f5-9169-f436c1c34cd1.png?width=214&height=462)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-ad245d4b-c4d6-4f0d-9113-59929eb9198a.png?width=214&height=462)

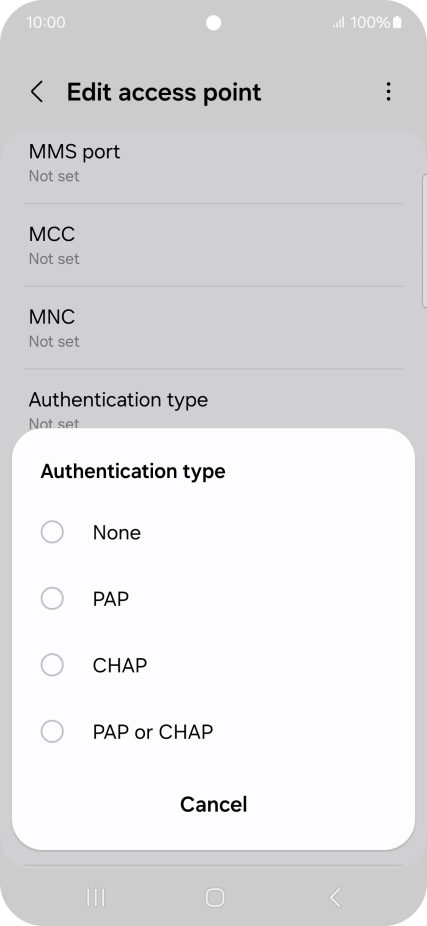

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-e5ee8056-056b-412c-ac92-97390cdbba61.png?width=214&height=462)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-ad245d4b-c4d6-4f0d-9113-59929eb9198a.png?width=214&height=462)

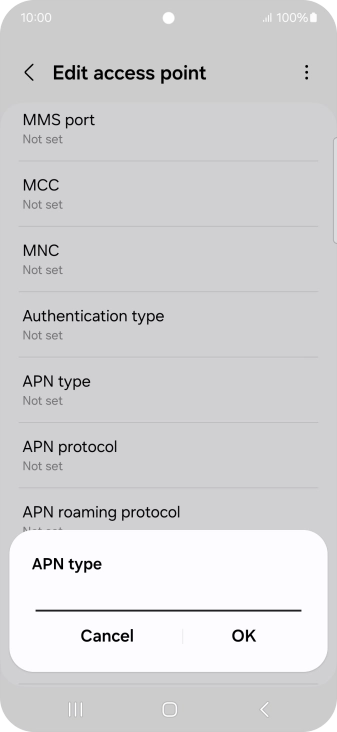

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-eb0b0088-7da1-4c01-8662-2758cd9ea974.png?width=214&height=462)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-ad245d4b-c4d6-4f0d-9113-59929eb9198a.png?width=214&height=462)

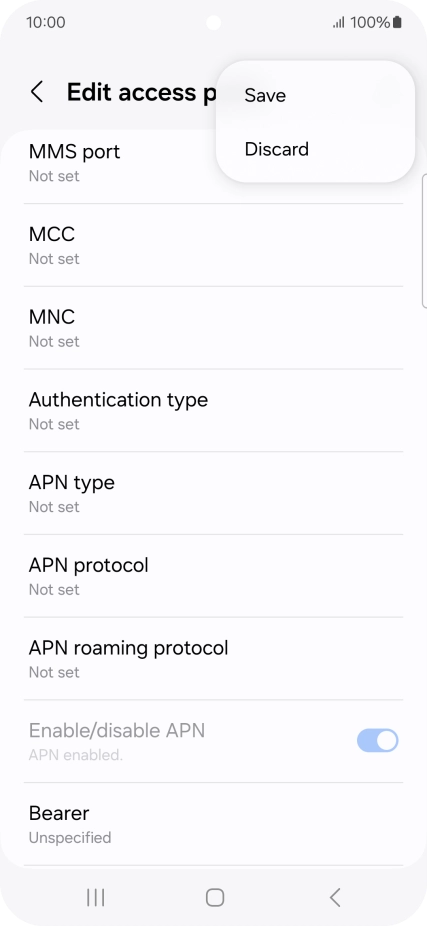

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-97524c06-1765-4c2c-8549-5424b9655f76.png?width=214&height=462)
12. Return to the home screen

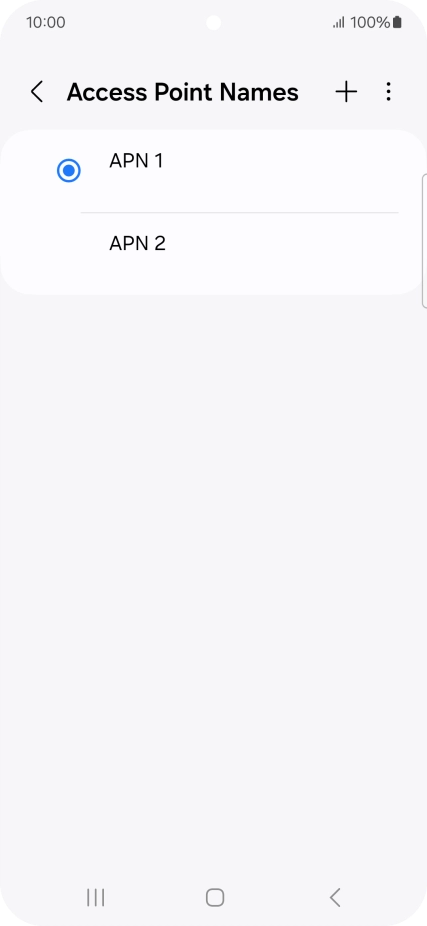

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7010224-f-73ab65c6-9972-4ea4-8027-56e14f84110c.png?width=214&height=462)
