1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-7b615281-013b-4b30-807d-70d15fc217a7.png?width=214&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-1be6eac2-abf7-4cce-ad40-b571105fe496.png?width=214&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-83b1dcd5-cc9b-4231-801e-0e22856bbd6a.png?width=214&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-6be9db4f-c4ee-4396-9445-64ca096156ad.png?width=214&height=458)

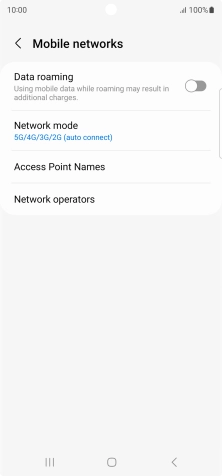

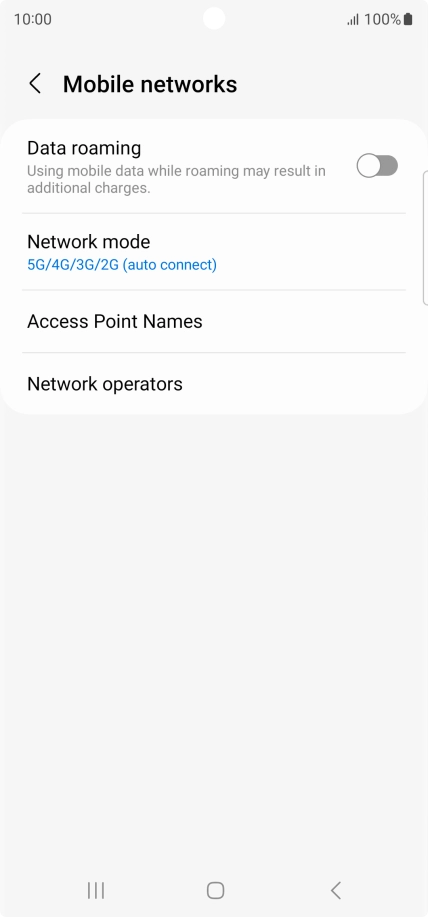

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-5d05c98a-71a7-4b72-a6c9-aace4cb1328e.png?width=214&height=458)
2. Create new data connection

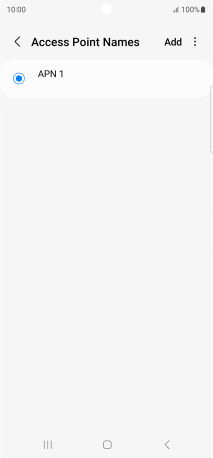

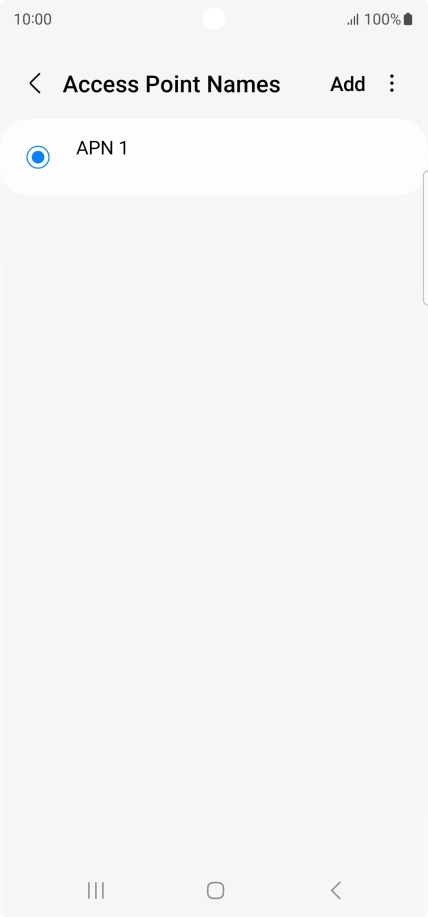

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-b3080b44-792a-4ad1-a7c9-bd6176d19aeb.png?width=214&height=458)

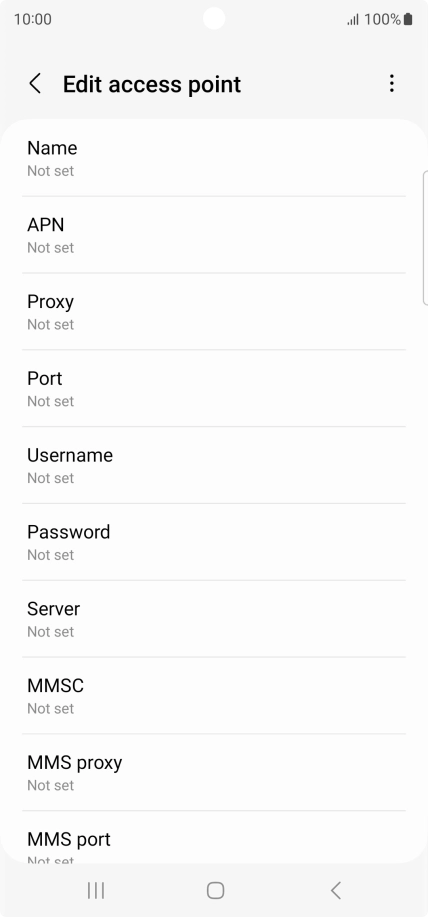

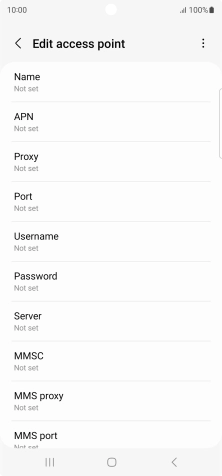

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-4e81732f-30b1-4399-b3dd-8e79710b68c3.png?width=214&height=458)

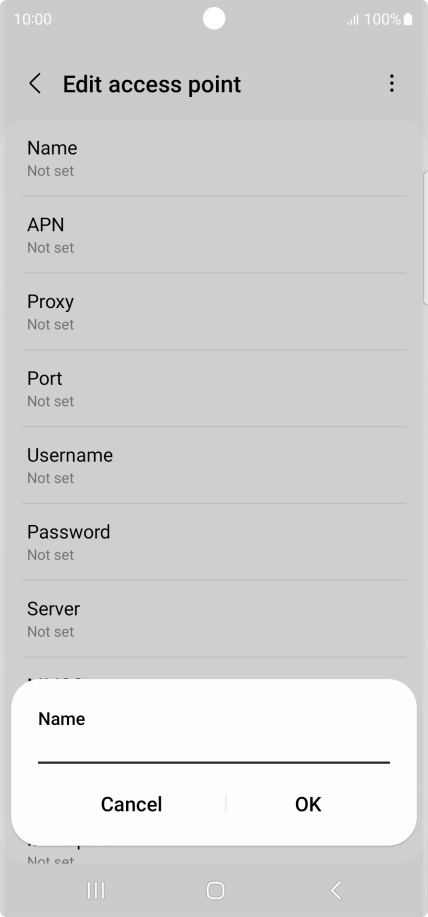

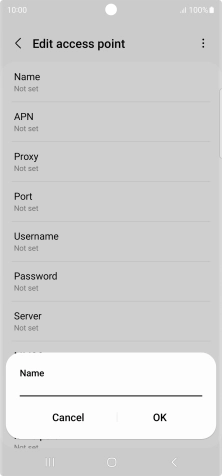

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-ae587d45-a59b-4718-b00e-2587eae959fb.png?width=214&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-4e81732f-30b1-4399-b3dd-8e79710b68c3.png?width=214&height=458)

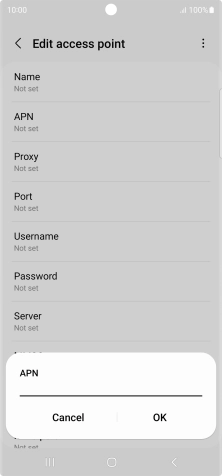

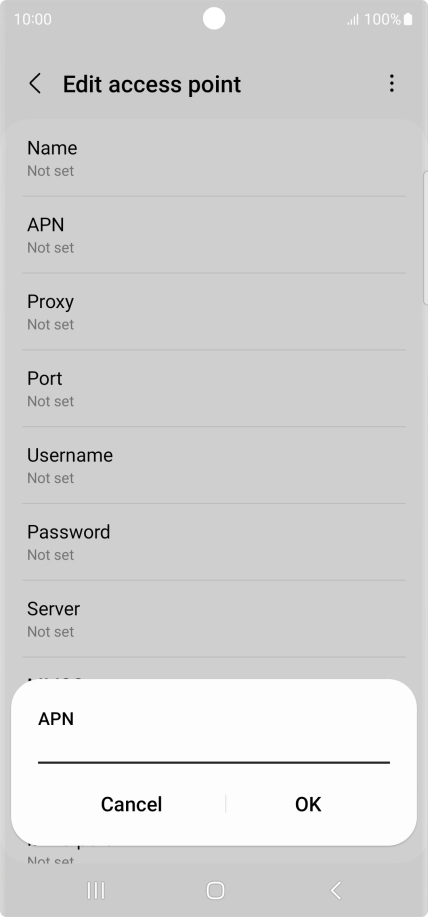

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-da55422e-9888-4693-ba5b-071d9f889dbd.png?width=214&height=458)
mms.vodafone.net
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-4e81732f-30b1-4399-b3dd-8e79710b68c3.png?width=214&height=458)

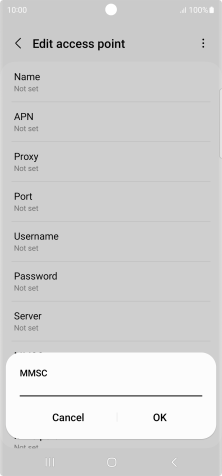

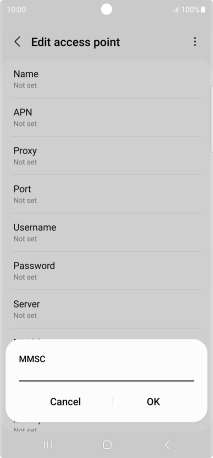

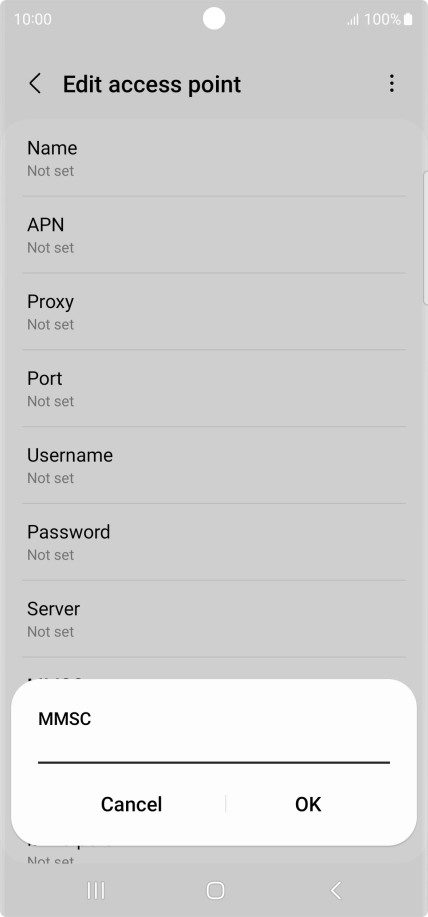

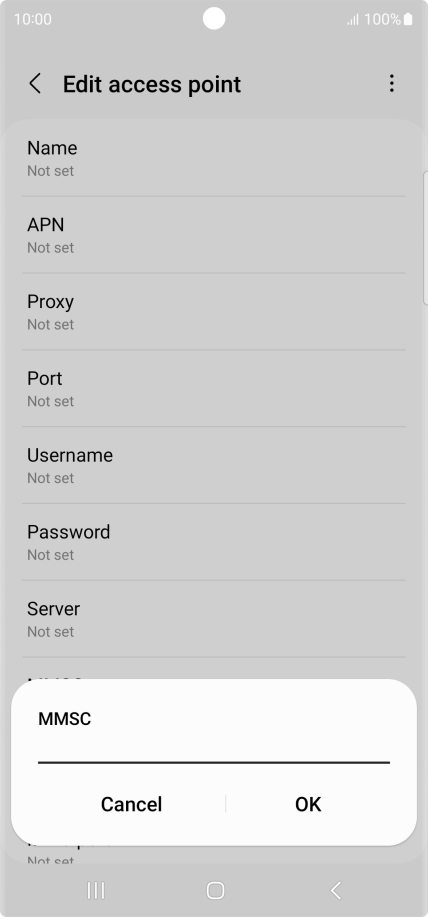

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-e8423d12-4409-4705-8db1-eca44469915c.png?width=214&height=458)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-4e81732f-30b1-4399-b3dd-8e79710b68c3.png?width=214&height=458)

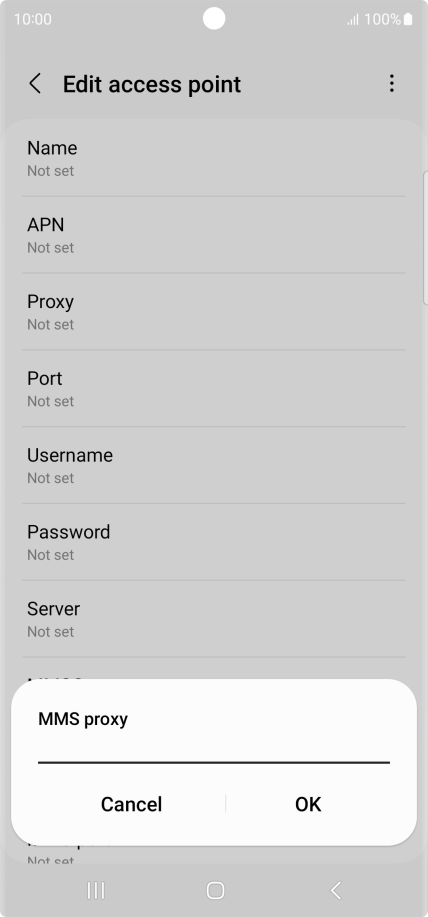

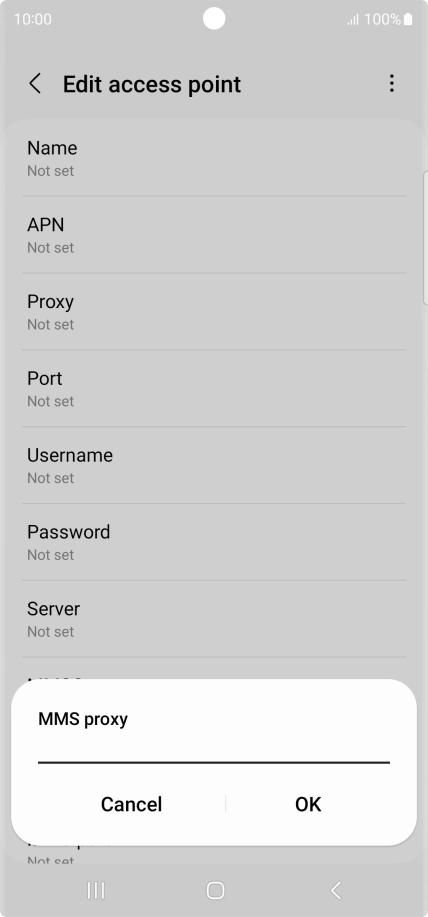

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-49f883f4-c227-4bba-a79a-d6264e5db0b4.png?width=214&height=458)
10.24.59.200
6. Enter port number

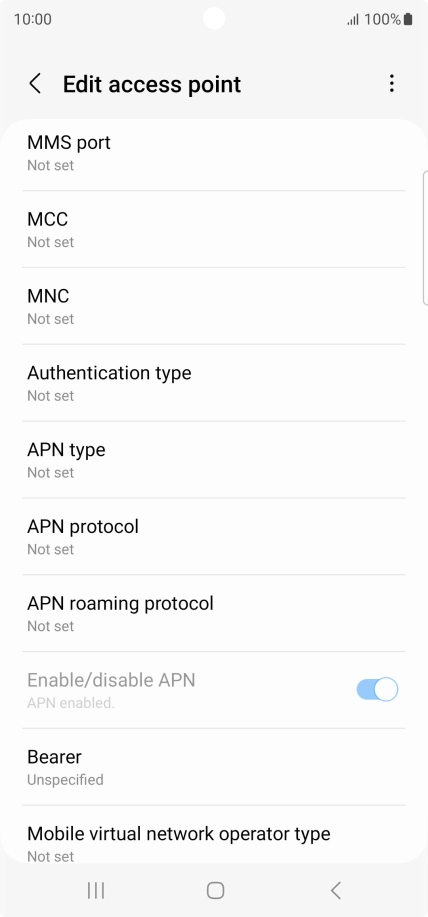

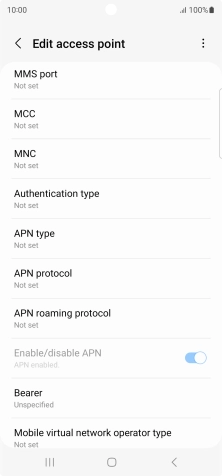

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-67197497-c850-4c74-858a-018e4d145ecd.png?width=214&height=458)

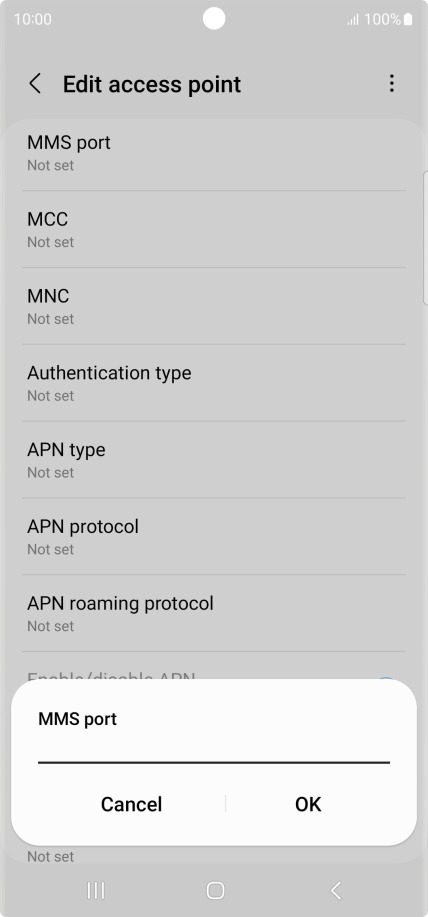

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-9be0569e-d310-4113-a08d-ac0539819ddb.png?width=214&height=458)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-67197497-c850-4c74-858a-018e4d145ecd.png?width=214&height=458)

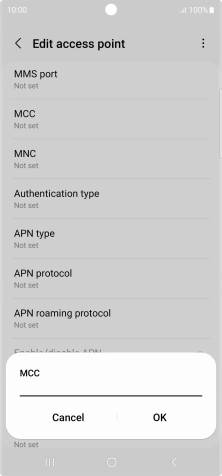

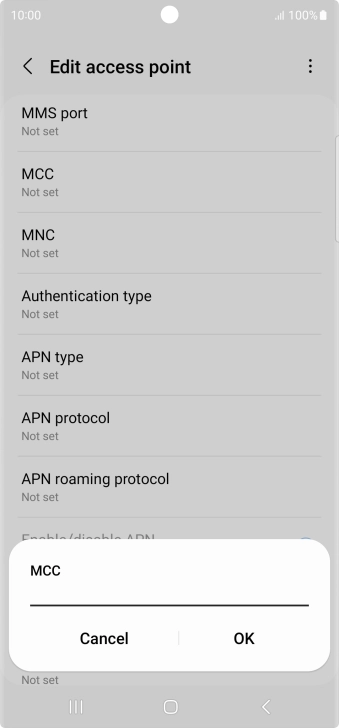

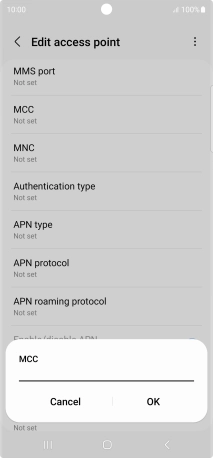

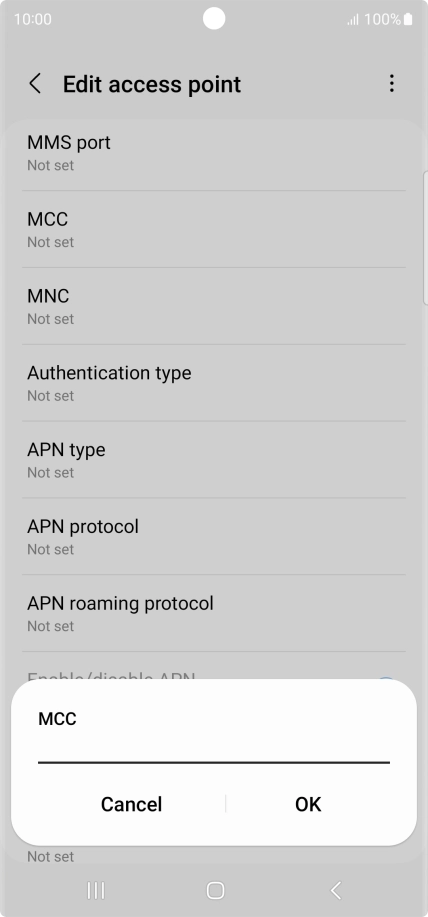

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-2de4fda7-33ca-4ab8-9435-4dc3a6c8f7fc.png?width=214&height=458)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-67197497-c850-4c74-858a-018e4d145ecd.png?width=214&height=458)

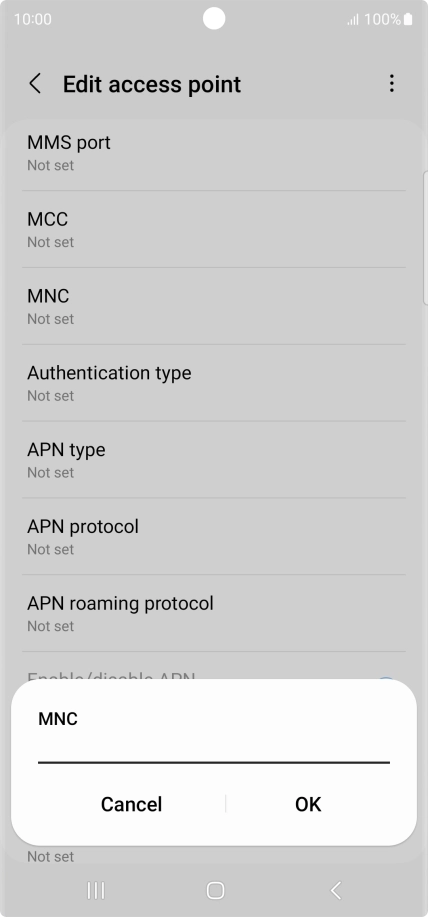

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-dd47c0df-5aec-42ac-be21-8e65463721f5.png?width=214&height=458)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-67197497-c850-4c74-858a-018e4d145ecd.png?width=214&height=458)

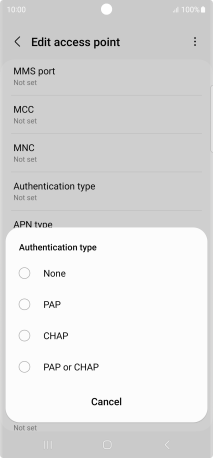

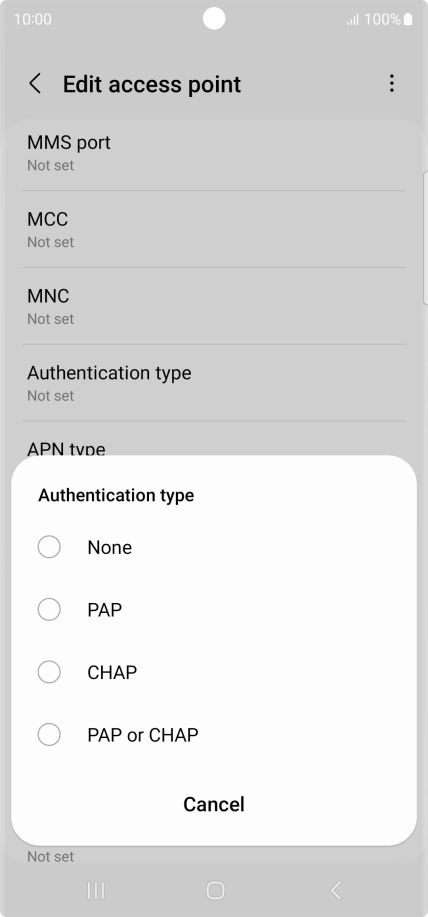

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-aa6d84a9-ed6a-4fe6-8e83-578438d8ba85.png?width=214&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-67197497-c850-4c74-858a-018e4d145ecd.png?width=214&height=458)

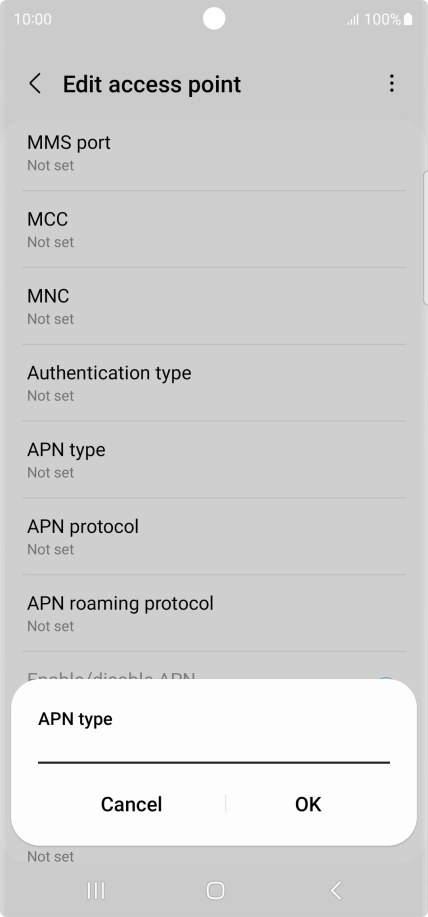

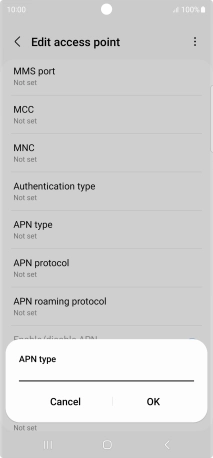

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-58bc99b0-e891-42ee-9c1a-e08a2dfba5be.png?width=214&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-67197497-c850-4c74-858a-018e4d145ecd.png?width=214&height=458)

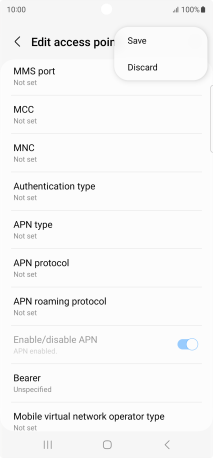

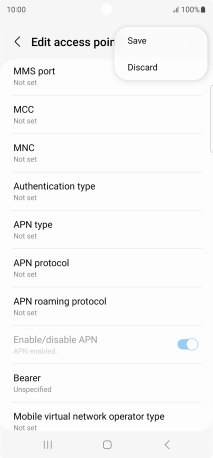

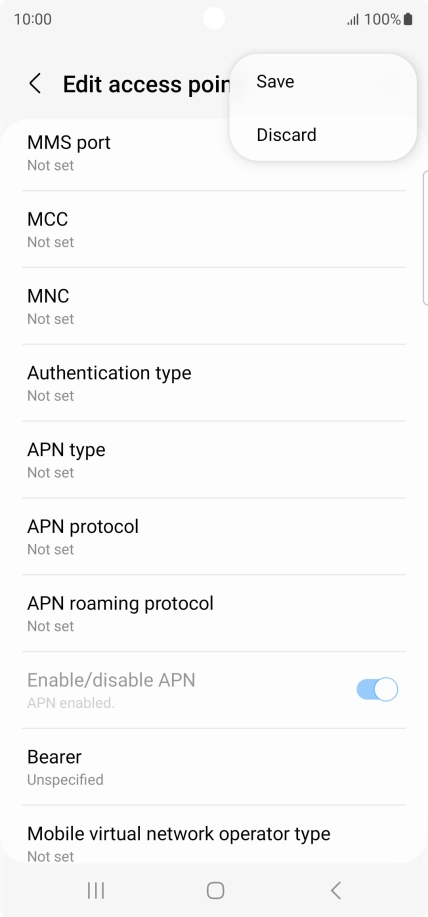

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-3123cbd6-8fc0-4d0d-93a9-44ae4ca9811e.png?width=214&height=458)
12. Return to the home screen

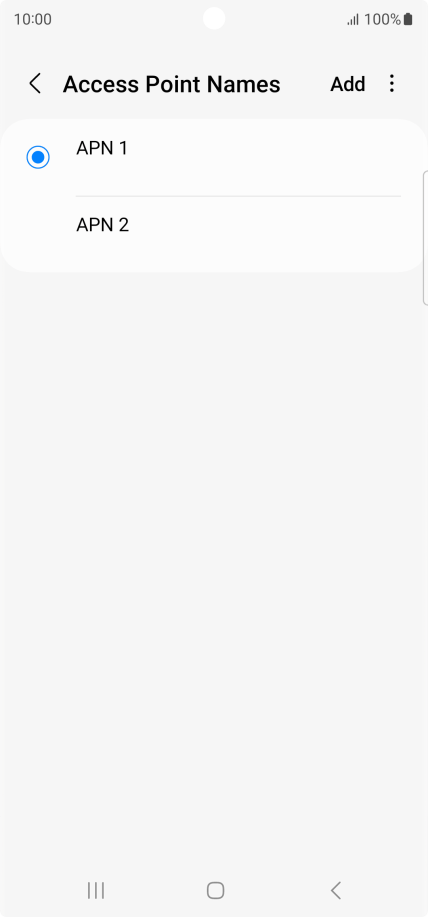

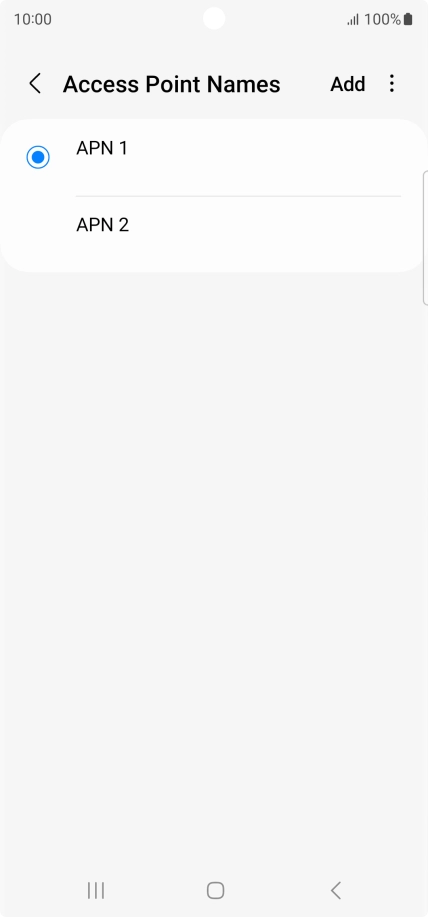

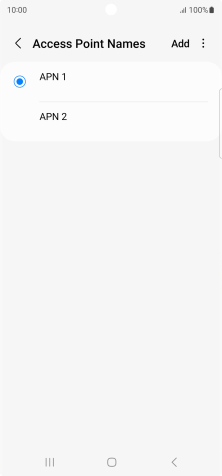

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-8bcd5268-2a40-400f-aef7-c9fc58e624d0.png?width=214&height=458)
