1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-2ed196e7-8a61-4b6b-8e56-42ec52aa7af5.png?width=212&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-31b1bafa-bf45-4431-9f5d-3fd90f91a6ea.png?width=212&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-37d55fe2-9cb8-4ecc-bbdb-2d8115ece148.png?width=212&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-9e4daa42-173c-49f2-8c0b-603e76adcf4c.png?width=212&height=458)

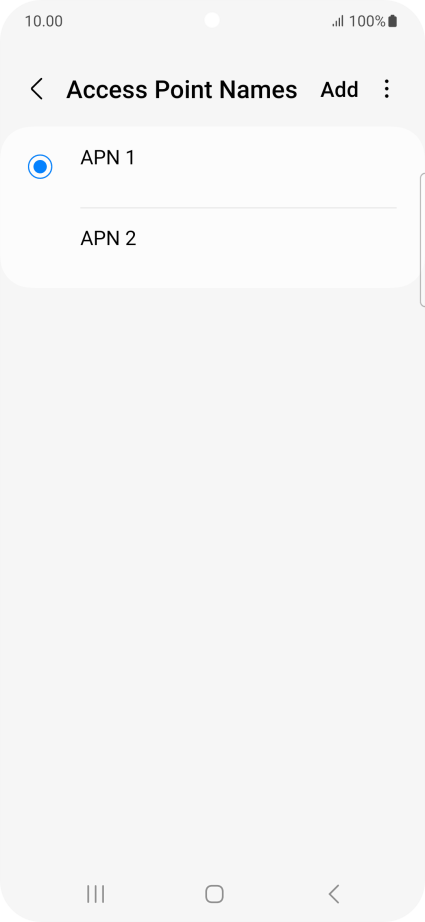

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-41e4878a-e820-4339-9031-ce0f3eb1ba3e.png?width=212&height=458)
2. Create new data connection

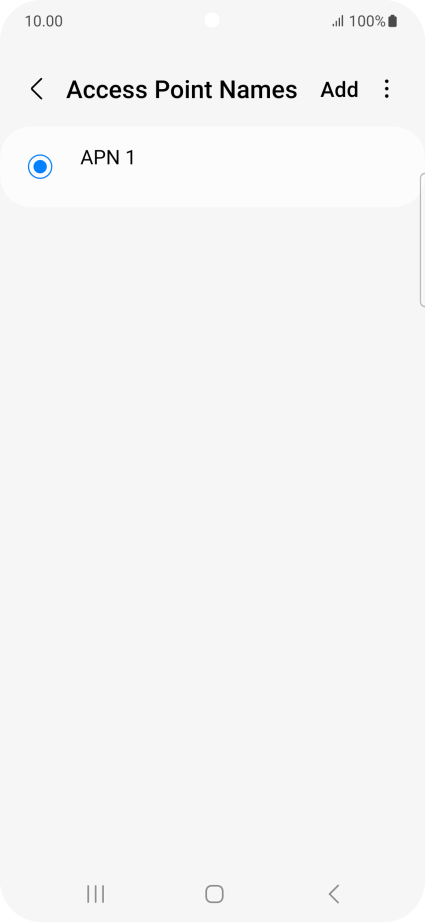

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-e064ee40-2041-46ae-9b97-a5a2171df937.png?width=212&height=458)

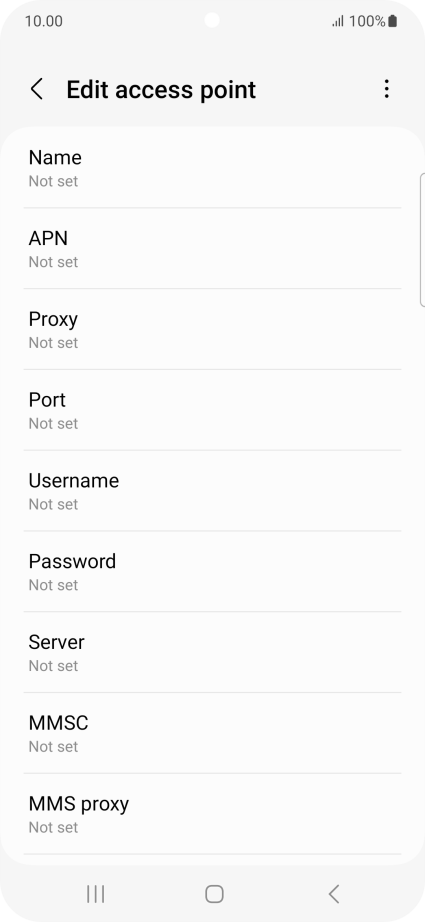

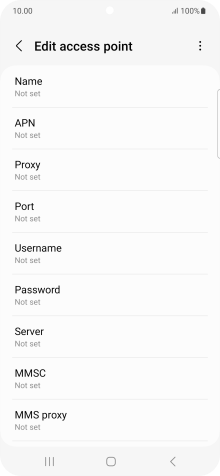

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-c3e6b12a-31e2-421a-b206-e241b089e5a7.png?width=212&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)

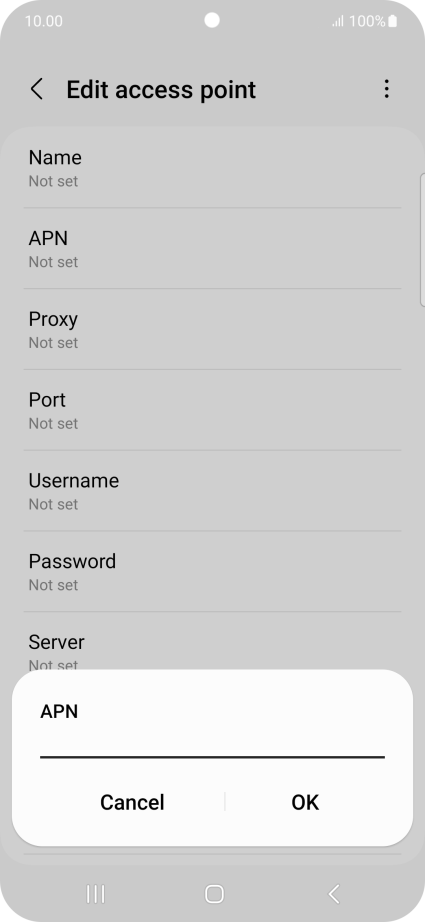

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-a4c7c062-63cd-457f-9135-ddea97684e16.png?width=212&height=458)
mms.vodafone.net
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)

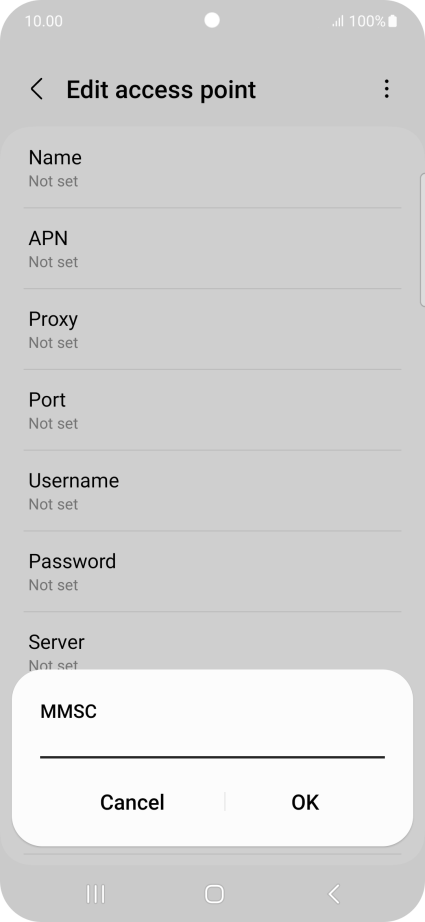

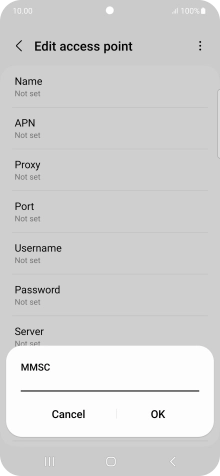

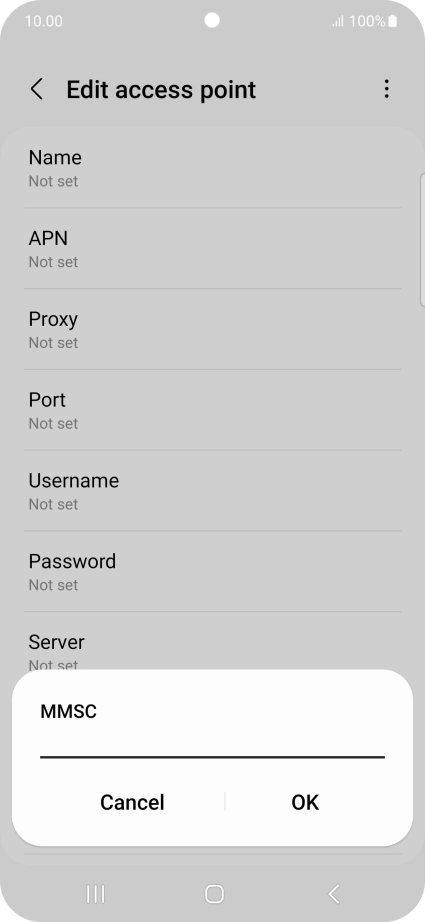

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-386209d8-60ac-432e-8398-e41f96ad040b.png?width=212&height=458)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)

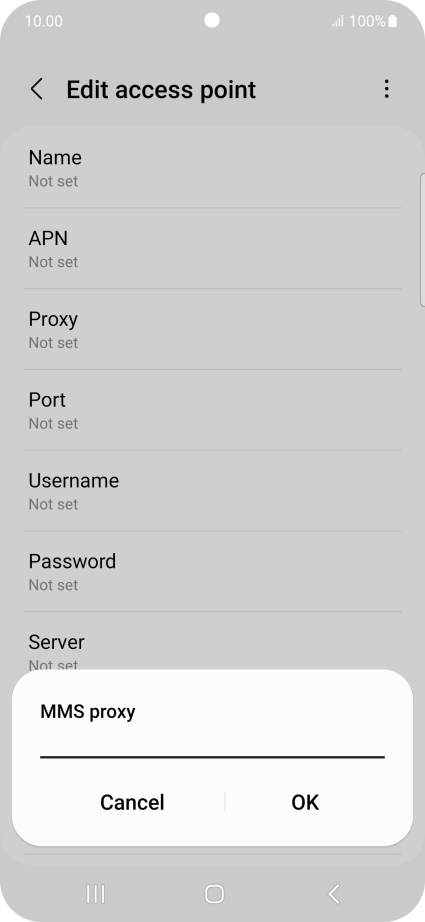

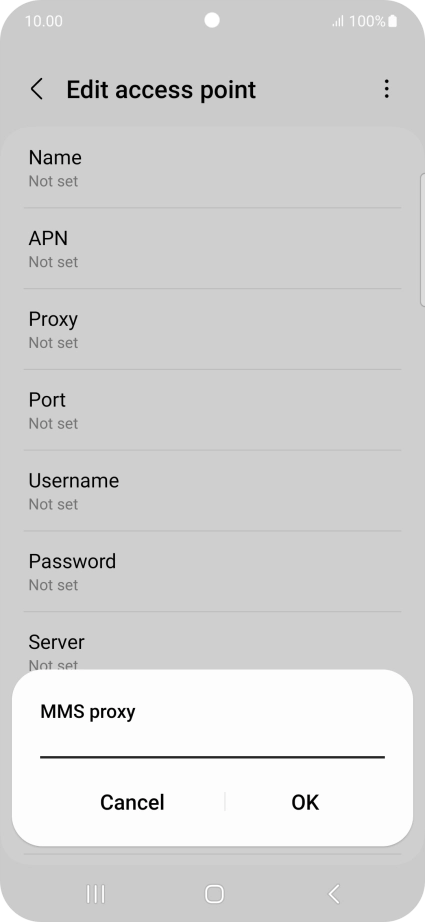

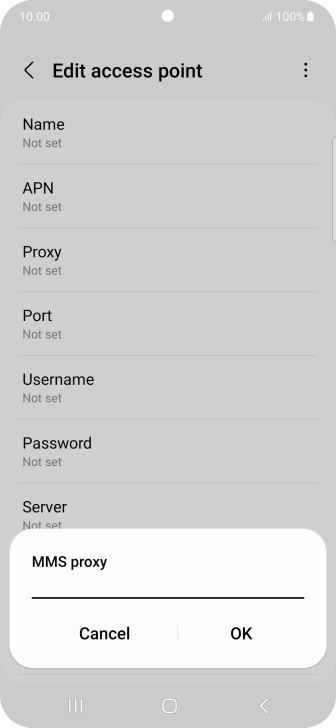

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-f694aba9-acd6-4ff8-b27e-b87e1dec9a6e.png?width=212&height=458)
10.24.59.200
6. Enter port number

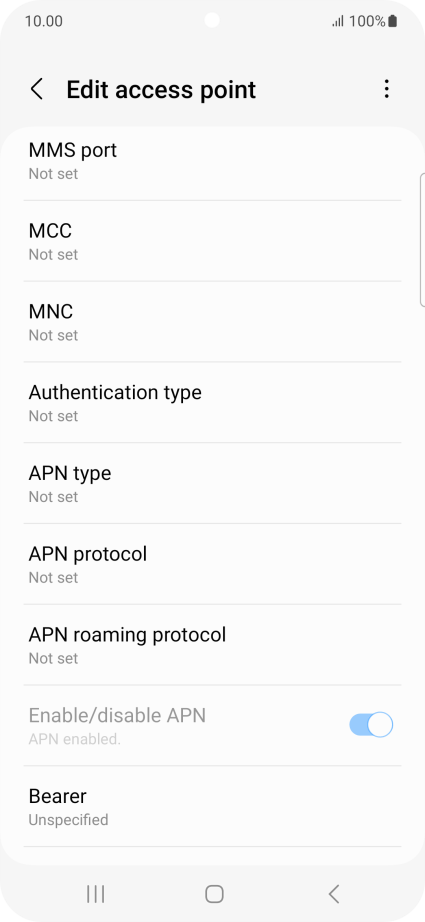

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

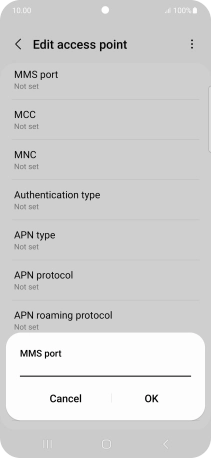

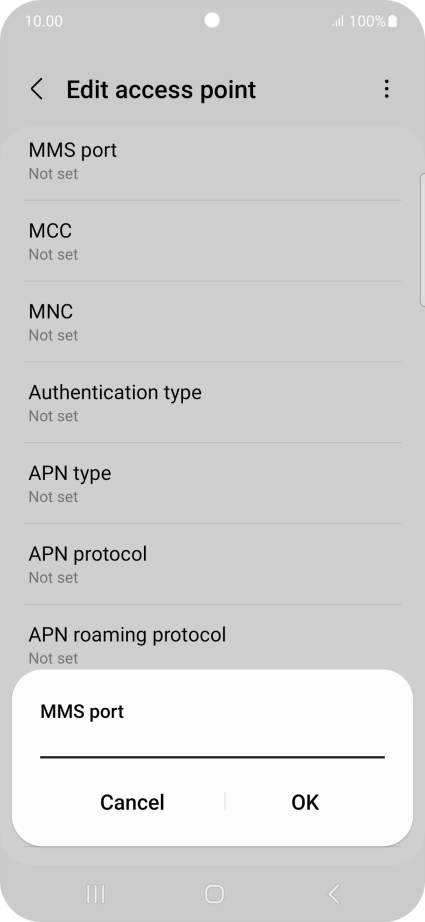

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-33c950c7-e09d-44aa-a6cc-20e0e71b9b86.png?width=212&height=458)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

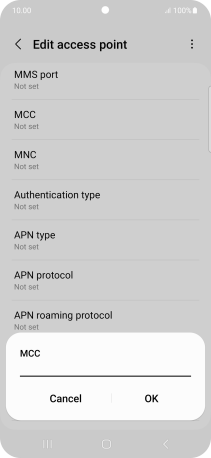

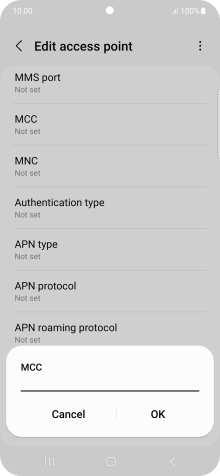

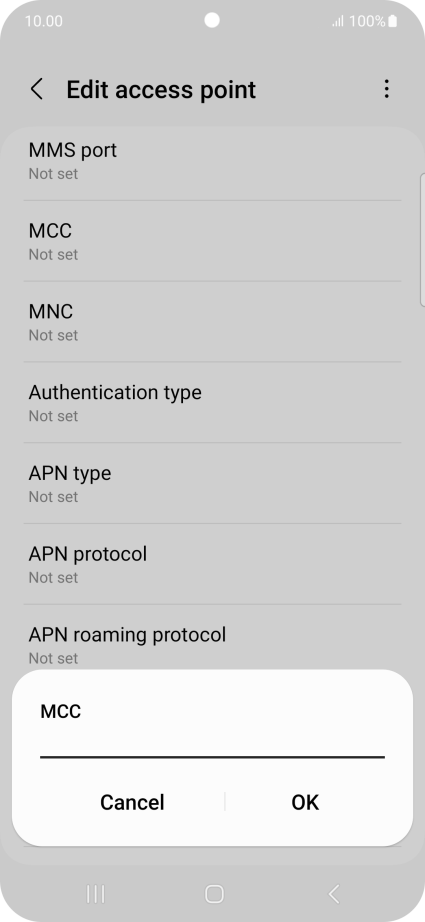

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-1b236525-0867-45a1-b223-842d2a367439.png?width=212&height=458)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

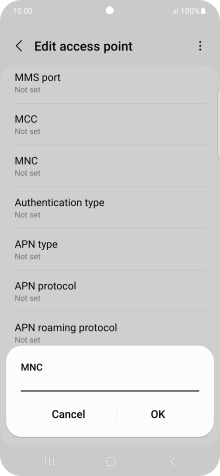

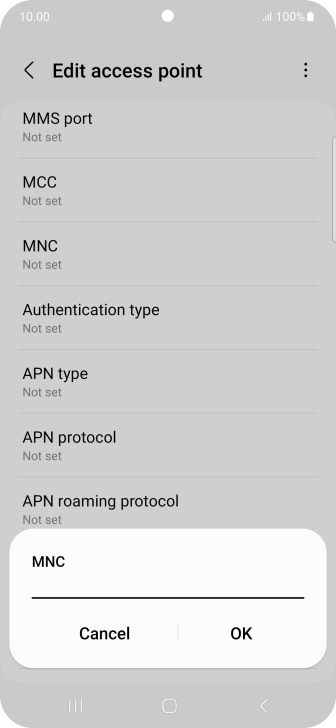

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-e2885792-cb65-4813-a95a-75706d325570.png?width=212&height=458)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

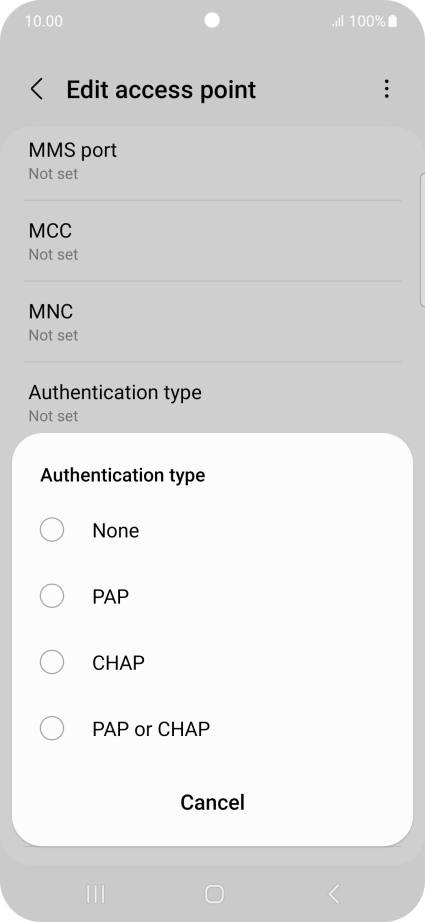

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-ef61b9ca-c627-47c5-8067-c5a53b8468f8.png?width=212&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

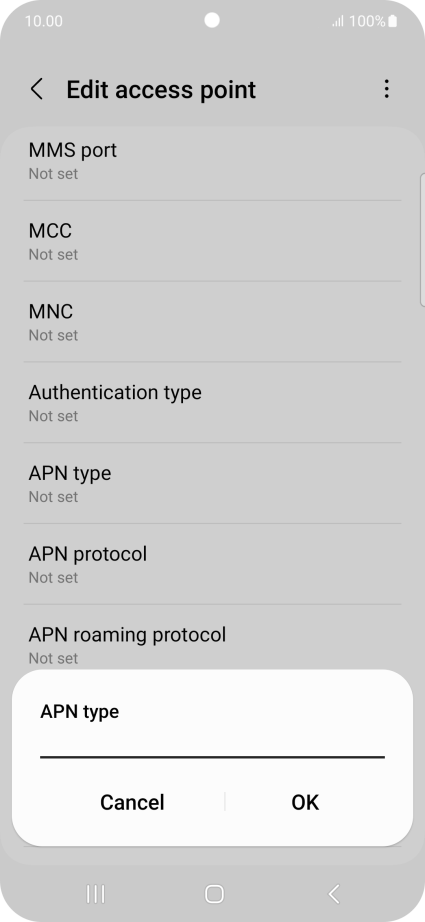

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-2fce1c20-cb5c-48a8-86cf-45a7c3a7e643.png?width=212&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

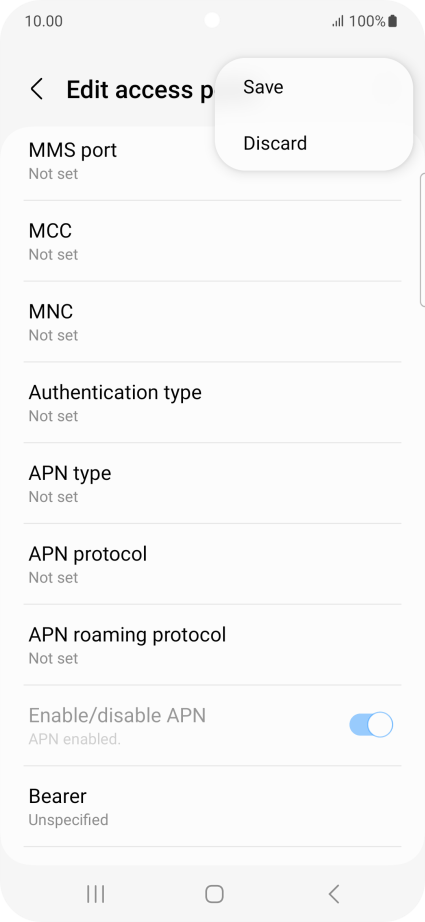

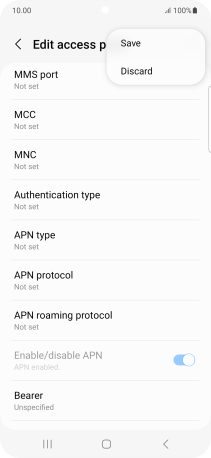

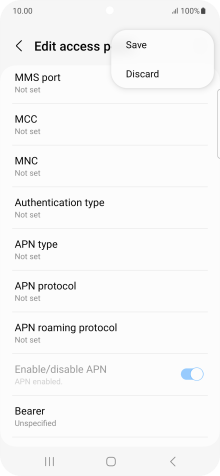

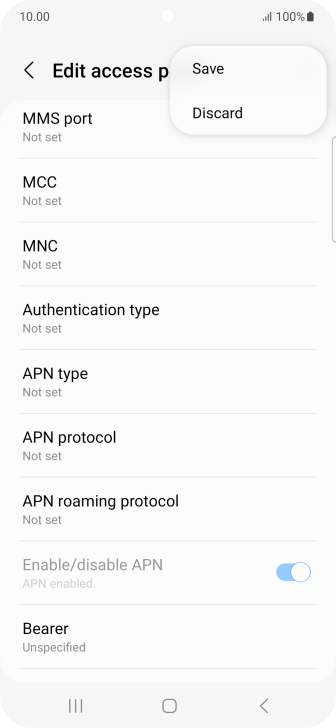

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-099a6931-72a5-4c56-94fd-1a54f9778437.png?width=212&height=458)
12. Return to the home screen

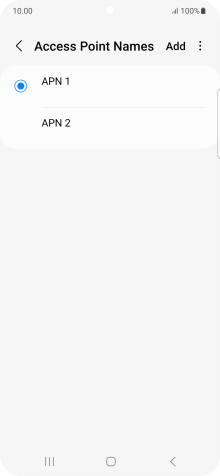

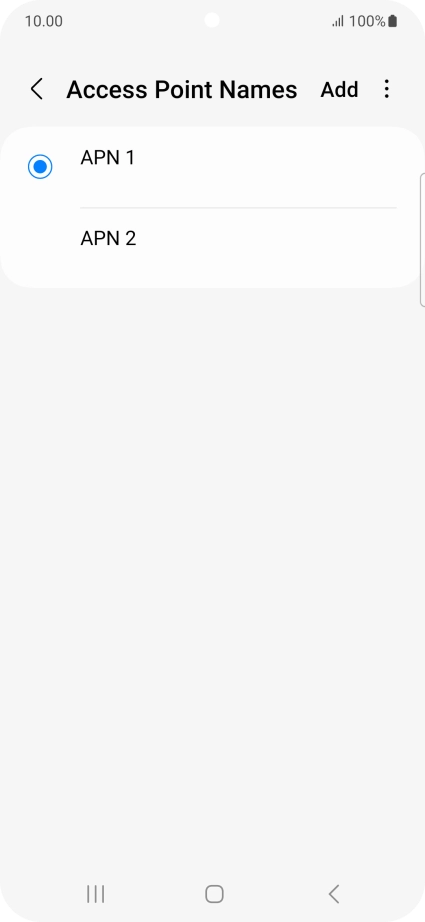

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-71ebe66d-0e8e-44ce-a1cd-ab2bde02119e.png?width=212&height=458)
