1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-2ed196e7-8a61-4b6b-8e56-42ec52aa7af5.png?width=212&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-31b1bafa-bf45-4431-9f5d-3fd90f91a6ea.png?width=212&height=458)

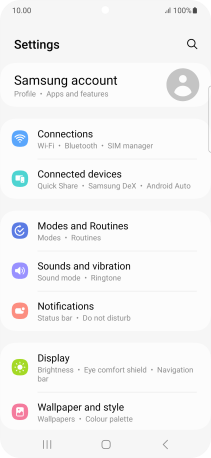

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-37d55fe2-9cb8-4ecc-bbdb-2d8115ece148.png?width=212&height=458)

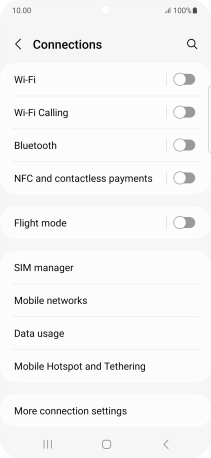

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-9e4daa42-173c-49f2-8c0b-603e76adcf4c.png?width=212&height=458)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-41e4878a-e820-4339-9031-ce0f3eb1ba3e.png?width=212&height=458)
2. Create new data connection

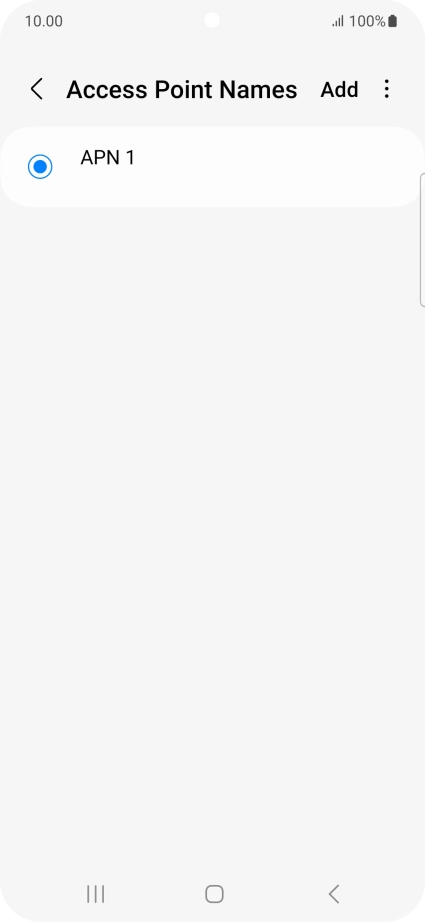

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-e064ee40-2041-46ae-9b97-a5a2171df937.png?width=212&height=458)

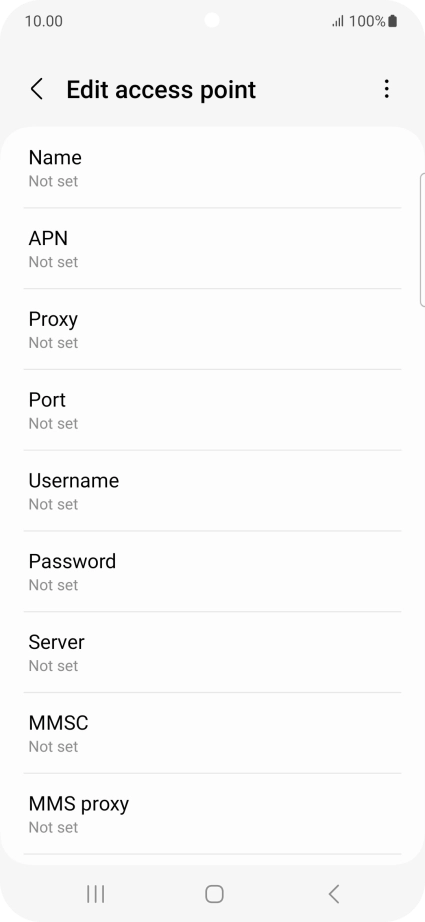

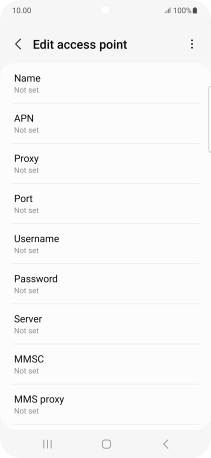

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)

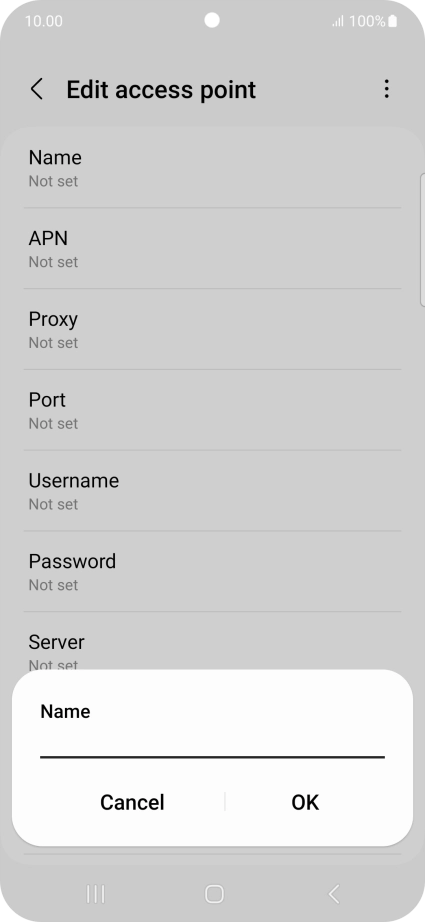

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-c3e6b12a-31e2-421a-b206-e241b089e5a7.png?width=212&height=458)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-0aa2727e-0fcd-444e-a673-f243cbfb40ea.png?width=212&height=458)

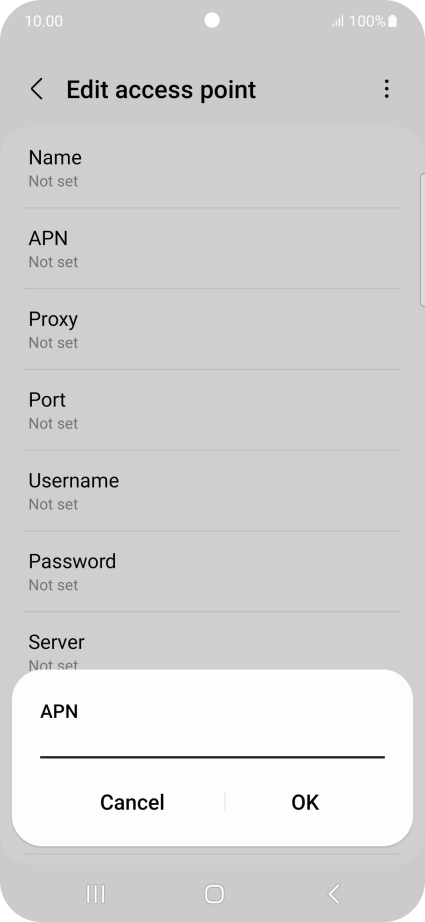

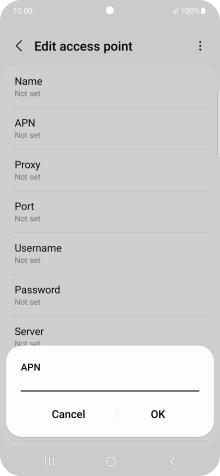

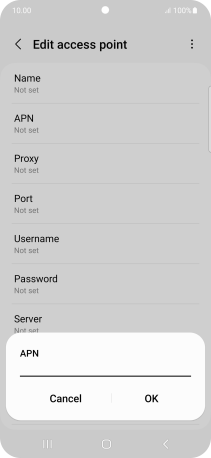

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-a4c7c062-63cd-457f-9135-ddea97684e16.png?width=212&height=458)
live.vodafone.com
4. Enter country code

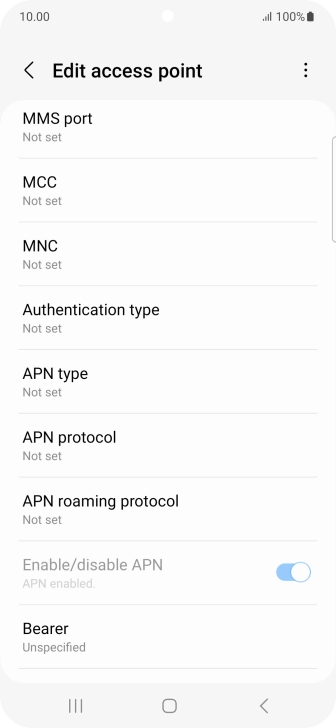

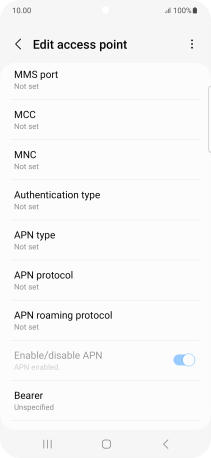

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

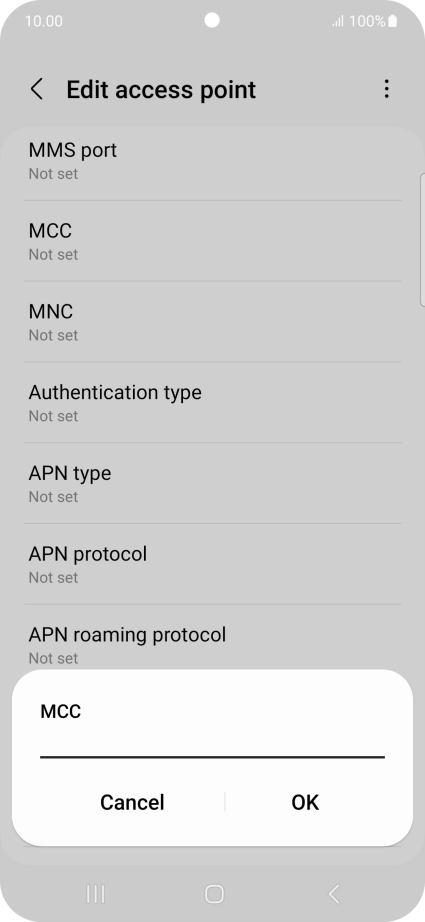

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-1b236525-0867-45a1-b223-842d2a367439.png?width=212&height=458)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

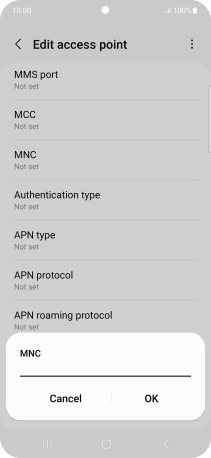

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-e2885792-cb65-4813-a95a-75706d325570.png?width=212&height=458)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

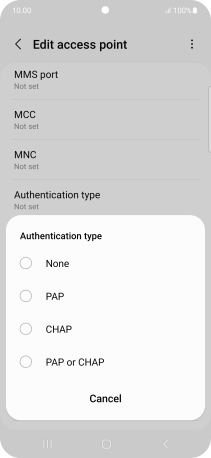

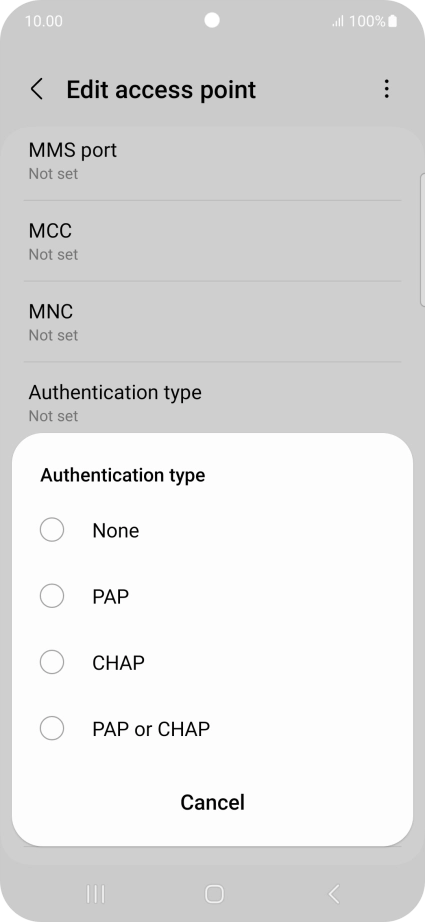

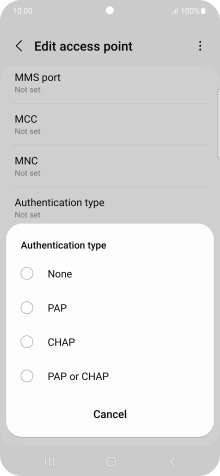

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-ef61b9ca-c627-47c5-8067-c5a53b8468f8.png?width=212&height=458)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

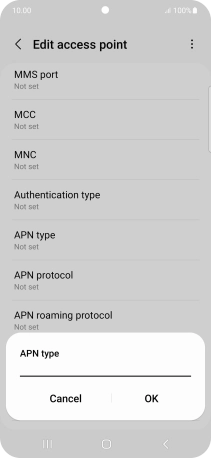

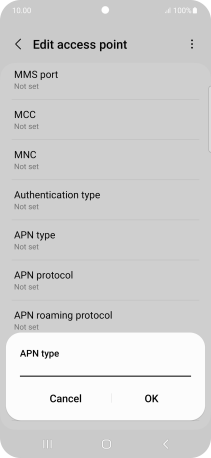

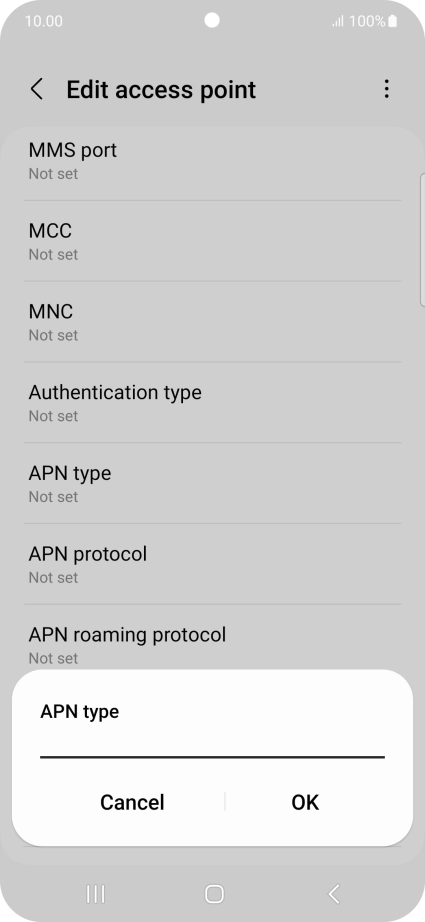

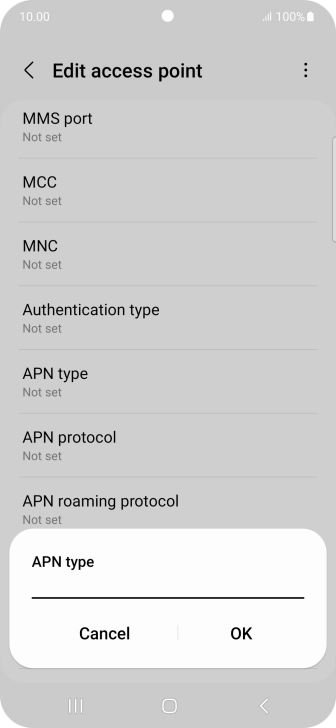

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-2fce1c20-cb5c-48a8-86cf-45a7c3a7e643.png?width=212&height=458)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-54d53f4a-67cf-4ee5-9051-13533b92fafa.png?width=212&height=458)

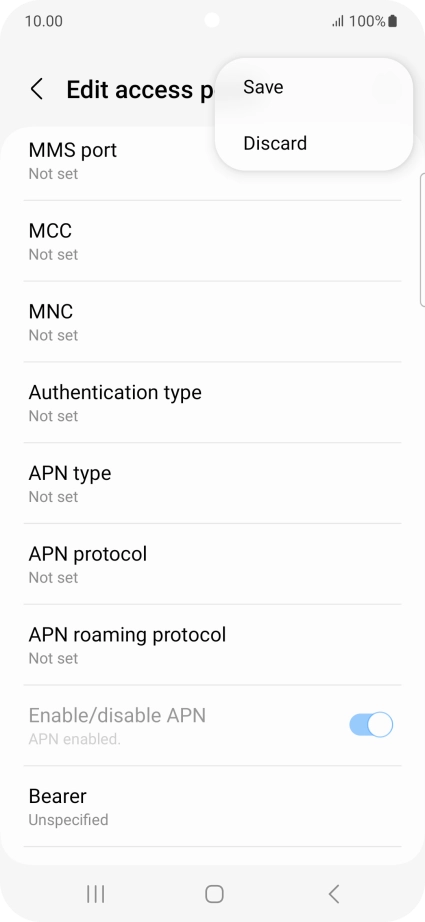

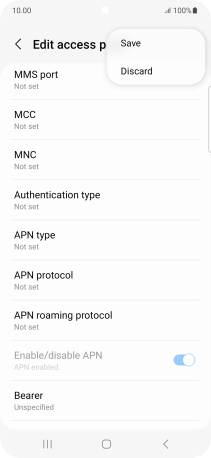

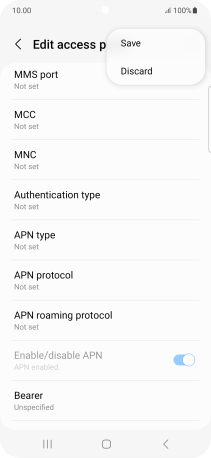

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-099a6931-72a5-4c56-94fd-1a54f9778437.png?width=212&height=458)

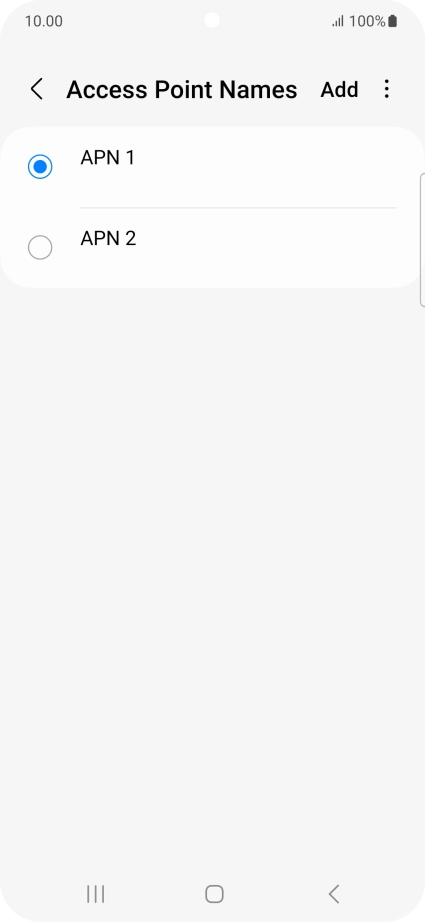

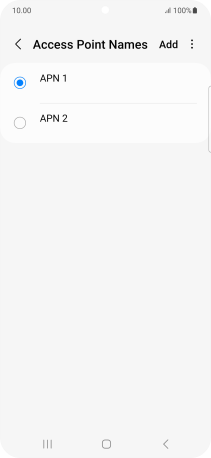

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-81638e21-7dea-40bb-bf9f-d215a4c39bf8.png?width=212&height=458)
9. Return to the home screen

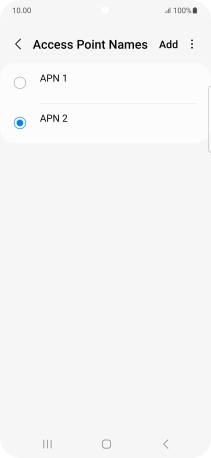

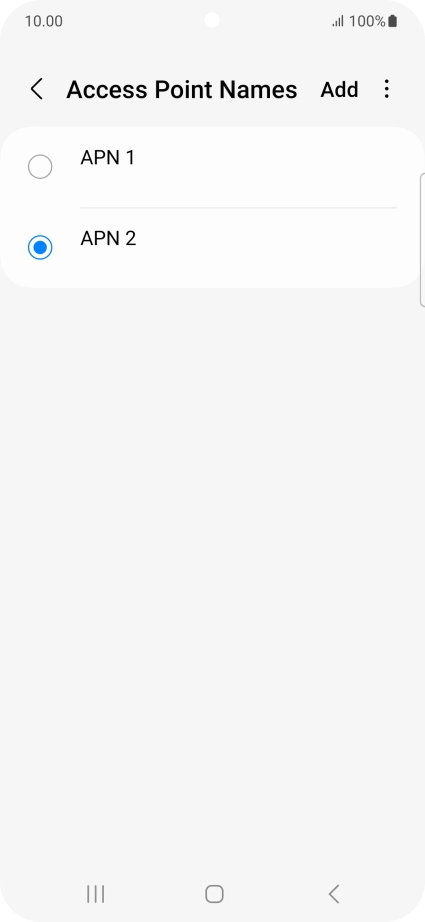

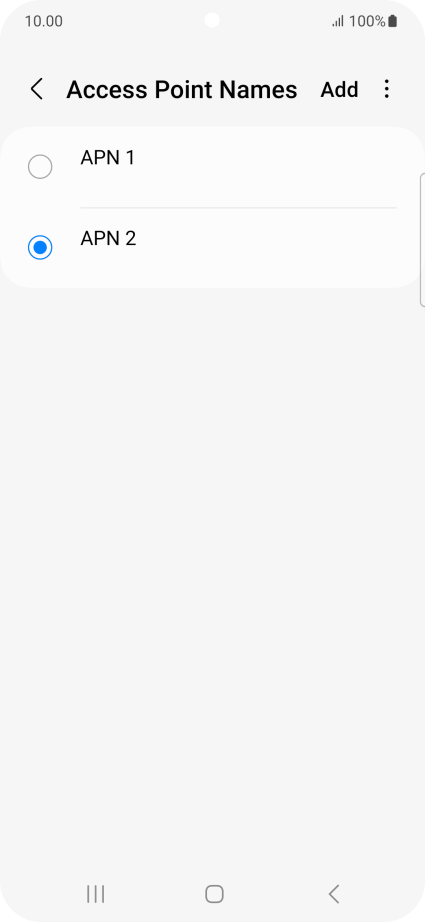

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7210823-f-a6c2d18b-1452-4c88-b8b5-7d44e2c9d00c.png?width=212&height=458)
