1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b046ae34-0c83-43a5-a7fe-d4a9539ce1cc.png?width=210&height=466)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3ac35714-e62f-4d66-837a-4ea3e6c9326f.png?width=210&height=466)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8b8c163e-b3c2-49f0-ae42-f33f8069b5c2.png?width=210&height=466)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bdf734f9-504a-47e0-abfa-a8d45e93ca15.png?width=210&height=466)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db2acb50-5397-43b6-a28c-b5a244f692a3.png?width=210&height=466)
2. Create new data connection
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9c881d51-e23b-4267-8d8a-579e806059d4.png?width=210&height=466)
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9c881d51-e23b-4267-8d8a-579e806059d4.png?width=210&height=466)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ac42f39-3354-4bec-936a-76b0c6cbd42d.png?width=210&height=466)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03404ccc-d951-4b3b-ab0a-23ef86892ae0.png?width=210&height=466)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ac42f39-3354-4bec-936a-76b0c6cbd42d.png?width=210&height=466)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-93a92baa-ecc9-4a62-b4e0-fb7e67d8250b.png?width=210&height=466)
mms.vodafone.net
4. Enter MMSC

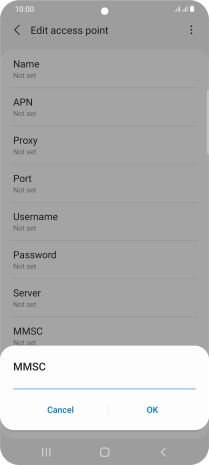

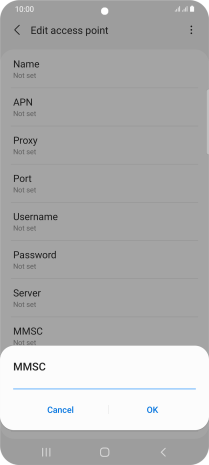

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ac42f39-3354-4bec-936a-76b0c6cbd42d.png?width=210&height=466)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d67b699f-bfec-4405-b49b-6ee618aa45ea.png?width=210&height=466)
http://www.vodafone.ie/mms
5. Enter IP address

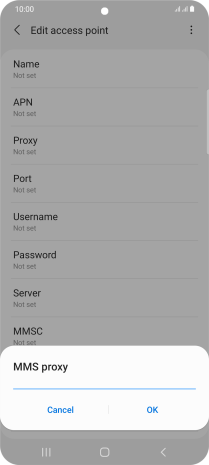

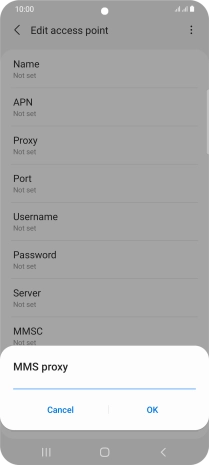

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ac42f39-3354-4bec-936a-76b0c6cbd42d.png?width=210&height=466)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ee50ff62-ef5c-4572-bbd1-b71905ef715b.png?width=210&height=466)
10.24.59.200
6. Enter port number

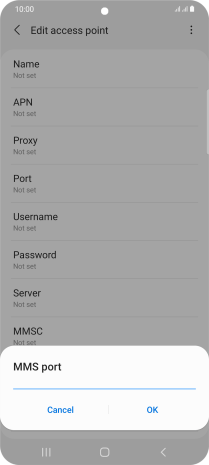

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-44af1fe6-6b7a-420b-acfd-424cf72dfe37.png?width=210&height=466)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7fce54b-373e-4ff5-8522-047fc046ca15.png?width=210&height=466)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4586482-2380-4551-8b63-ac4c0d905dee.png?width=210&height=466)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7725d43c-72c1-460c-afaa-11d84485a358.png?width=210&height=466)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d3cc824f-4c64-41e5-b5e6-52c3502bf351.png?width=210&height=466)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6666a52e-5961-41c4-a38c-98372c8ff004.png?width=210&height=466)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a4ec0a72-dc97-4521-bd4c-9de7b5bf1368.png?width=210&height=466)
12. Return to the home screen

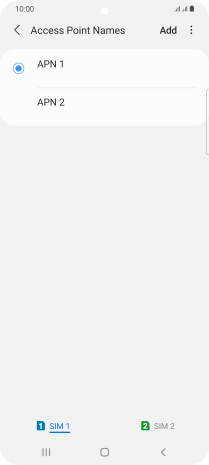

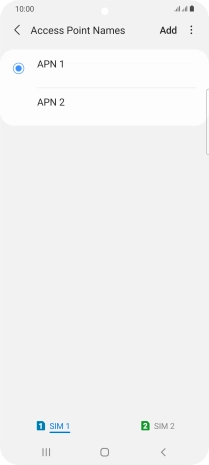

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e9e633ac-e4e6-4f22-86dd-467775a15482.png?width=210&height=466)
