1. Find "Access Point Names"

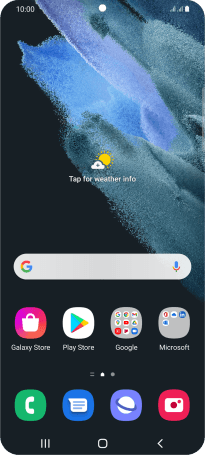

Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dadd74e0-d502-4515-a803-0b1f0188f4a9.png?width=206&height=456)

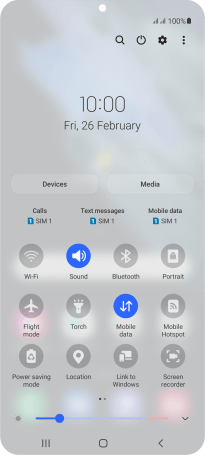

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-757fc35f-f21a-4cb4-860a-e9c9f3bef234.png?width=206&height=456)

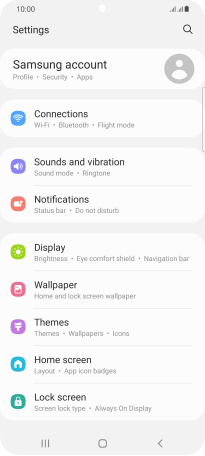

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8cb2b8e0-02e9-4874-ad55-b21b1835c20e.png?width=206&height=456)

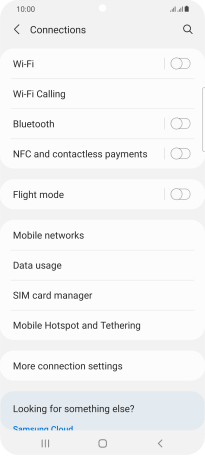

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e54c9de7-e8de-4627-b60d-eee235520ac2.png?width=206&height=456)

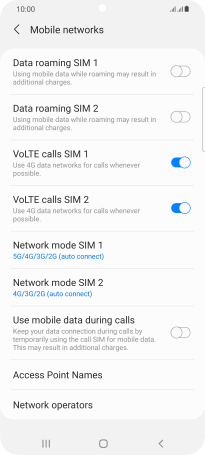

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2d961459-2209-40c7-89d3-abf03e02319b.png?width=206&height=456)
2. Create new data connection

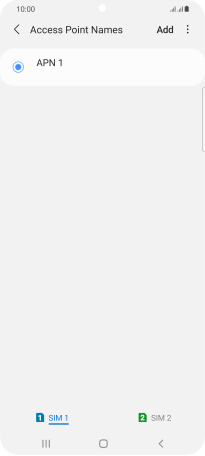

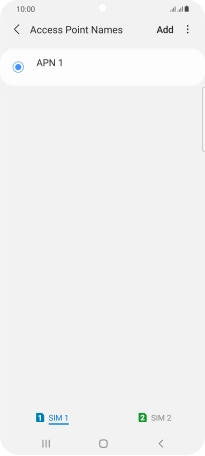

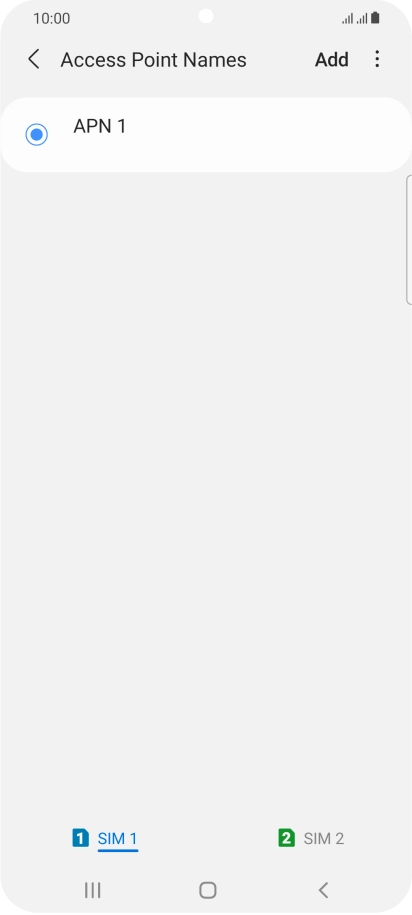

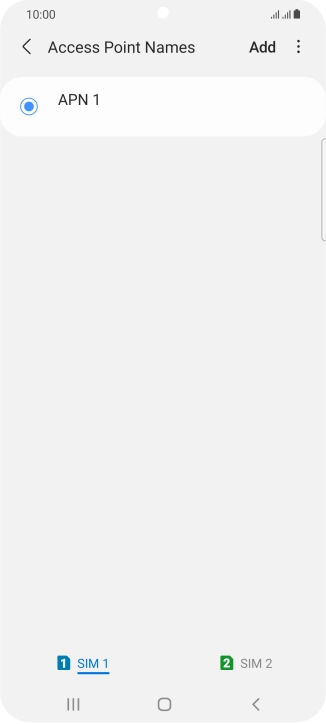

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d9657fe-9d06-4c93-8f57-c005f9e17ff5.png?width=206&height=456)
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1d9657fe-9d06-4c93-8f57-c005f9e17ff5.png?width=206&height=456)
3. Enter a name for the connection

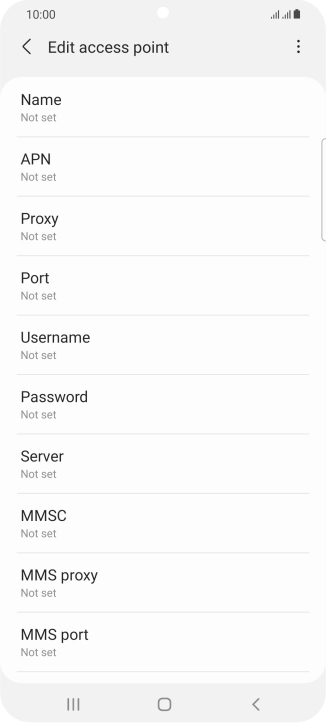

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5764d2e-7501-461c-8ed1-f4df601a8037.png?width=206&height=456)

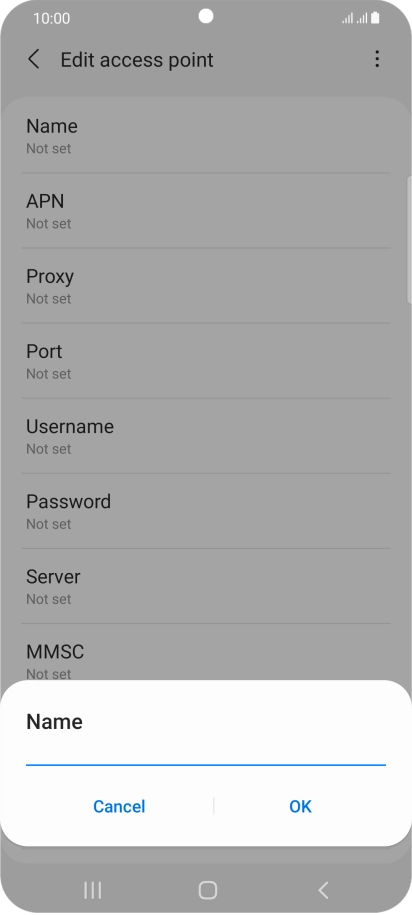

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-32acdd09-b551-4d89-9c5e-3f9b429f0136.png?width=206&height=456)
Vodafone MMS
4. Enter APN

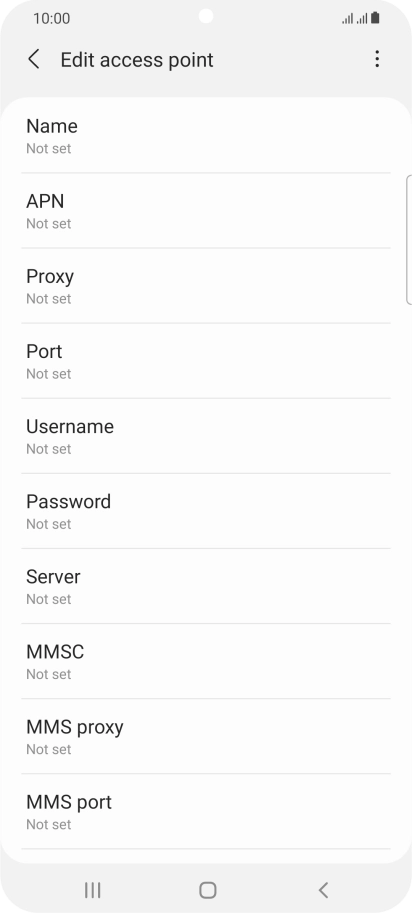

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5764d2e-7501-461c-8ed1-f4df601a8037.png?width=206&height=456)

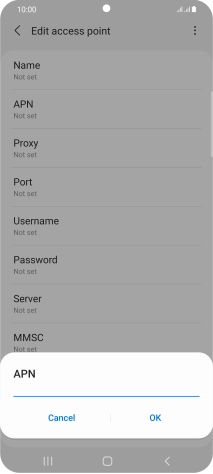

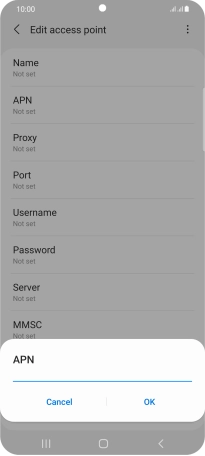

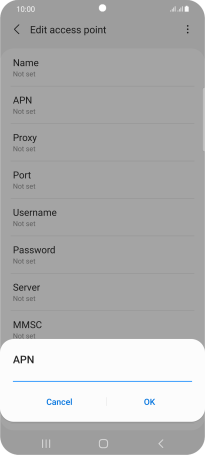

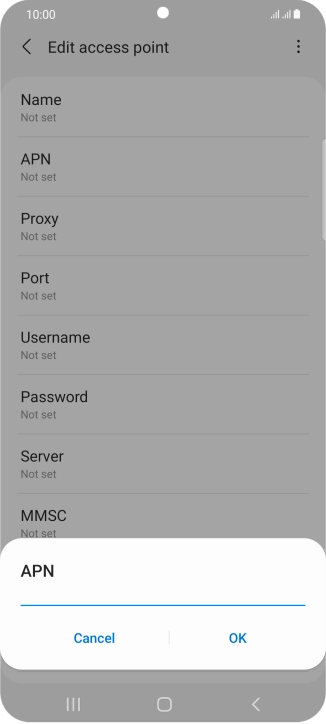

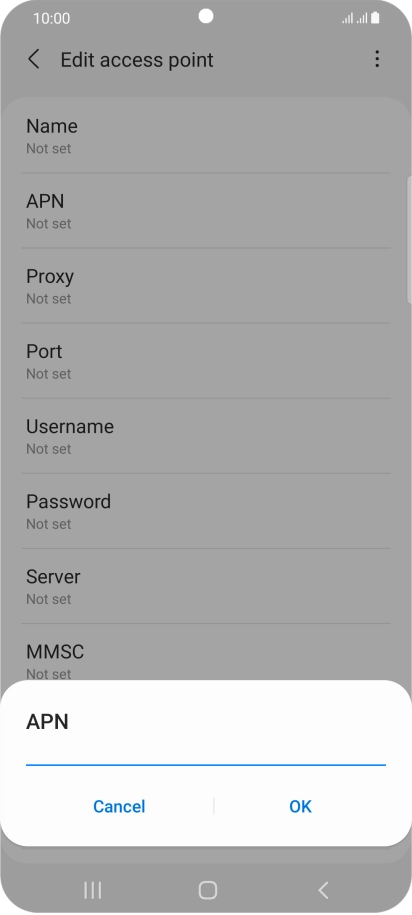

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a64cdada-c80c-428e-8d3e-29fba3fbd5be.png?width=206&height=456)
mms.vodafone.net
5. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5764d2e-7501-461c-8ed1-f4df601a8037.png?width=206&height=456)

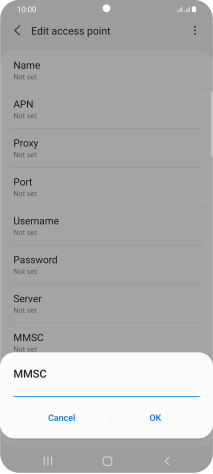

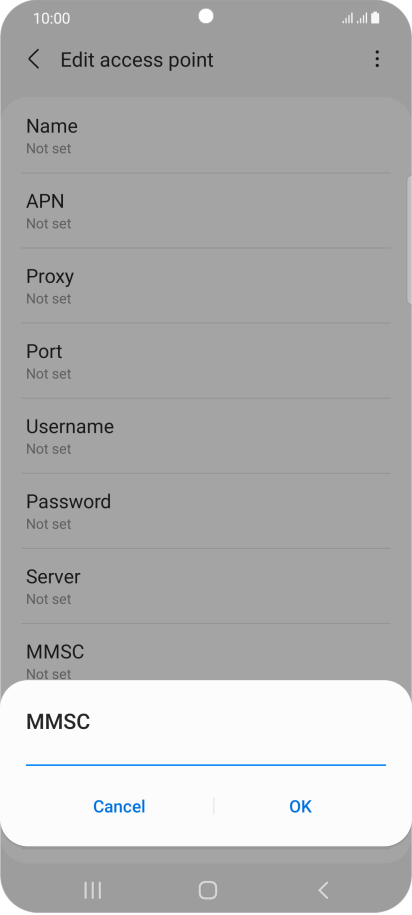

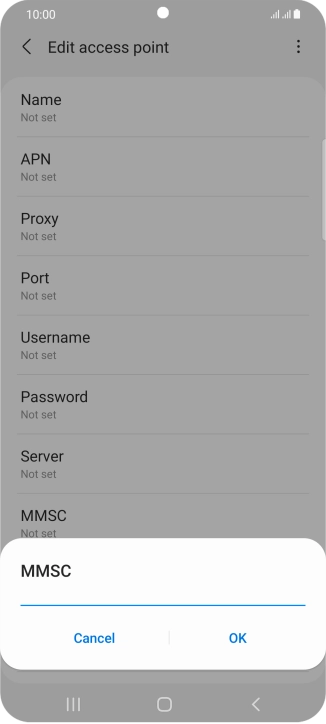

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-580aa172-c9a9-4250-9ad8-c0ea0ad3fbc8.png?width=206&height=456)
http://www.vodafone.ie/mms
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5764d2e-7501-461c-8ed1-f4df601a8037.png?width=206&height=456)

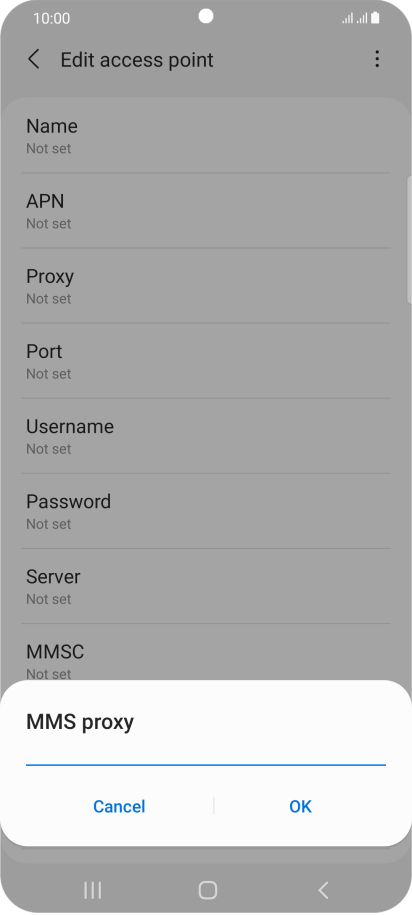

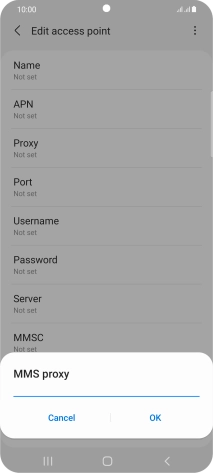

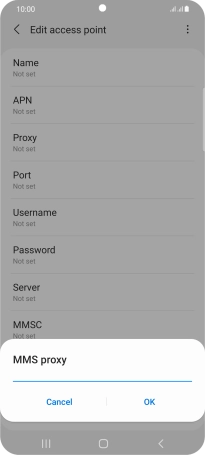

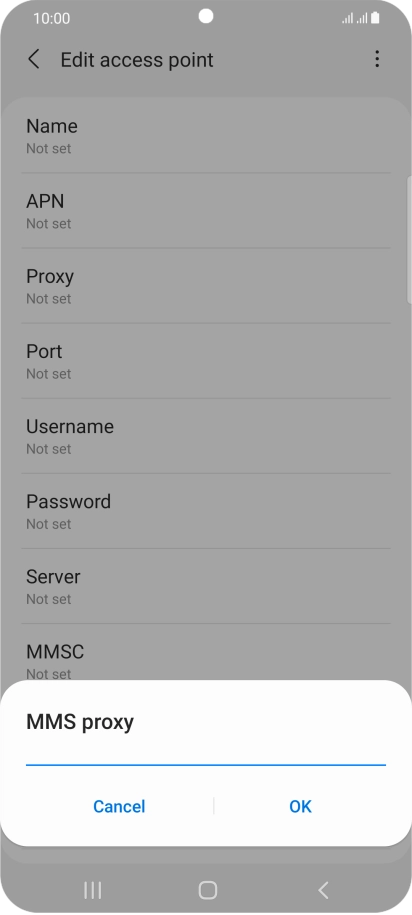

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-52f4a4bd-deba-48b8-8b2d-10fa59e10e48.png?width=206&height=456)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5764d2e-7501-461c-8ed1-f4df601a8037.png?width=206&height=456)

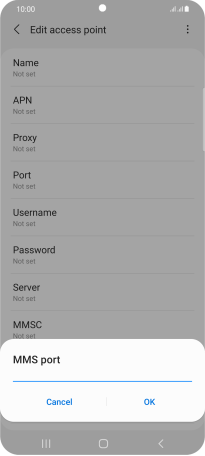

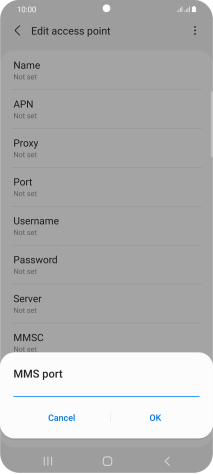

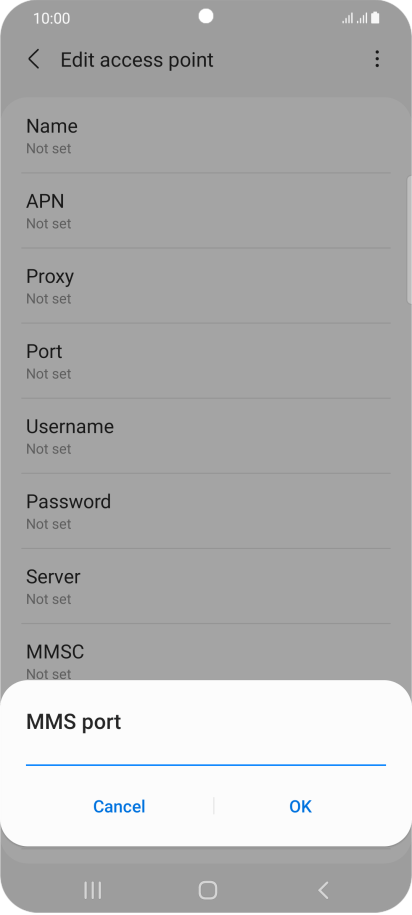

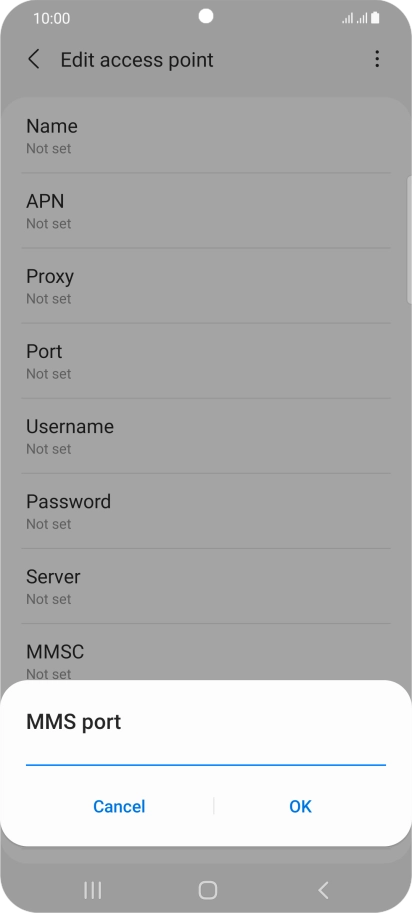

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-538d3997-d476-4112-99ae-e78237dfce1b.png?width=206&height=456)
80
8. Enter country code

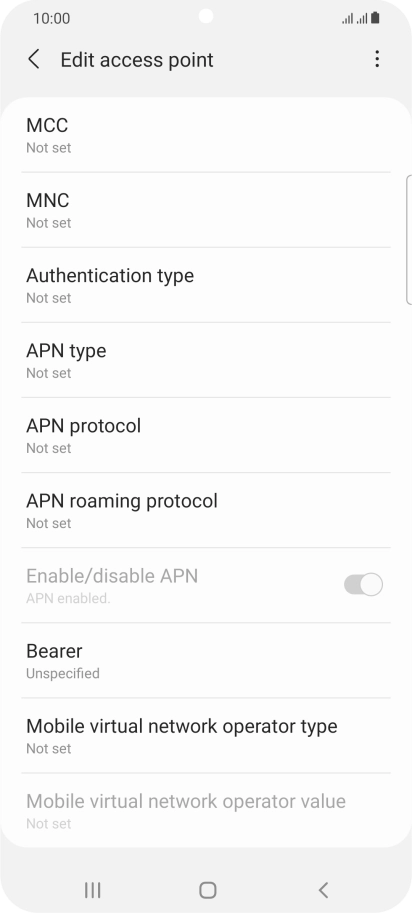

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dedb7258-bb82-499d-9a92-2efcca93cb40.png?width=206&height=456)

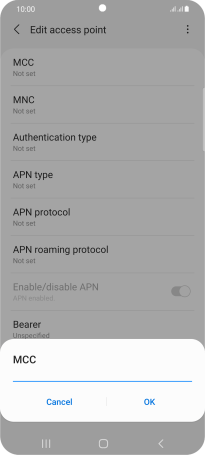

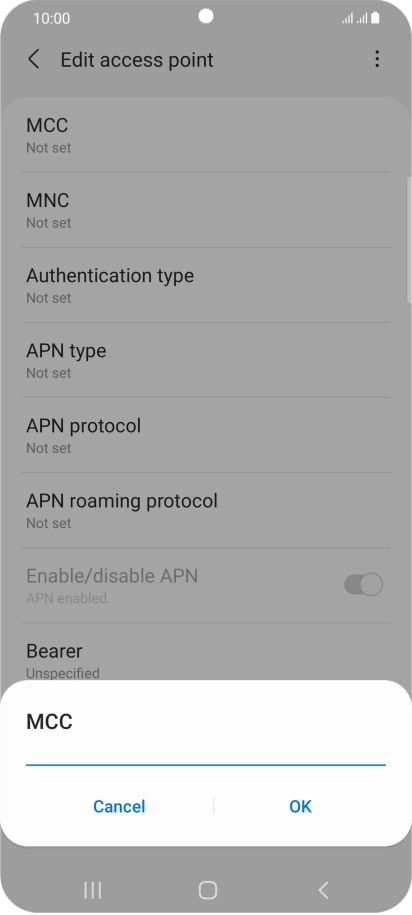

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5ebee454-f75a-470a-86c2-aa1786f8cb20.png?width=206&height=456)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dedb7258-bb82-499d-9a92-2efcca93cb40.png?width=206&height=456)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-71c3b4fc-5b15-4bbb-b6c6-7a432d63b433.png?width=206&height=456)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dedb7258-bb82-499d-9a92-2efcca93cb40.png?width=206&height=456)

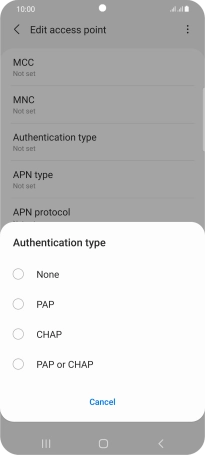

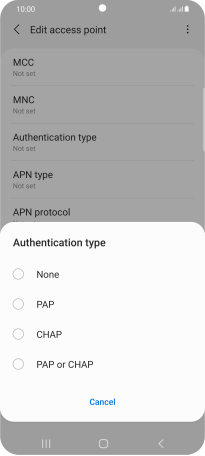

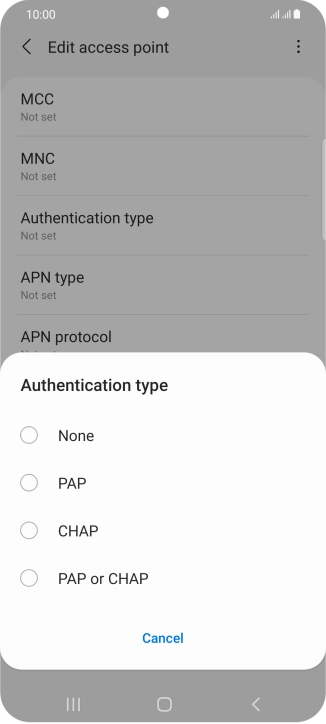

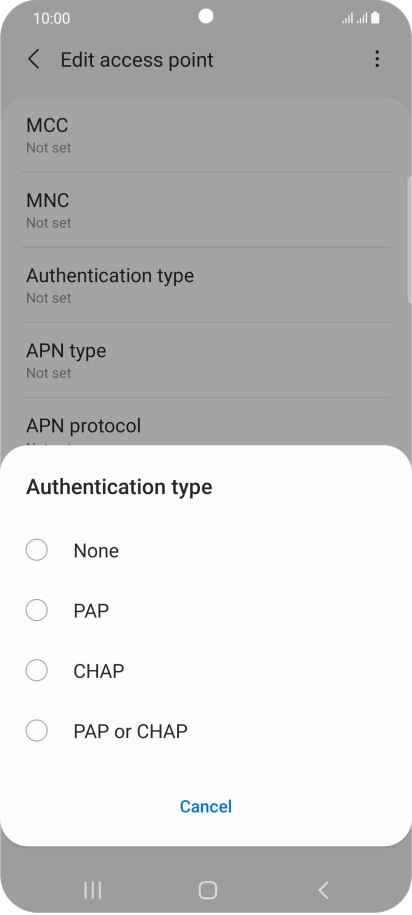

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ceb4092d-758a-474f-8b96-8b737489186c.png?width=206&height=456)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dedb7258-bb82-499d-9a92-2efcca93cb40.png?width=206&height=456)

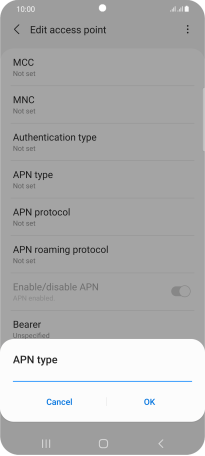

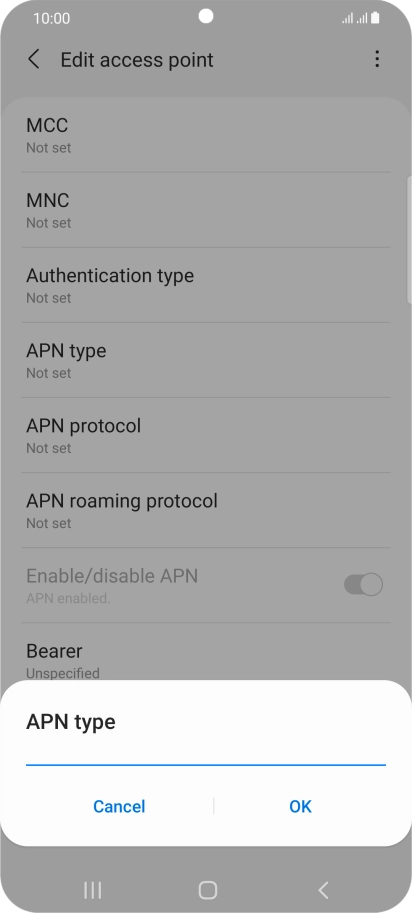

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb995e11-83df-44f6-84b1-1a0449b3f572.png?width=206&height=456)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dedb7258-bb82-499d-9a92-2efcca93cb40.png?width=206&height=456)

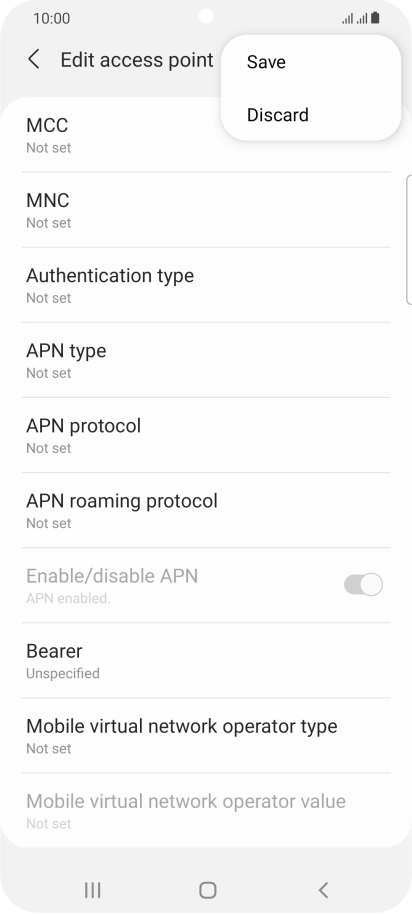

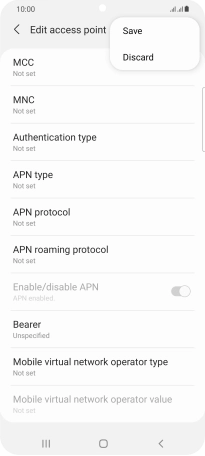

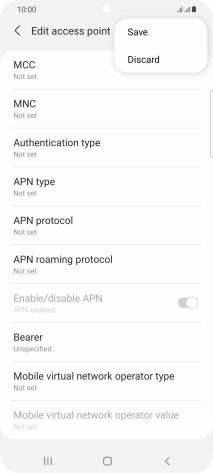

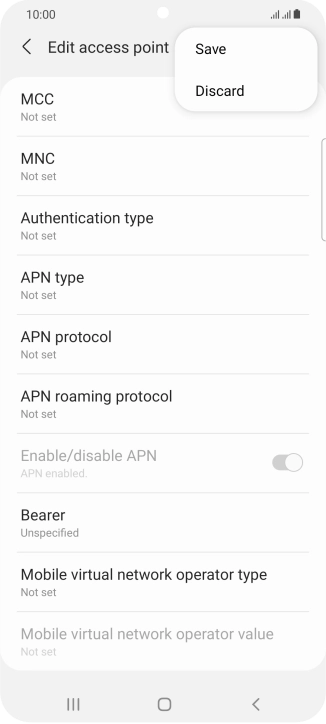

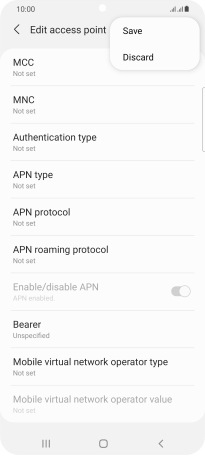

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b70879d6-c078-4001-a120-96a50e29c161.png?width=206&height=456)
13. Return to the home screen

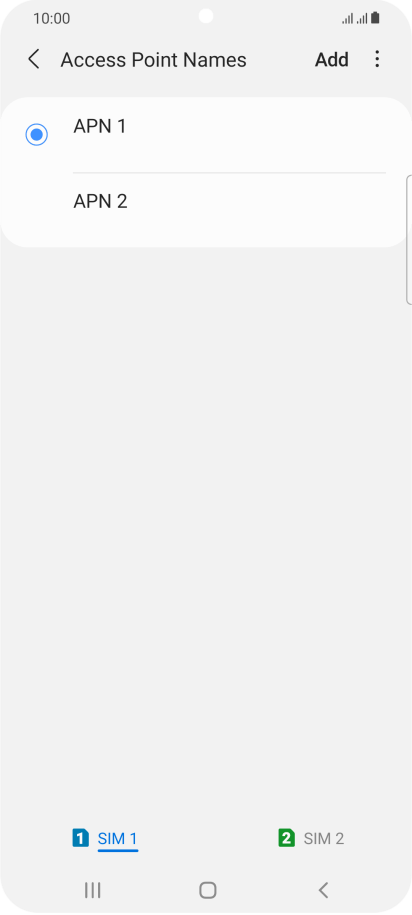

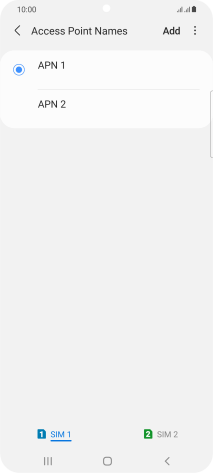

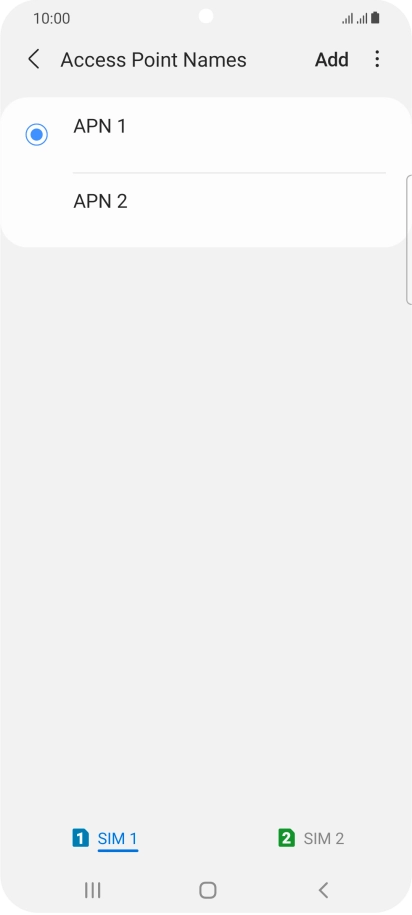

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69136bd8-b927-407f-8b09-20327d719f23.png?width=206&height=456)
