1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"
Press Connections.
1. Find "Access Point Names"
Press Mobile networks.
1. Find "Access Point Names"

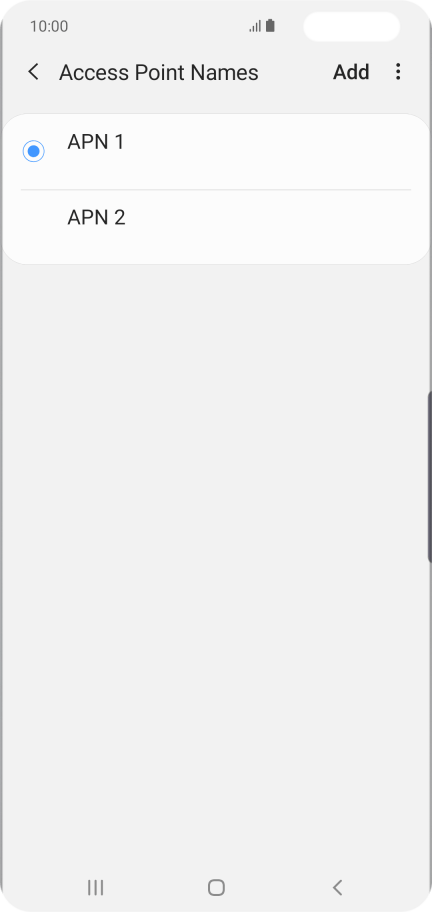

Press Access Point Names.

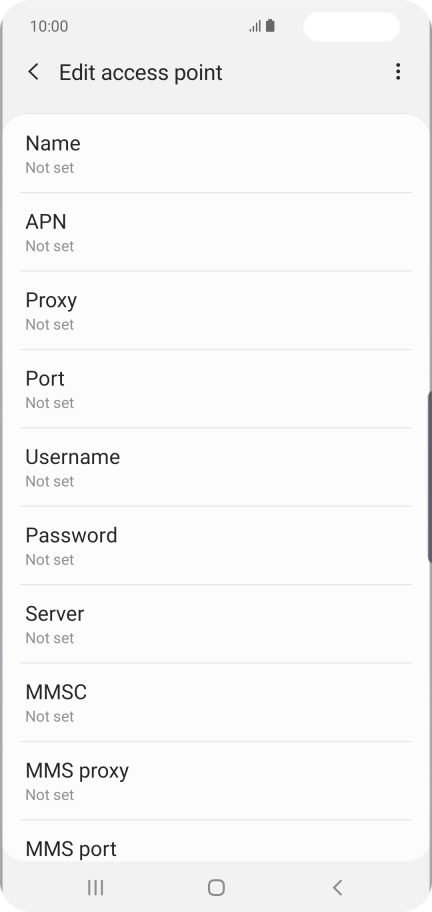

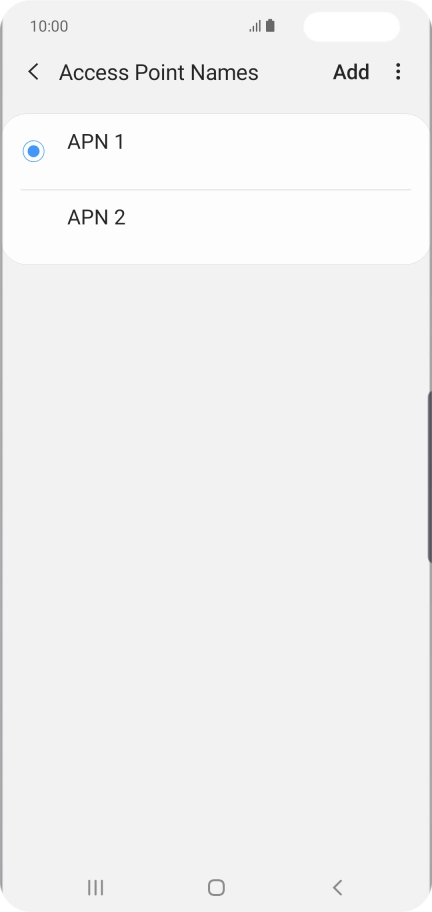

2. Create new data connection

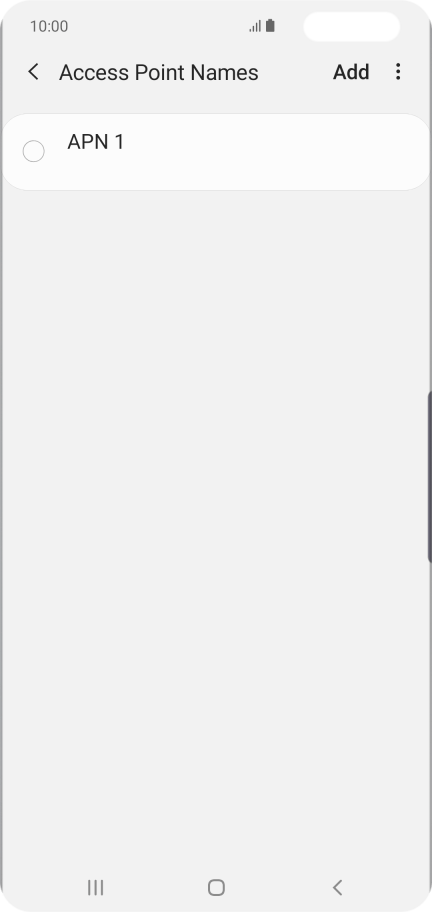

Press Add.
2. Create new data connection

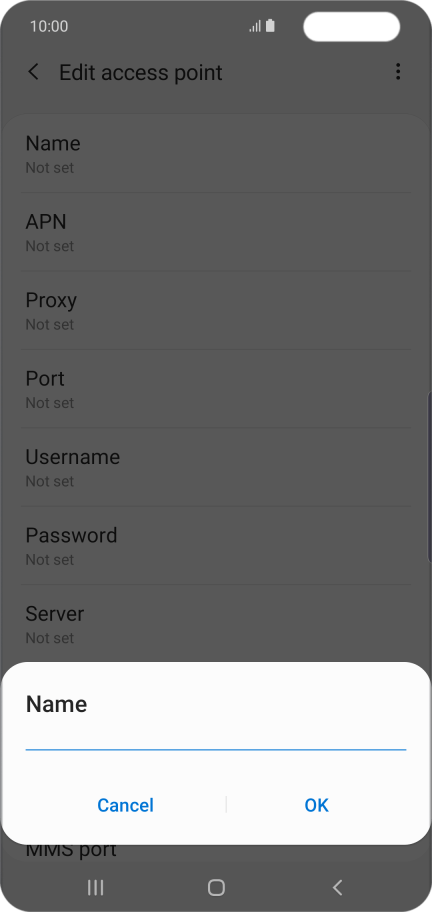

Press Name.
2. Create new data connection
Key in Vodafone MMS and press OK.
3. Enter APN

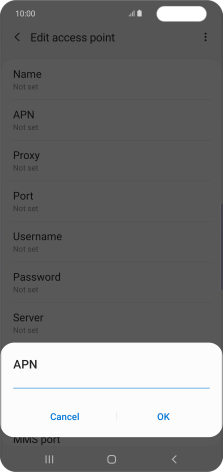

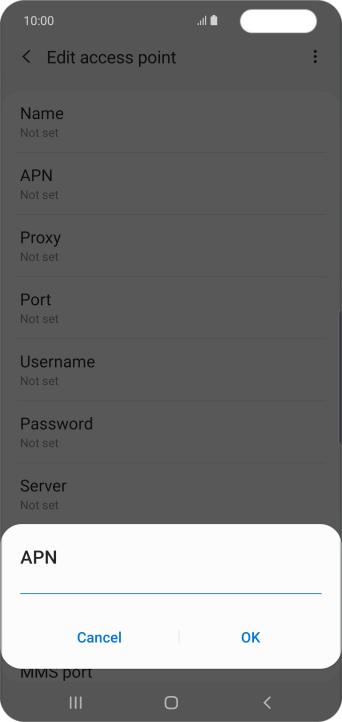

Press APN.
3. Enter APN
Key in mms.vodafone.net and press OK.

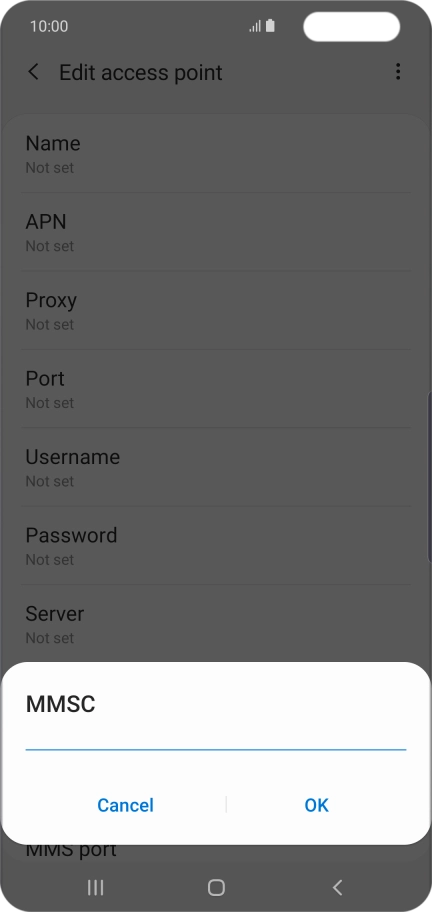

4. Enter MMSC

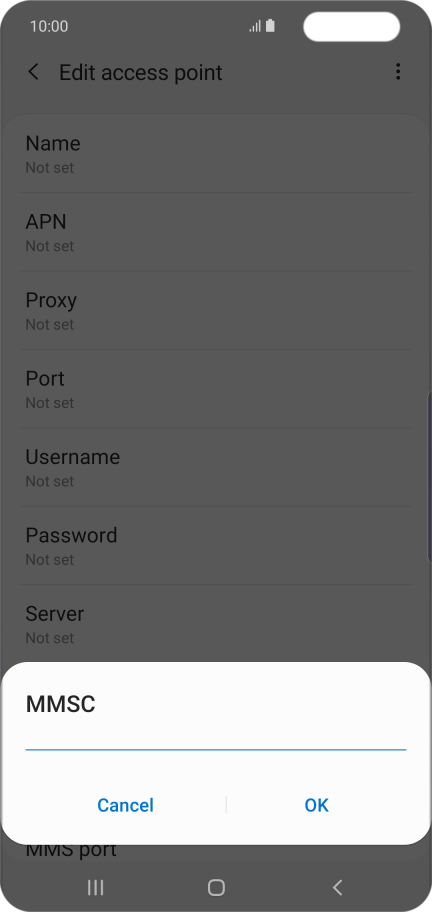

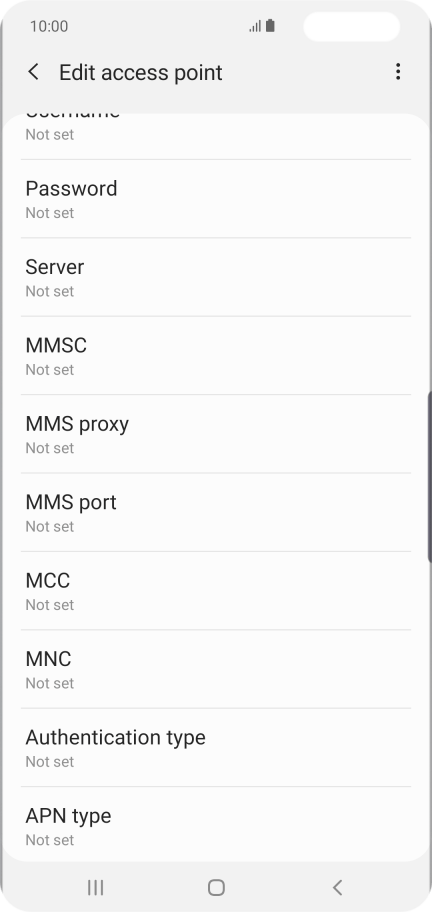

Press MMSC.
4. Enter MMSC
Key in http://www.vodafone.ie/mms and press OK.

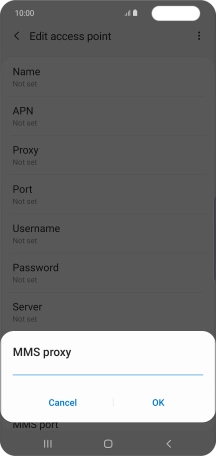

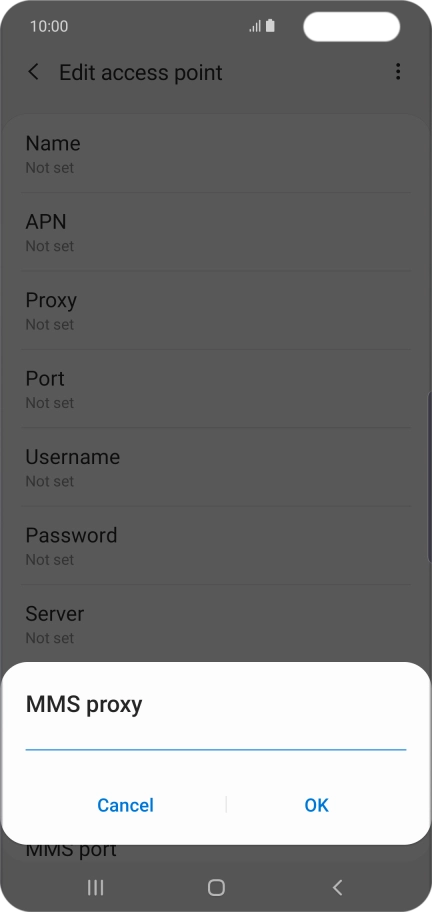

5. Enter IP address

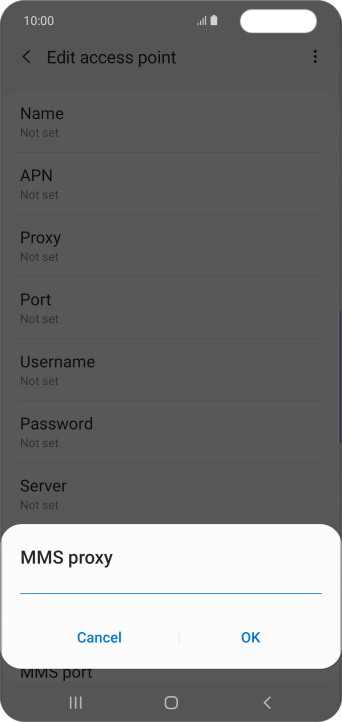

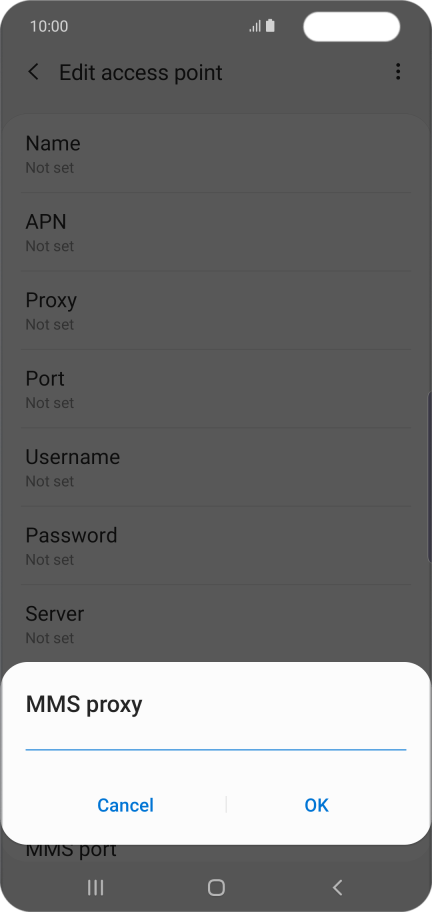

Press MMS proxy.
5. Enter IP address
Key in 10.24.59.200 and press OK.

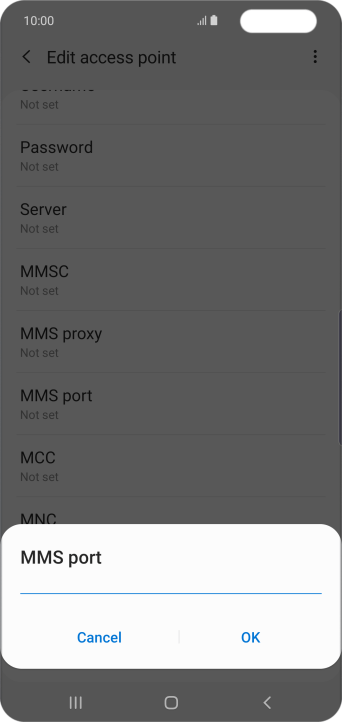

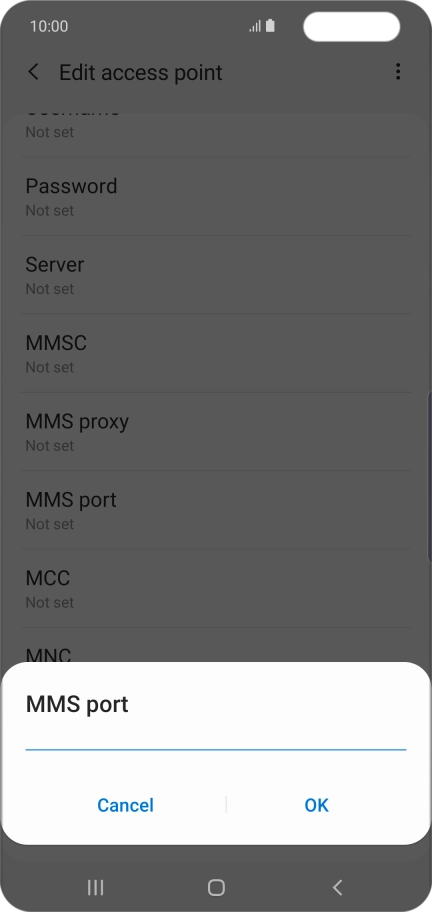

6. Enter port number

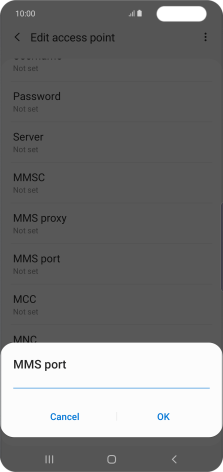

Press MMS port.
6. Enter port number
Key in 80 and press OK.

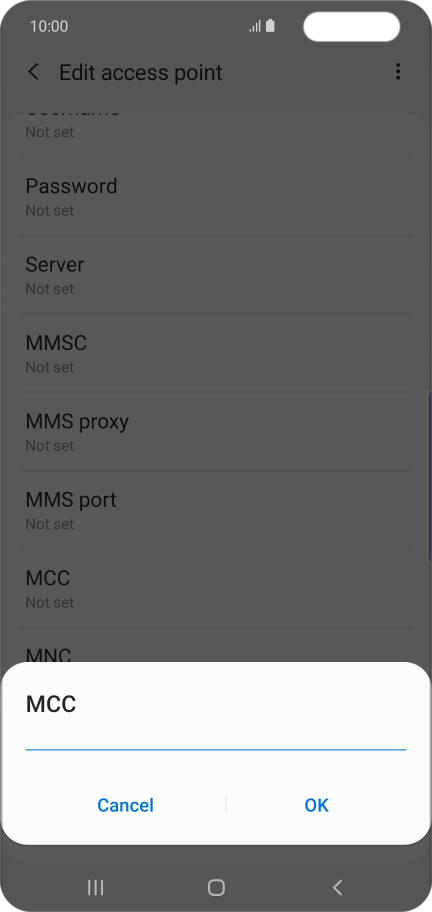

7. Enter country code

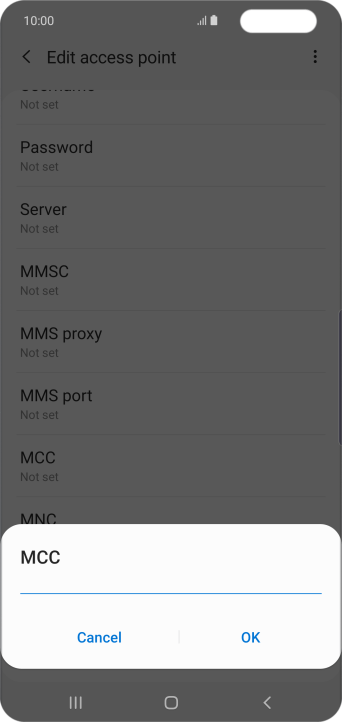

Press MCC.
7. Enter country code
Key in 272 and press OK.

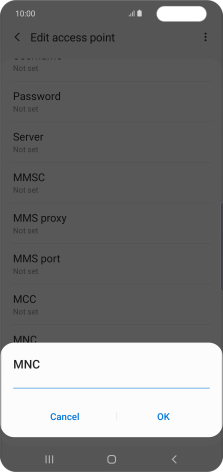

8. Enter network code

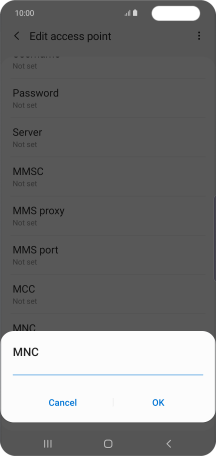

Press MNC.
8. Enter network code
Key in 01 and press OK.

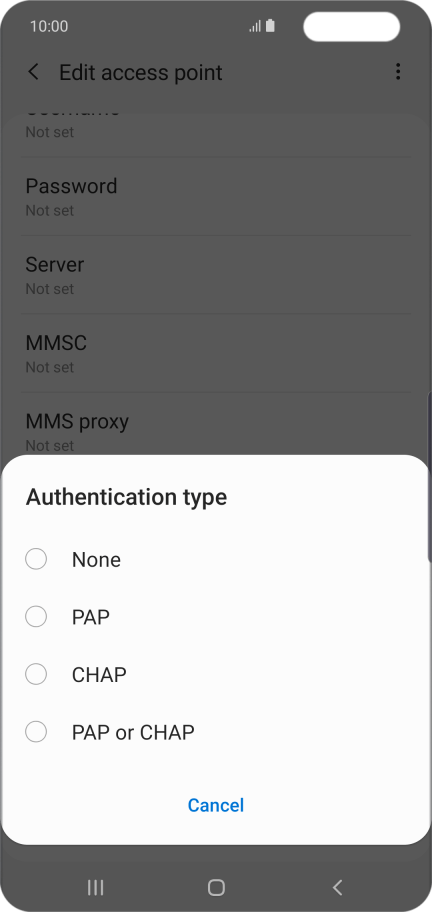

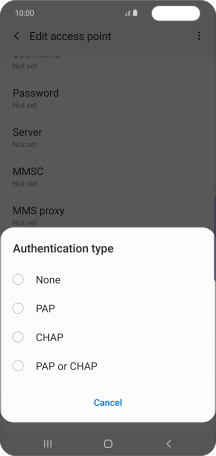

9. Select authentication type

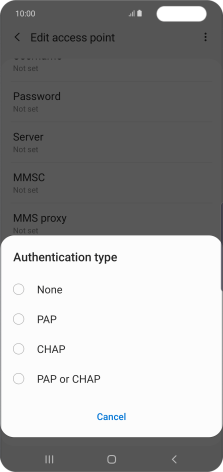

Press Authentication type.
9. Select authentication type
Press PAP.

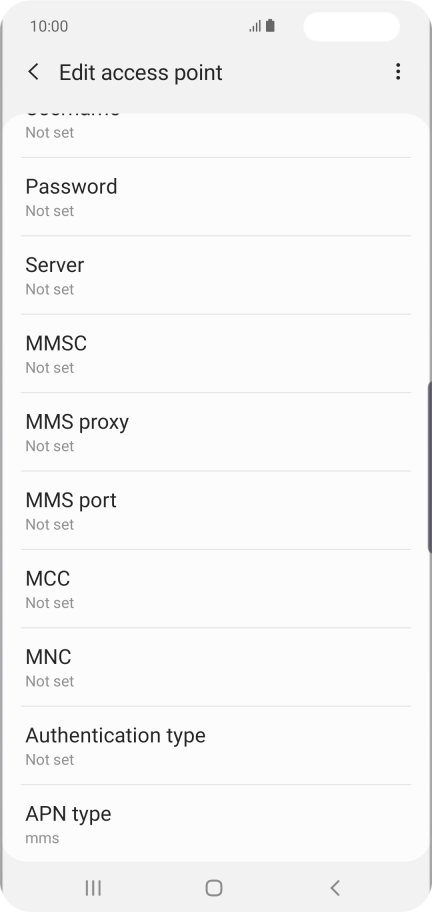

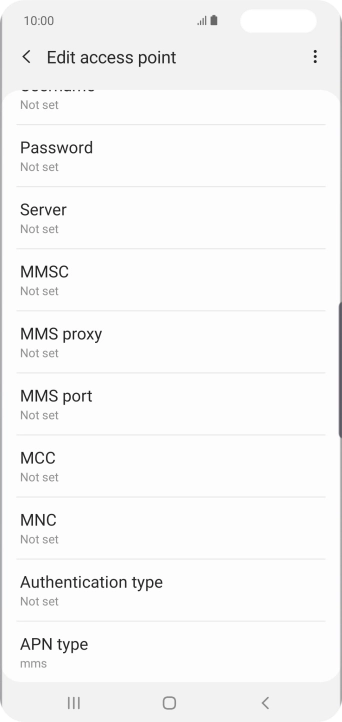

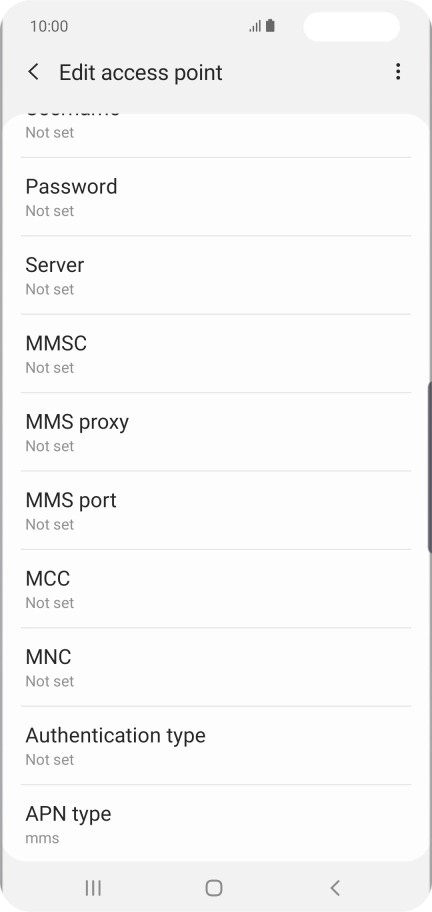

10. Select APN type

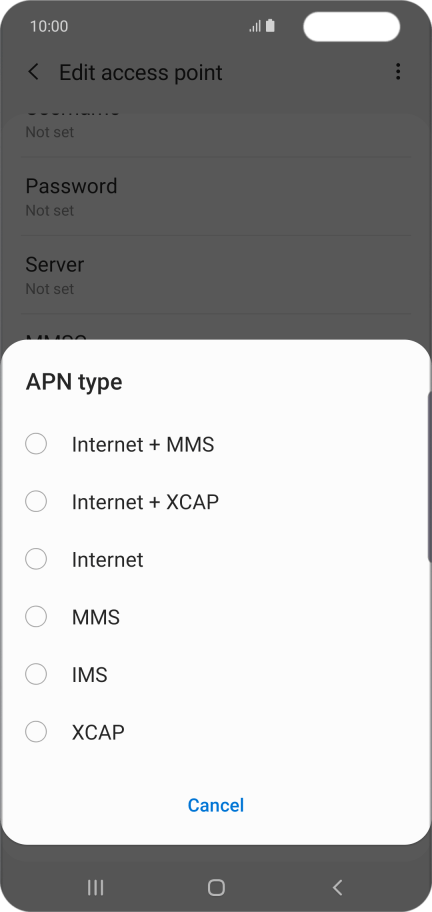

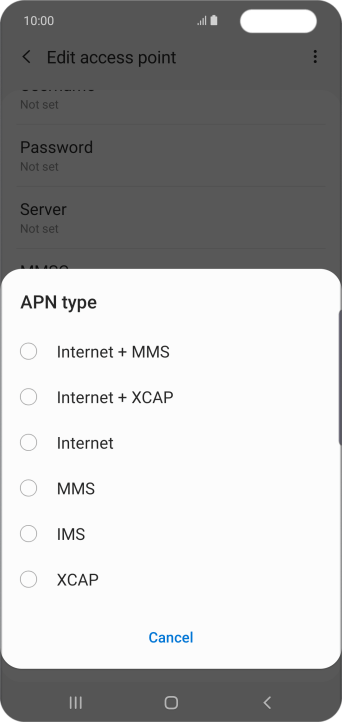

Press APN type.
10. Select APN type
Press MMS.
11. Save data connection

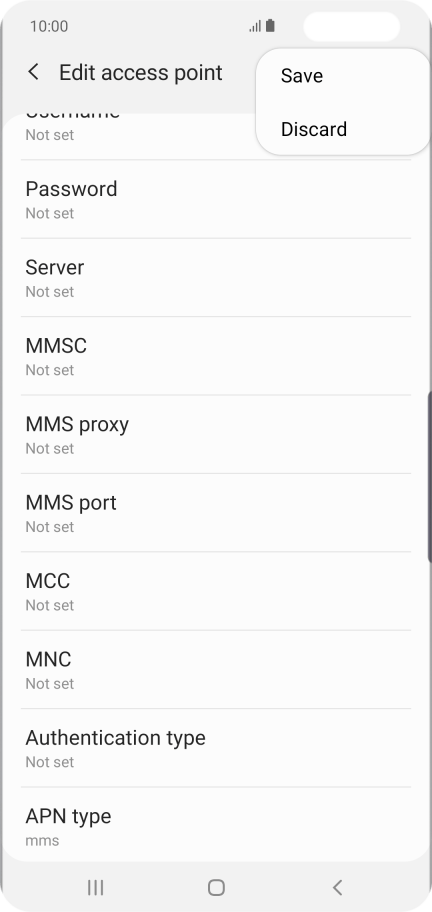

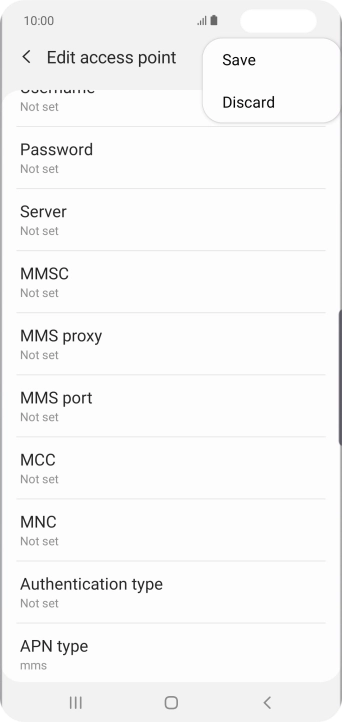

Press the menu icon.
11. Save data connection
Press Save.
12. Return to the home screen
Press the Home key to return to the home screen.
