Set up your phone for Exchange email - Samsung Galaxy Note

Read help info

Follow these instructions to set up your phone for Exchange email.

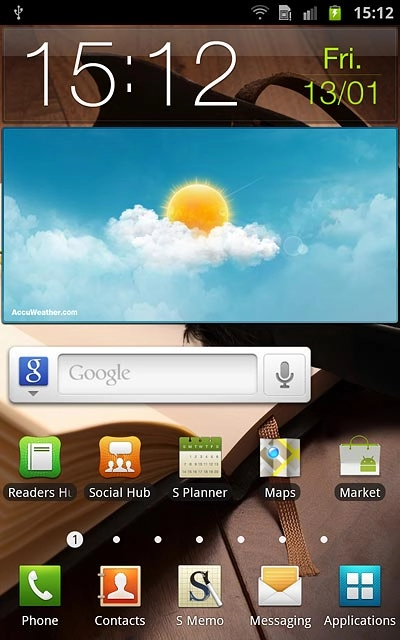

Step 1 of 57

Find "Access Point Names"

Press Applications.

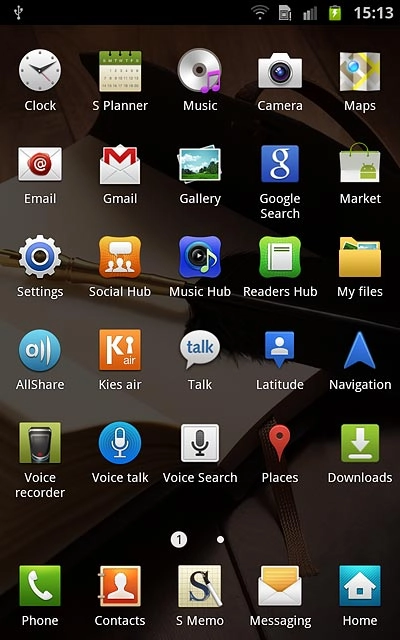

Step 2 of 57

Find "Access Point Names"

Press Settings.

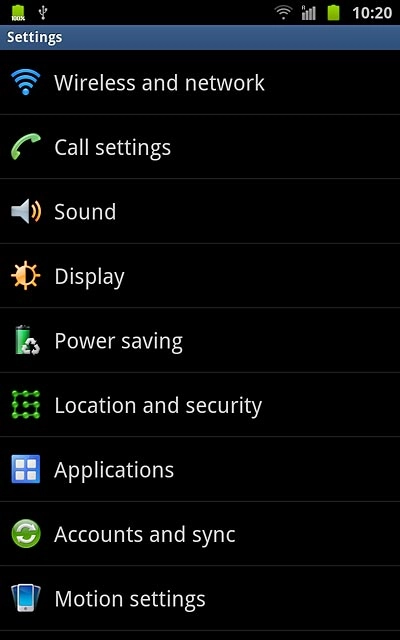

Step 3 of 57

Find "Access Point Names"

Press Wireless and network.

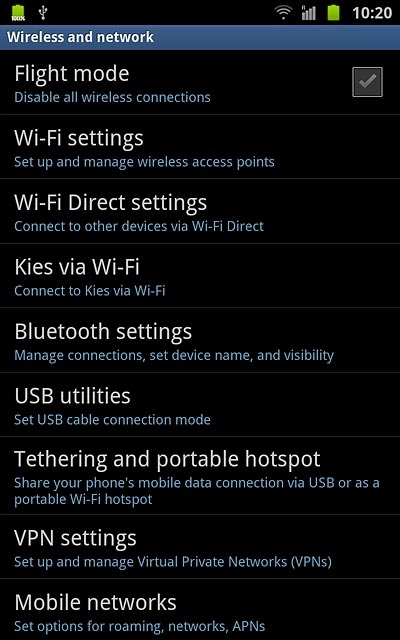

Step 4 of 57

Find "Access Point Names"

Press Mobile networks.

Step 5 of 57

Find "Access Point Names"

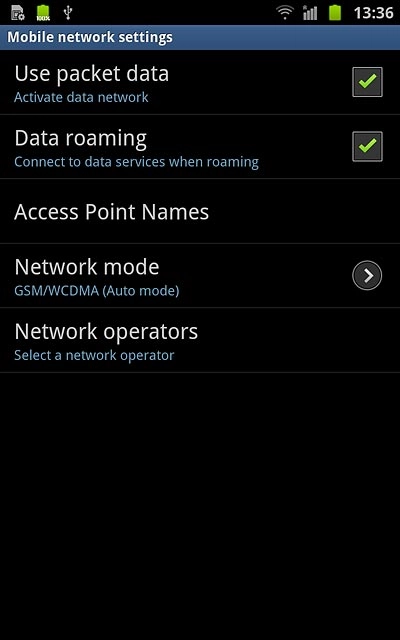

Press Access Point Names.

Step 6 of 57

Create new data connection

Press the Menu key.

Step 7 of 57

Create new data connection

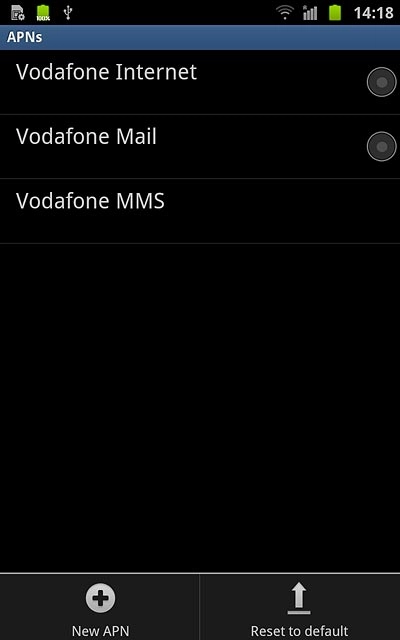

Press New APN.

Step 8 of 57

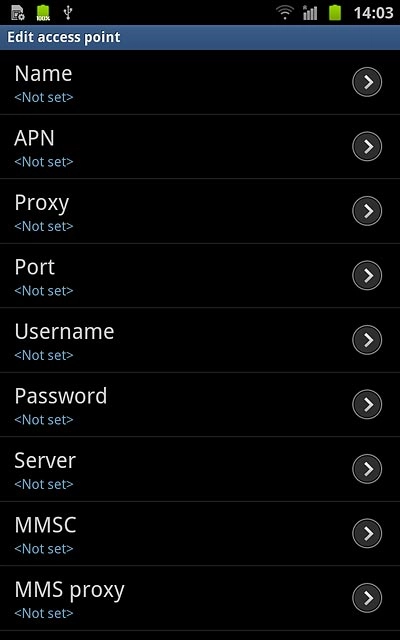

Enter data connection name

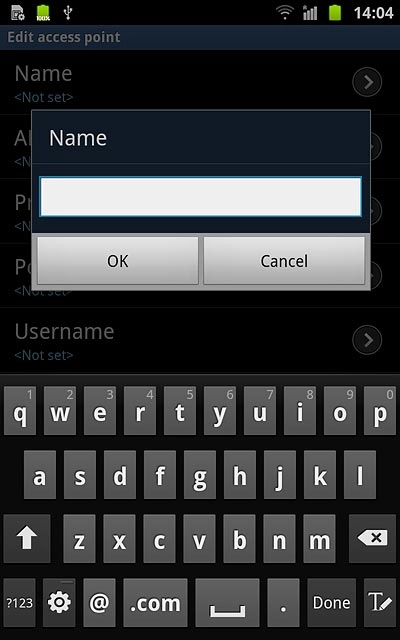

Press Name.

Step 9 of 57

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 57

Enter APN

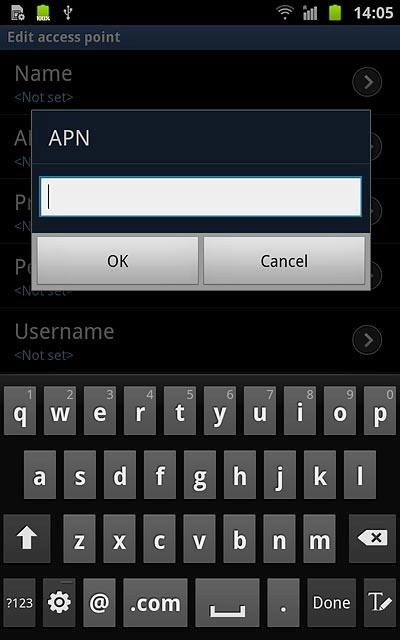

Press APN.
Key in live.vodafone.com

An APN is used to create a data connection.
Step 11 of 57

Enter APN

Press OK.

An APN is used to create a data connection.
Step 12 of 57

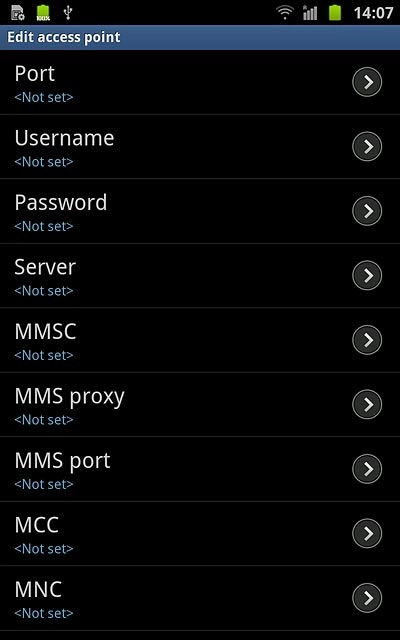

Enter country code

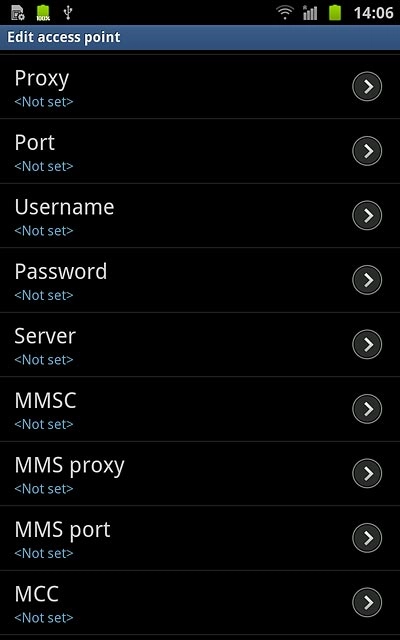

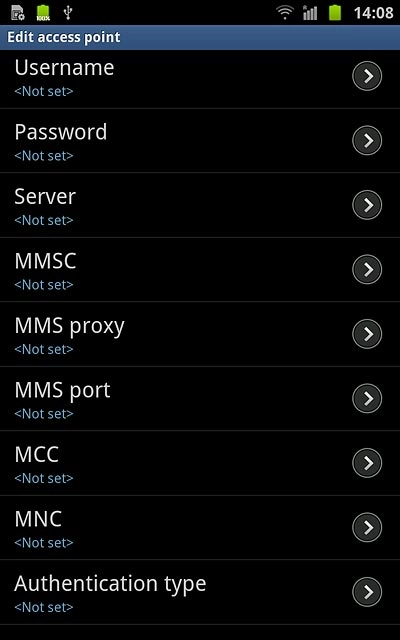

Press MCC.

Step 13 of 57

Enter country code

Key in 272 and press OK.

Step 14 of 57

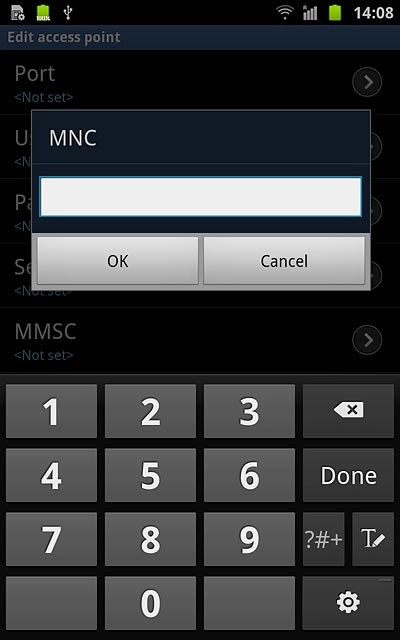

Enter network code

Press MNC.

Step 15 of 57

Enter network code

Key in 01 and press OK.

Step 16 of 57

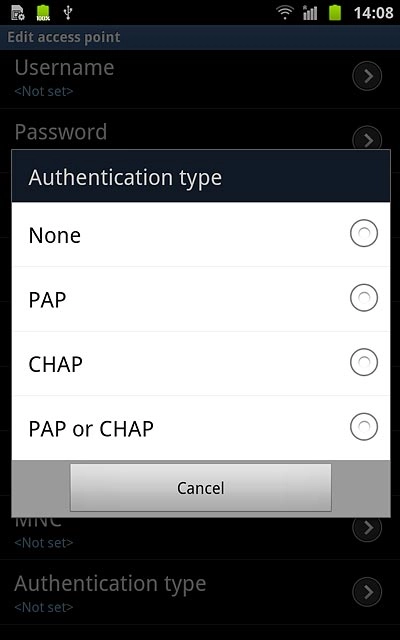

Select authentication type

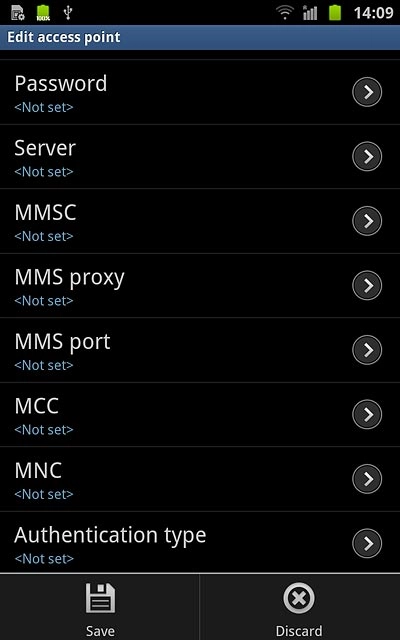

Press Authentication type.

Step 17 of 57

Select authentication type

Press PAP.

Step 18 of 57

Select APN type

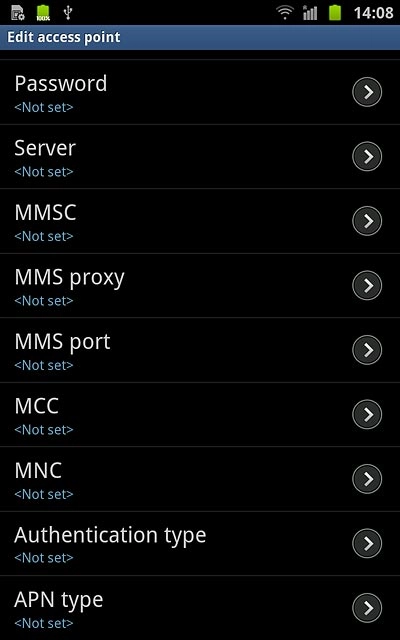

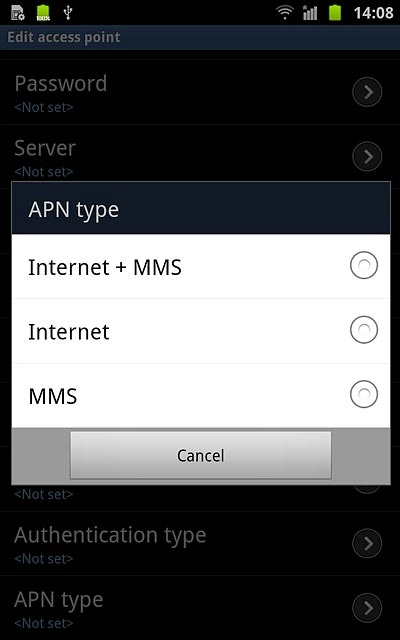

Press APN type.

Step 19 of 57

Select APN type

Press Internet.

Step 20 of 57

Save and activate data connection

Press the Menu key.

Step 21 of 57

Save and activate data connection

Press Save.

Step 22 of 57

Save and activate data connection

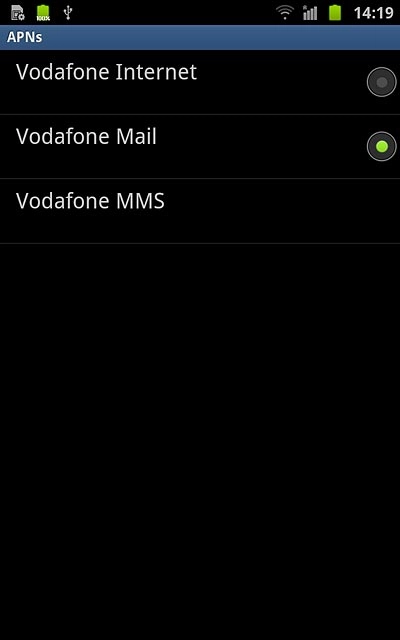

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 57

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 57

Find "Email"

Press Applications.

Step 25 of 57

Find "Email"

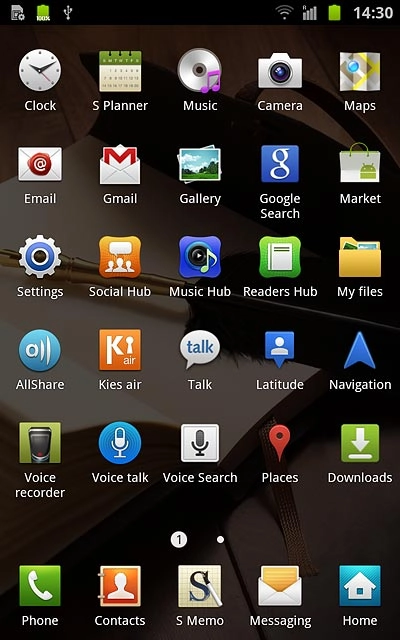

Press Email.

Step 26 of 57

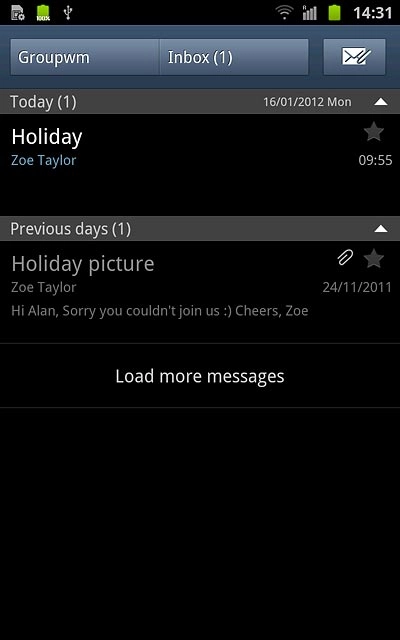

Create new email account

If email accounts have been created already:
Press the field in the top left corner of the display (the account name).

Step 27 of 57

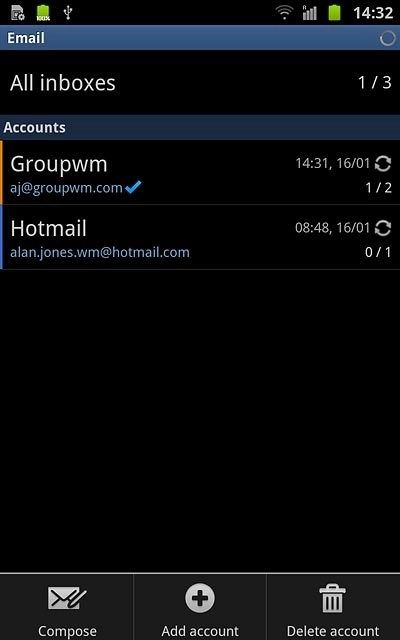

Create new email account

Press the Menu key.

Step 28 of 57

Create new email account

Press Add account.

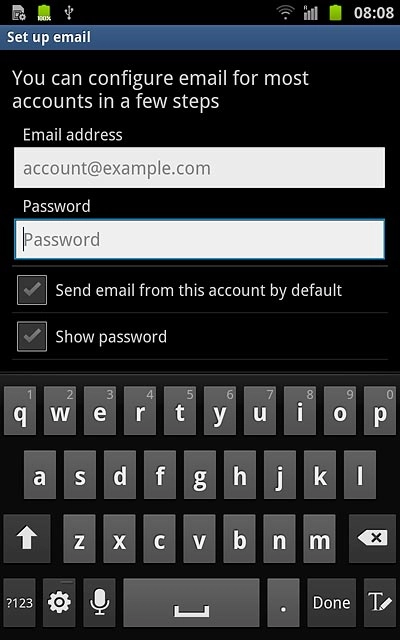

Step 29 of 57

Enter email address

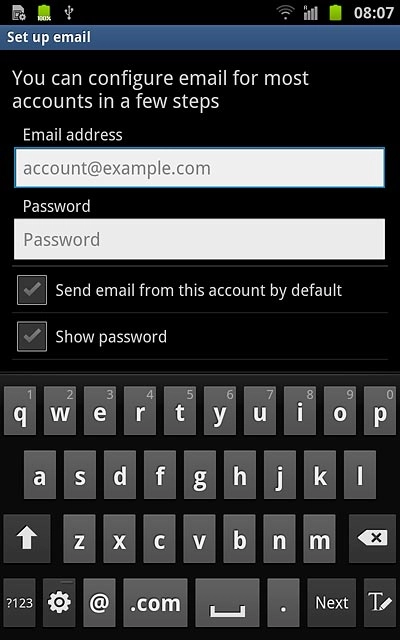

Press account@example.com and key in your email address.

Step 30 of 57

Enter password

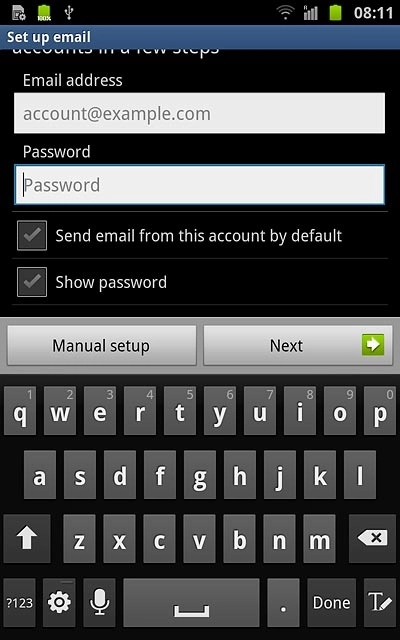

Press Password and key in your password.

Step 31 of 57

Enter password

Press Manual setup.

Step 32 of 57

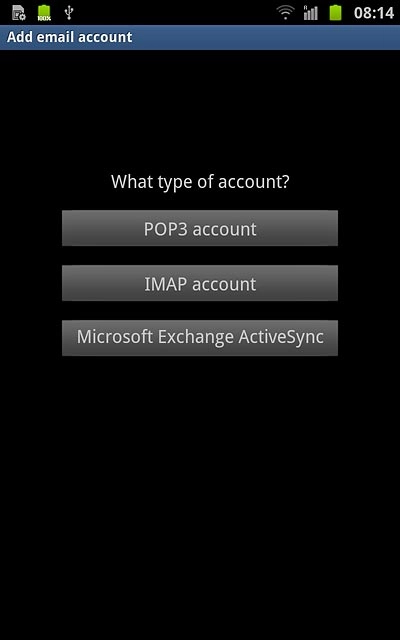

Select server type

Press Microsoft Exchange ActiveSync.

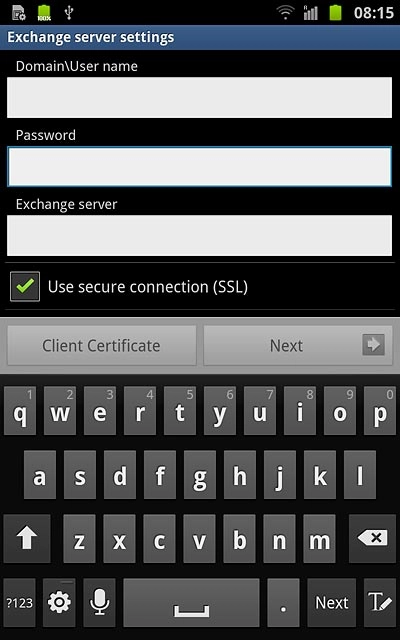

Step 33 of 57

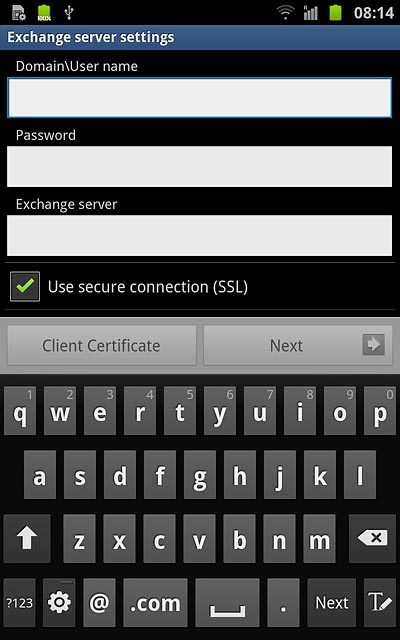

Enter domain and username

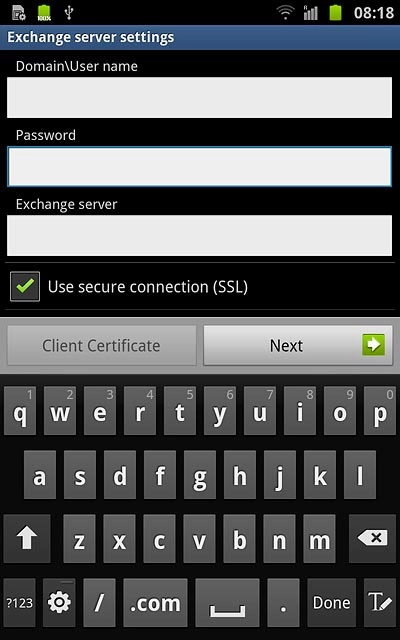

Press the field below Domain\User name and key in the domain and username separated by a "\".

Step 34 of 57

Enter server address

Press the field below Exchange server and key in the server address.

Step 35 of 57

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 36 of 57

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 37 of 57

Turn SSL encryption on or off

Press Next.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 38 of 57

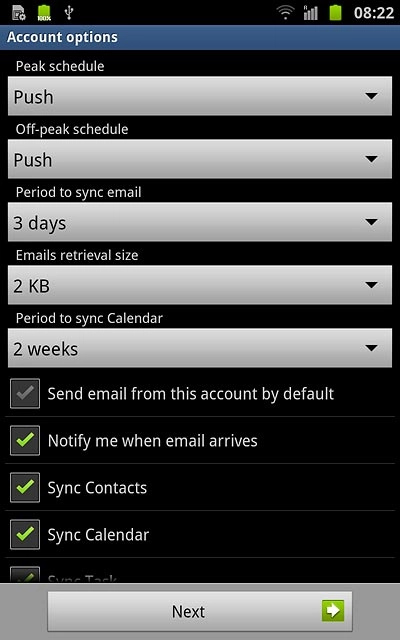

Select interval for synchronisation

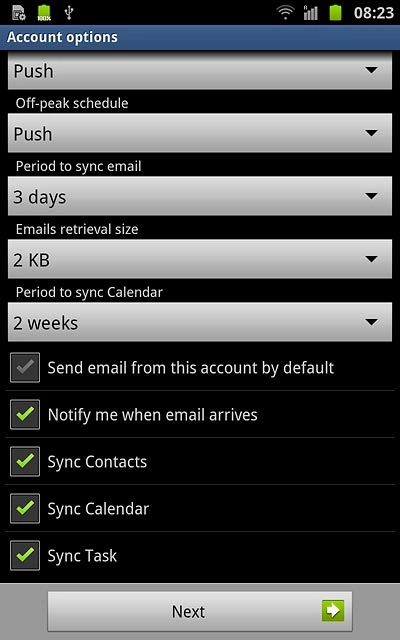

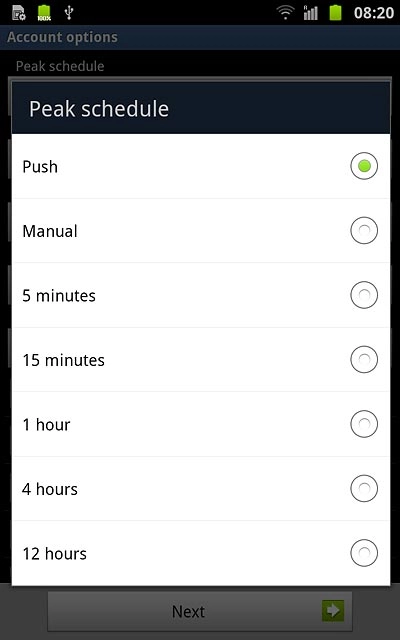

Press the drop down list below Peak schedule and Off-peak schedule.

Step 39 of 57

Select interval for synchronisation

Press Push, Manual or the required frequency.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Step 40 of 57

Select settings for synchronisation of email messages

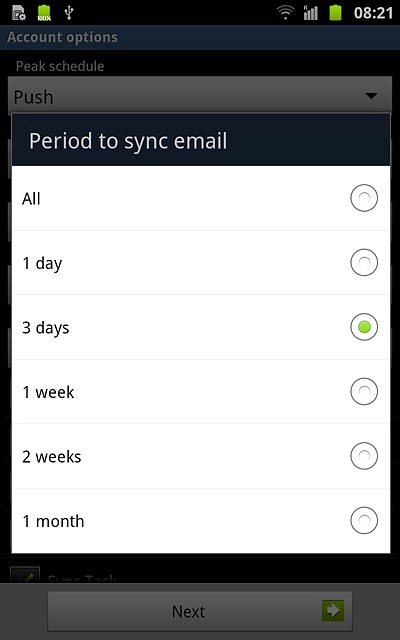

Press Period to sync email.

Step 41 of 57

Select settings for synchronisation of email messages

Press the required setting.

Step 42 of 57

Select setting for email message retrieval size

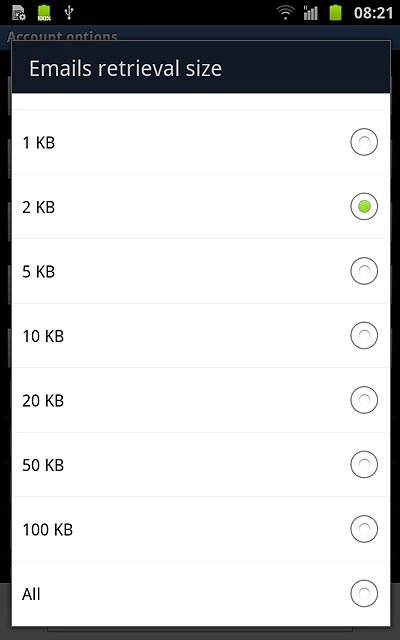

Press Emails retrieval size.

Step 43 of 57

Select setting for email message retrieval size

Press the required setting.

Step 44 of 57

Select settings for synchronisation of calendar

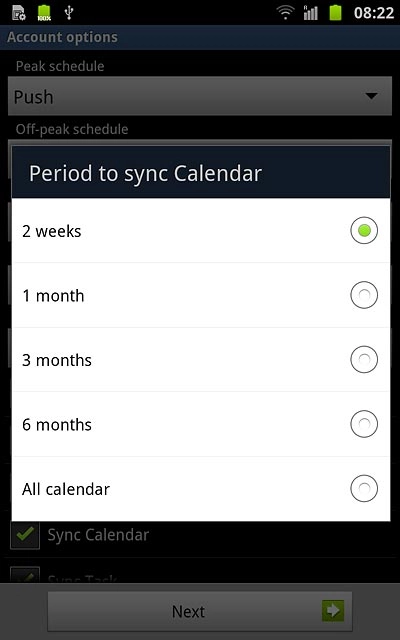

Press Period to sync Calendar.

Step 45 of 57

Select settings for synchronisation of calendar

Press the required setting.

Step 46 of 57

Select default email account

Press Send email from this account by default to turn the function on or off.

Step 47 of 57

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Step 48 of 57

Turn automatic synchronisation of contacts on or off

Press Sync Contacts to turn the function on or off.

Step 49 of 57

Turn automatic synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 50 of 57

Turn automatic synchronisation of calendar on or off

Press Sync Calendar to turn the function on or off.

Step 51 of 57

Turn automatic synchronisation of calendar on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 52 of 57

Turn automatic synchronisation of tasks on or off

Press Sync Task to turn the function on or off.

Step 53 of 57

Turn automatic synchronisation of tasks on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 54 of 57

Turn automatic synchronisation of tasks on or off

Press Next.

Step 55 of 57

Enter account name

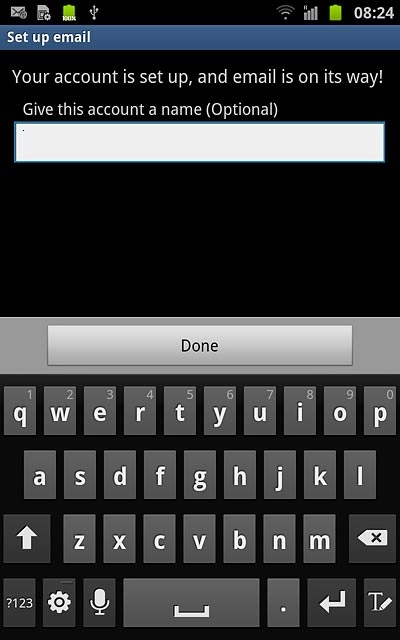

Press the field below Give this account a name (Optional) and key in the required name.

Step 56 of 57

Finish setup

Press Done.

Step 57 of 57

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press Applications.
Press Settings.
Press Wireless and network.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
An APN is used to create a data connection.
Press OK.
An APN is used to create a data connection.

Enter country code

Press MCC.
Key in 272 and press OK.

Enter network code

Press MNC.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Press Internet.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

Find "Email"

Press Applications.
Press Email.

Create new email account

If email accounts have been created already:
Press the field in the top left corner of the display (the account name).
Press the Menu key.
Press Add account.

Enter email address

Press account@example.com and key in your email address.

Enter password

Press Password and key in your password.
Press Manual setup.

Select server type

Press Microsoft Exchange ActiveSync.

Enter domain and username

Press the field below Domain\User name and key in the domain and username separated by a "\".

Enter server address

Press the field below Exchange server and key in the server address.

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
When the box next to the menu item is ticked (V), the function is turned on.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Press Next.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

Select interval for synchronisation

Press the drop down list below Peak schedule and Off-peak schedule.
Press Push, Manual or the required frequency.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Select settings for synchronisation of email messages

Press Period to sync email.
Press the required setting.

Select setting for email message retrieval size

Press Emails retrieval size.
Press the required setting.

Select settings for synchronisation of calendar

Press Period to sync Calendar.
Press the required setting.

Select default email account

Press Send email from this account by default to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Turn automatic synchronisation of contacts on or off

Press Sync Contacts to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Turn automatic synchronisation of calendar on or off

Press Sync Calendar to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Turn automatic synchronisation of tasks on or off

Press Sync Task to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

Enter account name

Press the field below Give this account a name (Optional) and key in the required name.

Finish setup

Press Done.

Exit

Press the Home key to return to standby mode.
