Set up your phone for Exchange email - Samsung Galaxy Mini

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 55

Find "Access Point Names"

Press the menu icon.

Step 2 of 55

Find "Access Point Names"

Press Settings.

Step 3 of 55

Find "Access Point Names"

Press Wireless and networks.

Step 4 of 55

Find "Access Point Names"

Press Mobile networks.

Step 5 of 55

Find "Access Point Names"

Press Access Point Names.

Step 6 of 55

Create new data connection

Press the Menu key.

Step 7 of 55

Create new data connection

Press New APN.

Step 8 of 55

Enter data connection name

Press Name.

Step 9 of 55

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 55

Enter APN

Press APN.

Step 11 of 55

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 55

Enter country code

Press MCC.

Step 13 of 55

Enter country code

Key in 272 and press OK.

Step 14 of 55

Enter network code

Press MNC.

Step 15 of 55

Enter network code

Key in 01 and press OK.

Step 16 of 55

Select authentication type

Press Authentication type.

Step 17 of 55

Select authentication type

Press PAP.

Step 18 of 55

Select APN type

Press APN type.

Step 19 of 55

Select APN type

Press Internet.

Step 20 of 55

Save and activate data connection

Press the Menu key.

Step 21 of 55

Save and activate data connection

Press Save.

Step 22 of 55

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 55

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 55

Find "Email"

Press the menu icon.

Step 25 of 55

Find "Email"

Press Email.

Step 26 of 55

Create new email account

If email accounts have been created already:
Press the Menu key.

Step 27 of 55

Create new email account

Press Accounts.

Step 28 of 55

Create new email account

Press the Menu key.

Step 29 of 55

Create new email account

Press Add account.

Step 30 of 55

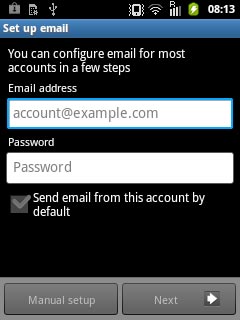

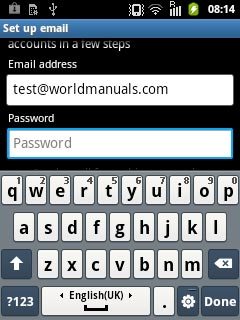

Enter email address

Press Email address and key in your email address.

Step 31 of 55

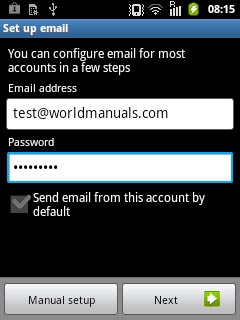

Enter password

Press Password and key in your password.

Step 32 of 55

Enter password

Press Manual setup.

Step 33 of 55

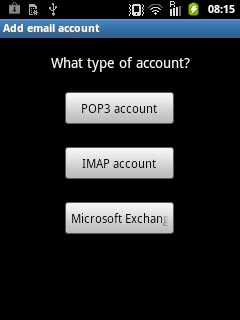

Select server type

Press Microsoft Exchange ActiveSync.

Step 34 of 55

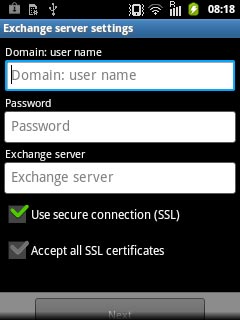

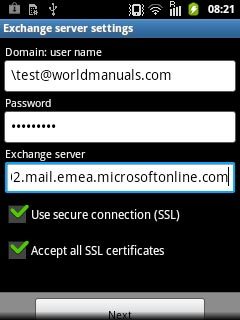

Enter domain and username

Press the field below Domain: user name and key in the domain and username separated by a "\".

Step 35 of 55

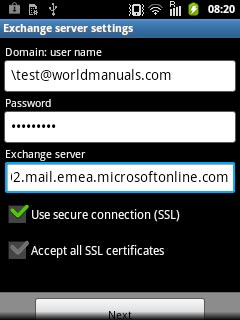

Enter server address

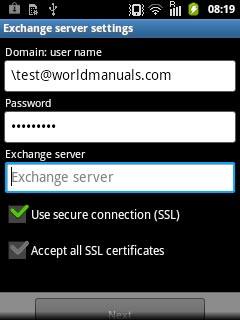

Press the field below Exchange server and key in the server address.

Step 36 of 55

Turn SSL encryption on or off

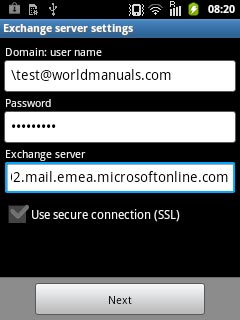

Press Use secure connection (SSL) to turn SSL encryption on or off.

Step 37 of 55

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 38 of 55

Turn SSL certificates on or off

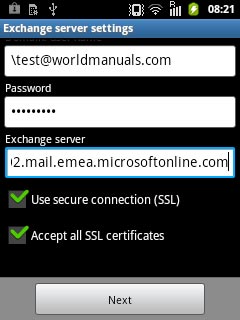

Press Accept all SSL certificates to turn the function on or off.

The menu item is only available if you turned on Use secure connection (SSL) in step 17.
Step 39 of 55

Turn SSL certificates on or off

When the box next to the menu item is ticked (V), the function is turned on.

The menu item is only available if you turned on Use secure connection (SSL) in step 17.
Step 40 of 55

Turn SSL certificates on or off

Press Next.

The menu item is only available if you turned on Use secure connection (SSL) in step 17.
Step 41 of 55

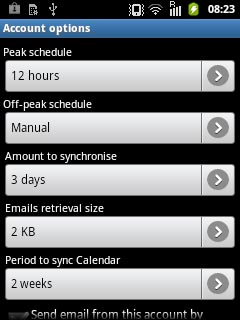

Select setting for retrieving new email messages

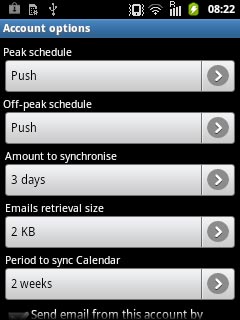

Press the drop down list next to Peak schedule.

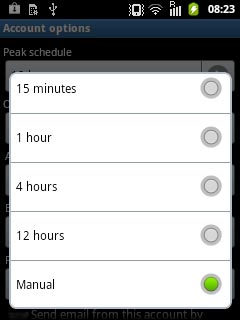

Step 42 of 55

Select setting for retrieving new email messages

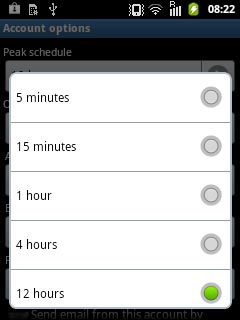

Press the required period.

Step 43 of 55

Select setting for retrieving new email messages

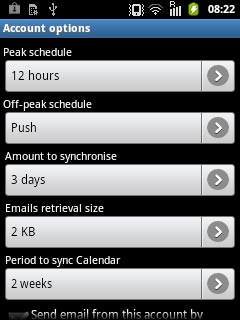

Press the drop down list next to Off-peak schedule.

Step 44 of 55

Select setting for retrieving new email messages

Press the required period.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Step 45 of 55

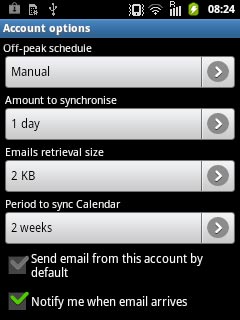

Select synchronisation setting

Press Amount to synchronise.

Step 46 of 55

Select synchronisation setting

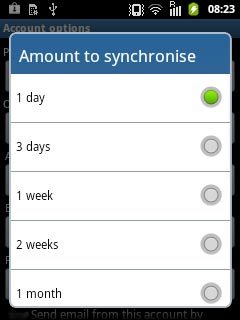

Press the required setting.

Step 47 of 55

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.

Step 48 of 55

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 49 of 55

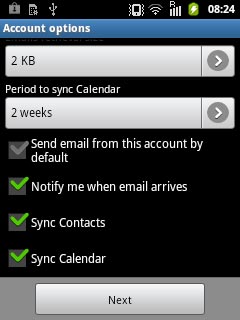

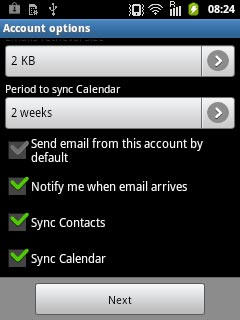

Select data types

Press Sync Contacts and Sync Calendar to turn synchronisation on or off.

Step 50 of 55

Select data types

When the box next to the menu item is ticked (V), synchronisation is turned on.

Step 51 of 55

Select data types

Press Next.

Step 52 of 55

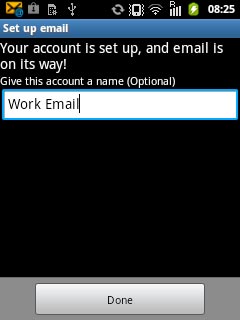

Enter email account name

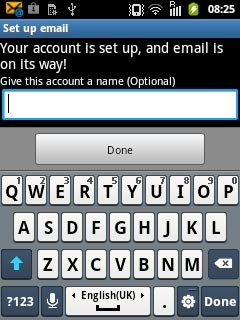

Press the field below Give this account a name (Optional) and key in a name for your email account (such as Private or Work).

Step 53 of 55

Finish setup

Press Done.

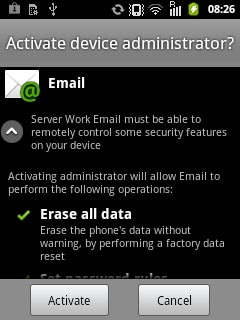

Step 54 of 55

Finish setup

Press Activate.

Step 55 of 55

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless and networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com and press OK.

Enter country code

Press MCC.
Key in 272 and press OK.

Enter network code

Press MNC.
Key in 01 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Press Internet.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the Home key to return to standby mode.

Find "Email"

Press the menu icon.
Press Email.

Create new email account

If email accounts have been created already:
Press the Menu key.
Press Accounts.
Press the Menu key.
Press Add account.

Enter email address

Press Email address and key in your email address.

Enter password

Press Password and key in your password.
Press Manual setup.

Select server type

Press Microsoft Exchange ActiveSync.

Enter domain and username

Press the field below Domain: user name and key in the domain and username separated by a "\".

Enter server address

Press the field below Exchange server and key in the server address.

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Turn SSL certificates on or off

Press Accept all SSL certificates to turn the function on or off.
The menu item is only available if you turned on Use secure connection (SSL) in step 17.
When the box next to the menu item is ticked (V), the function is turned on.
The menu item is only available if you turned on Use secure connection (SSL) in step 17.
Press Next.
The menu item is only available if you turned on Use secure connection (SSL) in step 17.

Select setting for retrieving new email messages

Press the drop down list next to Peak schedule.
Press the required period.
Press the drop down list next to Off-peak schedule.
Press the required period.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Select synchronisation setting

Press Amount to synchronise.
Press the required setting.

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Select data types

Press Sync Contacts and Sync Calendar to turn synchronisation on or off.
When the box next to the menu item is ticked (V), synchronisation is turned on.
Press Next.

Enter email account name

Press the field below Give this account a name (Optional) and key in a name for your email account (such as Private or Work).

Finish setup

Press Done.
Press Activate.

Exit

Press the Home key to return to standby mode.
