1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a659b78-ec94-4757-baf0-0c9a92312e5c.png?width=202&height=418)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aa45eaf9-c8c6-4bf7-9dc1-893c103af5ea.png?width=202&height=418)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d7a16ed1-1ddc-4eed-abff-fb76fd69b435.png?width=202&height=418)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fbc7176-cc0e-4049-ab12-a828d289d2ae.png?width=202&height=418)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fb00959d-ad5e-45e4-94f4-443972e31599.png?width=202&height=418)
2. Create new data connection

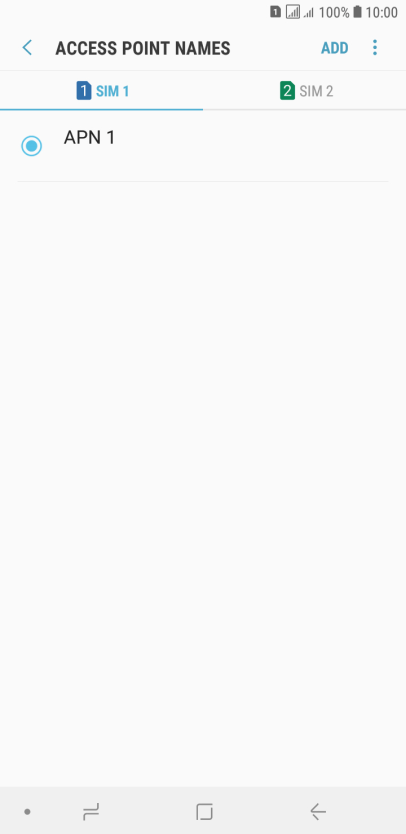

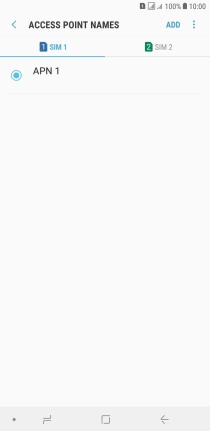

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2b9c9402-900b-4869-8738-9d4033a61ef3.png?width=202&height=418)
Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2b9c9402-900b-4869-8738-9d4033a61ef3.png?width=202&height=418)

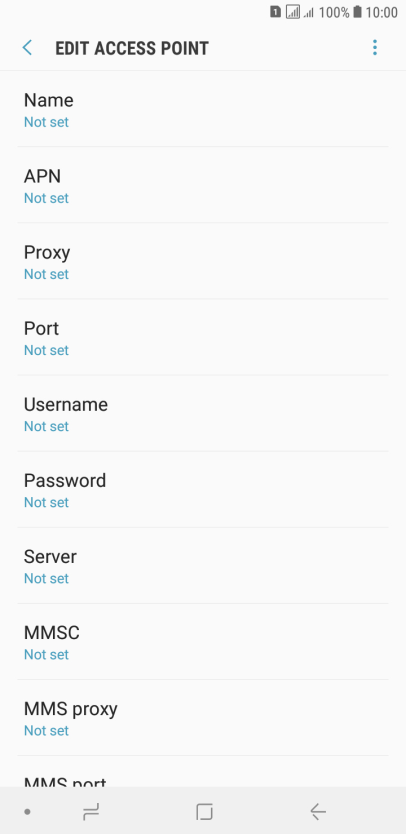

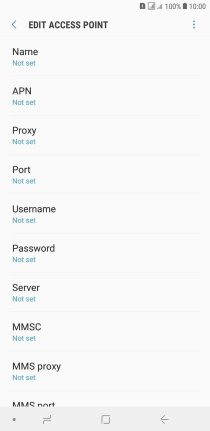

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a823ad5c-ff8a-4032-a55a-795ebf20e275.png?width=202&height=418)

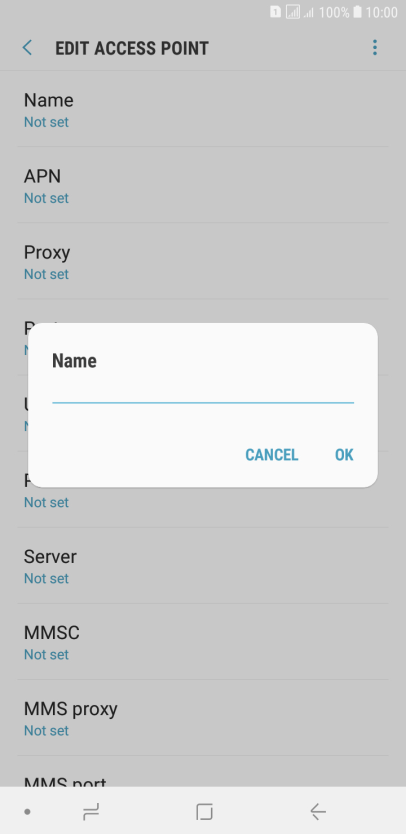

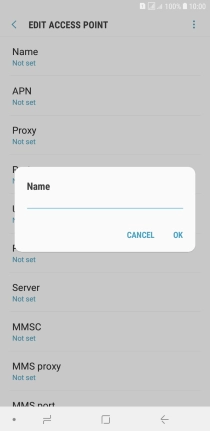

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-043300a3-ce9e-45c6-9705-cda2fc51e6d9.png?width=202&height=418)
Vodafone MMS
3. Enter APN

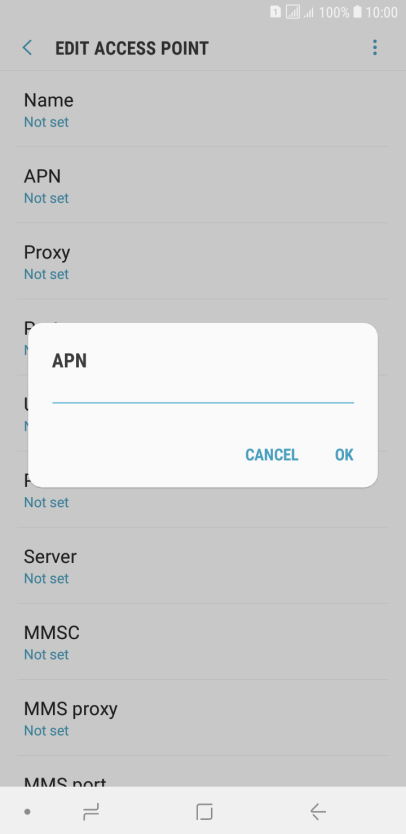

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a823ad5c-ff8a-4032-a55a-795ebf20e275.png?width=202&height=418)

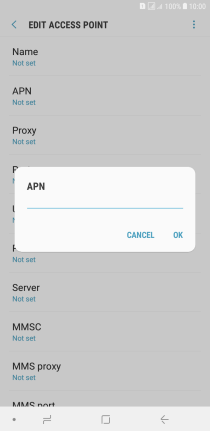

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a20e3378-571a-4e83-9f12-4df39e93c08e.png?width=202&height=418)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a823ad5c-ff8a-4032-a55a-795ebf20e275.png?width=202&height=418)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27440603-89b9-47e1-8b88-f181fcff68e0.png?width=202&height=418)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a823ad5c-ff8a-4032-a55a-795ebf20e275.png?width=202&height=418)

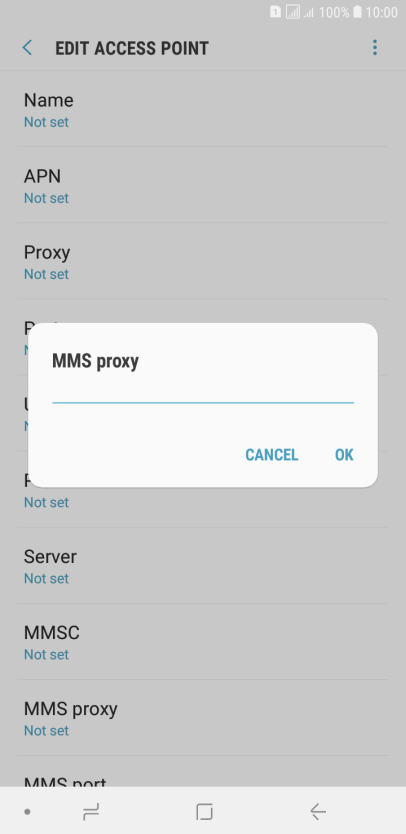

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68cff43e-8a65-413e-b948-1dffa60410c2.png?width=202&height=418)
10.24.59.200
6. Enter port number

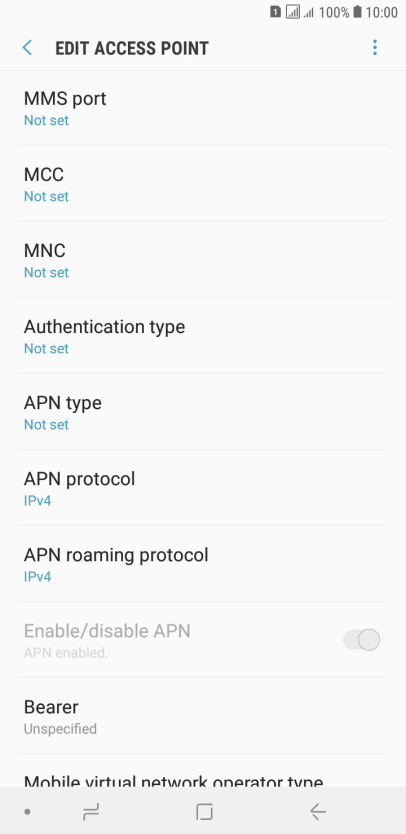

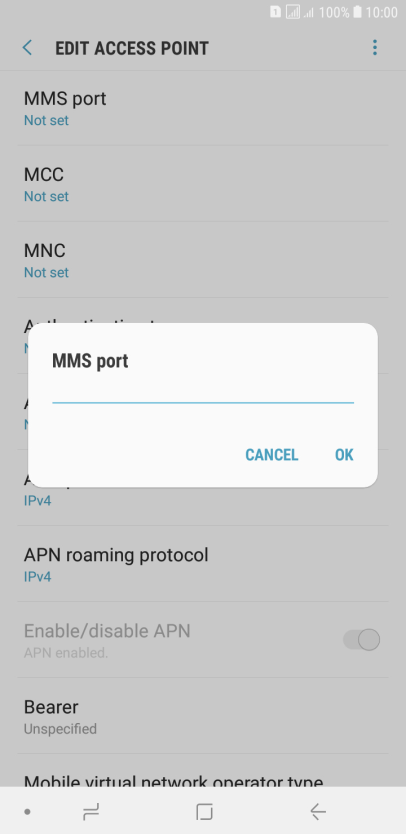

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d708419f-3aee-4944-a530-f54845e6d30b.png?width=202&height=418)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d1172dd-b0a1-4501-82f6-1a894ef780ee.png?width=202&height=418)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d708419f-3aee-4944-a530-f54845e6d30b.png?width=202&height=418)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-55706892-3b5e-4703-9c69-915ec70b9791.png?width=202&height=418)
272
8. Enter network code

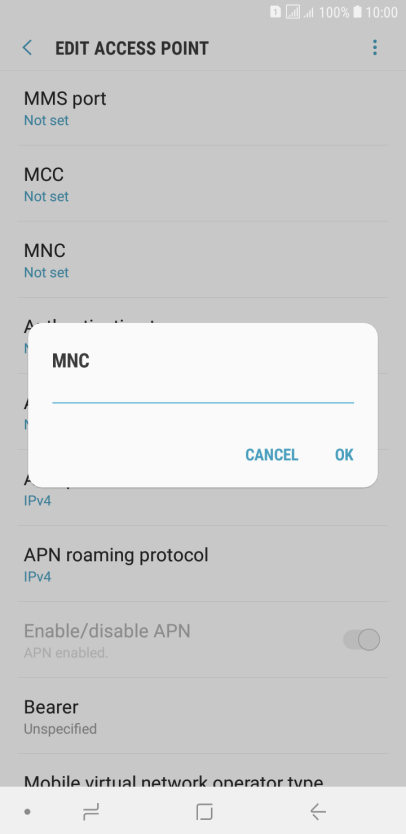

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d708419f-3aee-4944-a530-f54845e6d30b.png?width=202&height=418)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51493a99-078a-42db-87ec-60dfc5e3240f.png?width=202&height=418)
01
9. Select authentication type

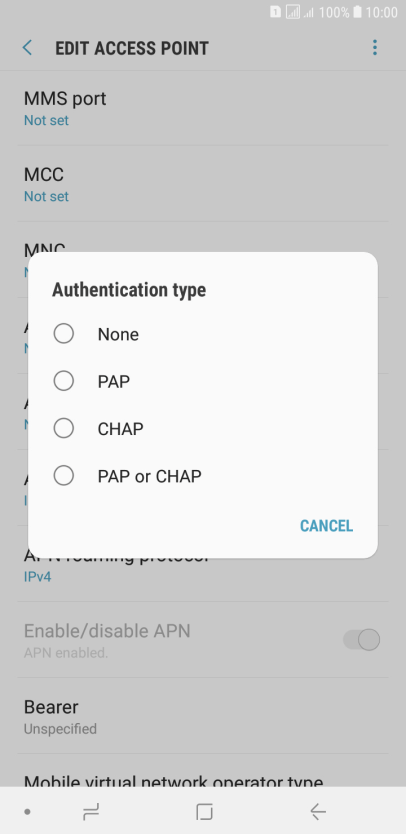

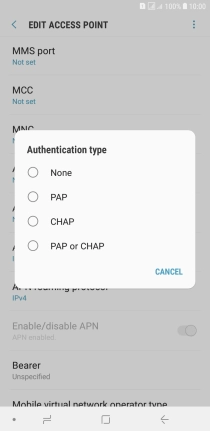

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d708419f-3aee-4944-a530-f54845e6d30b.png?width=202&height=418)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-559b7c1a-e520-40d2-97ae-c27215db2d40.png?width=202&height=418)
10. Enter APN type

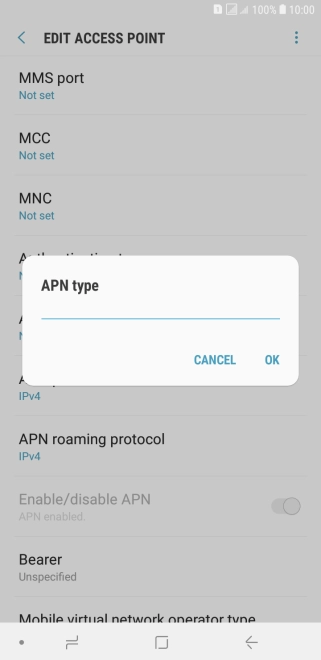

Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d708419f-3aee-4944-a530-f54845e6d30b.png?width=202&height=418)

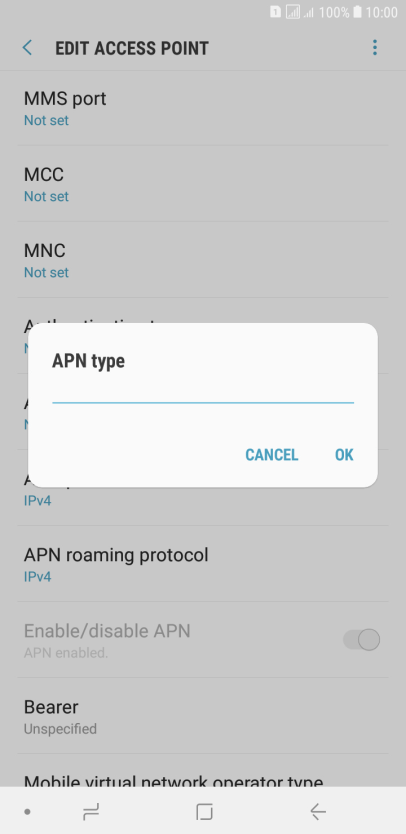

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7a0256dc-ffbd-4250-a9c5-dc2d20816070.png?width=202&height=418)
mms
11. Save data connection

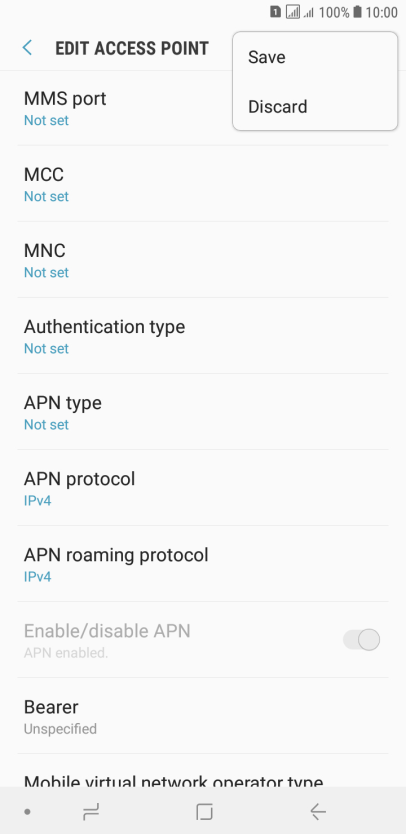

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d708419f-3aee-4944-a530-f54845e6d30b.png?width=202&height=418)

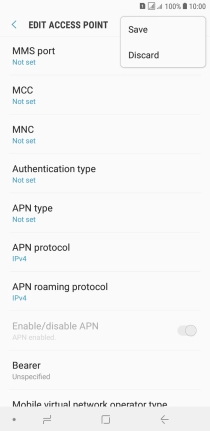

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-066b27e8-997d-463b-aa27-48b1eb4806d5.png?width=202&height=418)

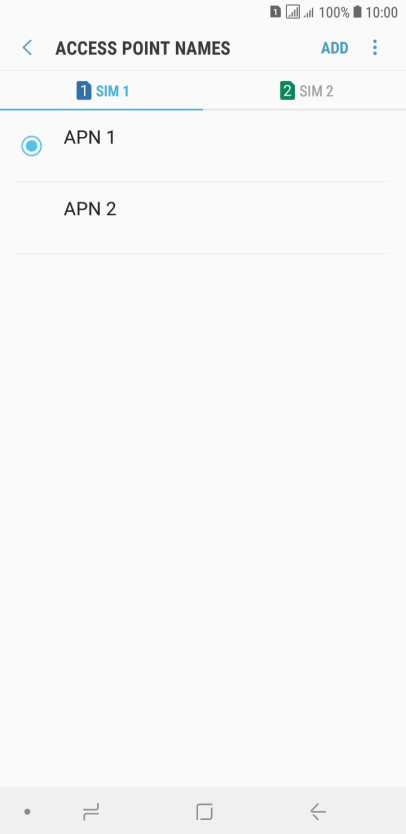

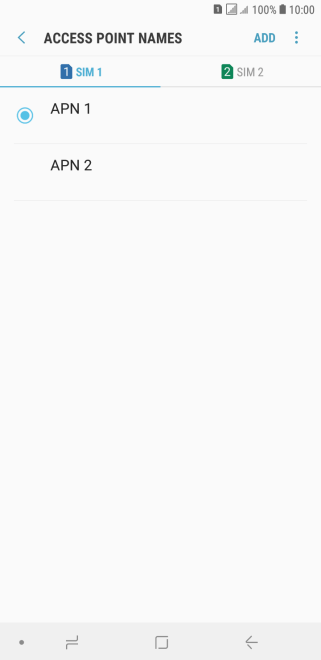

12. Return to the home screen

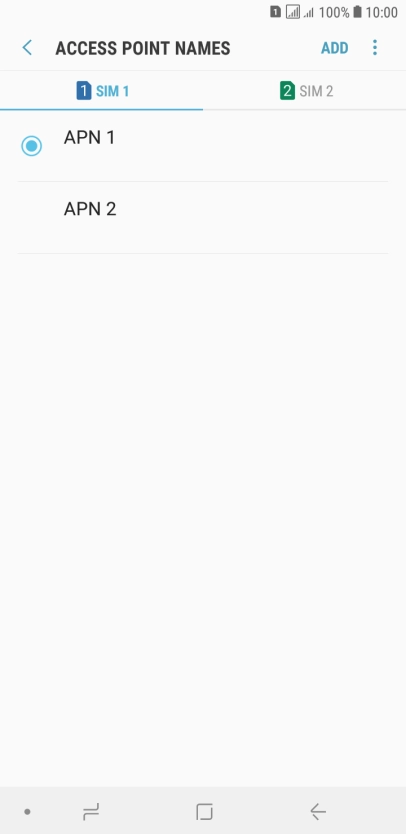

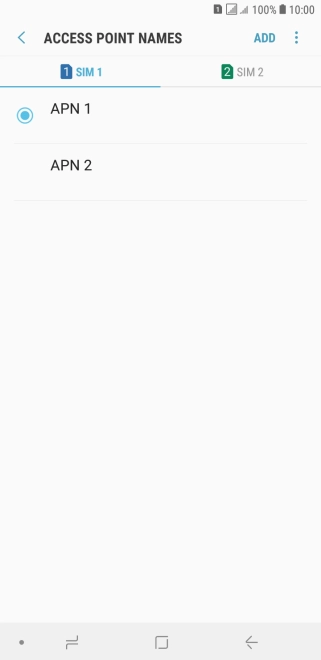

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ec1f29dc-8b39-4f88-a858-3191fa153ecb.png?width=202&height=418)
