1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-de2ee7ab-019a-4b33-ae6f-cffa68bae82a.png?width=212&height=376)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d2b7bd71-9c67-47e3-8501-fc9c2211c00c.png?width=212&height=376)

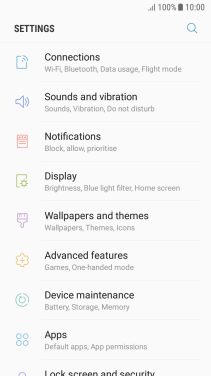

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6024ed99-371f-4b96-9f73-251b14d60e0d.png?width=212&height=376)

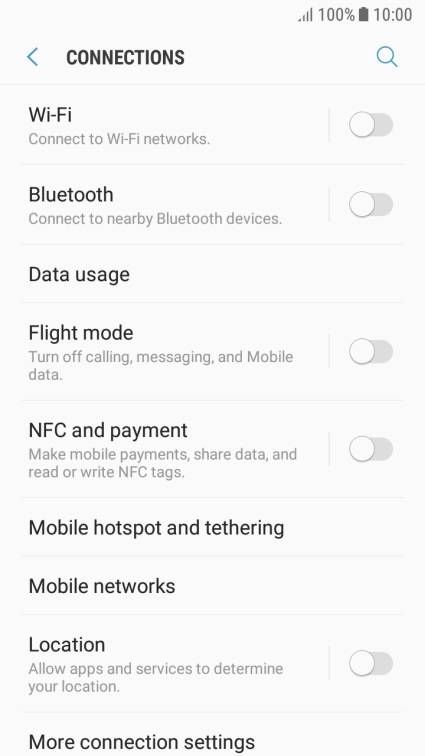

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78e595c0-ca8d-488a-a0a5-cb346ca111cb.png?width=212&height=376)

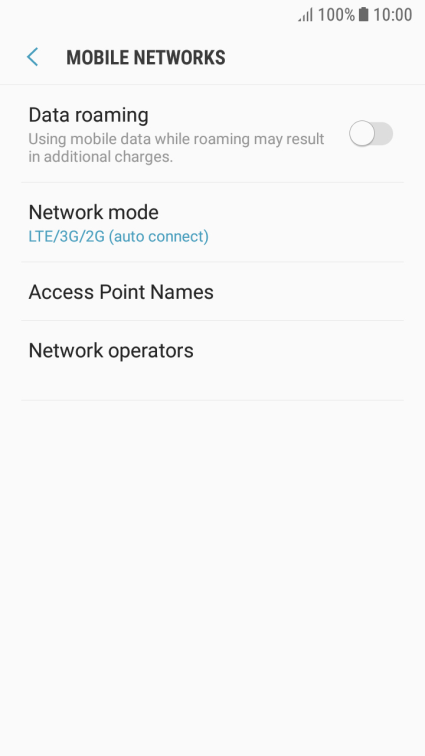

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57b85f32-2923-4a1d-8953-3e8503a59d98.png?width=212&height=376)
2. Create new data connection

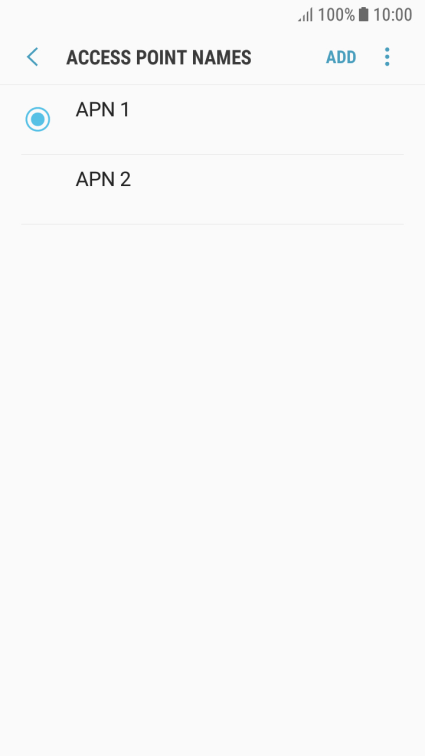

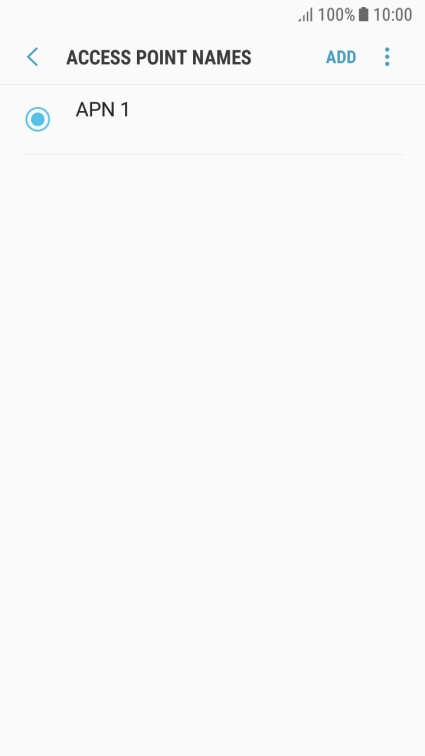

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d10b38c-ead8-42d6-a040-74883552c74c.png?width=212&height=376)

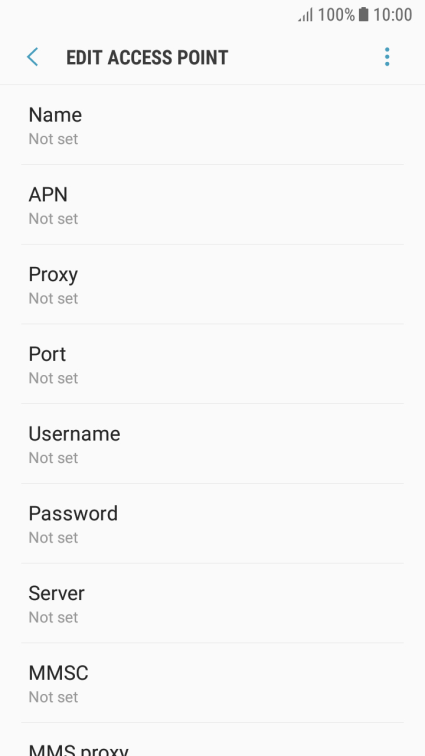

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-28efa4f1-0cc7-415e-b7a8-f0f4c54643ff.png?width=212&height=376)

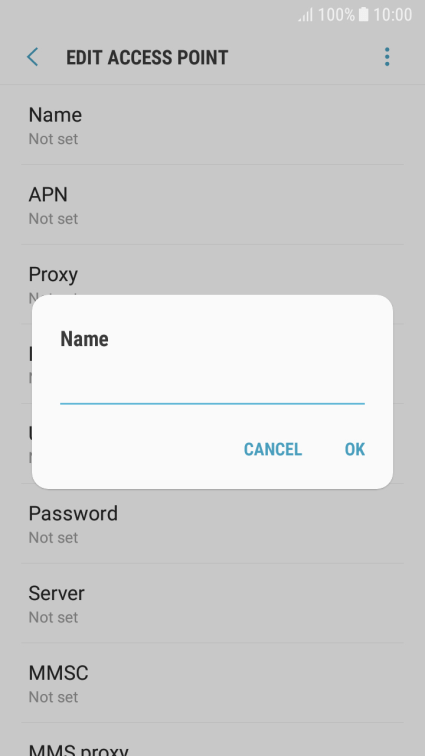

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-061d5e31-8ce4-42cf-8606-ff0e8d241ba4.png?width=212&height=376)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-28efa4f1-0cc7-415e-b7a8-f0f4c54643ff.png?width=212&height=376)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-60f3b669-a0f2-485c-a624-3d721f430ac2.png?width=212&height=376)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-28efa4f1-0cc7-415e-b7a8-f0f4c54643ff.png?width=212&height=376)

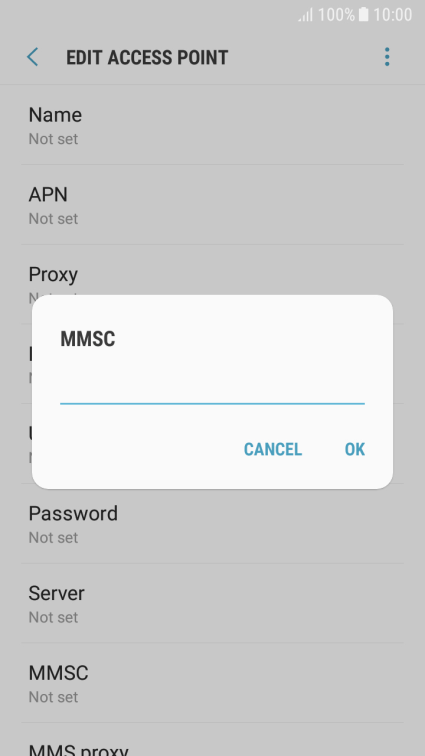

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1084596d-af23-4f66-bb88-b525b76d5f84.png?width=212&height=376)
http://www.vodafone.ie/mms
5. Enter IP address

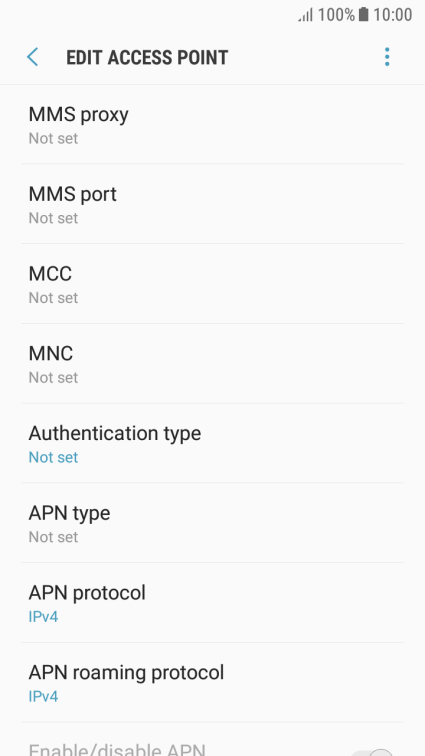

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66acae0a-2c74-45fd-b83c-7e76577d5ecc.png?width=212&height=376)

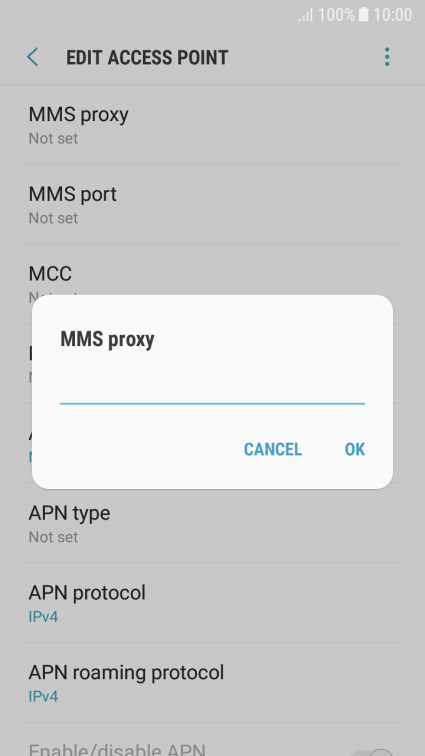

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0b927df3-0f9c-4eee-b0bb-105e5627c065.png?width=212&height=376)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66acae0a-2c74-45fd-b83c-7e76577d5ecc.png?width=212&height=376)

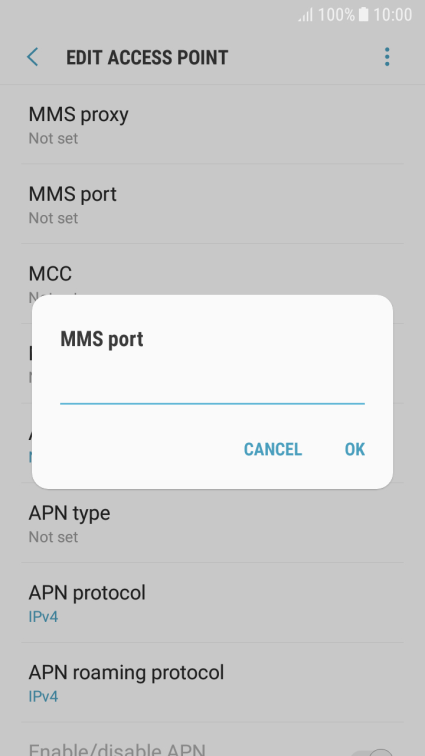

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba42b2fc-bd8c-42e9-8ae3-1bb7f61ff1a1.png?width=212&height=376)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66acae0a-2c74-45fd-b83c-7e76577d5ecc.png?width=212&height=376)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39915619-f962-48a5-b994-75bf447f30ac.png?width=212&height=376)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66acae0a-2c74-45fd-b83c-7e76577d5ecc.png?width=212&height=376)

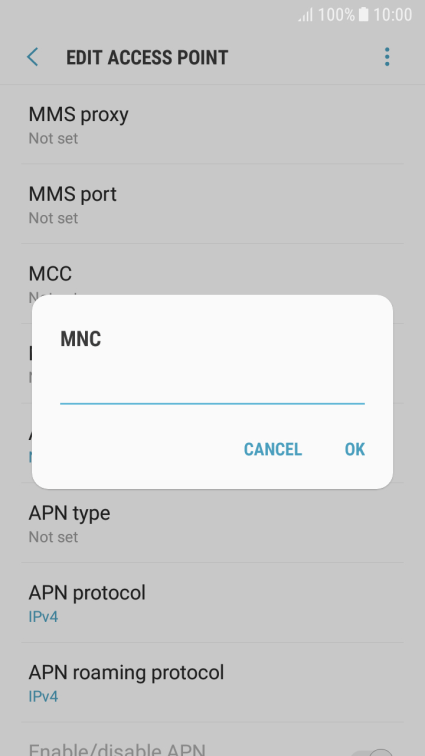

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6c5bf48f-4f97-4a4b-9c77-81fd8a0e81c6.png?width=212&height=376)
01
9. Select authentication type

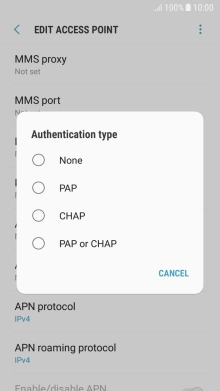

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66acae0a-2c74-45fd-b83c-7e76577d5ecc.png?width=212&height=376)

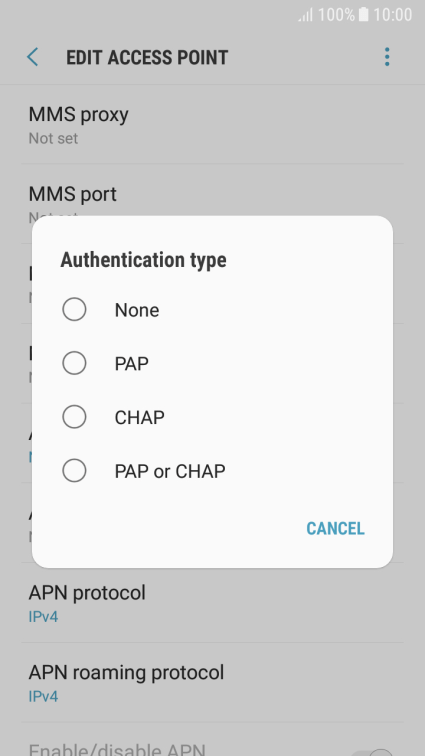

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a36db81b-0b1d-4402-9694-21660b7e3355.png?width=212&height=376)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66acae0a-2c74-45fd-b83c-7e76577d5ecc.png?width=212&height=376)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-81593d63-c000-4345-b309-808f7f542ae9.png?width=212&height=376)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66acae0a-2c74-45fd-b83c-7e76577d5ecc.png?width=212&height=376)

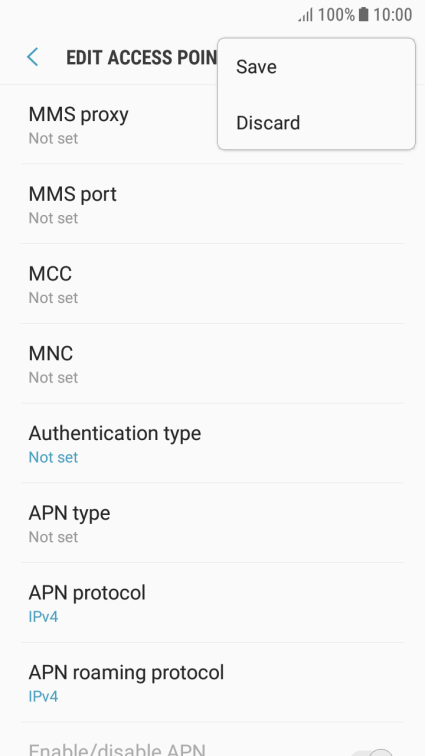

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf1202f4-5ff9-4bd1-b6dc-563673035911.png?width=212&height=376)
12. Return to the home screen

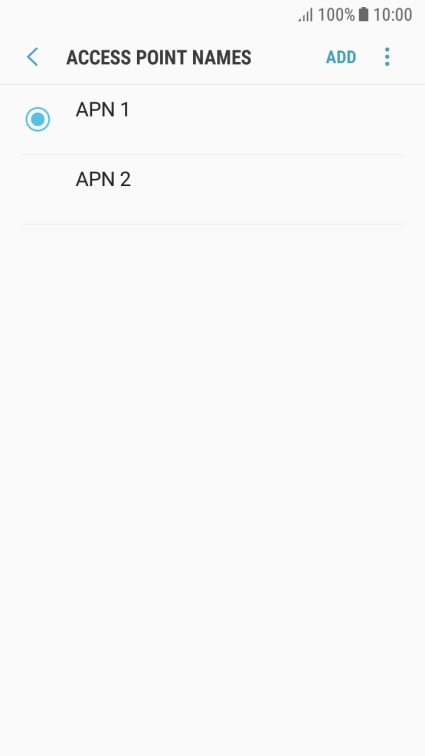

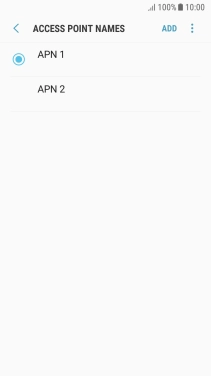

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d2fb71bf-6c92-482c-a3bd-6bbe27196295.png?width=212&height=376)
