1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9717f731-0bbb-41a4-a428-d88e63b8cad1.png?width=214&height=380)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-143a935c-6c46-4dc4-892c-978ef52e4370.png?width=214&height=380)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1334d993-cfd2-4a3c-99fe-433d276bfb8e.png?width=214&height=380)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0277b516-5924-41e5-bd97-6064b3855895.png?width=214&height=380)
2. Create new data connection

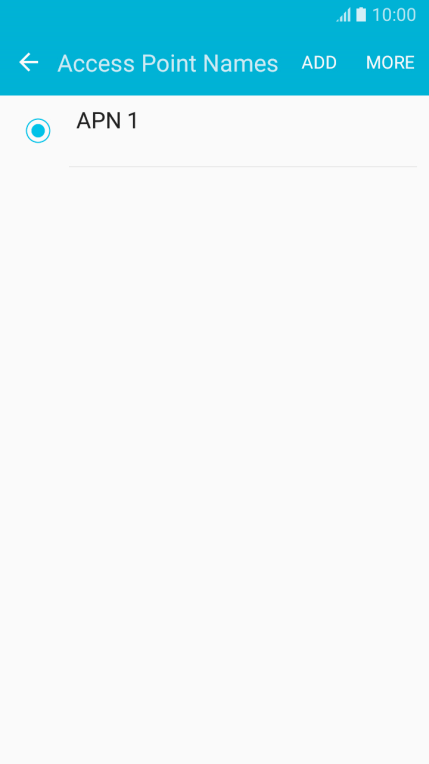

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f1908bfe-36c6-4dae-8f92-a28a261930b4.png?width=214&height=380)

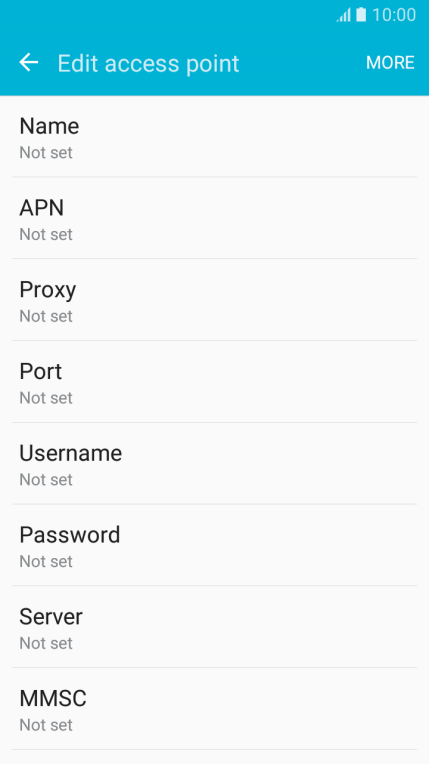

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b57046c4-8772-4e29-bae4-40674da134dd.png?width=214&height=380)

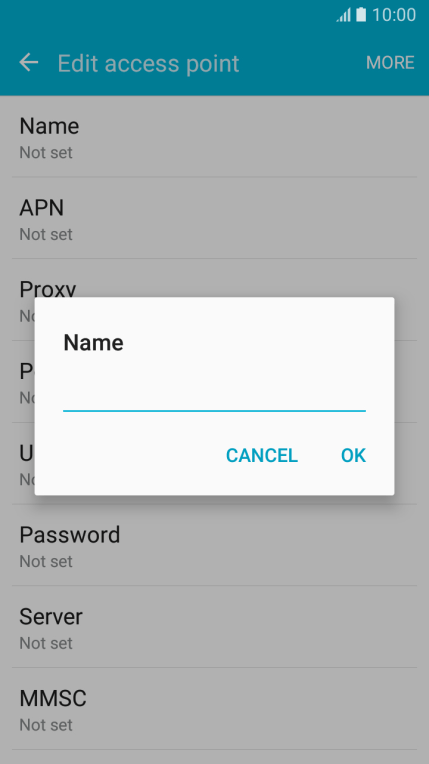

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5ec9768d-9d81-4585-9aba-37bb97ee36f8.png?width=214&height=380)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b57046c4-8772-4e29-bae4-40674da134dd.png?width=214&height=380)

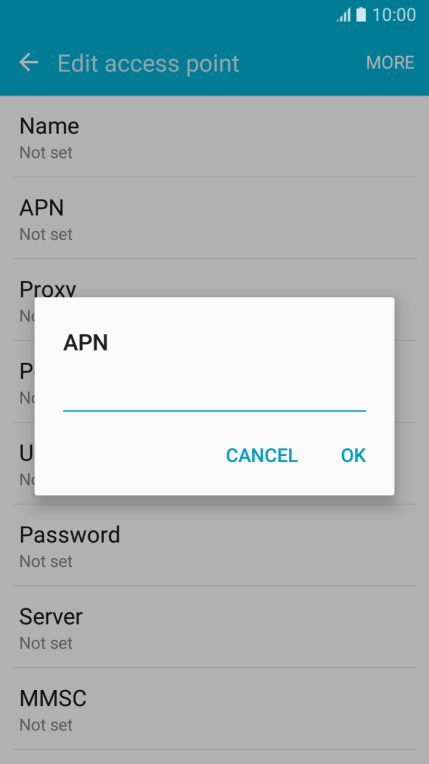

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-86dfb2bd-f9e6-45f6-907d-45c38e59e736.png?width=214&height=380)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b57046c4-8772-4e29-bae4-40674da134dd.png?width=214&height=380)

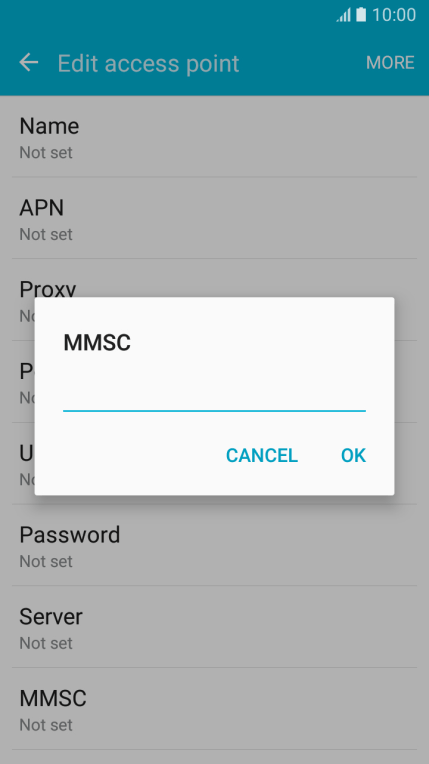

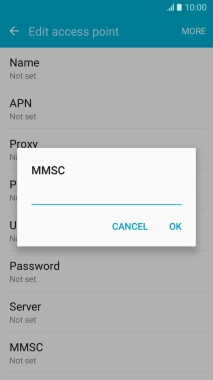

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cfbf6b97-b496-4460-9e9d-0bbce682d4c1.png?width=214&height=380)
http://www.vodafone.ie/mms
5. Enter IP address

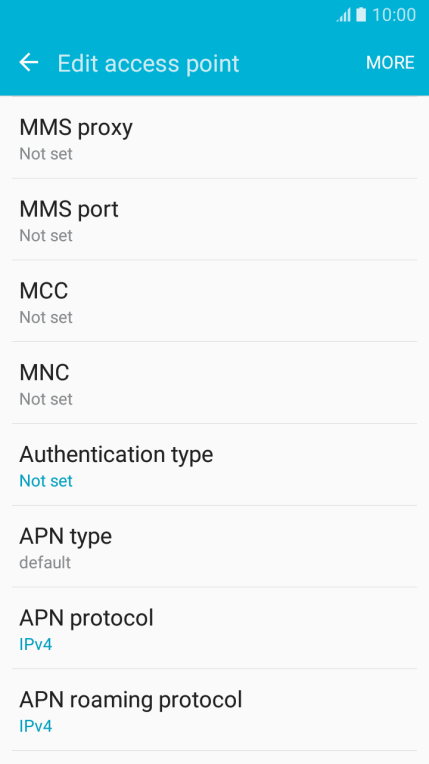

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d0e27a5-8972-4ec4-b81b-7777b6d6b5df.png?width=214&height=380)

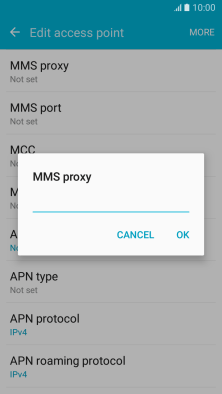

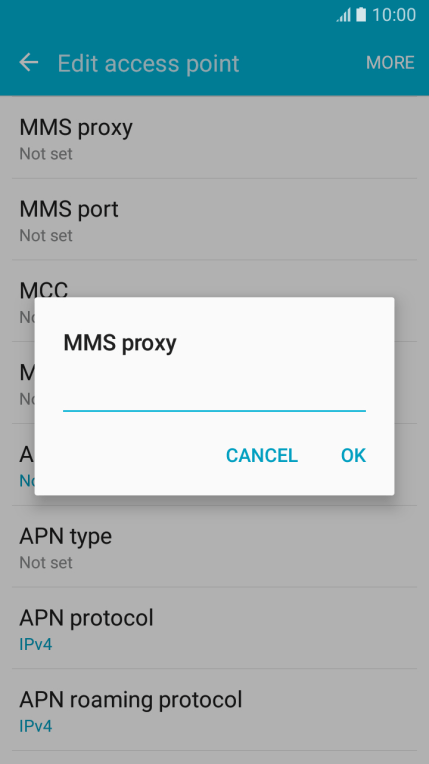

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3478b9de-658e-4058-ba8c-db15d023c714.png?width=214&height=380)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d0e27a5-8972-4ec4-b81b-7777b6d6b5df.png?width=214&height=380)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cf764e40-625e-4a06-9d78-0cecd7827a82.png?width=214&height=380)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d0e27a5-8972-4ec4-b81b-7777b6d6b5df.png?width=214&height=380)

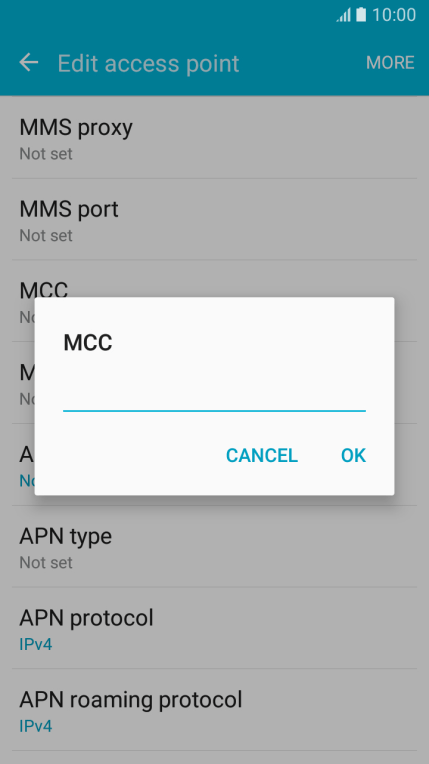

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-658eeb27-17f3-498d-93cf-af36053d7afc.png?width=214&height=380)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d0e27a5-8972-4ec4-b81b-7777b6d6b5df.png?width=214&height=380)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-70e1d58b-54ef-4f09-b92a-5d96b13cf060.png?width=214&height=380)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d0e27a5-8972-4ec4-b81b-7777b6d6b5df.png?width=214&height=380)

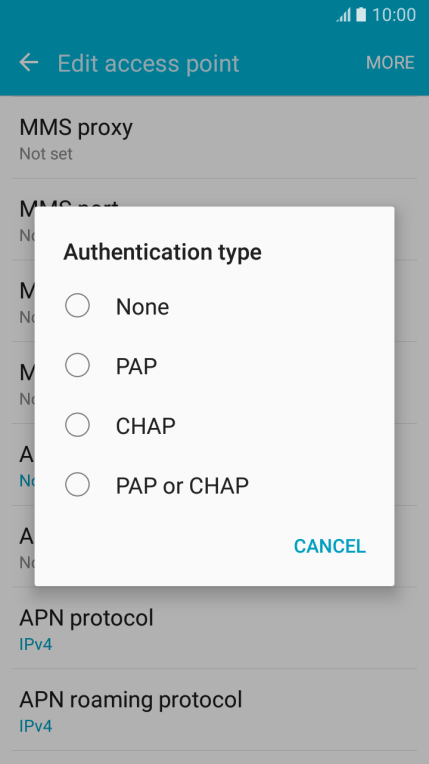

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d614f21c-9885-4a94-80e5-da570e69fe60.png?width=214&height=380)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d0e27a5-8972-4ec4-b81b-7777b6d6b5df.png?width=214&height=380)

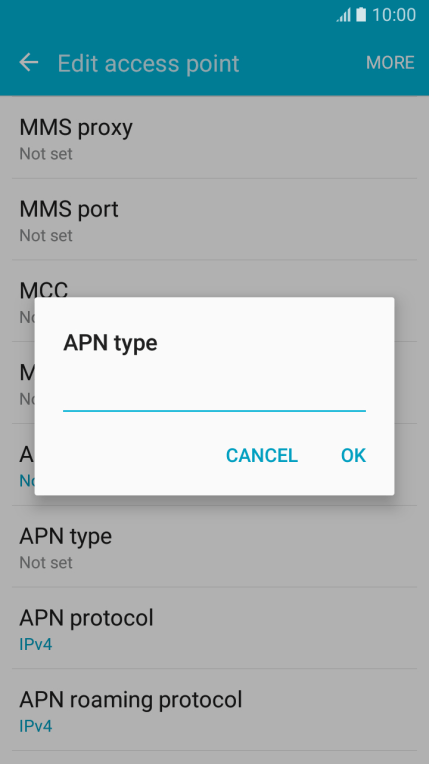

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-318499ae-2d6e-4c8d-a181-558e23cb1fff.png?width=214&height=380)
mms
11. Save data connection
Press MORE.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d0e27a5-8972-4ec4-b81b-7777b6d6b5df.png?width=214&height=380)

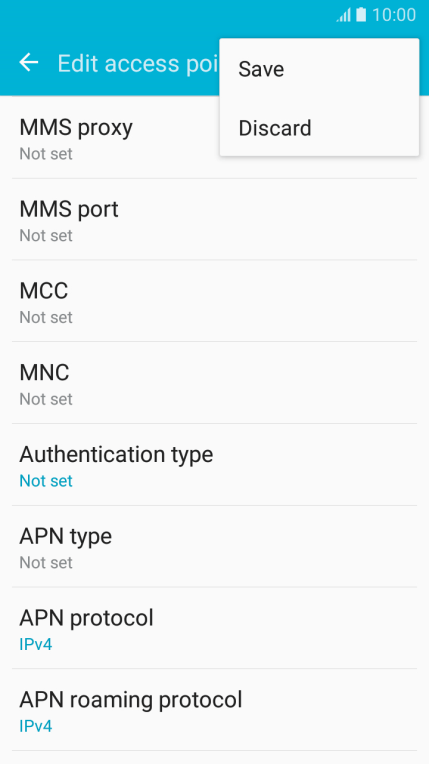

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f8c4fc24-a7a4-47c4-b2d2-def4e062eb54.png?width=214&height=380)
12. Return to the home screen

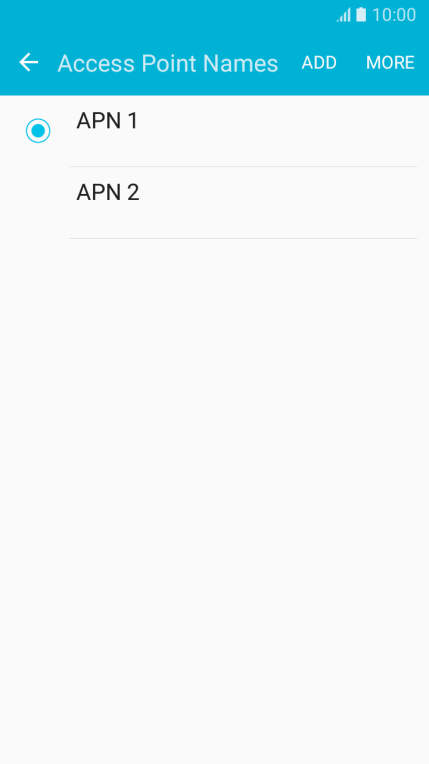

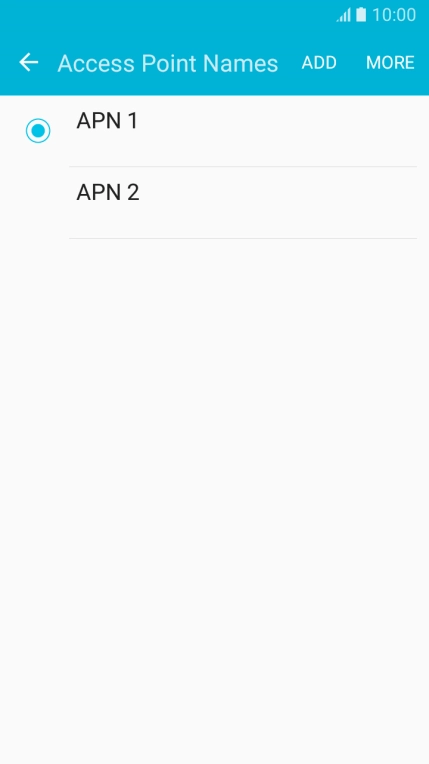

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0c10b8ed-9418-4659-a41d-a70a8db8091d.png?width=214&height=380)
