1. Find "Access Point Names"

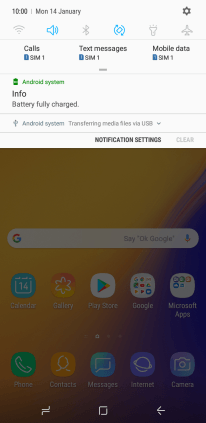

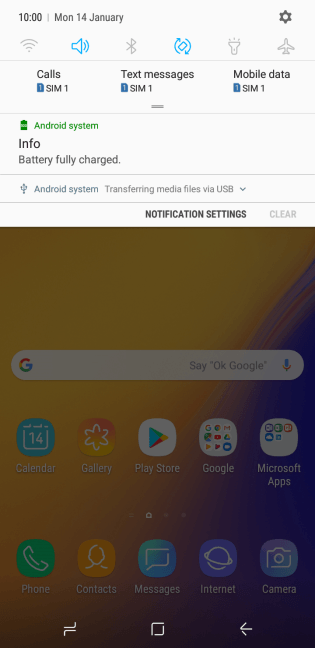

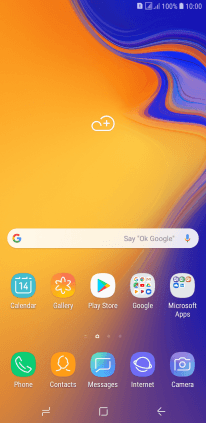

Slide your finger downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"

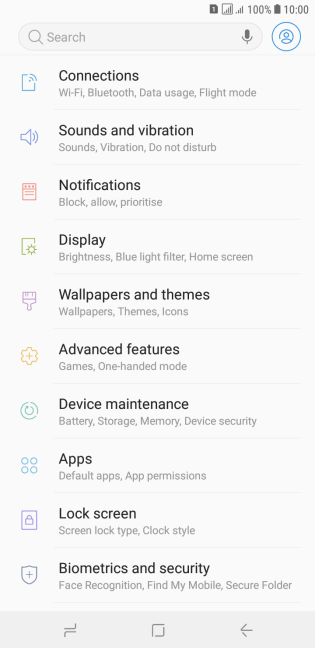

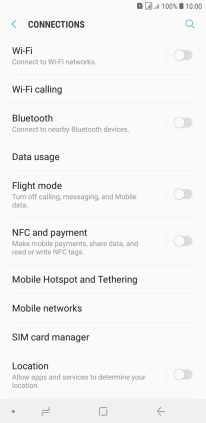

Press Connections.
1. Find "Access Point Names"

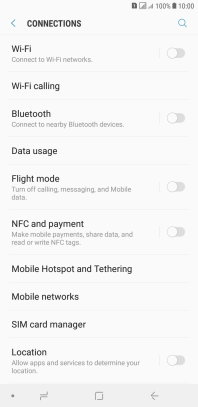

Press Mobile networks.
1. Find "Access Point Names"

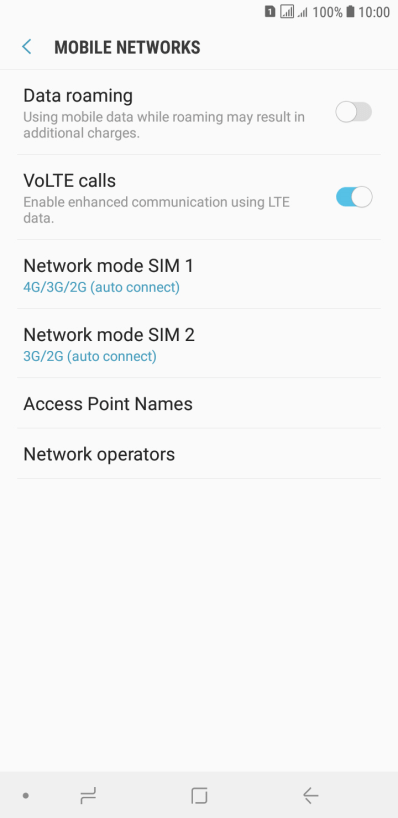

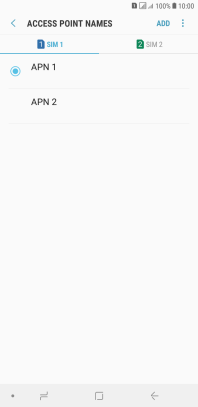

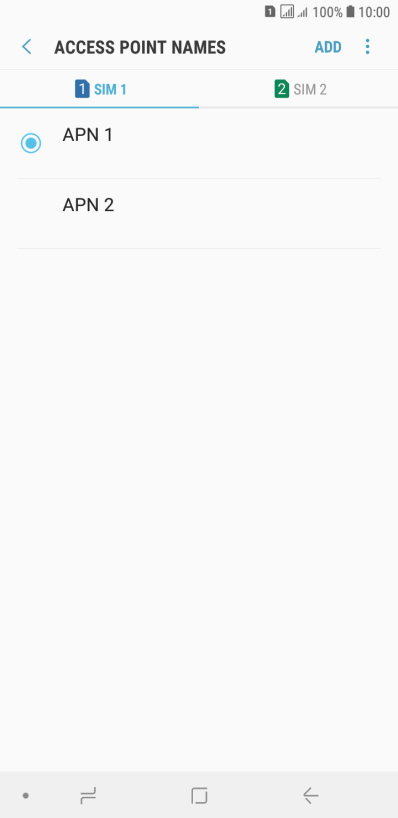

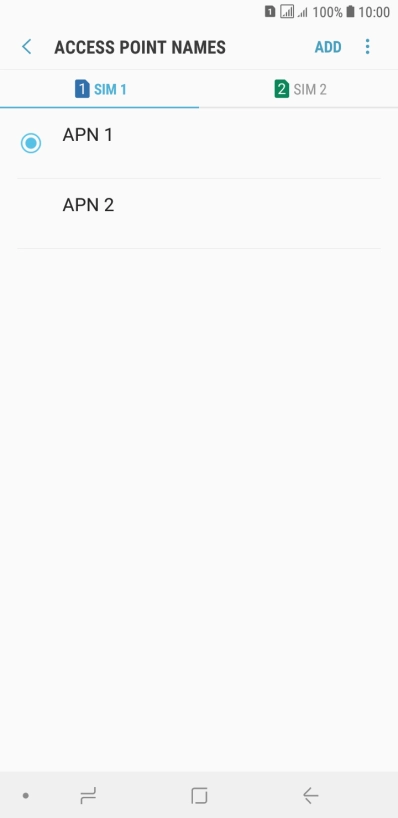

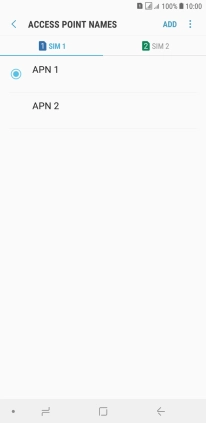

Press Access Point Names.
2. Create new data connection

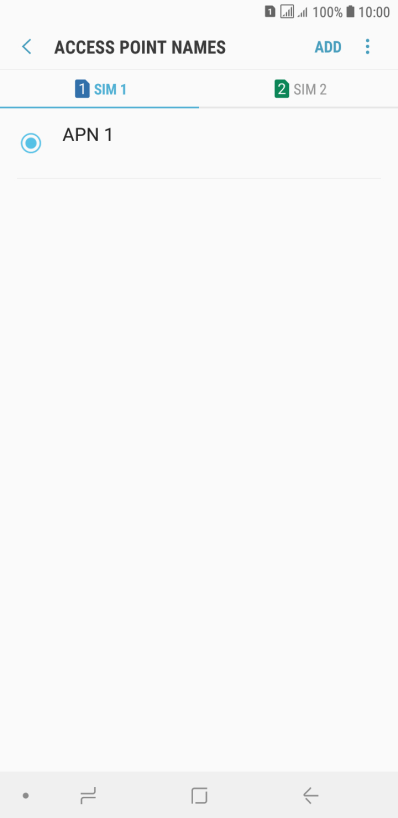

Press the required SIM.
2. Create new data connection

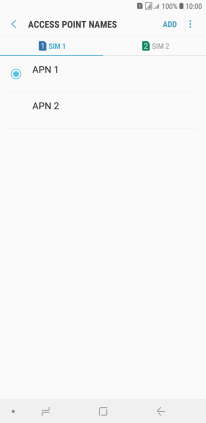

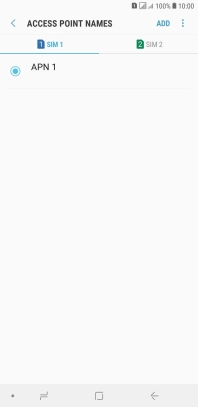

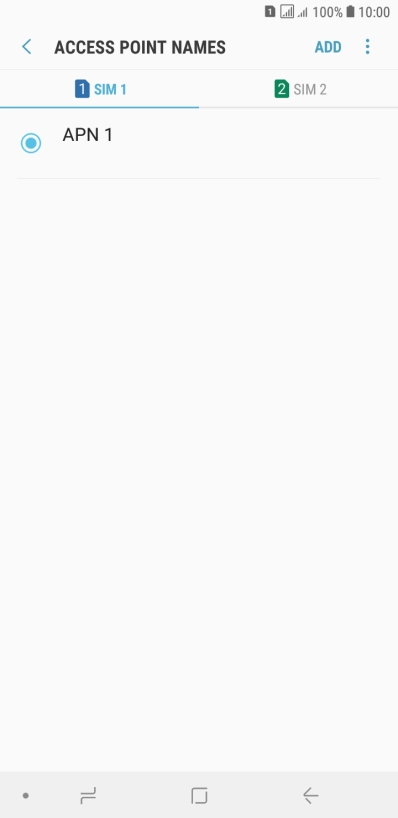

Press ADD.
2. Create new data connection

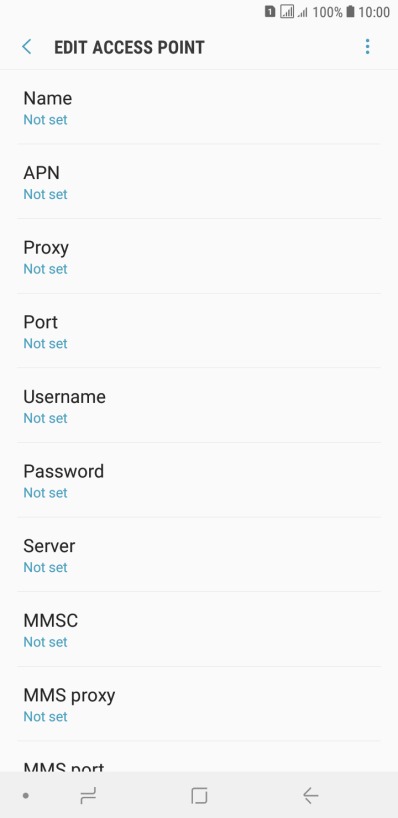

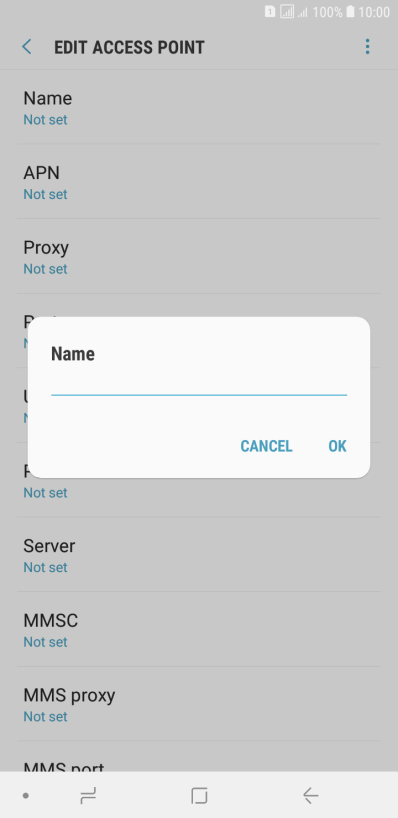

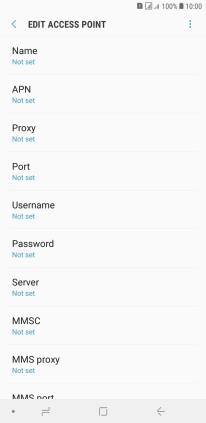

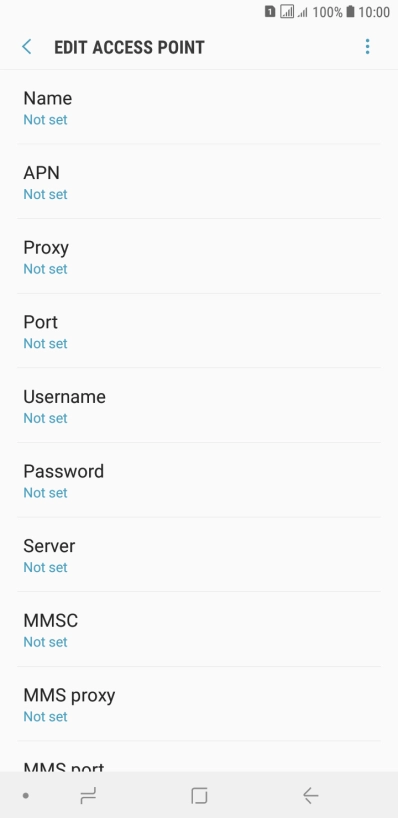

Press Name.
2. Create new data connection
Key in Vodafone MMS and press OK.
3. Enter APN

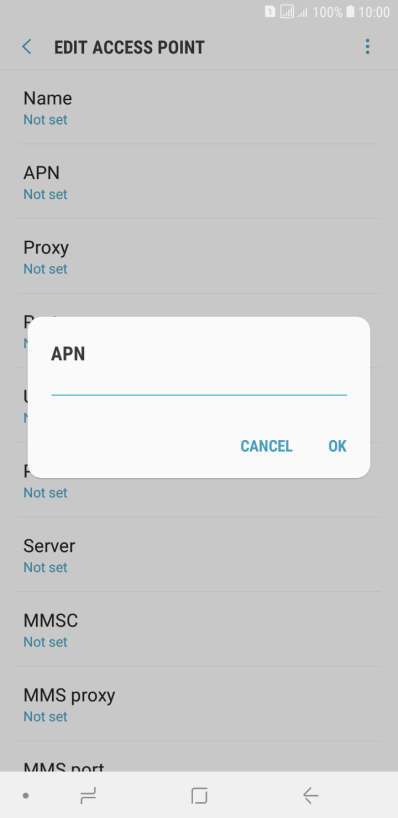

Press APN.
3. Enter APN
Key in mms.vodafone.net and press OK.
4. Enter MMSC
Press MMSC.
4. Enter MMSC

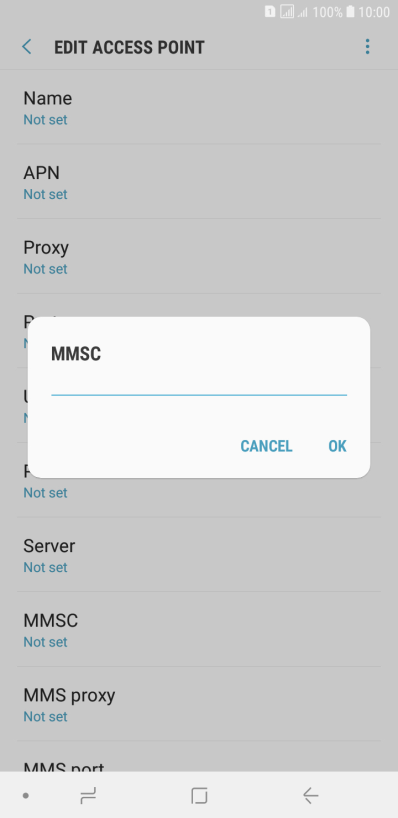

Key in http://www.vodafone.ie/mms and press OK.
5. Enter IP address

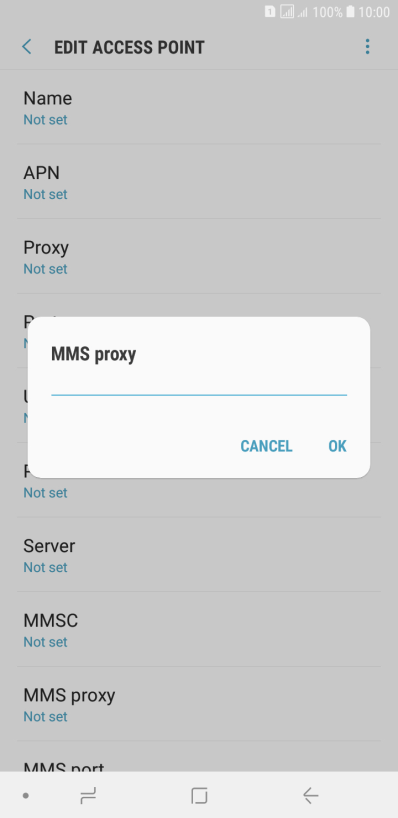

Press MMS proxy.
5. Enter IP address
Key in 10.24.59.200 and press OK.
6. Enter port number

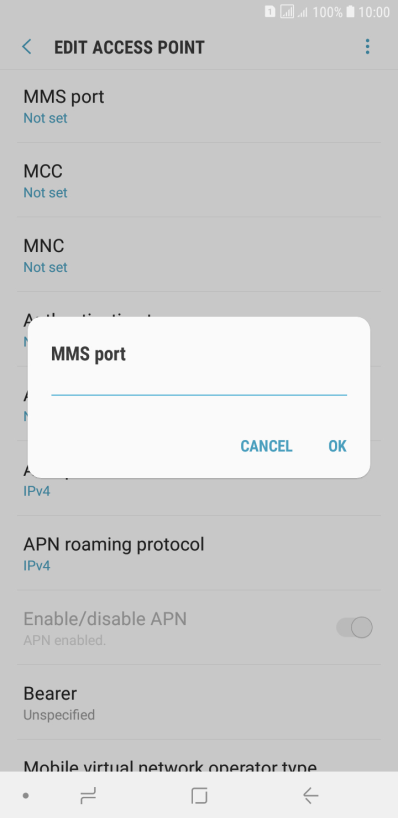

Press MMS port.
6. Enter port number
Key in 80 and press OK.
7. Enter country code

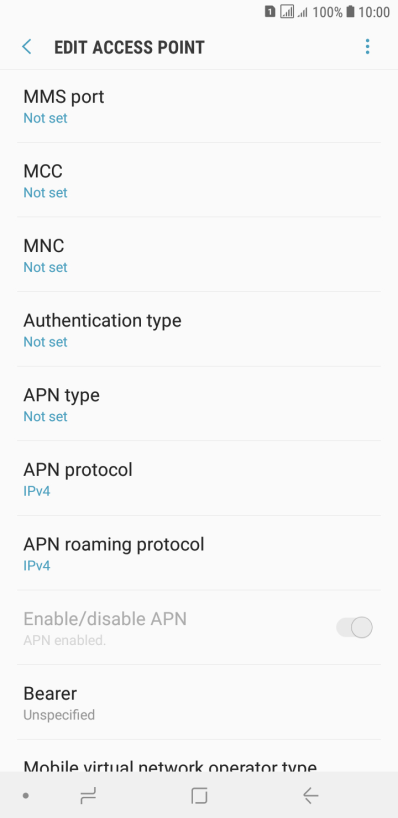

Press MCC.
7. Enter country code

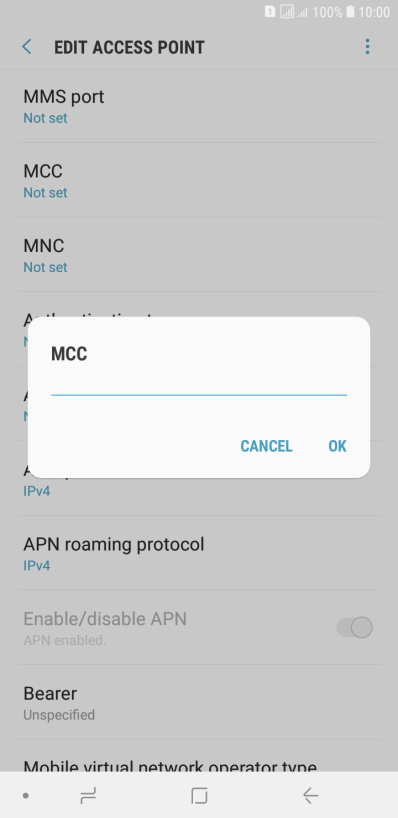

Key in 272 and press OK.
8. Enter network code
Press MNC.
8. Enter network code
Key in 01 and press OK.
9. Select authentication type

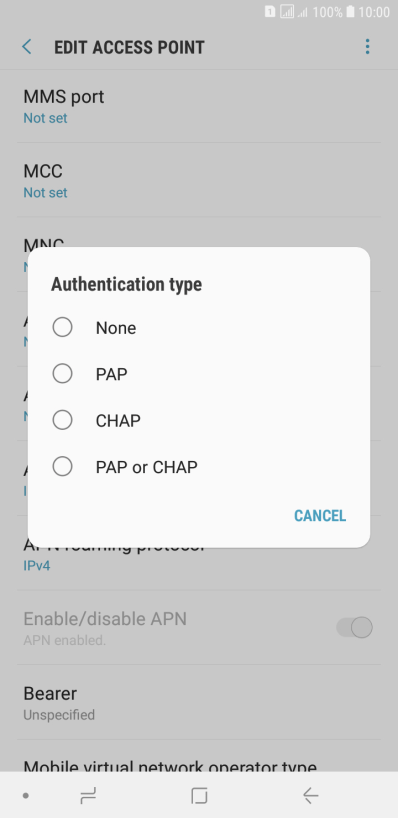

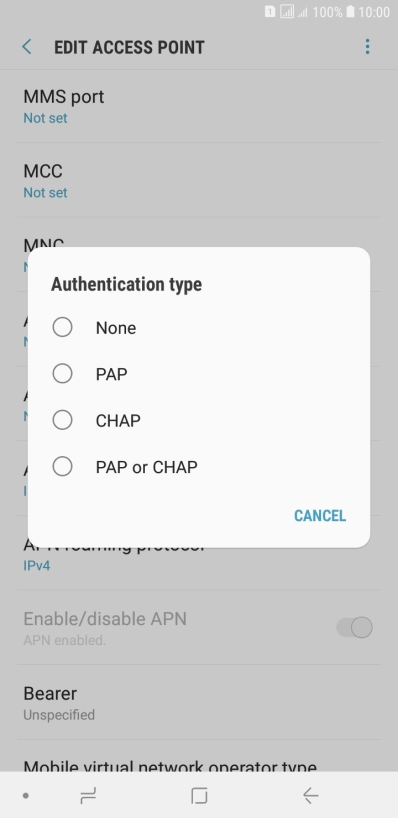

Press Authentication type.
9. Select authentication type
Press PAP.
10. Enter APN type

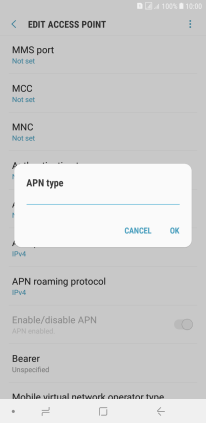

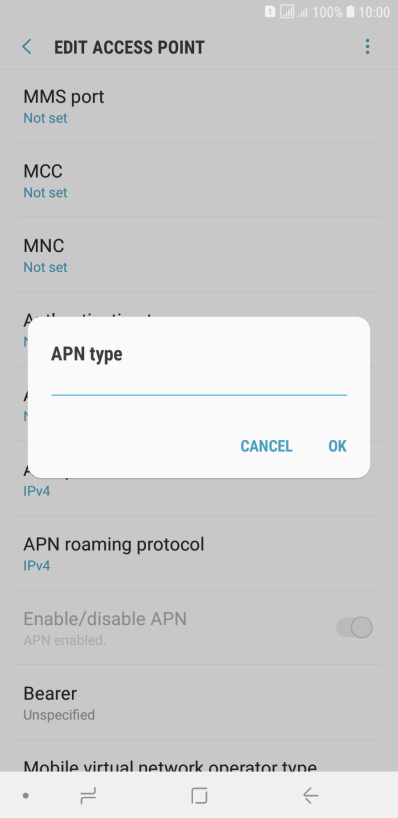

Press APN type.
10. Enter APN type
Key in mms and press OK.
11. Save data connection

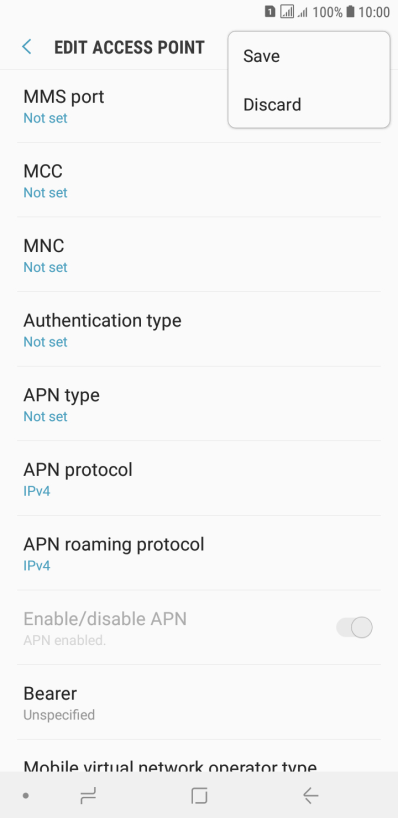

Press the menu icon.
11. Save data connection
Press Save.
12. Return to the home screen

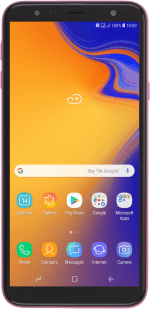

Press the Home key to return to the home screen.
