Samsung Galaxy J3 (2016)

Samsung Galaxy J3 (2016)

Android 5.1.1

Set up your Samsung Galaxy J3 (2016) Android 5.1.1 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 26

1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.

Step 2 of 26

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 26

1. Find "Access Point Names"

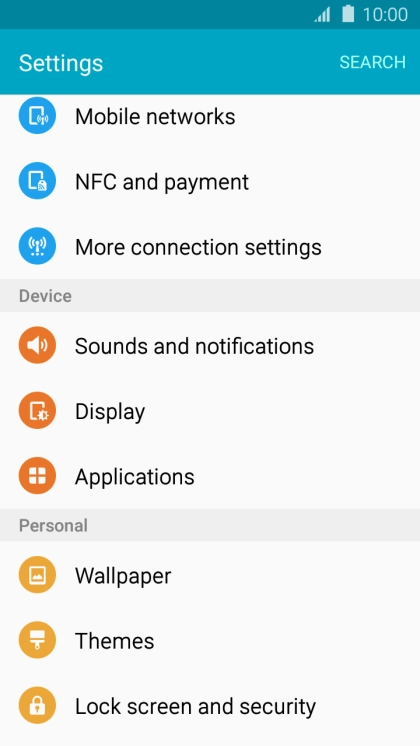

Press Mobile networks.

Step 4 of 26

1. Find "Access Point Names"

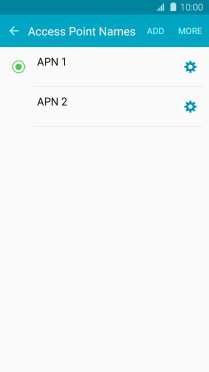

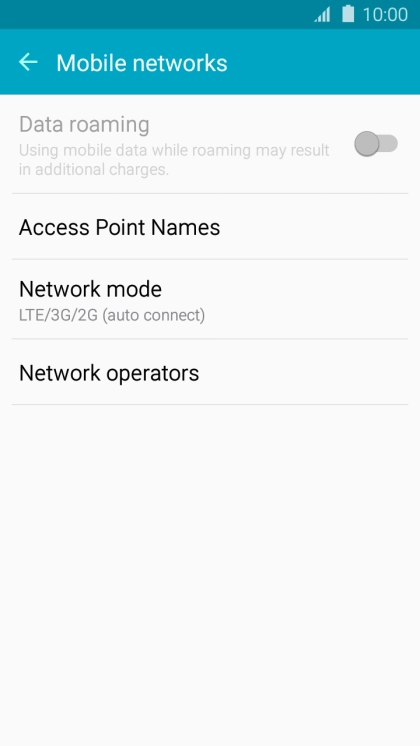

Press Access Point Names.

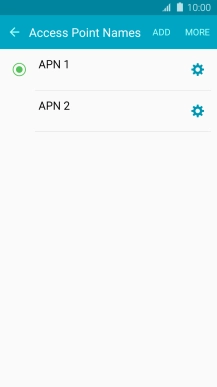

Step 5 of 26

2. Create new data connection

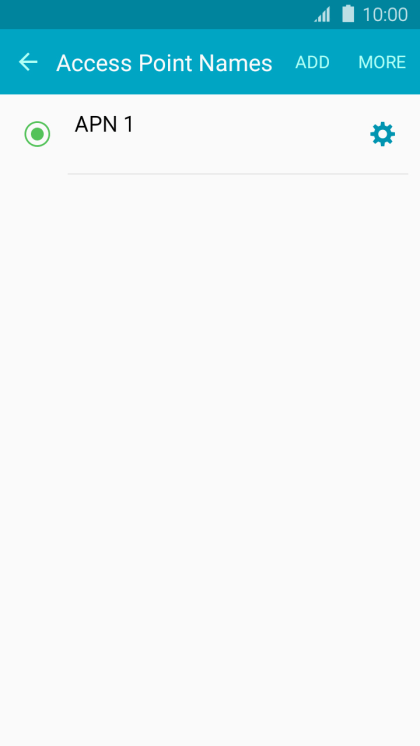

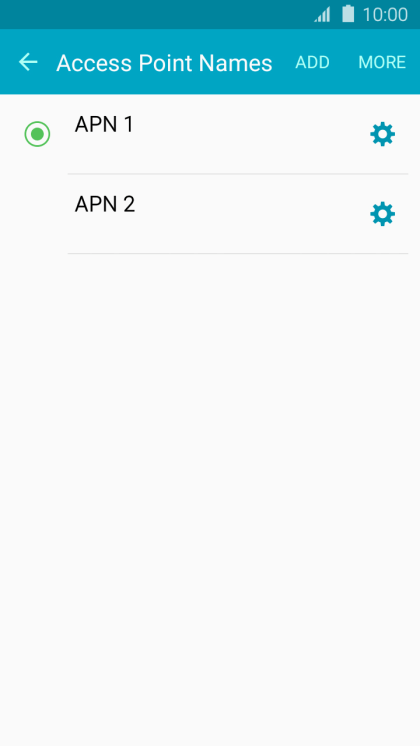

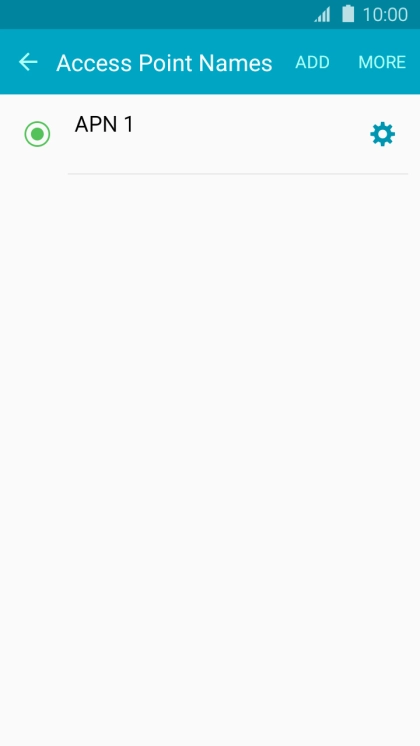

Press ADD.

Step 6 of 26

2. Create new data connection

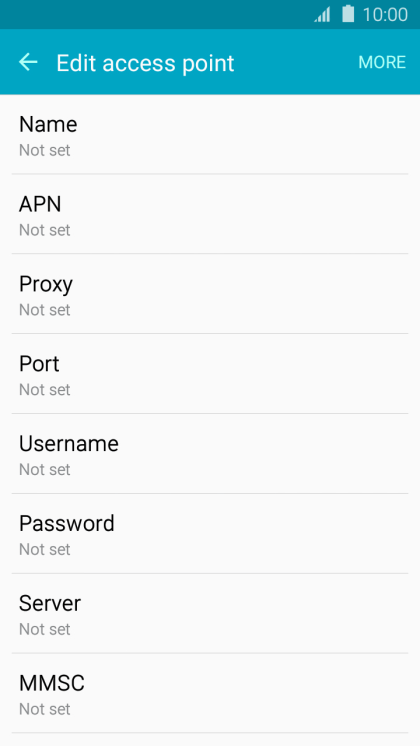

Press Name.

Vodafone MMS
Step 7 of 26

2. Create new data connection

Key in Vodafone MMS and press OK.

Step 8 of 26

3. Enter APN

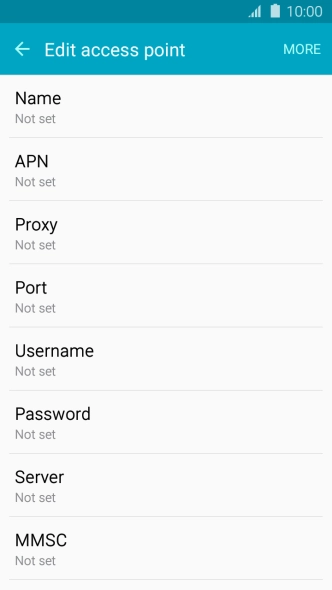

Press APN.

mms.vodafone.net
Step 9 of 26

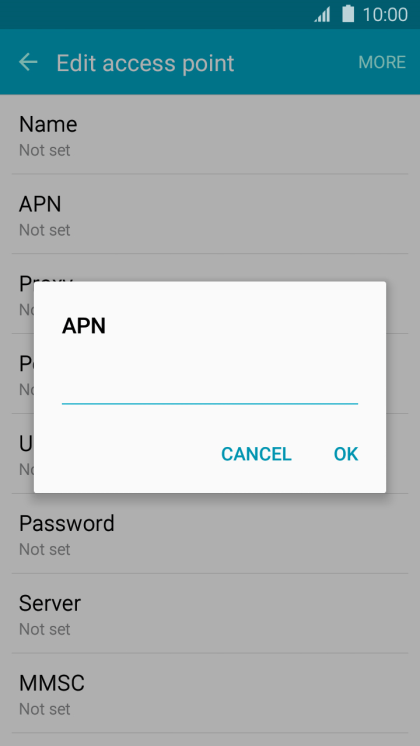

3. Enter APN

Key in mms.vodafone.net and press OK.

Step 10 of 26

4. Enter MMSC

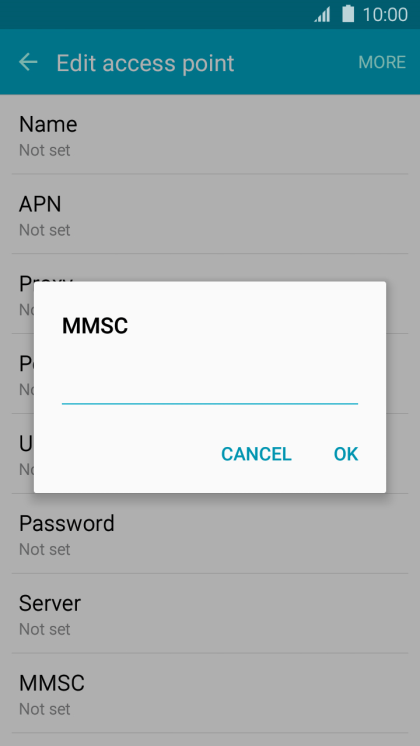

Press MMSC.

http://www.vodafone.ie/mms
Step 11 of 26

4. Enter MMSC

Key in http://www.vodafone.ie/mms and press OK.

Step 12 of 26

5. Enter IP address

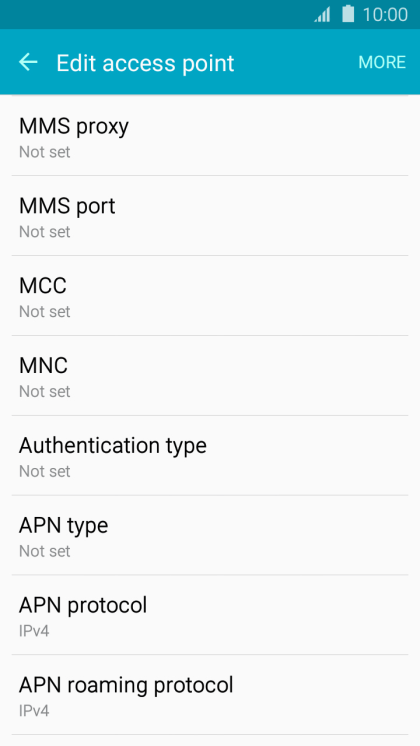

Press MMS proxy.

10.24.59.200
Step 13 of 26

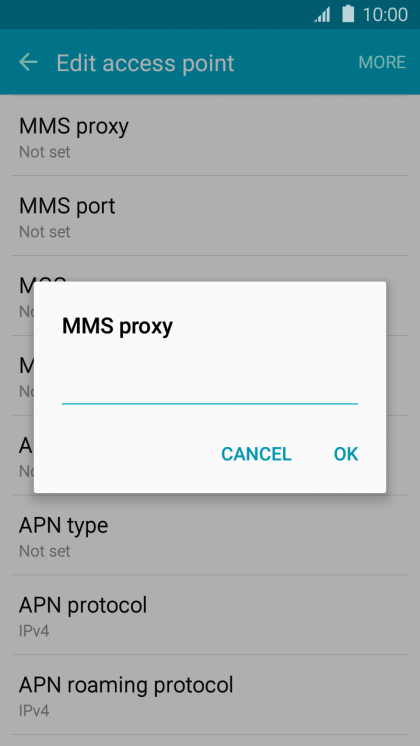

5. Enter IP address

Key in 10.24.59.200 and press OK.

Step 14 of 26

6. Enter port number

Press MMS port.

80
Step 15 of 26

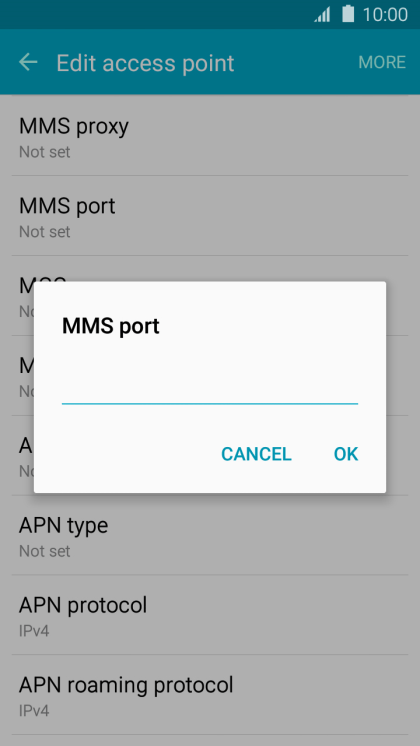

6. Enter port number

Key in 80 and press OK.

Step 16 of 26

7. Enter country code

Press MCC.

272
Step 17 of 26

7. Enter country code

Key in 272 and press OK.

Step 18 of 26

8. Enter network code

Press MNC.

01

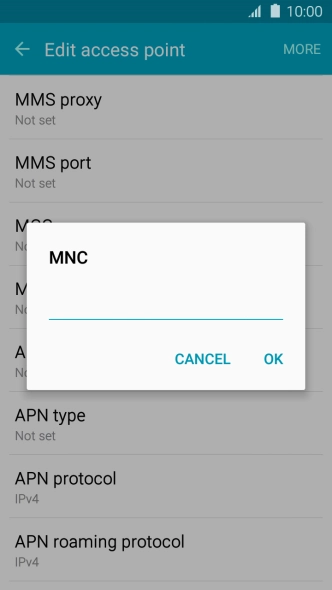

Step 19 of 26

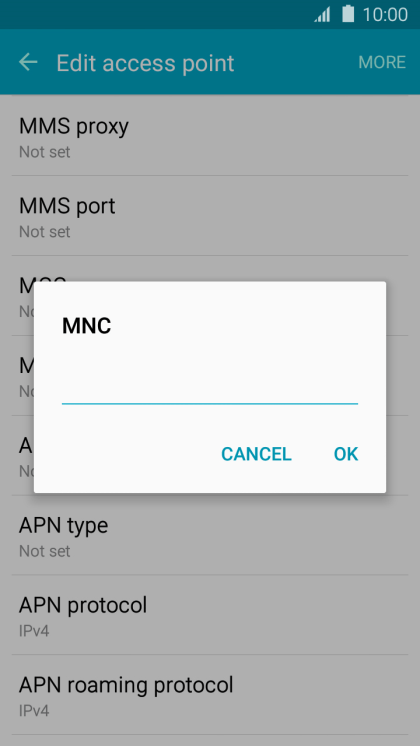

8. Enter network code

Key in 01 and press OK.

Step 20 of 26

9. Select authentication type

Press Authentication type.

Step 21 of 26

9. Select authentication type

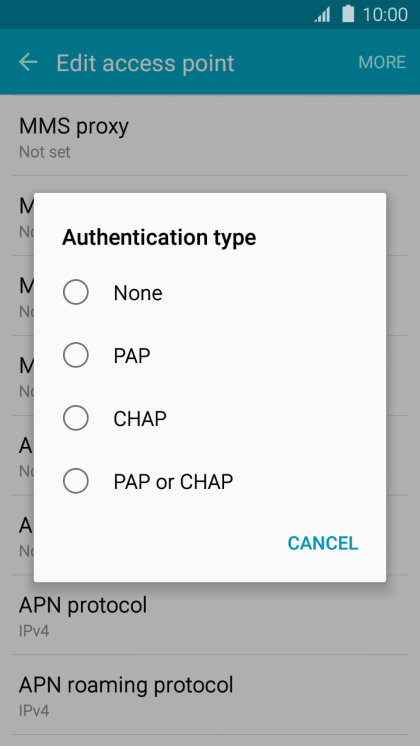

Press PAP.

Step 22 of 26

10. Select APN type

Press APN type.

mms
Step 23 of 26

10. Select APN type

Key in mms and press OK.

Step 24 of 26

11. Save data connection

Press MORE.

Step 25 of 26

11. Save data connection

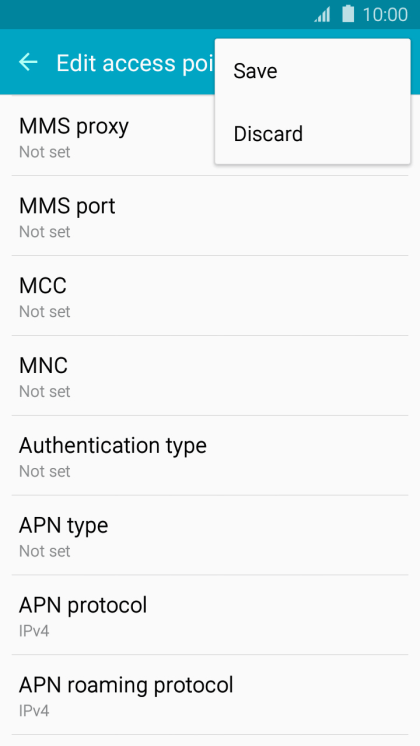

Press Save.

Step 26 of 26

12. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press ADD.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

4. Enter MMSC

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

5. Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

6. Enter port number

Press MMS port.
Key in 80 and press OK.
80

7. Enter country code

Press MCC.
Key in 272 and press OK.
272

8. Enter network code

Press MNC.
Key in 01 and press OK.
01

9. Select authentication type

Press Authentication type.
Press PAP.

10. Select APN type

Press APN type.
Key in mms and press OK.
mms

11. Save data connection

Press MORE.
Press Save.

12. Return to the home screen

Press the Home key to return to the home screen.
