Samsung Galaxy J3 (2016)

Samsung Galaxy J3 (2016)

Android 5.1.1

Set up your Samsung Galaxy J3 (2016) Android 5.1.1 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

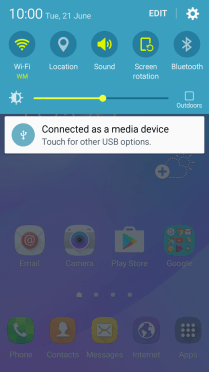

Step 1 of 25

Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.

Step 2 of 25

Find "Access Point Names"

Press the settings icon.

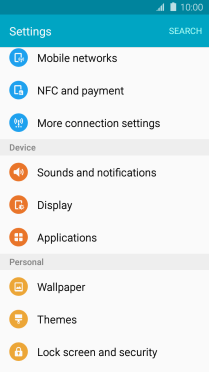

Step 3 of 25

Find "Access Point Names"

Press Mobile networks.

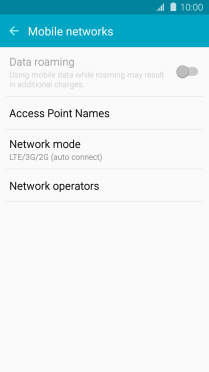

Step 4 of 25

Find "Access Point Names"

Press Access Point Names.

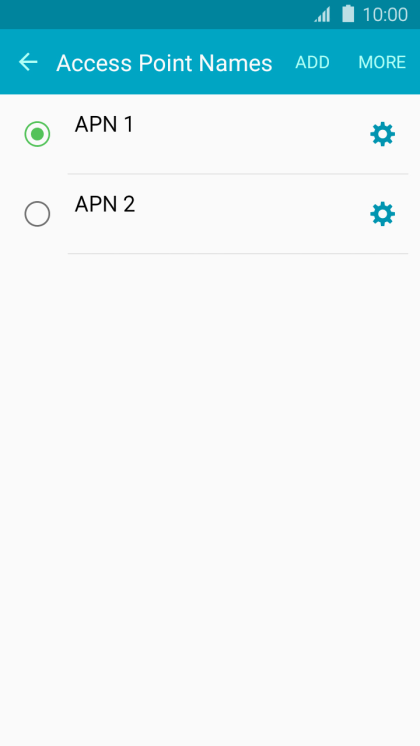

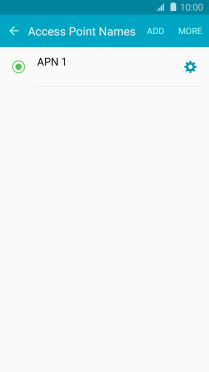

Step 5 of 25

Create new data connection

Press ADD.

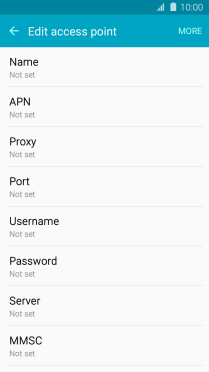

Step 6 of 25

Create new data connection

Press Name.

Vodafone Internet
Step 7 of 25

Create new data connection

Key in Vodafone Internet and press OK.

Step 8 of 25

Enter APN

Press APN.

live.vodafone.com
Step 9 of 25

Enter APN

Key in live.vodafone.com and press OK.

Step 10 of 25

Enter IP address

Press Proxy.

10.24.59.100

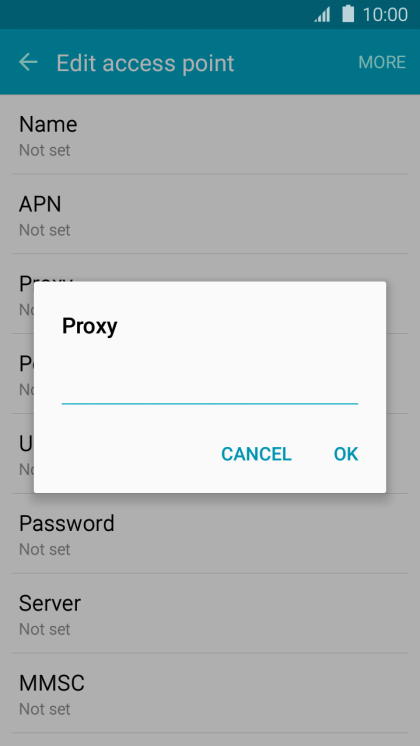

Step 11 of 25

Enter IP address

Key in 10.24.59.100 and press OK.

Step 12 of 25

Enter port number

Press Port.

80

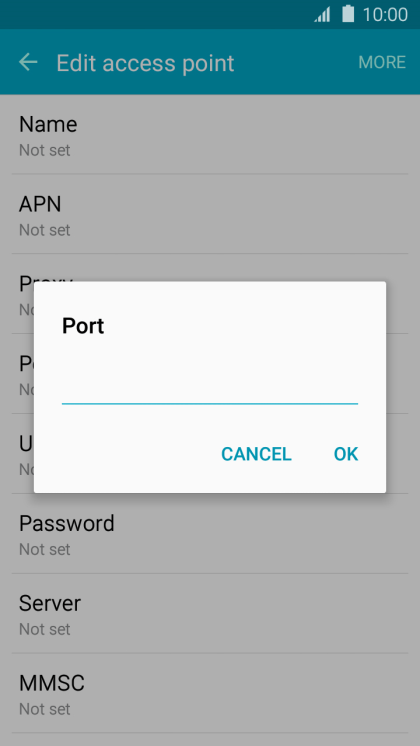

Step 13 of 25

Enter port number

Key in 80 and press OK.

Step 14 of 25

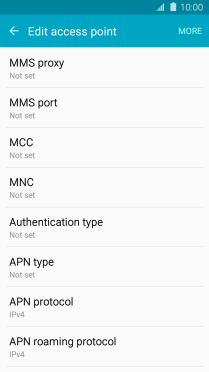

Enter country code

Press MCC.

272
Step 15 of 25

Enter country code

Key in 272 and press OK.

Step 16 of 25

Enter network code

Press MNC.

01

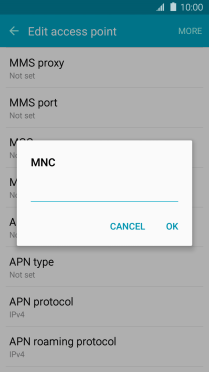

Step 17 of 25

Enter network code

Key in 01 and press OK.

Step 18 of 25

Select authentication type

Press Authentication type.

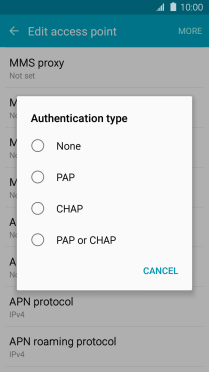

Step 19 of 25

Select authentication type

Press PAP.

Step 20 of 25

Select APN type

Press APN type.

default

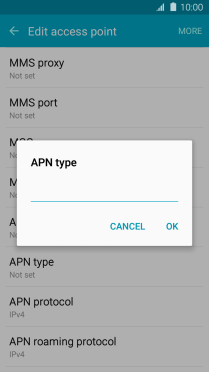

Step 21 of 25

Select APN type

Key in default and press OK.

Step 22 of 25

Save data connection

Press MORE.

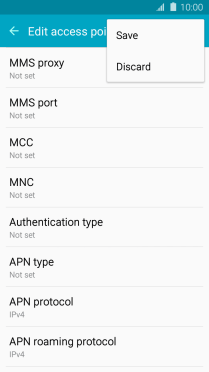

Step 23 of 25

Save data connection

Press Save.

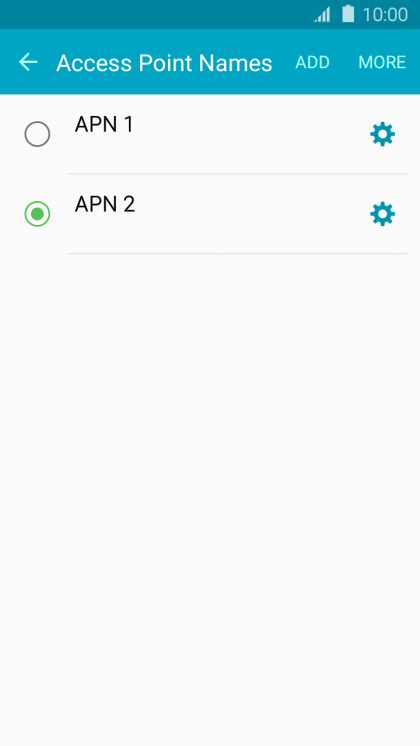

Step 24 of 25

Save data connection

Press the field next to the data connection to activate it.

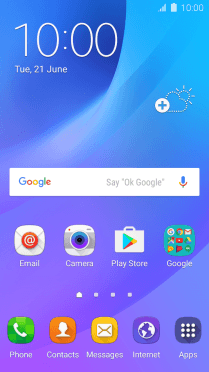

Step 25 of 25

Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press ADD.
Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Enter IP address

Press Proxy.
Key in 10.24.59.100 and press OK.
10.24.59.100

5. Enter port number

Press Port.
Key in 80 and press OK.
80

6. Enter country code

Press MCC.
Key in 272 and press OK.
272

7. Enter network code

Press MNC.
Key in 01 and press OK.
01

8. Select authentication type

Press Authentication type.
Press PAP.

9. Select APN type

Press APN type.
Key in default and press OK.
default

10. Save data connection

Press MORE.
Press Save.
Press the field next to the data connection to activate it.

11. Return to the home screen

Press the Home key to return to the home screen.
