1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-663541c1-679f-4e7d-8afc-bc1cc46f4e03.png?width=204&height=418)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-368c6482-171a-4564-a97a-6b7a5d3311cc.png?width=204&height=418)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6c090f5c-00a2-4170-824c-34d4453a4324.png?width=204&height=418)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-04f18d4b-24fa-4476-ae11-ba33a57b1674.png?width=204&height=418)

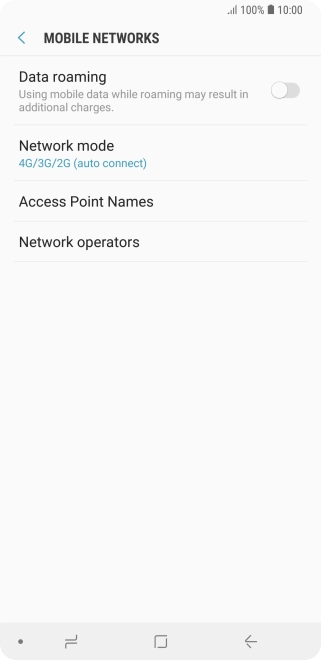

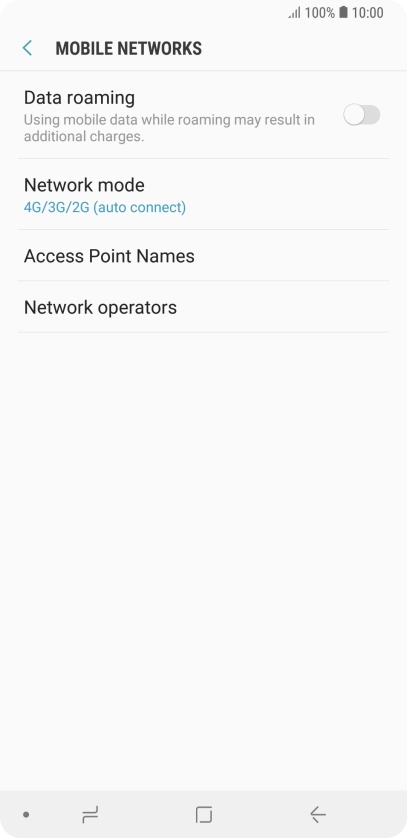

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-205f10a2-cf13-4923-ad5b-44d209a57f10.png?width=204&height=418)
2. Create new data connection

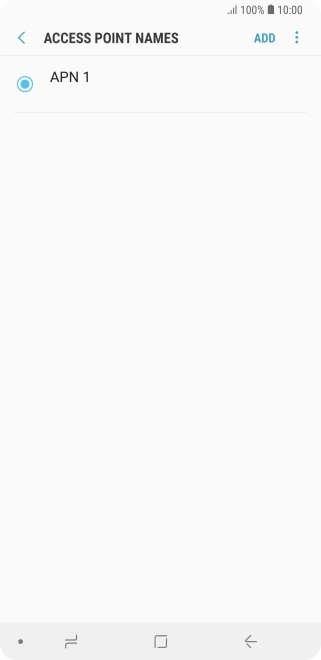

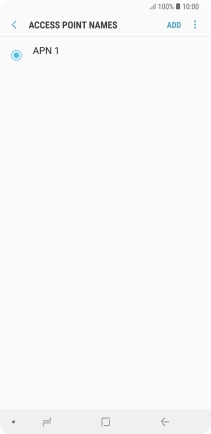

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d4c8c07-e54d-460f-8567-1b68098fadcd.png?width=204&height=418)

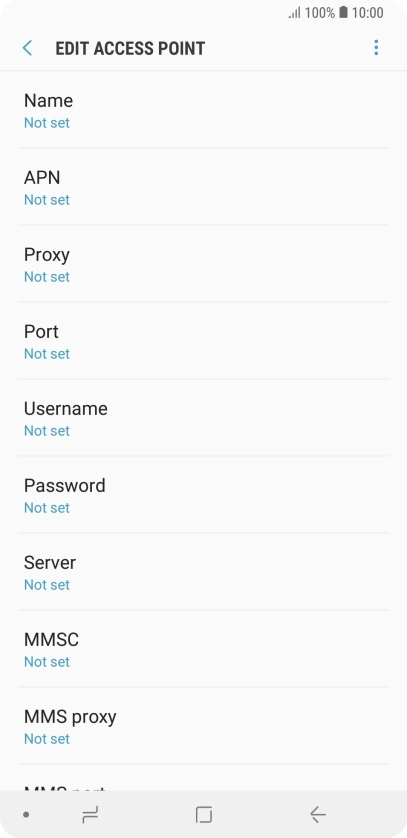

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cb82e20-3e81-42ef-90a4-c3f14c00e08b.png?width=204&height=418)

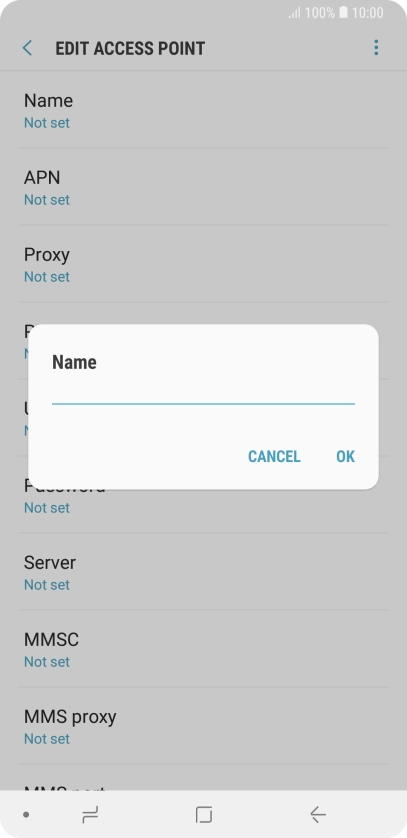

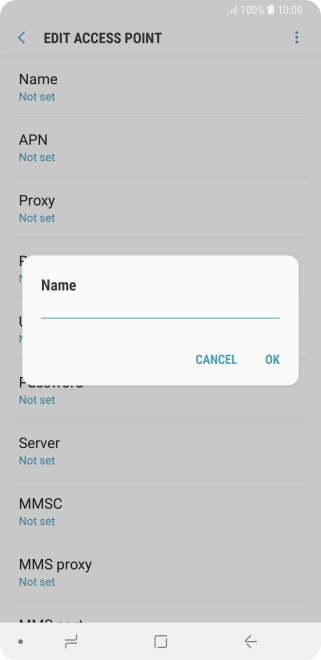

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69710775-6e42-4bf6-bd58-8959bd5e91c0.png?width=204&height=418)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cb82e20-3e81-42ef-90a4-c3f14c00e08b.png?width=204&height=418)

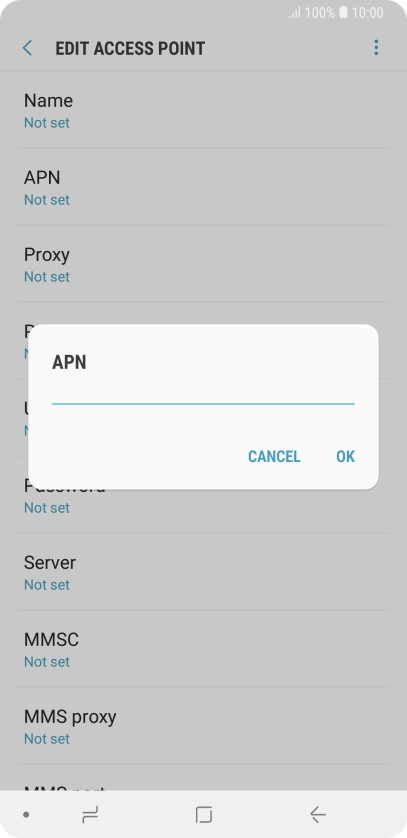

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6492e3e3-46fb-43f4-910b-013e20259ab0.png?width=204&height=418)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cb82e20-3e81-42ef-90a4-c3f14c00e08b.png?width=204&height=418)

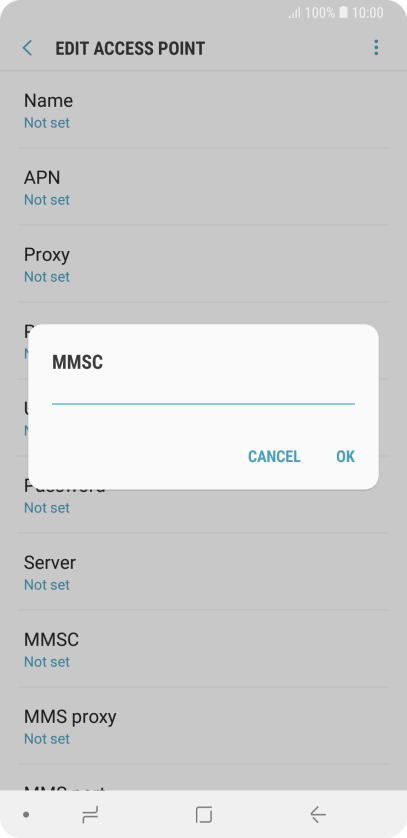

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f8ae28e7-7b8a-48e0-ac14-a859fb22a167.png?width=204&height=418)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2cb82e20-3e81-42ef-90a4-c3f14c00e08b.png?width=204&height=418)

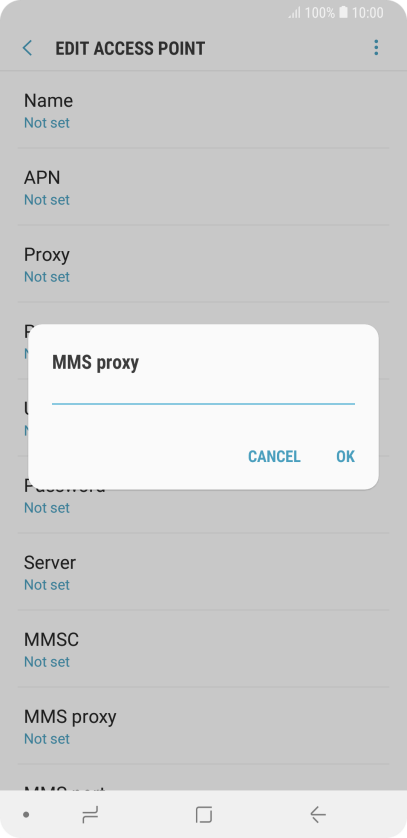

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4dd8fe21-331c-4911-a5df-8c2a6e1eff17.png?width=204&height=418)
10.24.59.200
6. Enter port number

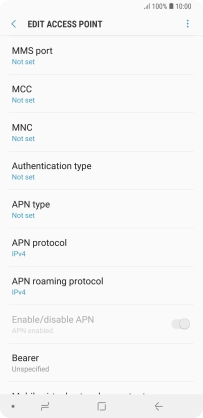

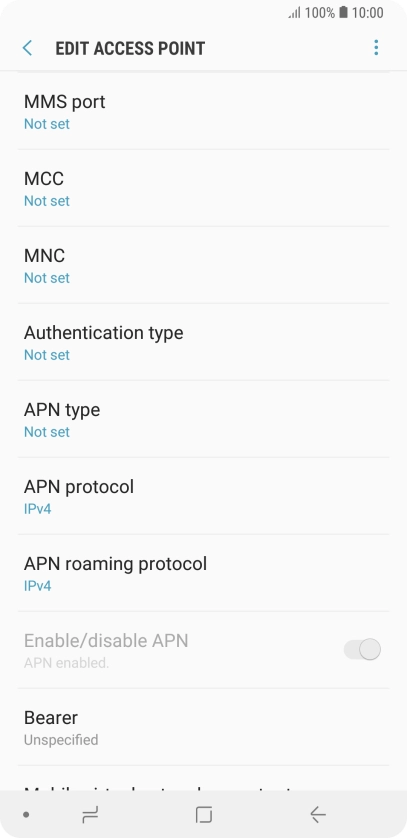

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b292ca6-a6b0-4edb-9a82-d2336adc02f6.png?width=204&height=418)

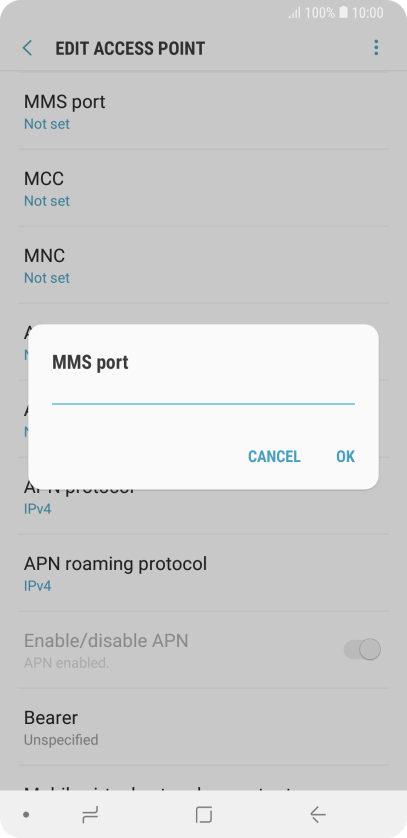

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-592b5415-1add-482e-ac74-6aae9d3f1df0.png?width=204&height=418)
80
7. Enter country code

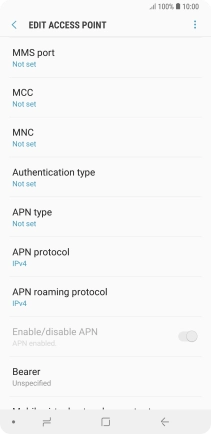

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b292ca6-a6b0-4edb-9a82-d2336adc02f6.png?width=204&height=418)

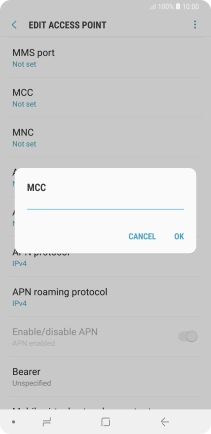

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9ebba72d-3c74-458b-933a-930b8e68087c.png?width=204&height=418)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b292ca6-a6b0-4edb-9a82-d2336adc02f6.png?width=204&height=418)

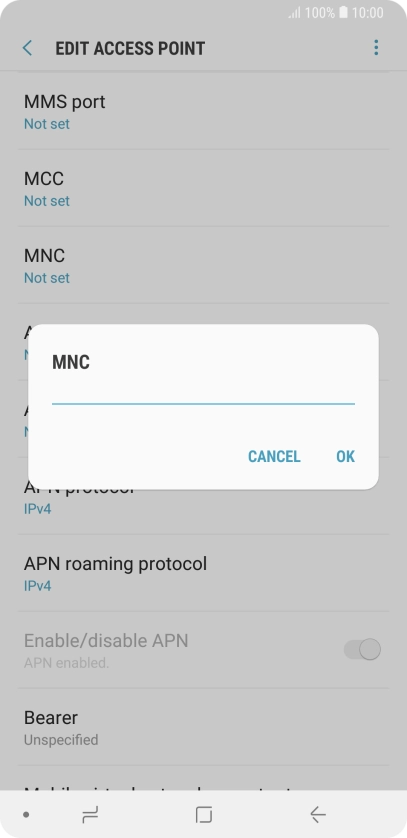

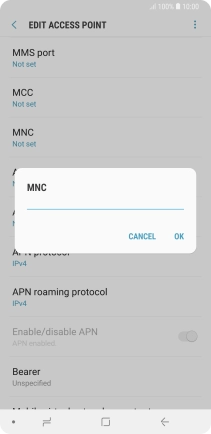

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ec82c3b1-ed5a-4786-84fe-4cd3c168cd5a.png?width=204&height=418)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b292ca6-a6b0-4edb-9a82-d2336adc02f6.png?width=204&height=418)

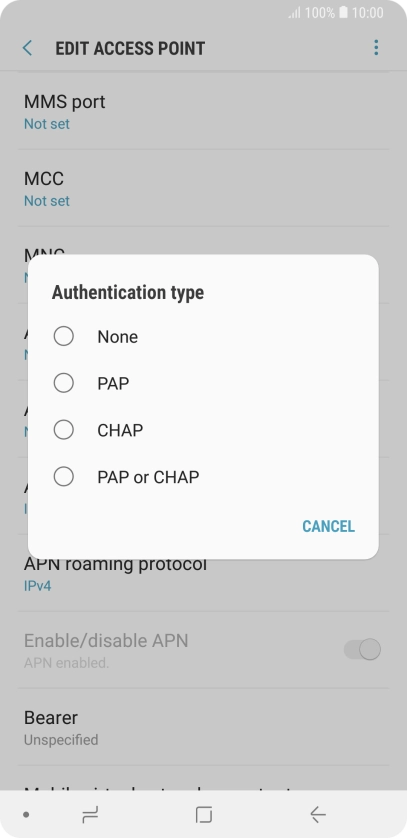

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2b504343-7966-4c4a-abf3-2ff6b2f8c3e5.png?width=204&height=418)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b292ca6-a6b0-4edb-9a82-d2336adc02f6.png?width=204&height=418)

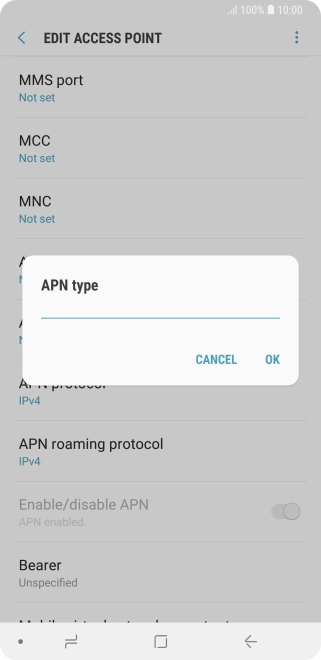

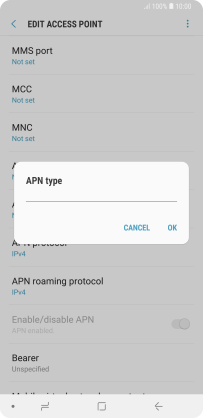

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff3a1bb8-b5ca-4fa9-8a71-5580fda627a1.png?width=204&height=418)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b292ca6-a6b0-4edb-9a82-d2336adc02f6.png?width=204&height=418)

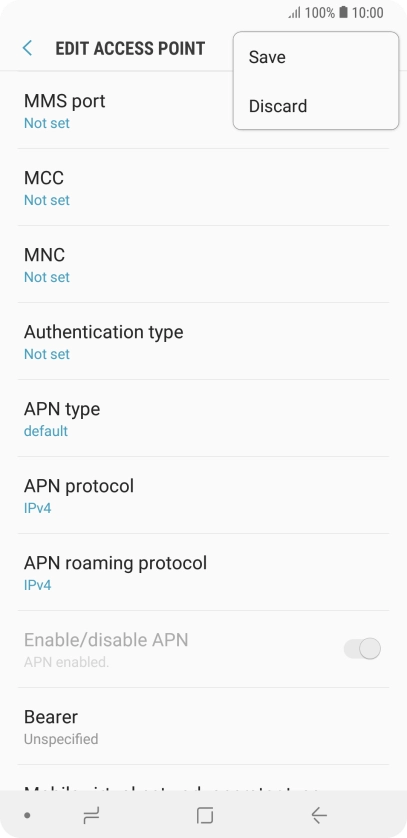

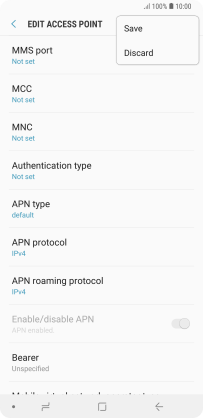

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-913c3dfd-f292-4e0f-903d-a87fa01d612f.png?width=204&height=418)
12. Return to the home screen

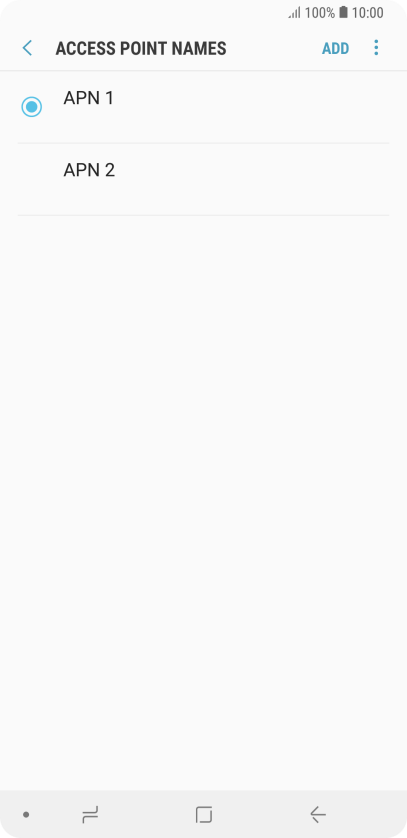

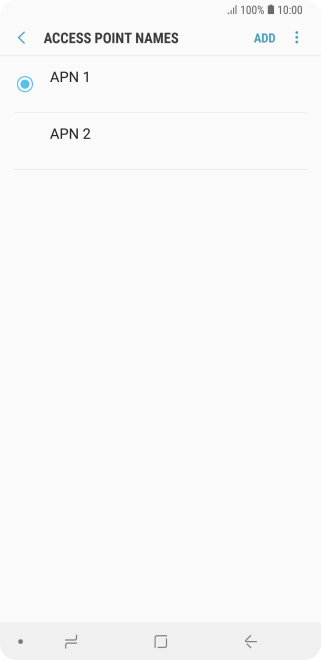

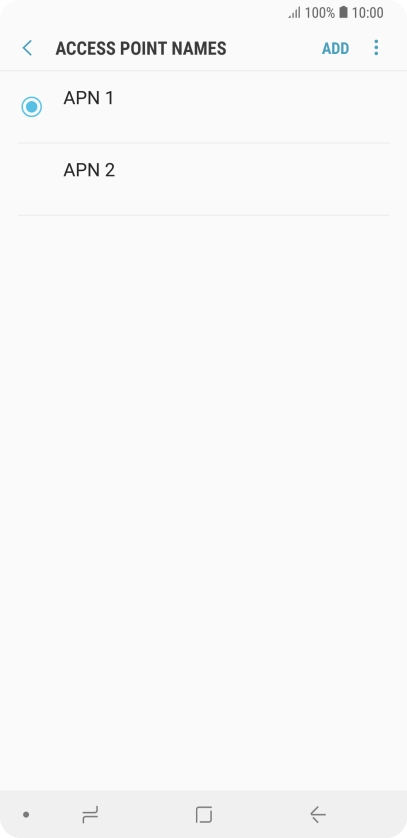

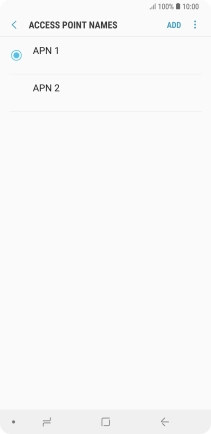

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-be4bd699-d52e-4b1a-9f91-088ab40f9491.png?width=204&height=418)
