1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fd528b3b-f173-49d7-a706-22d55bd1d5b5.png?width=206&height=456)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-824e36b0-1017-4727-b557-6364e754b7c2.png?width=206&height=456)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fec86eb8-710e-462e-bb9b-9964829e7345.png?width=206&height=456)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c3016bc5-e97a-481e-a5f8-3f4a9bd4fd05.png?width=206&height=456)

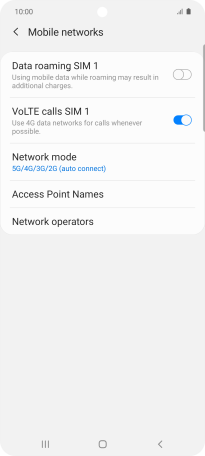

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4e6d39-d666-462b-bf52-3cdb6b862d84.png?width=206&height=456)
2. Create new data connection

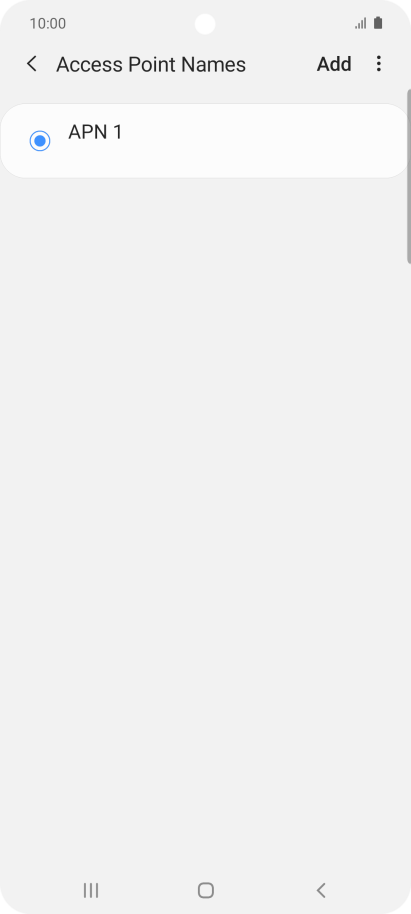

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0fc919f9-f92f-4702-9cc4-4a34a7aa88b2.png?width=206&height=456)

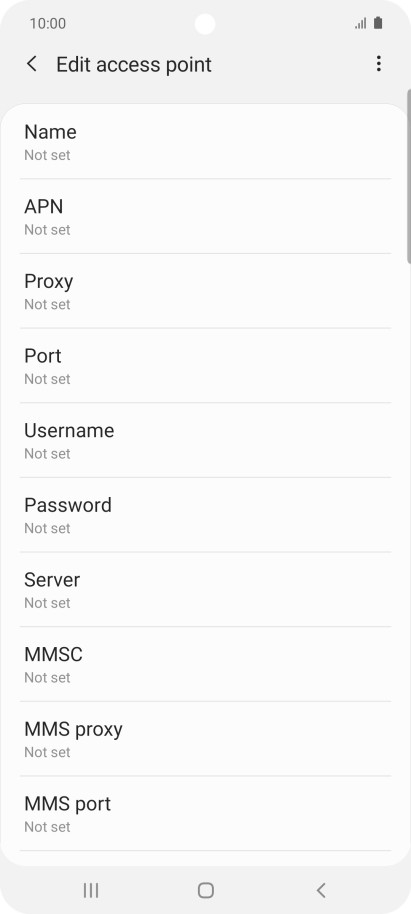

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-578f7fdc-589b-46a1-be27-4433314df7dd.png?width=206&height=456)

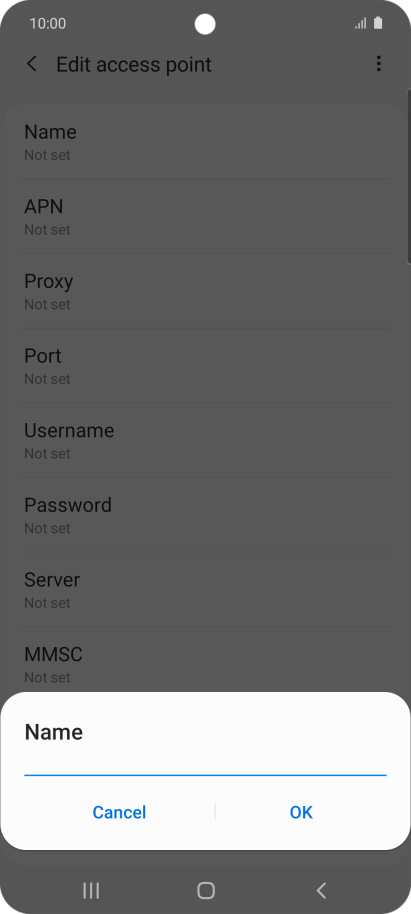

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-86fd83d7-c8d9-4d4c-bdb5-6b4eede8e826.png?width=206&height=456)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-578f7fdc-589b-46a1-be27-4433314df7dd.png?width=206&height=456)

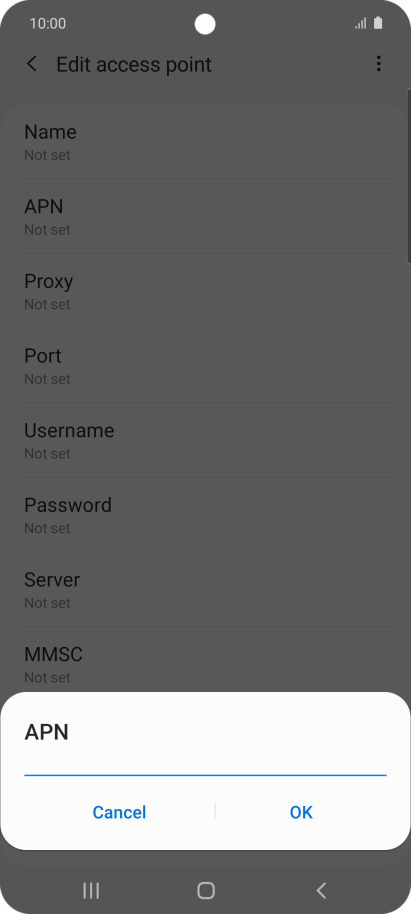

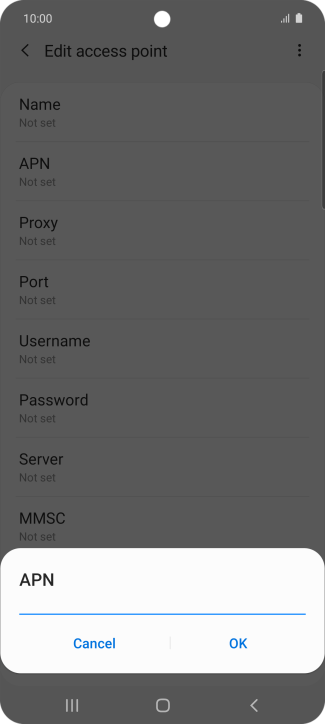

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1eecba32-329c-44fb-a423-32adca326a54.png?width=206&height=456)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-578f7fdc-589b-46a1-be27-4433314df7dd.png?width=206&height=456)

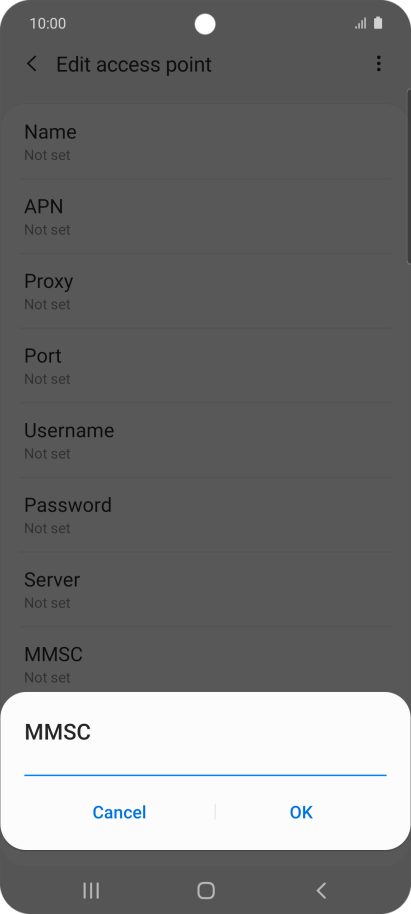

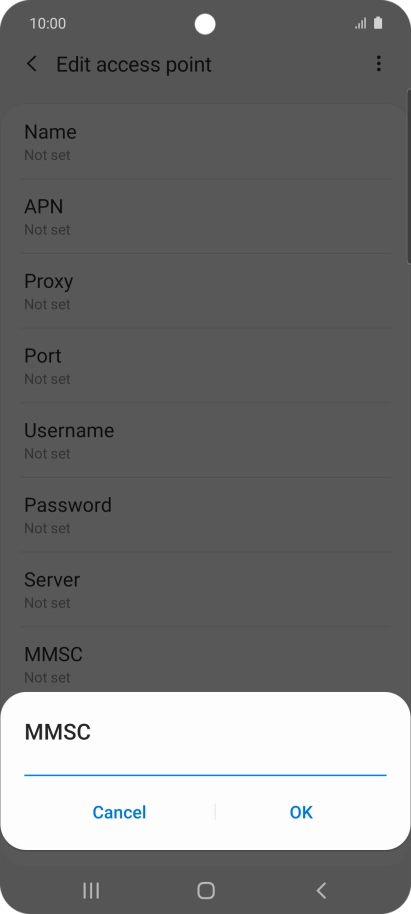

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2a532ea3-f6e8-45b8-9485-23bac01e1c0f.png?width=206&height=456)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-578f7fdc-589b-46a1-be27-4433314df7dd.png?width=206&height=456)

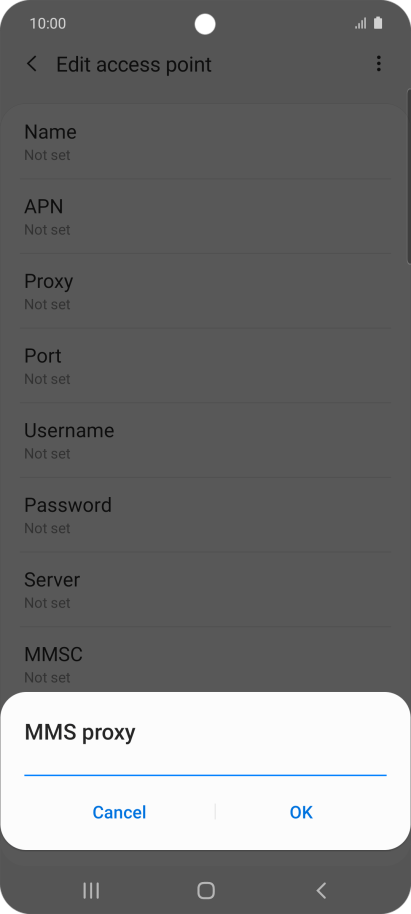

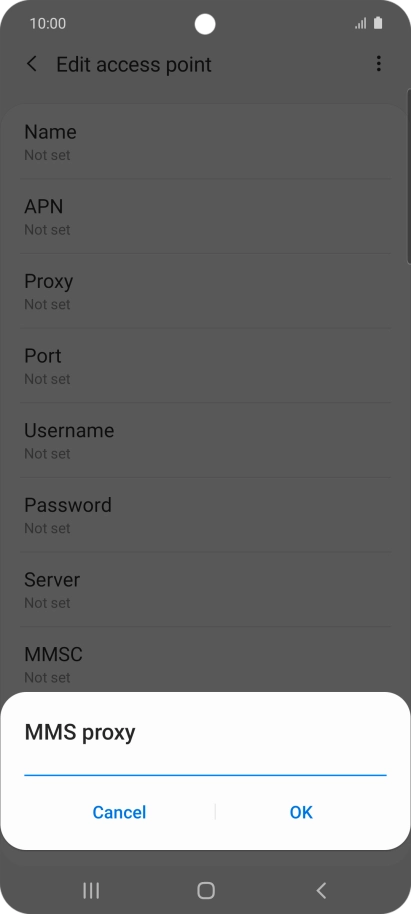

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9252330-88ea-4bbc-8c84-fe2c313d6453.png?width=206&height=456)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-578f7fdc-589b-46a1-be27-4433314df7dd.png?width=206&height=456)

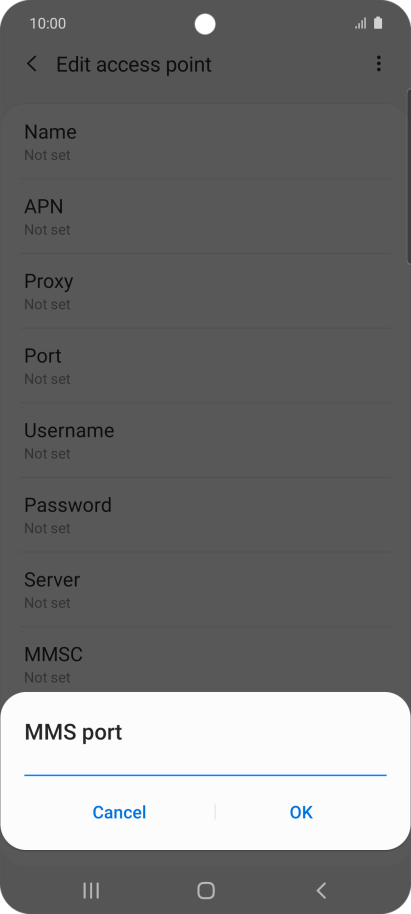

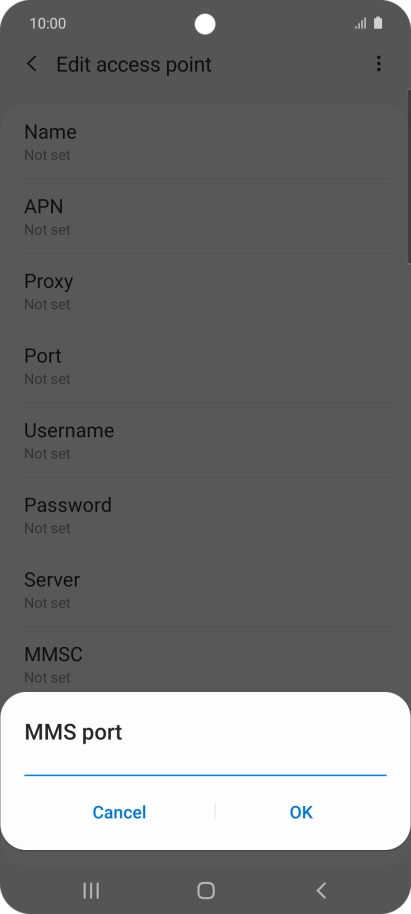

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-64409fef-b6f2-4b23-9301-777047e28a52.png?width=206&height=456)
80
7. Enter country code

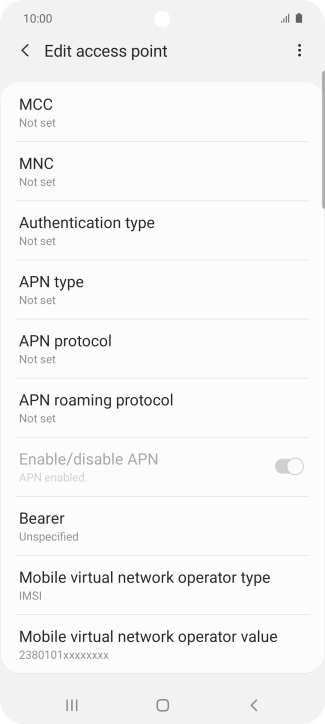

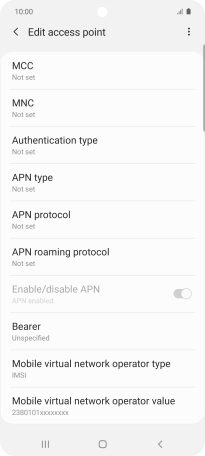

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9627f04-bd12-4475-8309-8358c95c1e53.png?width=206&height=456)

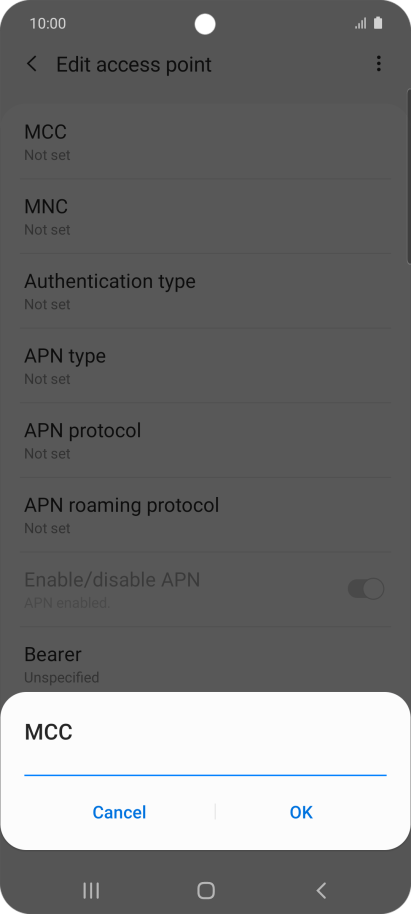

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5c2bedac-ae18-4b85-9efb-fa4644dd7e21.png?width=206&height=456)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9627f04-bd12-4475-8309-8358c95c1e53.png?width=206&height=456)

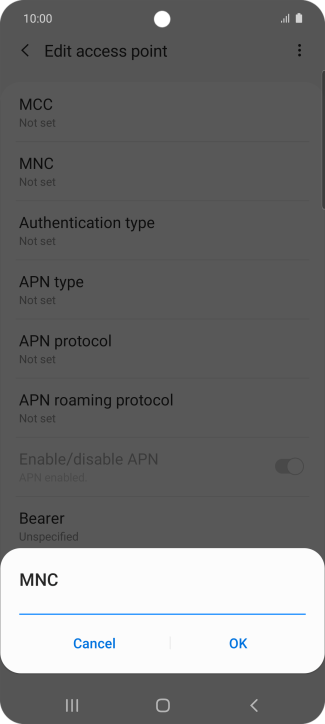

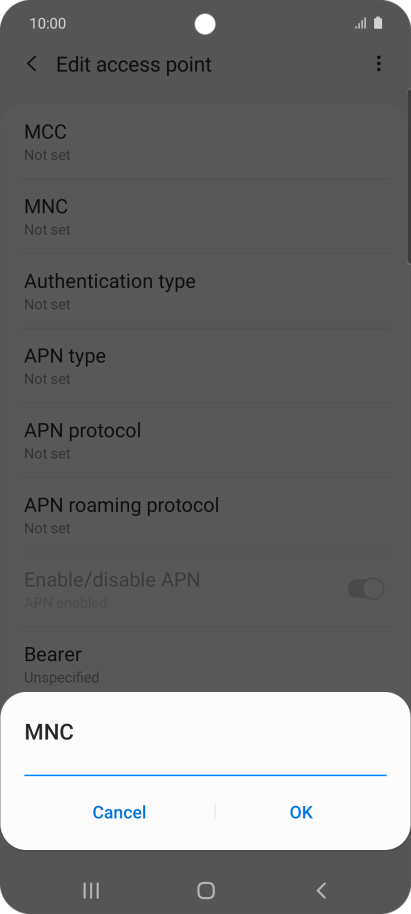

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-933d06fc-a2c4-4992-b3fe-5f464c9b654b.png?width=206&height=456)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9627f04-bd12-4475-8309-8358c95c1e53.png?width=206&height=456)

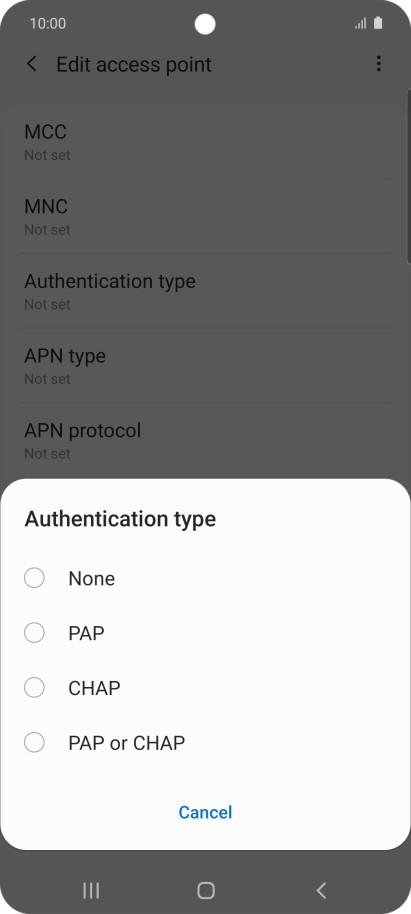

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a4fba986-9c7f-4acc-bd3c-965f914c40ee.png?width=206&height=456)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9627f04-bd12-4475-8309-8358c95c1e53.png?width=206&height=456)

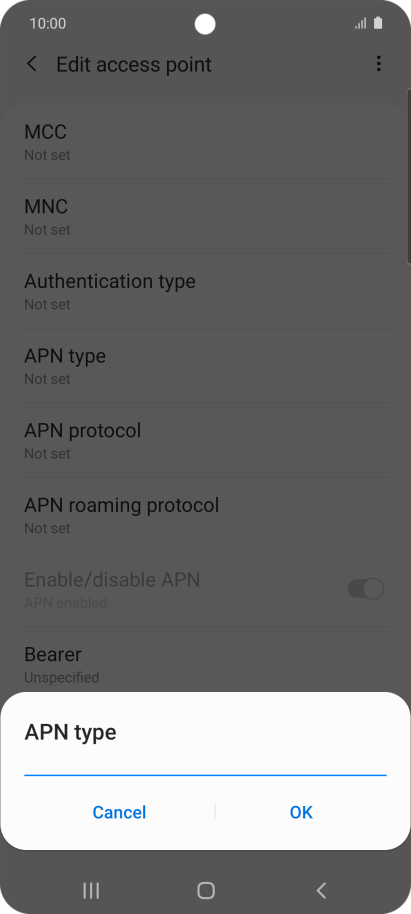

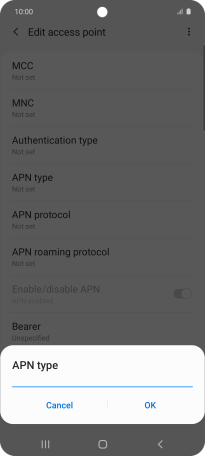

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-04b52605-97db-4fd7-b18b-31f54d9c9bd1.png?width=206&height=456)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9627f04-bd12-4475-8309-8358c95c1e53.png?width=206&height=456)

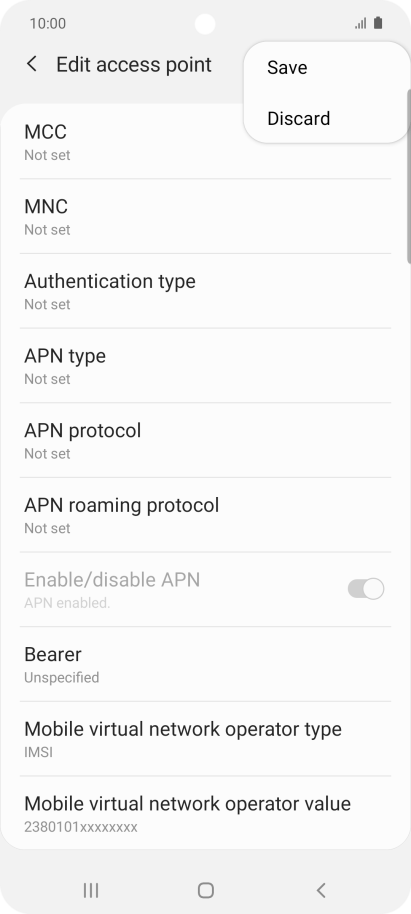

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7f2e5389-1bfd-4a27-8470-c40d08932e99.png?width=206&height=456)
12. Return to the home screen

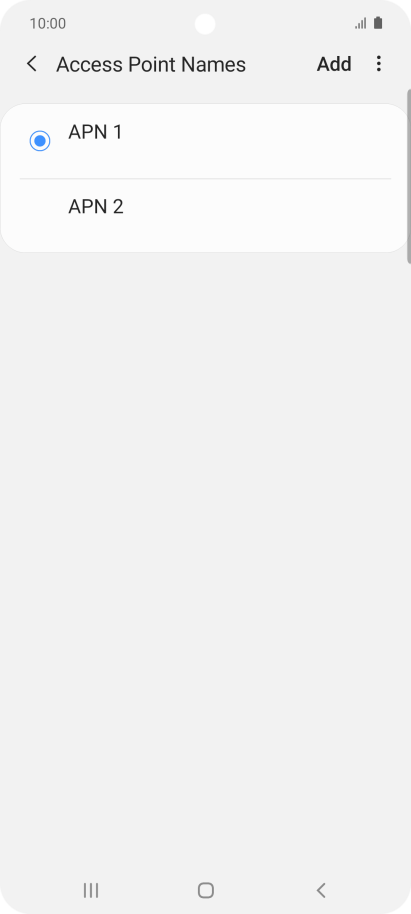

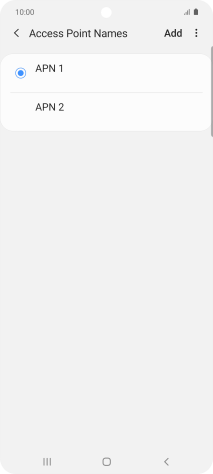

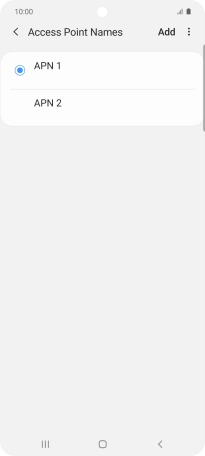

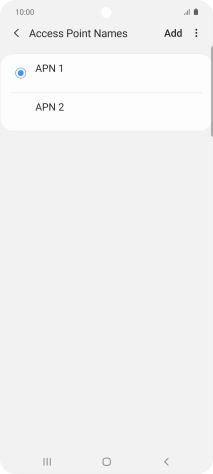

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-329c85cb-b0f4-48f1-887e-ce7da389a33e.png?width=206&height=456)
