1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9056d521-9f09-48e8-a282-7e7c1a536210.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-40fcd549-bfae-4bb9-accf-5350fe575643.png?width=200&height=448)

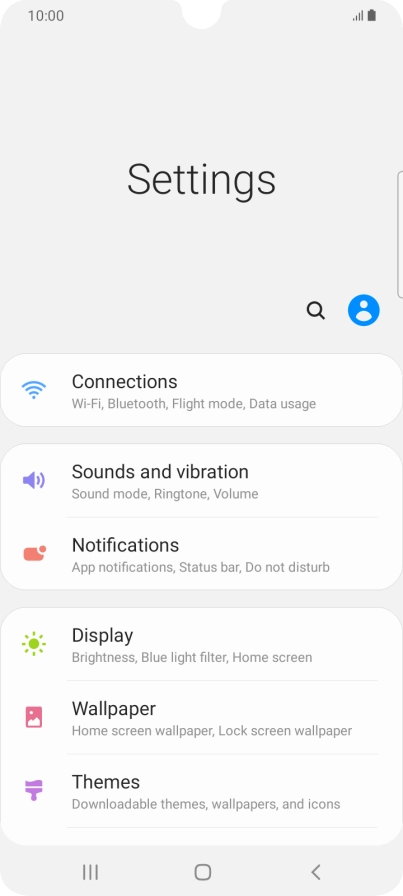

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-82f3faaf-cc2b-4fbc-8332-558bd7c9da68.png?width=200&height=448)

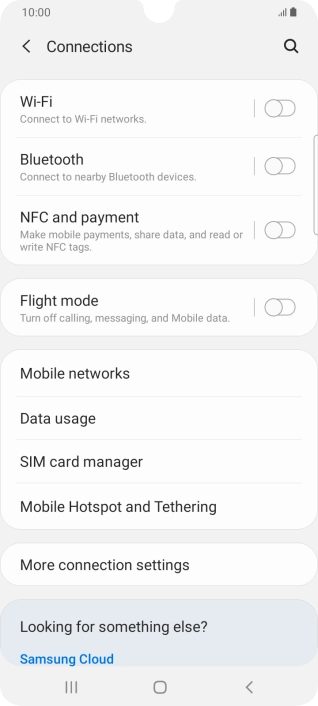

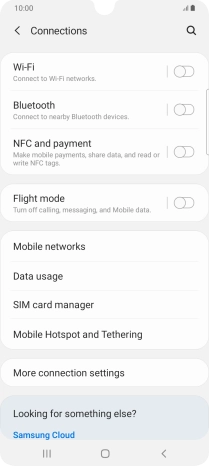

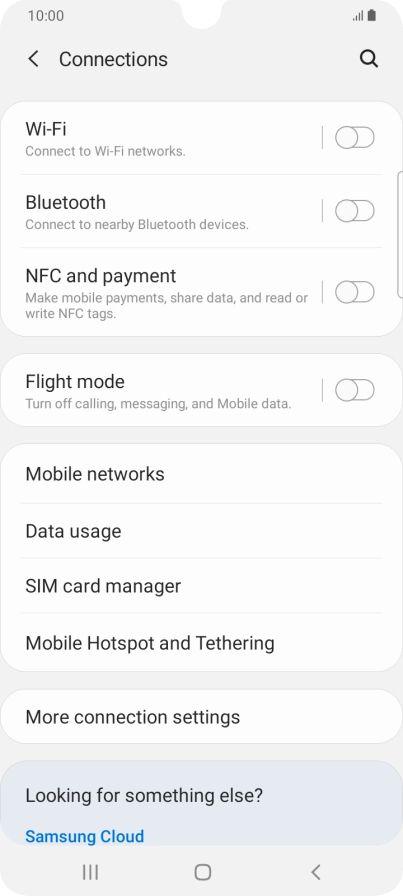

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8845493-71ee-41f6-a44c-abbdc4d9e50e.png?width=200&height=448)

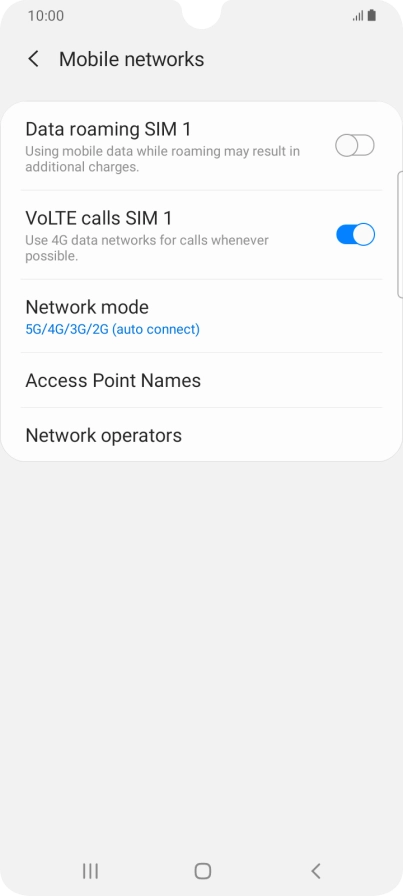

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a323e16e-0f6e-4b27-a986-5ef343780413.png?width=200&height=448)
2. Create new data connection

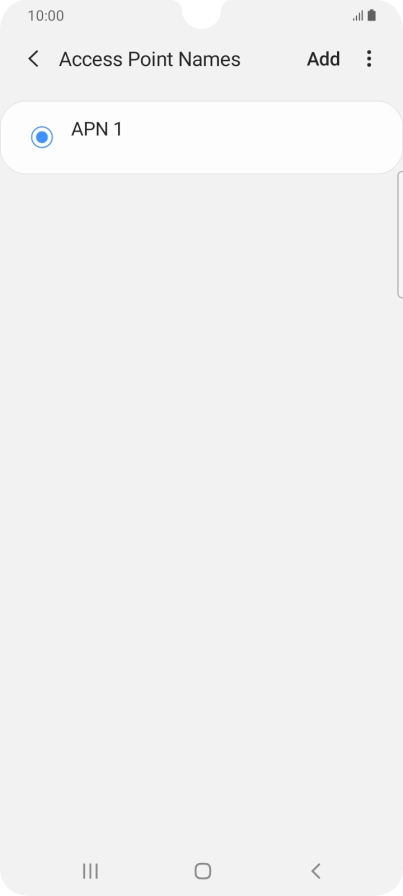

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e91554d1-d98a-4f27-bc24-c0c23ec8a8d5.png?width=200&height=448)

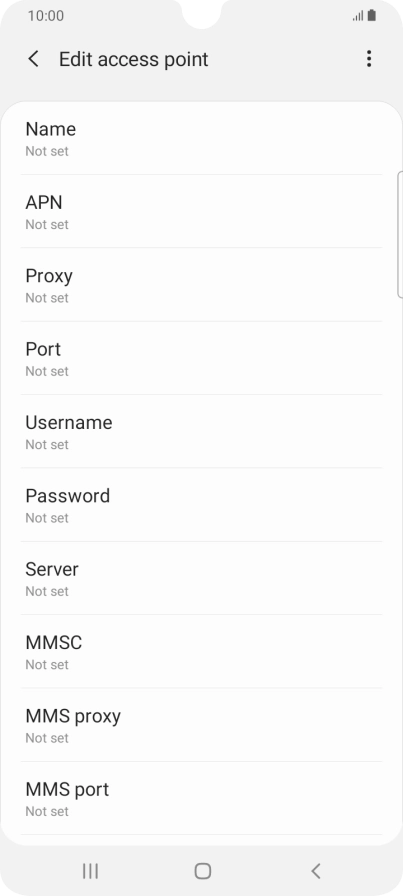

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fade2ee-5093-4d07-a0c7-ddb893c83df7.png?width=200&height=448)

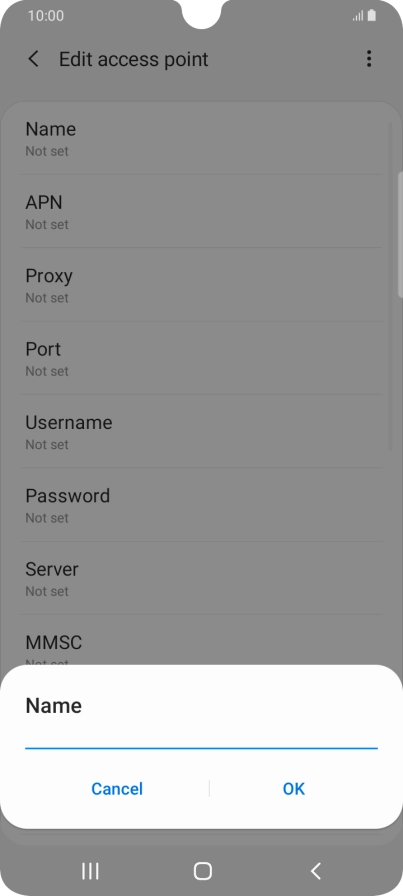

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-13daaf24-5aa7-43d8-8f10-5b01fe83ddec.png?width=200&height=448)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fade2ee-5093-4d07-a0c7-ddb893c83df7.png?width=200&height=448)

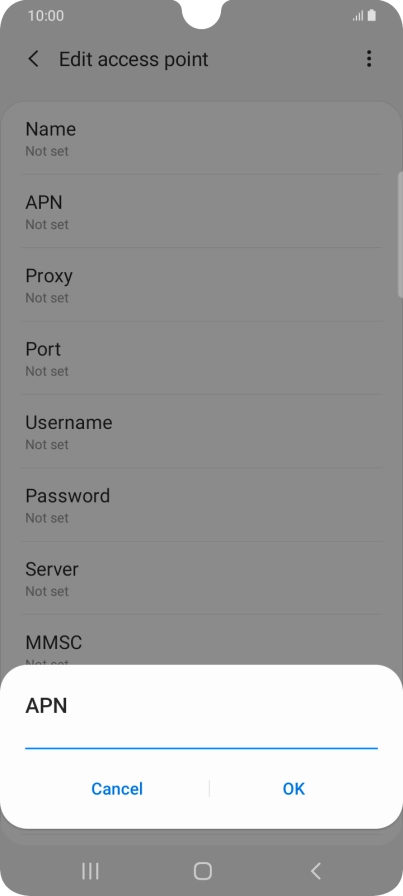

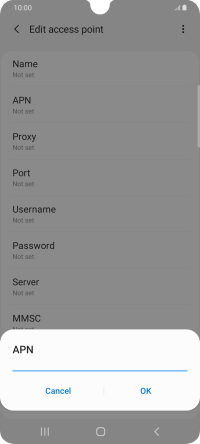

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cfa722e3-049c-4d68-a1b6-ad37082ef384.png?width=200&height=448)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fade2ee-5093-4d07-a0c7-ddb893c83df7.png?width=200&height=448)

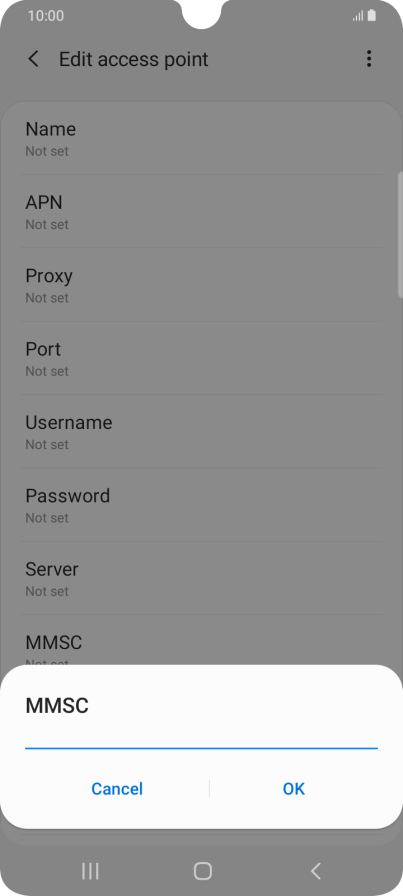

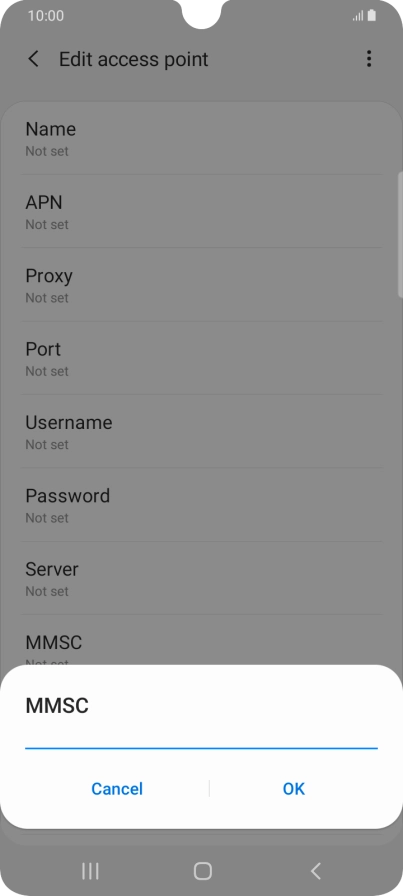

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4c62bc1c-c3ad-4276-a945-070254f621c3.png?width=200&height=448)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7fade2ee-5093-4d07-a0c7-ddb893c83df7.png?width=200&height=448)

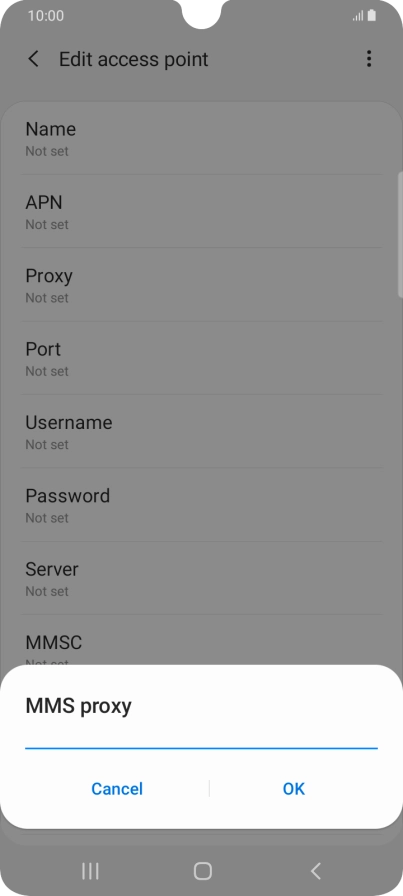

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e4084d95-1e5f-46bd-8451-81339f25ccd3.png?width=200&height=448)
10.24.59.200
6. Enter port number

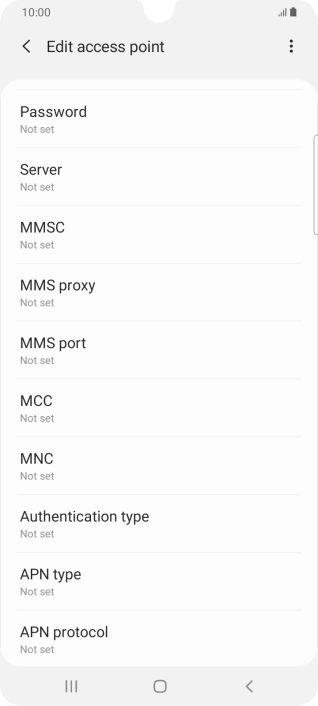

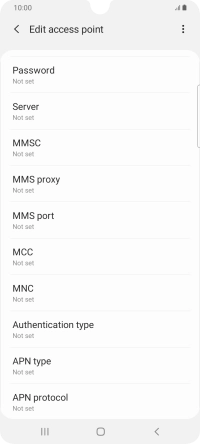

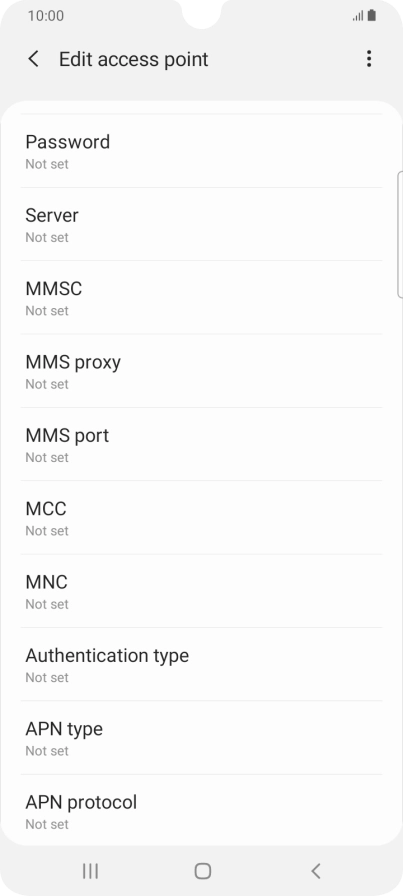

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

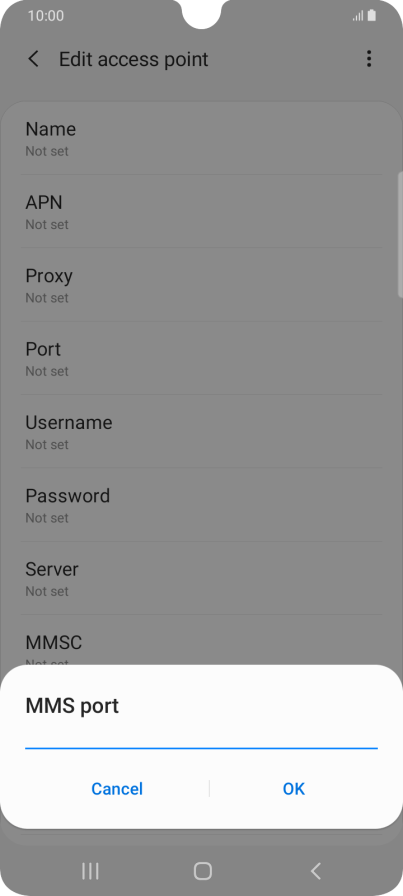

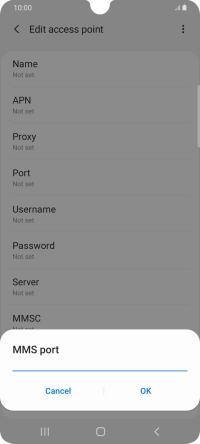

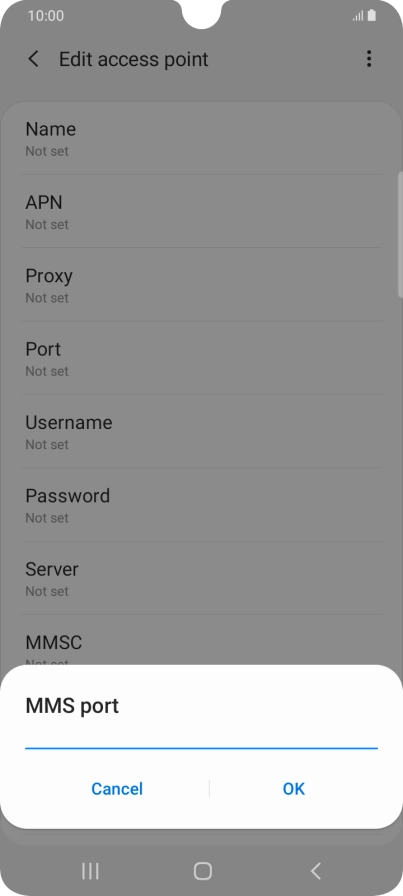

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12b344ea-1429-4904-82a2-8b2e292dedb2.png?width=200&height=448)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

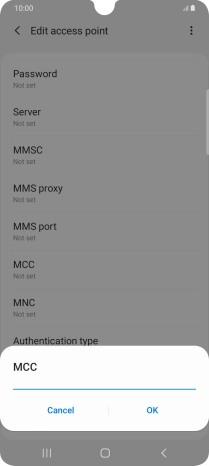

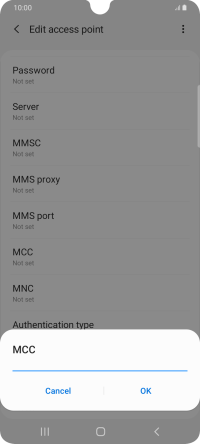

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-53b90385-1a66-4d61-9649-de04ea2eda73.png?width=200&height=448)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

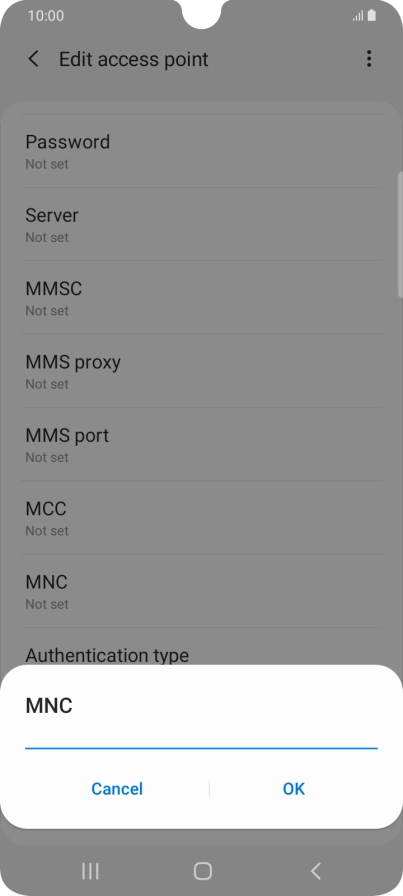

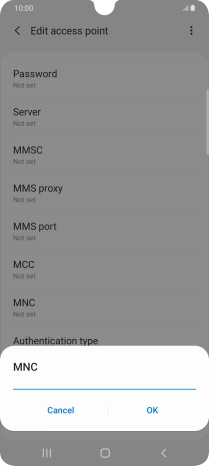

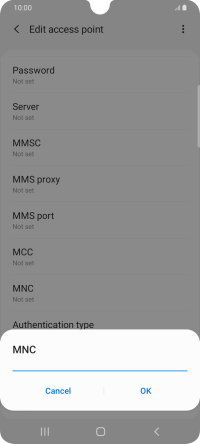

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-850be280-ecf1-40bf-b760-aca9f2ff6d60.png?width=200&height=448)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

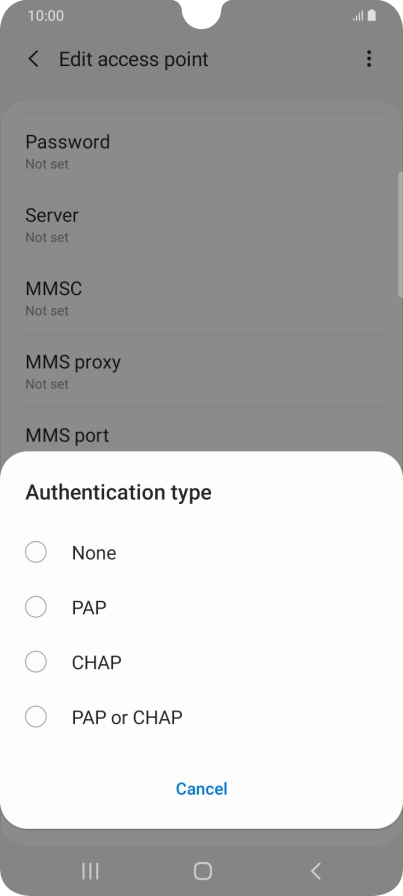

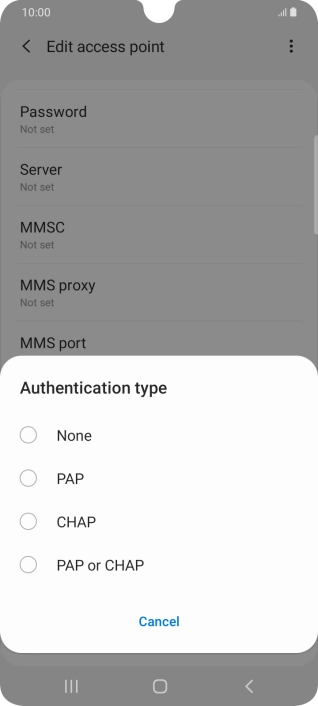

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6dd4e641-b3e7-4024-9ccb-14b7307df073.png?width=200&height=448)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

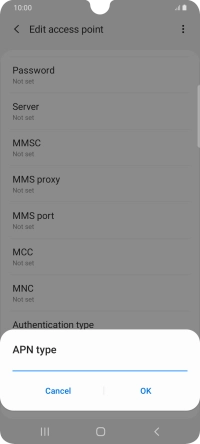

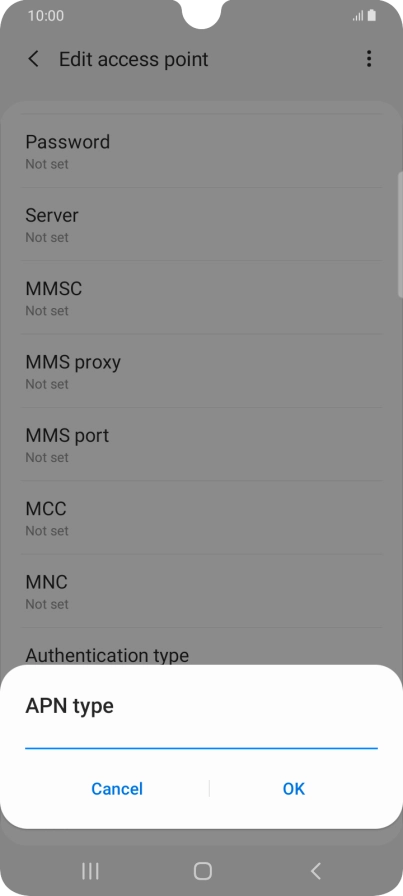

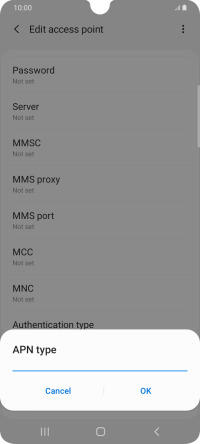

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-529dd701-688f-4892-9ec5-dbdaccf12b7f.png?width=200&height=448)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4da2d85f-8050-4a70-bdc2-00d005f7b8c0.png?width=200&height=448)

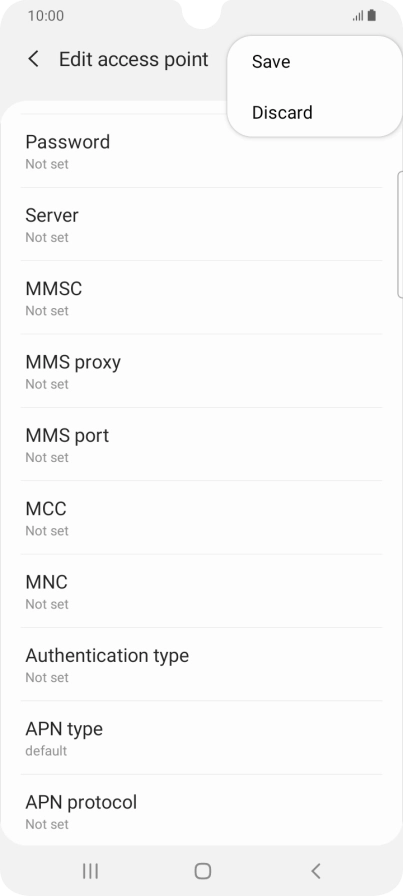

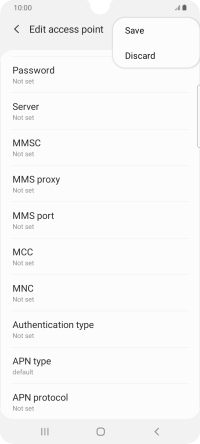

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f1335735-87c7-4de3-baad-66e2c48172a8.png?width=200&height=448)
12. Return to the home screen

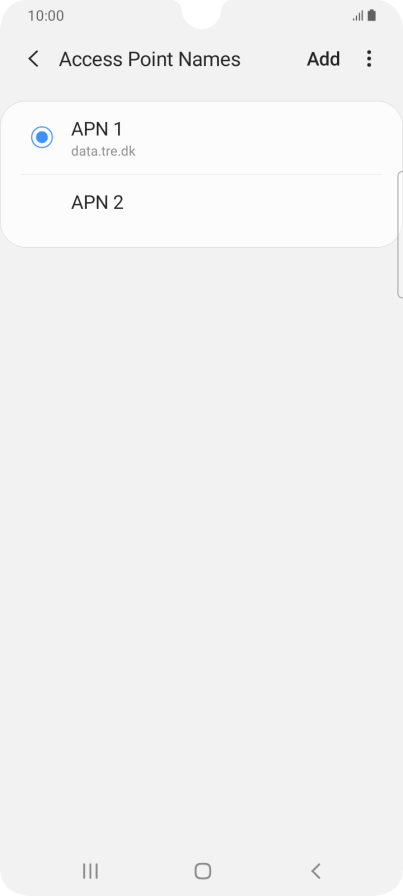

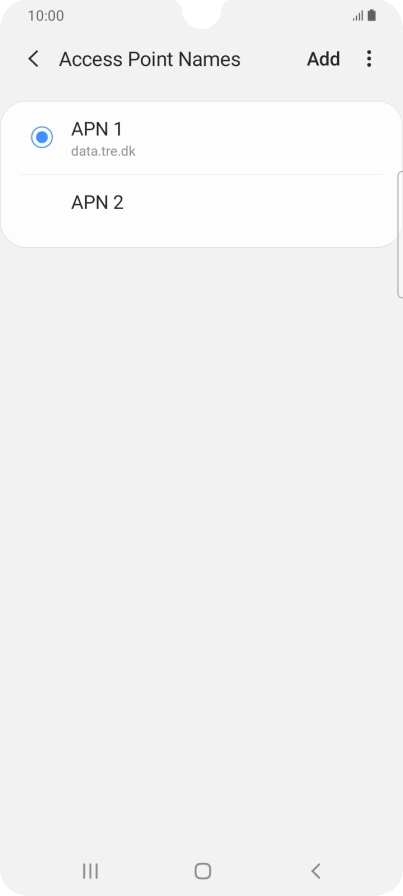

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca2d7196-70a7-4161-82a1-c827290c8999.png?width=200&height=448)
