1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4b1afe33-533e-4ed3-a28a-0f34abb195d0.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ec7af552-b1d6-4809-95f1-964b9478d231.png?width=200&height=448)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-950c8a35-e1ca-4bf1-b78a-fe897d424917.png?width=200&height=448)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6d1dc699-214e-4b2e-8945-1439ca68594f.png?width=200&height=448)

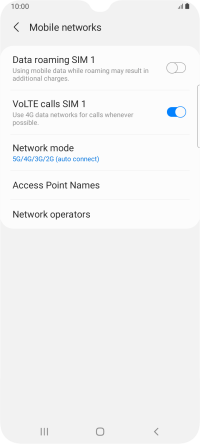

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-383f7c51-49d3-4c41-a5be-d6d5b219d15a.png?width=200&height=448)
2. Create new data connection

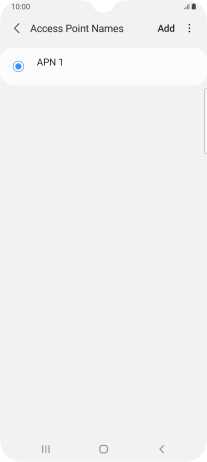

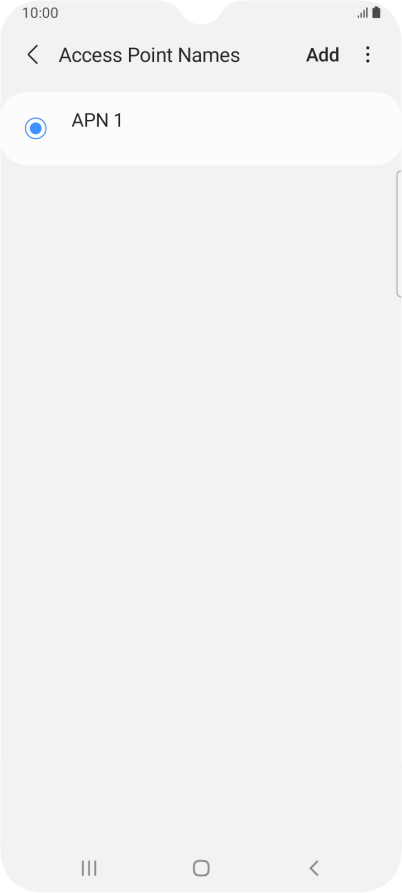

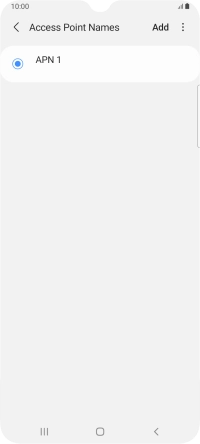

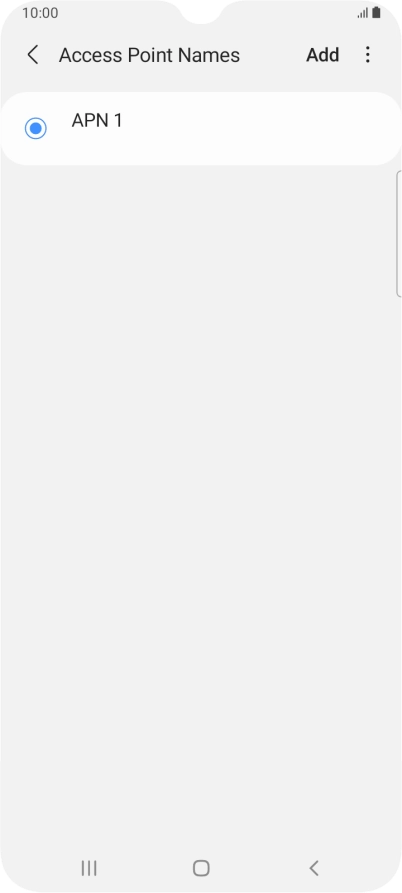

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5747ff23-f235-4bae-9a58-c4283b8af9a4.png?width=200&height=448)
3. Enter a name for the connection

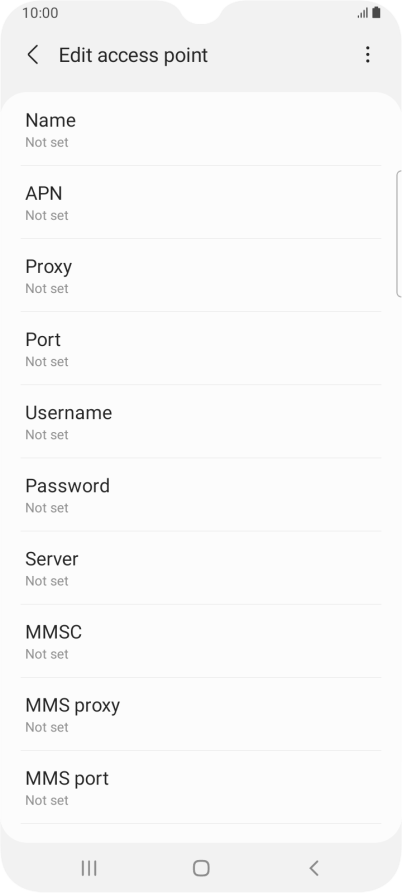

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c8743e5-9efb-450a-819a-ff4b09d9a03c.png?width=200&height=448)

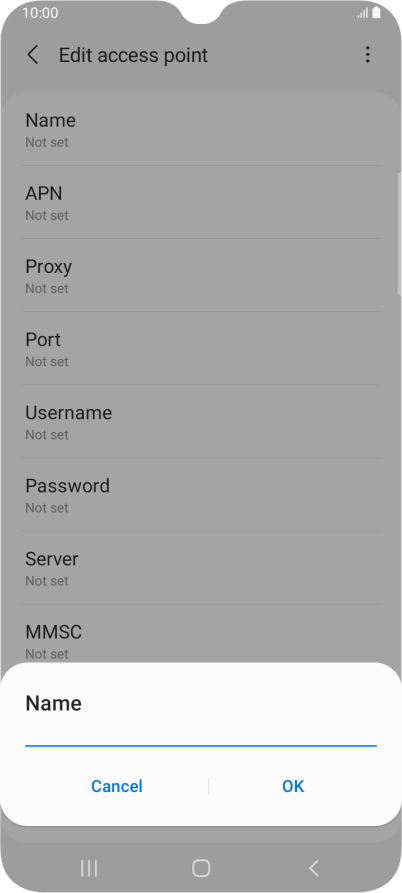

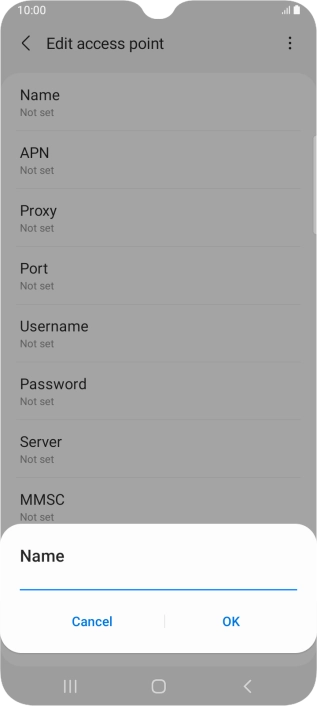

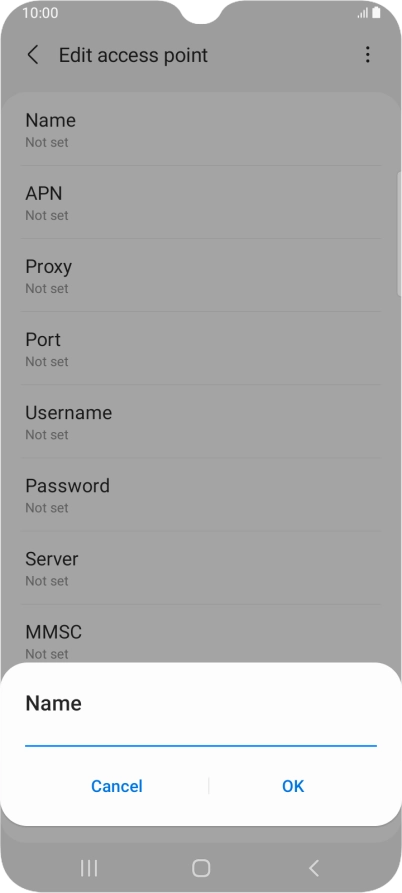

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d0691fc4-d4a4-476c-8135-df26e026e7ad.png?width=200&height=448)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c8743e5-9efb-450a-819a-ff4b09d9a03c.png?width=200&height=448)

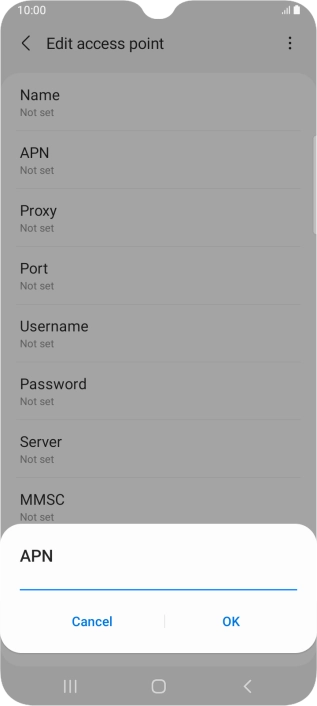

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-513acc38-740b-48e6-95ec-c13dc07462d6.png?width=200&height=448)
live.vodafone.com
5. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c8743e5-9efb-450a-819a-ff4b09d9a03c.png?width=200&height=448)

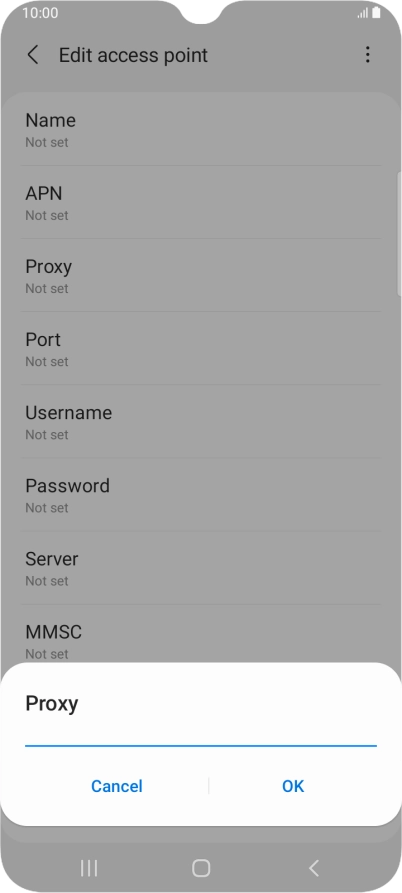

Key in 10.24.59.100 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1db2fd83-1ce9-42fb-9bbd-a57d5afde366.png?width=200&height=448)
10.24.59.100
6. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c8743e5-9efb-450a-819a-ff4b09d9a03c.png?width=200&height=448)

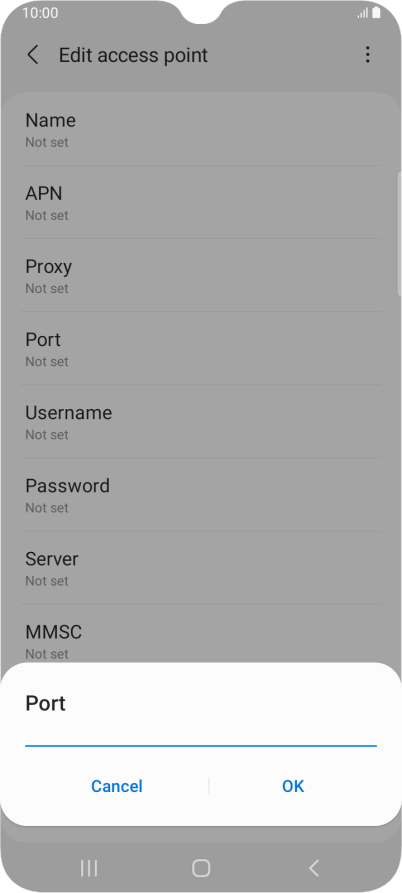

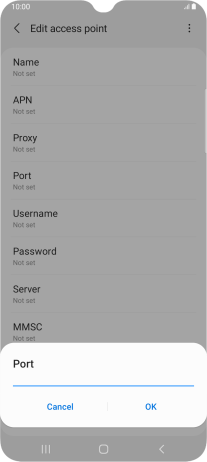

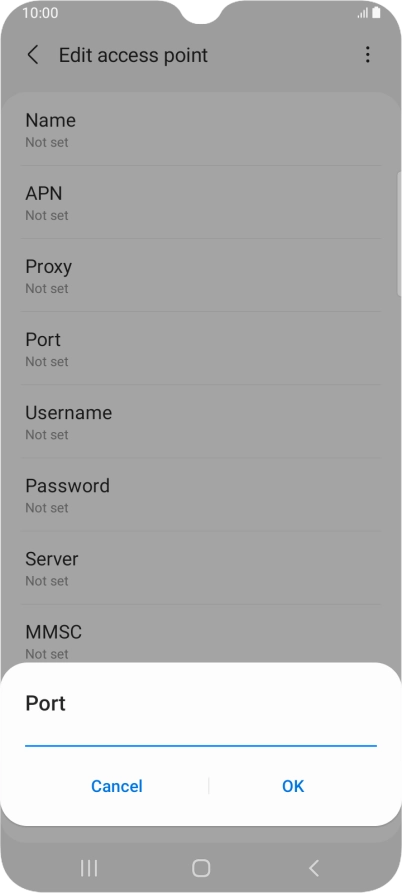

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ffbbb37a-6309-4029-9bd5-64966311bf88.png?width=200&height=448)
80
7. Enter country code

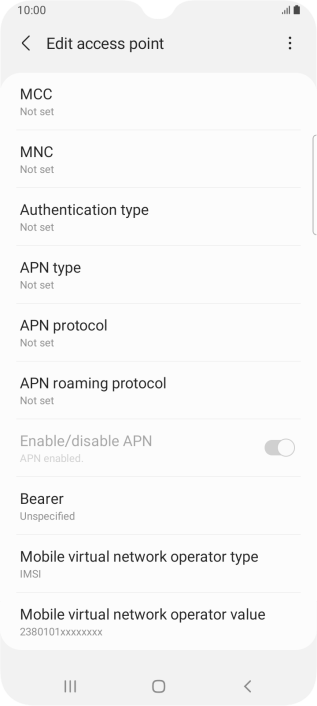

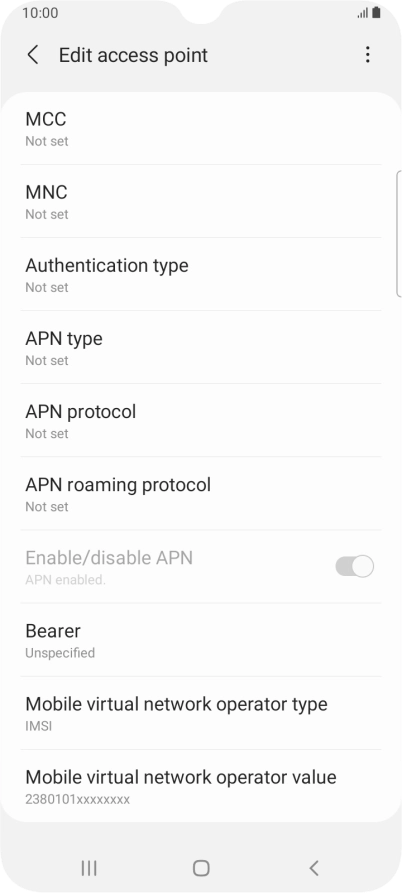

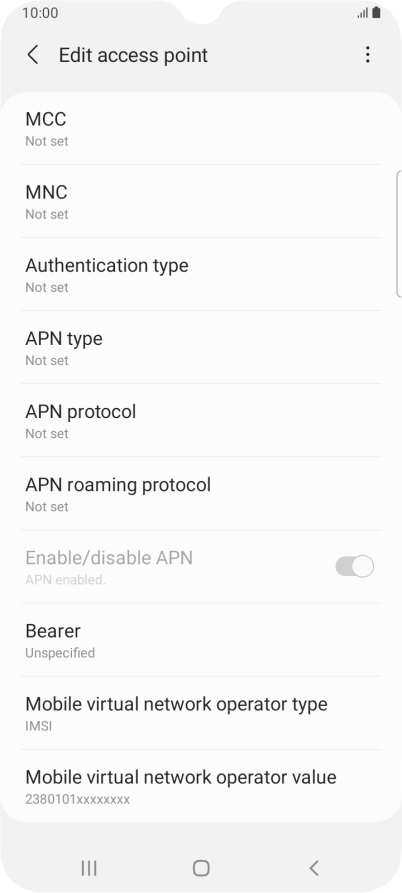

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c16fd42f-1431-49ef-904b-96aa6a25ef6a.png?width=200&height=448)

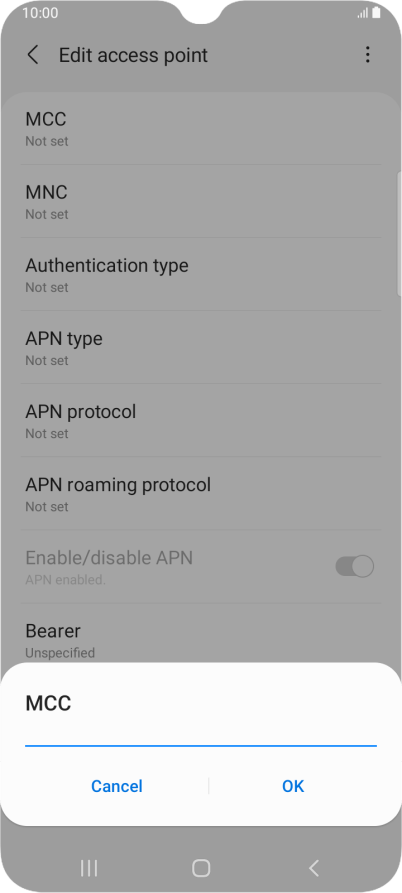

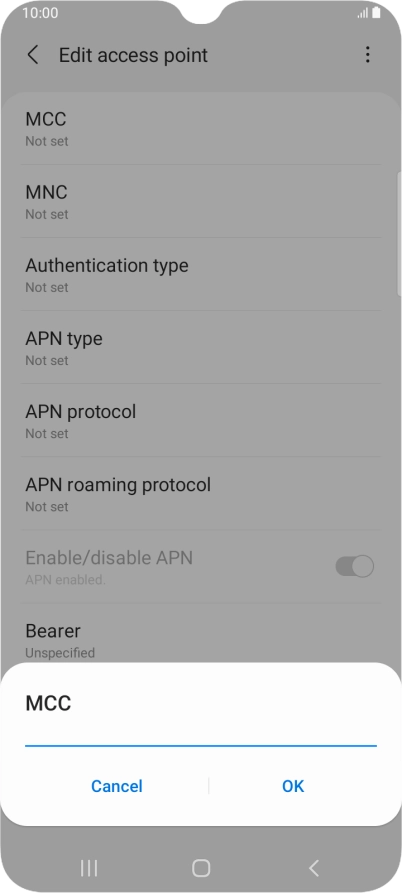

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a28df177-60db-4107-9c57-322fef462413.png?width=200&height=448)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c16fd42f-1431-49ef-904b-96aa6a25ef6a.png?width=200&height=448)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2e470b9a-6776-4bee-8715-970cb18afa5c.png?width=200&height=448)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c16fd42f-1431-49ef-904b-96aa6a25ef6a.png?width=200&height=448)

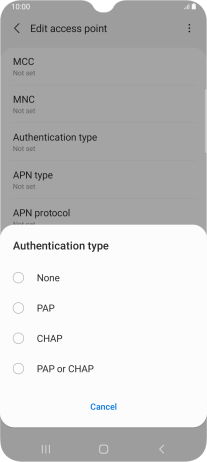

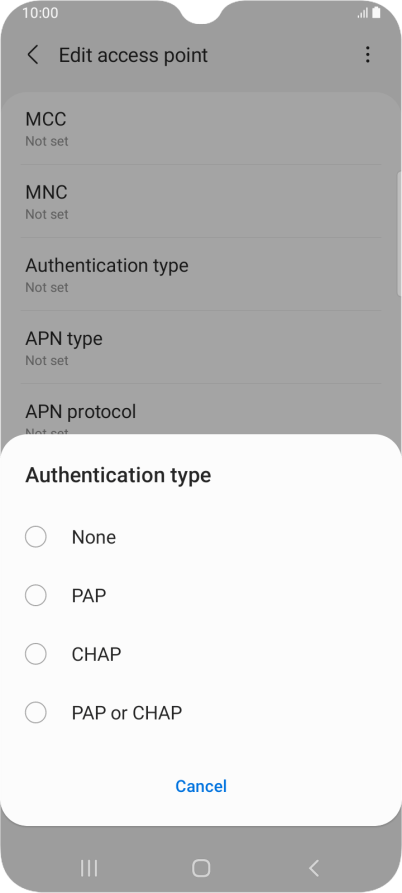

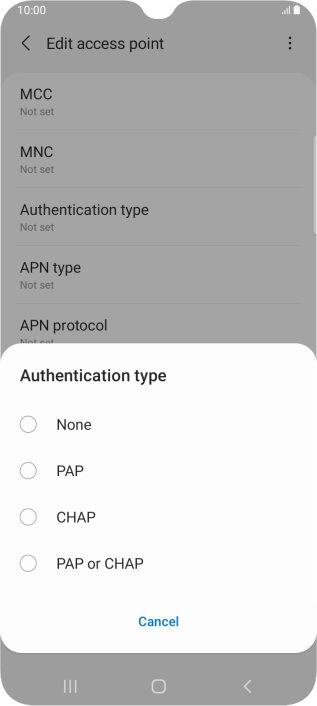

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a5b64aee-8b30-41e8-9708-95cd9cff92e8.png?width=200&height=448)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c16fd42f-1431-49ef-904b-96aa6a25ef6a.png?width=200&height=448)

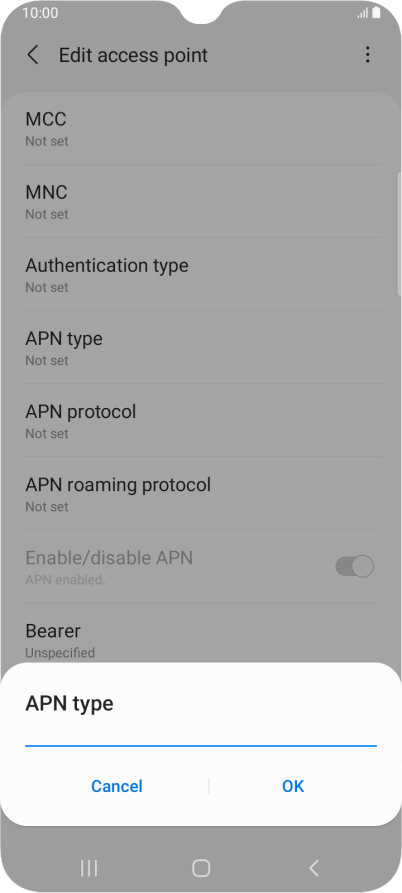

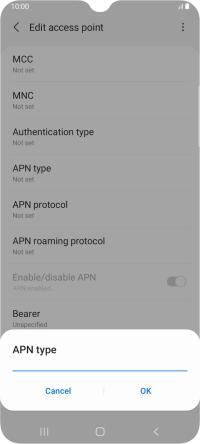

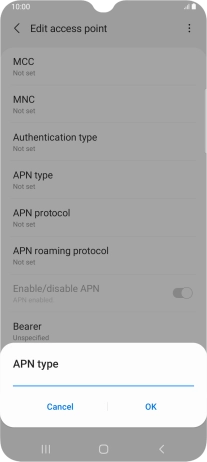

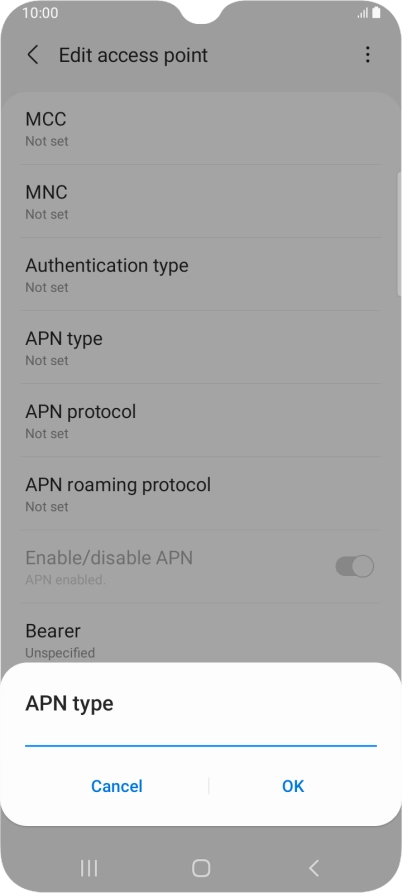

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-09fe0223-b79b-4b9d-a54c-178a5246cb79.png?width=200&height=448)
default
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c16fd42f-1431-49ef-904b-96aa6a25ef6a.png?width=200&height=448)

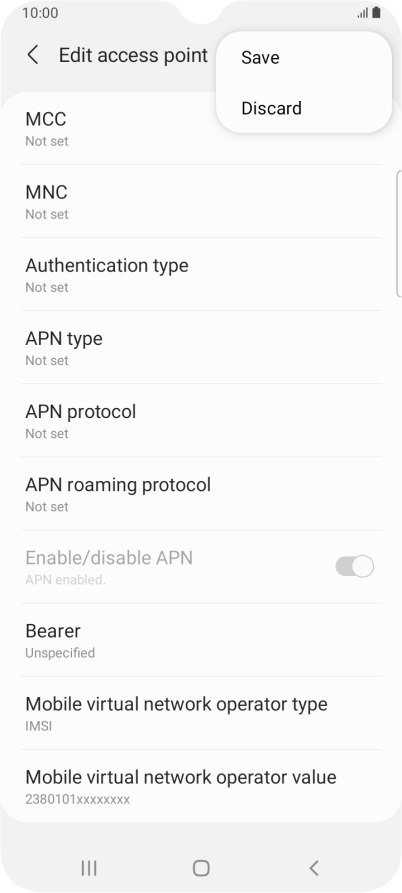

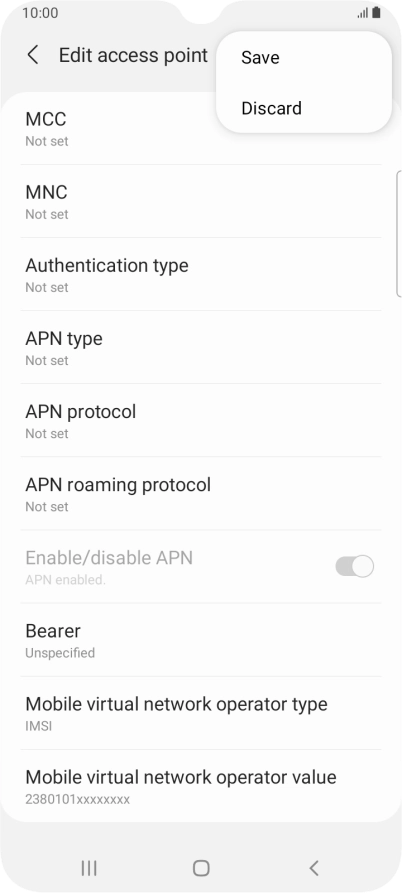

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a92b7005-697d-4068-9856-d32fd6b392a7.png?width=200&height=448)

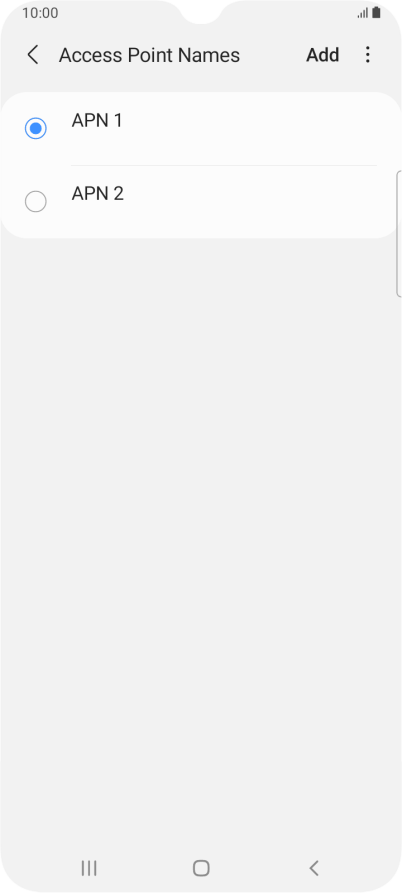

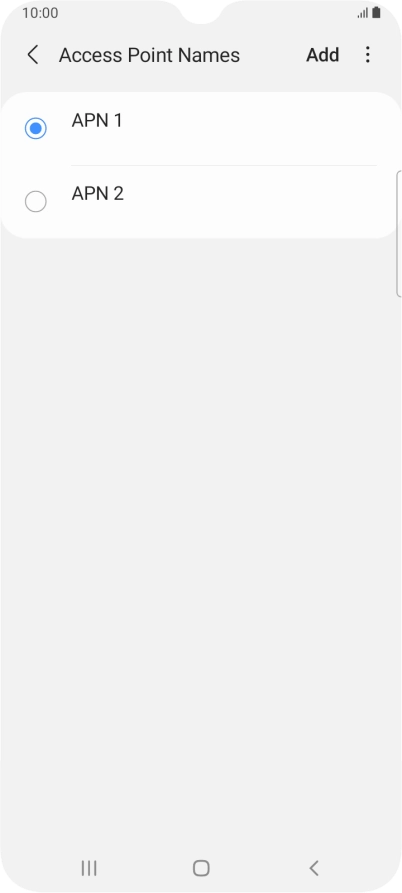

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e74671c3-007d-4555-85bf-8c1a0e7e9f99.png?width=200&height=448)
12. Return to the home screen

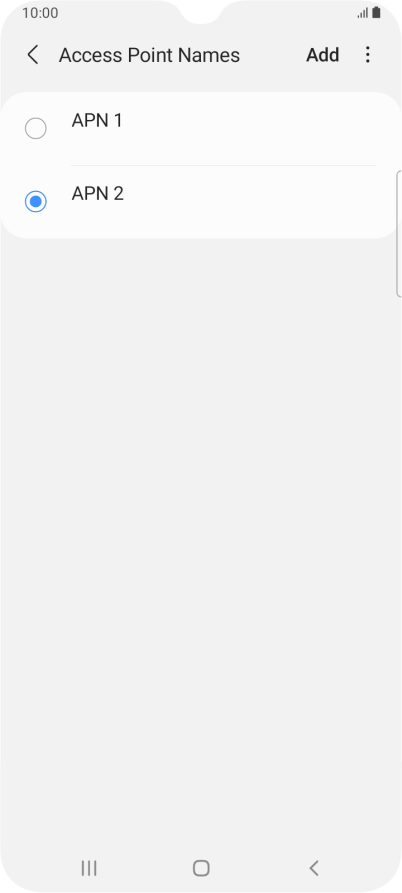

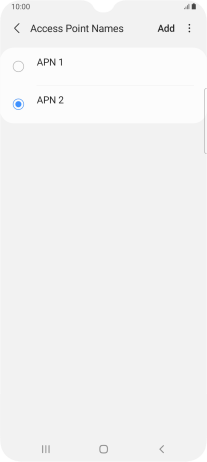

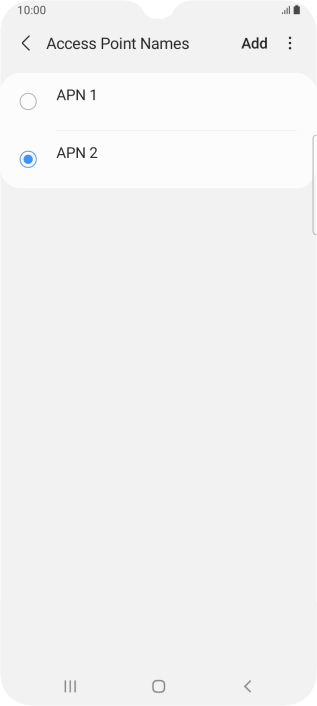

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26a32722-f873-45da-a1c8-90a653aba204.png?width=200&height=448)
