1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"
Press Connections.
1. Find "Access Point Names"
Press Mobile networks.
1. Find "Access Point Names"

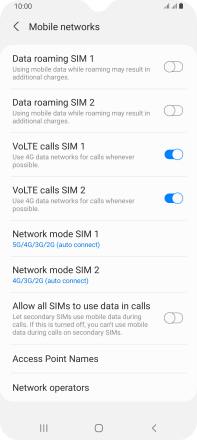

Press Access Point Names.
2. Create new data connection

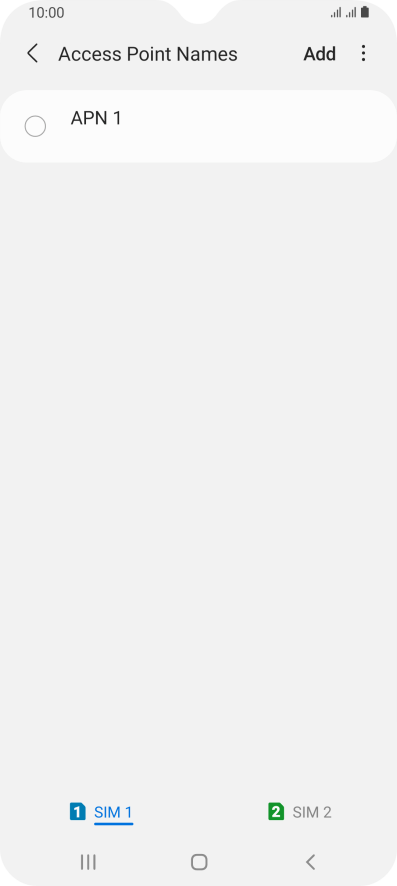

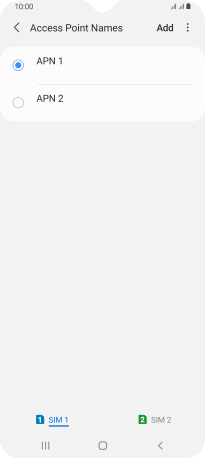

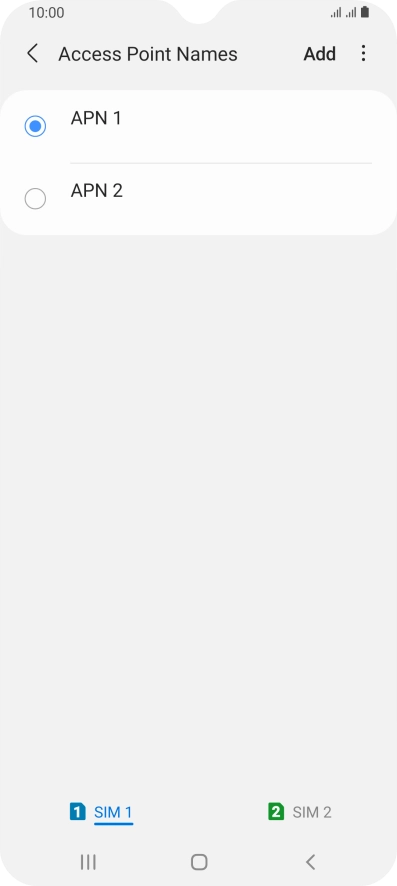

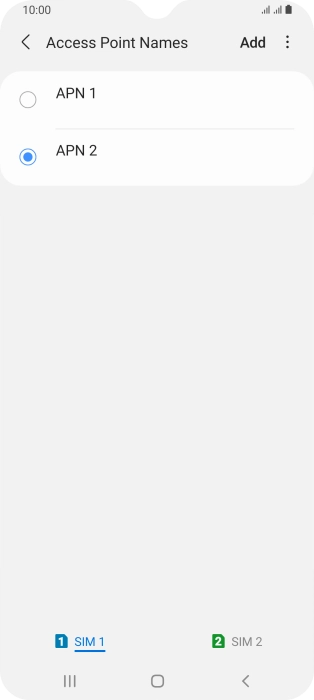

Press the required SIM.
2. Create new data connection

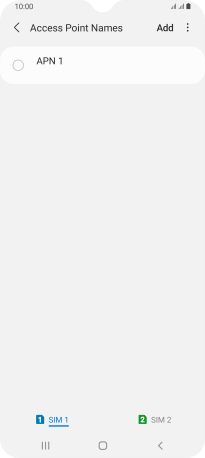

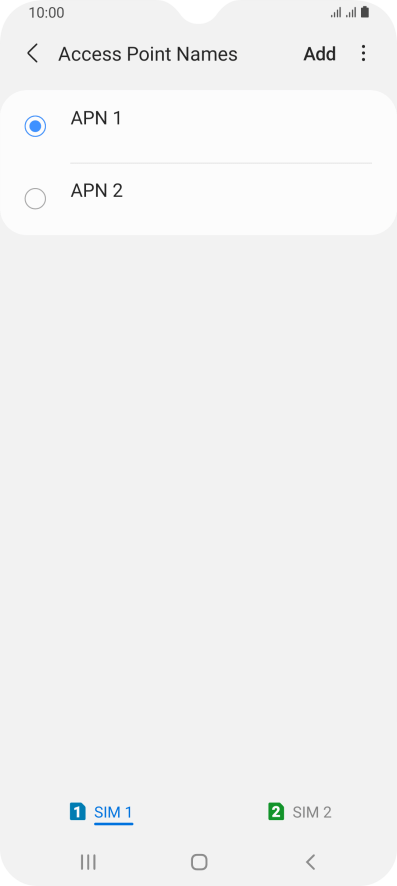

Press Add.
3. Enter a name for the connection

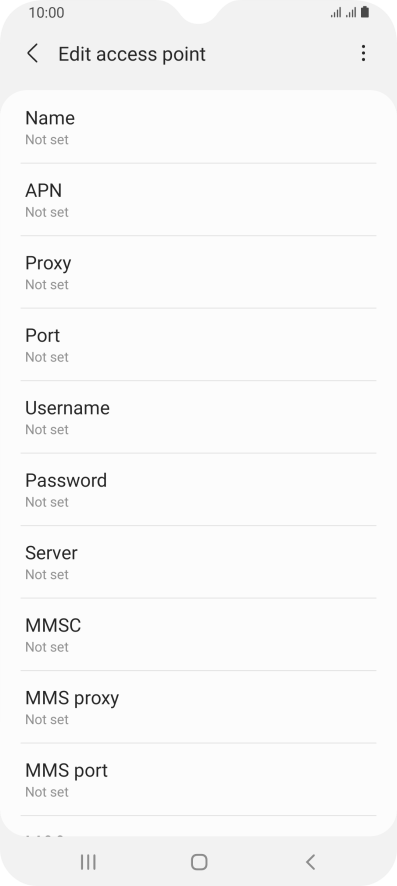

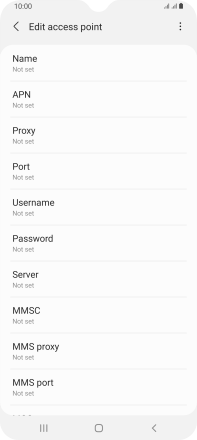

Press Name.
3. Enter a name for the connection

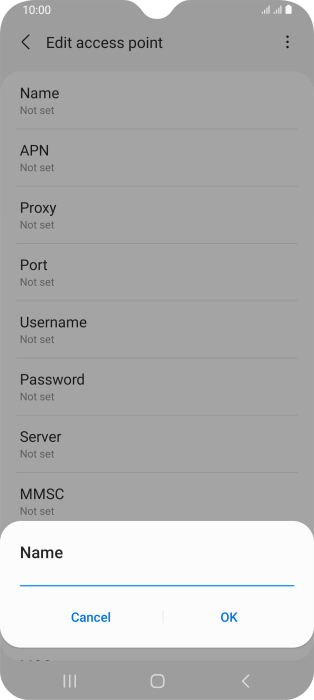

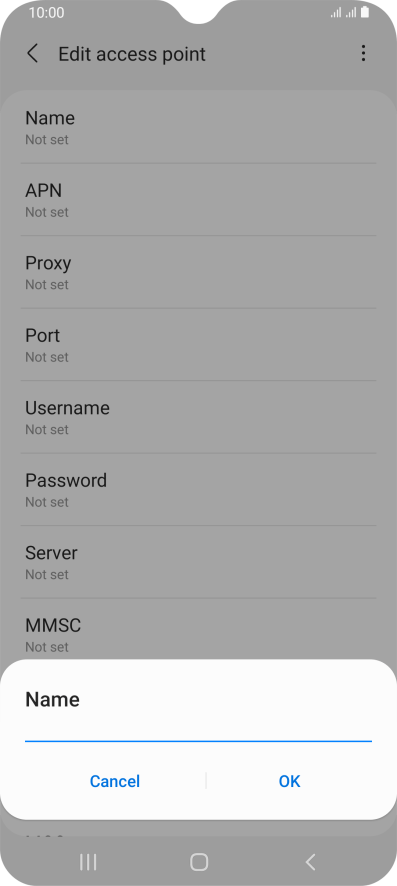

Key in Vodafone Internet and press OK.
4. Enter APN

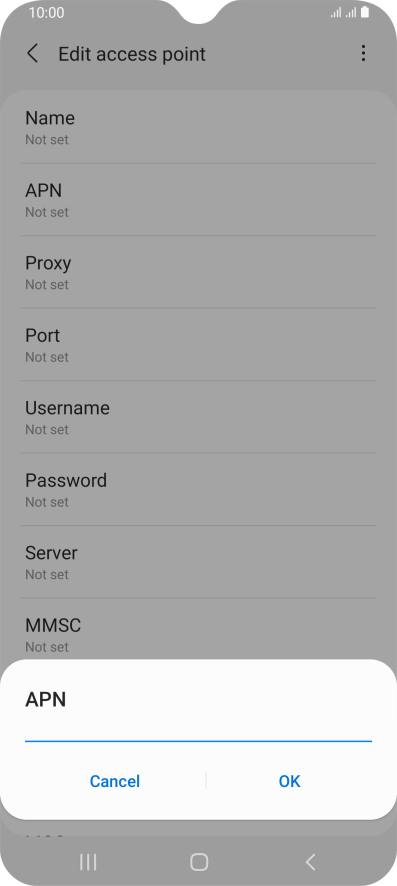

Press APN.
4. Enter APN
Key in live.vodafone.com and press OK.
5. Enter country code

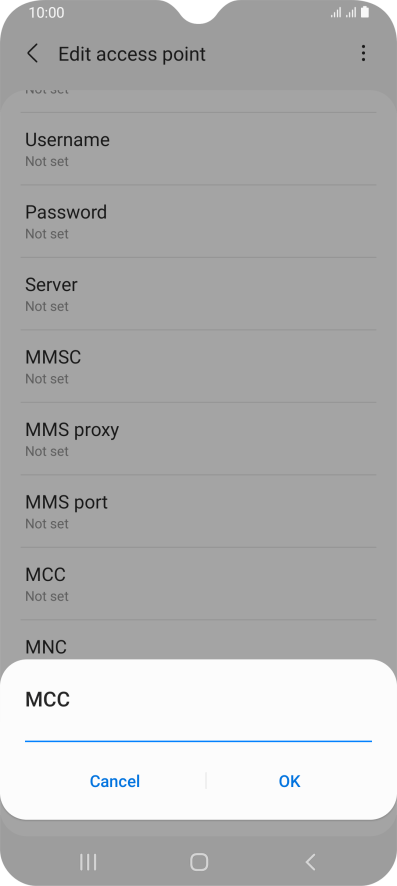

Press MCC.
5. Enter country code
Key in 272 and press OK.
6. Enter network code
Press MNC.
6. Enter network code
Key in 01 and press OK.
7. Select authentication type

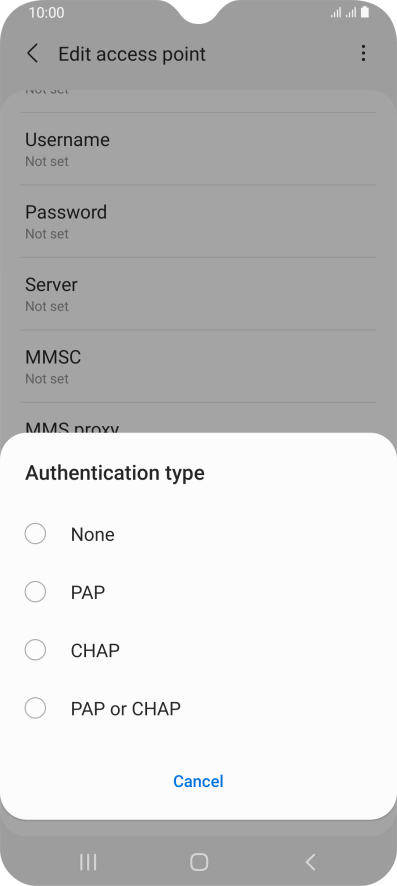

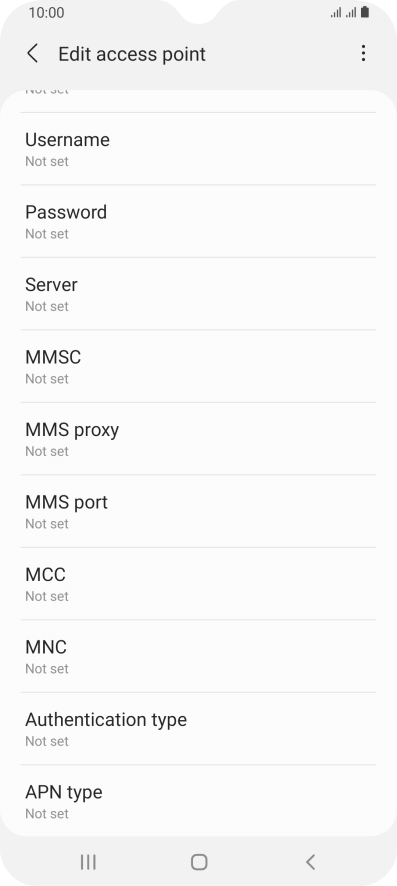

Press Authentication type.
7. Select authentication type
Press PAP.
8. Enter APN type

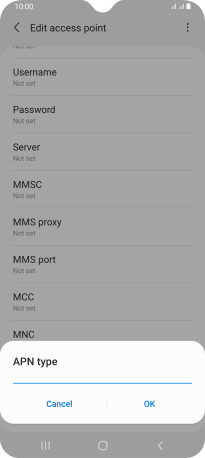

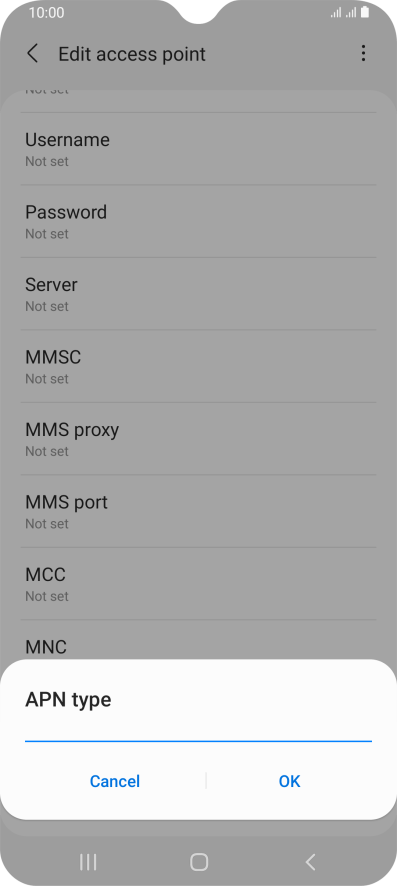

Press APN type.
8. Enter APN type
Key in default and press OK.
9. Save data connection

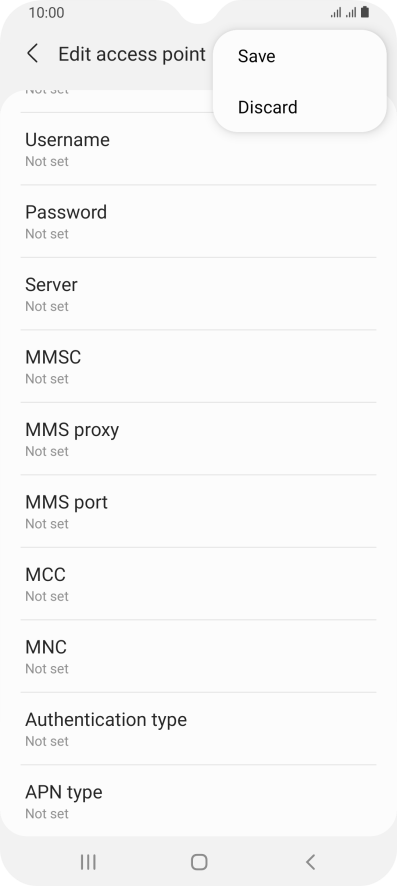

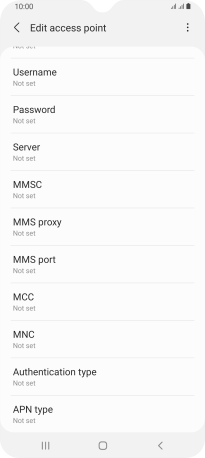

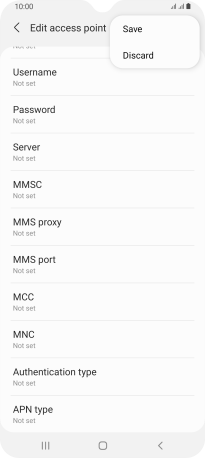

Press the menu icon.
9. Save data connection
Press Save.
9. Save data connection

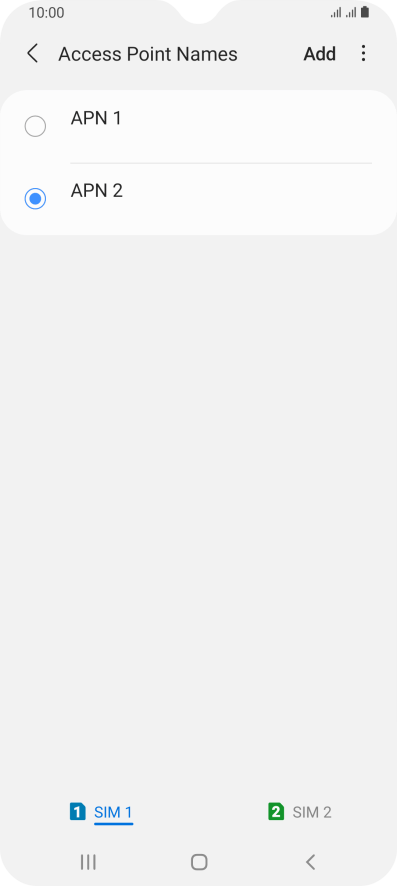

Press the field next to the data connection to activate it.
10. Return to the home screen
Press the Home key to return to the home screen.
