1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b9c8b03a-d135-4442-a454-47ec9b04fe4b.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1b5f071f-b0d5-4458-9d57-1d5ca8b427dc.png?width=200&height=448)

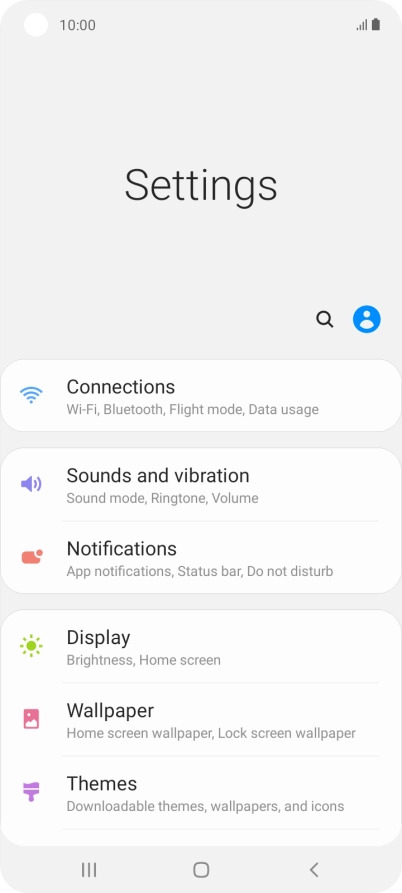

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-53ca99f3-6424-4b3d-9d7a-ab5c1c9d9ced.png?width=200&height=448)

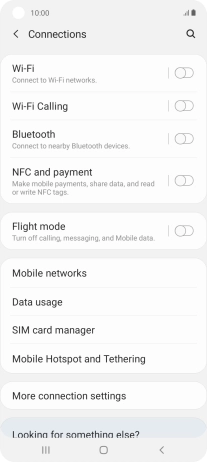

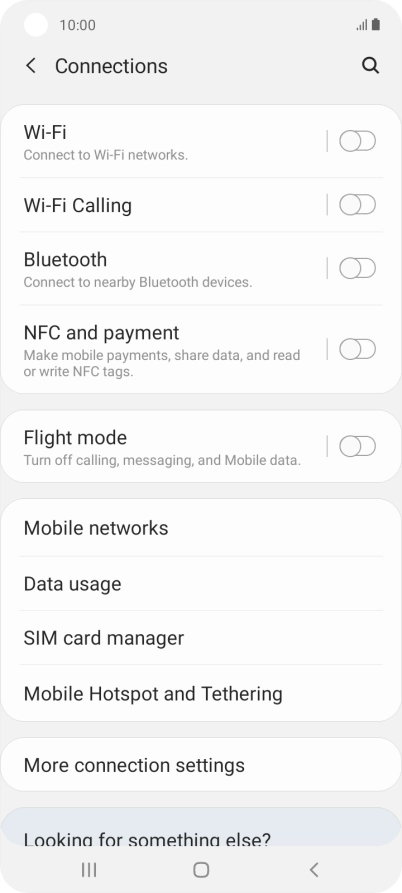

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0402591-14c4-4baf-825c-82f4e5c3569c.png?width=200&height=448)

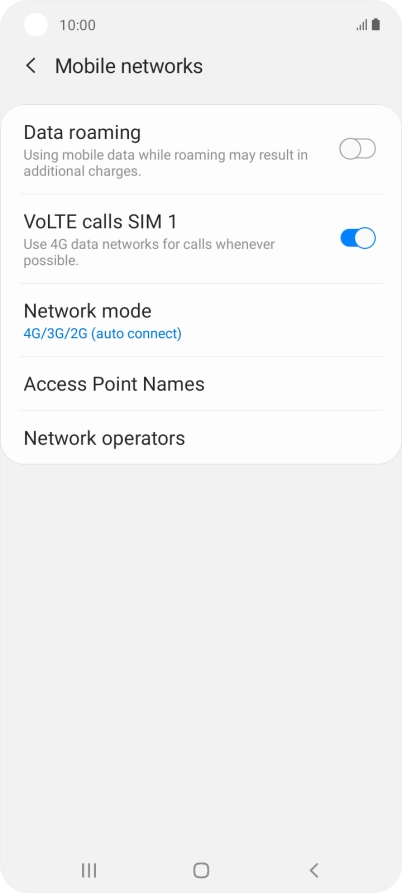

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9d94a18-8817-434b-aaa5-8c4cb0a4b977.png?width=200&height=448)
2. Create new data connection

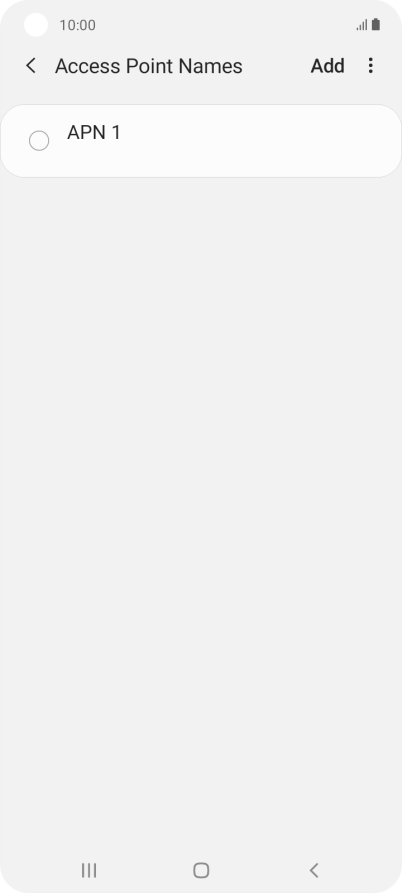

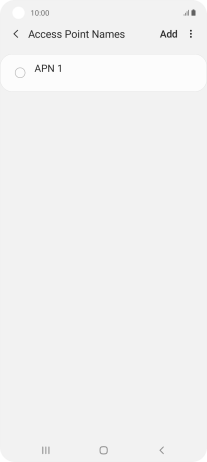

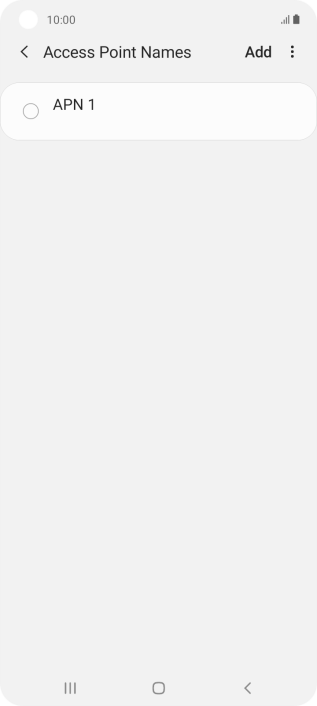

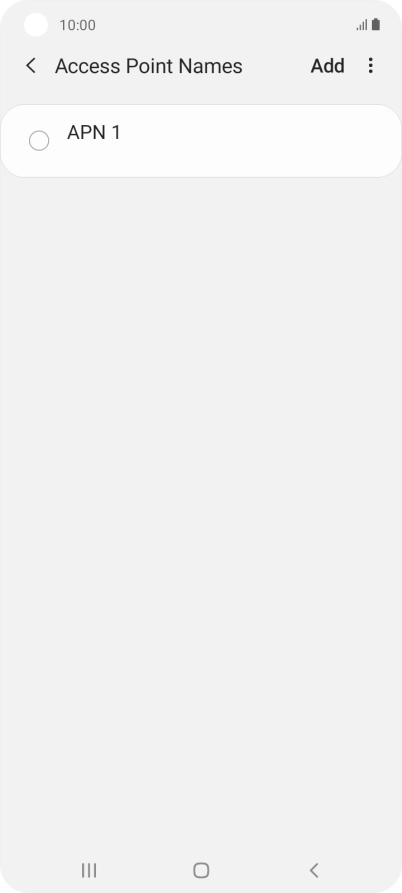

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7dde8e75-65b4-4ad8-8e79-1b3e325f73fd.png?width=200&height=448)

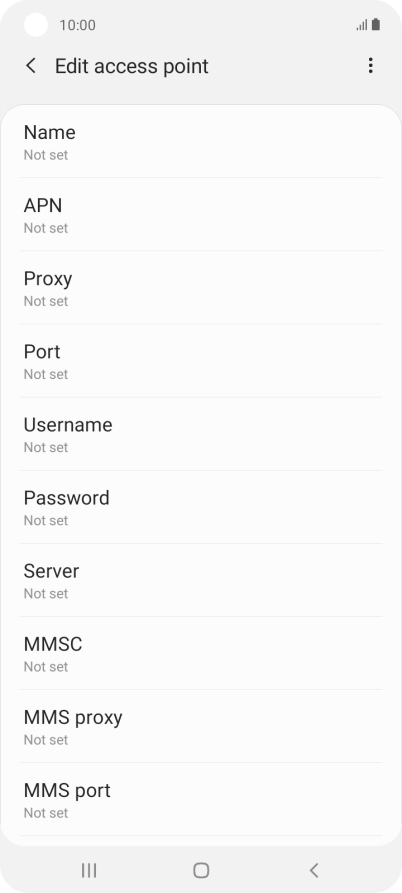

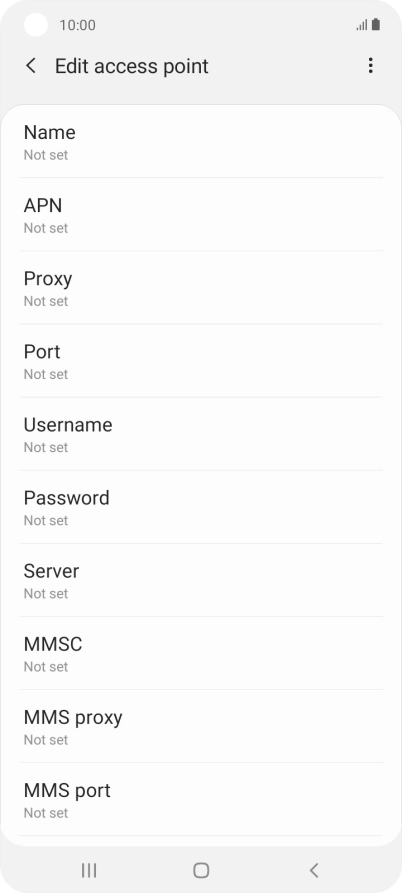

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ee387378-9f25-4d0e-aafa-38a3ed9ec0a5.png?width=200&height=448)

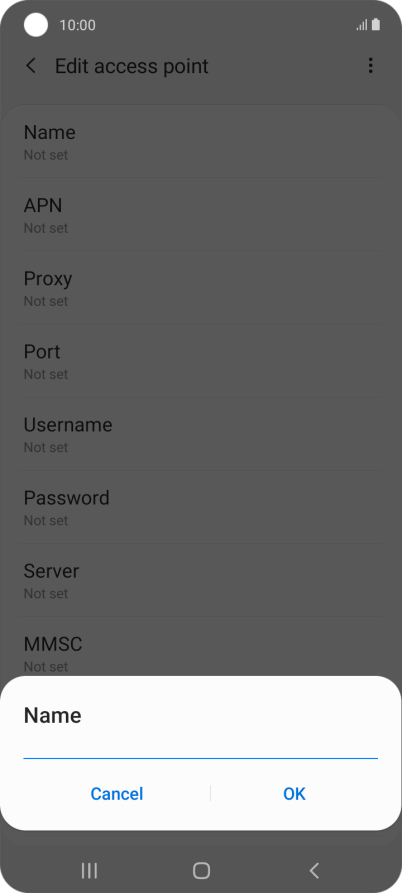

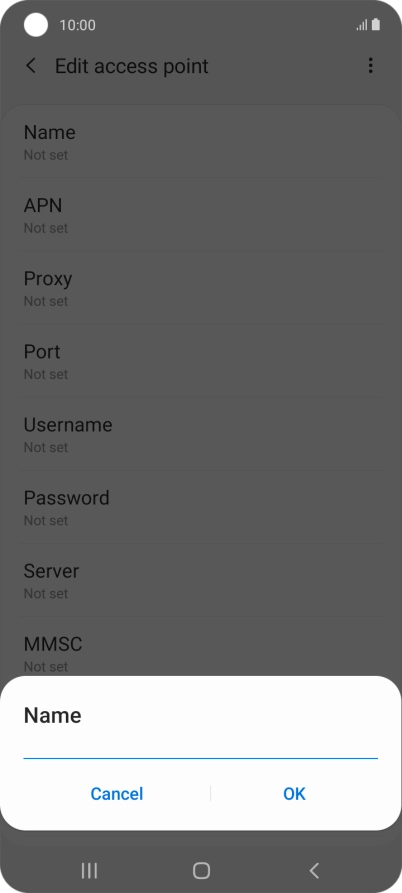

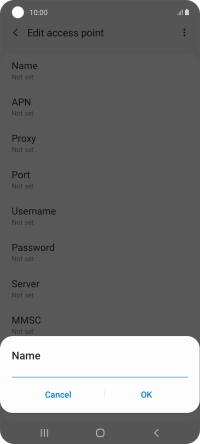

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d6e39e3f-de01-4862-95c6-fa490f5d44e8.png?width=200&height=448)
Vodafone Internet
3. Enter APN

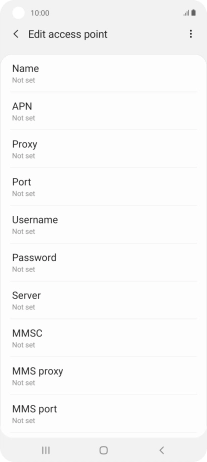

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ee387378-9f25-4d0e-aafa-38a3ed9ec0a5.png?width=200&height=448)

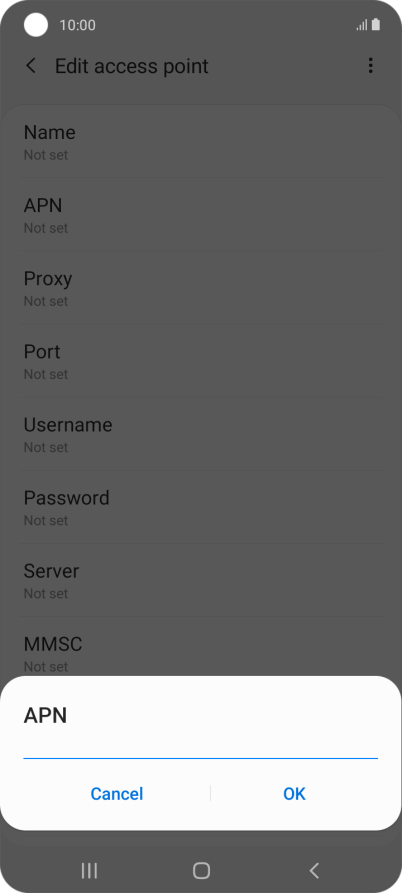

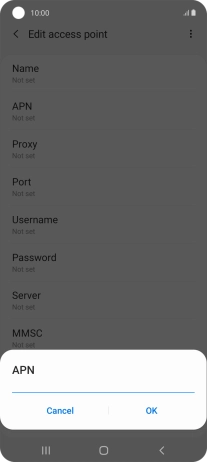

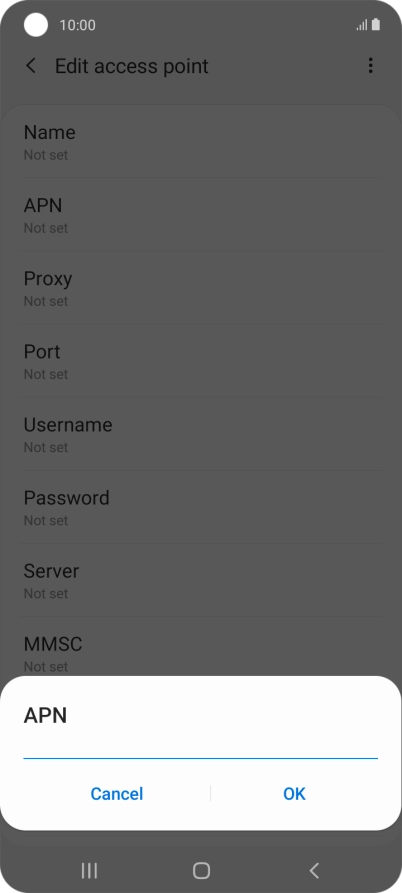

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-266ec453-5e39-4c6d-9d2d-0ab7ffec47d1.png?width=200&height=448)
live.vodafone.com
4. Enter country code

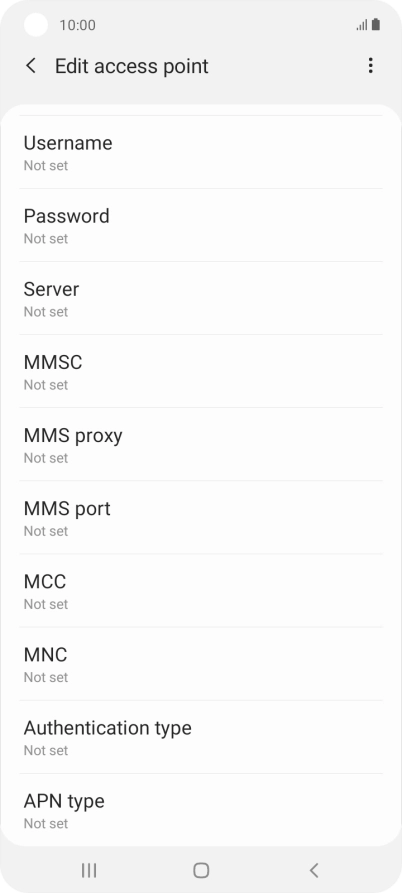

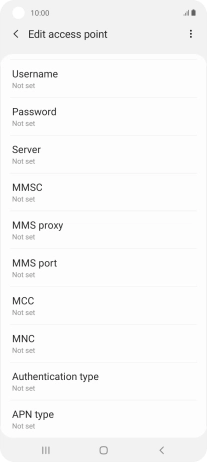

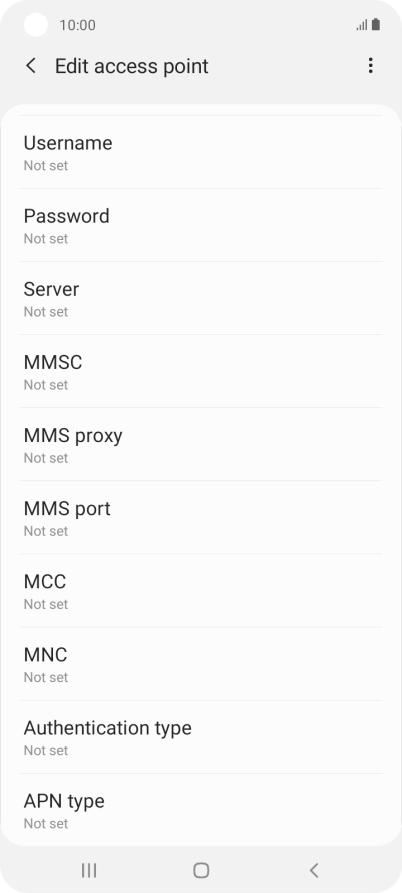

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-246c0acd-e00f-448b-98a1-c2dbf0d4239e.png?width=200&height=448)

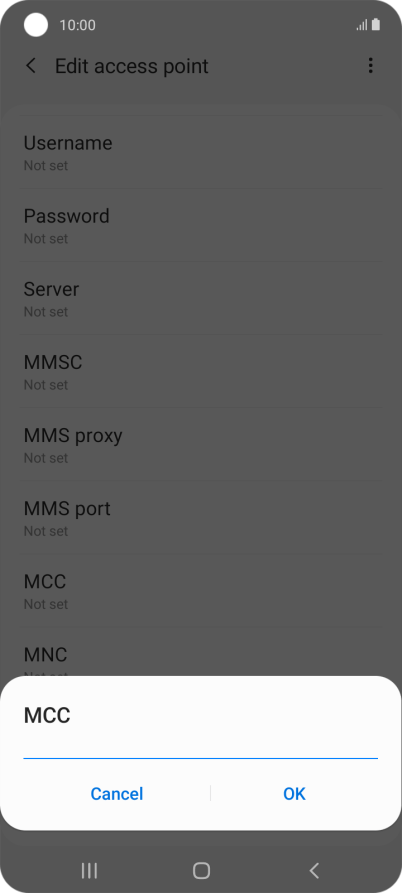

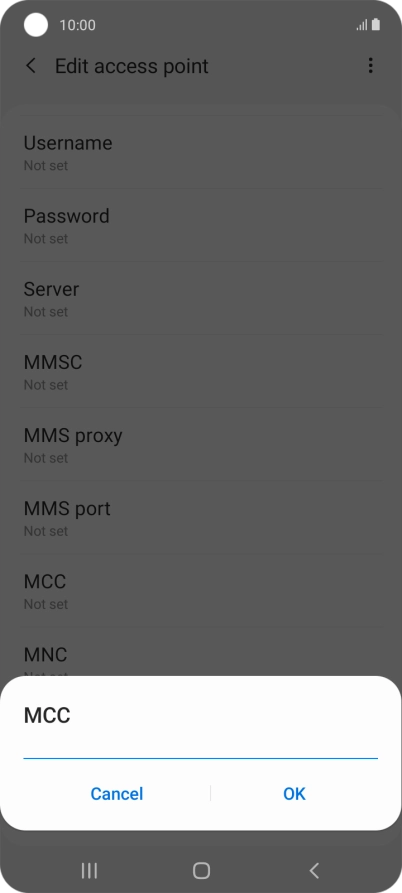

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aa5eadf5-731f-44c2-81b6-f83a93c9cfaa.png?width=200&height=448)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-246c0acd-e00f-448b-98a1-c2dbf0d4239e.png?width=200&height=448)

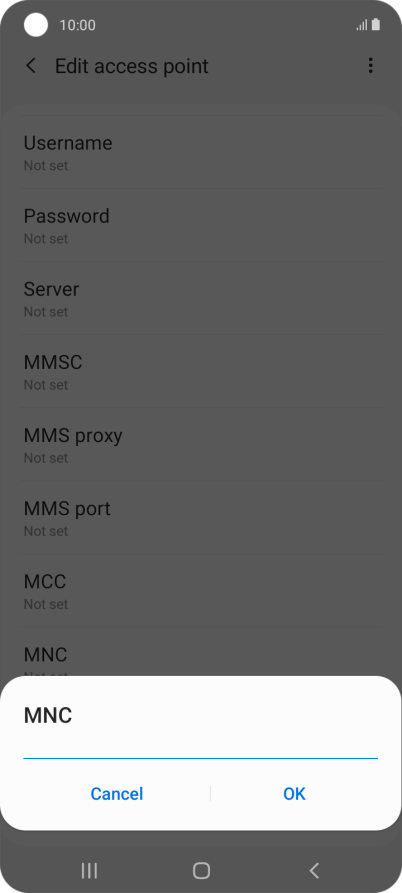

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d4bf0aa-c57f-4b1d-9b77-a440b0fc6d85.png?width=200&height=448)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-246c0acd-e00f-448b-98a1-c2dbf0d4239e.png?width=200&height=448)

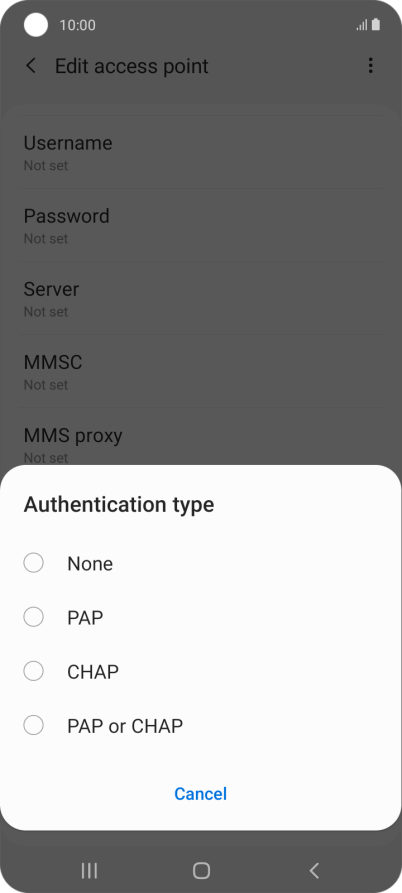

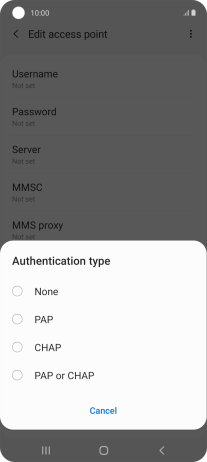

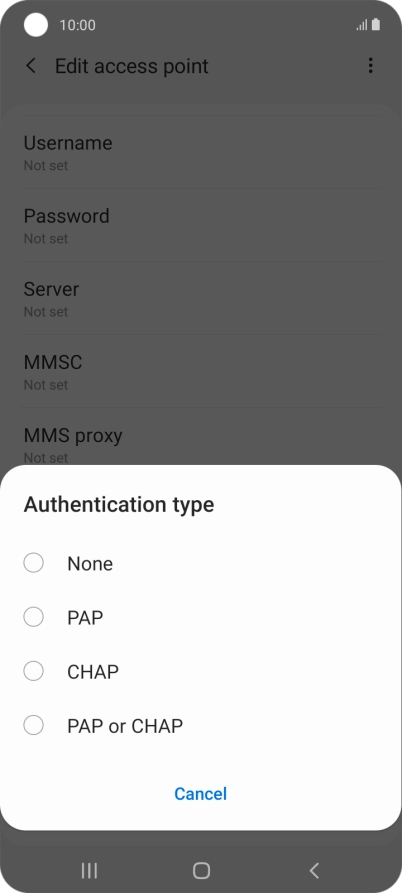

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8a05cf43-326b-402e-a9c3-642a8427d422.png?width=200&height=448)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-246c0acd-e00f-448b-98a1-c2dbf0d4239e.png?width=200&height=448)

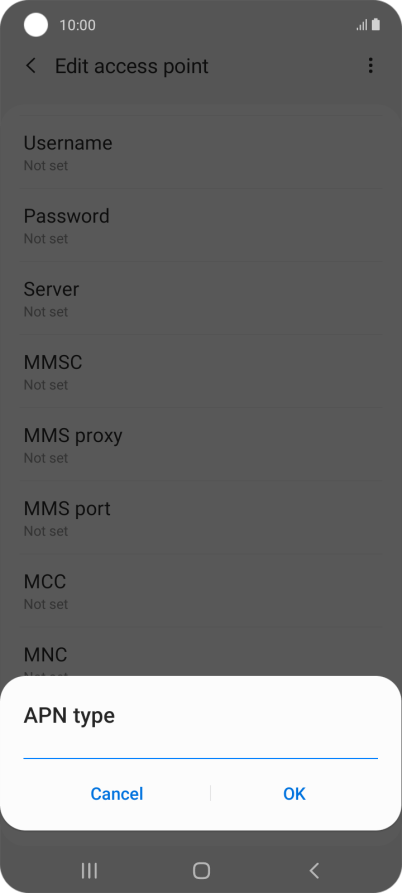

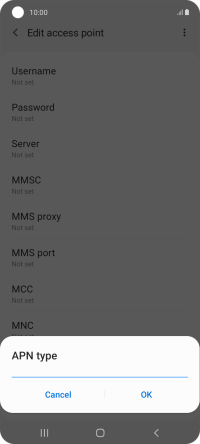

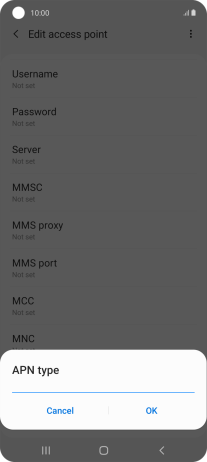

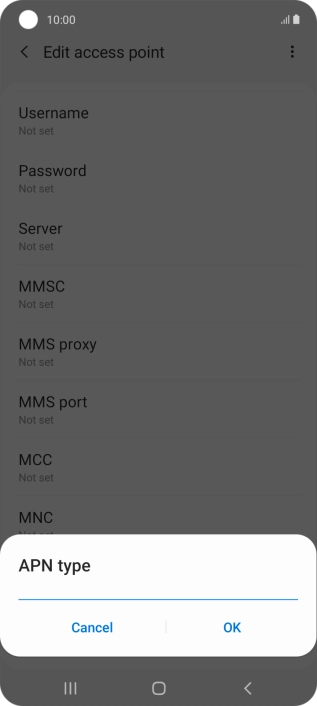

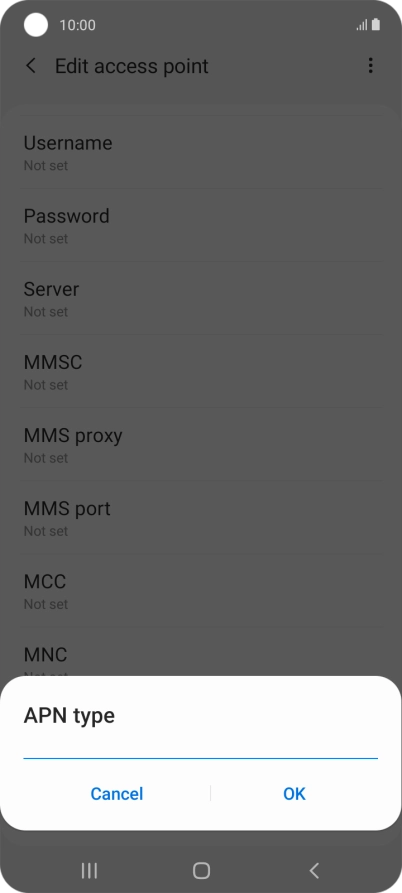

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ecebbb28-d436-44ca-8150-aeb9f8e05d9b.png?width=200&height=448)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-246c0acd-e00f-448b-98a1-c2dbf0d4239e.png?width=200&height=448)

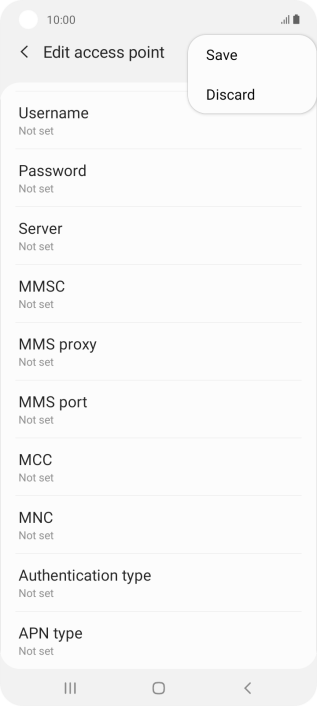

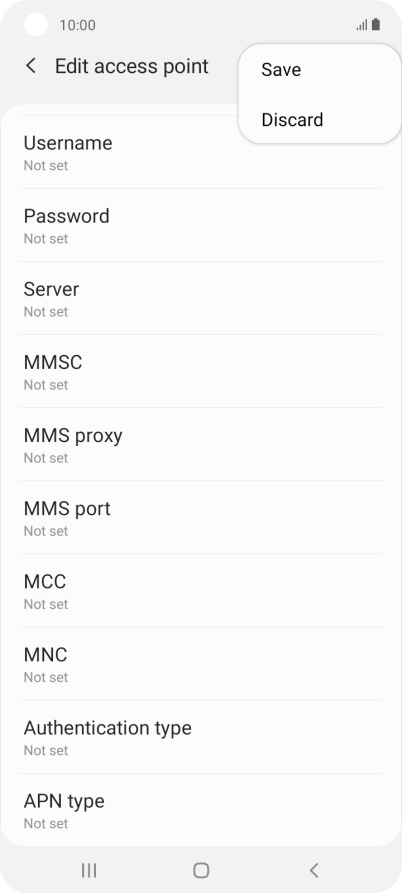

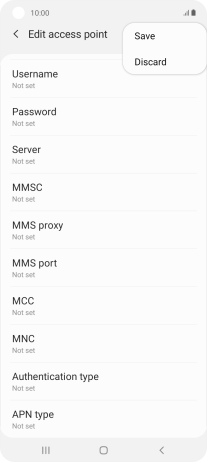

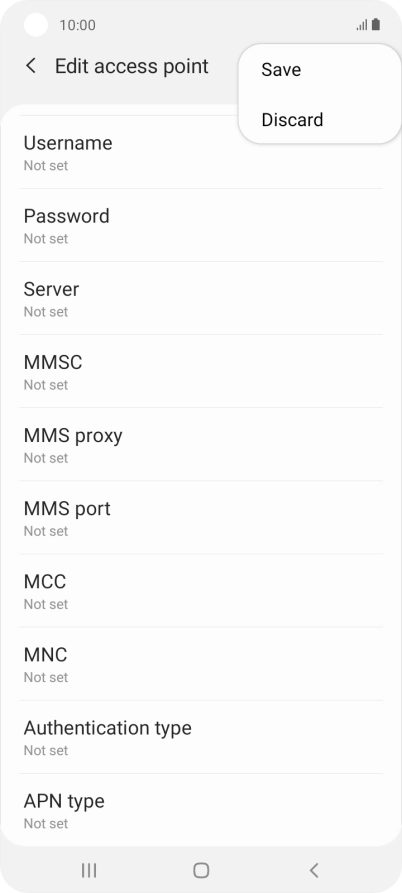

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d81c039d-bec1-4ff1-914b-299f6d1ce93c.png?width=200&height=448)

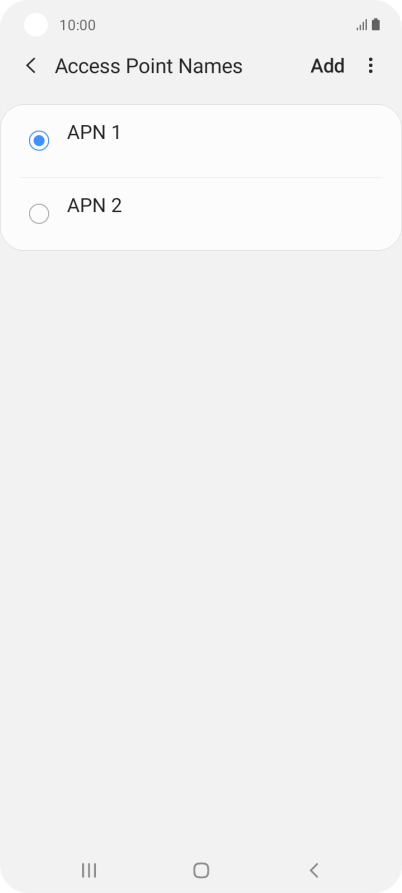

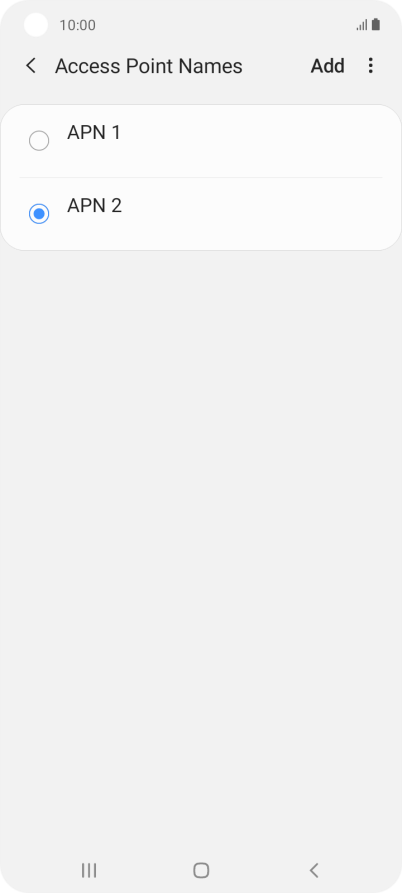

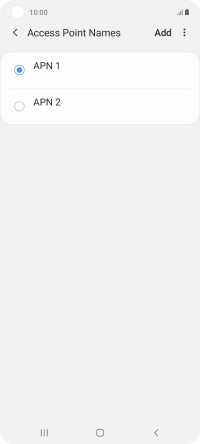

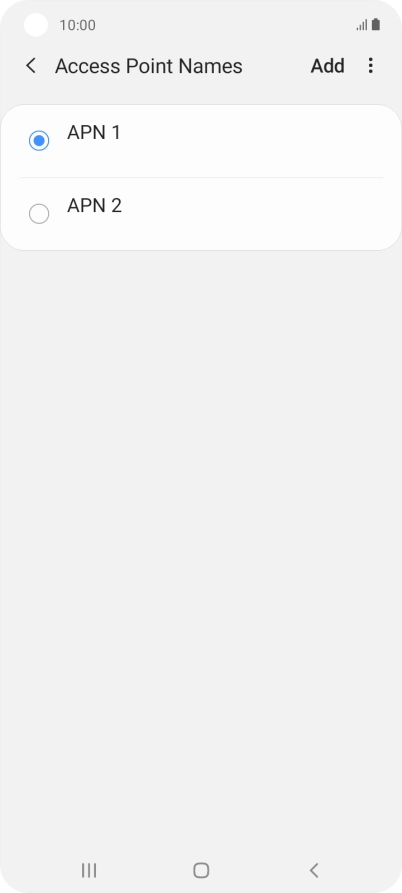

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aeeb96d5-ca04-4ec2-a4fc-5d861bbd5ca3.png?width=200&height=448)
9. Return to the home screen

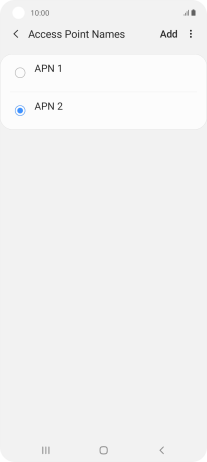

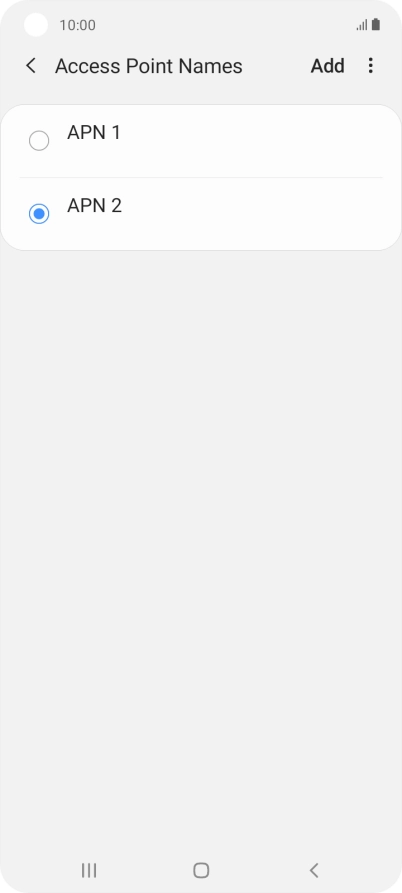

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c9e3856-b998-4df9-9972-a8075971266c.png?width=200&height=448)
