1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-02ec09b6-9af6-40aa-b41f-286113d18907.png?width=204&height=442)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aa68be3d-ba3a-4f62-84b3-3165c43b846d.png?width=204&height=442)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4fd414b-187d-485c-8dfb-668b779d2fa8.png?width=204&height=442)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-52bc8c53-f4fc-456b-955e-2e42e5360f1b.png?width=204&height=442)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e424b9e-d139-4cca-84a6-77f3417cc943.png?width=204&height=442)
2. Create new data connection

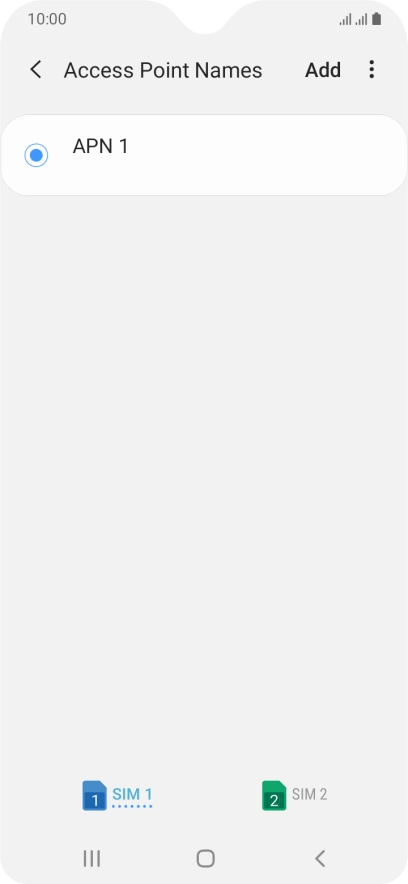

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-286a88e7-0d78-43c2-8be4-a06620e75e28.png?width=204&height=442)
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-286a88e7-0d78-43c2-8be4-a06620e75e28.png?width=204&height=442)

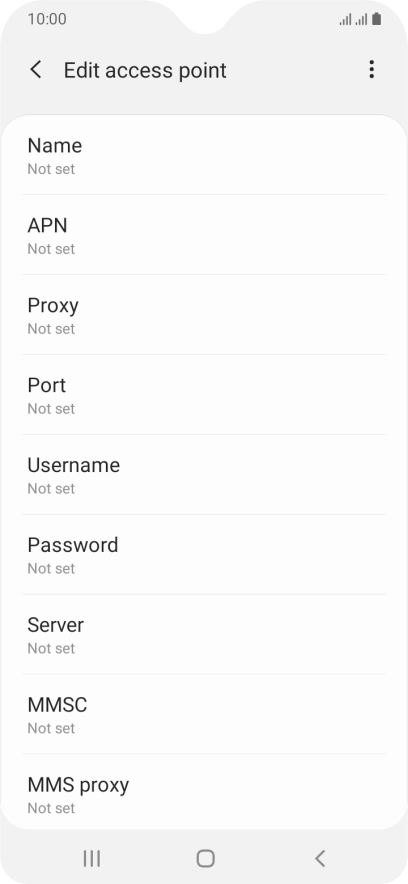

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a8585335-e232-4d79-91c0-965c1e35ac0c.png?width=204&height=442)

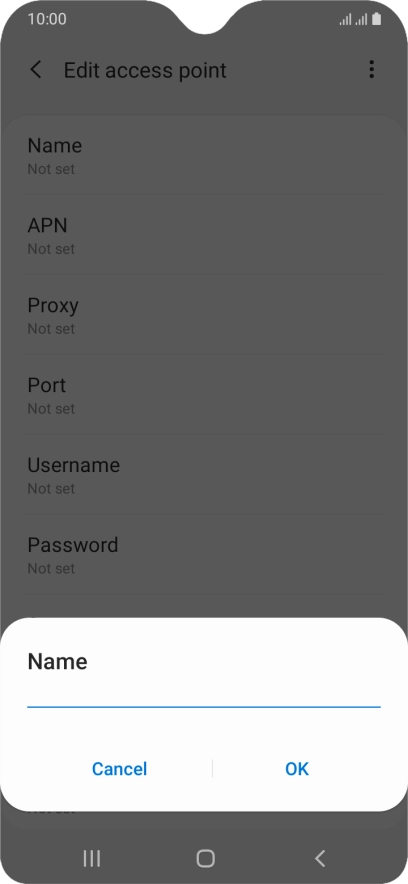

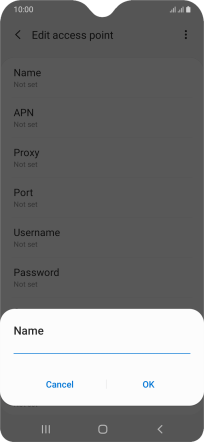

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7632f73f-2c90-4c50-aad4-be9d1ca7c20d.png?width=204&height=442)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a8585335-e232-4d79-91c0-965c1e35ac0c.png?width=204&height=442)

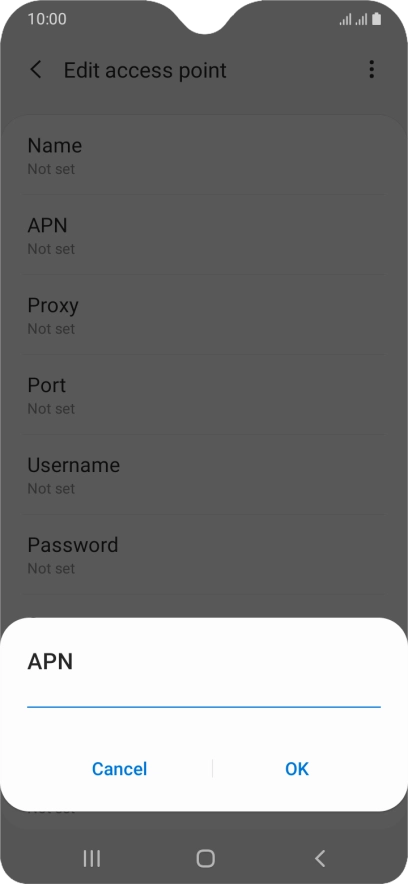

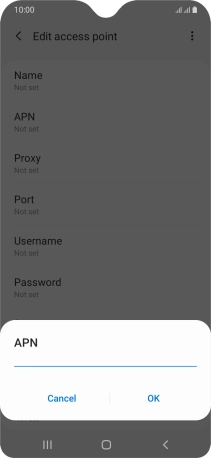

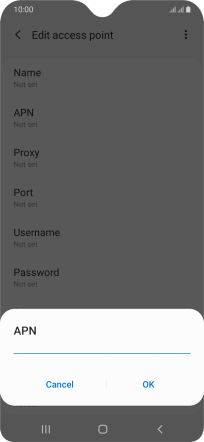

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ddf47b36-c04e-4835-a694-6d897140890f.png?width=204&height=442)
live.vodafone.com
4. Enter country code

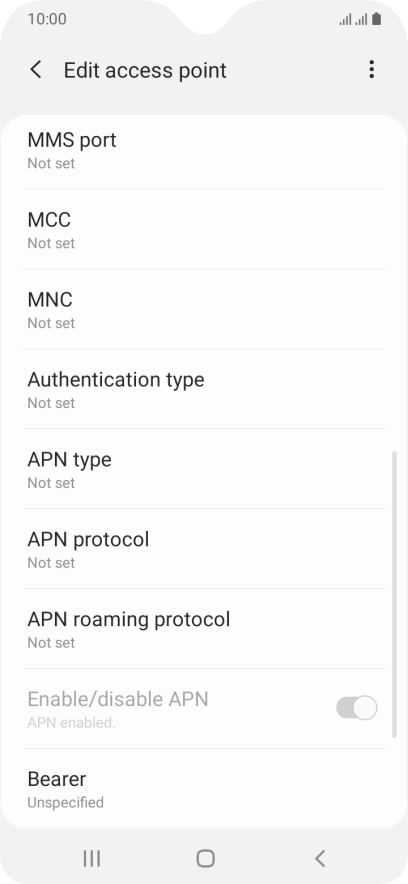

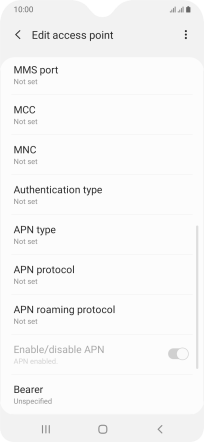

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bce80264-f3a1-4154-aa4b-f8e76c75e0a4.png?width=204&height=442)

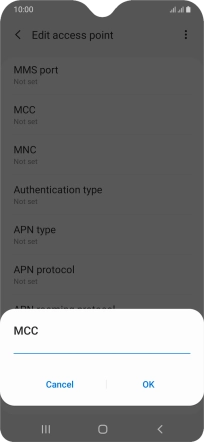

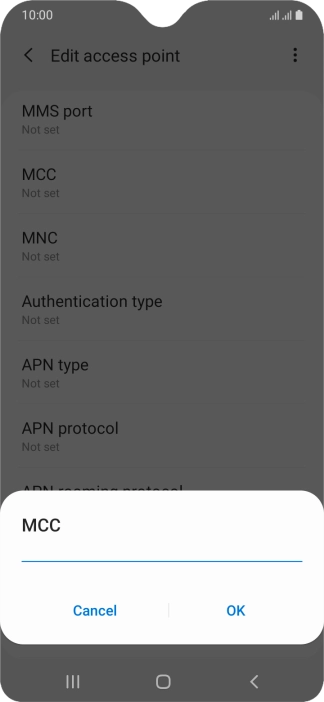

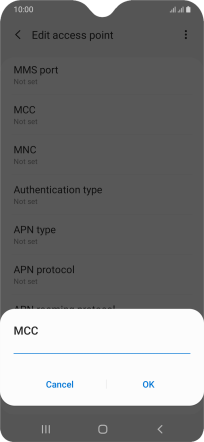

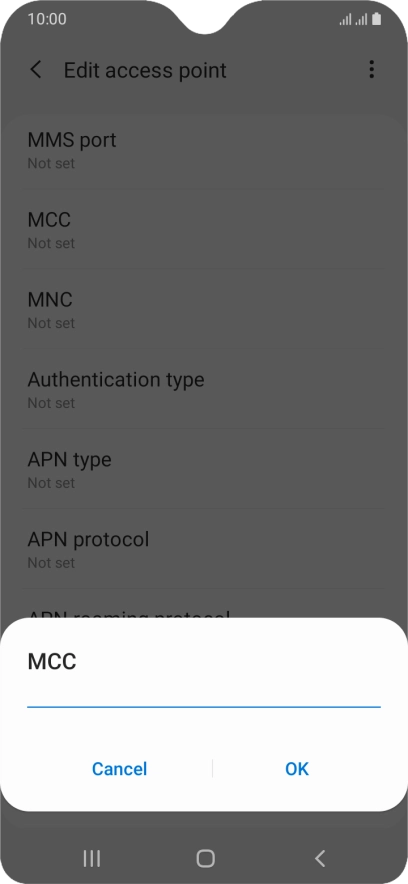

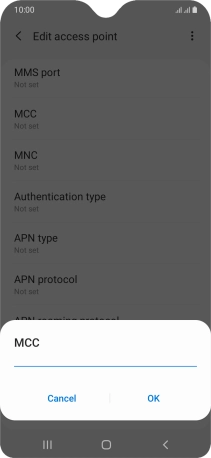

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8c24ab30-b8ef-4672-bff5-60eabdd445f9.png?width=204&height=442)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bce80264-f3a1-4154-aa4b-f8e76c75e0a4.png?width=204&height=442)

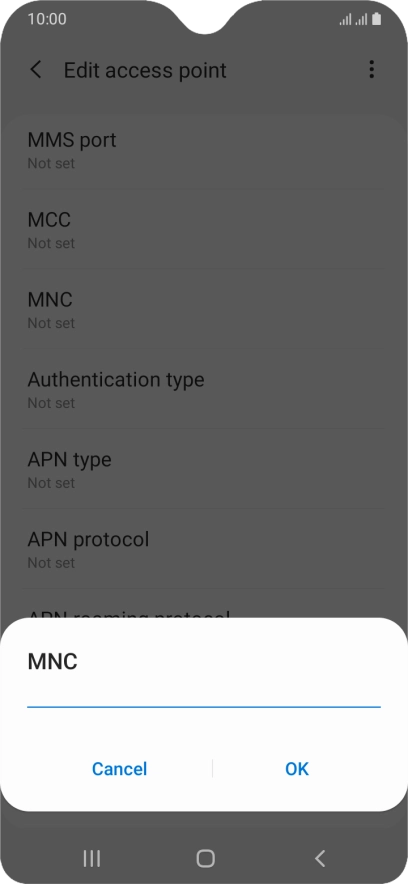

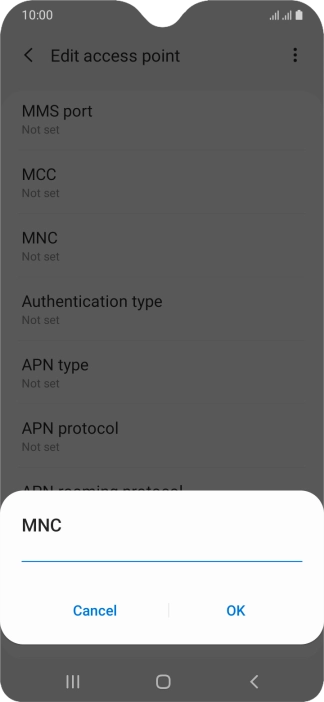

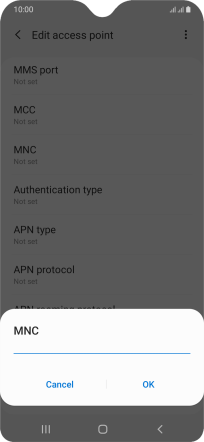

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-32d771d1-413a-40ef-b016-249e4aa3f77f.png?width=204&height=442)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bce80264-f3a1-4154-aa4b-f8e76c75e0a4.png?width=204&height=442)

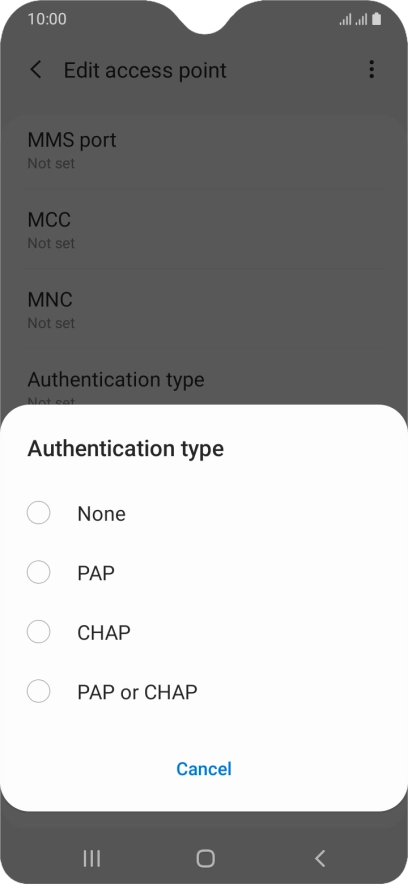

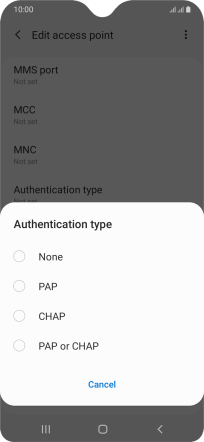

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9830c3b9-7487-4479-9422-172a0fbaf8ed.png?width=204&height=442)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bce80264-f3a1-4154-aa4b-f8e76c75e0a4.png?width=204&height=442)

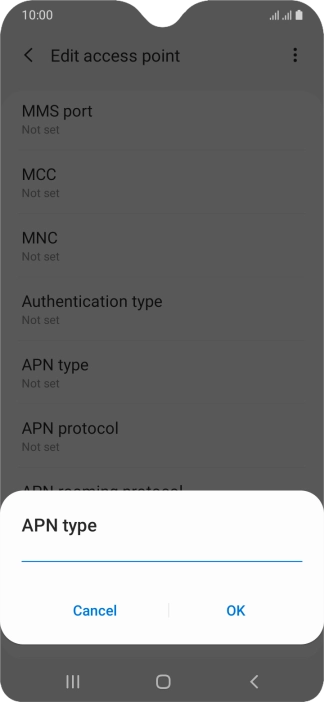

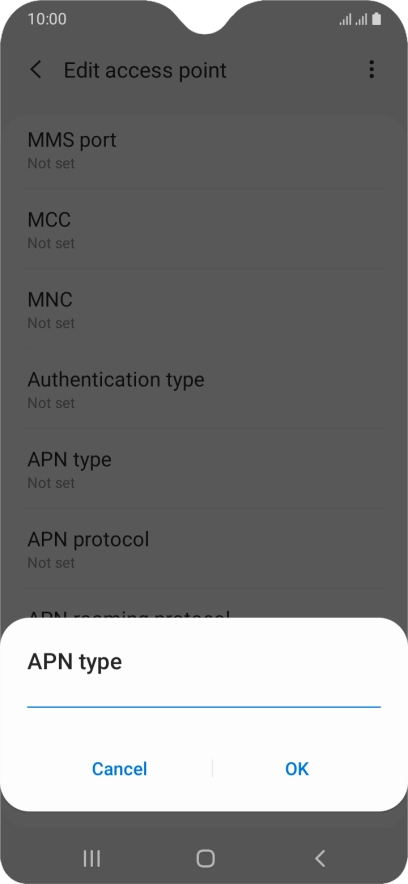

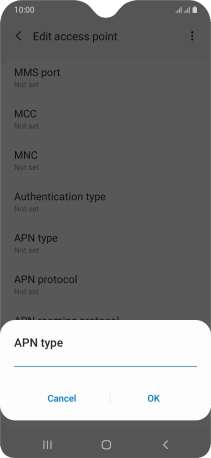

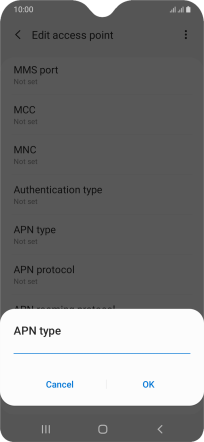

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7c41a49e-8768-46b1-98ac-47a01aade525.png?width=204&height=442)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bce80264-f3a1-4154-aa4b-f8e76c75e0a4.png?width=204&height=442)

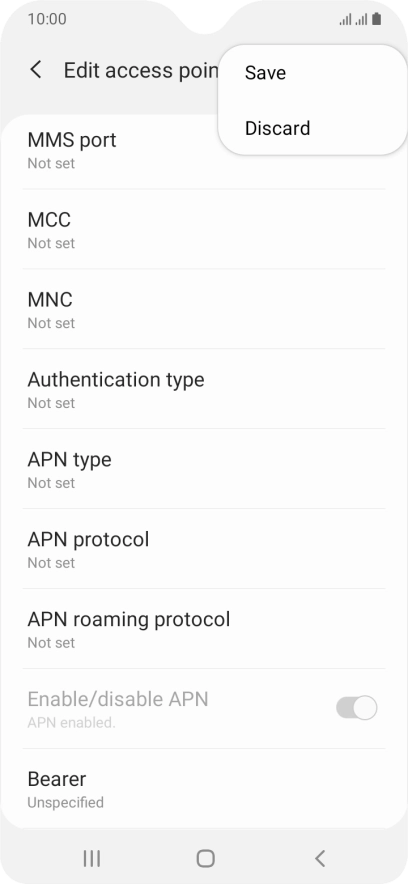

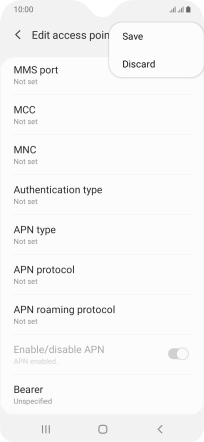

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-74e13576-ea91-4a0d-a6c7-88b50ae70690.png?width=204&height=442)

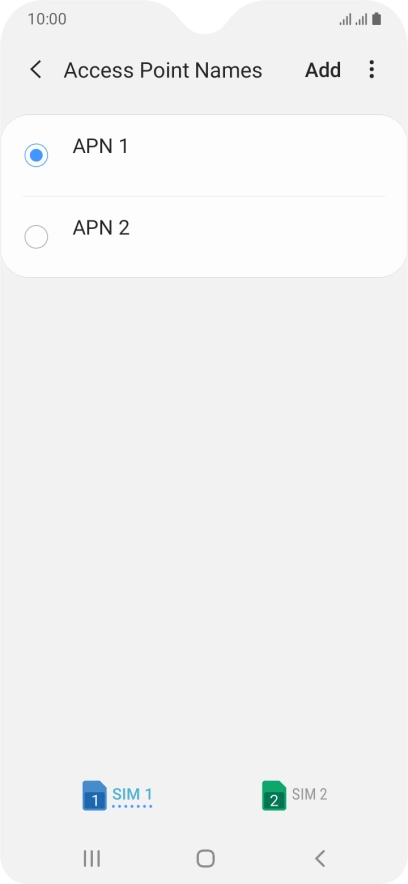

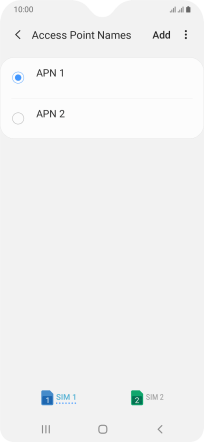

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3deade9-eb00-469c-b8bb-3b9236d83d09.png?width=204&height=442)
9. Return to the home screen

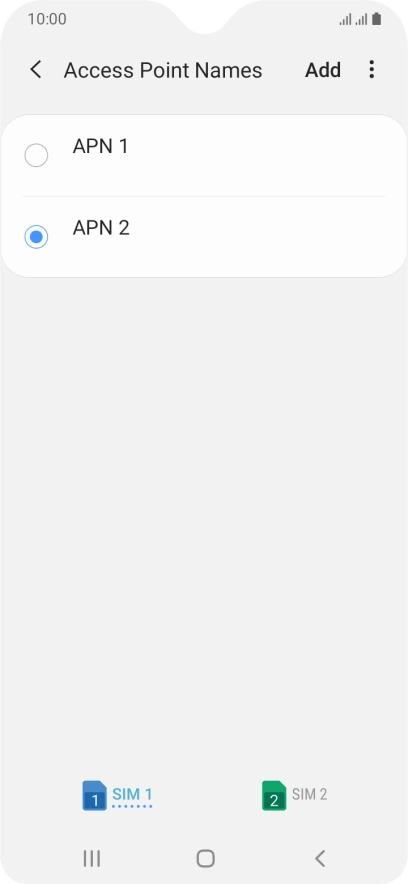

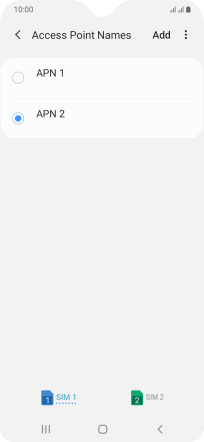

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f977f1d4-6354-442e-b13a-5d52aec7a735.png?width=204&height=442)
