1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d2fc1db-6e43-4e50-b03e-12f04abcc3a8.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4b514bb-7e39-49ea-9aaa-67a2870ac9fd.png?width=200&height=448)
Press SIM card & mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c799b169-8d81-4a49-beef-b4035565f74f.png?width=200&height=448)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ea24450a-35b8-4fb8-a563-a97af0b38b68.png?width=200&height=448)
Press Access point name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca4c2e54-ed47-4fca-9b80-9d51bbaca5b3.png?width=200&height=448)
2. Create new data connection

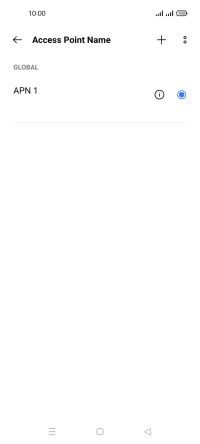

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b4e4eaa8-10c5-4198-a79d-660f8d30d6de.png?width=200&height=448)

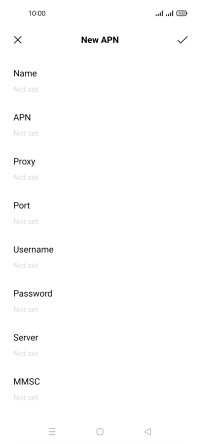

Press the field below "Name" and key in Vodafone MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e70ba0a-b113-48f5-81f8-7cdb6ded1ce0.png?width=200&height=448)
Vodafone MMS
3. Enter APN
Press the field below "APN" and key in mms.vodafone.net.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e70ba0a-b113-48f5-81f8-7cdb6ded1ce0.png?width=200&height=448)
mms.vodafone.net
4. Enter MMSC
Press the field below "MMSC" and key in http://www.vodafone.ie/mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e70ba0a-b113-48f5-81f8-7cdb6ded1ce0.png?width=200&height=448)
http://www.vodafone.ie/mms
5. Enter IP address

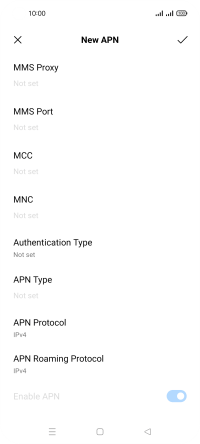

Press the field below "MMS Proxy" and key in 10.24.59.200.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
10.24.59.200
6. Enter port number
Press the field below "MMS Port" and key in 80.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
80
7. Enter country code
Press the field below "MCC" and key in 272.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
272
8. Enter network code
Press the field below "MNC" and key in 01.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
01
9. Select authentication type
Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)

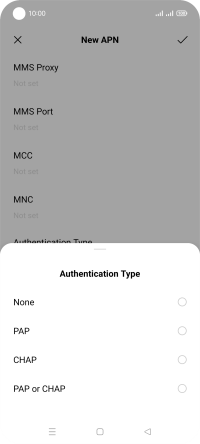

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5b9683db-ba25-4644-94df-2d8dd4c14ee8.png?width=200&height=448)
10. Enter APN type
Press the field below "APN Type" and key in mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
mms
11. Save data connection
Press the save icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
12. Return to the home screen

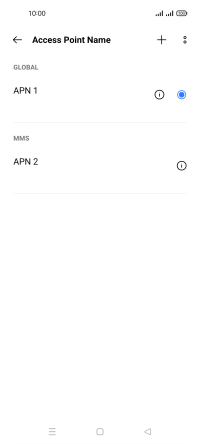

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f130303f-ae96-4c5d-a975-358e8f2810d1.png?width=200&height=448)
