1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d2fc1db-6e43-4e50-b03e-12f04abcc3a8.png?width=200&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4b514bb-7e39-49ea-9aaa-67a2870ac9fd.png?width=200&height=448)

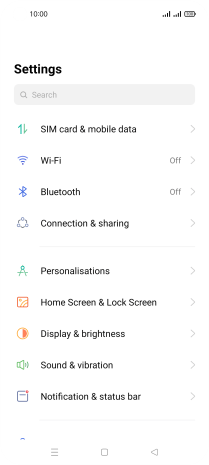

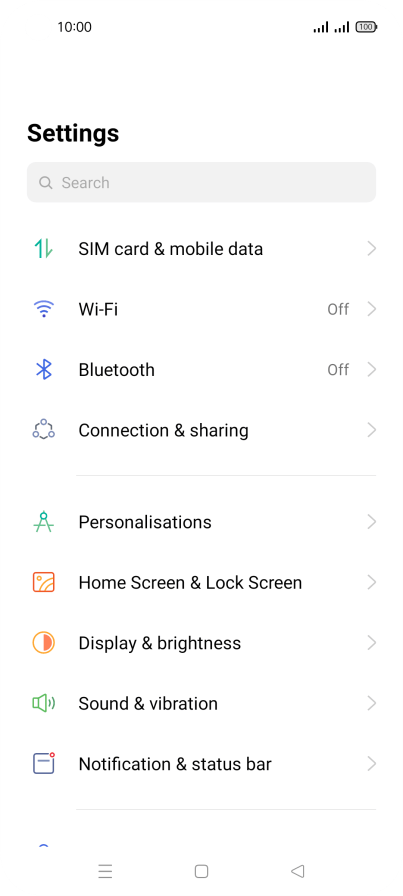

Press SIM card & mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c799b169-8d81-4a49-beef-b4035565f74f.png?width=200&height=448)

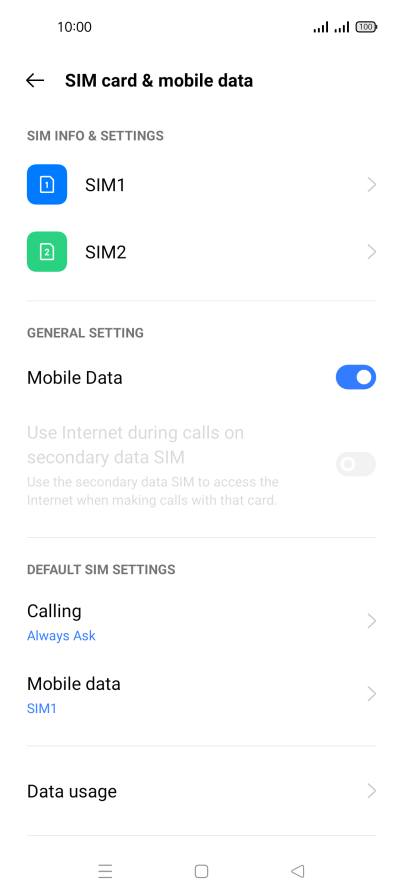

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ea24450a-35b8-4fb8-a563-a97af0b38b68.png?width=200&height=448)

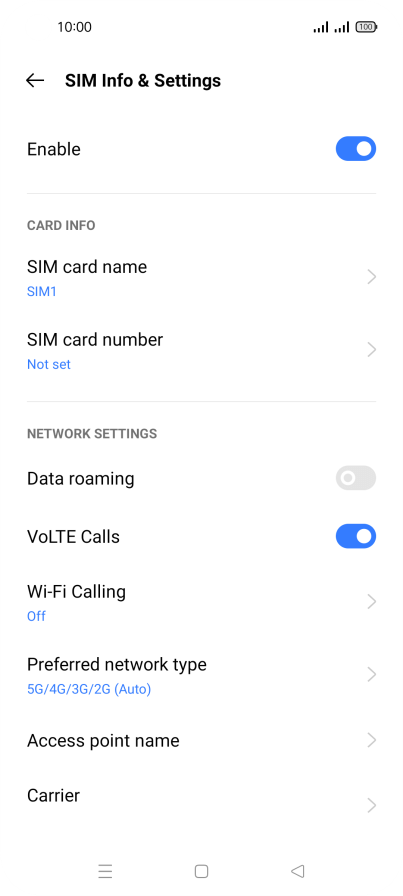

Press Access point name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca4c2e54-ed47-4fca-9b80-9d51bbaca5b3.png?width=200&height=448)
2. Create new data connection

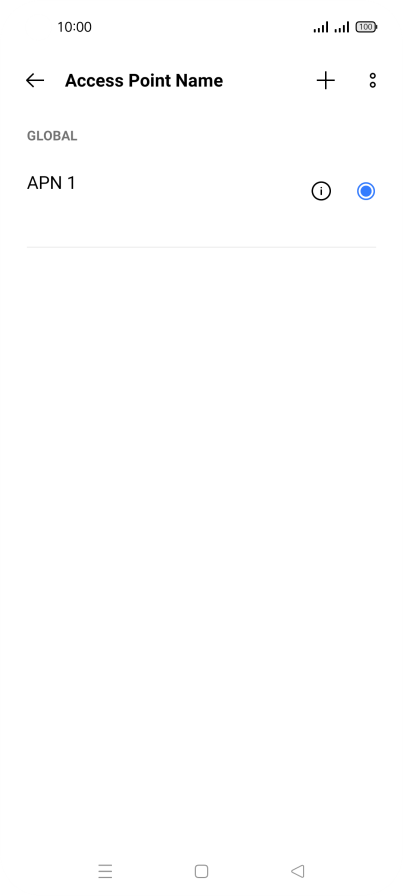

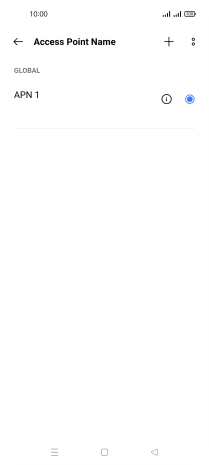

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b4e4eaa8-10c5-4198-a79d-660f8d30d6de.png?width=200&height=448)

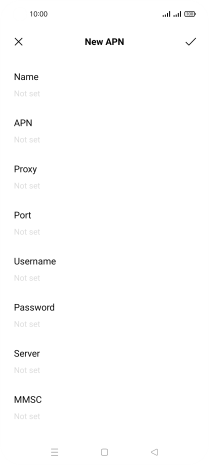

Press the field below "Name" and key in Vodafone Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e70ba0a-b113-48f5-81f8-7cdb6ded1ce0.png?width=200&height=448)
Vodafone Internet
3. Enter APN

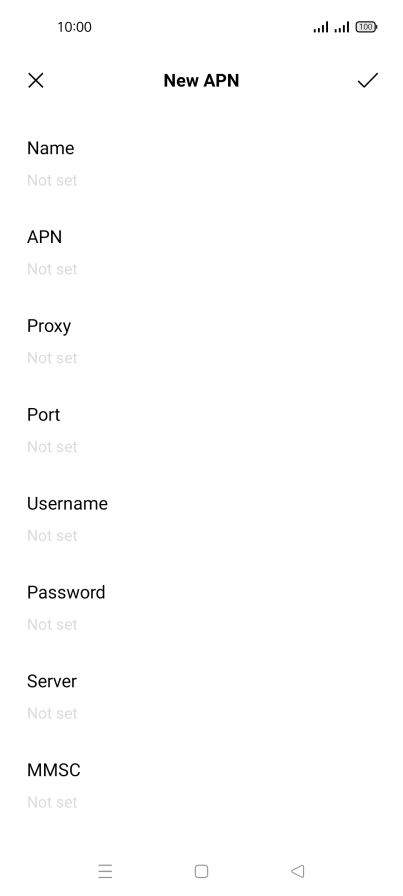

Press the field below "APN" and key in live.vodafone.com.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e70ba0a-b113-48f5-81f8-7cdb6ded1ce0.png?width=200&height=448)
live.vodafone.com
4. Enter country code

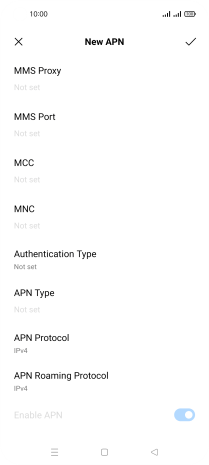

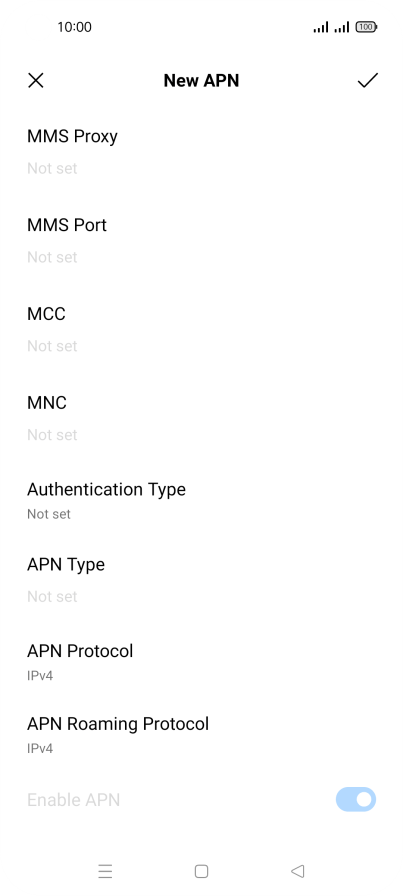

Press the field below "MCC" and key in 272.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
272
5. Enter network code
Press the field below "MNC" and key in 01.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
01
6. Select authentication type
Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)

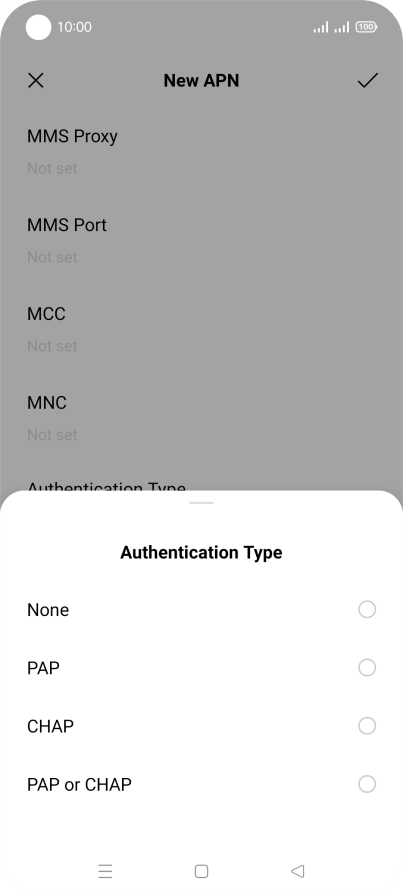

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5b9683db-ba25-4644-94df-2d8dd4c14ee8.png?width=200&height=448)
7. Enter APN type
Press the field below "APN Type" and key in default.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)
default
8. Save data connection
Press the save icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c61bb616-00e0-407a-8841-edf288222fae.png?width=200&height=448)

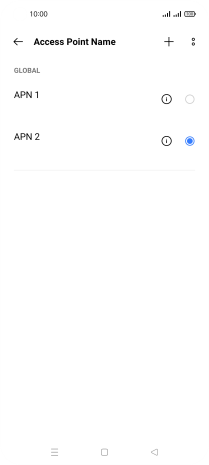

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d740e66-51d4-4da8-b1c0-f5b59dcda3f1.png?width=200&height=448)
9. Return to the home screen

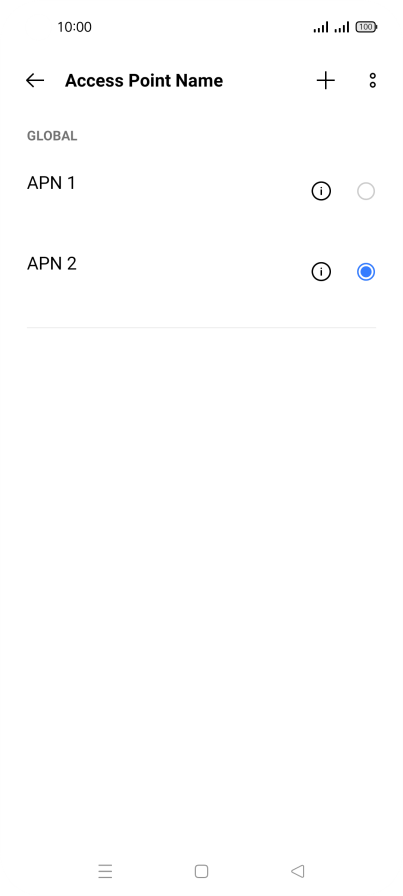

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c6fded45-4772-425a-8207-cff8b973780d.png?width=200&height=448)
