1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point name"
Press the settings icon.
1. Find "Access point name"

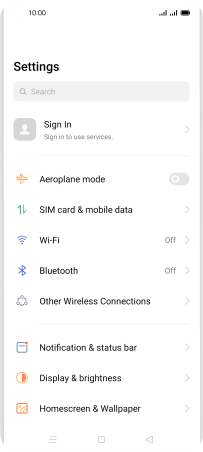

Press SIM card & mobile data.
1. Find "Access point name"

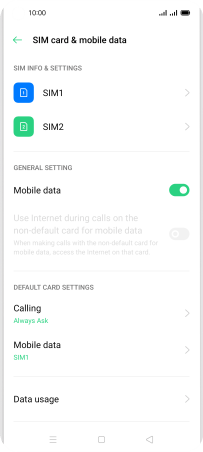

Press the required SIM.
1. Find "Access point name"

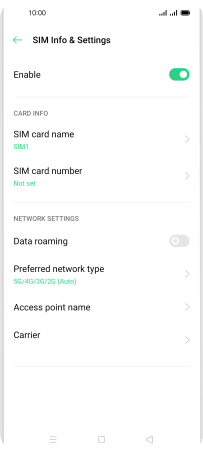

Press Access point name.
2. Create new data connection

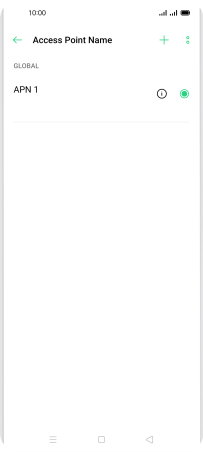

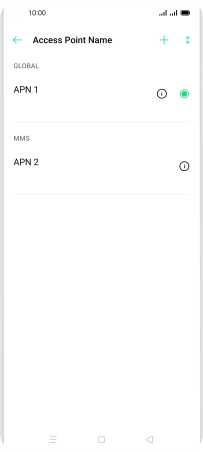

Press the add icon.
2. Create new data connection

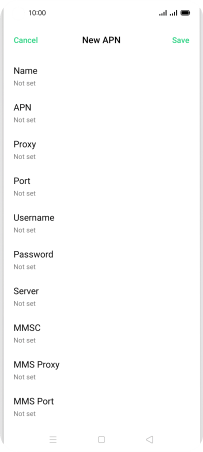

Press Name.
2. Create new data connection
Key in Vodafone MMS and press OK.
3. Enter APN

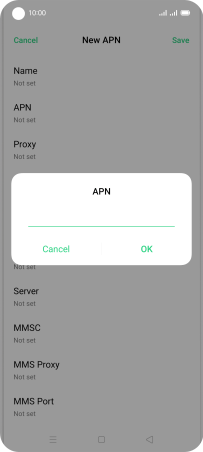

Press APN.
3. Enter APN
Key in mms.vodafone.net and press OK.
4. Enter MMSC

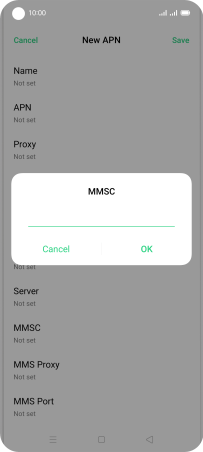

Press MMSC.
4. Enter MMSC
Key in http://www.vodafone.ie/mms and press OK.
5. Enter IP address

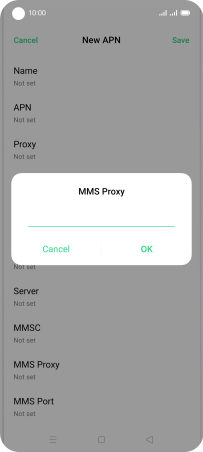

Press MMS Proxy.
5. Enter IP address
Key in 10.24.59.200 and press OK.
6. Enter port number
Press MMS Port.
6. Enter port number
Key in 80 and press OK.
7. Enter country code

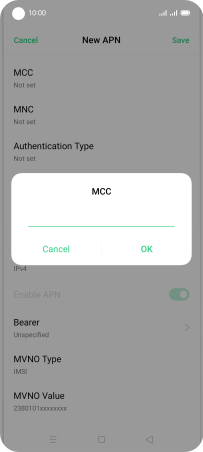

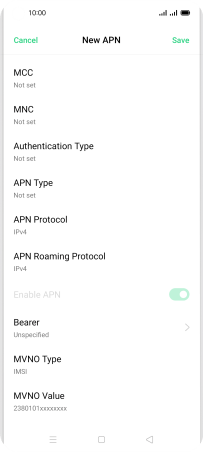

Press MCC.
7. Enter country code
Key in 272 and press OK.
8. Enter network code
Press MNC.
8. Enter network code
Key in 01 and press OK.
9. Select authentication type

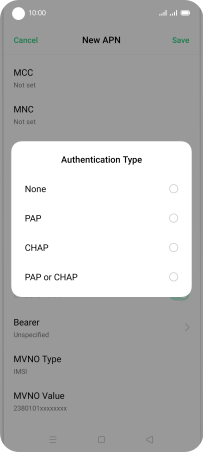

Press Authentication Type.
9. Select authentication type
Press PAP.
10. Enter APN type
Press APN Type.
10. Enter APN type
Key in mms and press OK.
11. Save data connection
Press Save.
12. Return to the home screen
Press the Home key to return to the home screen.
