1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.

Press the settings icon.

Press Mobile network.

Press the required SIM.

Press Access point names.

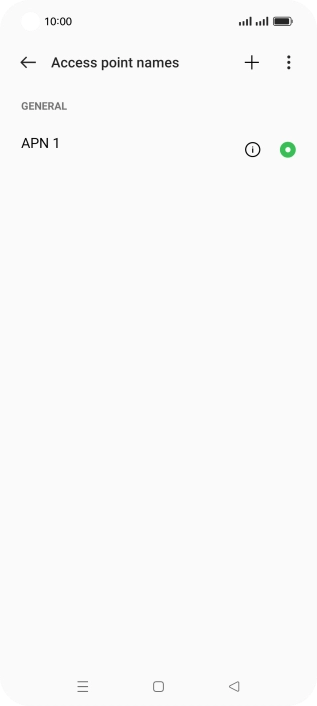

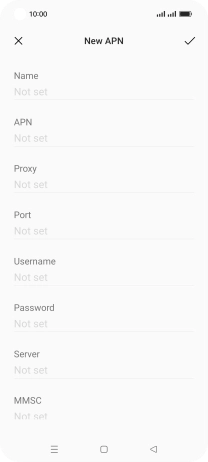

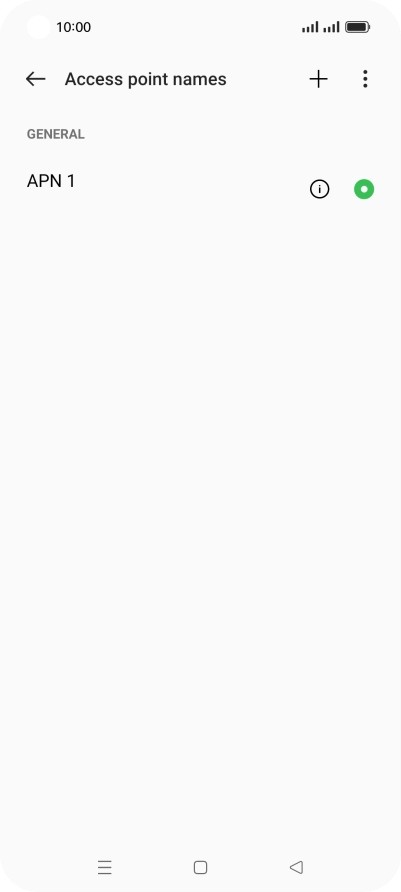

2. Create new data connection

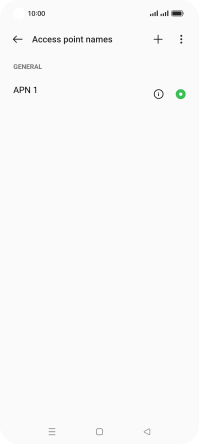

Press the new data connection icon.

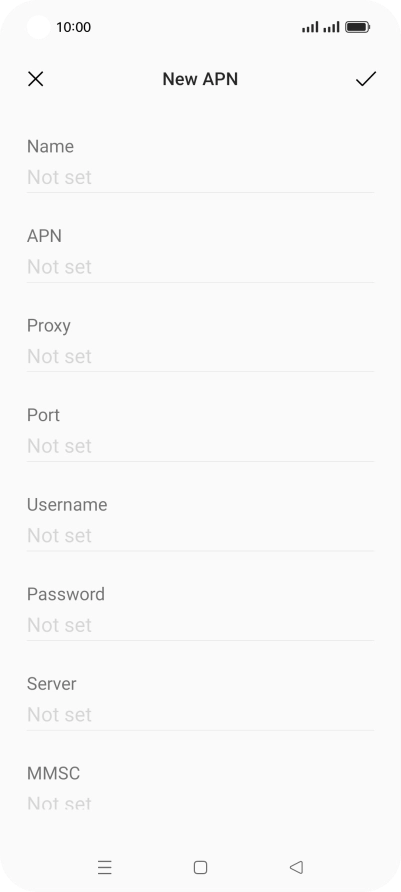

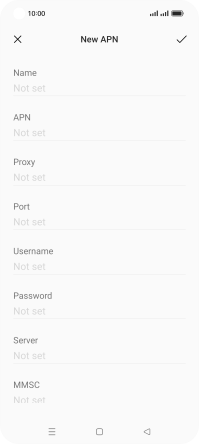

Press the field below "Name" and key in Vodafone Internet.

Vodafone Internet
3. Enter APN
Press the field below "APN" and key in live.vodafone.com.

live.vodafone.com
4. Enter IP address
Press the field below "Proxy" and key in 10.24.59.100.

10.24.59.100
5. Enter port number
Press the field below "Port" and key in 80.

80

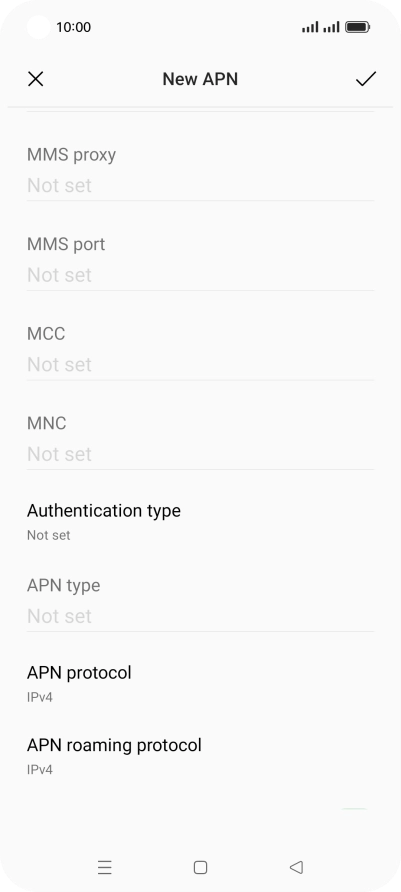

6. Enter country code

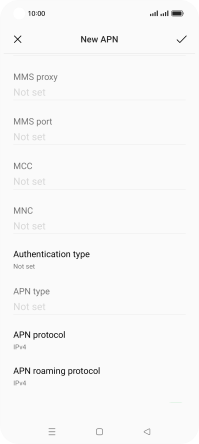

Press the field below "MCC" and key in 272.

272
7. Enter network code
Press the field below "MNC" and key in 01.

01

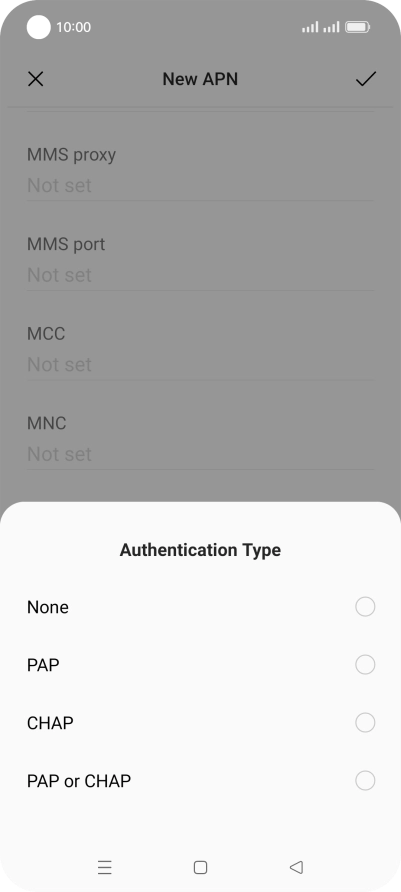

8. Select authentication type

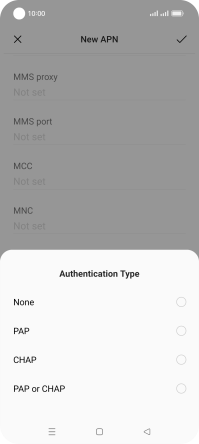

Press Authentication type.

Press PAP.

9. Enter APN type
Press the field below "APN type" and key in default.

default
10. Save data connection
Press the confirm icon.

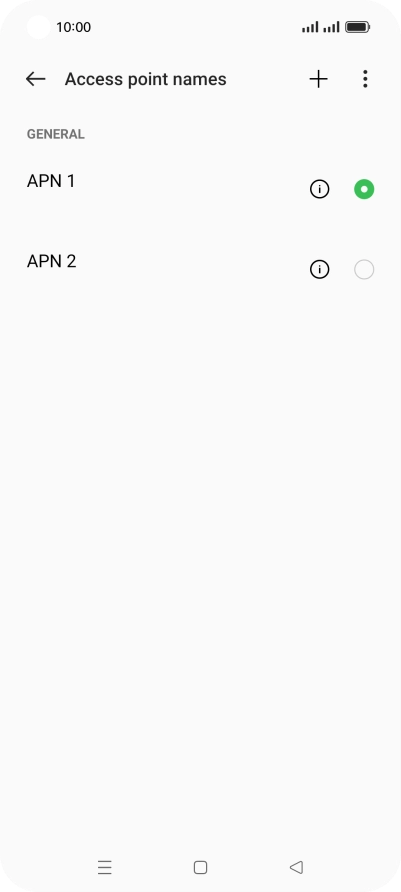

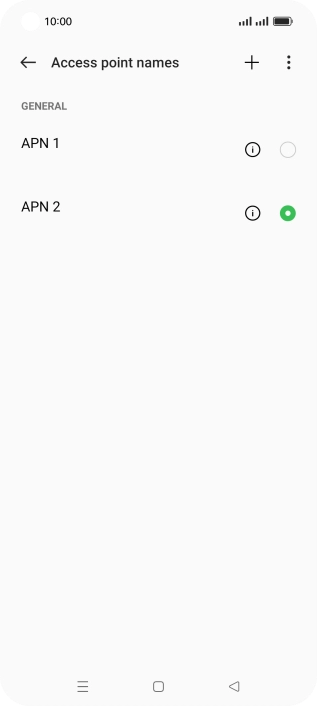

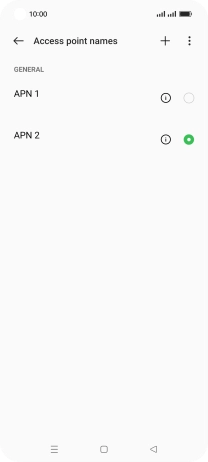

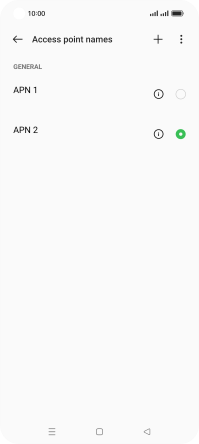

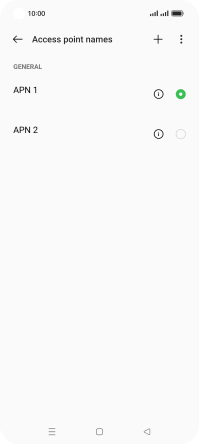

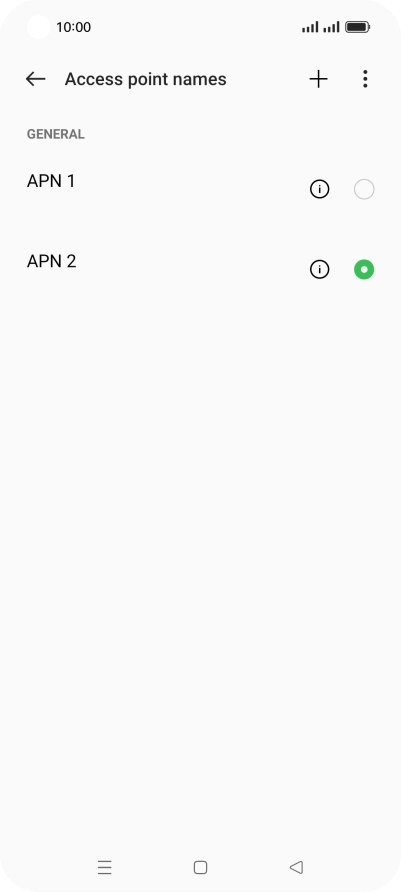

Press the field next to the data connection to activate it.

11. Return to the home screen
Press the Home key to return to the home screen.
