1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39442f38-08bb-4e83-9c2d-b0470f72b99d.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f0b654c7-d647-40e7-86e9-f2e39c869f16.png?width=202&height=448)
Press SIM card & mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c3e4c69e-57b7-43e7-85ce-c1f3ece31eeb.png?width=202&height=448)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d46a0654-6e7c-4325-b9f0-f6ab6c920155.png?width=202&height=448)

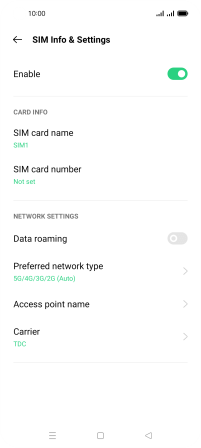

Press Access point name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a18bb617-92ce-4cb3-91cc-8ece8231057c.png?width=202&height=448)
2. Create new data connection

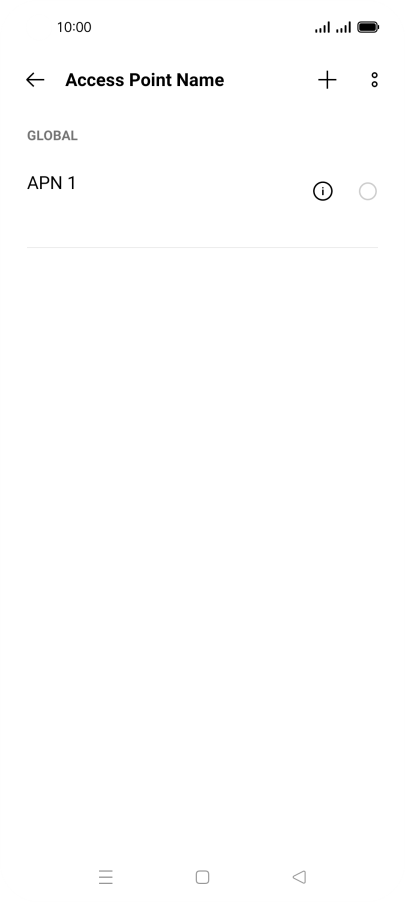

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-47d2b920-5585-4a6d-9054-eff133495691.png?width=202&height=448)

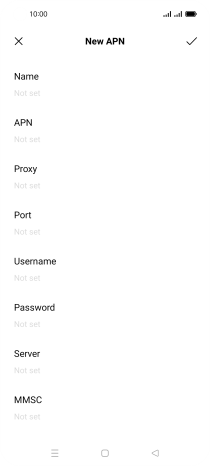

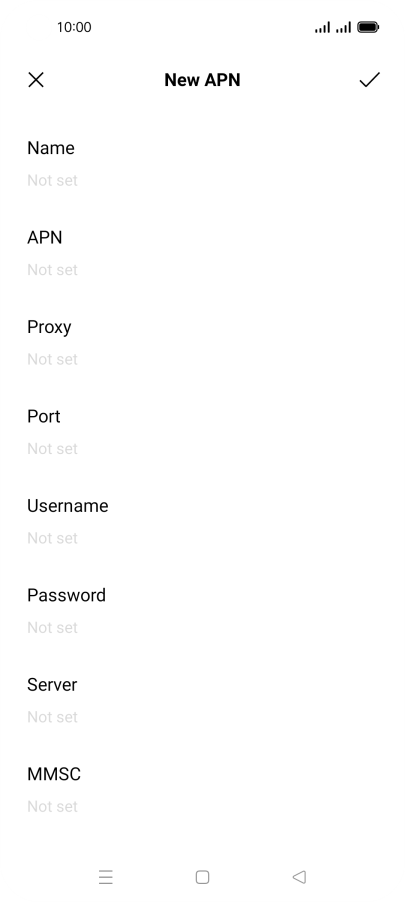

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-999d0ad5-222f-48b6-a865-7456cd2b76b6.png?width=202&height=448)
Key in Vodafone Internet and press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-08fadd9b-f91c-43db-98ac-cfc305b32b09.png?width=202&height=448)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-999d0ad5-222f-48b6-a865-7456cd2b76b6.png?width=202&height=448)

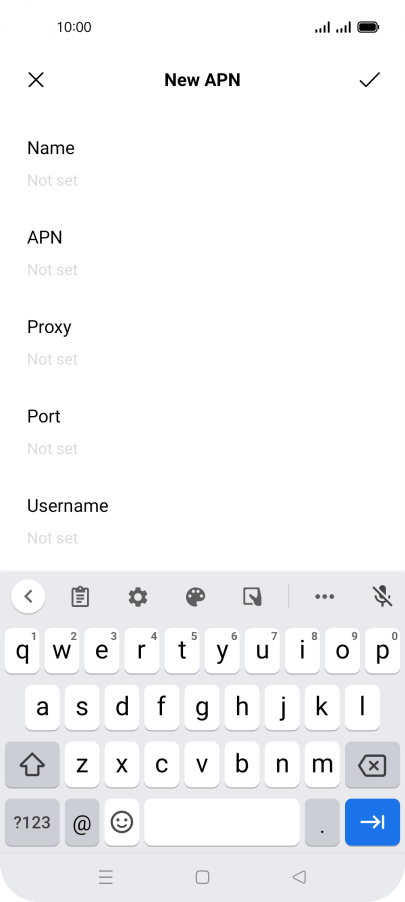

Key in live.vodafone.com and press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f1544aca-22ef-4967-b66a-804372b9ce96.png?width=202&height=448)
live.vodafone.com
4. Enter IP address
Press Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-999d0ad5-222f-48b6-a865-7456cd2b76b6.png?width=202&height=448)

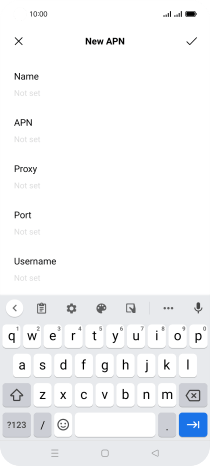

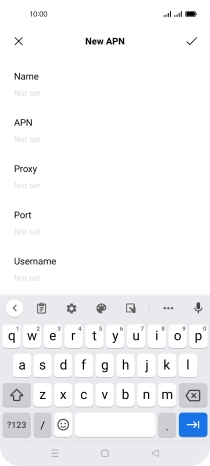

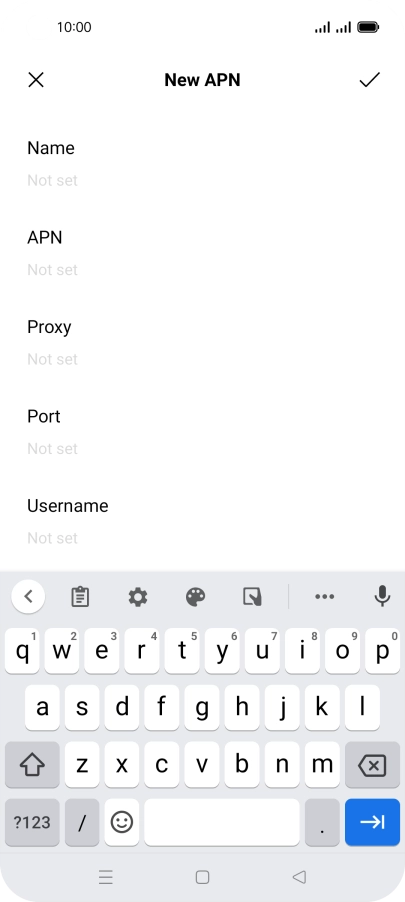

Key in 10.24.59.100 and press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e23195c-f194-4b53-9005-11e410fa1442.png?width=202&height=448)
10.24.59.100
5. Enter port number
Press Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-999d0ad5-222f-48b6-a865-7456cd2b76b6.png?width=202&height=448)

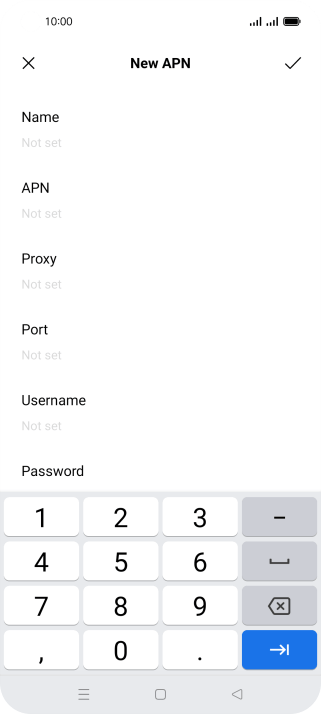

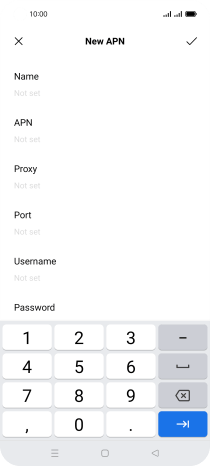

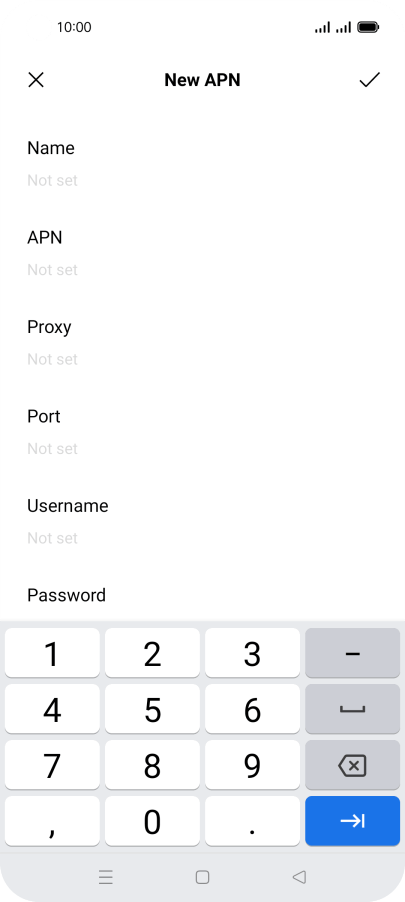

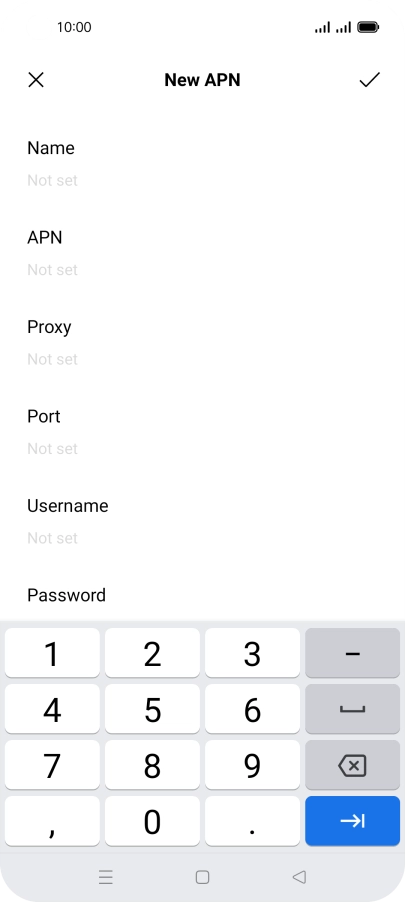

Key in 80 and press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c521efa1-ae36-4c5c-b5e0-564fe00ac9a2.png?width=202&height=448)
80
6. Enter country code

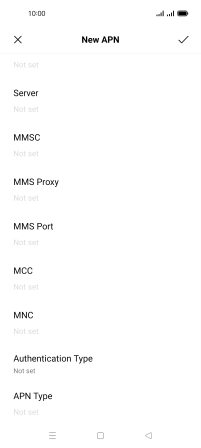

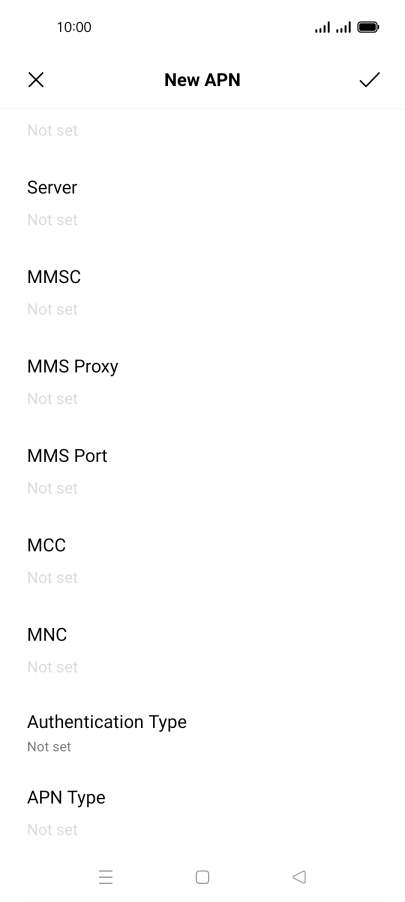

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b7b53d6-5c14-4cde-834f-22c7c2c73bb9.png?width=202&height=448)

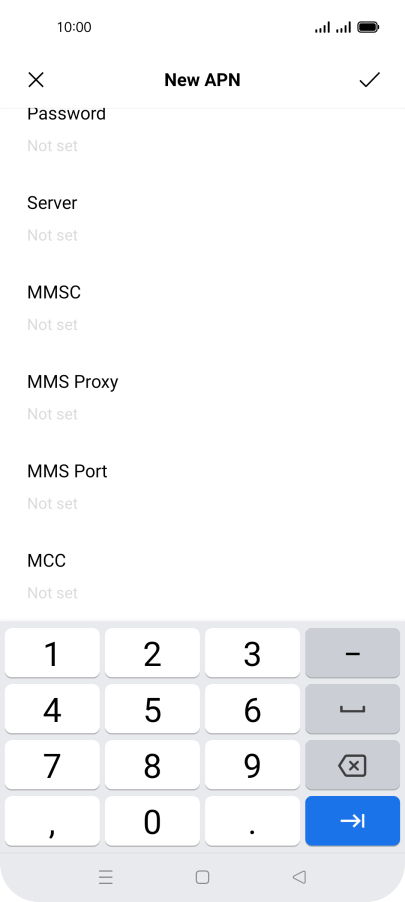

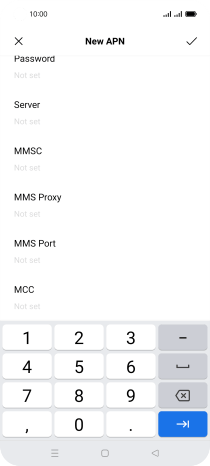

Key in 272 and press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0b6460fd-fd83-4f9d-884a-fb7144199028.png?width=202&height=448)
272
7. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b7b53d6-5c14-4cde-834f-22c7c2c73bb9.png?width=202&height=448)

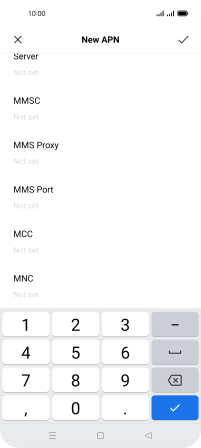

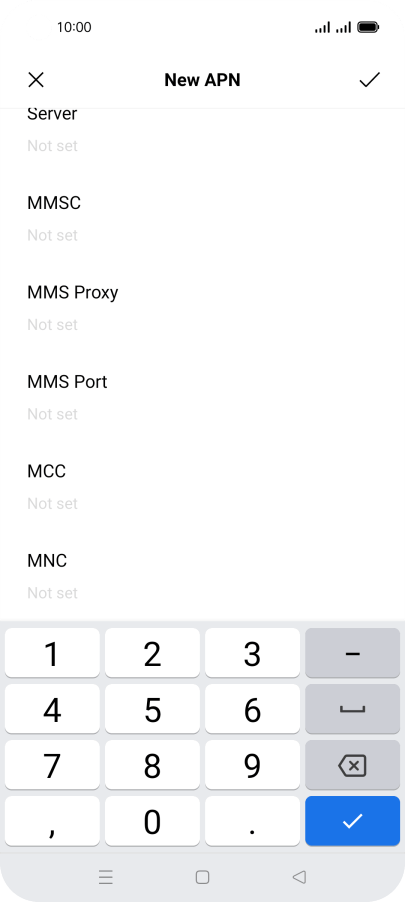

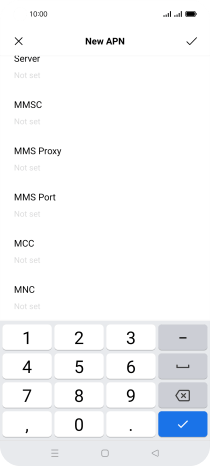

Key in 01 and press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e95d3a20-ab72-439c-abf6-7ee25fcd2c4a.png?width=202&height=448)
01
8. Select authentication type

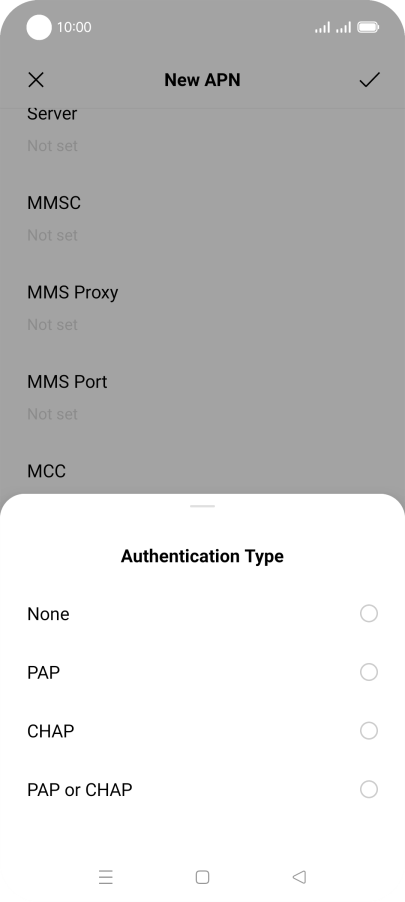

Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b7b53d6-5c14-4cde-834f-22c7c2c73bb9.png?width=202&height=448)

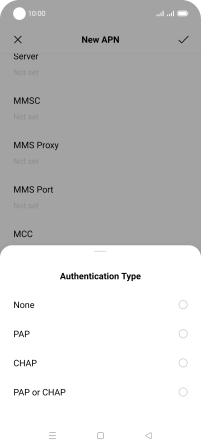

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2b41d396-5941-4647-94f2-efb02e740960.png?width=202&height=448)
9. Enter APN type
Press APN Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b7b53d6-5c14-4cde-834f-22c7c2c73bb9.png?width=202&height=448)

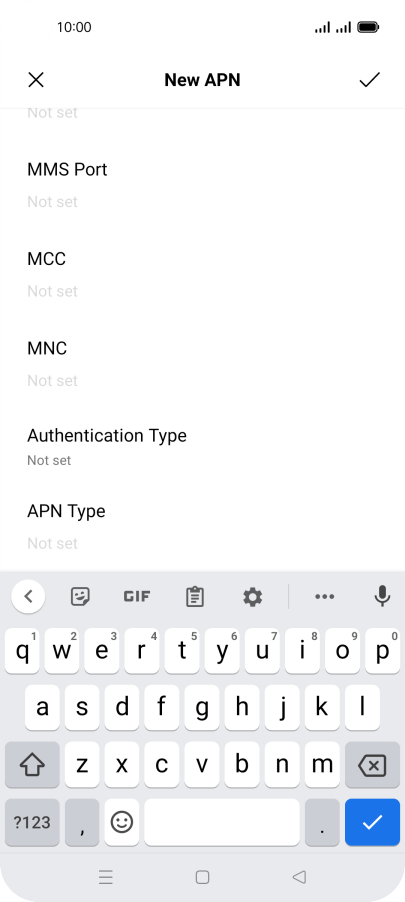

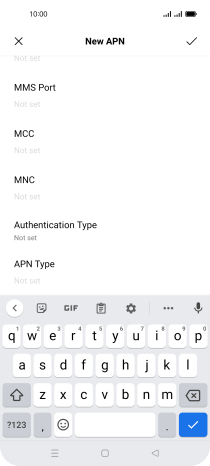

Key in default and press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-05187a14-4657-4b5b-91db-62ce1c8e08a3.png?width=202&height=448)
default
10. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b7b53d6-5c14-4cde-834f-22c7c2c73bb9.png?width=202&height=448)

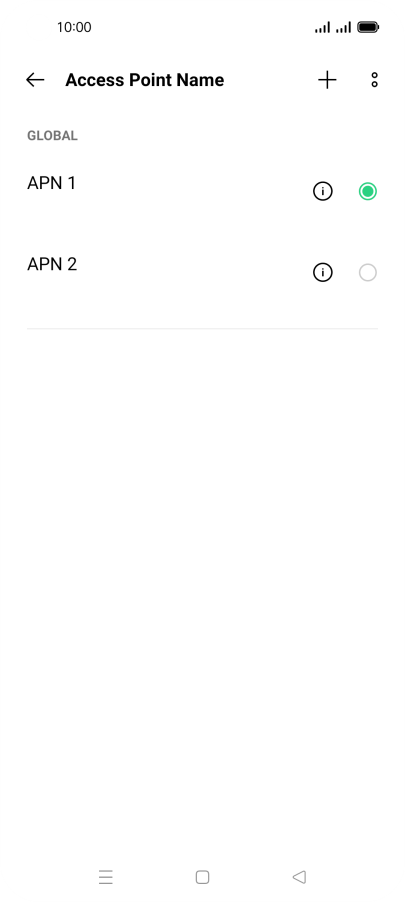

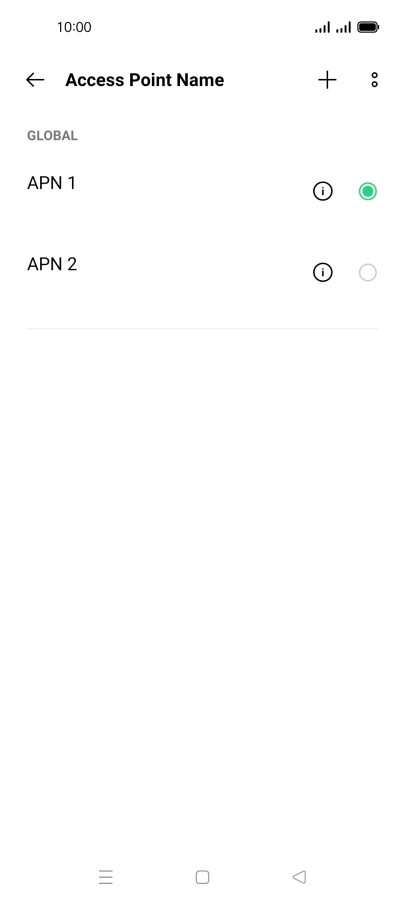

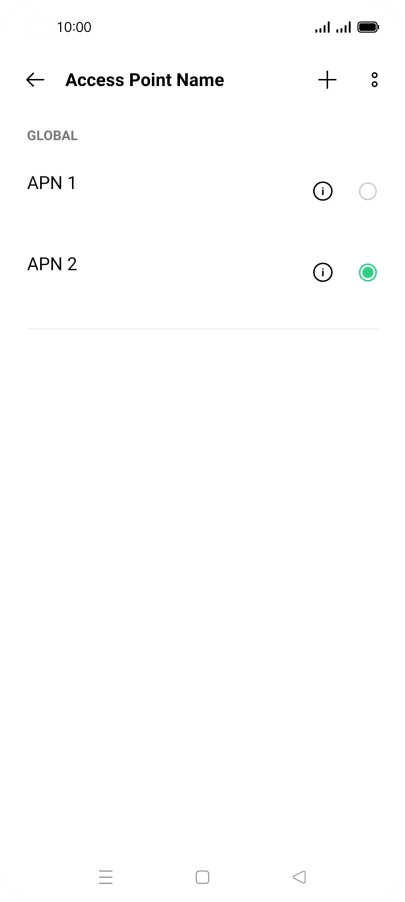

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0d7b8ee2-e495-404b-86ba-50c339f282b4.png?width=202&height=448)
11. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4c9545e9-a6f7-4f37-b89a-5ffe5cc833c3.png?width=202&height=448)
