1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point name"
Press the settings icon.
1. Find "Access point name"
Press SIM card & mobile data.
1. Find "Access point name"

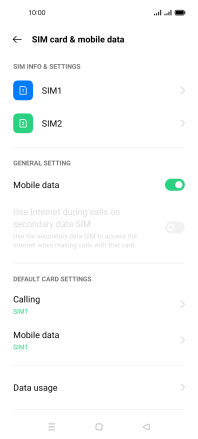

Press the required SIM.
1. Find "Access point name"

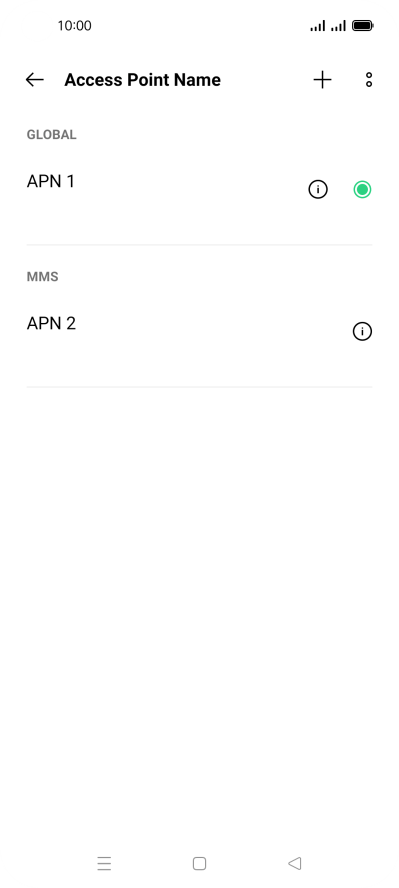

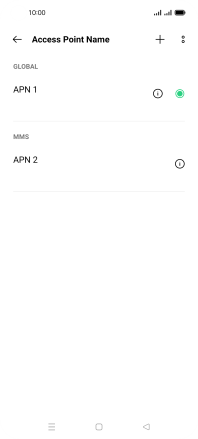

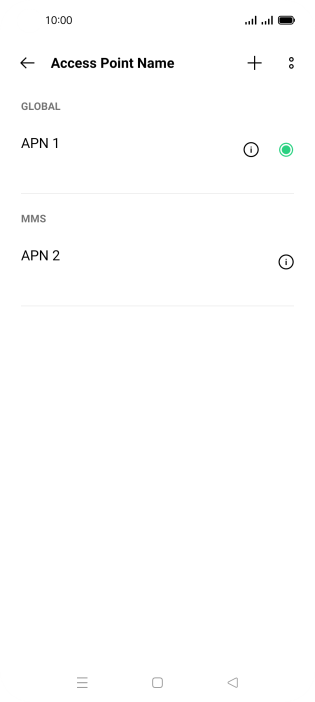

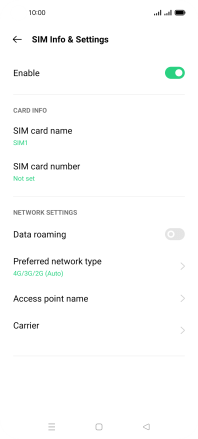

Press Access point name.
2. Create new data connection

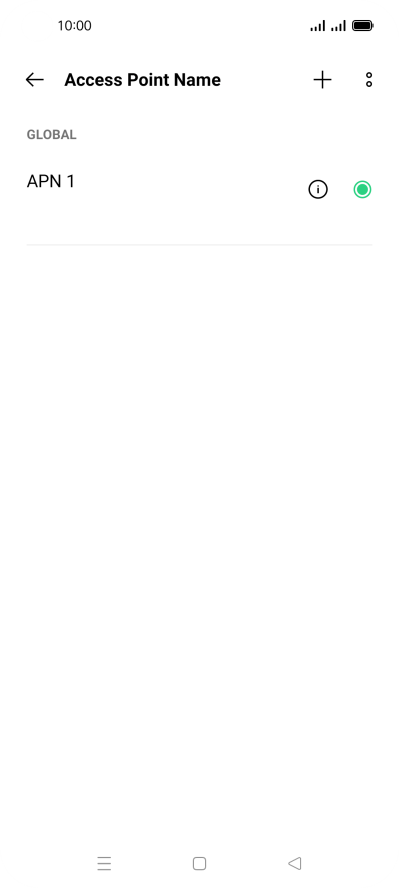

Press the add icon.
2. Create new data connection

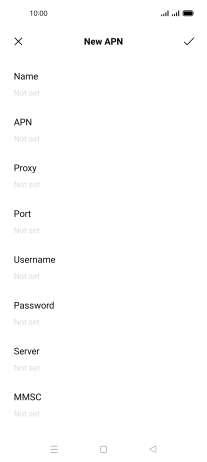

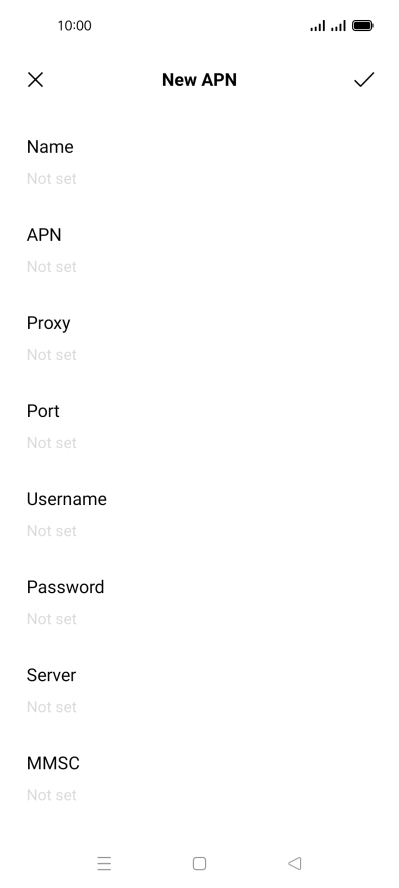

Press the field below "Name" and key in Vodafone MMS.
3. Enter APN
Press the field below "APN" and key in mms.vodafone.net.
4. Enter MMSC
Press the field below "MMSC" and key in http://www.vodafone.ie/mms.
5. Enter IP address

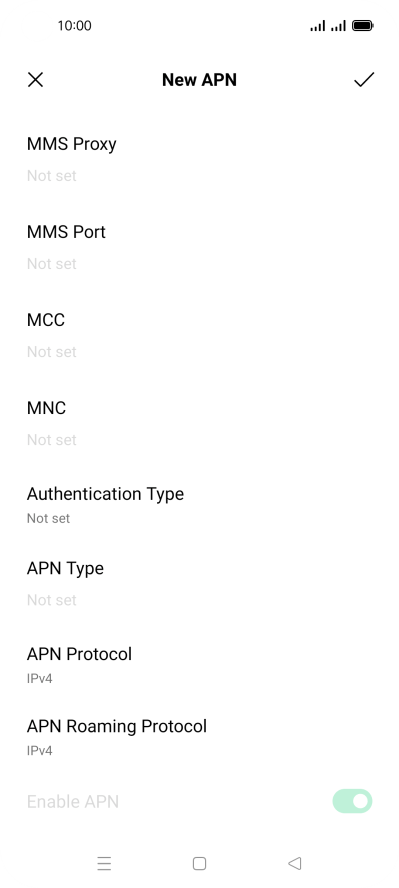

Press the field below "MMS Proxy" and key in 10.24.59.200.
6. Enter port number
Press the field below "MMS Port" and key in 80.
7. Enter country code
Press the field below "MCC" and key in 272.
8. Enter network code
Press the field below "MNC" and key in 01.
9. Select authentication type

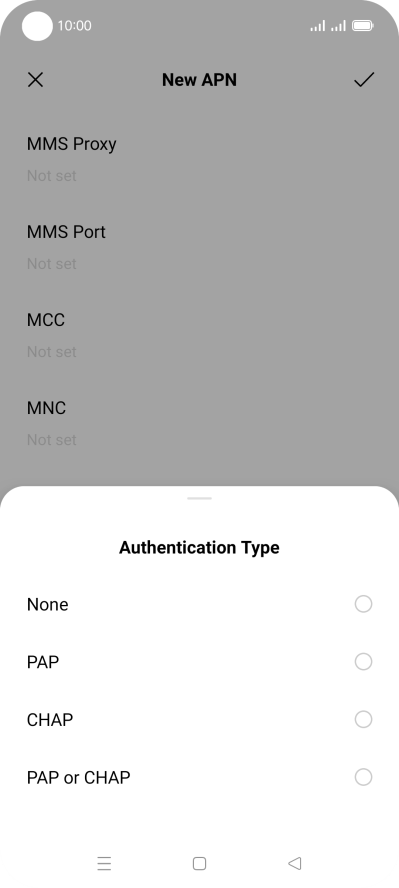

Press Authentication Type.
9. Select authentication type

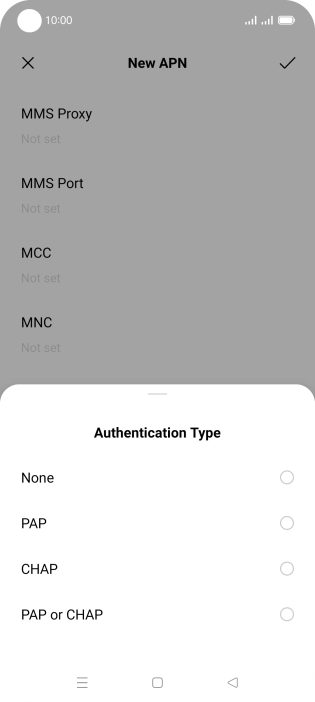

Press PAP.
10. Enter APN type
Press the field below "APN Type" and key in mms.
11. Save data connection
Press the confirm icon.
12. Return to the home screen
Press the Home key to return to the home screen.
