1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ab5f158f-6e41-48ac-b3c9-a251a56b5287.png?width=200&height=444)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-90323103-becf-4282-9e24-e6f0df5d6c00.png?width=200&height=444)
Press SIM card & mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1031e6cc-b0df-4b54-a7b4-26326541ca8b.png?width=200&height=444)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bff161e5-cf9e-4c48-b381-c6ac099f7866.png?width=200&height=444)

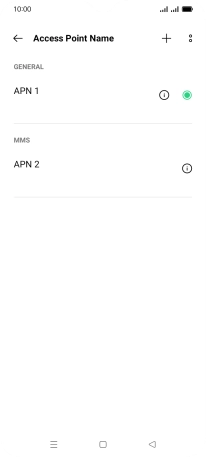

Press Access point name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-52a2afa3-175d-4d81-81ff-65519806cef3.png?width=200&height=444)
2. Create new data connection

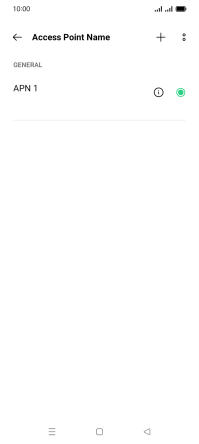

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-be70ff96-260a-4a24-80a9-0b776daeaf57.png?width=200&height=444)

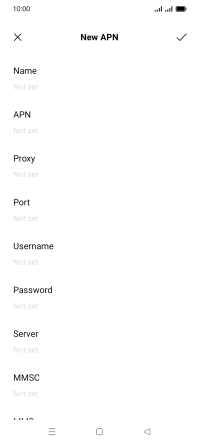

Press the field below "Name" and key in Vodafone MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99f1ce68-a1de-46f6-be07-1c5bd608b6a0.png?width=200&height=444)
Vodafone MMS
3. Enter APN
Press the field below "APN" and key in mms.vodafone.net.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99f1ce68-a1de-46f6-be07-1c5bd608b6a0.png?width=200&height=444)
mms.vodafone.net
4. Enter MMSC
Press the field below "MMSC" and key in http://www.vodafone.ie/mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99f1ce68-a1de-46f6-be07-1c5bd608b6a0.png?width=200&height=444)
http://www.vodafone.ie/mms
5. Enter IP address

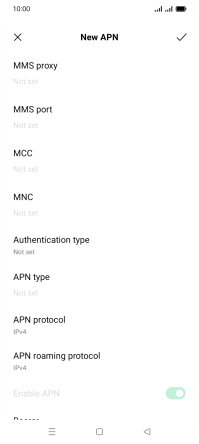

Press the field below "MMS proxy" and key in 10.24.59.200.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57195e19-909b-4d95-8db3-80f5b3905b2c.png?width=200&height=444)
10.24.59.200
6. Enter port number
Press the field below "MMS port" and key in 80.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57195e19-909b-4d95-8db3-80f5b3905b2c.png?width=200&height=444)
80
7. Enter country code
Press the field below "MCC" and key in 272.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57195e19-909b-4d95-8db3-80f5b3905b2c.png?width=200&height=444)
272
8. Enter network code
Press the field below "MNC" and key in 01.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57195e19-909b-4d95-8db3-80f5b3905b2c.png?width=200&height=444)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57195e19-909b-4d95-8db3-80f5b3905b2c.png?width=200&height=444)

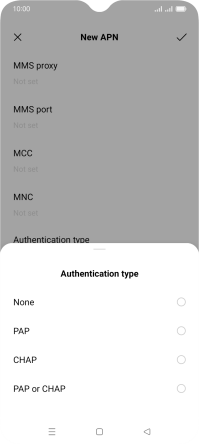

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fcaeed4d-e68e-4628-a4d5-b0c940395dfc.png?width=200&height=444)
10. Enter APN type
Press the field below "APN type" and key in mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57195e19-909b-4d95-8db3-80f5b3905b2c.png?width=200&height=444)
mms
11. Save data connection
Press the save icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57195e19-909b-4d95-8db3-80f5b3905b2c.png?width=200&height=444)

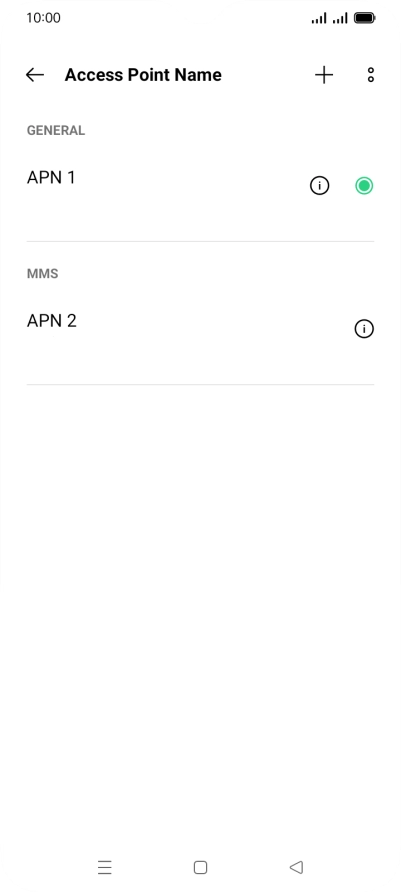

12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-59f09359-145d-4d80-a0be-05d2296acaec.png?width=200&height=444)
