1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-33f987e6-fbb6-4fbc-824e-5e3a60c7e651.png?width=194&height=440)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8323c9e6-df24-45b8-8cc3-ac07d5b082cb.png?width=194&height=440)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27f03e40-ab1b-4c1c-afac-589865f9deea.png?width=194&height=440)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1720ccc8-60ec-49b8-b058-fd0cdf99e8ef.png?width=194&height=440)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d52afd6c-26a8-4c12-b038-1a5168bbafcf.png?width=194&height=440)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a385cf02-7c19-40a4-a0d9-c85238ba3510.png?width=194&height=440)
2. Create new data connection
Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6828ca82-188a-4396-b49f-018e18d12436.png?width=194&height=440)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ceeb673b-0621-45f5-9e47-1e9becdeebc0.png?width=194&height=440)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ffb6643d-3476-47b7-9345-1924f1d0e1b6.png?width=194&height=440)
mms.vodafone.net
4. Enter MMSC

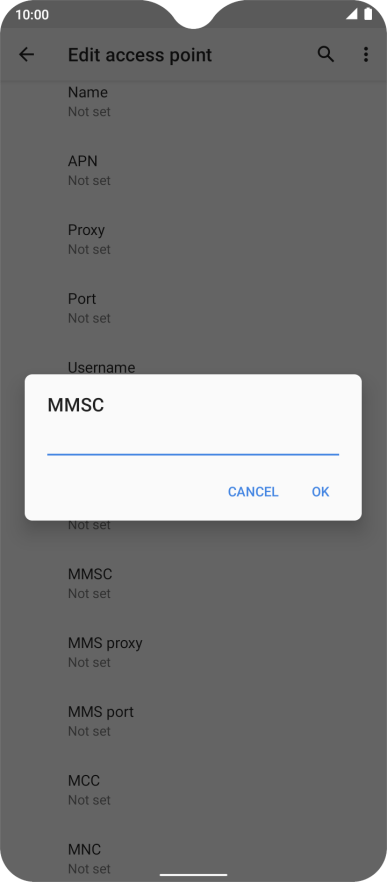

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5876b3d-d919-464a-ac25-720100b4c688.png?width=194&height=440)
http://www.vodafone.ie/mms
5. Enter IP address

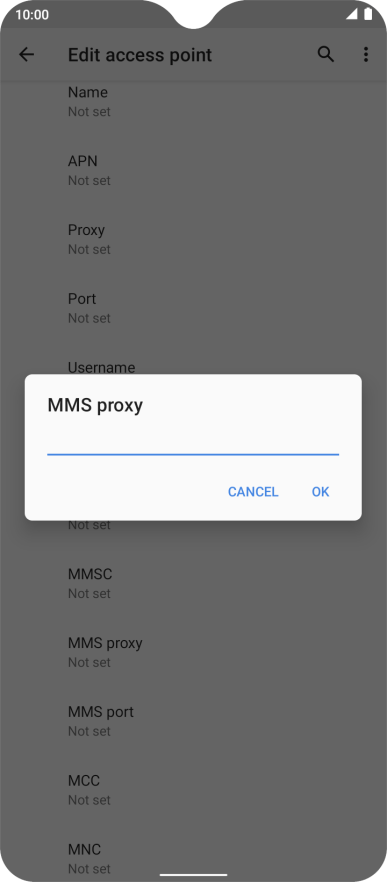

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f50c0b65-3801-4f27-a25f-f5cec2ca37e6.png?width=194&height=440)
10.24.59.200
6. Enter port number

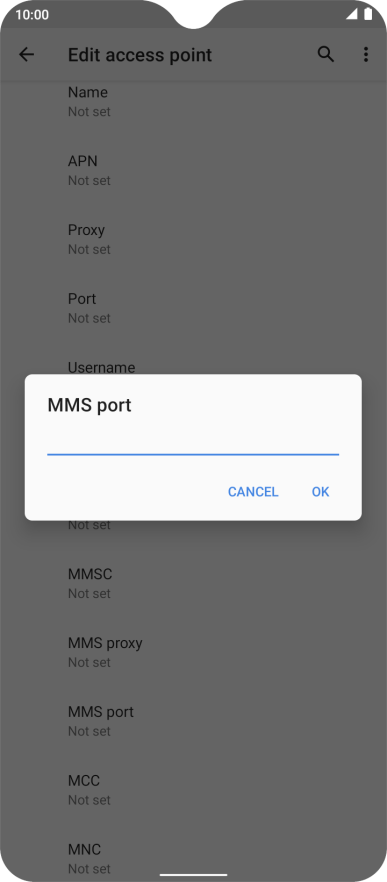

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-91a49e2a-52b2-4554-b6ce-c56db2609d29.png?width=194&height=440)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4ebe1abc-8384-4380-99c7-732c7c704d6b.png?width=194&height=440)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5517ab46-ec33-4887-9576-6e208dcc3ef0.png?width=194&height=440)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-051803b0-f530-4f73-8148-a8b90770341f.png?width=194&height=440)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-47859a2b-067f-45b7-9275-f83c86001e5e.png?width=194&height=440)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7eae35ba-628b-4648-bf88-5a018484f566.png?width=194&height=440)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9676f1fa-fdf8-4d62-96a1-85f3097add6c.png?width=194&height=440)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-defd7cb0-5cb6-4b51-92ca-aa1b8f9ff1c1.png?width=194&height=440)

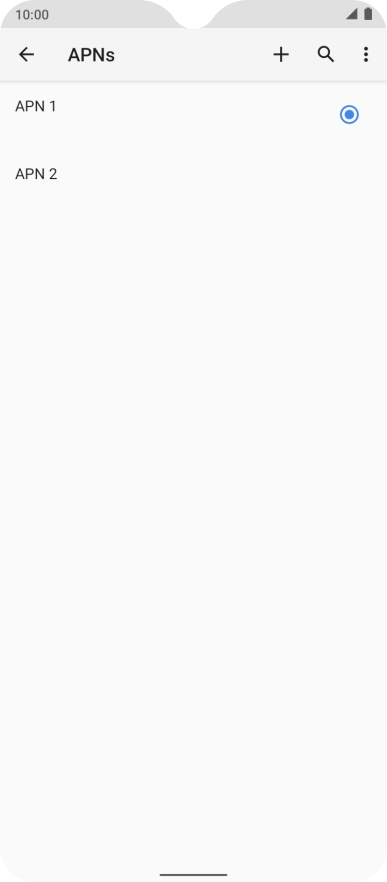

12. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e2931c40-f05d-412c-b9e2-6b780d425c4a.png?width=194&height=440)
