1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-829520a6-85af-4af4-8a29-1ba00b3d2297.png?width=198&height=440)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f09a36f1-e2bc-43d4-b6a0-60fd60361bce.png?width=198&height=440)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1b806410-be77-4525-88e0-6759899a892f.png?width=198&height=440)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66238d1e-f50e-4ee6-93b2-cc43c5336c48.png?width=198&height=440)

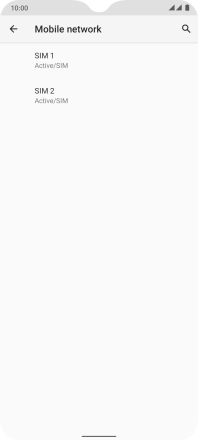

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0a70aaf6-d8b3-4db3-bc32-c32e29d5bec2.png?width=198&height=440)

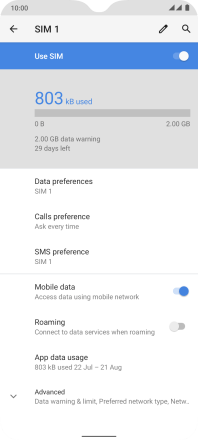

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a687e95-3a2d-4168-b5f3-10f093aab7a2.png?width=198&height=440)

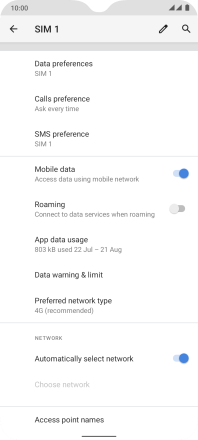

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e4fee1d-c00d-465f-8640-71e92ec4b2e5.png?width=198&height=440)
2. Create new data connection

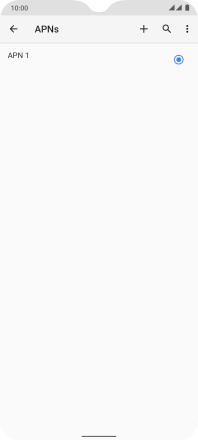

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5cc4ff8e-0d94-4cb5-a0c8-63461b738c08.png?width=198&height=440)

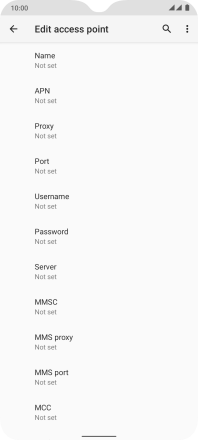

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)

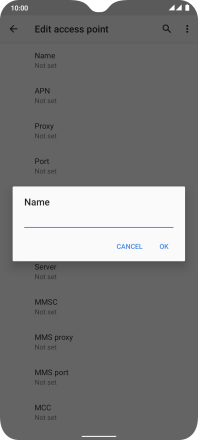

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a679471a-f997-4ece-8324-c08bd80d2d78.png?width=198&height=440)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)

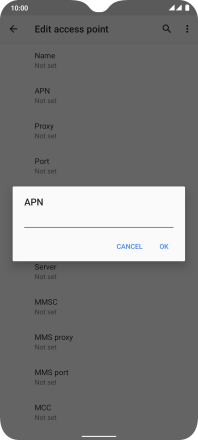

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-77e4d932-a950-4652-8713-3f80b0d77e41.png?width=198&height=440)
live.vodafone.com
4. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9aebdc6-9d5e-4ef0-a180-bee868b5916f.png?width=198&height=440)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8d312fc8-9dfa-48b5-9b3e-7a1b2da9f7a0.png?width=198&height=440)
272
5. Enter network code

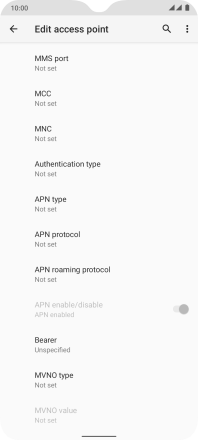

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

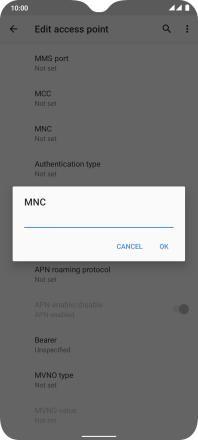

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c76954d2-a057-40a4-a087-78437d250054.png?width=198&height=440)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

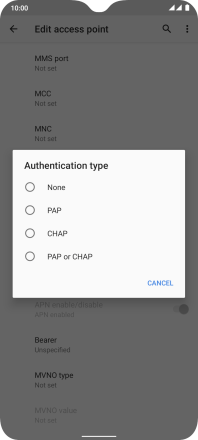

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3bb4377d-22da-4a13-9853-bb5e95637163.png?width=198&height=440)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

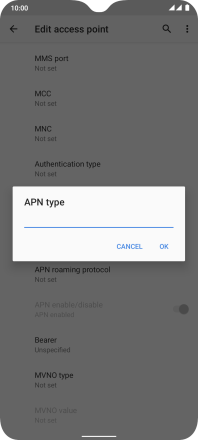

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e6bfe493-c65f-4701-8a65-fd0ed9a66c9d.png?width=198&height=440)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3753d9c-4732-4714-9559-086689ec0999.png?width=198&height=440)

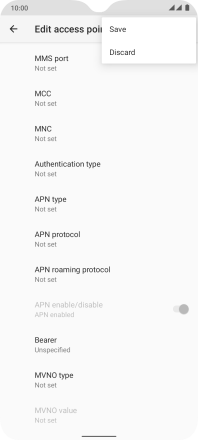

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7f77f2b4-6808-4551-9e63-4597d6524c3a.png?width=198&height=440)
Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b20243d9-205b-47a5-a981-4813abcb7e07.png?width=198&height=440)
9. Return to the home screen

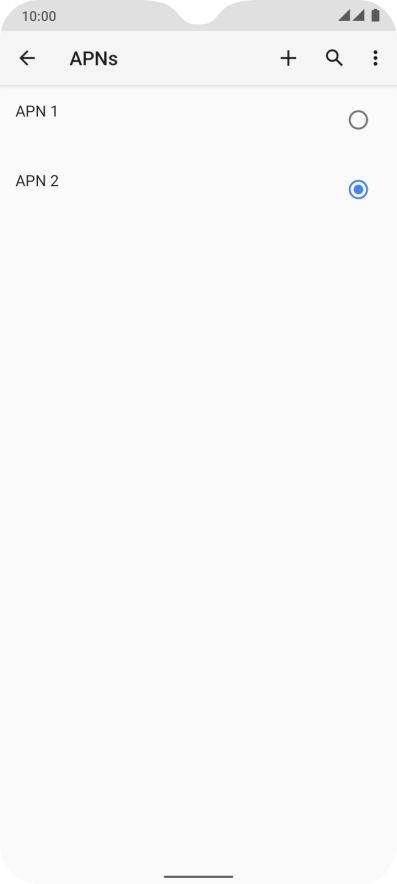

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0310b0f-c594-4221-9abc-a55fea093563.png?width=198&height=440)
