1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7e693868-bd59-45bb-ac93-a593fa2145e1.png?width=204&height=432)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9ce1efa9-5206-46a8-a447-338255c2a8c9.png?width=204&height=432)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5cf50c2-9259-4480-80f9-4f7d05314f97.png?width=204&height=432)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fd91419f-c9f6-47a0-a81e-060bd0b2cc3e.png?width=204&height=432)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2fd1b777-fc3c-4f15-a9df-96b2f0b97fa0.png?width=204&height=432)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-26e7a4d7-2cc7-4458-9c74-9d60666e8fc9.png?width=204&height=432)
2. Create new data connection

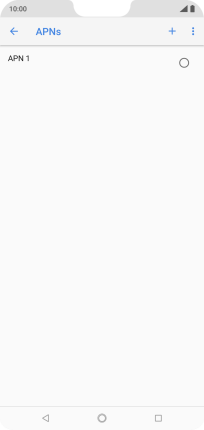

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-13311b5c-db14-4e55-bd87-830efb08f596.png?width=204&height=432)

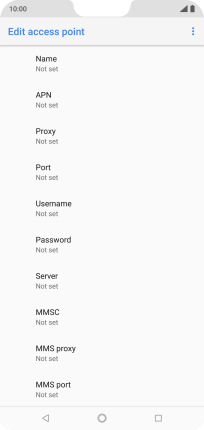

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a776256-a307-4c24-9b0b-e75117253f51.png?width=204&height=432)

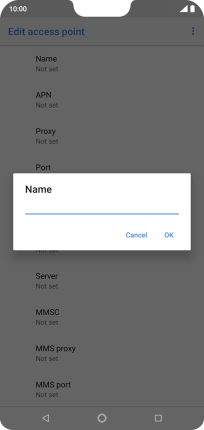

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bc60e2c8-4e8a-452e-ac1f-672ef96fe270.png?width=204&height=432)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a776256-a307-4c24-9b0b-e75117253f51.png?width=204&height=432)

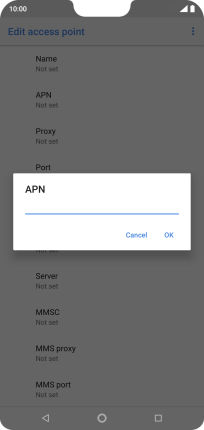

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b5d46d4f-d55c-4c97-861a-c17a296eaa65.png?width=204&height=432)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a776256-a307-4c24-9b0b-e75117253f51.png?width=204&height=432)

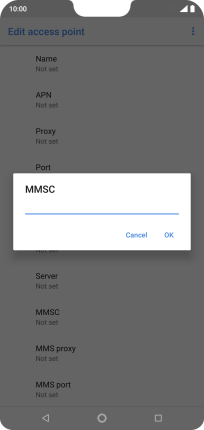

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ad2bcd7f-d2ab-4dd0-88f2-f68428945839.png?width=204&height=432)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a776256-a307-4c24-9b0b-e75117253f51.png?width=204&height=432)

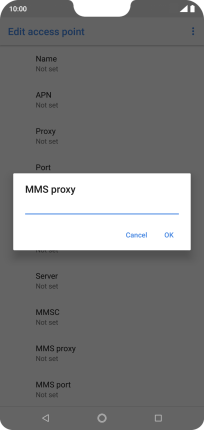

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-23926d5c-4760-4b8f-8b60-77e5eb6fe5ed.png?width=204&height=432)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3a776256-a307-4c24-9b0b-e75117253f51.png?width=204&height=432)

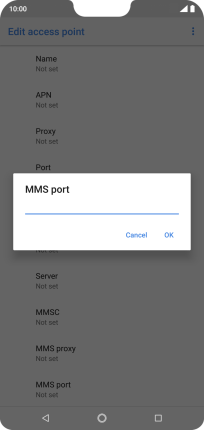

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2a7a61b4-b150-4f25-bd4f-46c405bc8954.png?width=204&height=432)
80
7. Enter country code

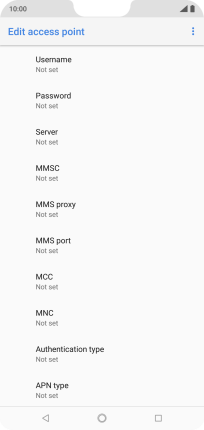

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-03461090-8714-4079-b216-8a982af23271.png?width=204&height=432)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

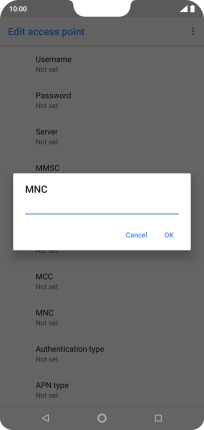

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ee398980-011b-45e7-bbcd-957e505032e0.png?width=204&height=432)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

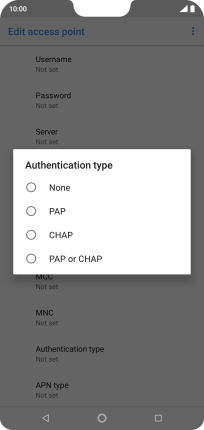

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-39f4452f-bca1-4123-a453-a5b7a69836df.png?width=204&height=432)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

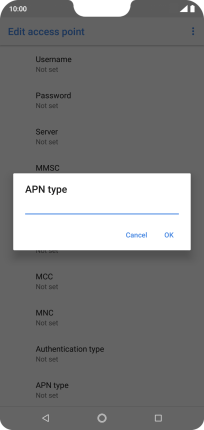

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a242ca8-426f-4ff3-a4b0-9ddec42d00ce.png?width=204&height=432)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75383d46-f5c4-46f4-b9e8-dc408badb111.png?width=204&height=432)

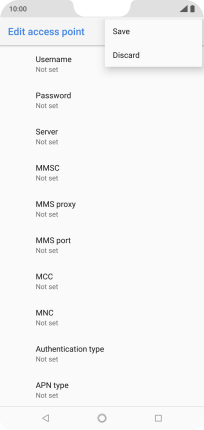

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68ccffe1-d474-4e2b-9246-b62e651101ec.png?width=204&height=432)
12. Return to the home screen

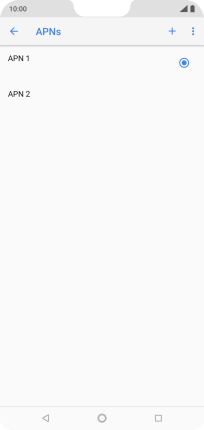

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-52d54f0e-addc-4f86-bd33-1a14fe1e041b.png?width=204&height=432)
