1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3e1c2199-67b6-4b9e-bc26-d81c7284c8a5.png?width=210&height=372)

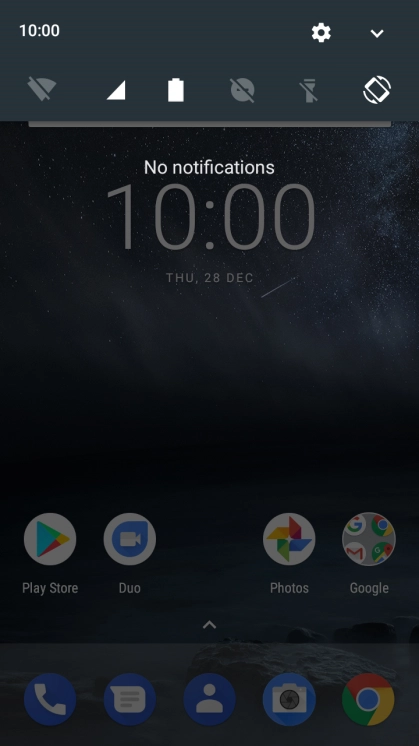

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6574d0e2-3a64-403f-b9a7-49ffe3e17d09.png?width=210&height=372)

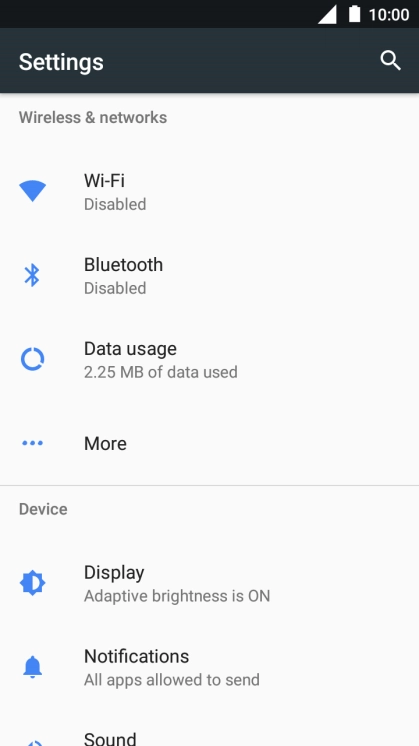

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-edbe1965-a84e-41d6-8116-444bfee09c38.png?width=210&height=372)

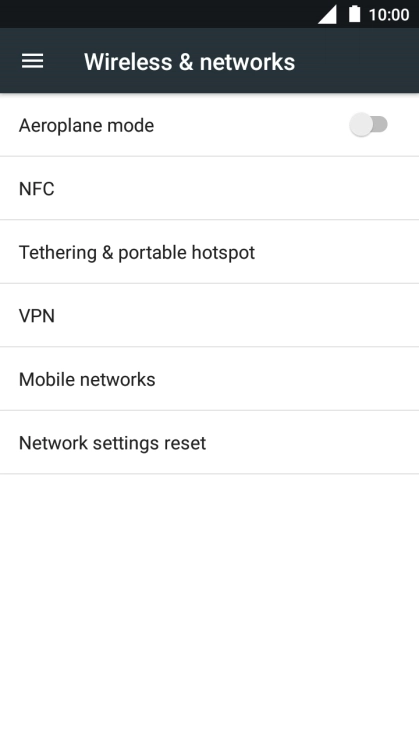

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f75f6bf6-dc94-4fd1-ae0b-6219f323c325.png?width=210&height=372)

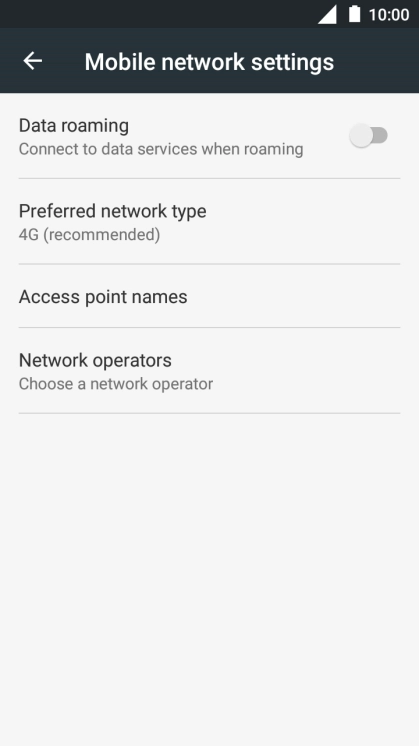

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ddae2641-9d7f-46d3-a24c-1b7d41aee1ff.png?width=210&height=372)
2. Create new data connection

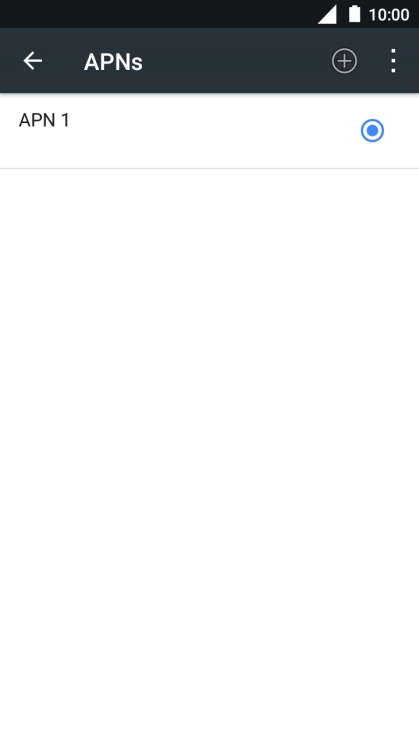

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57916ab5-9a55-4e86-ae19-01fd4240b81b.png?width=210&height=372)

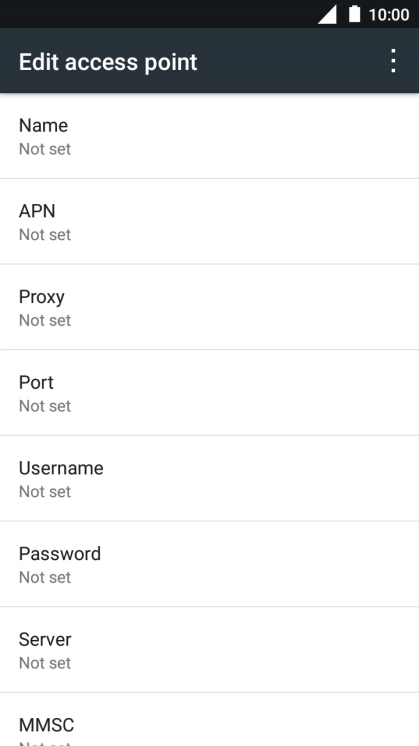

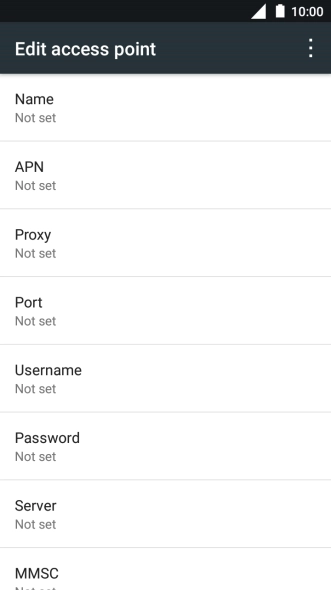

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5c82a336-7552-4064-941a-fe7ab17e9a27.png?width=210&height=372)

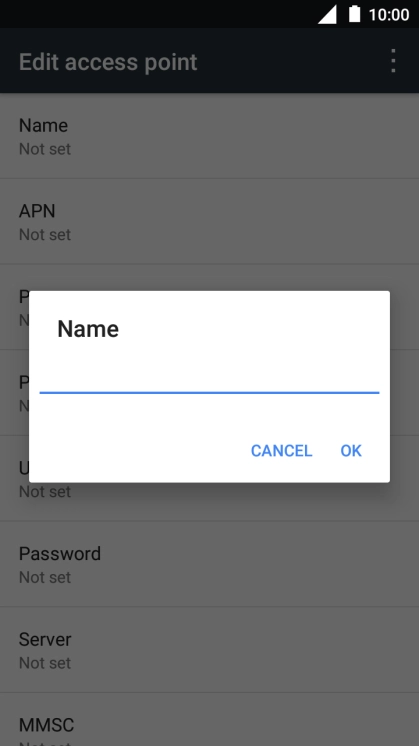

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9dcc066a-bfe6-41d3-ada5-f9fef44d1c09.png?width=210&height=372)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5c82a336-7552-4064-941a-fe7ab17e9a27.png?width=210&height=372)

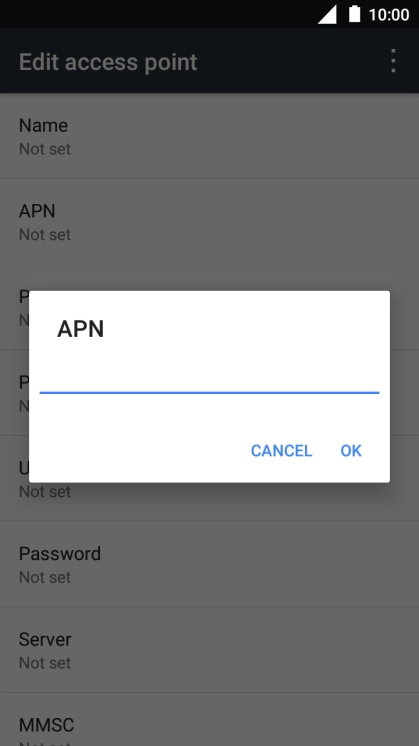

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1289e88b-2b90-4d6f-aca8-8f7ae765ae38.png?width=210&height=372)
mms.vodafone.net
4. Enter MMSC

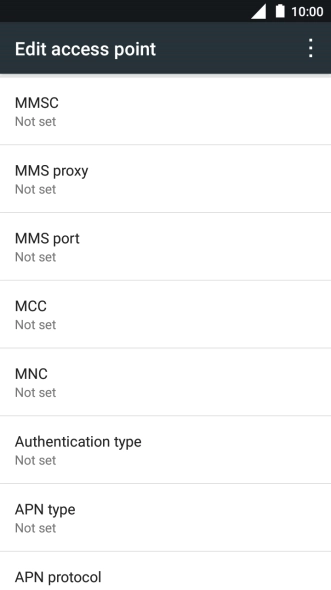

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f1befd33-abaf-4dd3-ae37-e9b0d7cbe938.png?width=210&height=372)
http://www.vodafone.ie/mms
5. Enter IP address

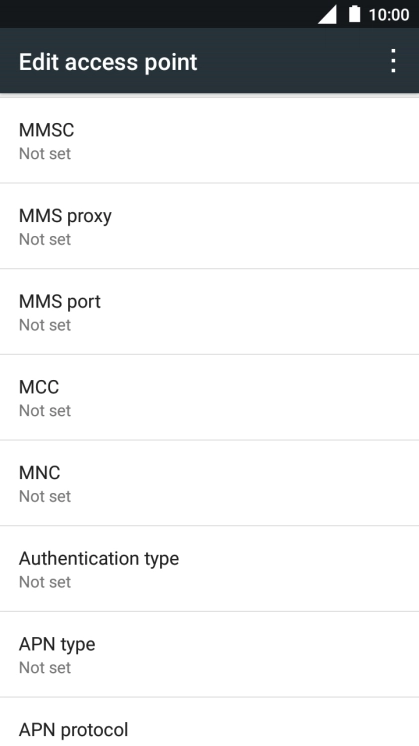

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)

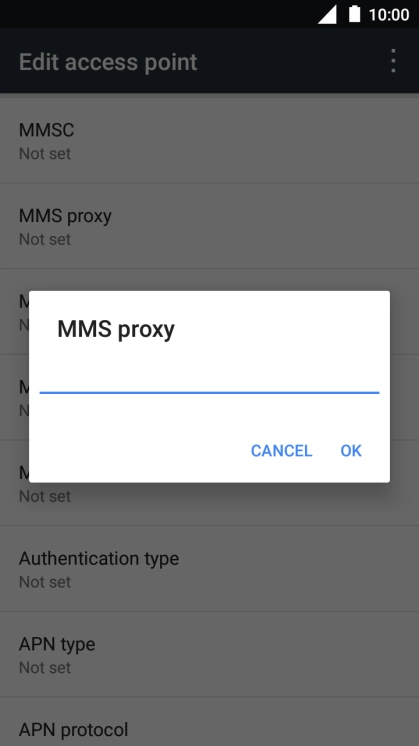

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ae3de5cd-05f3-4e66-8073-9167815cef5f.png?width=210&height=372)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f2a67a6d-f889-43ff-906d-6af09e48f332.png?width=210&height=372)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)

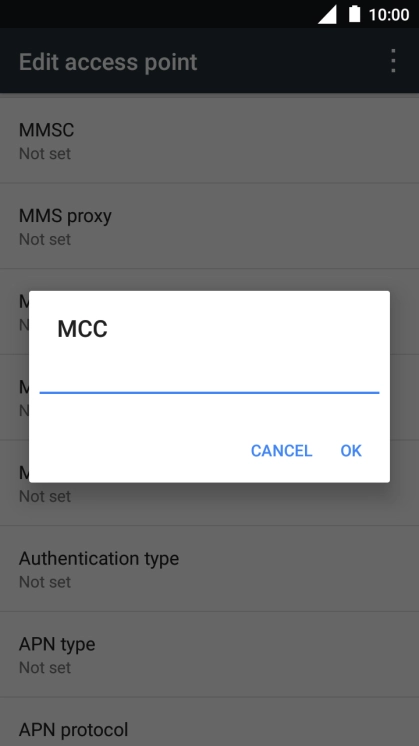

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b5941f0-a75e-48f5-9e58-21b3610c8c08.png?width=210&height=372)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)

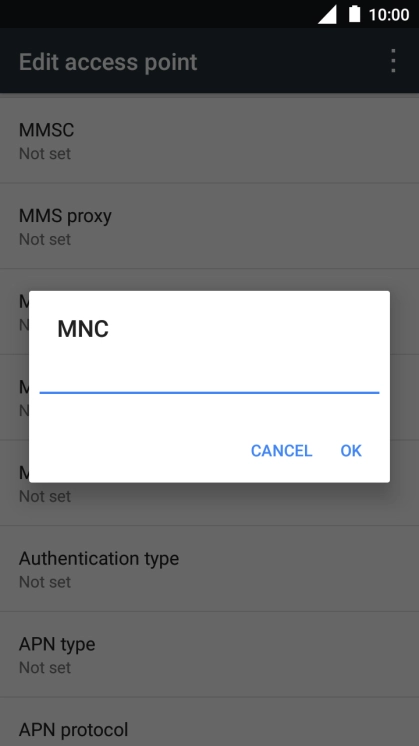

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9ecad15b-4059-4207-a155-cc4f10535dec.png?width=210&height=372)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)

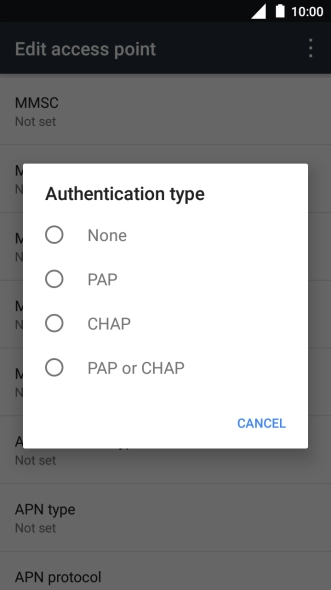

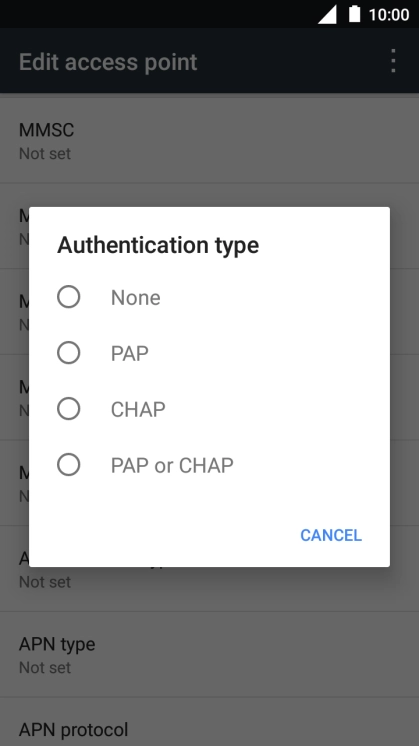

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-55a035ae-ef46-422c-8a84-6df6c6f30f4a.png?width=210&height=372)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cc12b3c7-f313-4d01-8e97-12ebc49ddd17.png?width=210&height=372)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20fb7a14-c028-42fc-bef5-b226c1533f9a.png?width=210&height=372)

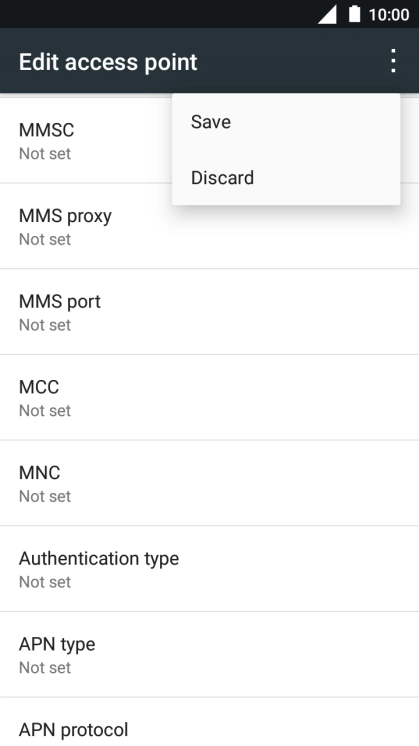

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8c0c543f-c6c6-4dba-bafb-542c88056e20.png?width=210&height=372)
12. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d68fa7bf-df93-47d2-8aeb-45dfe729bf3b.png?width=210&height=372)
