1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-003c5708-e8e3-4c08-aaf7-87391778793a.png?width=194&height=388)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ae0f14f-f07a-46be-83e1-87f8ea487c2e.png?width=194&height=388)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-948ff5c4-136f-41cf-9ab6-fd385562f76e.png?width=194&height=388)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9904a390-25c1-4802-854e-e1b39fef3de8.png?width=194&height=388)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a5563849-a9e3-4746-92e0-a3546d314be9.png?width=194&height=388)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-23f342a9-55d8-414f-964c-49da80d9fcc4.png?width=194&height=388)
2. Create new data connection

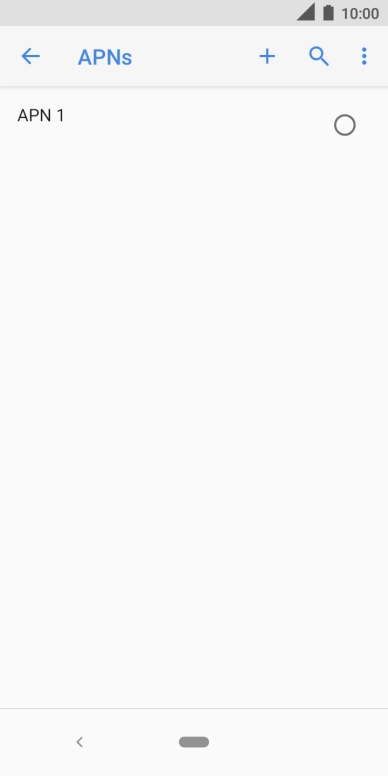

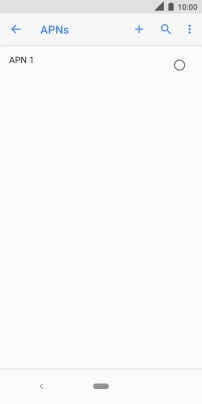

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-160e6808-e3eb-4ad7-af7a-40b34b8ba229.png?width=194&height=388)

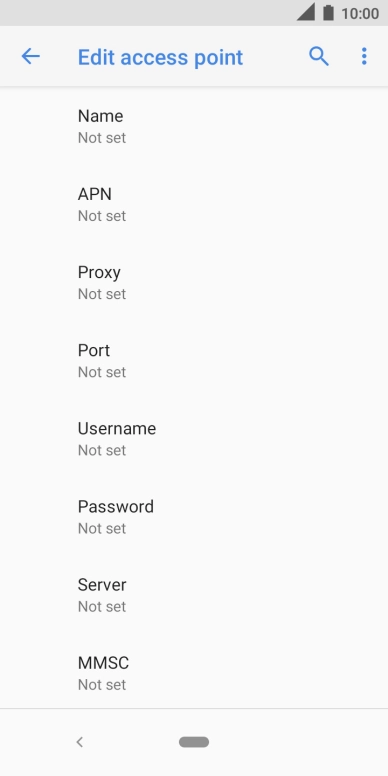

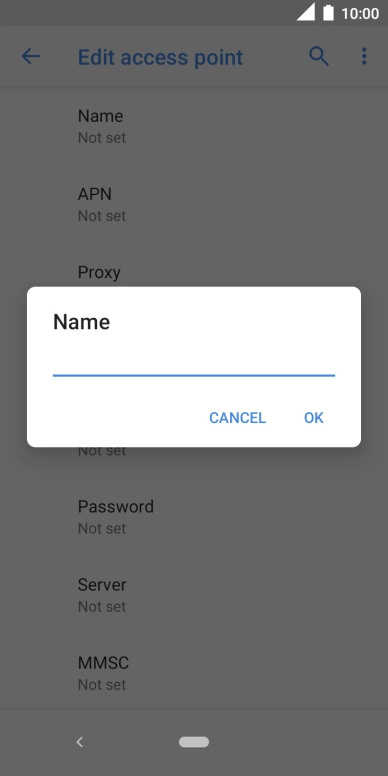

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-394d127b-134f-4948-b28e-380944bf94c6.png?width=194&height=388)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2d7a29bc-4b80-4cc8-8a3e-c5b4603ce118.png?width=194&height=388)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-394d127b-134f-4948-b28e-380944bf94c6.png?width=194&height=388)

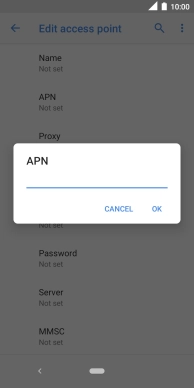

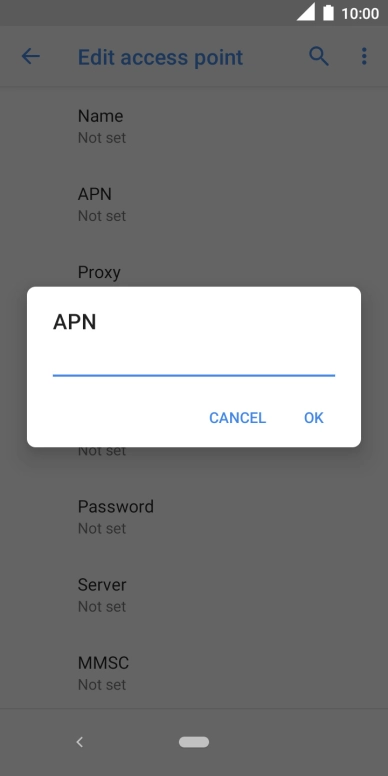

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d96f1040-079c-4f6a-9957-265568085a3f.png?width=194&height=388)
mms.vodafone.net
4. Enter MMSC

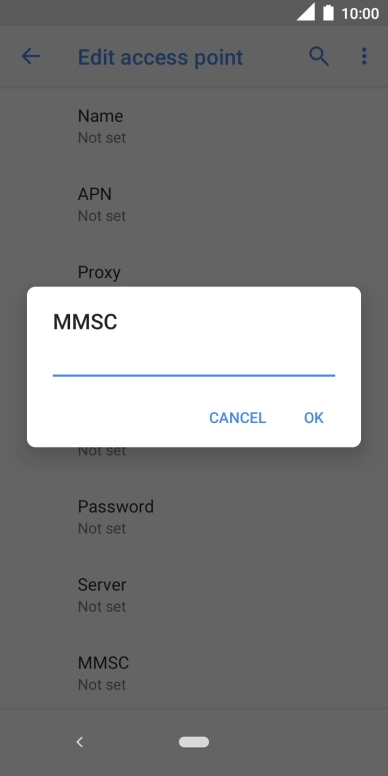

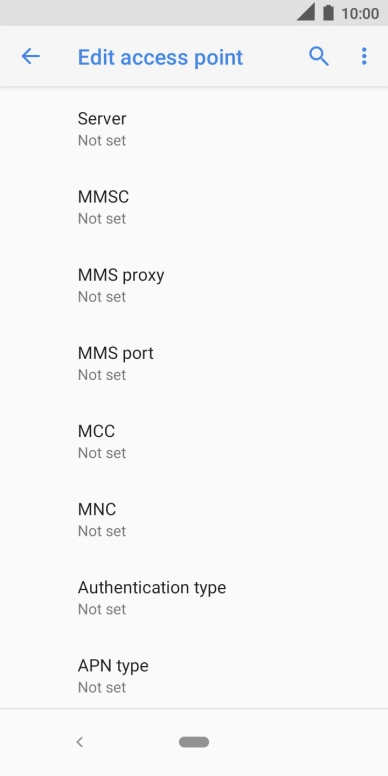

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e96d18ab-6d6d-487e-9694-89dfc523a17e.png?width=194&height=388)
http://www.vodafone.ie/mms
5. Enter IP address

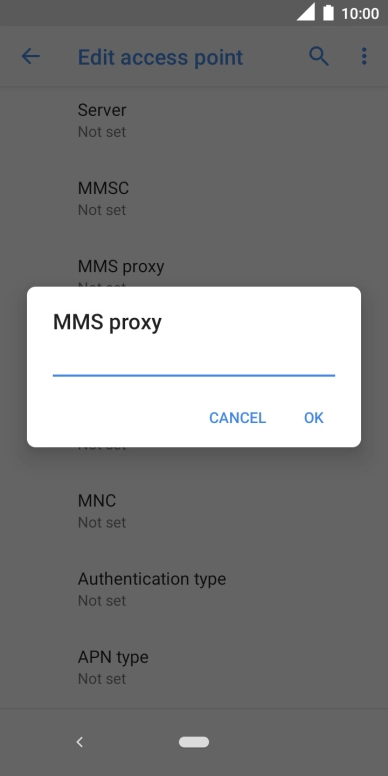

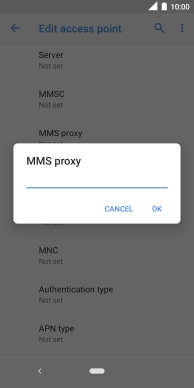

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c3f7fd7b-97e7-4668-90b9-944428148cbd.png?width=194&height=388)
10.24.59.200
6. Enter port number

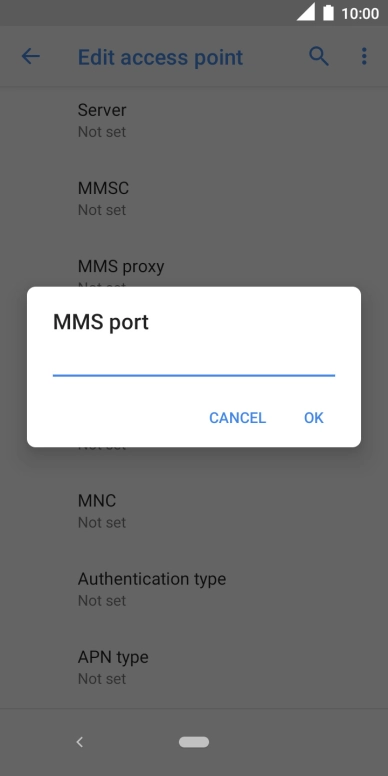

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b28272c3-31b3-4611-aef0-9e3b2ce76155.png?width=194&height=388)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)

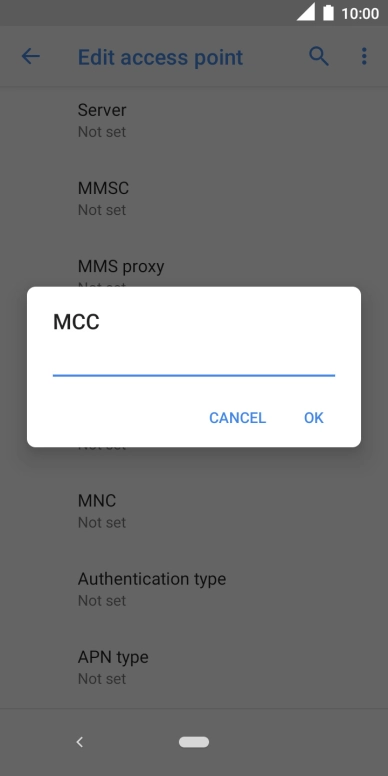

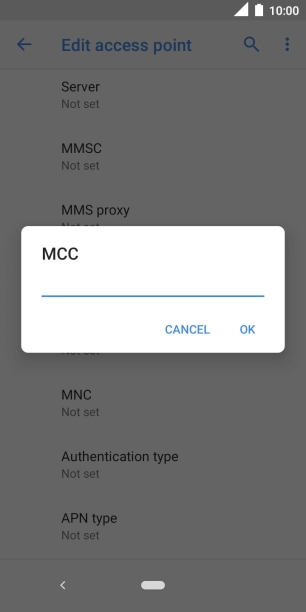

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e06f9b62-1035-4c33-acef-322864832b5a.png?width=194&height=388)
272
8. Enter network code

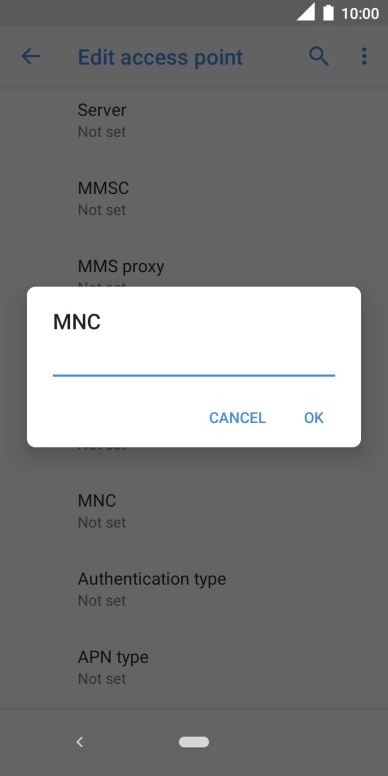

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)

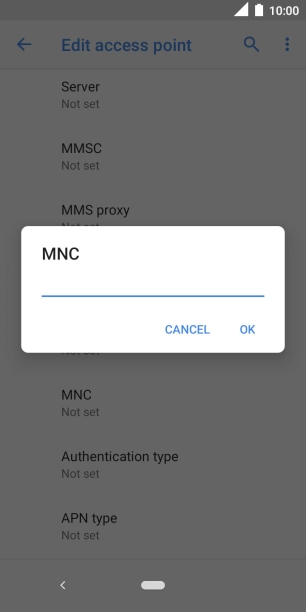

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a7e88cd9-98cf-45e5-9cbf-5873cdfc78be.png?width=194&height=388)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)

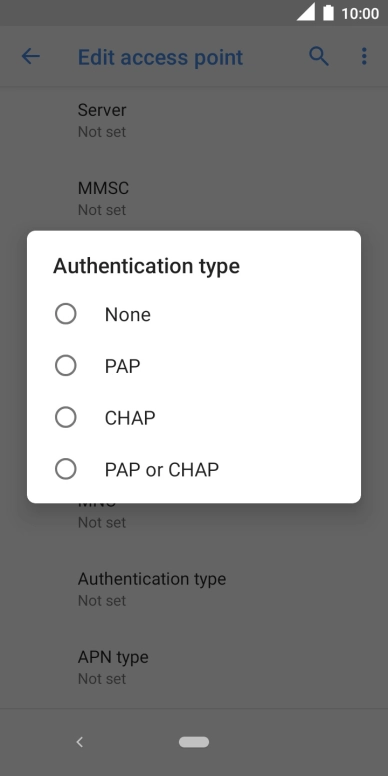

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-241b2346-0986-4dc7-afbc-994088711148.png?width=194&height=388)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-de98d086-9189-498d-9ce6-8160b5ec7221.png?width=194&height=388)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ada4f7a2-37b8-492f-b198-cbbeb8dc4321.png?width=194&height=388)

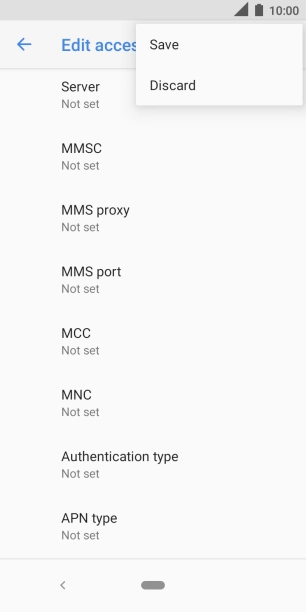

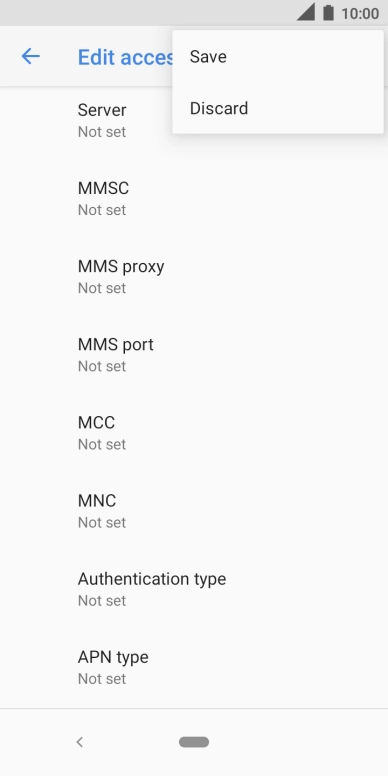

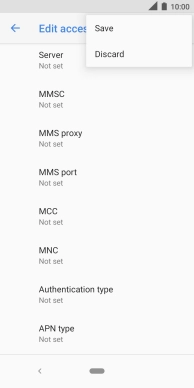

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9b25ab1a-6af1-4cbe-951a-b2bbc47dfae3.png?width=194&height=388)
12. Return to the home screen

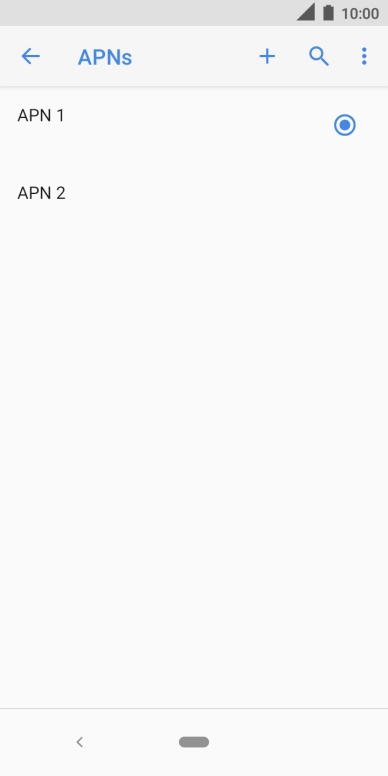

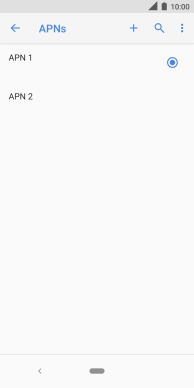

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8529af2e-fc2a-498a-827e-e3887c3de066.png?width=194&height=388)
