Nokia 2.4

Nokia 2.4

Android 10.0

I can't send and receive picture messages on my Nokia 2.4 Android 10.0

Cause 3 of 5: Your phone hasn't been set up for picture messaging correctly

To send and receive picture messages, your need to set up your phone correctly for picture messaging.

Solution: Set up your phone for picture messaging.

Step 1 of 28

Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 28

Find "Access point names"

Press the settings icon.

Step 3 of 28

Find "Access point names"

Press Network & Internet.

Step 4 of 28

Find "Access point names"

Press Mobile network.

Step 5 of 28

Find "Access point names"

Press Advanced.

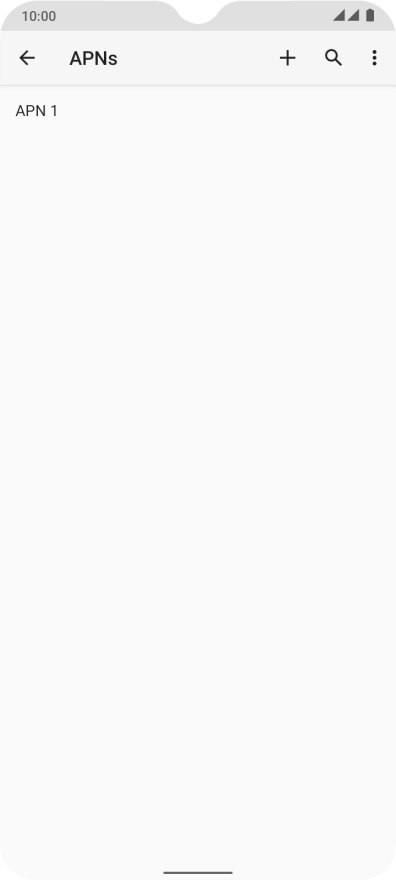

Step 6 of 28

Find "Access point names"

Press Access point names.

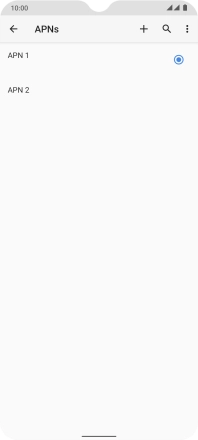

Step 7 of 28

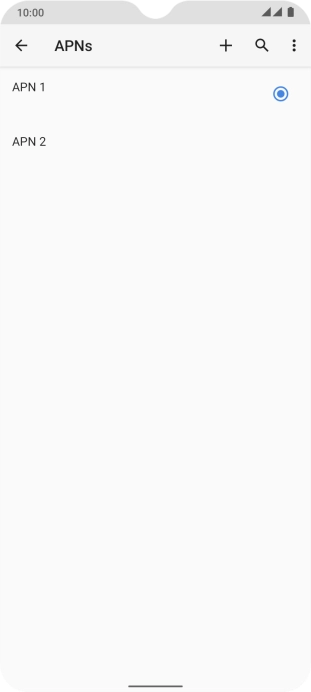

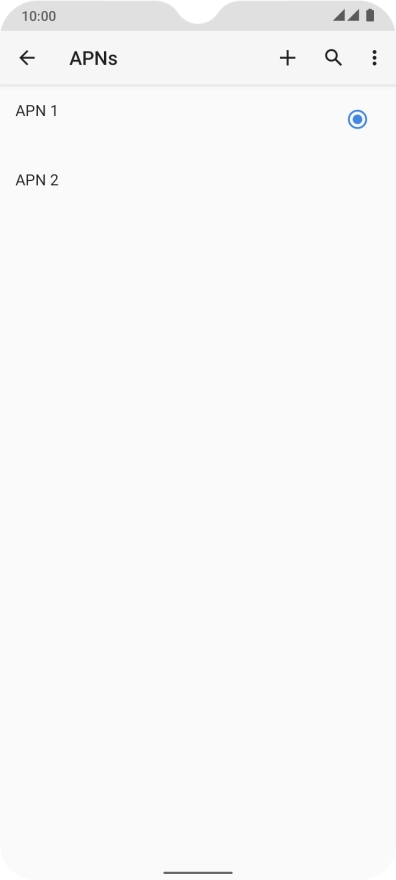

Create new data connection

Press the new data connection icon.

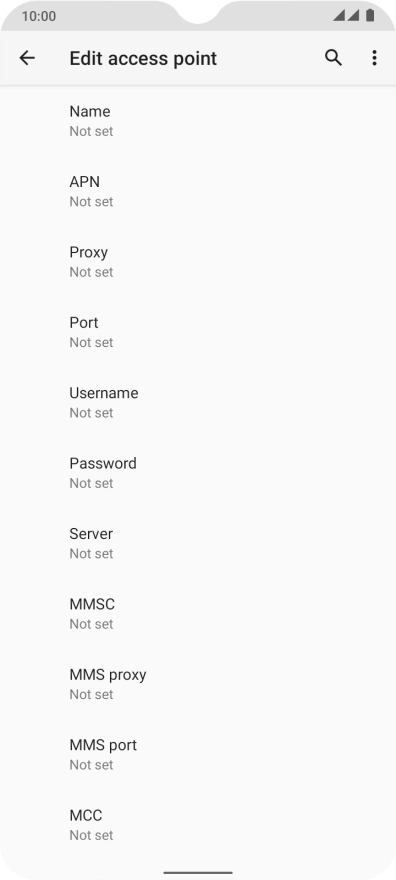

Step 8 of 28

Create new data connection

Press Name.

Vodafone MMS
Step 9 of 28

Create new data connection

Key in Vodafone MMS and press OK.

Step 10 of 28

Enter APN

Press APN.

mms.vodafone.net
Step 11 of 28

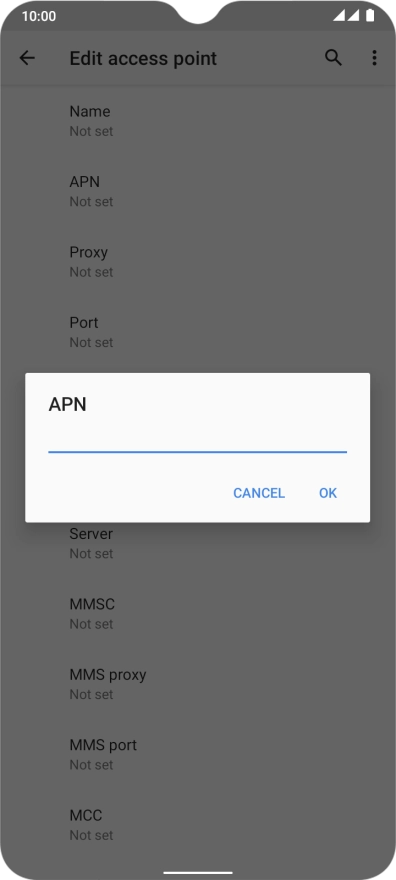

Enter APN

Key in mms.vodafone.net and press OK.

Step 12 of 28

Enter MMSC

Press MMSC.

http://www.vodafone.ie/mms
Step 13 of 28

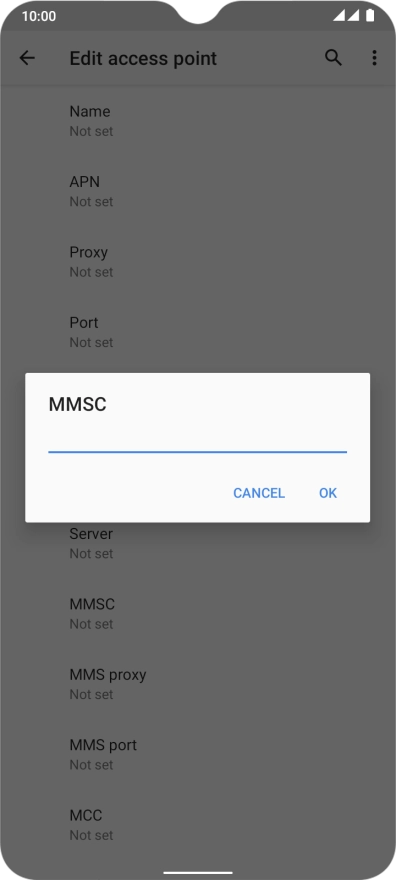

Enter MMSC

Key in http://www.vodafone.ie/mms and press OK.

Step 14 of 28

Enter IP address

Press MMS proxy.

10.24.59.200

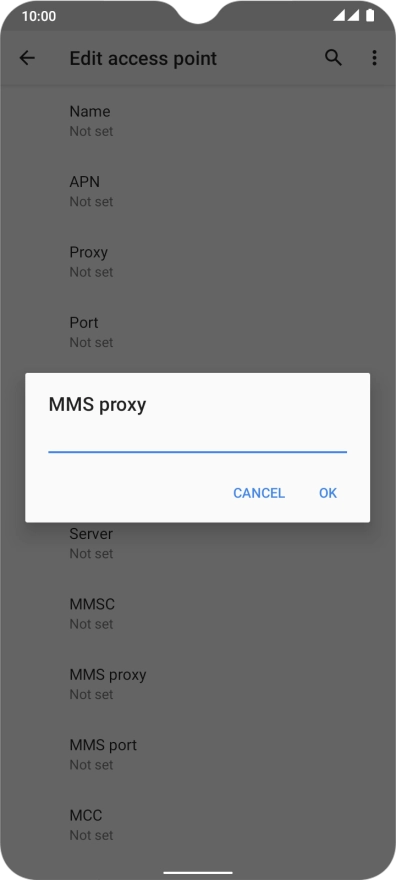

Step 15 of 28

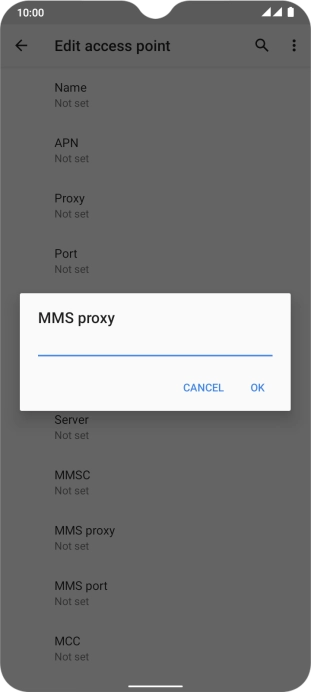

Enter IP address

Key in 10.24.59.200 and press OK.

Step 16 of 28

Enter port number

Press MMS port.

80

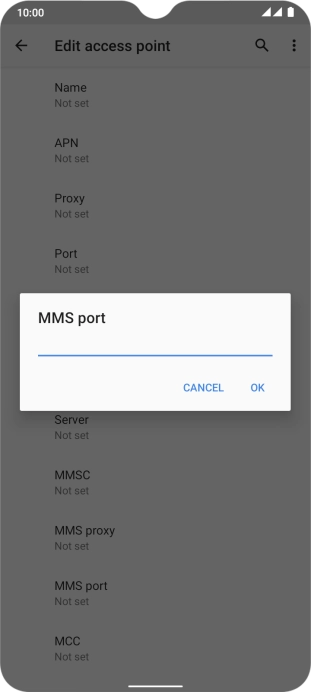

Step 17 of 28

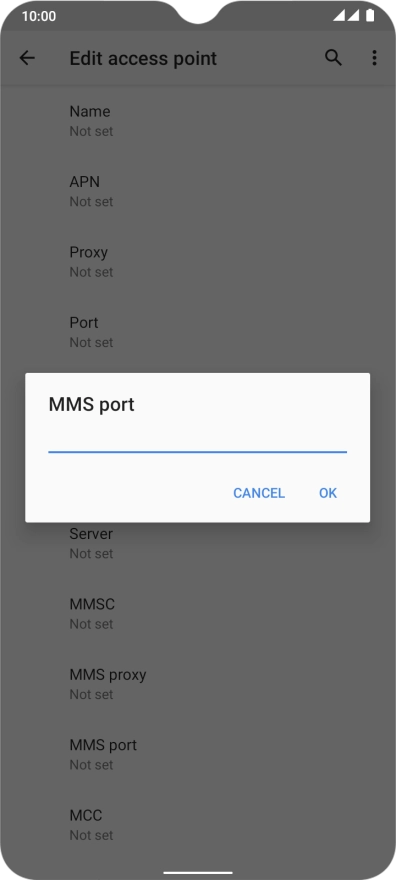

Enter port number

Key in 80 and press OK.

Step 18 of 28

Enter country code

Press MCC.

272

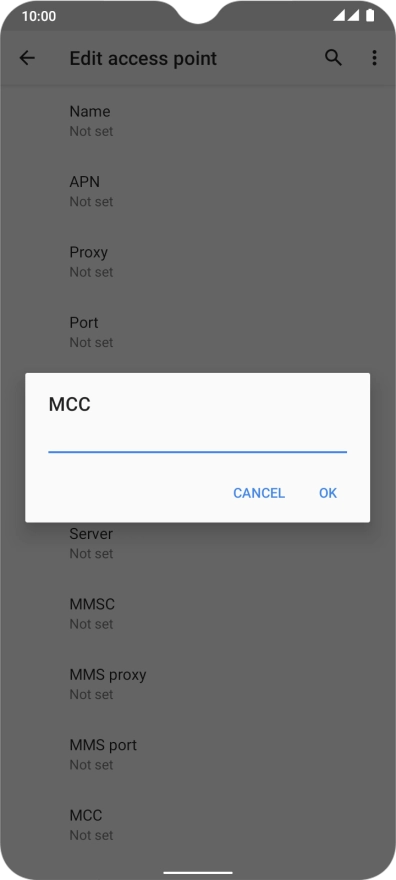

Step 19 of 28

Enter country code

Key in 272 and press OK.

Step 20 of 28

Enter network code

Press MNC.

01
Step 21 of 28

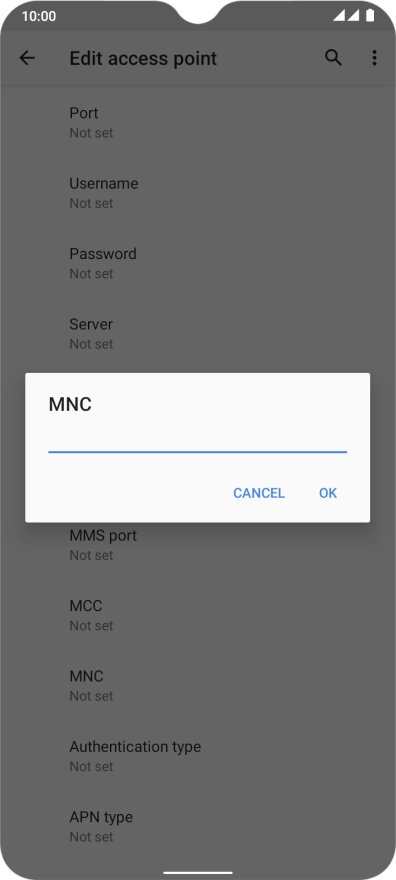

Enter network code

Key in 01 and press OK.

Step 22 of 28

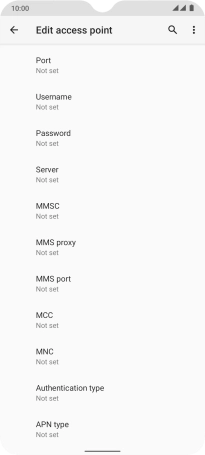

Select authentication type

Press Authentication type.

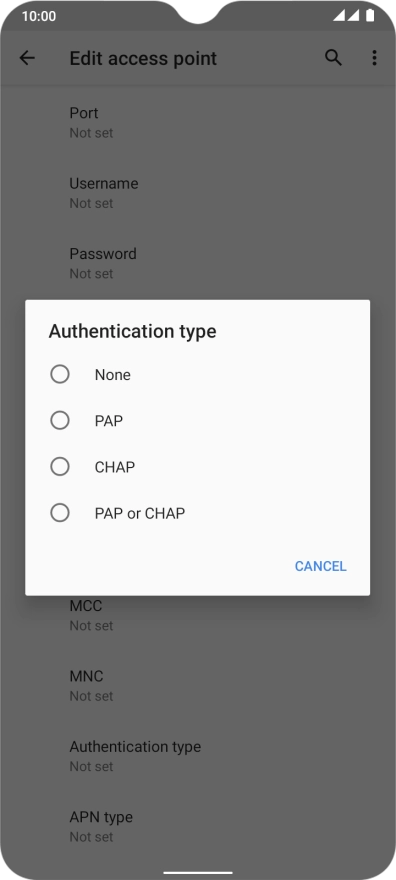

Step 23 of 28

Select authentication type

Press PAP.

Step 24 of 28

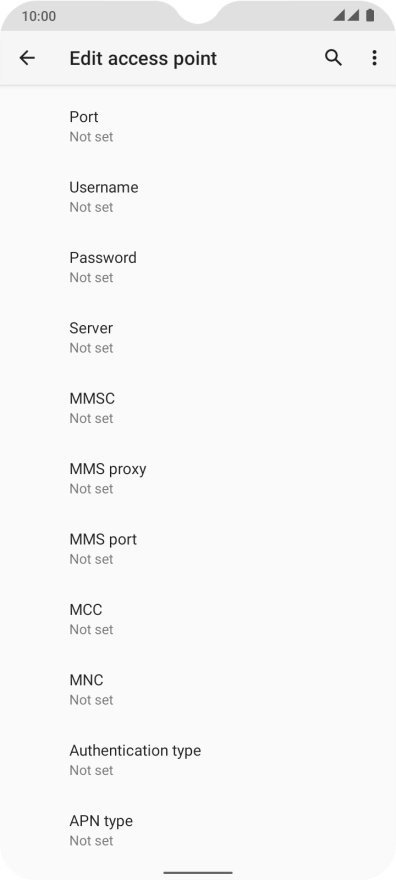

Enter APN type

Press APN type.

mms

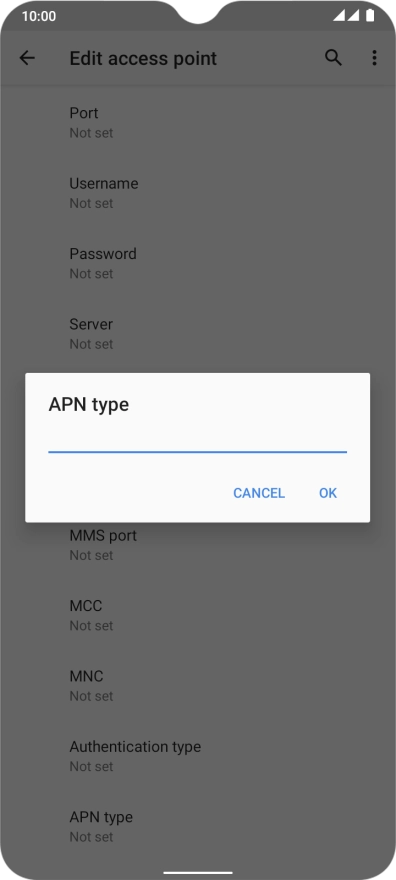

Step 25 of 28

Enter APN type

Key in mms and press OK.

Step 26 of 28

Save data connection

Press the menu icon.

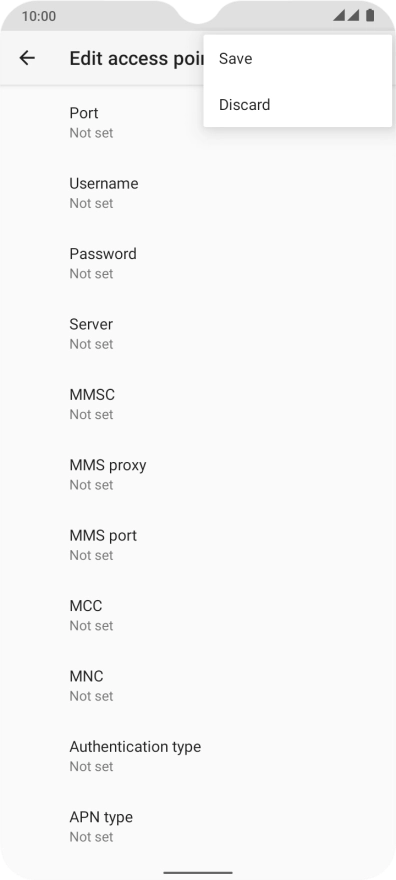

Step 27 of 28

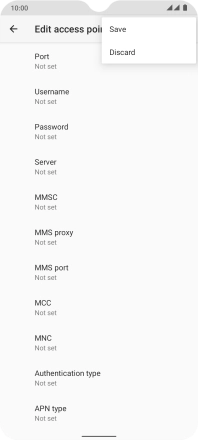

Save data connection

Press Save.

Step 28 of 28

Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1 Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Network & Internet.
Press Mobile network.
Press Advanced.
Press Access point names.

2 Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3 Enter APN

Press APN.
Key in mms.vodafone.net and press OK.
mms.vodafone.net

4 Enter MMSC

Press MMSC.
Key in http://www.vodafone.ie/mms and press OK.
http://www.vodafone.ie/mms

5 Enter IP address

Press MMS proxy.
Key in 10.24.59.200 and press OK.
10.24.59.200

6 Enter port number

Press MMS port.
Key in 80 and press OK.
80

7 Enter country code

Press MCC.
Key in 272 and press OK.
272

8 Enter network code

Press MNC.
Key in 01 and press OK.
01

9 Select authentication type

Press Authentication type.
Press PAP.

10 Enter APN type

Press APN type.
Key in mms and press OK.
mms

11 Save data connection

Press the menu icon.
Press Save.

12 Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

Did this solve the problem?

Yes - All solved No - Go to next cause
