1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ee9bc0a1-843c-46fa-9a48-5d569c4d9ed6.png?width=198&height=440)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e2f8b409-302a-44ba-952d-7a8c6ee04c88.png?width=198&height=440)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dac67cff-f632-4974-924c-9d0c1721cb88.png?width=198&height=440)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78ad1239-11f3-4994-b84f-06df0b7fe3d0.png?width=198&height=440)

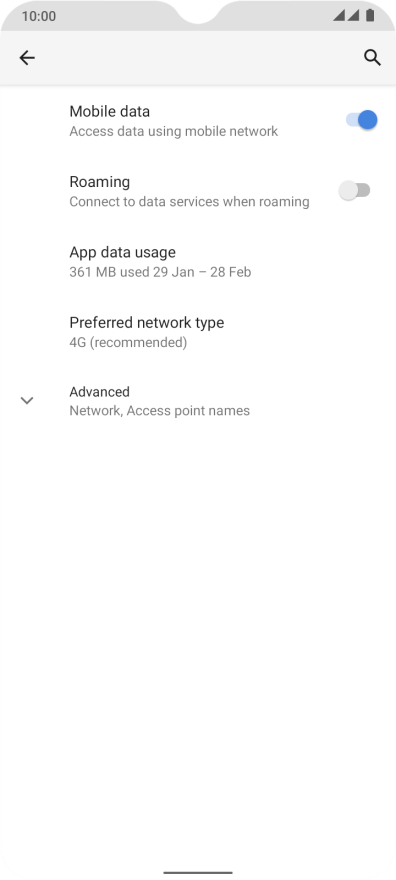

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fabf7a22-e2a4-4815-ade3-e6e9612a24b6.png?width=198&height=440)

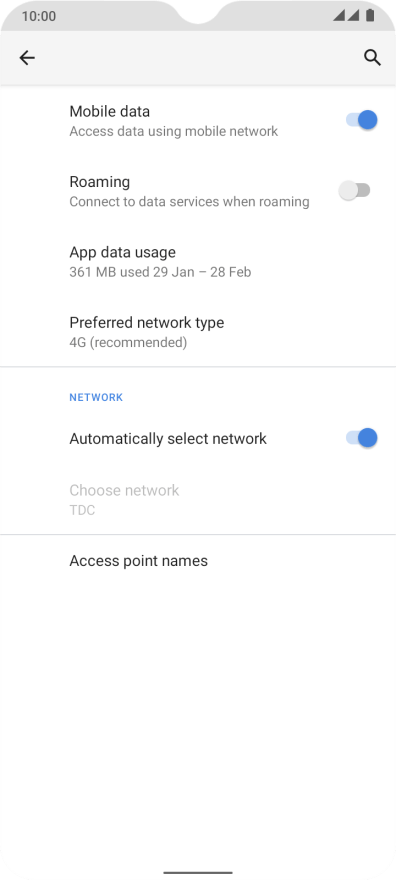

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-caa47e96-6e20-4f54-a505-adc4459a937d.png?width=198&height=440)
2. Create new data connection

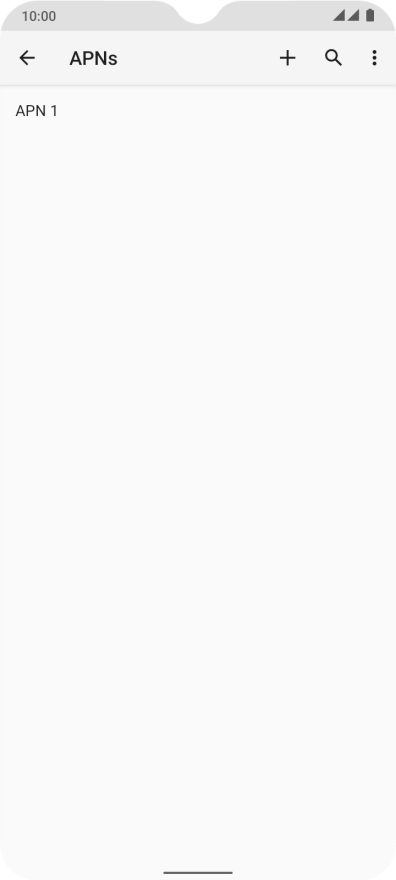

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3236efe3-28ae-4342-b1bf-b18567042d3e.png?width=198&height=440)

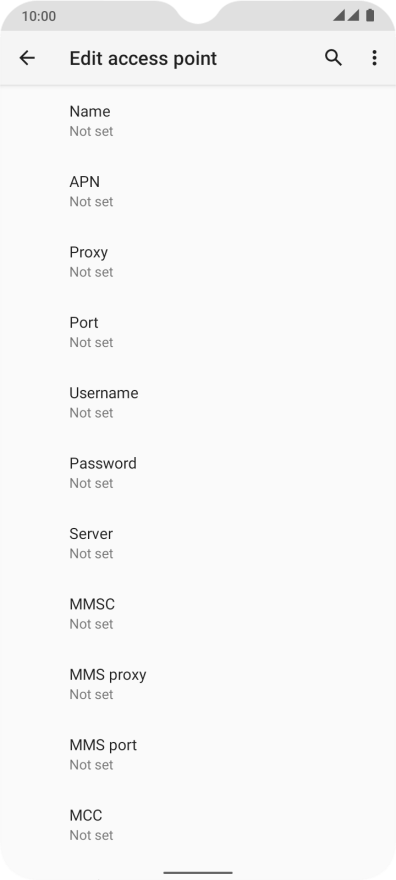

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-364ccee6-3182-4dc8-b899-7a24b36f27f6.png?width=198&height=440)

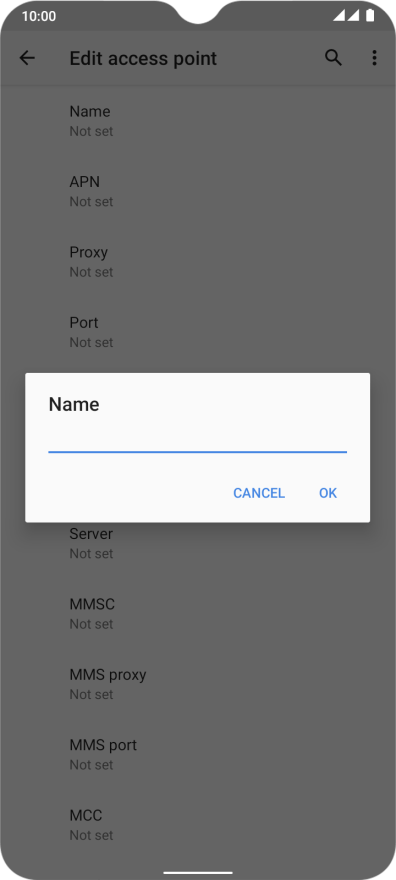

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1cf63060-c428-48d0-af51-c710ad5aa873.png?width=198&height=440)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-364ccee6-3182-4dc8-b899-7a24b36f27f6.png?width=198&height=440)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ff6505ed-517f-4eb5-9cba-28ed6cd5d4ce.png?width=198&height=440)
live.vodafone.com
4. Enter country code

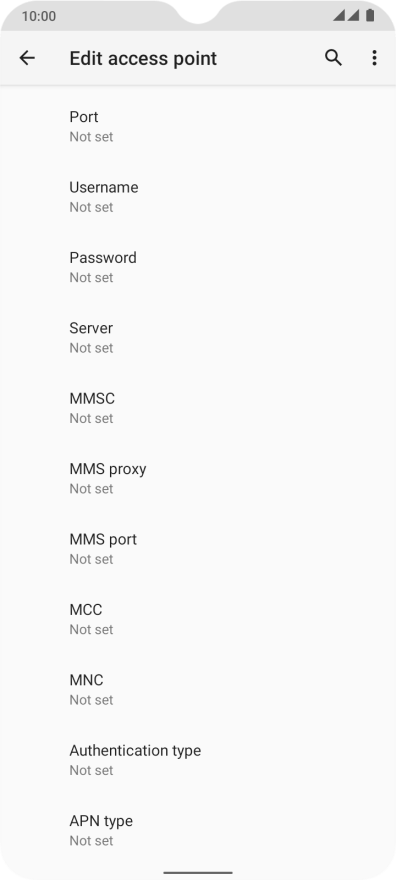

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d78a265-2c80-456f-9657-9646ba7f45ed.png?width=198&height=440)

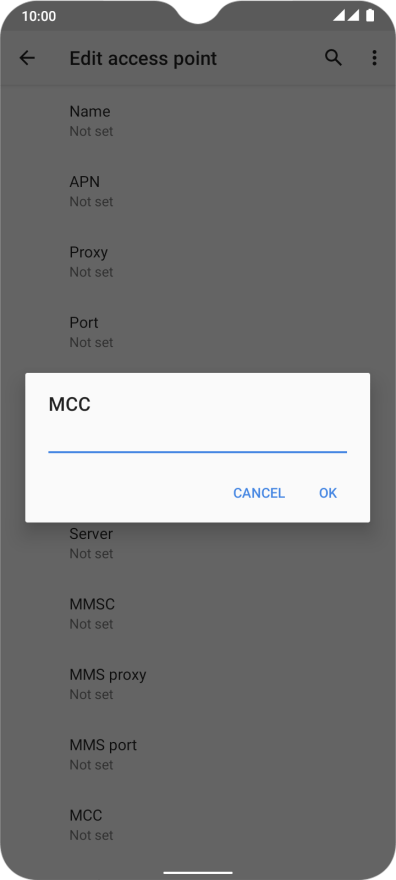

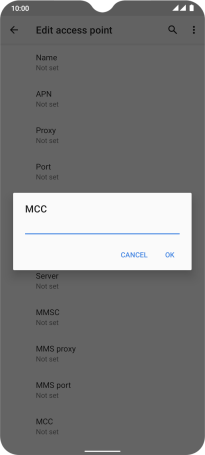

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4406a9c-7189-47c2-9f78-3aae3c19578e.png?width=198&height=440)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d78a265-2c80-456f-9657-9646ba7f45ed.png?width=198&height=440)

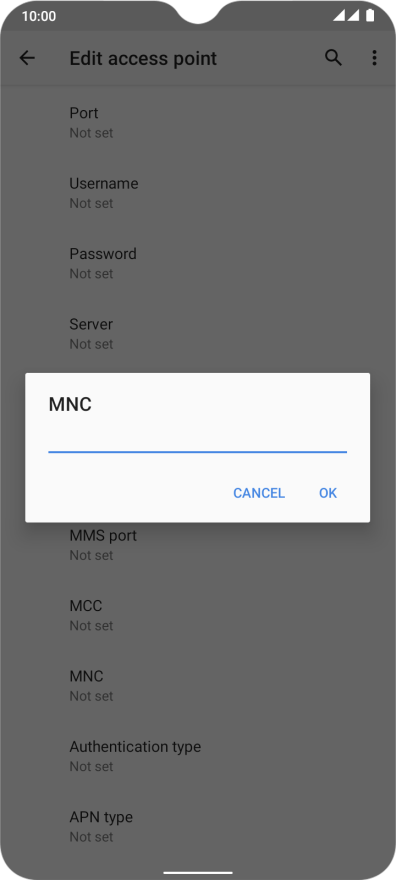

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f0fc3cee-e7e9-4221-b820-85fa61ba7322.png?width=198&height=440)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d78a265-2c80-456f-9657-9646ba7f45ed.png?width=198&height=440)

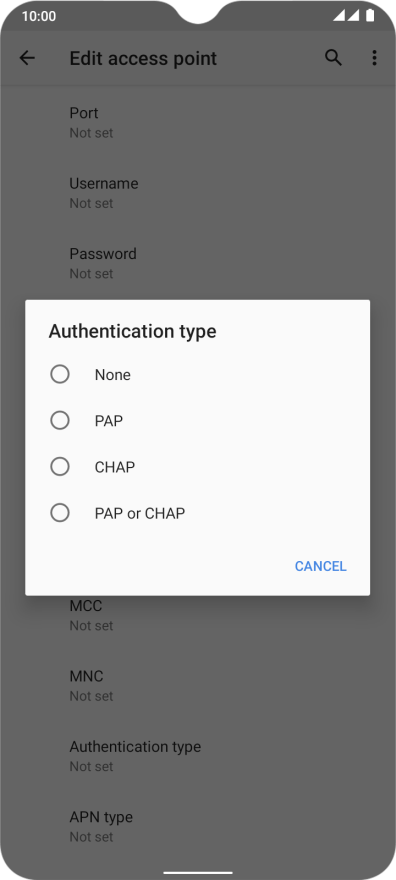

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b53b385e-5ca2-4e2f-b0d4-92b388a4dd1e.png?width=198&height=440)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d78a265-2c80-456f-9657-9646ba7f45ed.png?width=198&height=440)

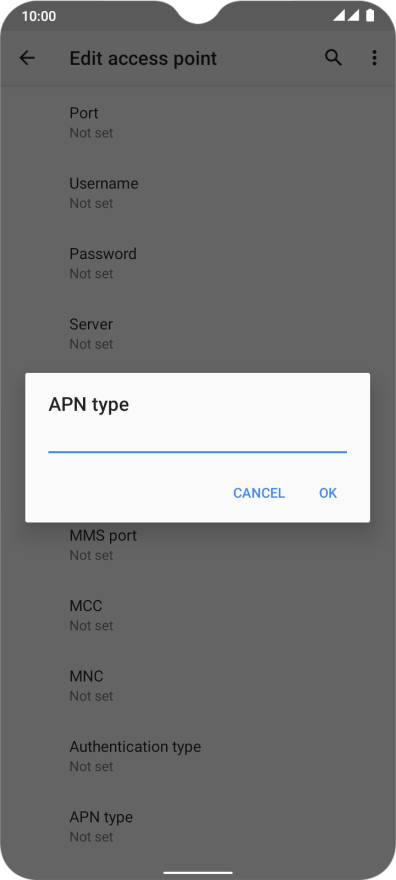

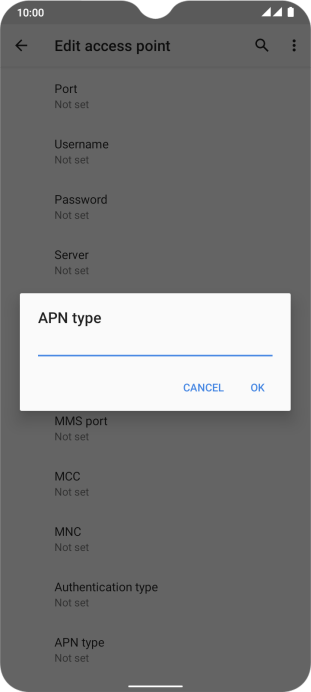

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ba1e2cc5-4587-46ea-9282-3b598e7dbd30.png?width=198&height=440)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4d78a265-2c80-456f-9657-9646ba7f45ed.png?width=198&height=440)

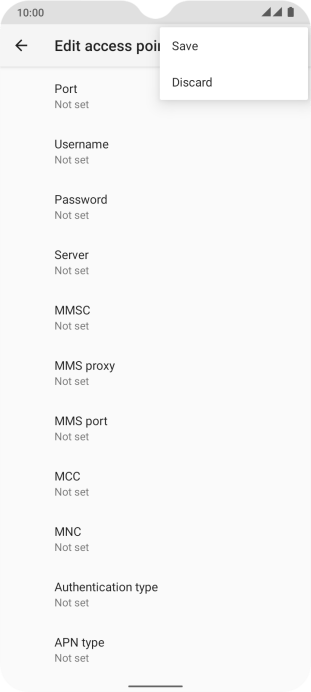

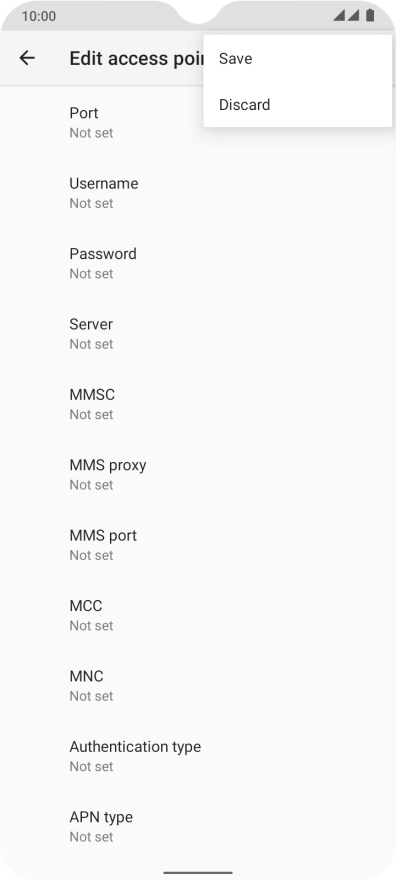

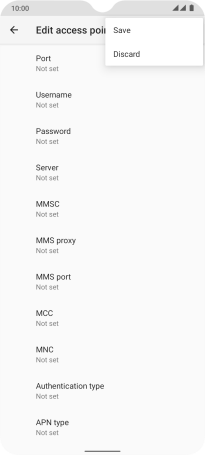

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b0b7b603-d307-4a76-9038-48df5200deda.png?width=198&height=440)

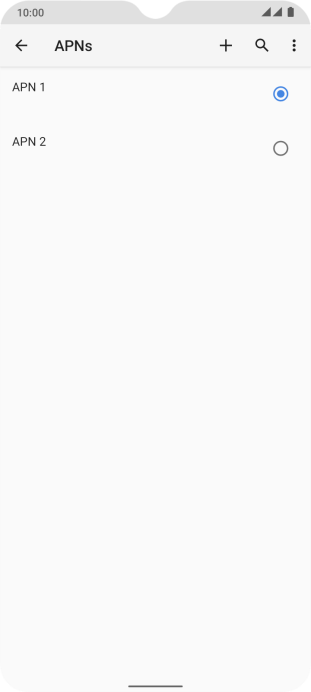

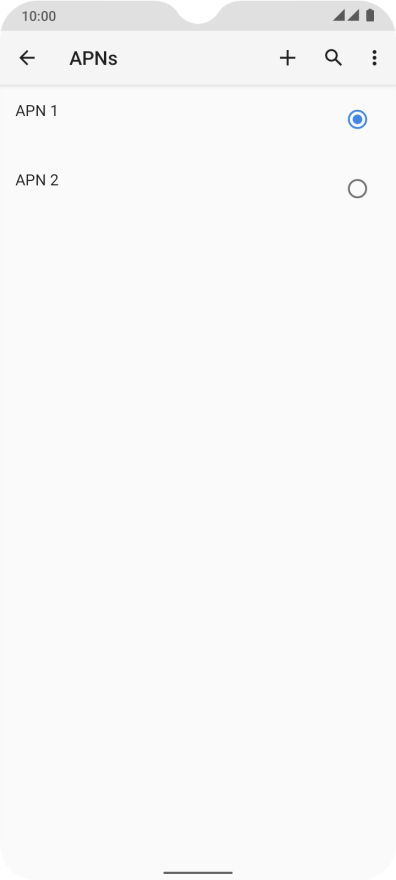

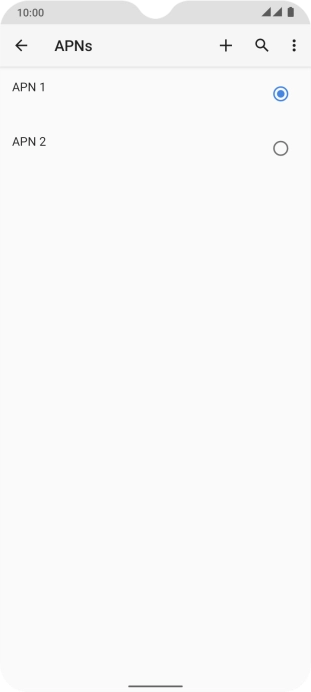

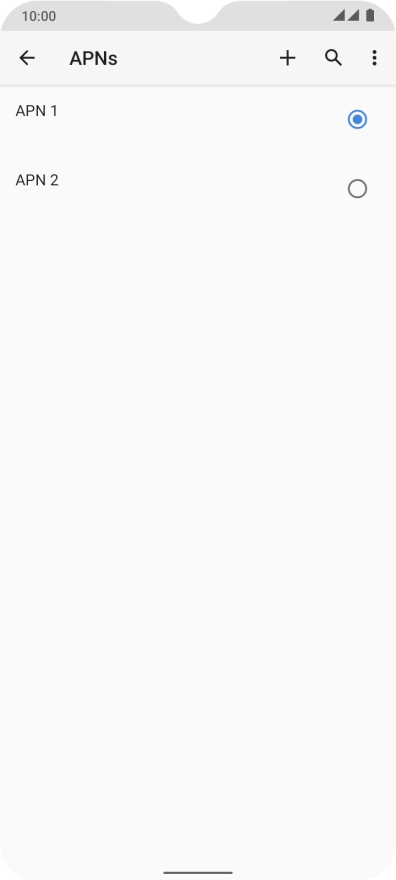

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69c9ebd5-acbf-4ba2-a7f0-ff2eddf94652.png?width=198&height=440)
9. Return to the home screen

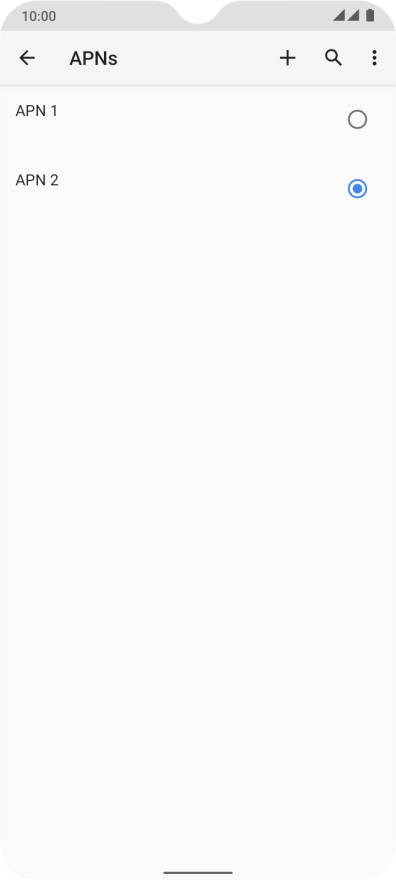

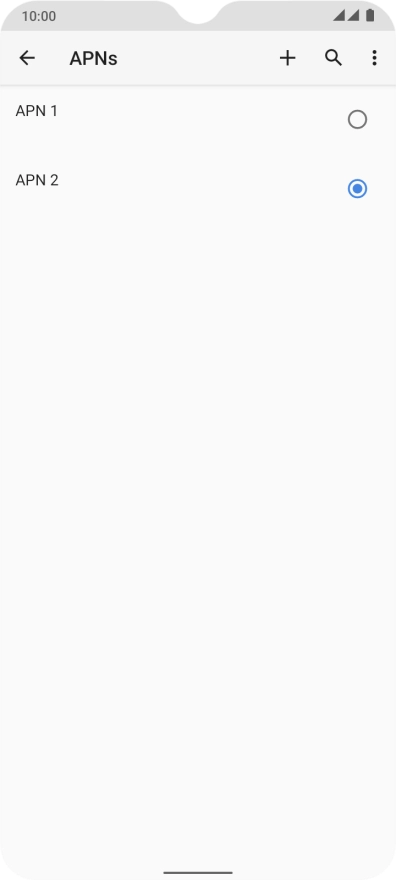

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9425e156-a9e9-4395-95fa-3c68137985e1.png?width=198&height=440)
