1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99a5aefd-723c-449c-bf49-40173841f468.png?width=206&height=412)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4db3e4f1-ec4f-4a95-8568-f783c96fe20a.png?width=206&height=412)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f788ea76-6c02-4f23-96c0-1dfd66a57020.png?width=206&height=412)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1490f08b-a079-4501-a24d-ce0d58d49127.png?width=206&height=412)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-41d054f7-0f2e-4951-9615-7b58dc4cea96.png?width=206&height=412)

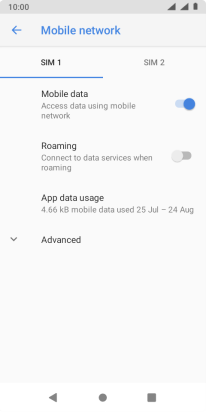

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-41d054f7-0f2e-4951-9615-7b58dc4cea96.png?width=206&height=412)

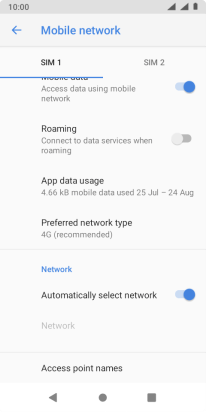

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-297cea5f-600e-4261-a362-86e1c5528af8.png?width=206&height=412)
2. Create new data connection

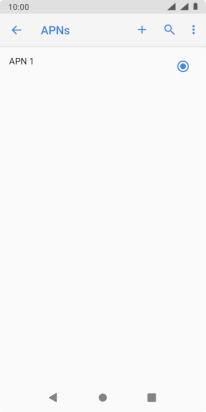

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-449d8e9e-ee22-45cf-9868-5da5aa6d4a9a.png?width=206&height=412)

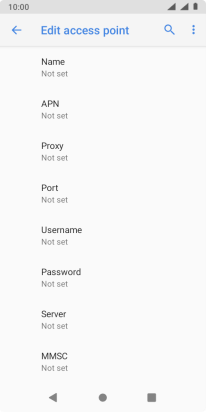

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ea7a047c-8879-4004-bf1c-d33884065026.png?width=206&height=412)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b007ef85-0daa-424a-bb19-b75aa027fdab.png?width=206&height=412)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ea7a047c-8879-4004-bf1c-d33884065026.png?width=206&height=412)

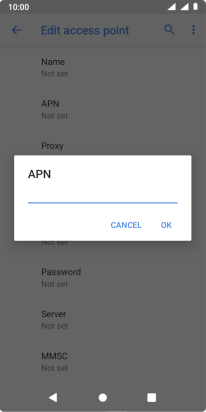

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a9c1f774-af63-4888-8405-57e89adc2387.png?width=206&height=412)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ea7a047c-8879-4004-bf1c-d33884065026.png?width=206&height=412)

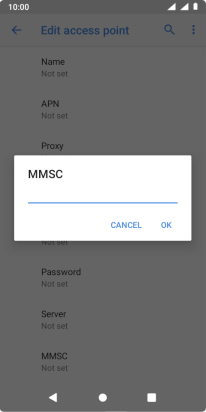

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c72c27e7-7cdd-4a5c-be91-1283c199c14b.png?width=206&height=412)
http://www.vodafone.ie/mms
5. Enter IP address

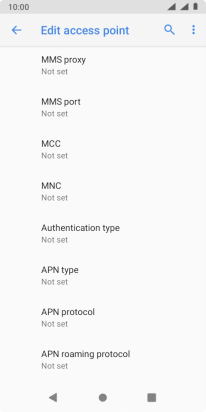

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

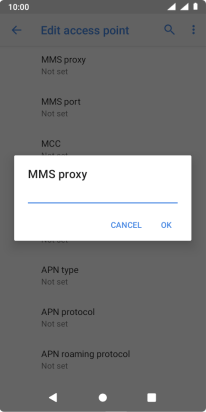

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89e9edd3-e047-4b7b-8a58-bd76b228f374.png?width=206&height=412)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

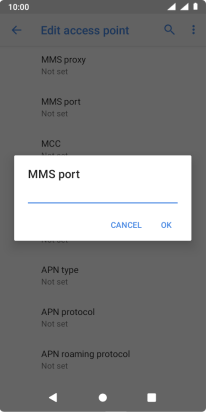

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-19131120-593a-4650-a061-e248691b847e.png?width=206&height=412)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

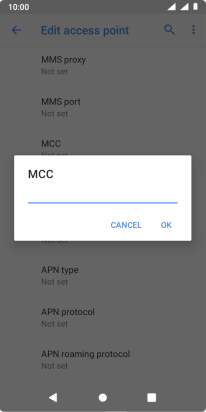

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8cf1778e-e66d-40da-bc4e-21a4fb31e998.png?width=206&height=412)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

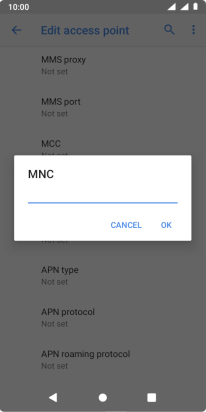

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6b7f4b15-898a-4ae1-b8c1-314a76e0fb3c.png?width=206&height=412)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

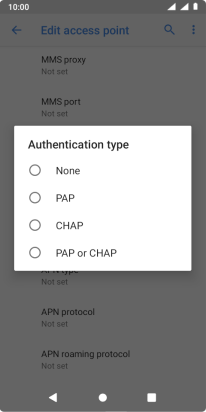

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ea3894e-06dd-411a-b15b-1f647f885bab.png?width=206&height=412)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-81860fbb-fbca-494a-afdb-e6e704cfbea0.png?width=206&height=412)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78fe5c81-017f-4797-8420-a58e66713b2f.png?width=206&height=412)

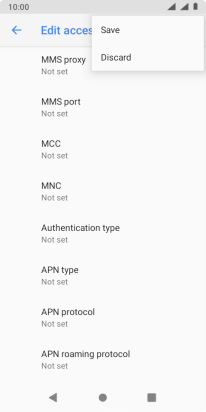

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cfd372e2-7bd4-4eee-92fd-75b14d61005f.png?width=206&height=412)
12. Return to the home screen

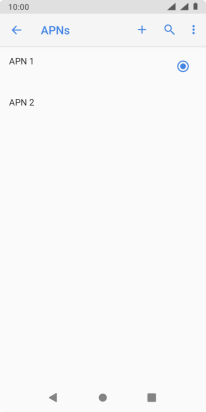

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4a13b35b-6f5e-4ccb-9c58-e1b70b184420.png?width=206&height=412)
