1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-80d3084c-dcfb-4cbd-8407-d84e16fb6a6e.png?width=204&height=430)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4db2b8ce-df66-4c50-8715-ec0fb3f9df74.png?width=204&height=430)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-86d9a3da-d1b3-4717-a082-bc4b542596e8.png?width=204&height=430)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b1266bf9-cce8-4bc5-acc9-6d73c34e61d9.png?width=204&height=430)
Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e859e421-05e0-4e7e-b74d-561e60ea8551.png?width=204&height=430)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e859e421-05e0-4e7e-b74d-561e60ea8551.png?width=204&height=430)

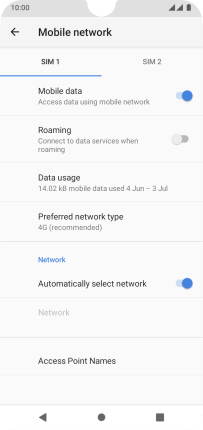

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99323e05-b516-404e-901c-fa8eb9403ec0.png?width=204&height=430)
2. Create new data connection

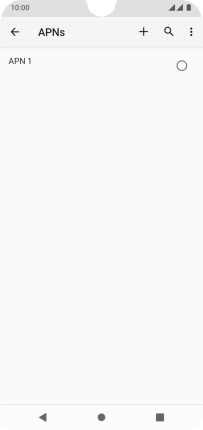

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f3408017-d1d5-45a0-a477-f7b0b9a1b537.png?width=204&height=430)

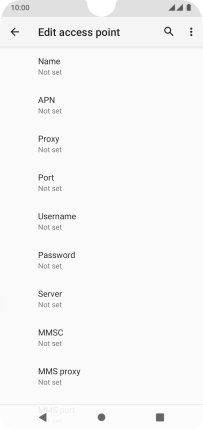

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-747d99de-1332-409a-9be7-a2e2dc0db9a1.png?width=204&height=430)

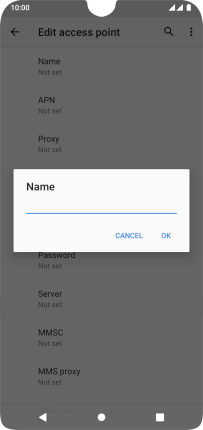

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-914ad581-10b2-42a0-961c-4579666a5999.png?width=204&height=430)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-747d99de-1332-409a-9be7-a2e2dc0db9a1.png?width=204&height=430)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-97b90d07-defc-43b7-9ed1-5032437025d5.png?width=204&height=430)
mms.vodafone.net
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-747d99de-1332-409a-9be7-a2e2dc0db9a1.png?width=204&height=430)

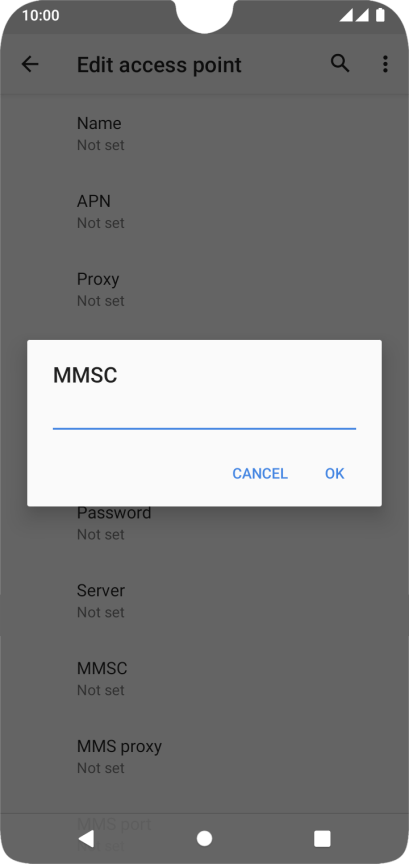

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-187eec07-7a85-4112-b324-bcf6df37a4ab.png?width=204&height=430)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-747d99de-1332-409a-9be7-a2e2dc0db9a1.png?width=204&height=430)

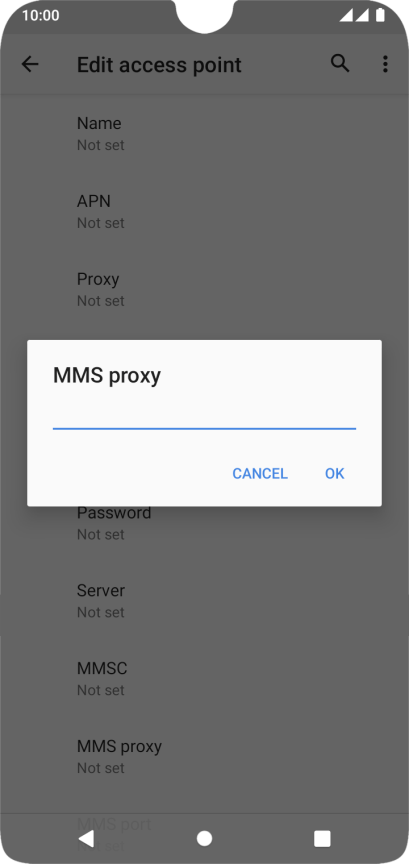

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ae96a343-6288-47b1-8d09-7c7944e591d9.png?width=204&height=430)
10.24.59.200
6. Enter port number

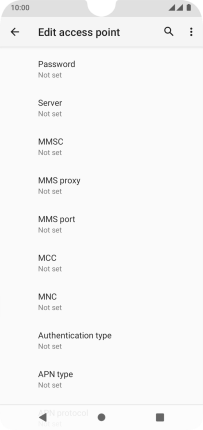

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0cfa8a7b-47b5-4456-baf0-440d2b3e934f.png?width=204&height=430)

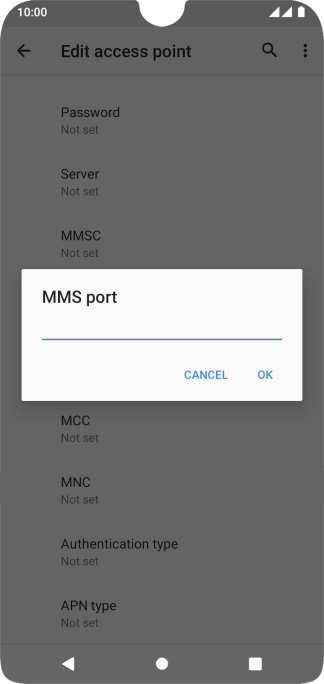

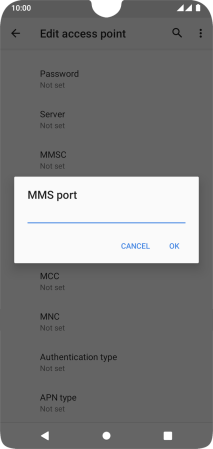

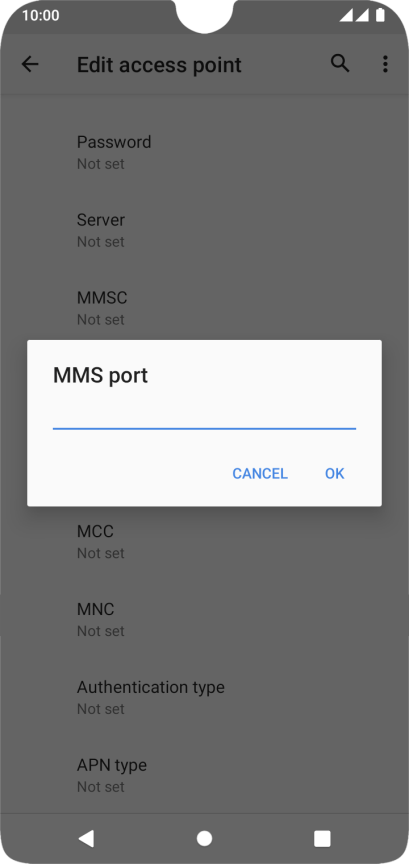

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f5c45f28-1f6f-410d-b15b-4754b9f6ef9d.png?width=204&height=430)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0cfa8a7b-47b5-4456-baf0-440d2b3e934f.png?width=204&height=430)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7b7e395e-6ca6-4fda-a21c-c54d9da44eba.png?width=204&height=430)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0cfa8a7b-47b5-4456-baf0-440d2b3e934f.png?width=204&height=430)

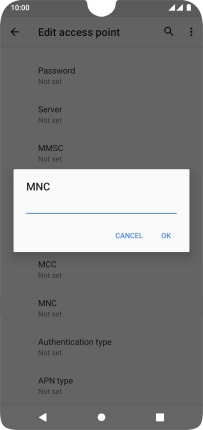

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-59a443a8-1ec6-40c9-8cd0-4ad72b711e8b.png?width=204&height=430)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0cfa8a7b-47b5-4456-baf0-440d2b3e934f.png?width=204&height=430)

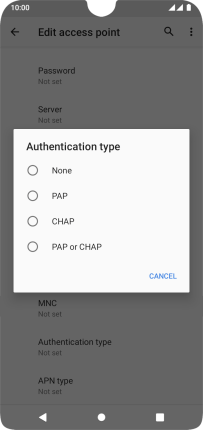

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-15c3fe7e-2e0b-43c3-ab64-45852f64b7b6.png?width=204&height=430)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0cfa8a7b-47b5-4456-baf0-440d2b3e934f.png?width=204&height=430)

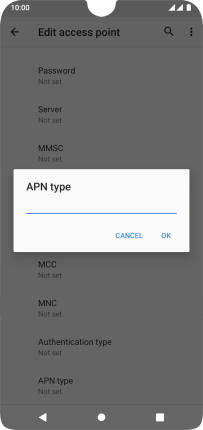

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-13bdd9f5-232a-4d3d-b984-f0eb9e8cf752.png?width=204&height=430)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0cfa8a7b-47b5-4456-baf0-440d2b3e934f.png?width=204&height=430)

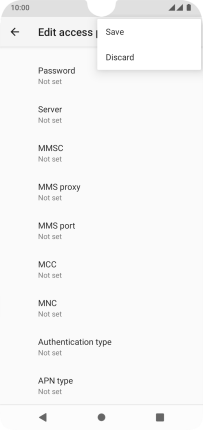

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f10d7af5-1c35-41d0-a5d8-f7327bebc0ff.png?width=204&height=430)
12. Return to the home screen

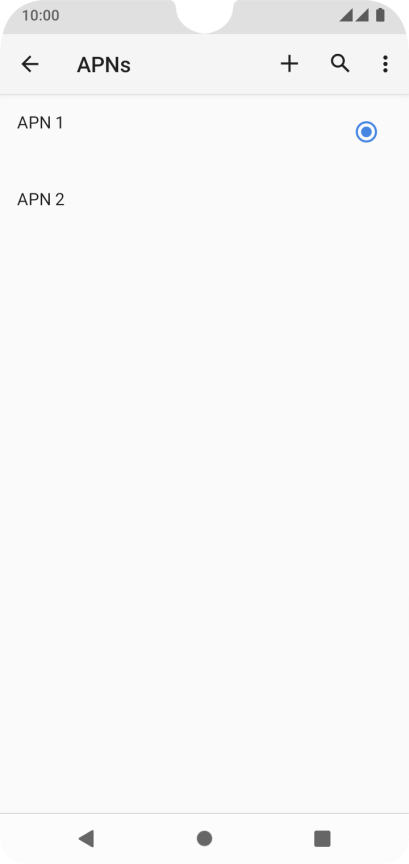

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-55ecd17b-ef5d-42a8-91cd-cdb5e2695fe6.png?width=204&height=430)
