Microsoft Lumia 950 XL

Microsoft Lumia 950 XL

Windows Phone 10.0

Set up your Microsoft Lumia 950 XL Windows Phone 10.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 14

1. Find "SIM settings"

Slide your finger downwards starting from the top of the screen.

Step 2 of 14

1. Find "SIM settings"

Press All settings.

Step 3 of 14

1. Find "SIM settings"

Press Network & wireless.

Step 4 of 14

1. Find "SIM settings"

Press Mobile & SIM.

Step 5 of 14

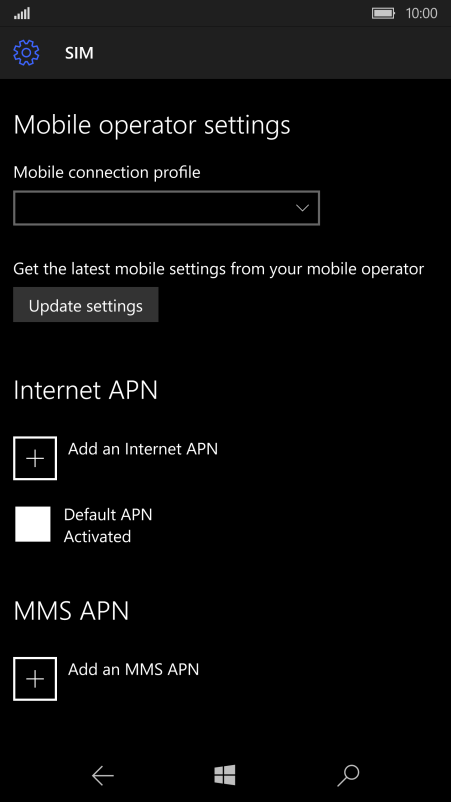

1. Find "SIM settings"

Press SIM settings.

Step 6 of 14

2. Enter APN

Press Add an Internet APN to turn on the function.

live.vodafone.com
Step 7 of 14

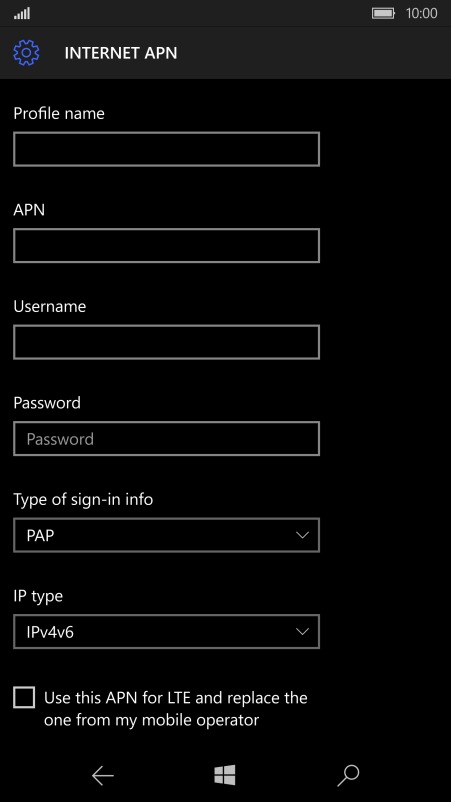

2. Enter APN

Press the field below "APN" and key in live.vodafone.com.

Step 8 of 14

3. Select authentication type

Press the drop down list below "Type of sign-in info".

Step 9 of 14

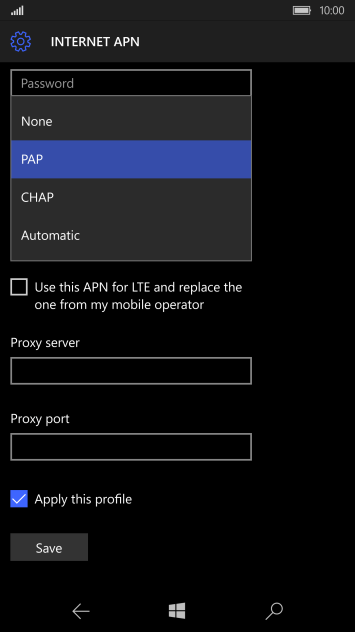

3. Select authentication type

Press PAP.

10.24.59.100
Step 10 of 14

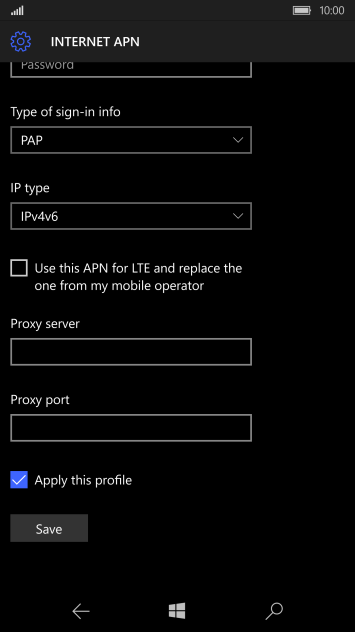

4. Enter IP address

Press the field below "Proxy server" and key in 10.24.59.100.

80
Step 11 of 14

5. Enter port number

Press the field below "Proxy port" and key in 80.

Step 12 of 14

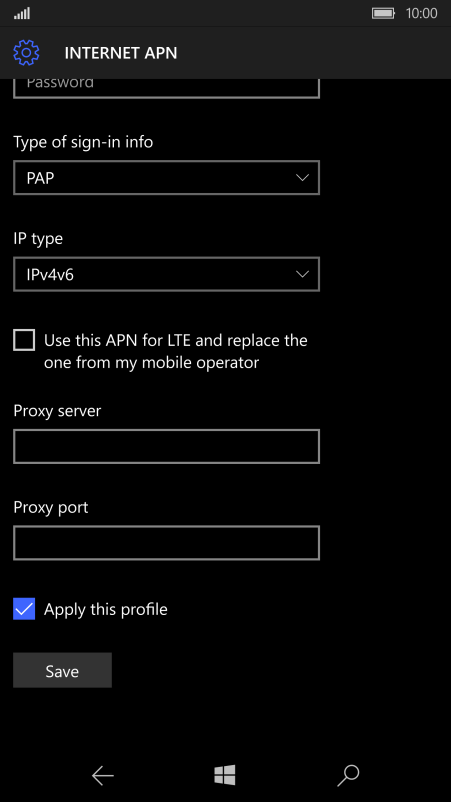

6. Save data connection

Press Save.

Step 13 of 14

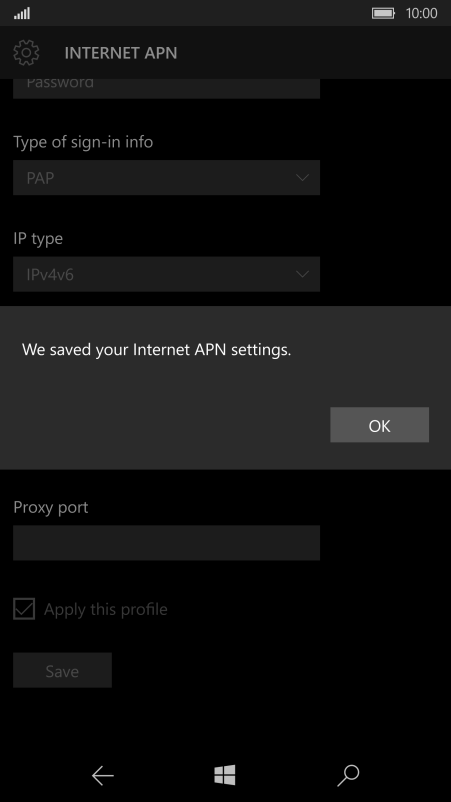

6. Save data connection

Press OK.

Step 14 of 14

7. Return to the home screen

Press the Home key to return to the home screen.

1. Find "SIM settings"

Slide your finger downwards starting from the top of the screen.
Press All settings.
Press Network & wireless.
Press Mobile & SIM.
Press SIM settings.

2. Enter APN

Press Add an Internet APN to turn on the function.
Press the field below "APN" and key in live.vodafone.com.
live.vodafone.com

3. Select authentication type

Press the drop down list below "Type of sign-in info".
Press PAP.

4. Enter IP address

Press the field below "Proxy server" and key in 10.24.59.100.
10.24.59.100

5. Enter port number

Press the field below "Proxy port" and key in 80.
80

6. Save data connection

Press Save.
Press OK.

7. Return to the home screen

Press the Home key to return to the home screen.
