1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-38f7d0e5-5847-446b-87de-e38d17b8ea8e.png?width=206&height=366)
Press All.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-df9b06cd-cf56-488e-8f61-c4760a967663.png?width=206&height=366)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5434acbe-5dd4-4d5c-ac9a-fb6dec2f531c.png?width=206&height=366)

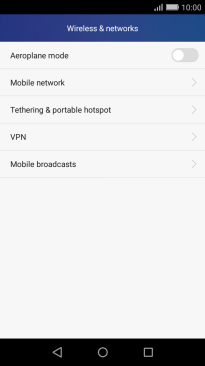

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-12f2d214-152d-47f0-81f4-ec32ab636703.png?width=206&height=366)

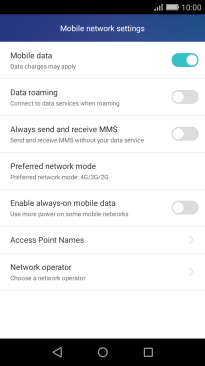

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-69d80b76-1fba-4fea-ba89-84ef82db52f3.png?width=206&height=366)
2. Create new data connection

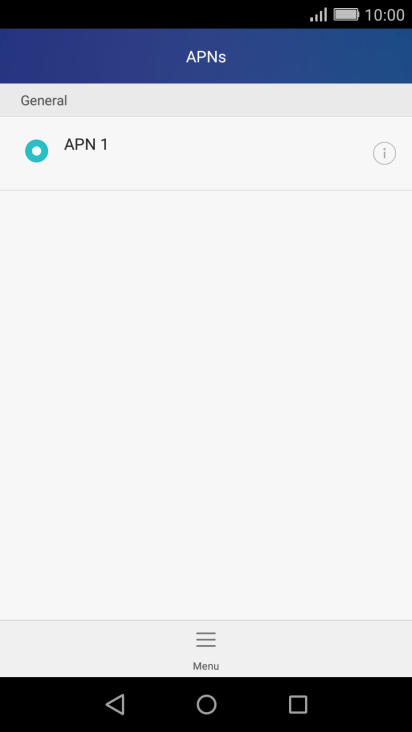

Press Menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-47044427-86a2-4b1e-9e7f-81c1d8df31bd.png?width=206&height=366)

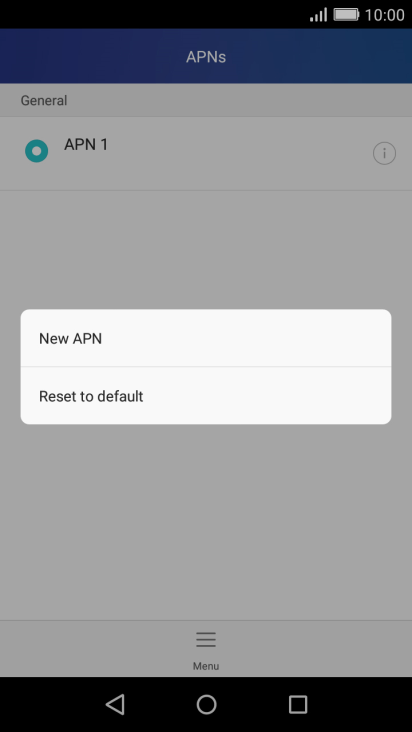

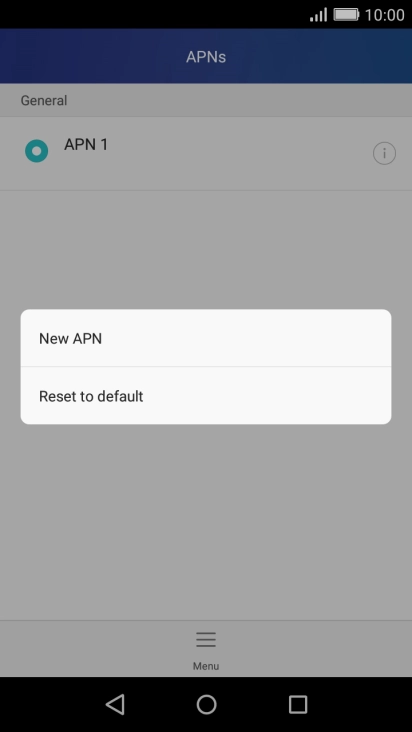

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-808f2f52-ae00-466b-afe6-e9b8b02bec3c.png?width=206&height=366)

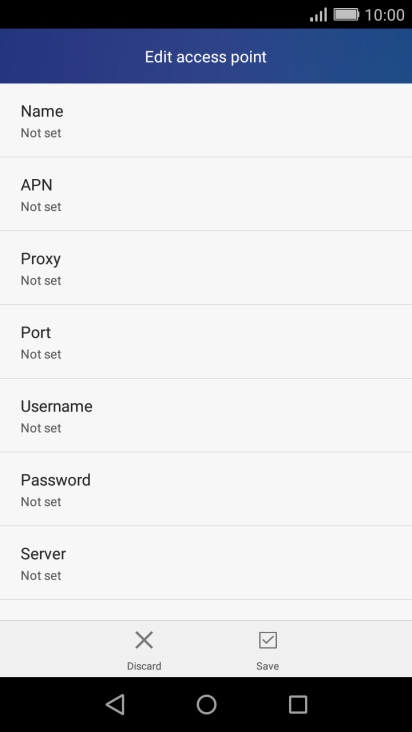

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49a1b559-a59b-4b48-b968-8b0c7a6df3dc.png?width=206&height=366)

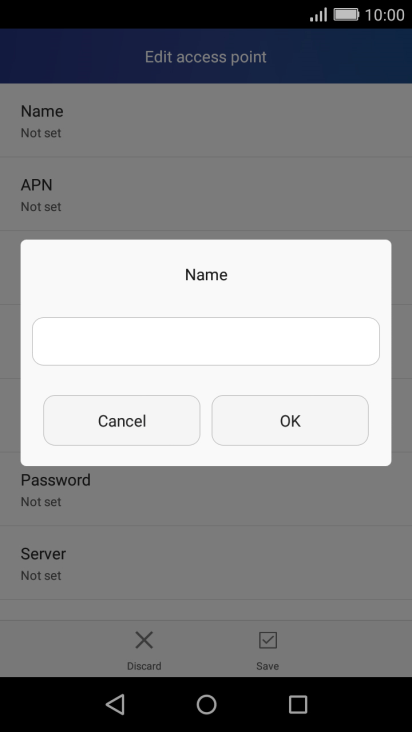

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-776dace5-0d26-4098-bce2-858f6cdf41c0.png?width=206&height=366)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-49a1b559-a59b-4b48-b968-8b0c7a6df3dc.png?width=206&height=366)
Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e0c73d25-4612-4fcd-b996-67a6c08bc0bc.png?width=206&height=366)
mms.vodafone.net
4. Enter MMSC

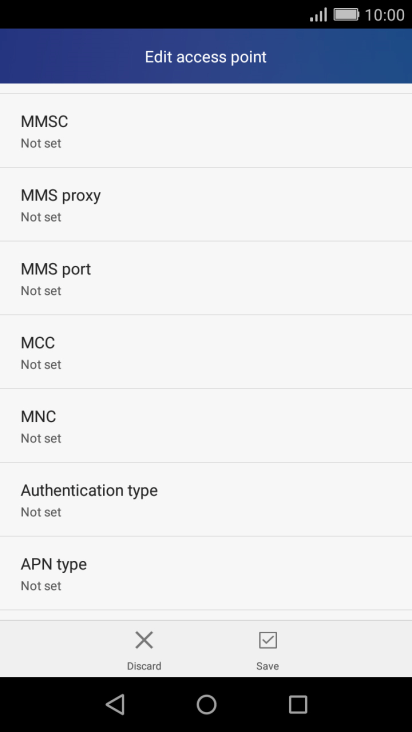

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-181eb7e6-203a-44eb-bbd9-c9addd3f0dbc.png?width=206&height=366)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)

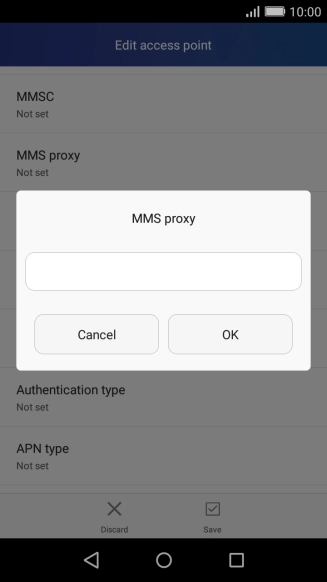

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c57e755-a40d-4932-8f2d-286c380b9daf.png?width=206&height=366)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0b7ea2d0-cf07-4d15-92f1-00c389468be6.png?width=206&height=366)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ce2c1ad4-4e1a-4ff3-95f4-fa505277b11e.png?width=206&height=366)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c54c4720-093d-406f-9f30-fa281be73150.png?width=206&height=366)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)

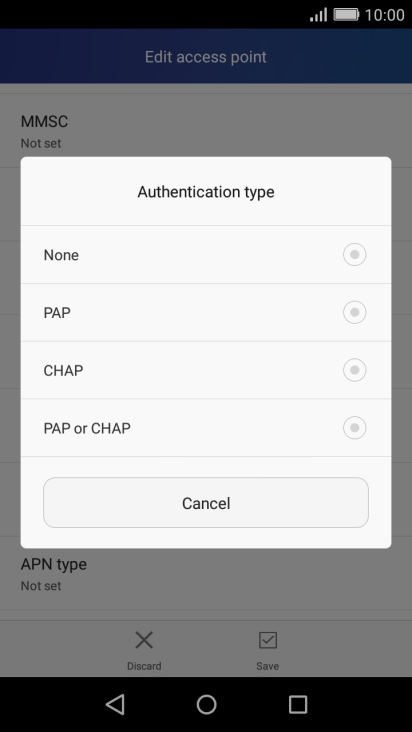

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1294a00f-bb52-4730-94f1-86d36b1a5932.png?width=206&height=366)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)

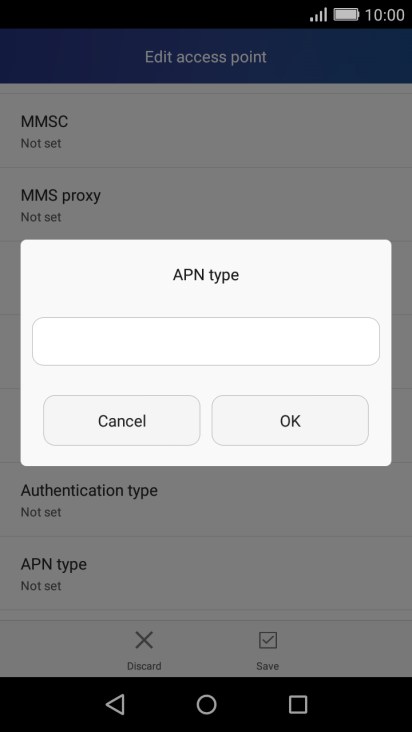

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bdeb01ab-62f4-4f8e-affd-ee030c3499f5.png?width=206&height=366)
mms
11. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22739d15-3f5f-42b6-8f0c-28139c19da67.png?width=206&height=366)
12. Return to the home screen

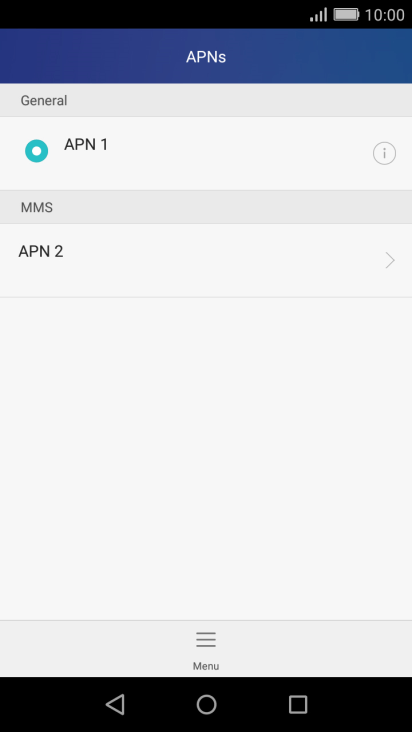

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d4e4e090-5736-4871-8872-2c4062354c37.png?width=206&height=366)
