1. Find "Access Point Names"

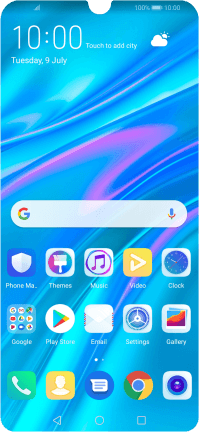

Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-575a1223-a6b7-48ab-9a4b-21189040fd4a.png?width=200&height=432)

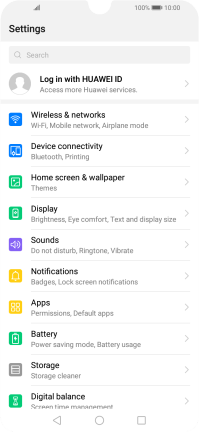

Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6209cf7a-eae0-4dbc-ac7e-cc4b881d2d14.png?width=200&height=432)

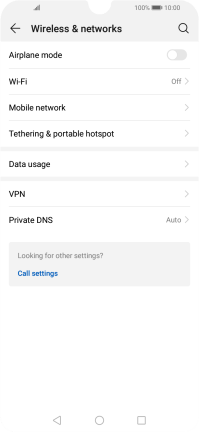

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fc25bc13-d064-4c96-a526-7bd403e247d0.png?width=200&height=432)

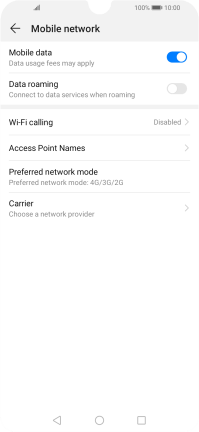

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f99f8575-023e-4eec-a35d-0fbb2a1d46be.png?width=200&height=432)
2. Create new data connection

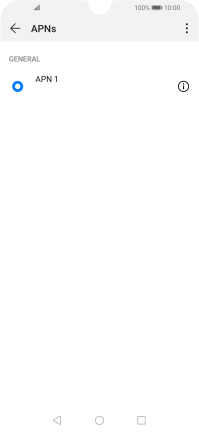

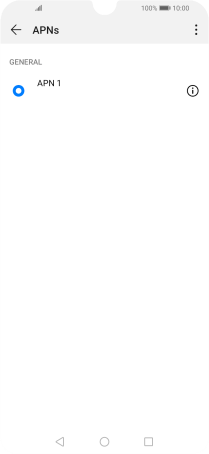

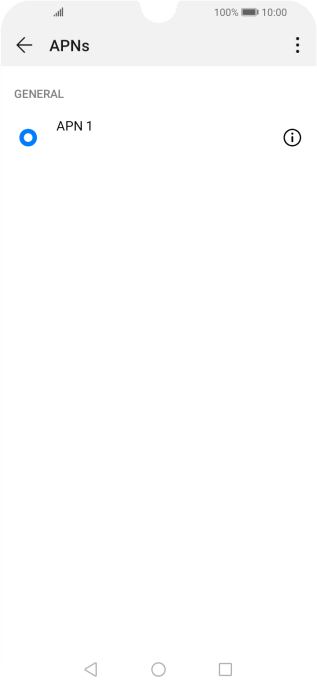

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3ec58169-5ee8-48b4-9ef8-89e12cc87b65.png?width=200&height=432)

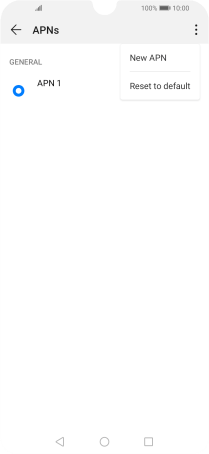

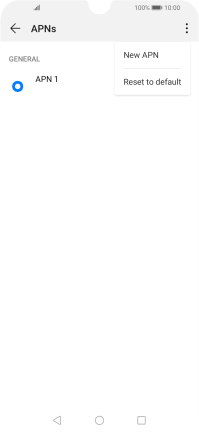

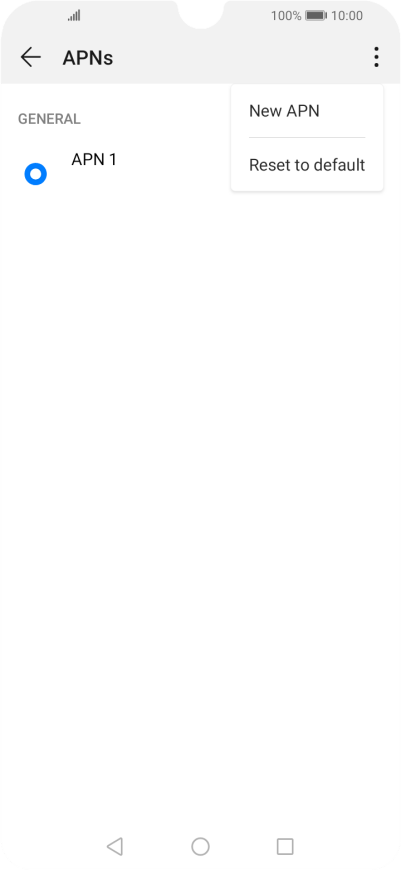

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57229abf-6f68-401b-9fe5-c3fdc783ddbb.png?width=200&height=432)
3. Enter a name for the connection

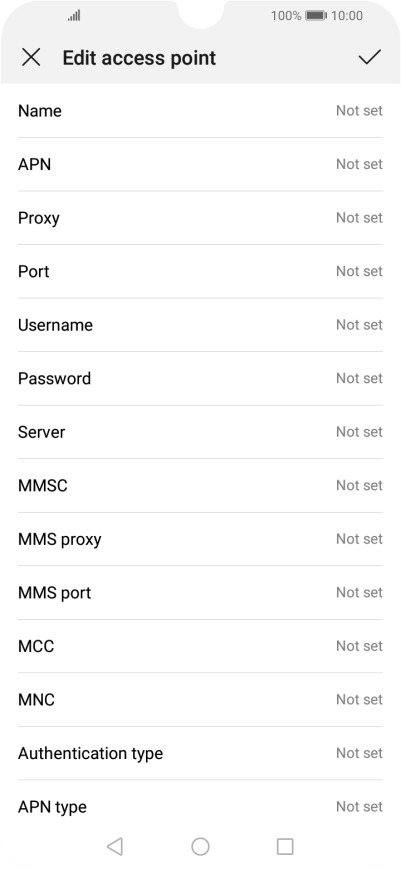

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0997b442-aaba-4e33-b12d-98682a166e11.png?width=200&height=432)

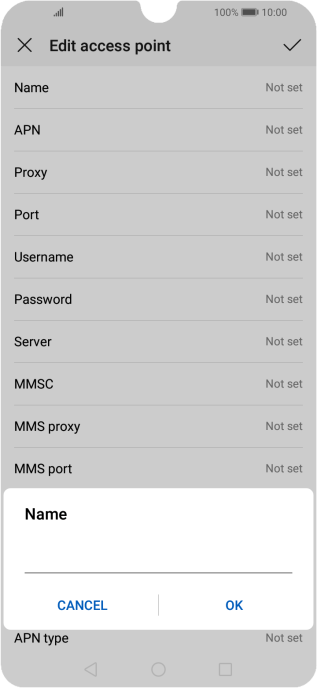

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b015e5ae-5c3a-4a53-9e7a-c2583d75920a.png?width=200&height=432)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0997b442-aaba-4e33-b12d-98682a166e11.png?width=200&height=432)

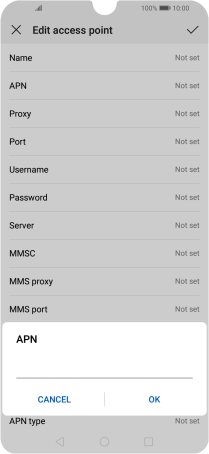

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5a21cf7d-3cbc-4259-bf1d-d9272d590b07.png?width=200&height=432)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0997b442-aaba-4e33-b12d-98682a166e11.png?width=200&height=432)

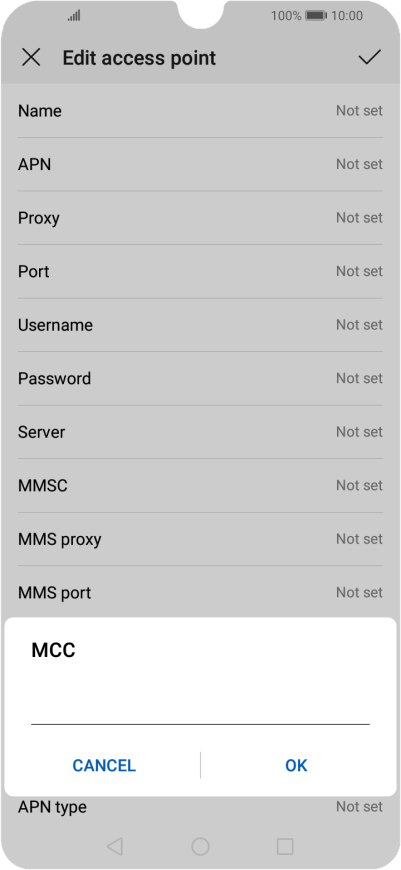

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1e76b2f8-742b-4c3c-820e-3ee2addcefb2.png?width=200&height=432)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0997b442-aaba-4e33-b12d-98682a166e11.png?width=200&height=432)

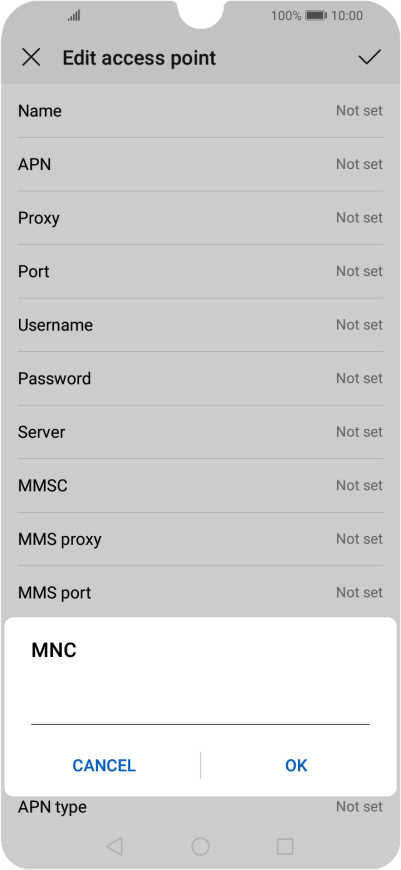

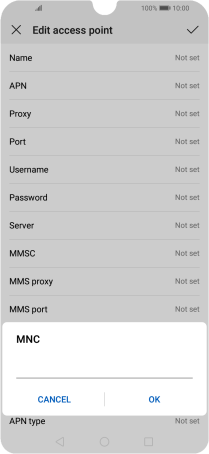

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b3e5a2a4-9e0c-4024-b1bb-fd18a65bc6b7.png?width=200&height=432)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0997b442-aaba-4e33-b12d-98682a166e11.png?width=200&height=432)

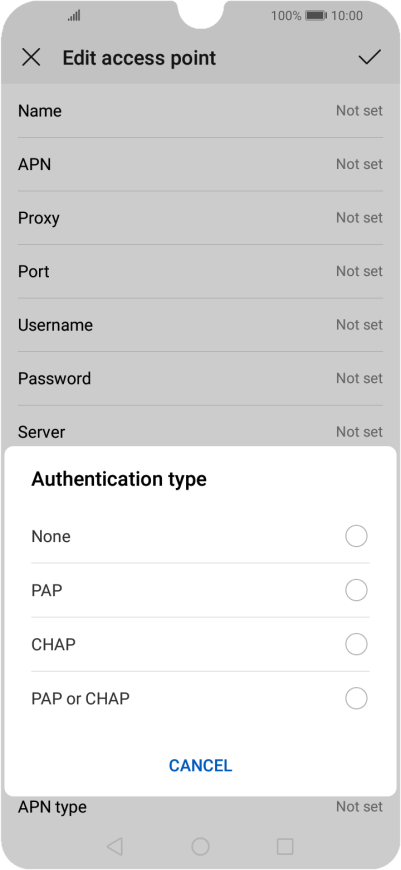

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-01ff0032-b592-4295-928d-91a16ed59ad8.png?width=200&height=432)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0997b442-aaba-4e33-b12d-98682a166e11.png?width=200&height=432)

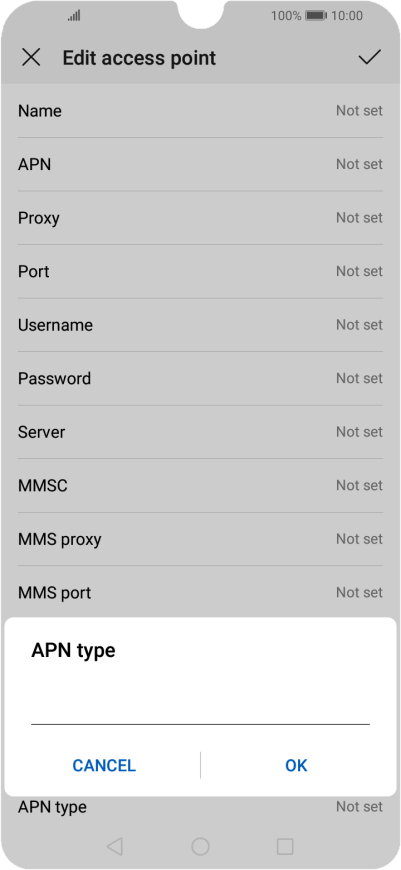

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-65af7fac-11ac-49fb-ad06-d9ecbdfb6be4.png?width=200&height=432)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0997b442-aaba-4e33-b12d-98682a166e11.png?width=200&height=432)

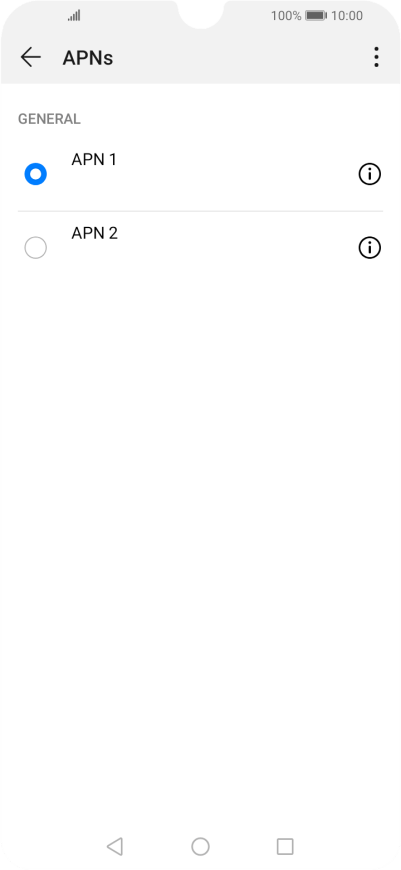

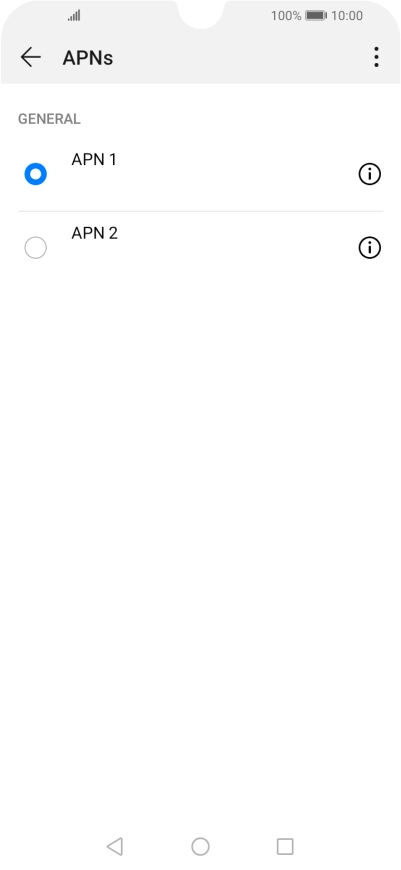

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e5847706-8f65-4049-b095-4f6349b266fc.png?width=200&height=432)
10. Return to the home screen

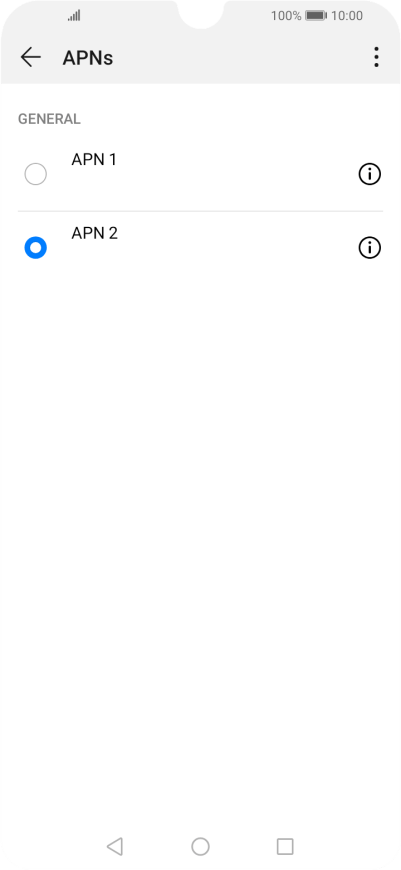

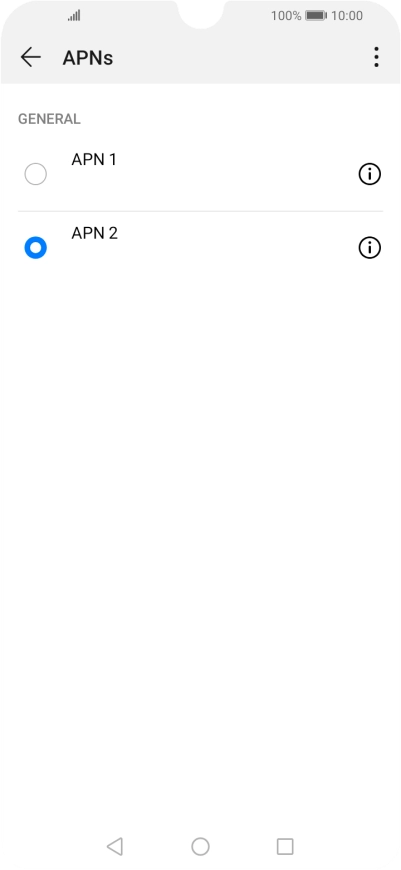

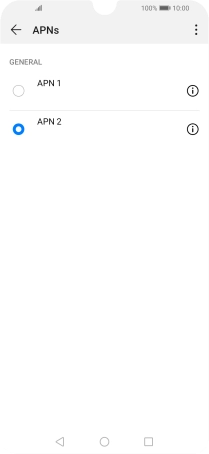

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-172557af-c5f3-423b-881d-ac644263350b.png?width=200&height=432)
