1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-716aed74-41f0-4177-9acb-c2dd54c295b1.png?width=206&height=368)

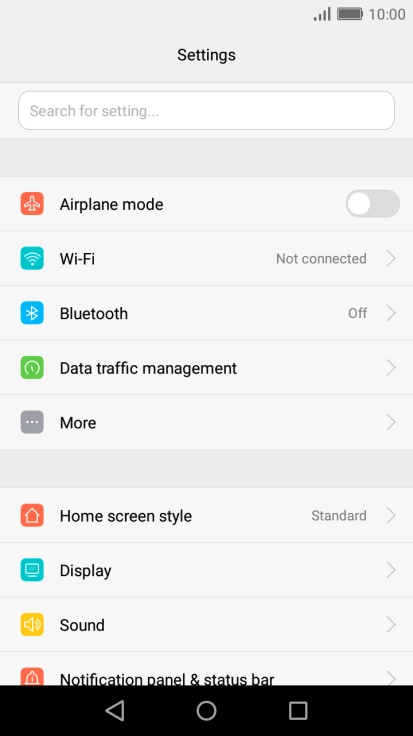

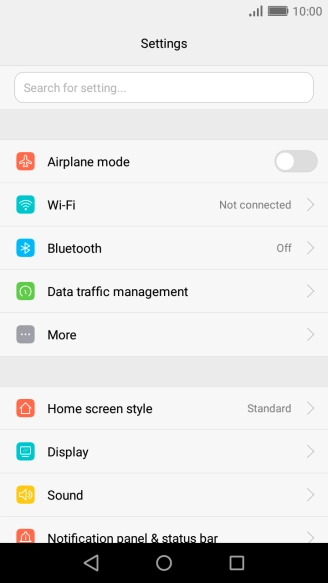

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-86f08845-3595-4ca0-bb14-7bb86435860a.png?width=206&height=368)

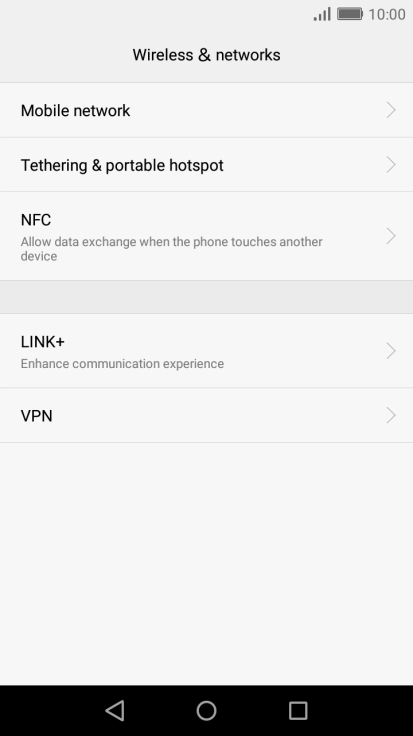

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-84e56f4b-1f7f-4413-b03a-1966bc6bf1c6.png?width=206&height=368)

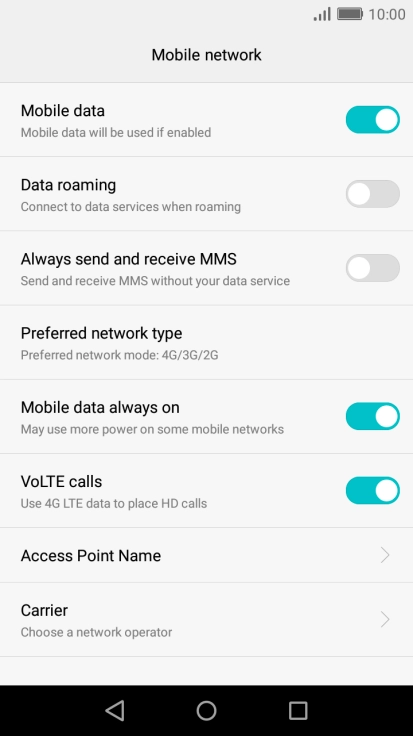

Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db61b7ec-1c6a-4f87-b23f-8eb3b74fca06.png?width=206&height=368)
2. Create new data connection

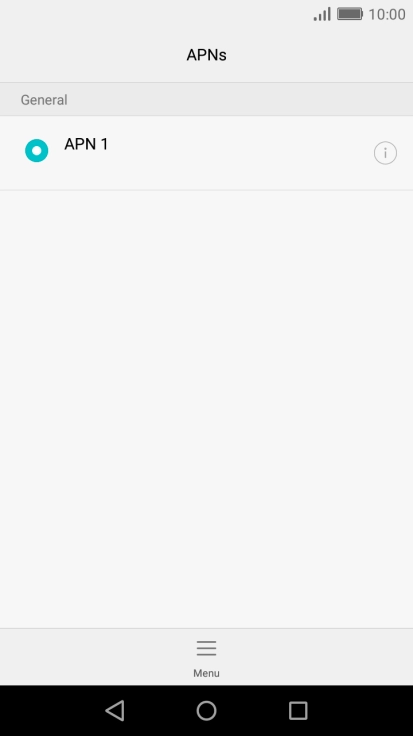

Press Menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-94d3abe0-0b0b-47dd-bc3b-a8c47dd5d5e3.png?width=206&height=368)

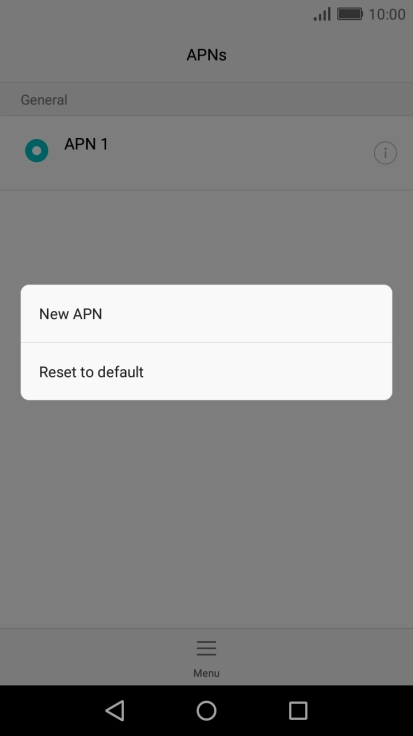

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3297d9d9-6ca2-4e3c-8c9d-fd069bf93155.png?width=206&height=368)
3. Enter a name for the connection

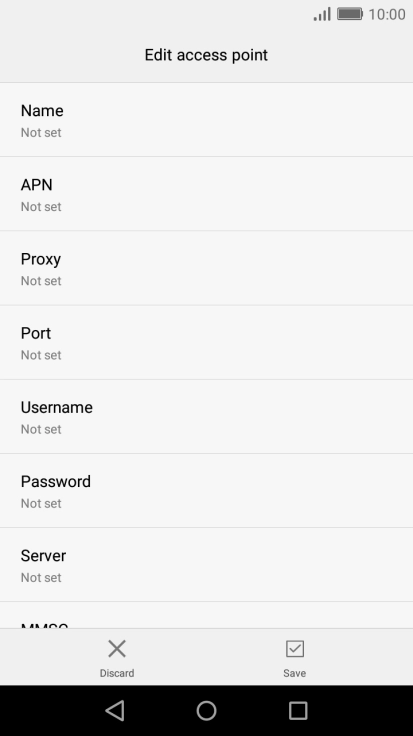

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f3a6f57b-2ce7-459e-bd68-6c1912277ee7.png?width=206&height=368)

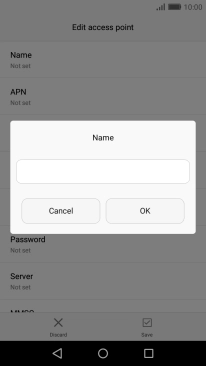

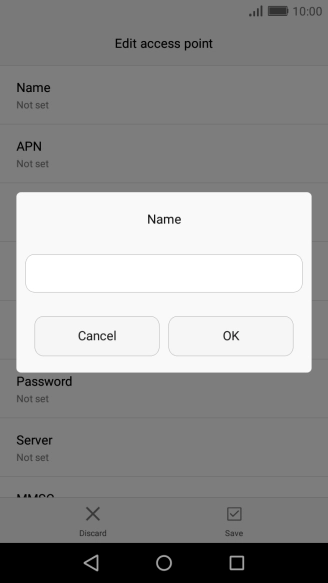

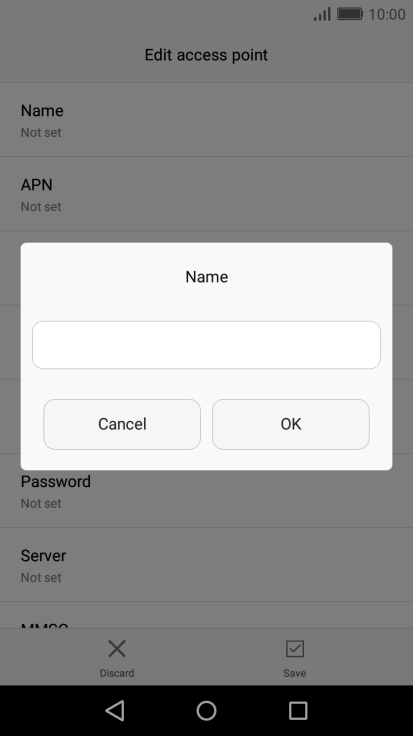

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8e8c74ac-2636-445c-a43d-2cc64e744bbf.png?width=206&height=368)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f3a6f57b-2ce7-459e-bd68-6c1912277ee7.png?width=206&height=368)

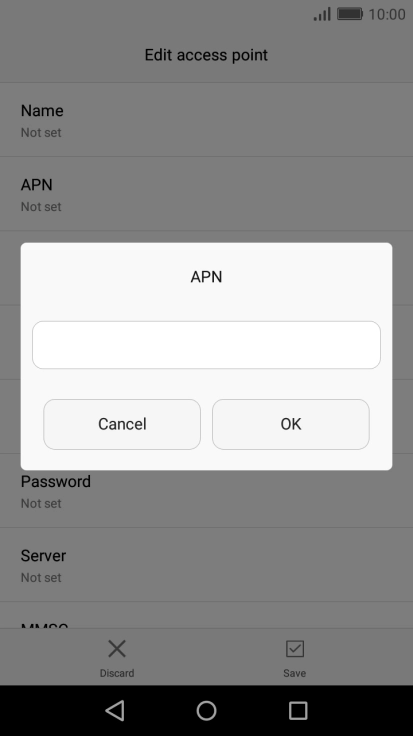

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1435efc4-9e89-4897-a9fc-65d2d85fd141.png?width=206&height=368)
mms.vodafone.net
5. Enter picture messaging server

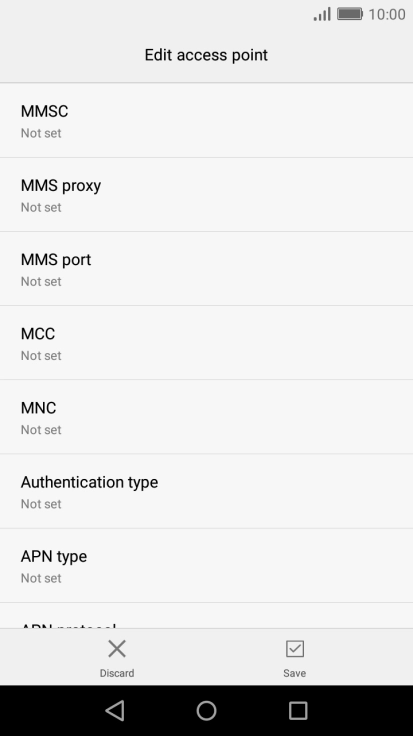

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3441a8f7-39f8-4fed-a6da-5b5bbe517554.png?width=206&height=368)

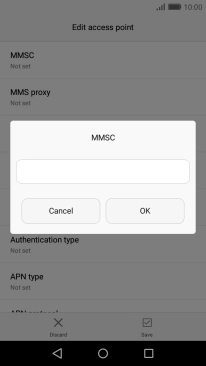

Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7dd2dedb-6422-44e2-8b03-9953d468bef7.png?width=206&height=368)
http://www.vodafone.ie/mms
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3441a8f7-39f8-4fed-a6da-5b5bbe517554.png?width=206&height=368)

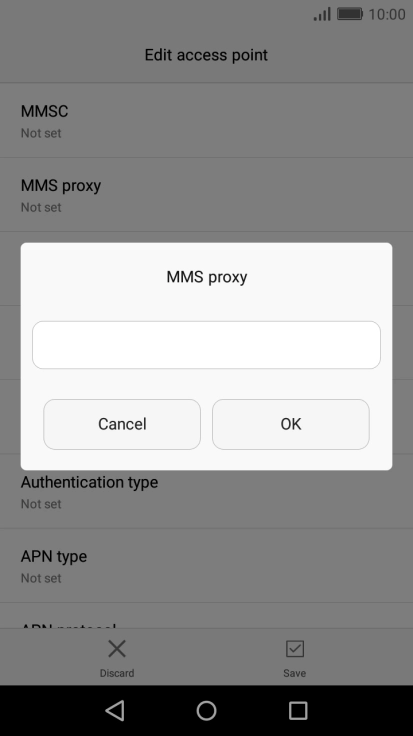

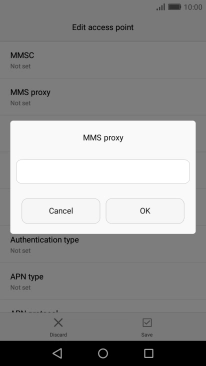

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3545e7c5-bd87-4b39-8d6f-3315cacab1bb.png?width=206&height=368)
10.24.59.200
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3441a8f7-39f8-4fed-a6da-5b5bbe517554.png?width=206&height=368)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57e313e3-355d-4d4f-9289-492f47d7bb3a.png?width=206&height=368)
80
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3441a8f7-39f8-4fed-a6da-5b5bbe517554.png?width=206&height=368)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-146f5016-5676-4e4c-9b52-9008e592aa4d.png?width=206&height=368)
272
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3441a8f7-39f8-4fed-a6da-5b5bbe517554.png?width=206&height=368)

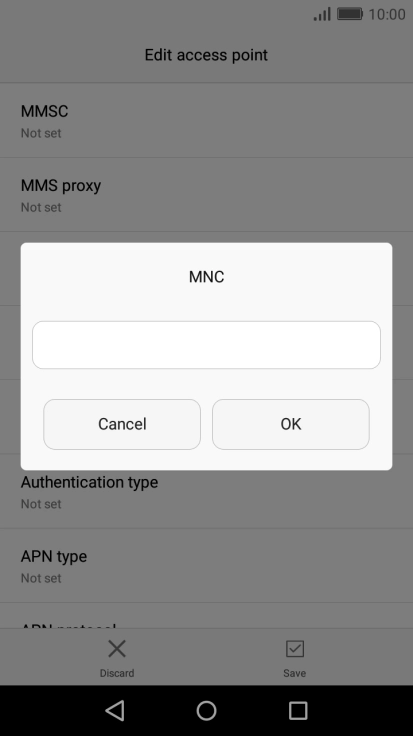

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6c55c037-c31a-4028-9355-7f11088c3745.png?width=206&height=368)
01
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3441a8f7-39f8-4fed-a6da-5b5bbe517554.png?width=206&height=368)

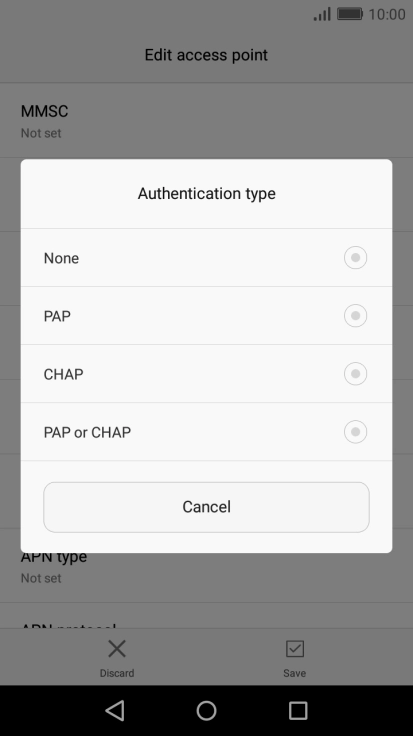

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-29380750-5c29-4bb8-b0f0-4566a4fddd1c.png?width=206&height=368)
11. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3441a8f7-39f8-4fed-a6da-5b5bbe517554.png?width=206&height=368)

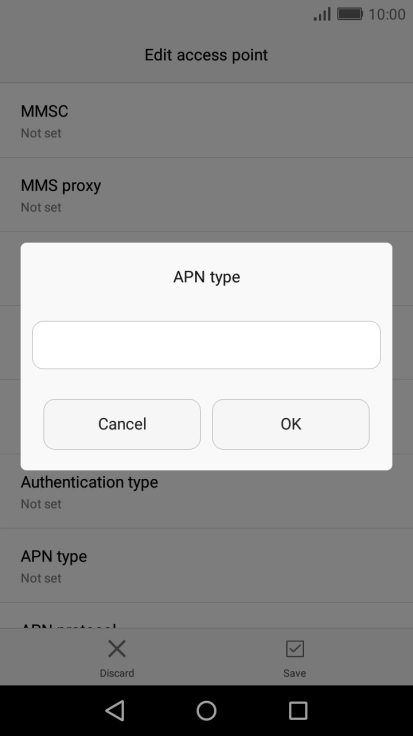

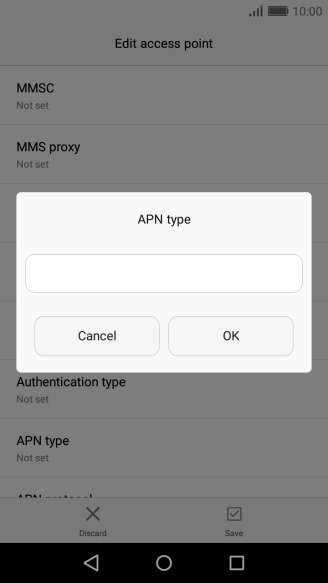

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ed58c235-b658-46aa-a0af-8a4f1edae26d.png?width=206&height=368)
mms
12. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f3a6f57b-2ce7-459e-bd68-6c1912277ee7.png?width=206&height=368)
13. Return to the home screen

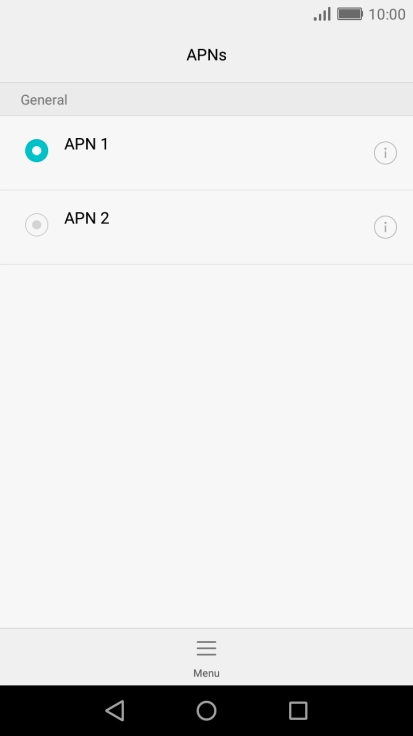

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-99ad25fc-eecf-4ec2-9cd5-0f5f7a364356.png?width=206&height=368)
