1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f4836bf5-2b39-403b-9fb1-23c6a6e4a69c.png?width=216&height=384)

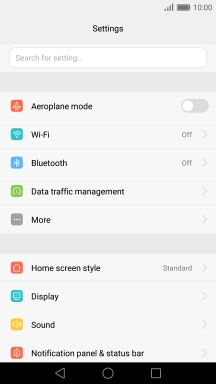

Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ee439047-3dda-468c-b320-2fd9cd607104.png?width=216&height=384)

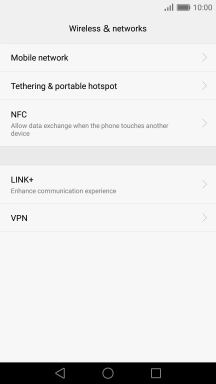

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c0276dbd-0764-49f0-9451-861a43e5c582.png?width=216&height=384)

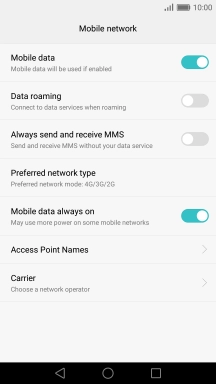

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e69cea64-a6ab-438b-ae1b-6b8b56bb528a.png?width=216&height=384)
2. Create new data connection

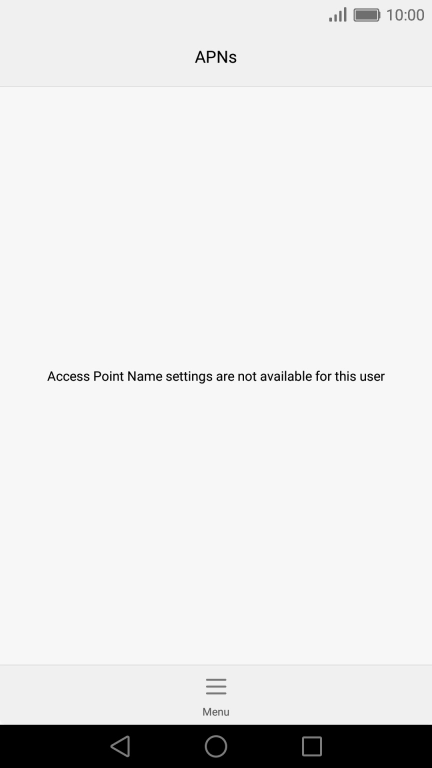

Press Menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-54427fb0-c923-4ed1-909e-bf1a4a852602.png?width=216&height=384)

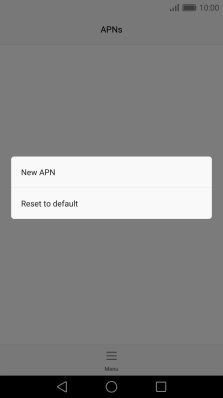

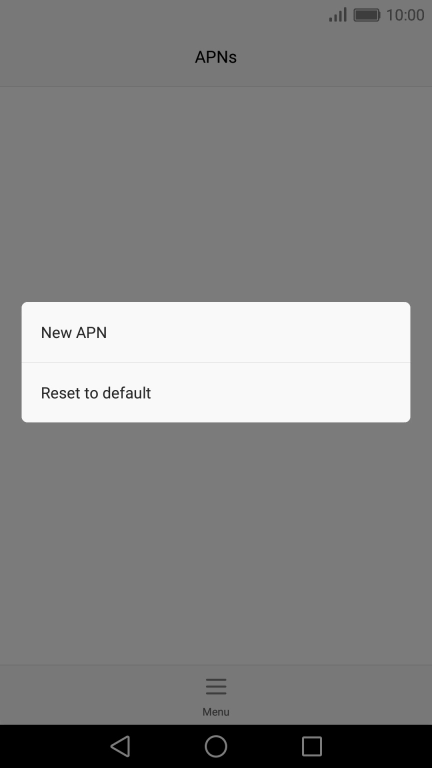

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-45377584-dc9c-4092-af9b-66fd58a3b56f.png?width=216&height=384)

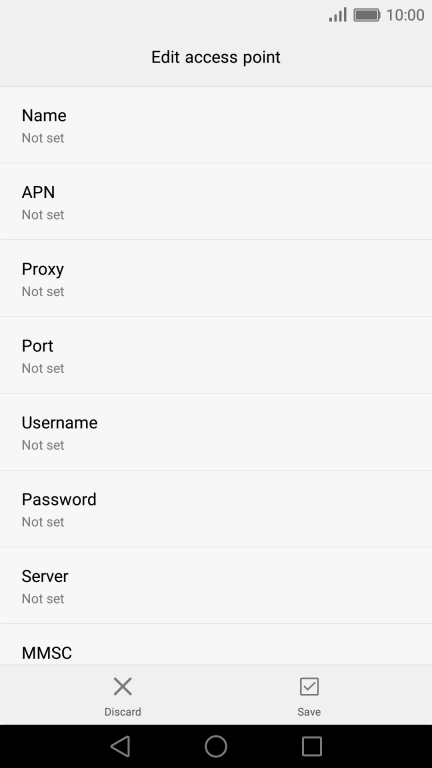

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7674a837-9bb1-47bc-97c9-ccde7624826e.png?width=216&height=384)

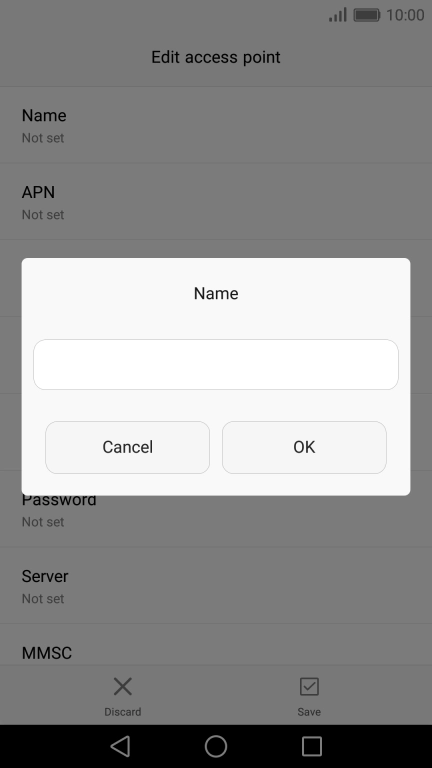

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-33a384c7-0496-413b-9716-3f33e67a62d5.png?width=216&height=384)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7674a837-9bb1-47bc-97c9-ccde7624826e.png?width=216&height=384)

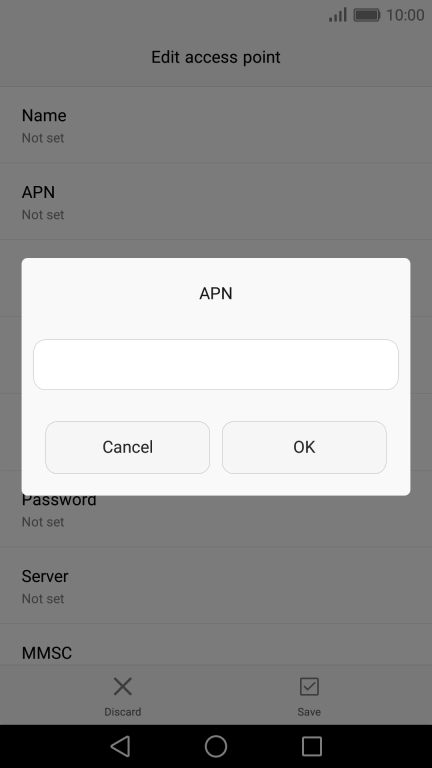

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1a0febbf-019d-42a8-b8e6-66aca6d4f007.png?width=216&height=384)
mms.vodafone.net
4. Enter MMSC

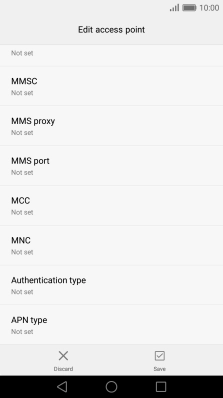

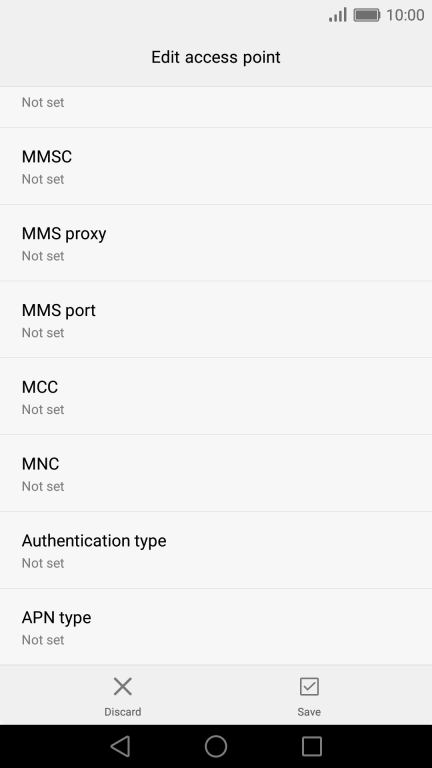

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fec78f8f-3961-4c8c-b0ce-6f27ec5a4b7c.png?width=216&height=384)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)
Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2d402434-0f18-44ae-b97a-d3cd99cc9696.png?width=216&height=384)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)
Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-418f02c5-df29-4ec8-af05-37c4ef109955.png?width=216&height=384)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-72144544-4e6e-4745-9a70-f7f81457add6.png?width=216&height=384)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)

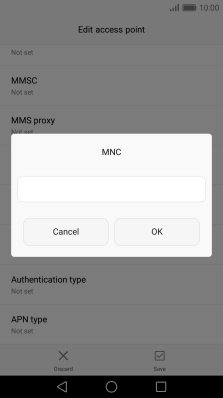

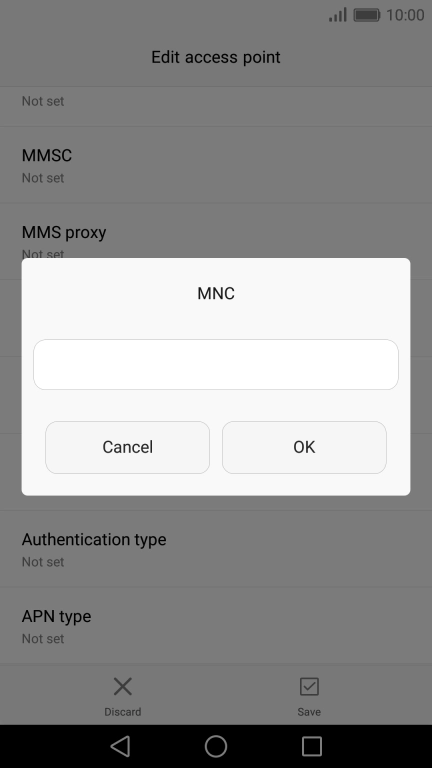

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0c787d91-0378-4ef6-a59d-8e38d1973deb.png?width=216&height=384)
01
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)

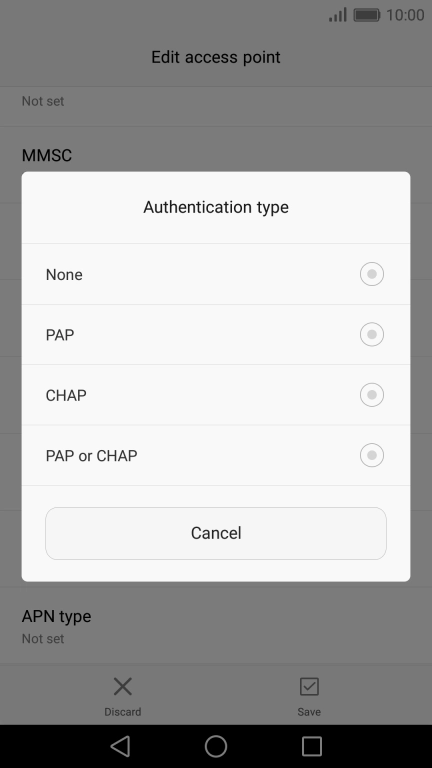

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-17da10cc-0d09-46ca-b196-036a11c0b64c.png?width=216&height=384)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c7232652-b138-4b24-a076-335c7c98a8c2.png?width=216&height=384)
mms
11. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-51a14d3e-8247-4534-adce-309856ea93d4.png?width=216&height=384)
12. Return to the home screen

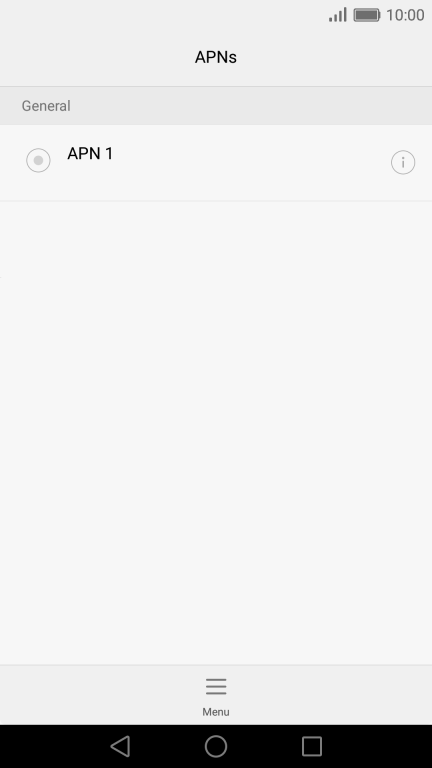

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-f58f19d6-eb2f-41ac-8e2d-fed4b6799ebf.png?width=216&height=384)
