1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9c2b41b2-a9aa-4893-8b8d-65a248948e2e.png?width=212&height=376)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5b50c3d4-f63f-41ed-97ca-37f9f5537bea.png?width=212&height=376)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3278e2d5-9336-4238-851e-811a044c1771.png?width=212&height=376)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1566324f-4367-4b9d-a044-e2c37e07c5cf.png?width=212&height=376)
2. Create new data connection

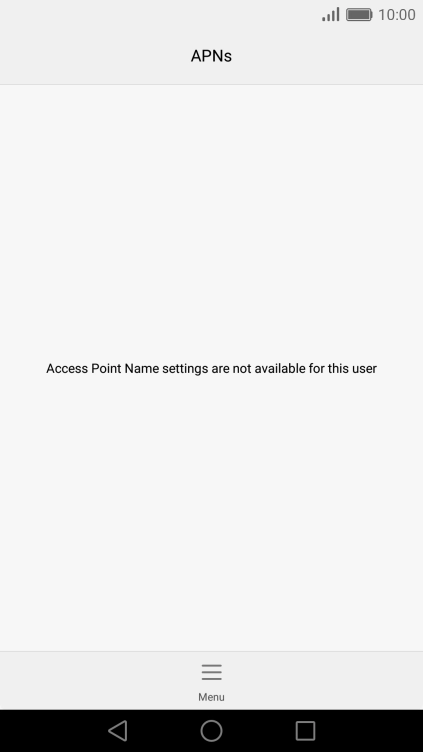

Press Menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9032bcc-25e9-493a-96a5-1f8fe34bbe6d.png?width=212&height=376)

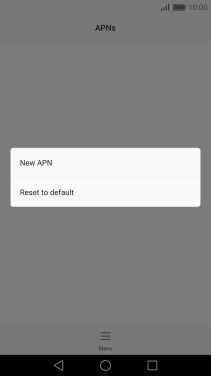

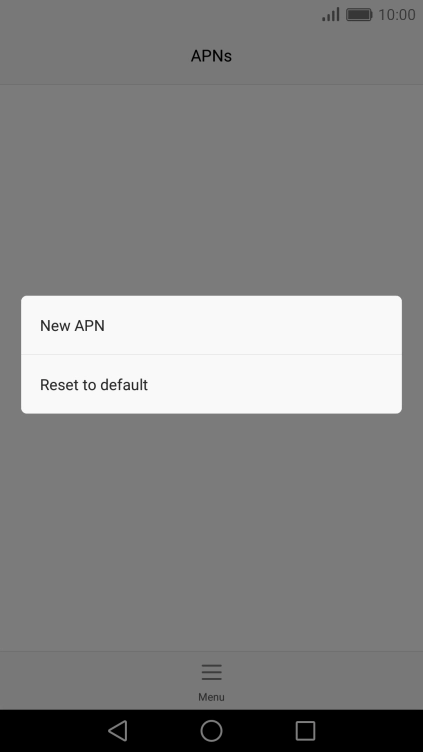

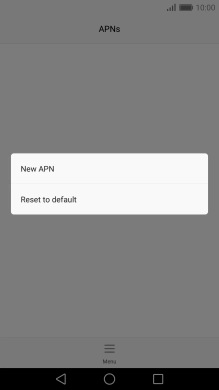

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7bc48ee4-f743-4584-95aa-f2db8a0a86ee.png?width=212&height=376)

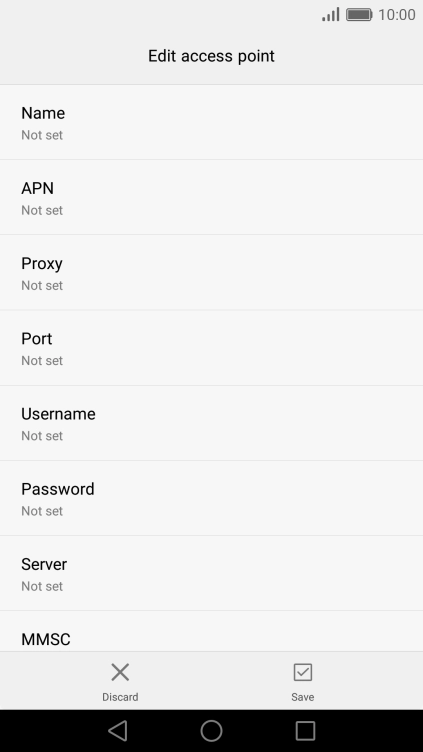

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6dc9617e-4e38-4a34-8bcc-fd8021d3761d.png?width=212&height=376)

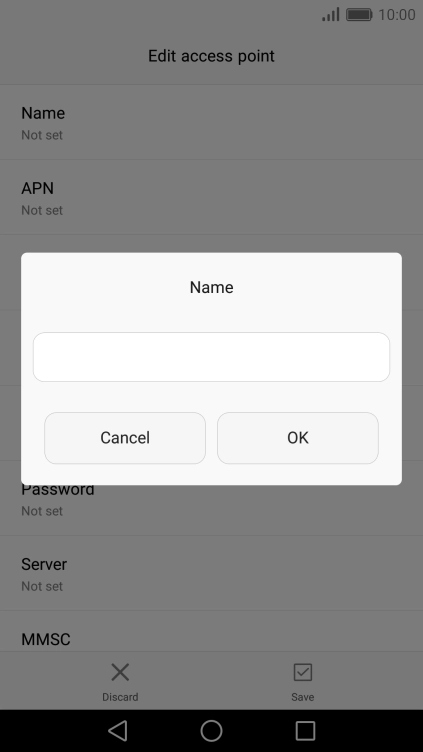

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6f90fc71-7ad3-4f93-9ddc-ef908d1b8bf1.png?width=212&height=376)
Vodafone MMS
3. Enter APN

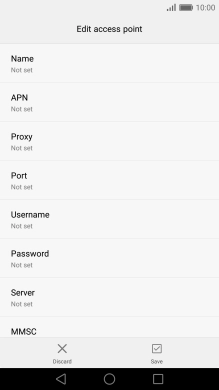

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6dc9617e-4e38-4a34-8bcc-fd8021d3761d.png?width=212&height=376)

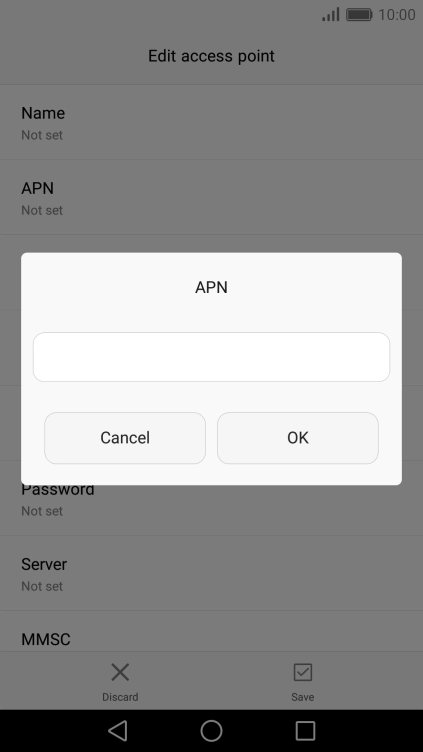

Key in mms.vodafone.net and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bf2c52c2-a507-4621-a592-a9cb50575b52.png?width=212&height=376)
mms.vodafone.net
4. Enter MMSC

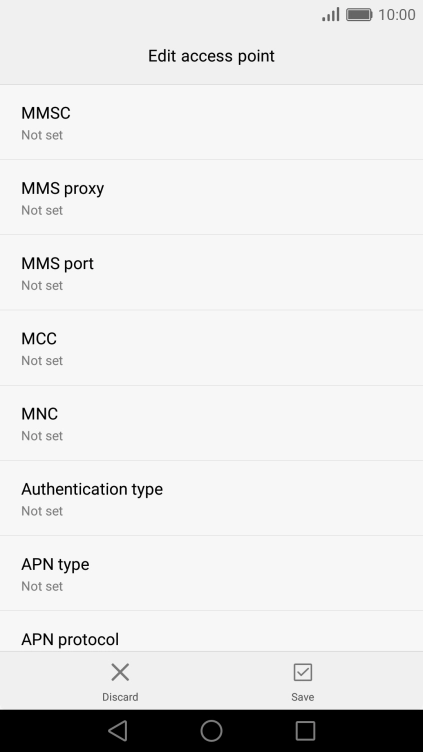

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
Key in http://www.vodafone.ie/mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-66ad3d95-bf63-4b2a-b6d7-8514989dc5ea.png?width=212&height=376)
http://www.vodafone.ie/mms
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)

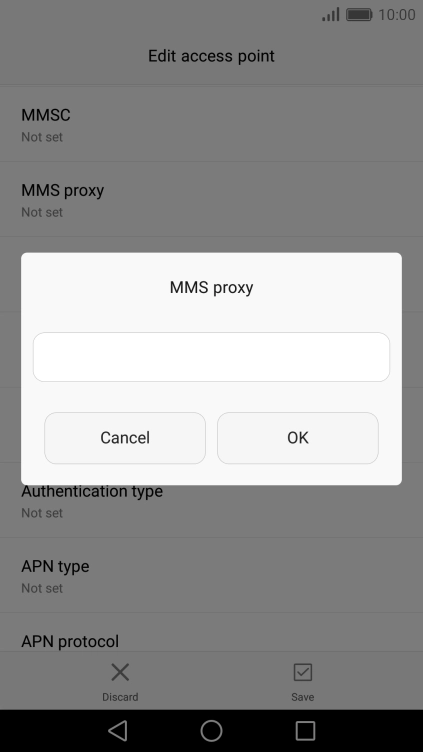

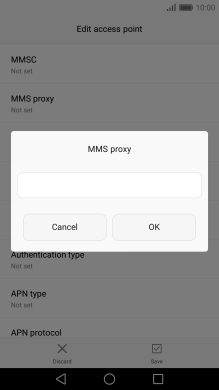

Key in 10.24.59.200 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d677172d-63da-4465-b844-4eee98ad55b7.png?width=212&height=376)
10.24.59.200
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)

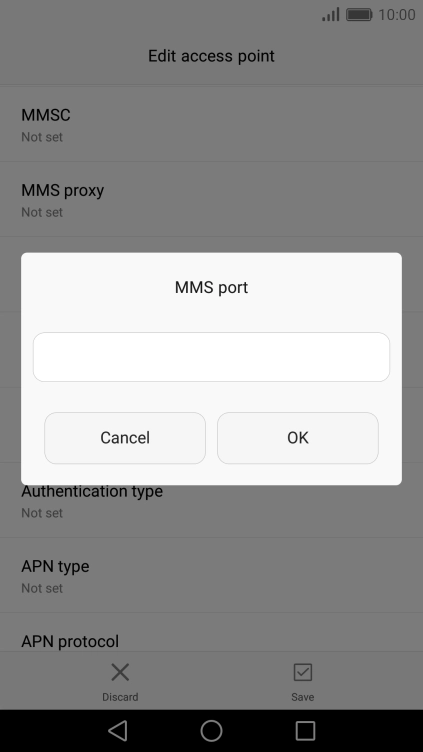

Key in 80 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6684b200-ae29-4821-908c-204d45878ebd.png?width=212&height=376)
80
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2aa7186e-bc13-4ac7-8d64-c53974479ba0.png?width=212&height=376)
272
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-25886143-9ec2-47fa-8afd-f3edada67370.png?width=212&height=376)
01
9. Select authentication type

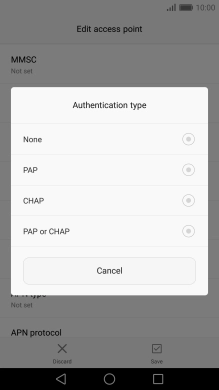

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)

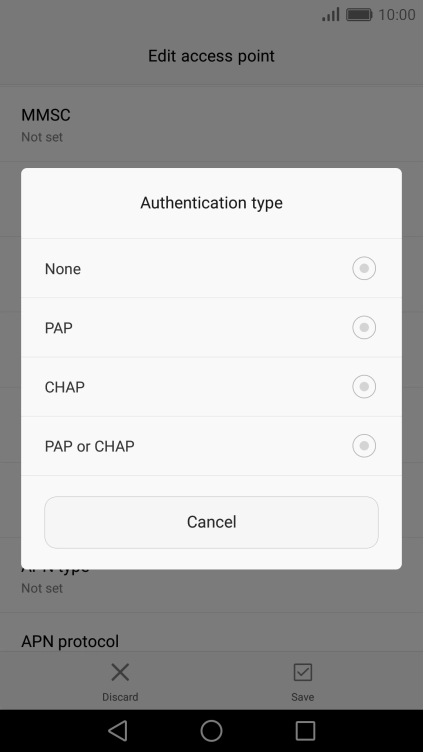

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da3cd925-d649-418d-b059-24e11fd02041.png?width=212&height=376)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-426e3e25-18a3-4e84-bf91-2d4be7fa3ba2.png?width=212&height=376)
mms
11. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
12. Return to the home screen

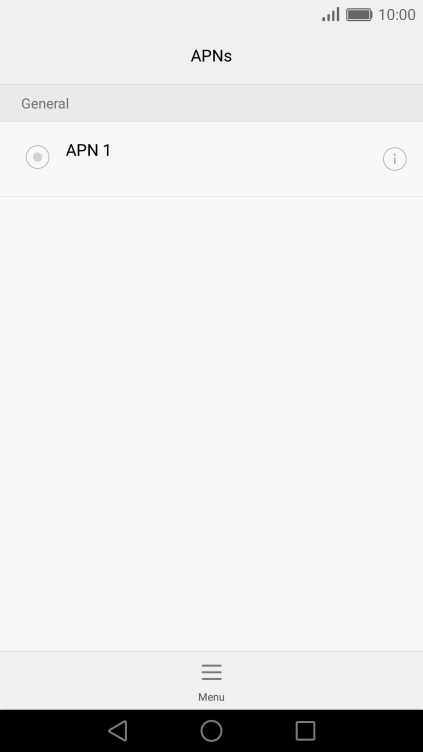

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-89df5a9d-e149-4736-b4d9-36e15e967140.png?width=212&height=376)
