1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9c2b41b2-a9aa-4893-8b8d-65a248948e2e.png?width=212&height=376)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5b50c3d4-f63f-41ed-97ca-37f9f5537bea.png?width=212&height=376)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3278e2d5-9336-4238-851e-811a044c1771.png?width=212&height=376)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1566324f-4367-4b9d-a044-e2c37e07c5cf.png?width=212&height=376)
2. Create new data connection

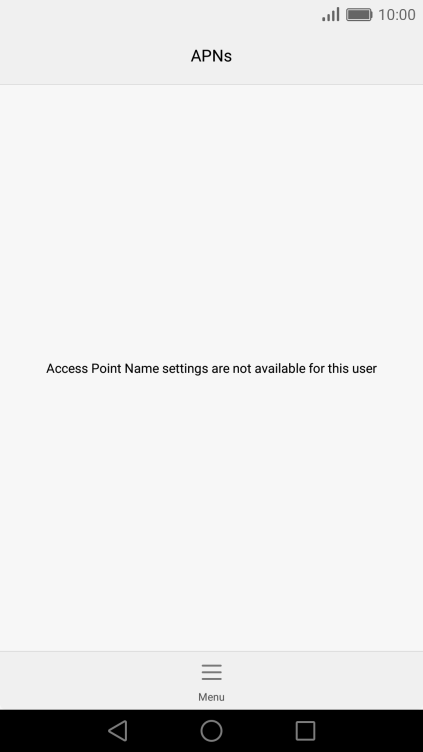

Press Menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d9032bcc-25e9-493a-96a5-1f8fe34bbe6d.png?width=212&height=376)

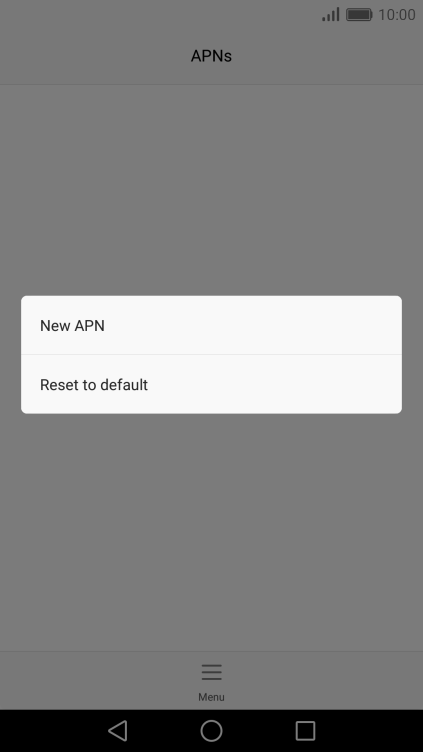

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7bc48ee4-f743-4584-95aa-f2db8a0a86ee.png?width=212&height=376)

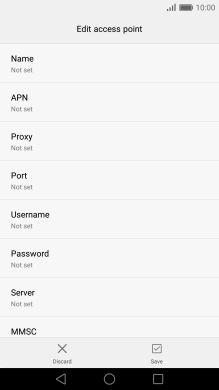

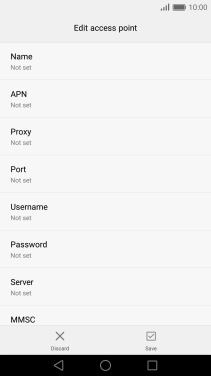

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6dc9617e-4e38-4a34-8bcc-fd8021d3761d.png?width=212&height=376)

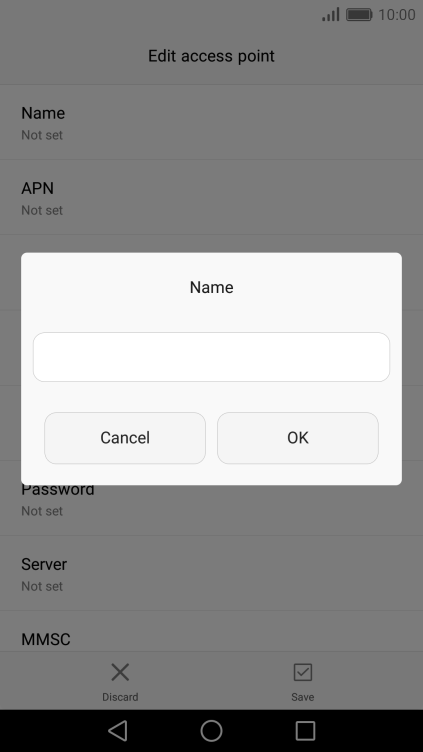

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6f90fc71-7ad3-4f93-9ddc-ef908d1b8bf1.png?width=212&height=376)
Vodafone Internet
3. Enter APN

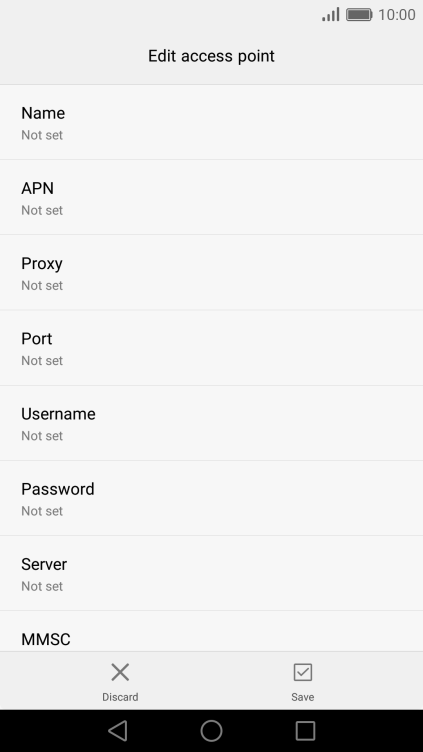

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6dc9617e-4e38-4a34-8bcc-fd8021d3761d.png?width=212&height=376)

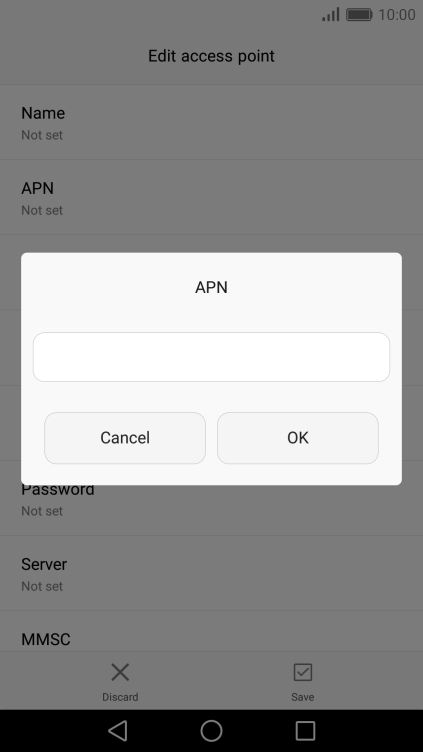

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bf2c52c2-a507-4621-a592-a9cb50575b52.png?width=212&height=376)
live.vodafone.com
4. Enter country code

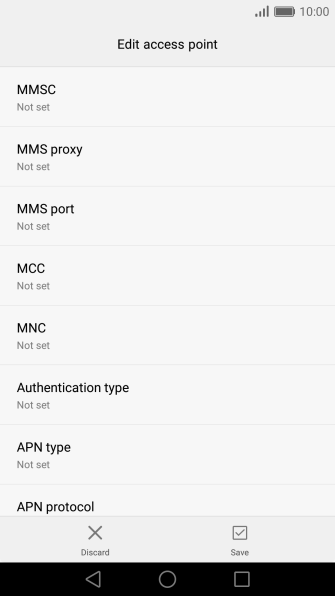

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-2aa7186e-bc13-4ac7-8d64-c53974479ba0.png?width=212&height=376)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)

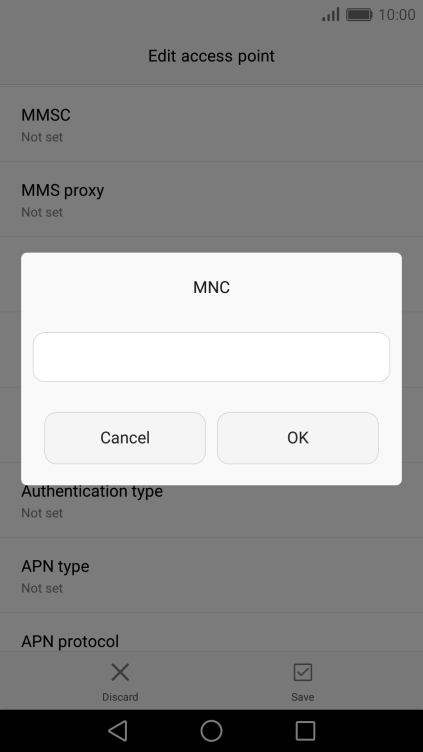

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-25886143-9ec2-47fa-8afd-f3edada67370.png?width=212&height=376)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da3cd925-d649-418d-b059-24e11fd02041.png?width=212&height=376)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)
Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-426e3e25-18a3-4e84-bf91-2d4be7fa3ba2.png?width=212&height=376)
default
8. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-76a90896-28a5-420a-b3dc-345b25a91a16.png?width=212&height=376)

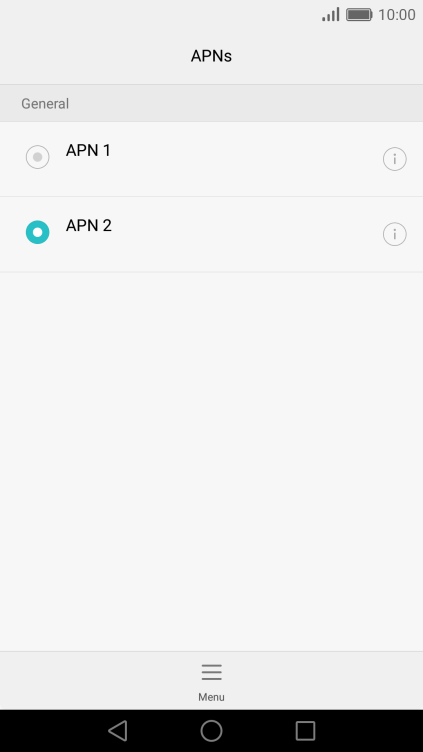

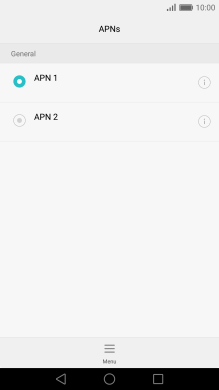

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-180e25dc-2834-407a-8d5d-925cb2939e0e.png?width=212&height=376)
9. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-fa704781-6cb5-4d6c-8ff3-f72b69bd1970.png?width=212&height=376)
