1. Find "Access Point Names"
Slide two fingers downwards starting from the top the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-19214162-0078-4d0a-912f-a3d3d0ed22a7.png?width=218&height=386)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dba07846-f574-4e52-bbb6-b763627679a5.png?width=218&height=386)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5cf5fb4b-eb6e-44fa-b8cc-87656d6bb2e7.png?width=218&height=386)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e1072804-3eb7-45b0-80fd-2118ae6d9ea4.png?width=218&height=386)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c76826e4-4f04-4c48-a503-178d1c38b34c.png?width=218&height=386)
2. Create new data connection

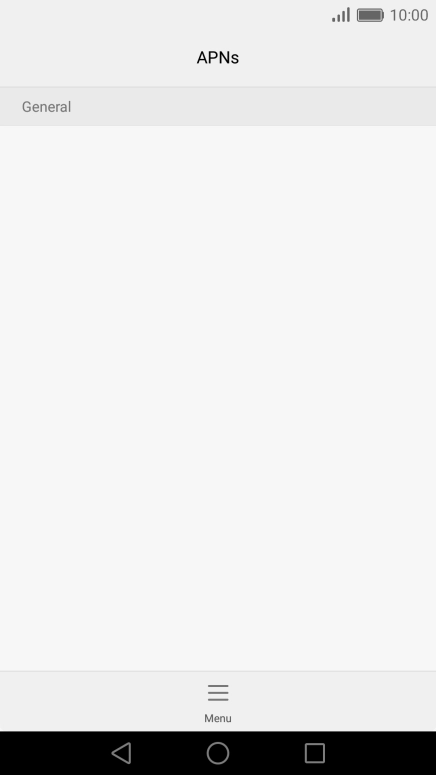

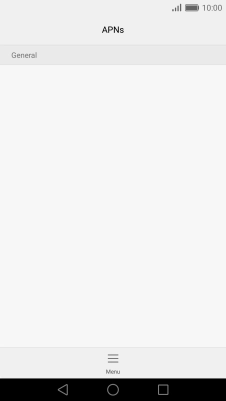

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-78273af0-e614-4f3a-9860-7f3d70ec2eb1.png?width=218&height=386)

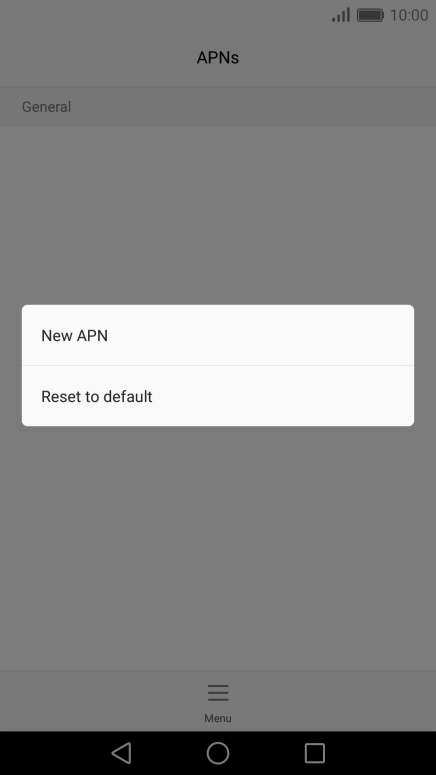

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-57545043-5223-46e3-8eb7-0b6fe444e27b.png?width=218&height=386)

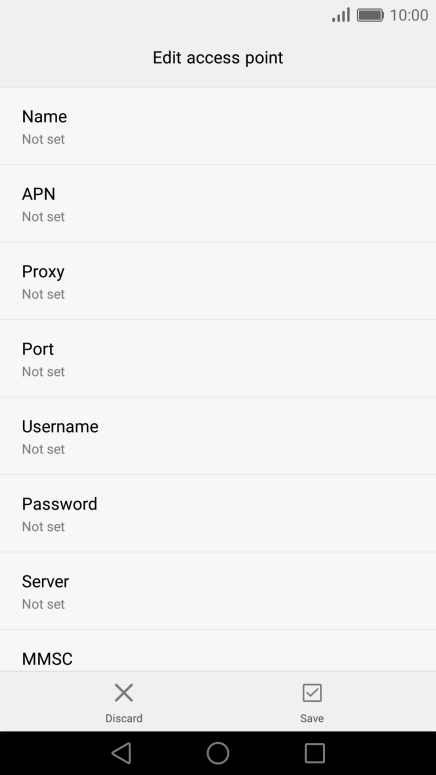

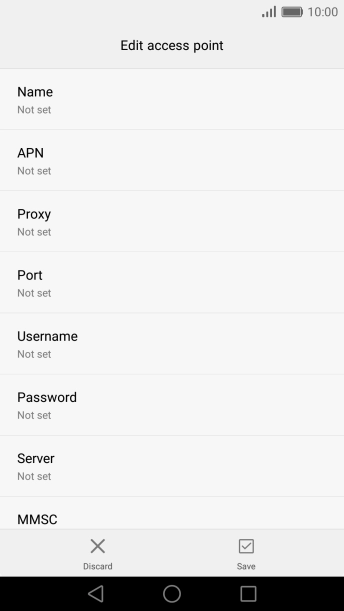

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca63177c-85f6-4791-8d46-cf82558c26e6.png?width=218&height=386)

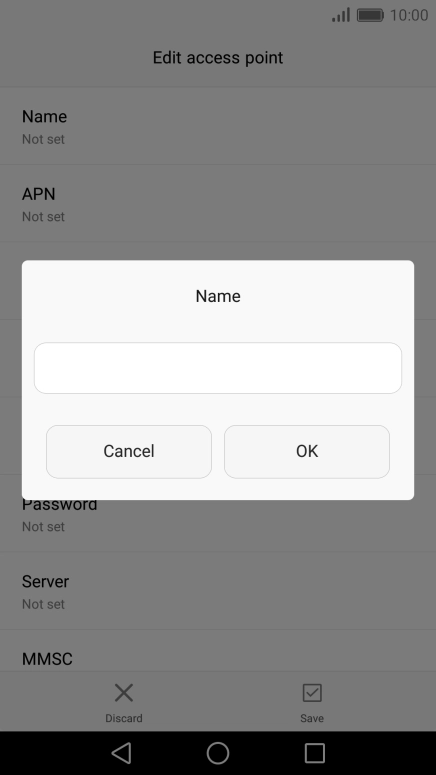

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b8031da2-cff8-4399-bb73-7c758a01b0f9.png?width=218&height=386)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca63177c-85f6-4791-8d46-cf82558c26e6.png?width=218&height=386)

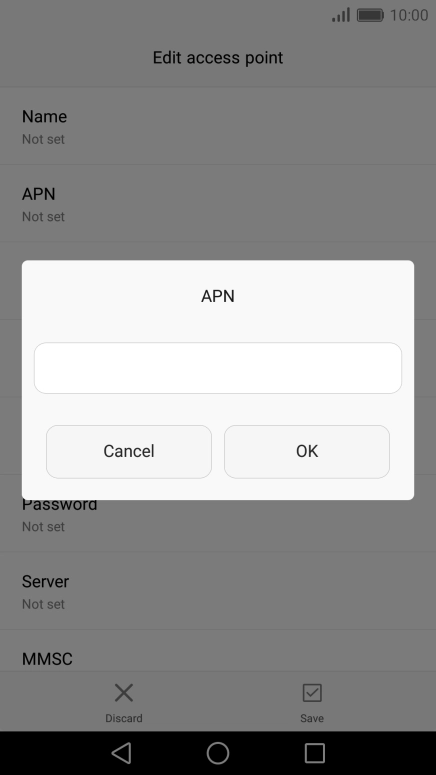

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-45c4db99-cc1c-4ec9-8f19-08b9c77ce13b.png?width=218&height=386)
live.vodafone.com
4. Enter country code

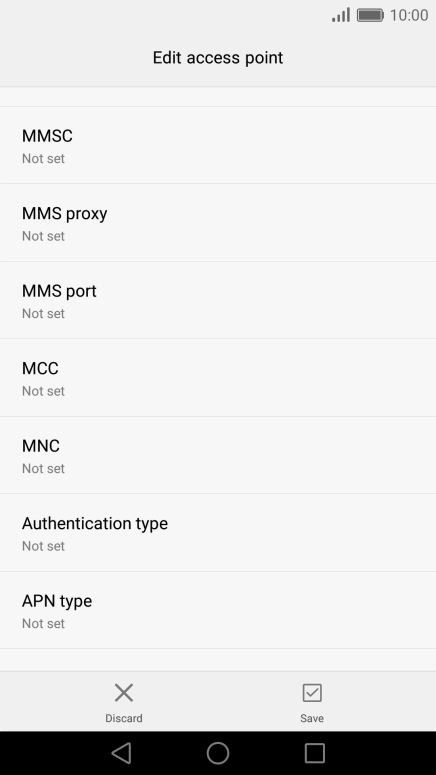

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

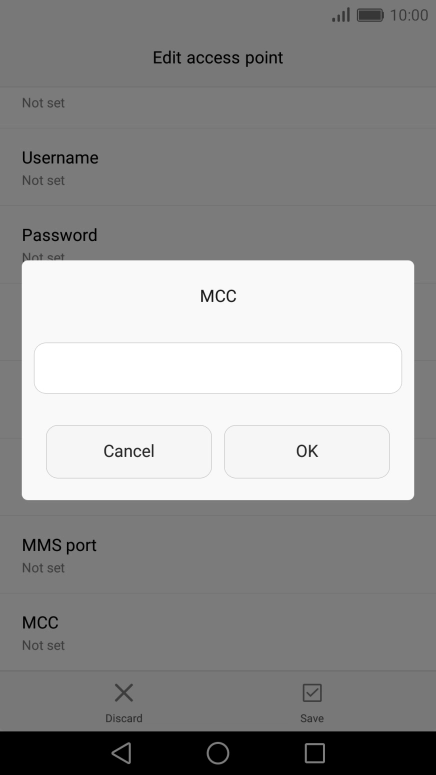

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3fc5f1cd-326a-4624-a1bb-800e27626e0b.png?width=218&height=386)
272
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

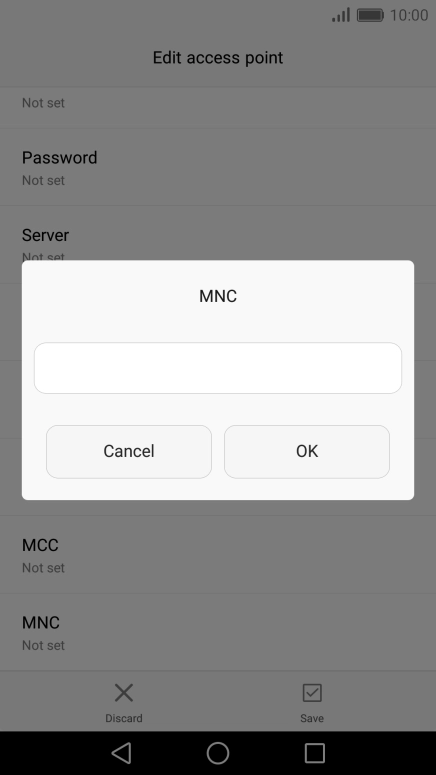

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1792bc8d-be18-4d8d-ac37-90d0ae130212.png?width=218&height=386)
01
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

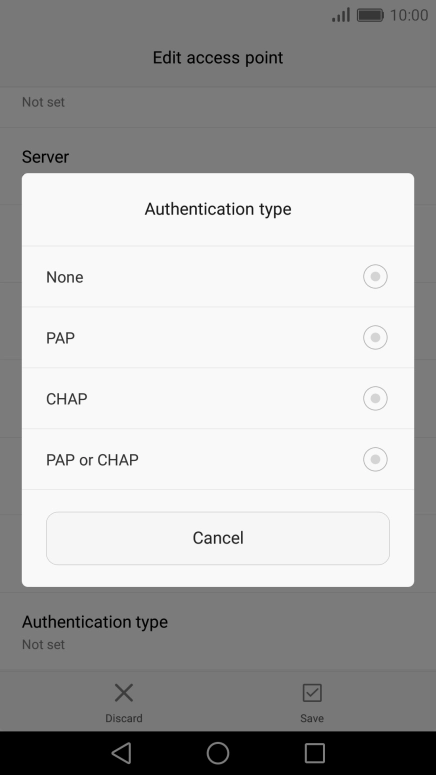

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-27186a75-5dc7-40b7-974c-47f56fcbdb9b.png?width=218&height=386)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

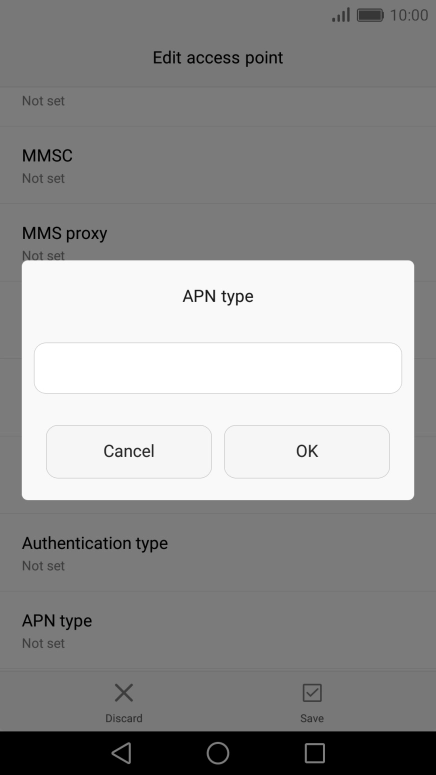

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5077dd24-6ffb-4222-8216-20d3da1a2232.png?width=218&height=386)
default
8. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9f7f3348-8551-4d0d-8339-26f4a69a874c.png?width=218&height=386)

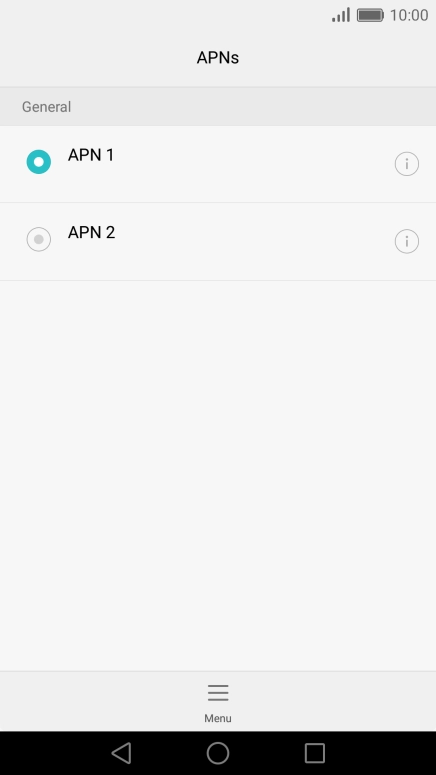

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4e875dab-ade4-450d-8acc-e42bbd74fd7a.png?width=218&height=386)
9. Return to the home screen

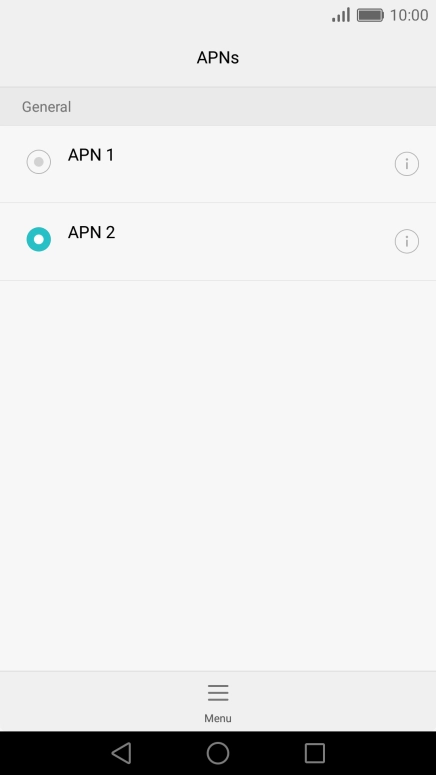

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-da3ea6c0-2c9a-42c9-ace1-523a6ff81922.png?width=218&height=386)
