1. Find "Access Point Name"
Press Settings.
1. Find "Access Point Name"
Press More.
1. Find "Access Point Name"
Press Mobile network.
1. Find "Access Point Name"
Press Access Point Name.
2. Create new data connection

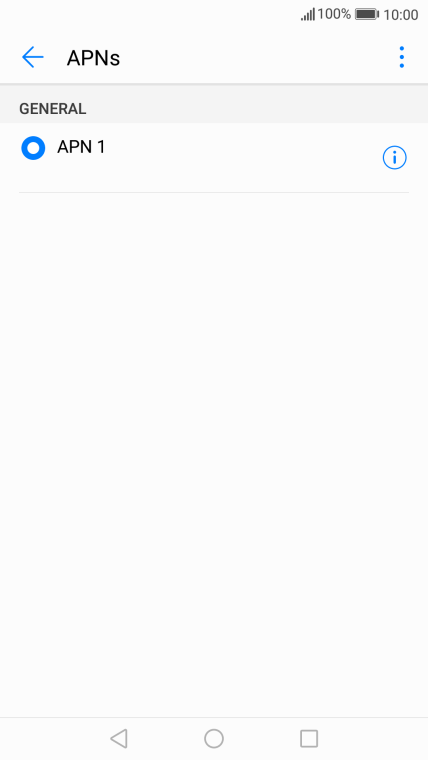

Press the menu icon.
2. Create new data connection

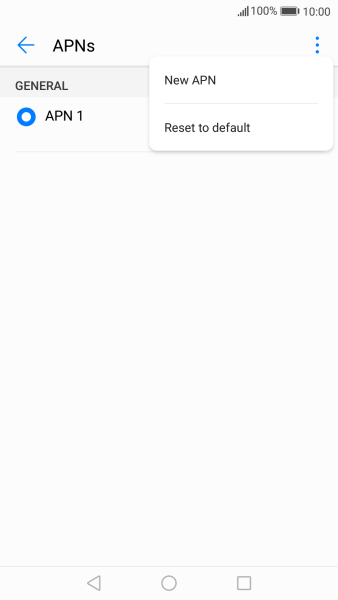

Press New APN.

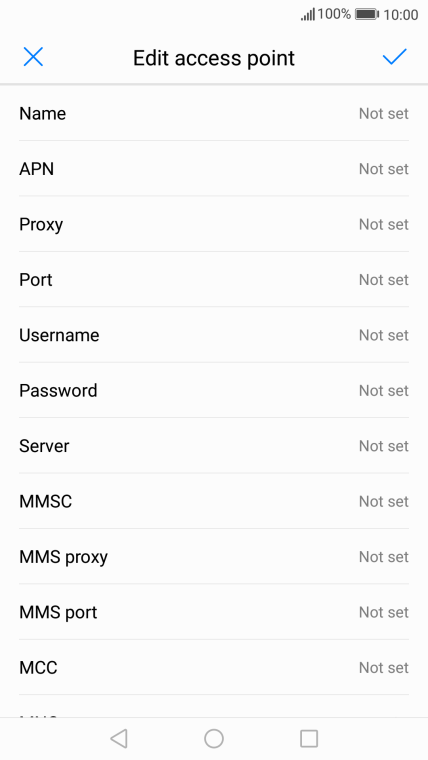

3. Enter a name for the connection
Press Name.
3. Enter a name for the connection
Key in Vodafone MMS and press OK.
4. Enter APN

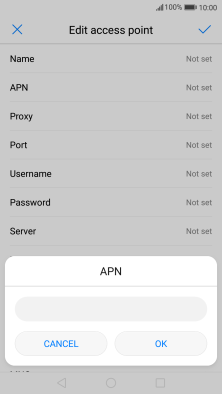

Press APN.
4. Enter APN
Key in mms.vodafone.net and press OK.
5. Enter picture messaging server

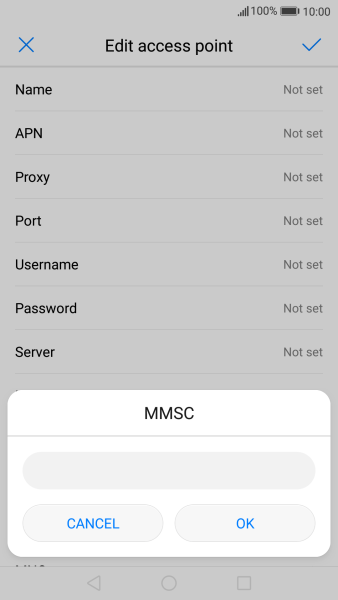

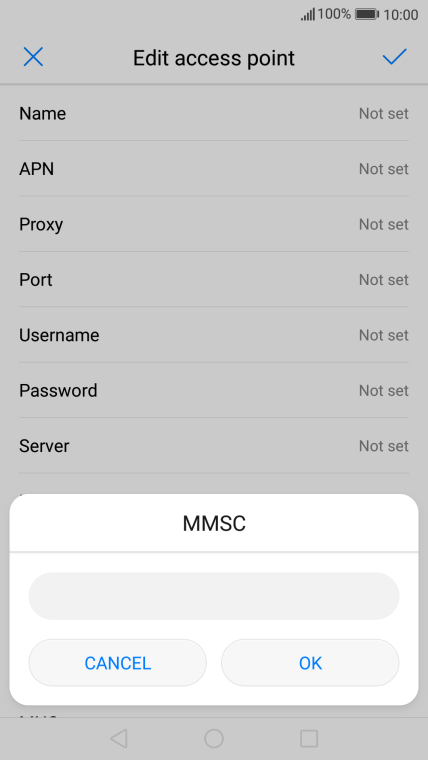

Press MMSC.
5. Enter picture messaging server
Key in http://www.vodafone.ie/mms and press OK.
6. Enter IP address

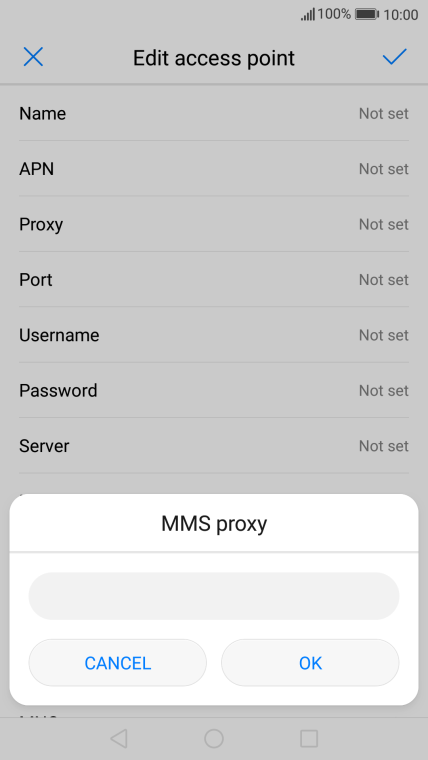

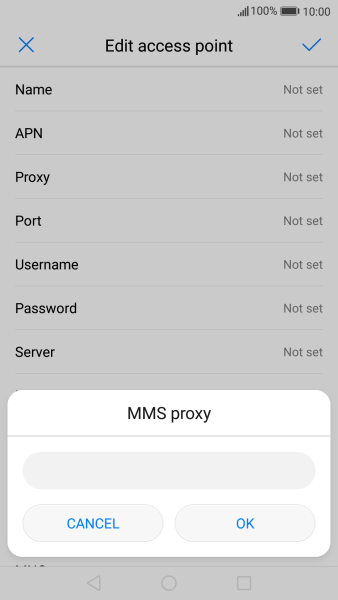

Press MMS proxy.
6. Enter IP address
Key in 10.24.59.200 and press OK.
7. Enter port number

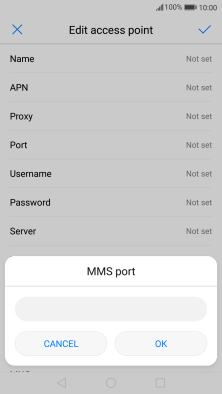

Press MMS port.
7. Enter port number
Key in 80 and press OK.
8. Enter country code

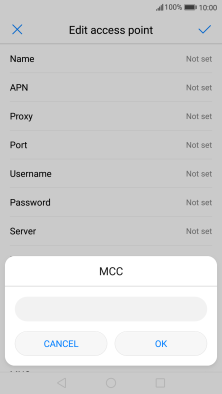

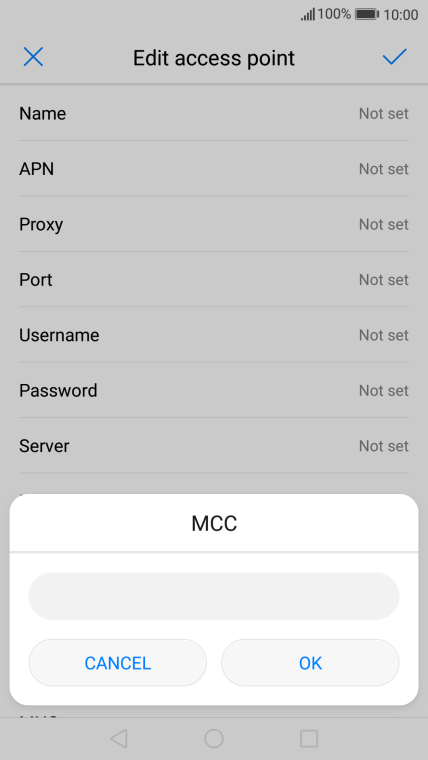

Press MCC.
8. Enter country code
Key in 272 and press OK.
9. Enter network code

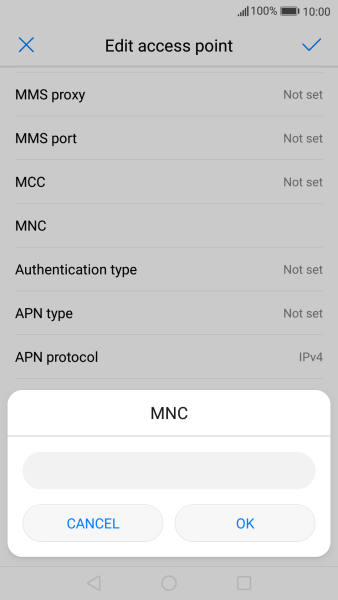

Press MNC.
9. Enter network code
Key in 01 and press OK.
10. Select authentication type

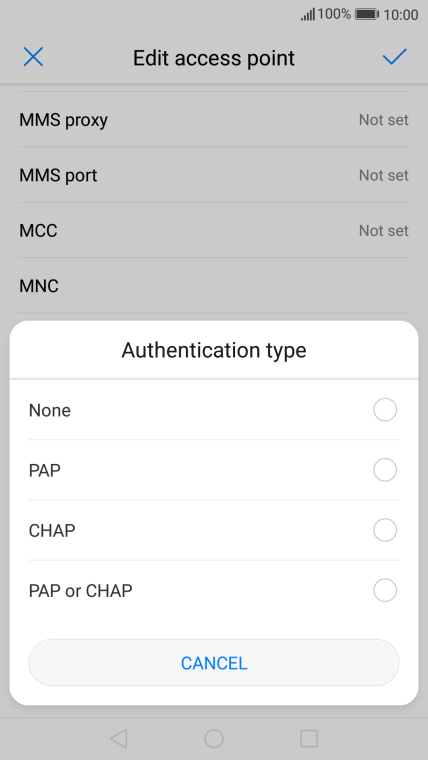

Press Authentication type.
10. Select authentication type
Press PAP.
11. Select APN type

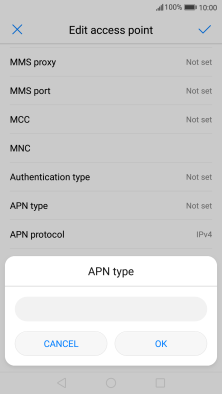

Press APN type.
11. Select APN type
Key in mms and press OK.

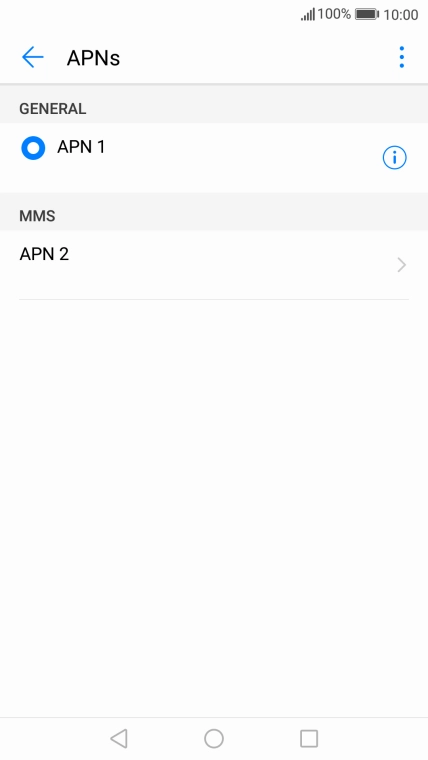

12. Save data connection

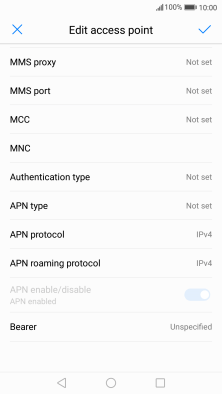

Press the confirm icon.
13. Return to the home screen
Press the Home key to return to the home screen.
