1. Find "Access Point Names (APNs)"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d078d7ca-4d29-4210-b731-86988731af96.png?width=200&height=448)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-20dce25d-8f1e-42fe-b216-9350fcc9105f.png?width=200&height=448)
Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-11751bac-fa6c-4da0-a105-9d92aefdca09.png?width=200&height=448)
Press Access Point Names (APNs) below the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-0c2c2320-84cf-48e1-8991-22dc9f742dce.png?width=200&height=448)
2. Create new data connection

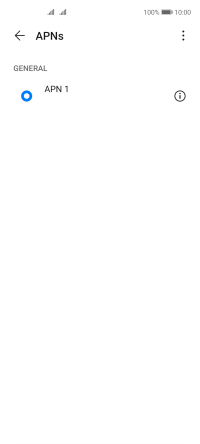

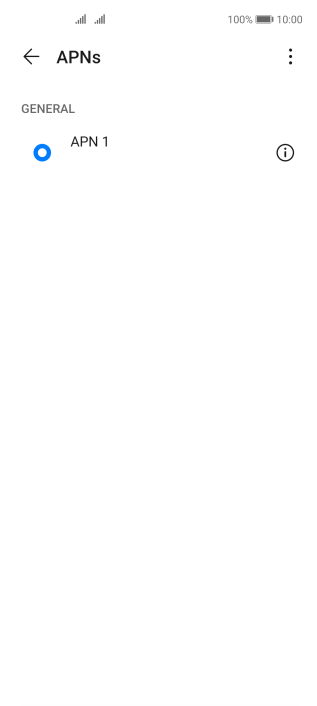

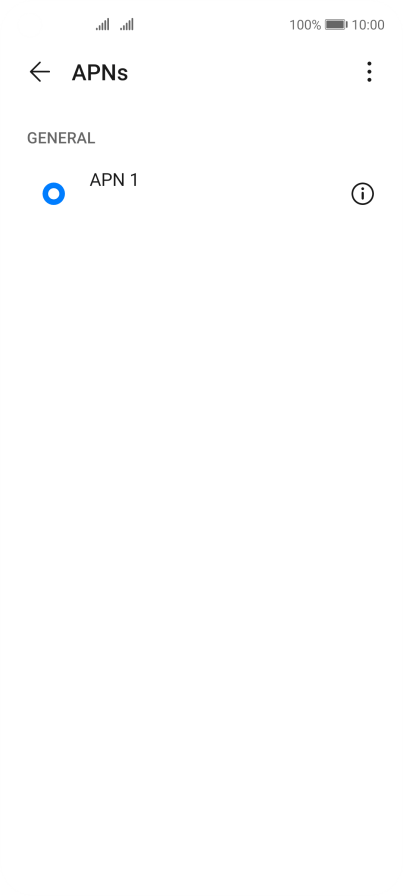

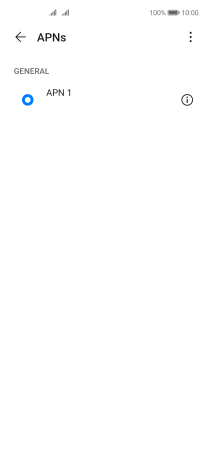

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-708b36dc-0491-4e97-9ab1-6793db516d1d.png?width=200&height=448)

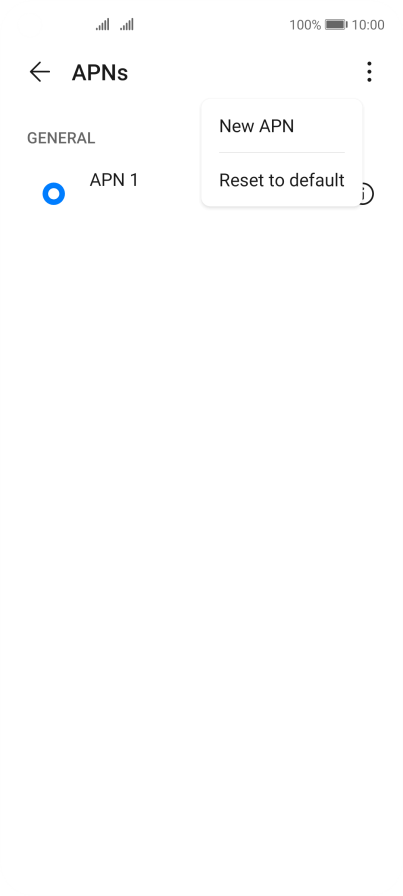

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3701f180-a2d7-467f-9fd6-a719bc4f9883.png?width=200&height=448)
3. Enter a name for the connection

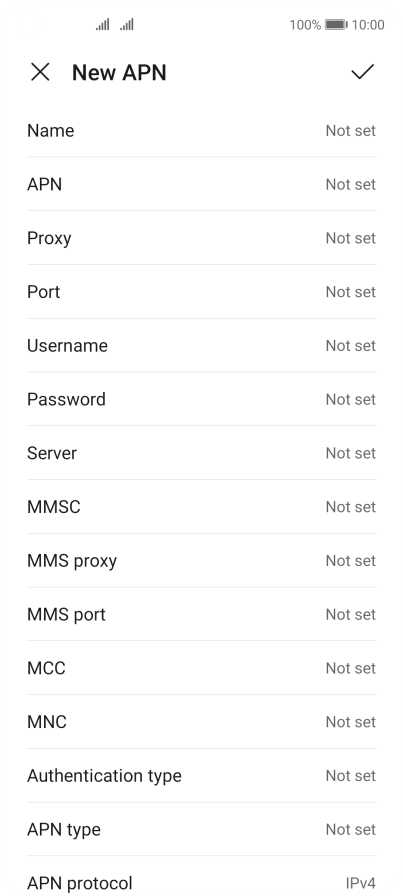

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4b65fc-2492-4c75-8f64-458db66a73cc.png?width=200&height=448)

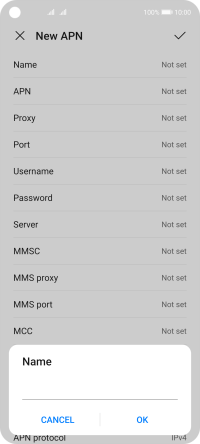

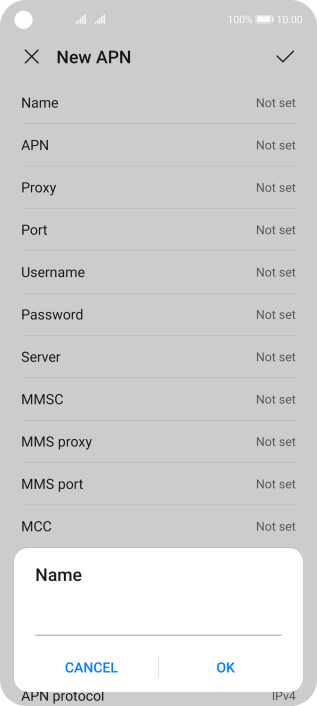

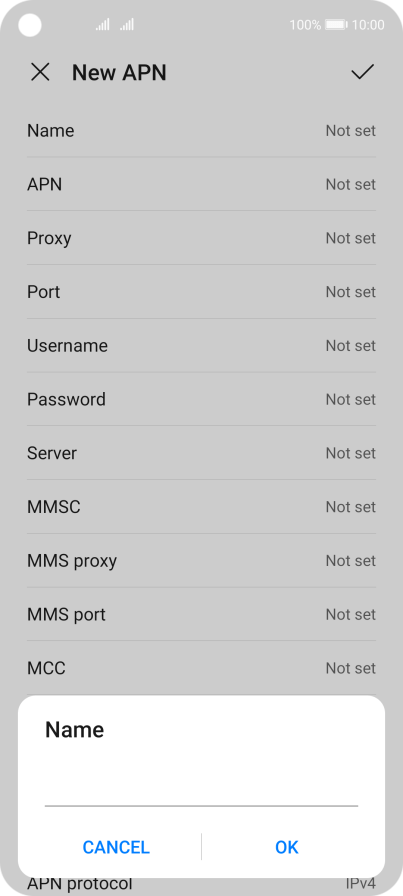

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4348e312-be8d-4827-b2a2-fdccd0537f89.png?width=200&height=448)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4b65fc-2492-4c75-8f64-458db66a73cc.png?width=200&height=448)

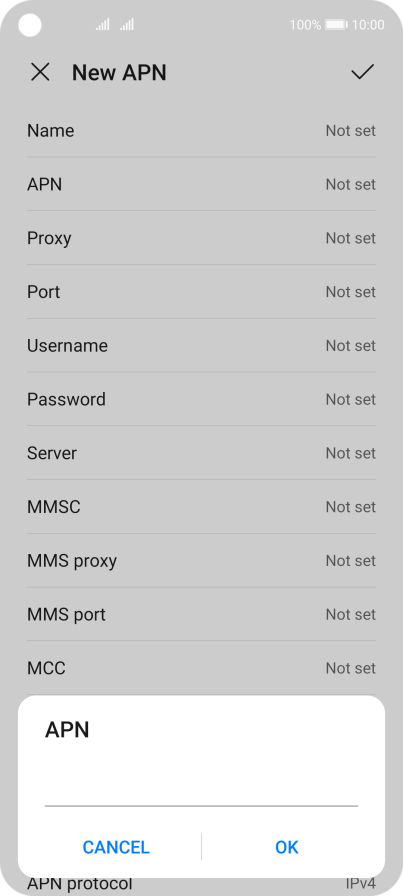

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-30af6dcb-3f38-4304-8ece-6ab149ed7934.png?width=200&height=448)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4b65fc-2492-4c75-8f64-458db66a73cc.png?width=200&height=448)
Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e7b5b757-5569-4eb2-8129-100f8d912ae7.png?width=200&height=448)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4b65fc-2492-4c75-8f64-458db66a73cc.png?width=200&height=448)

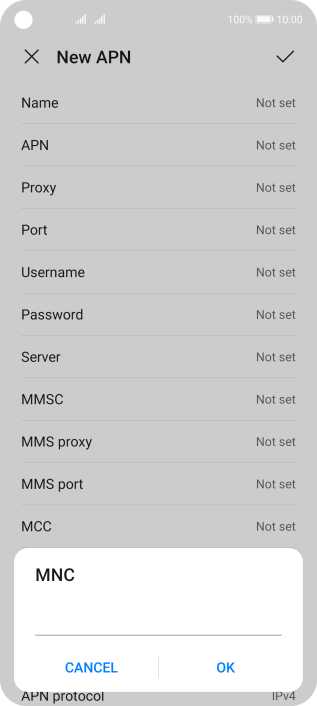

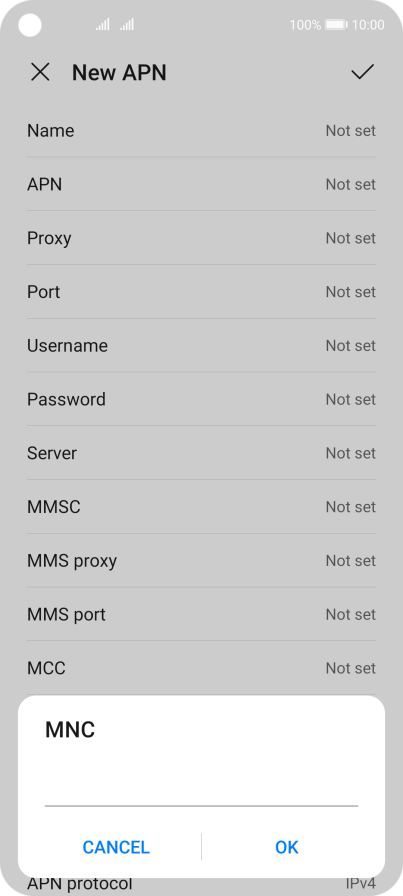

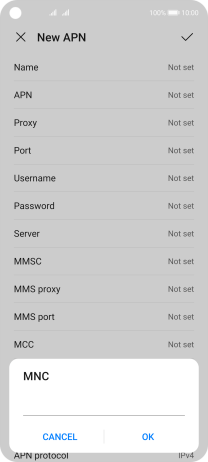

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1ea1bfb1-9bac-41ba-bf11-863a218a236b.png?width=200&height=448)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4b65fc-2492-4c75-8f64-458db66a73cc.png?width=200&height=448)

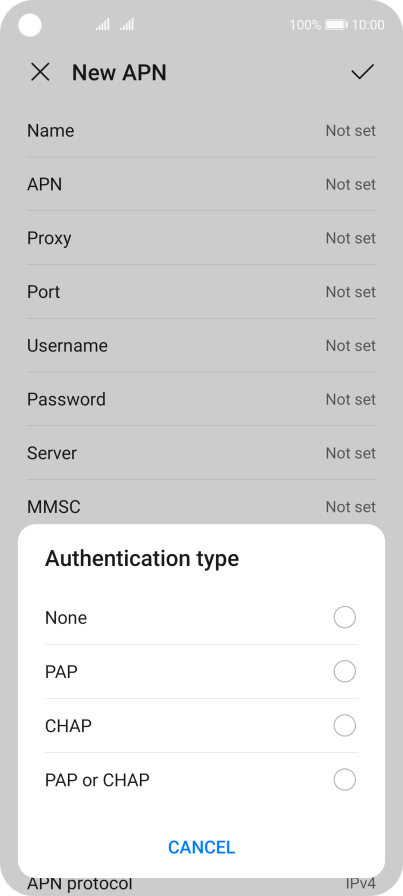

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-aa2083f7-2dcf-40b3-9c78-6f4160d24d2d.png?width=200&height=448)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4b65fc-2492-4c75-8f64-458db66a73cc.png?width=200&height=448)

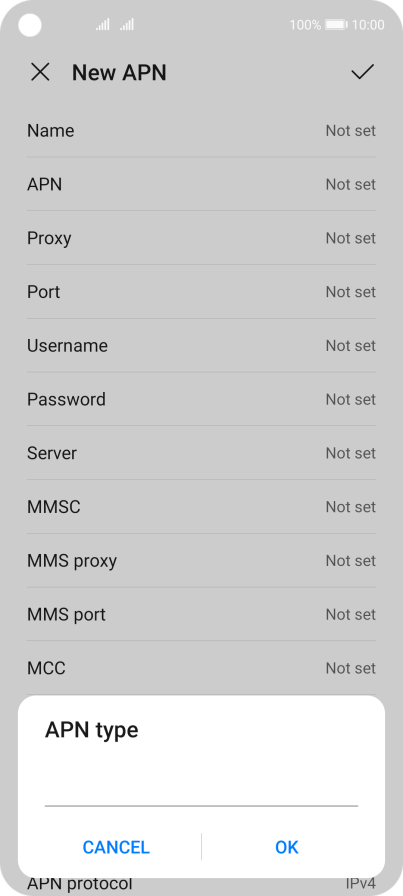

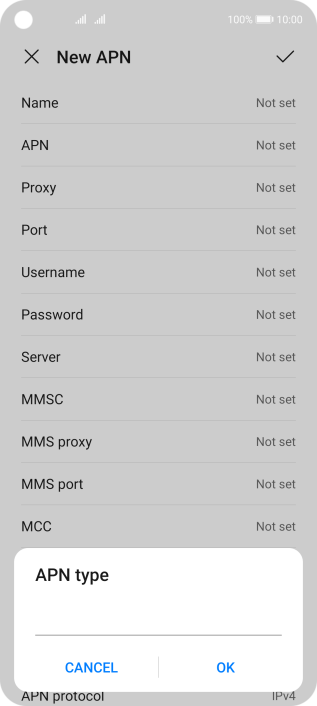

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-22949043-5a7b-451e-903d-aac62fa3f9f7.png?width=200&height=448)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-eb4b65fc-2492-4c75-8f64-458db66a73cc.png?width=200&height=448)

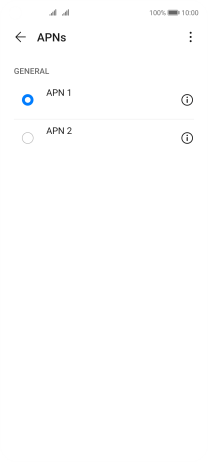

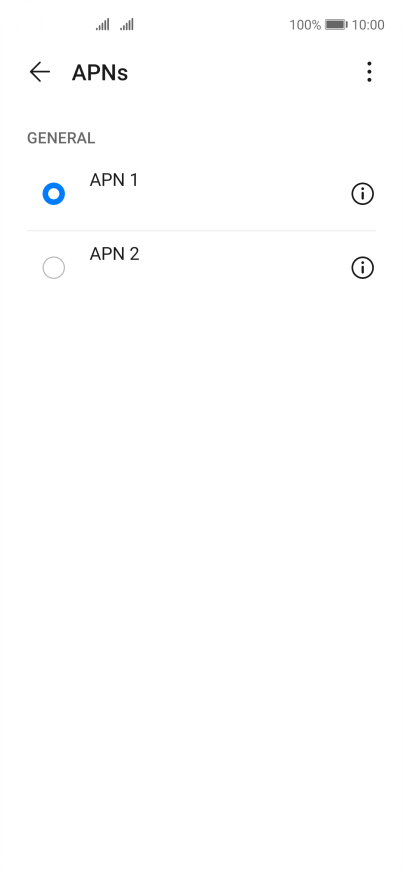

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-166cdb94-90dd-4088-b256-2167e0df51d5.png?width=200&height=448)
10. Return to the home screen

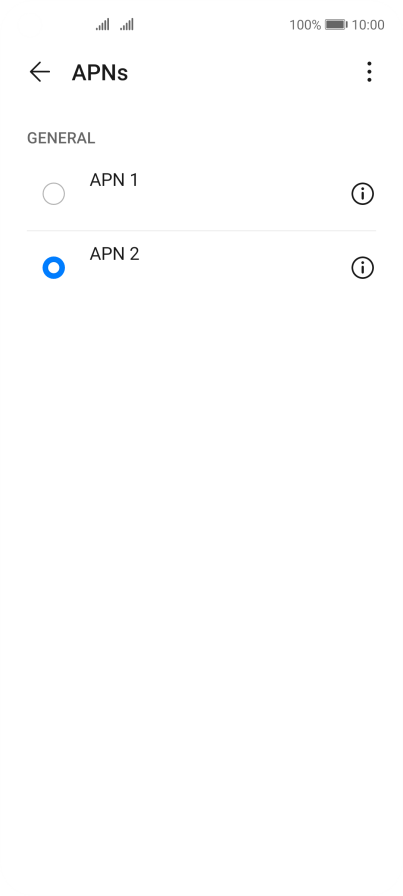

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-a7eba5be-8bc2-4b3c-9c81-730fb09db7c6.png?width=200&height=448)
