1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3cc69250-daf6-437a-9715-12720b63a844.png?width=208&height=430)

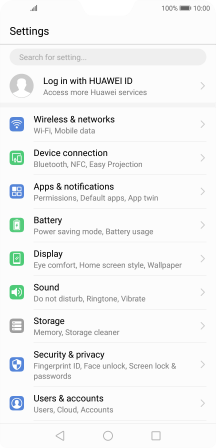

Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-19bcd425-b6a8-4243-b3b2-5ce17ee8da9b.png?width=208&height=430)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5af4f610-4180-43ac-bfd9-2d7285f72e29.png?width=208&height=430)

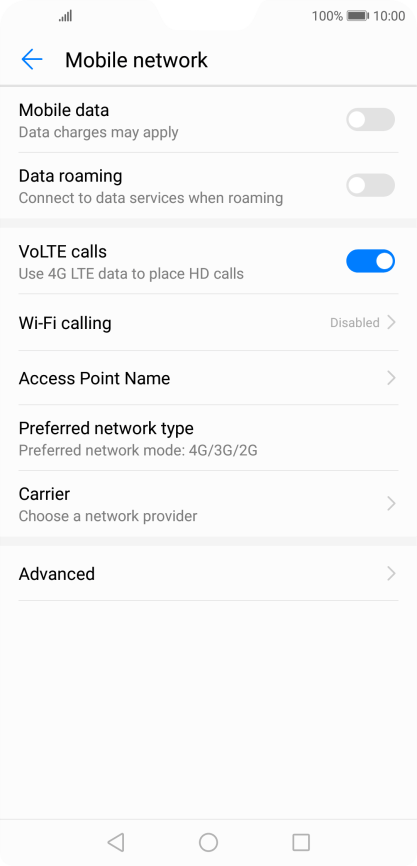

Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6069c99e-a739-404c-bb20-7daef63d6bfd.png?width=208&height=430)
2. Create new data connection

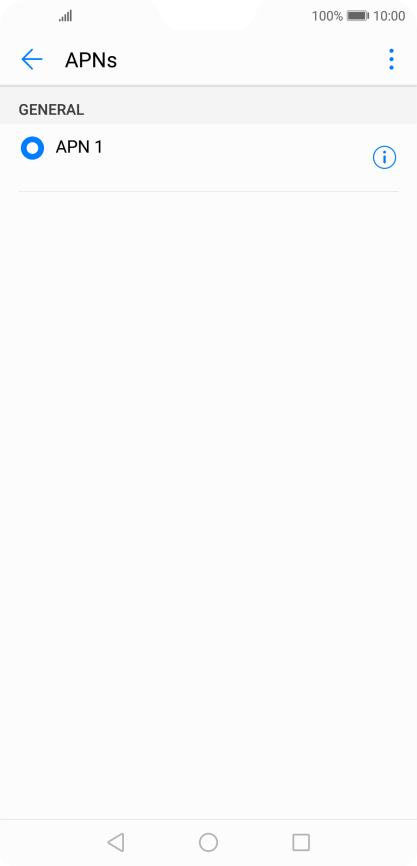

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cffa0ef1-05ae-4c82-844c-7106bddb1aa1.png?width=208&height=430)

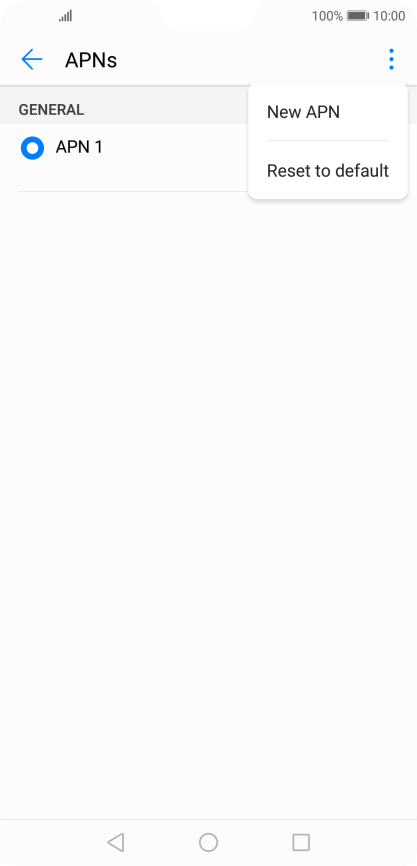

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1cb70205-5944-4d2e-a0ef-cc1ef64915d4.png?width=208&height=430)
3. Enter a name for the connection

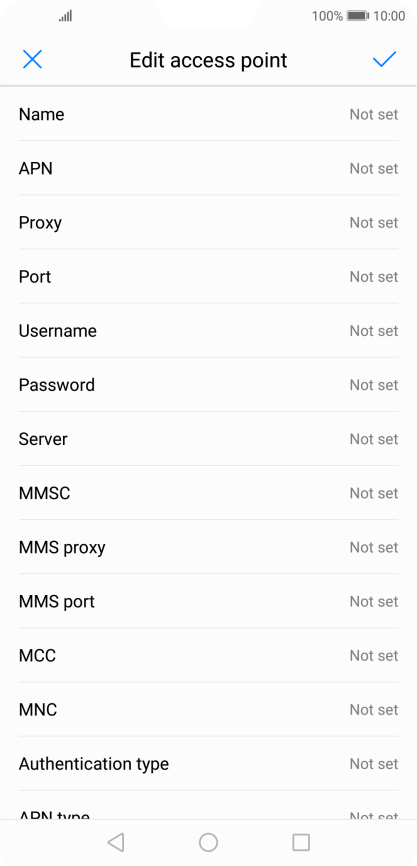

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-784e9097-003f-42f1-ad30-936deb168a77.png?width=208&height=430)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c838e610-f520-406f-996f-301a20e9f86c.png?width=208&height=430)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-784e9097-003f-42f1-ad30-936deb168a77.png?width=208&height=430)

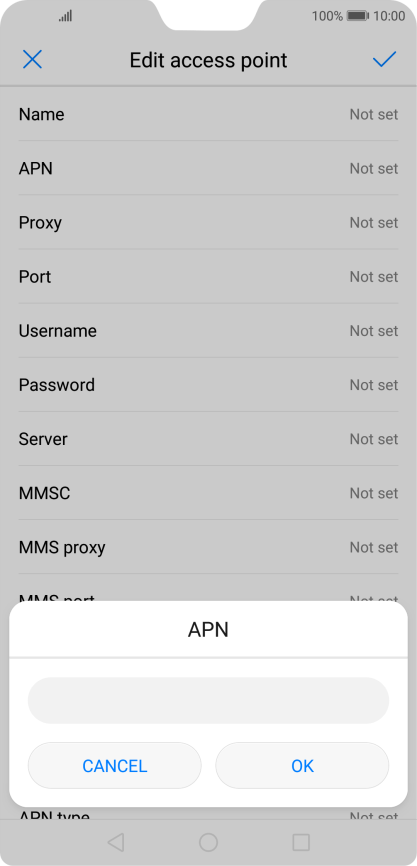

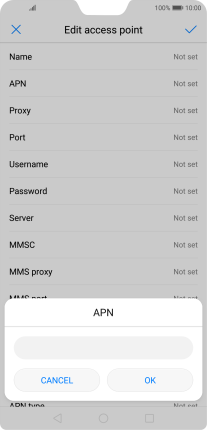

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-85c8402a-c347-4d13-aa05-e2109f573786.png?width=208&height=430)
live.vodafone.com
5. Enter country code

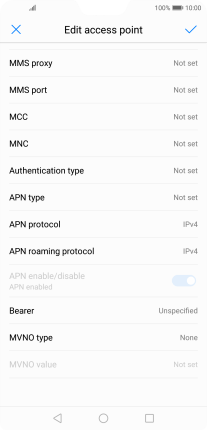

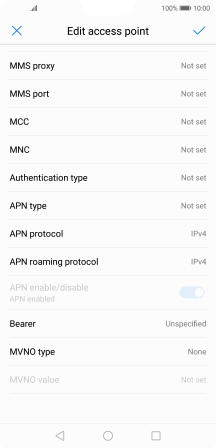

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5aa47358-f0e0-4956-a1fd-c549cdd80b47.png?width=208&height=430)

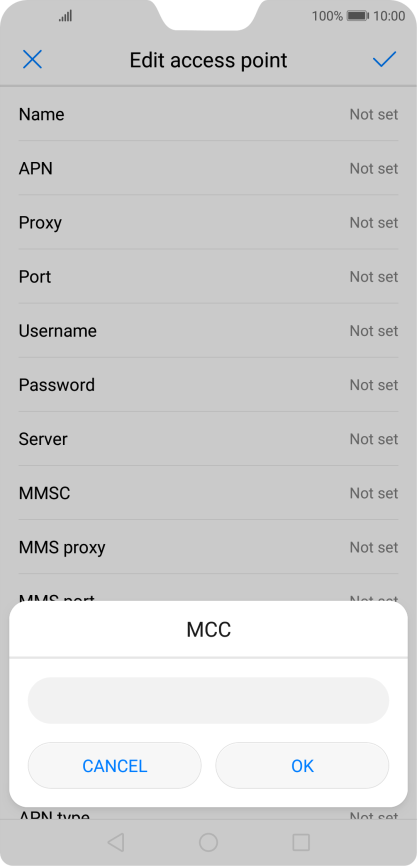

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-973bbb19-8d52-4564-b1d0-451c60128d8c.png?width=208&height=430)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5aa47358-f0e0-4956-a1fd-c549cdd80b47.png?width=208&height=430)

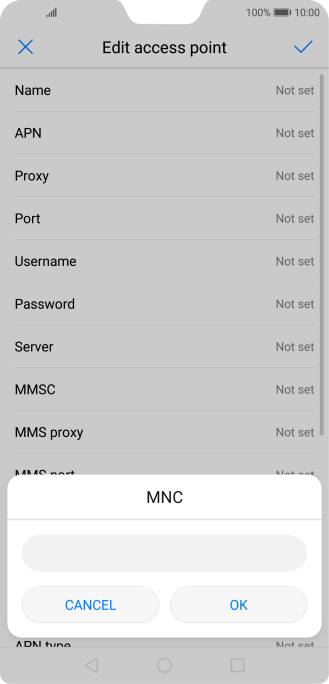

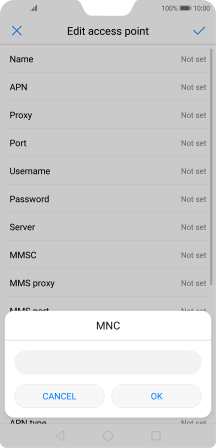

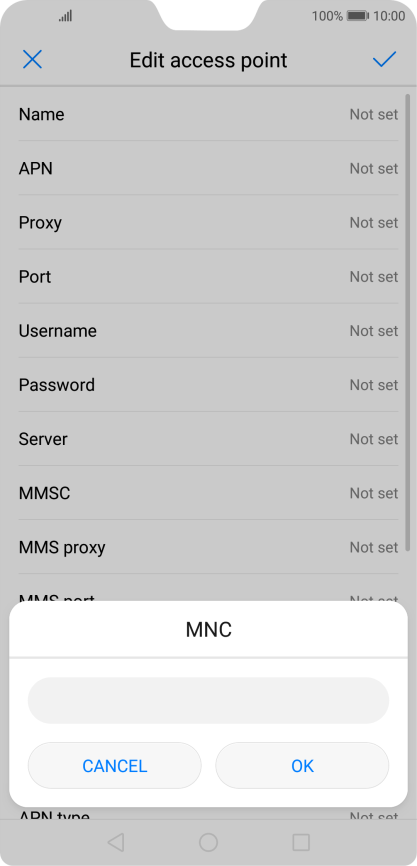

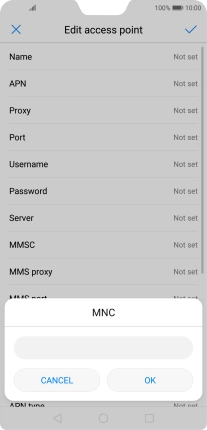

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7bb4c047-c244-43c3-b9fe-79954ae64529.png?width=208&height=430)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5aa47358-f0e0-4956-a1fd-c549cdd80b47.png?width=208&height=430)

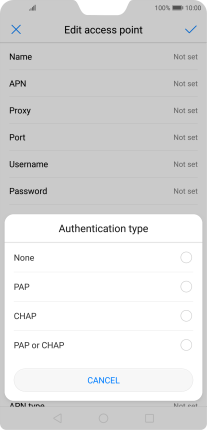

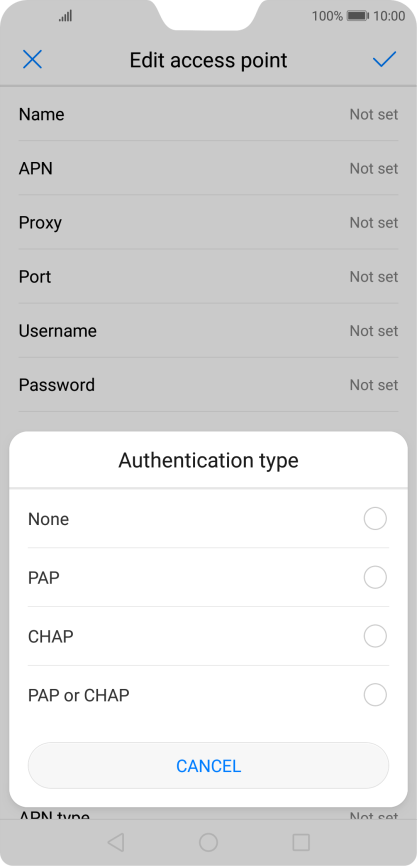

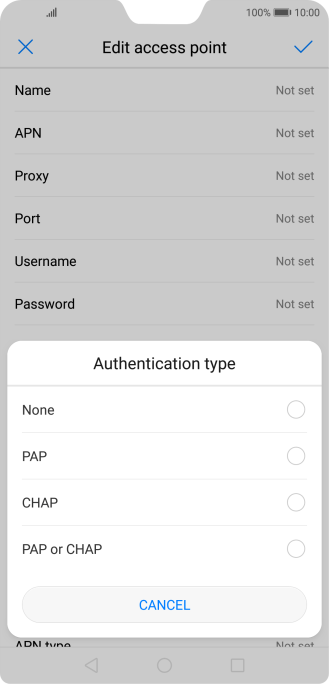

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-db1e3e9d-df16-4231-b8ff-bdc81dc93ba6.png?width=208&height=430)
8. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5aa47358-f0e0-4956-a1fd-c549cdd80b47.png?width=208&height=430)

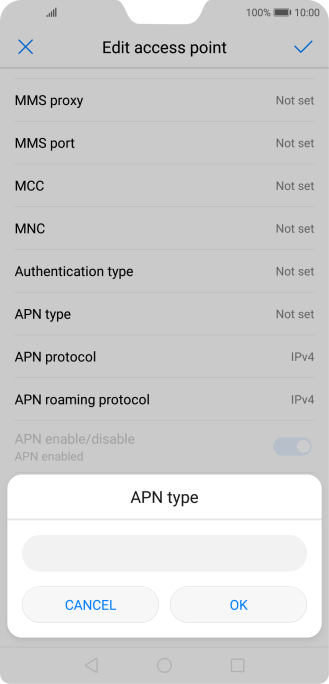

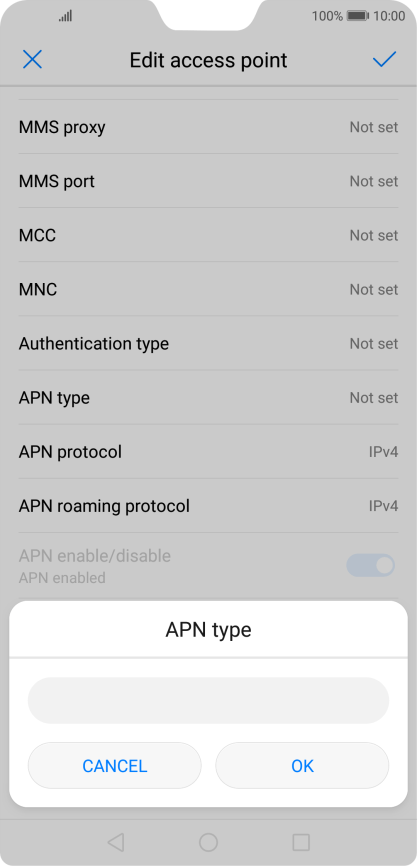

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d5d3919c-19de-4f87-8736-ef4dca80267d.png?width=208&height=430)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5aa47358-f0e0-4956-a1fd-c549cdd80b47.png?width=208&height=430)

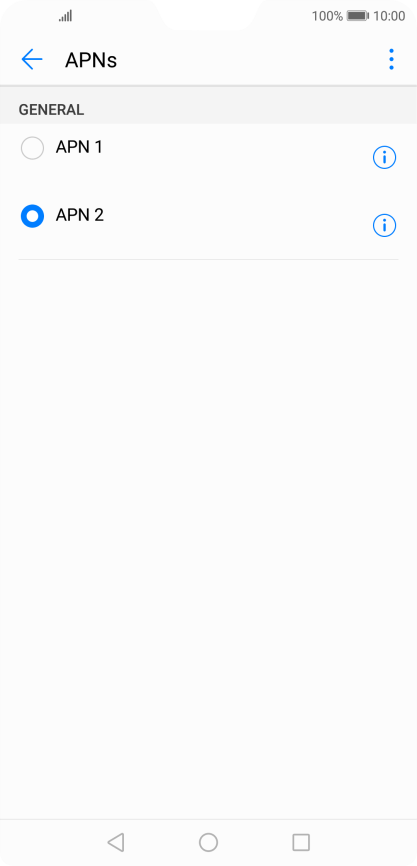

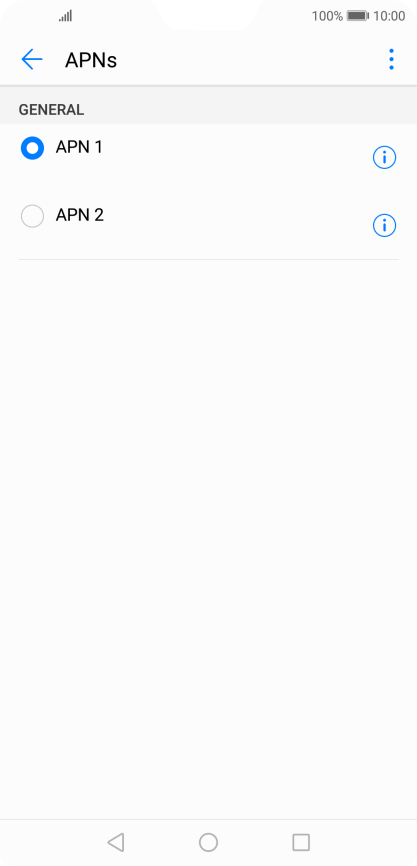

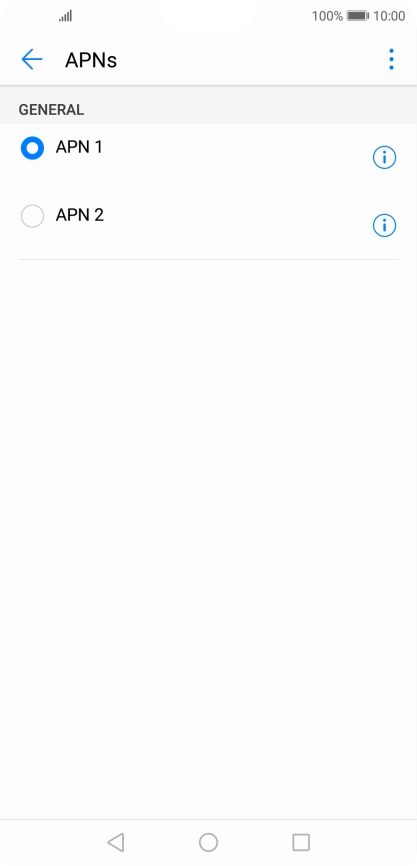

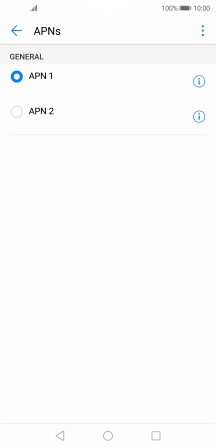

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6c9a31f0-08f3-44b6-9771-0d6b663e6a41.png?width=208&height=430)
10. Return to the home screen

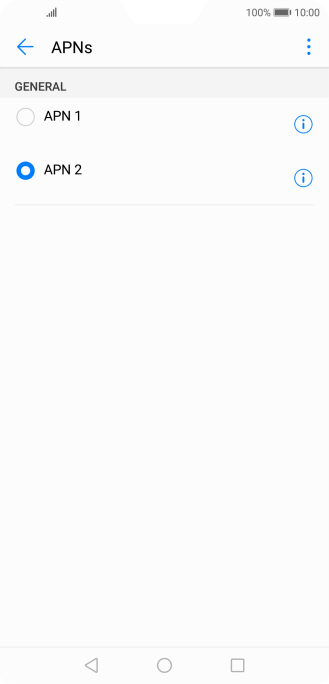

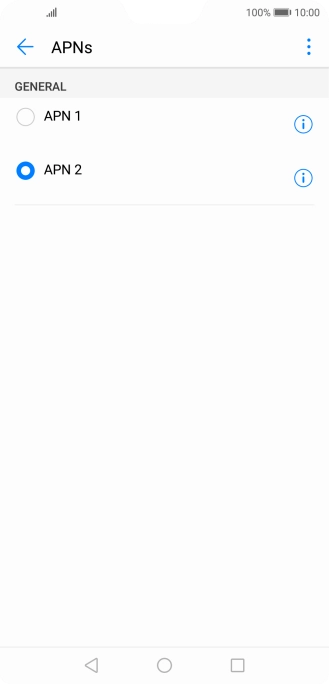

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-cfa20c32-4f44-4479-96bf-b99a358ec284.png?width=208&height=430)
