1. Find "Access Point Name"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-629147a9-be45-4c87-a829-408a04488f7d.png?width=208&height=436)
Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-23896e6e-ae7f-4756-92be-3b1b128be0c5.png?width=208&height=436)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-21162c67-9bcc-4b3c-a742-df574dcf8302.png?width=208&height=436)

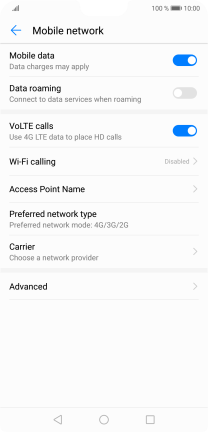

Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3d598a19-e26b-4018-a4b7-d7a664e1bc6d.png?width=208&height=436)
2. Create new data connection

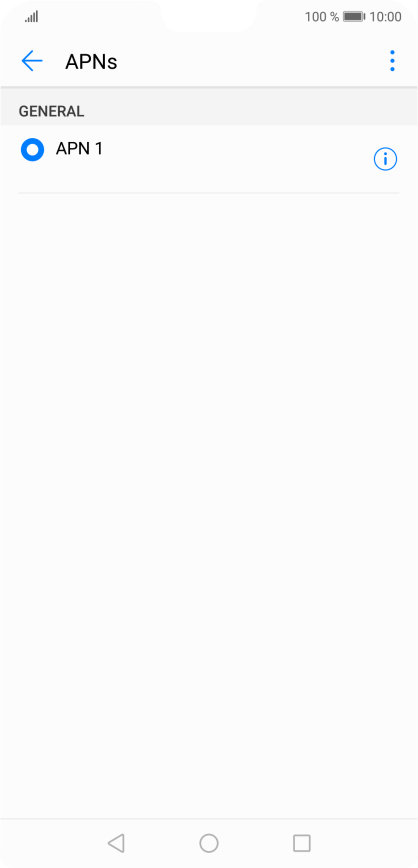

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-4c1d0edb-02f3-4cb1-9efb-f38cdf14ac3e.png?width=208&height=436)

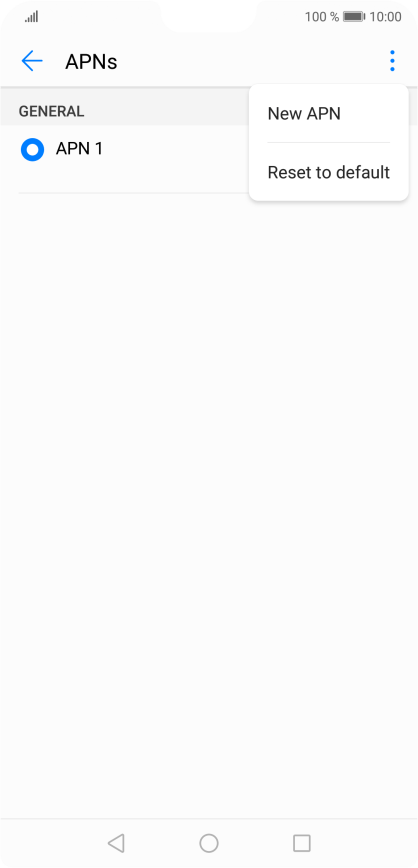

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-62e9d7d1-c3af-44c5-8a78-0189d856bbef.png?width=208&height=436)
3. Enter a name for the connection

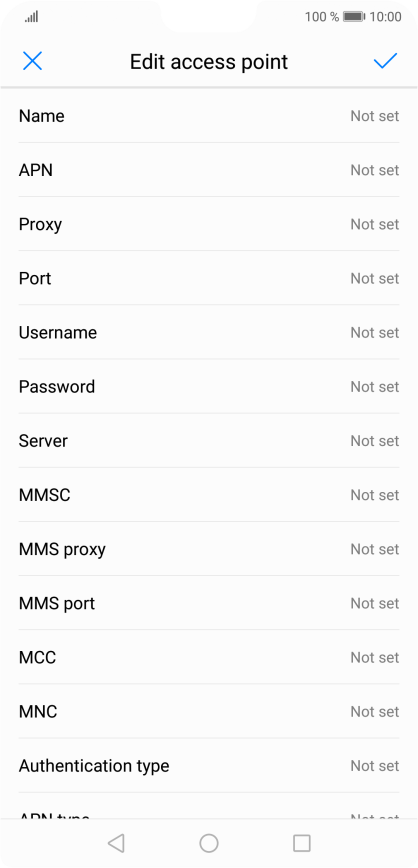

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-16dba0c3-75a0-4d4d-bac1-b0f971cdc9b0.png?width=208&height=436)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b81626ce-cd08-4aca-ab27-c6c26cb1f45e.png?width=208&height=436)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-16dba0c3-75a0-4d4d-bac1-b0f971cdc9b0.png?width=208&height=436)

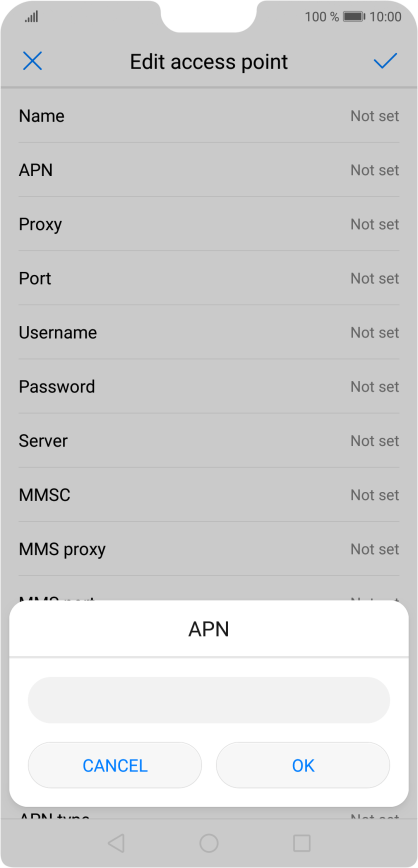

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e68bf312-796a-41c6-88ce-f297b6f11644.png?width=208&height=436)
live.vodafone.com
5. Enter country code

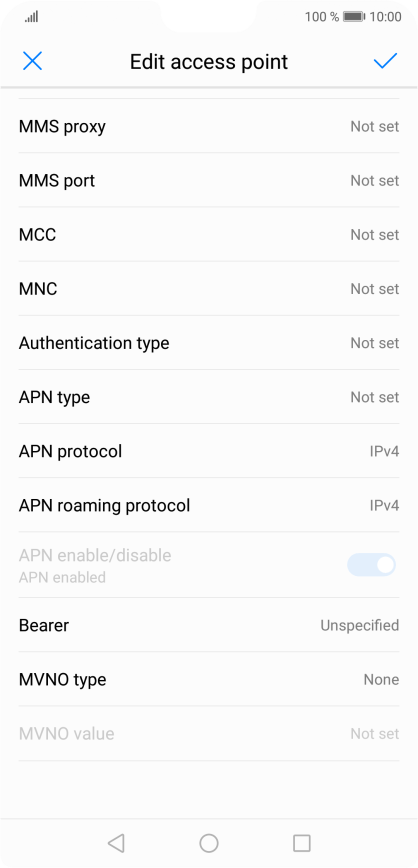

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-590d5a40-c7cf-4110-8140-5cb30e036185.png?width=208&height=436)

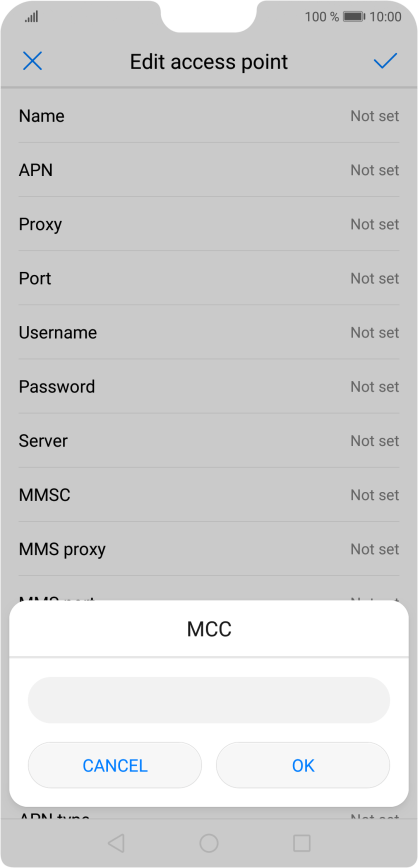

Key in 272 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dd37f1c0-d53b-49a7-9ea5-ccb35417ef05.png?width=208&height=436)
272
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-590d5a40-c7cf-4110-8140-5cb30e036185.png?width=208&height=436)

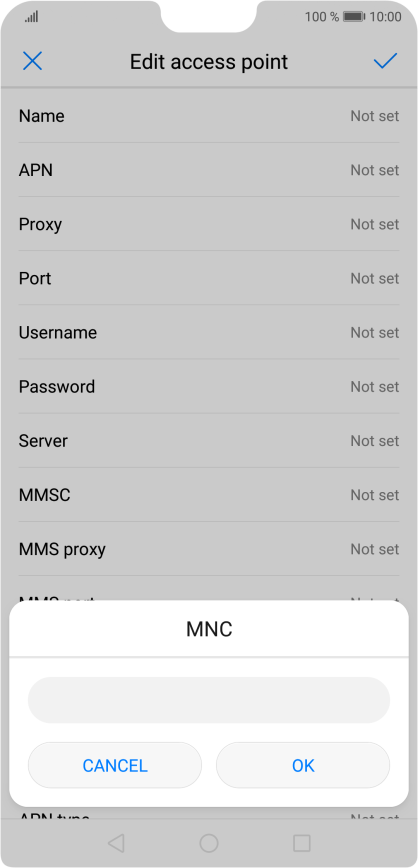

Key in 01 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-56717d7c-ee1e-471b-bd5a-35bea3d839e4.png?width=208&height=436)
01
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-590d5a40-c7cf-4110-8140-5cb30e036185.png?width=208&height=436)

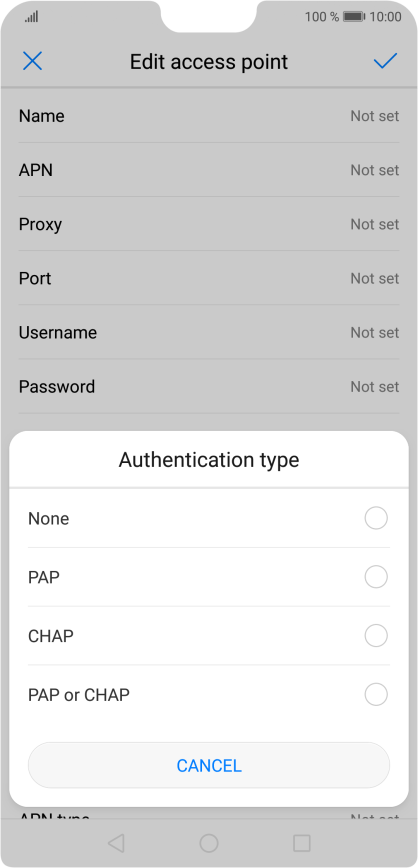

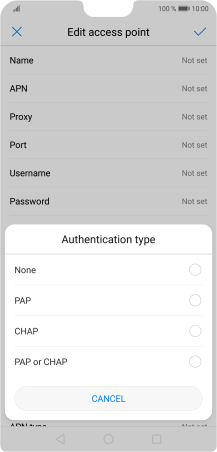

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-7ea8a8e2-6f92-4fb8-945a-d31e2fef5681.png?width=208&height=436)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-590d5a40-c7cf-4110-8140-5cb30e036185.png?width=208&height=436)

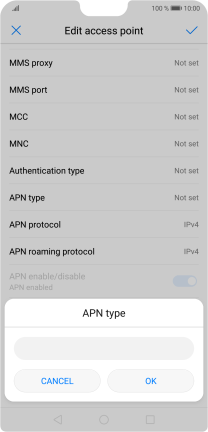

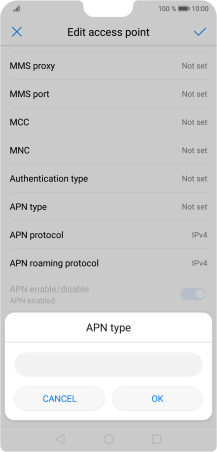

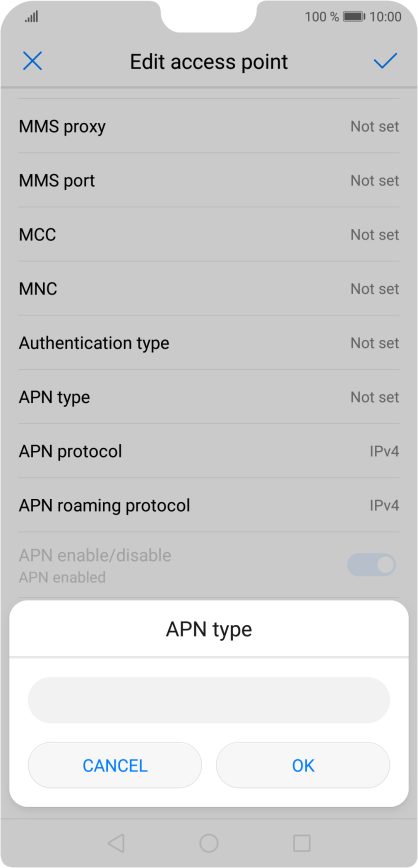

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-bbba498f-92cd-4102-ac3b-ec1b3515f1a5.png?width=208&height=436)
default
9. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-590d5a40-c7cf-4110-8140-5cb30e036185.png?width=208&height=436)

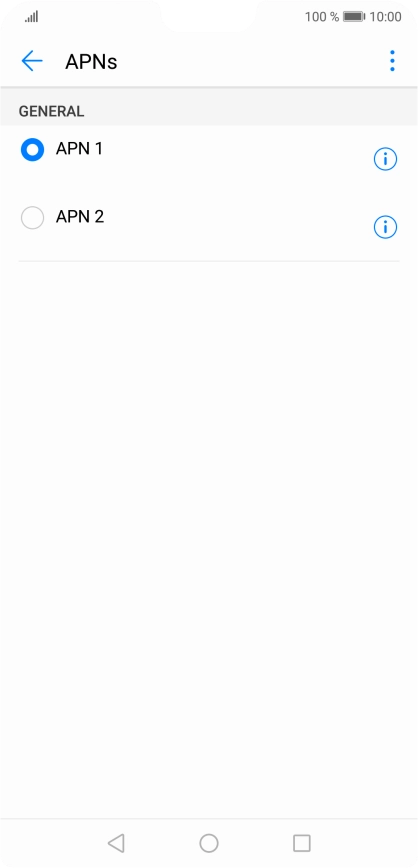

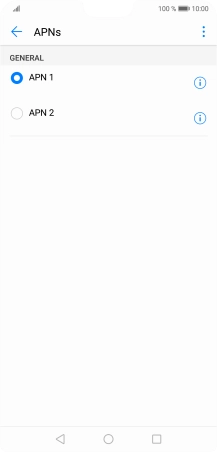

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-3c033021-4e24-4d48-901b-b74c50ca594d.png?width=208&height=436)
10. Return to the home screen

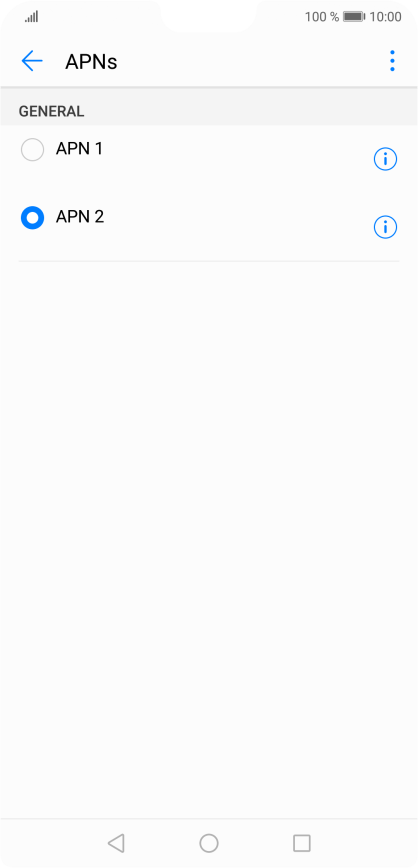

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-ca096397-8f01-49fd-9b13-96155e4442cb.png?width=208&height=436)
